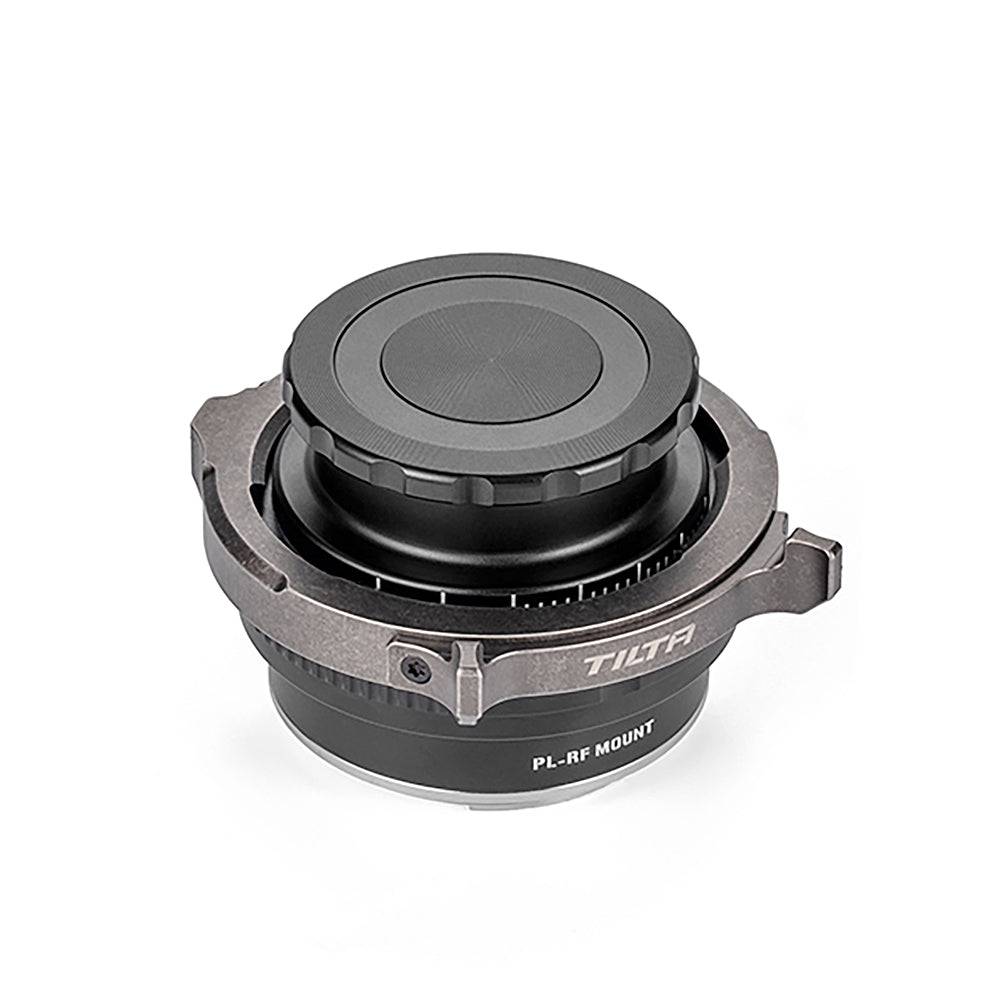

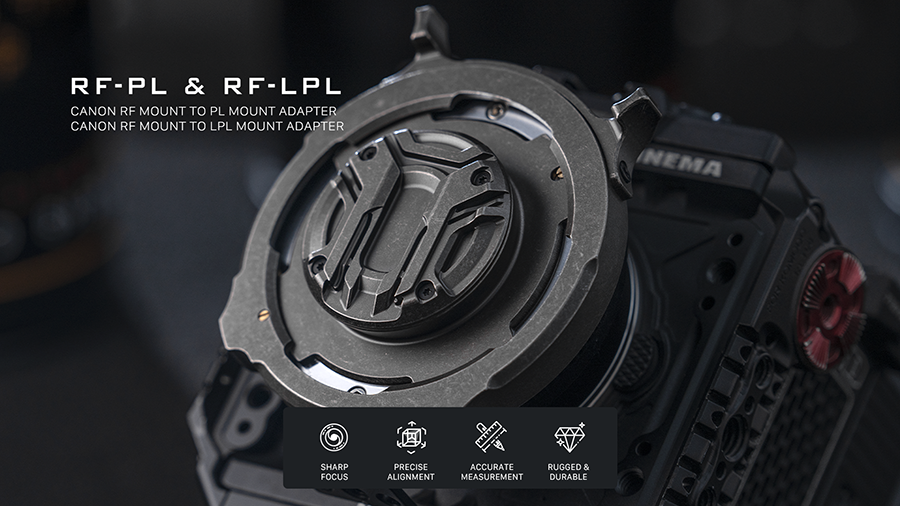

TiLTA TA-RF-PL2 Adjustable Back Focus Canon RF Mount To PL Mount Adapter

  • Brand: TiLTA
  • SKU: TA-RF-PL2
  • Product code: 534764
£350.00 £420.00 Inc VAT Price Match
This Canon RF Mount to PL Mount Adapter allows users to mount PL Mount Lenses on camera bodies with Canon RF Mounts and adjust the back focus to accommodate different...

This Canon RF Mount to PL Mount Adapter allows users to mount PL Mount Lenses on camera bodies with Canon RF Mounts and adjust the back focus to accommodate different sensors via an included adjustment tool.

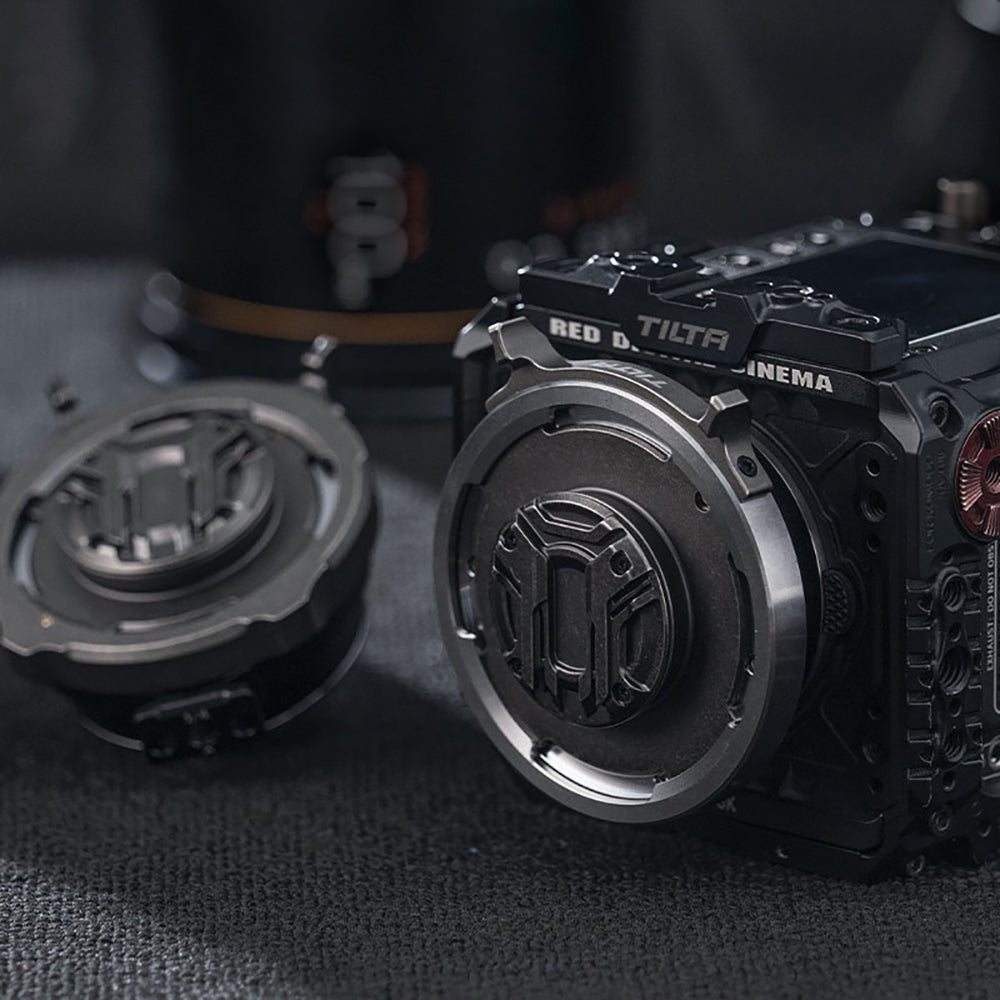

This PL Mount offers the same incredibly secure industry standard connection as our previous version and allows users to mount most high end cinema lenses on their RED Komodo, Canon R5/R5C or any other RF Mount Camera Body.

The included Back Focus Adjustment Tool allows you to easily adjust the back focus on this adapter, ensuring you are getting the sharpest image possible on any RF Mount sensor.

The markings on the Adjustment Tool make it easy to quickly change the back focus for different camera bodies once you have already found the perfect back focus for various sensors.

The ARRI Positive Lock design provides a fast and secure connection which saves time on set and provides increased assurance.

The 1/4″-20 thread on the bottom of this adapter is compatible with our optional adapter supports for different camera cages.

This creates an additional point of contact between the adapter and your camera cage in order to ensure a strong connection between the lens and camera body.

This is especially helpful for when you are using heavier lenses or when when using wireless follow focus motors.

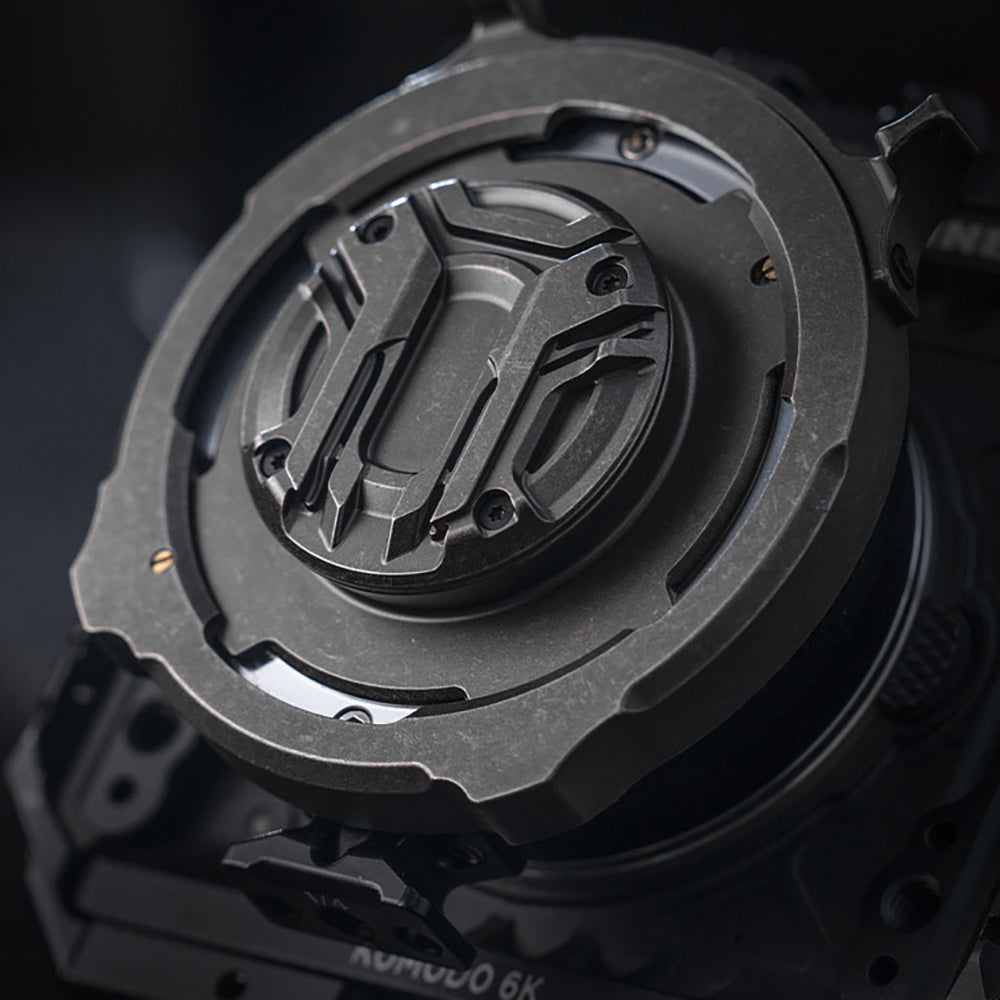

A custom PL Port Cap is also included with this kit.

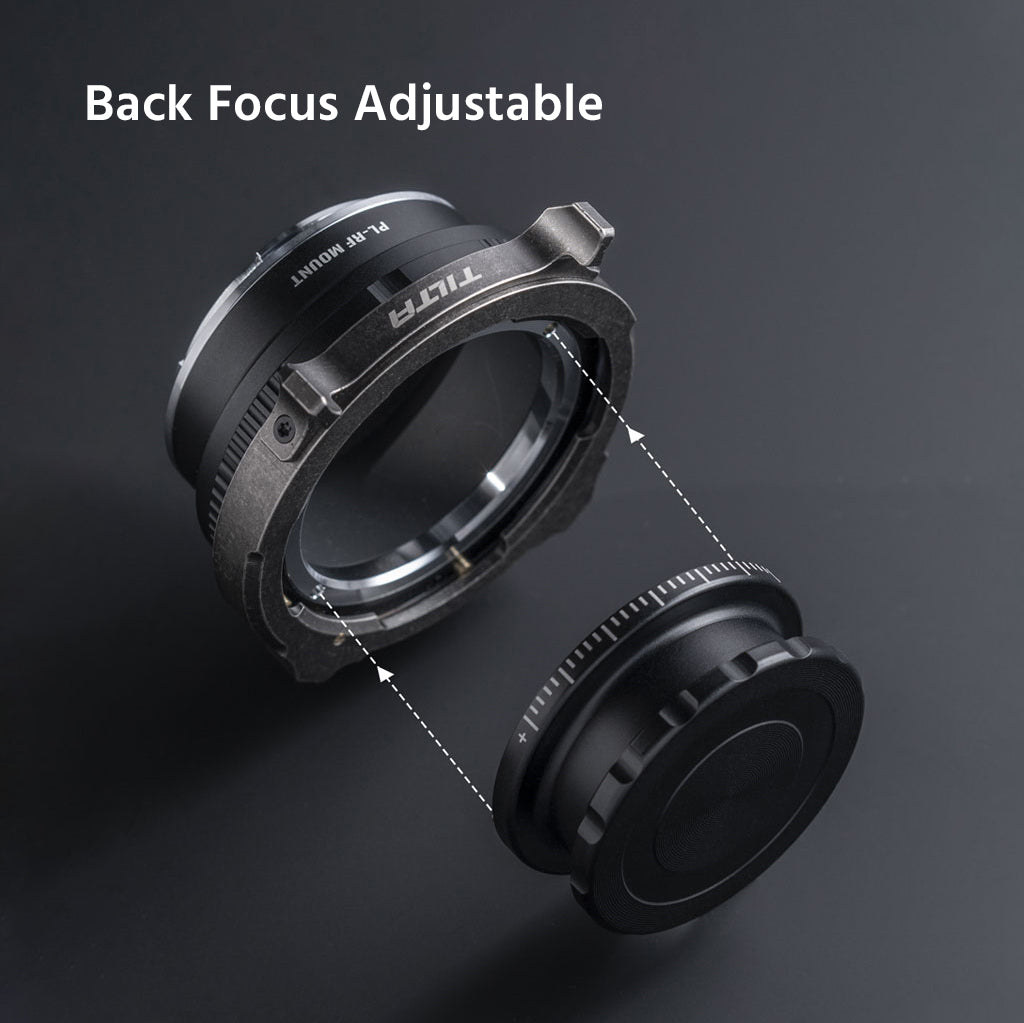

Adjustable Back Focus

Align the adjustment tool with the locating points. Rotate to adjust the flange focal length.

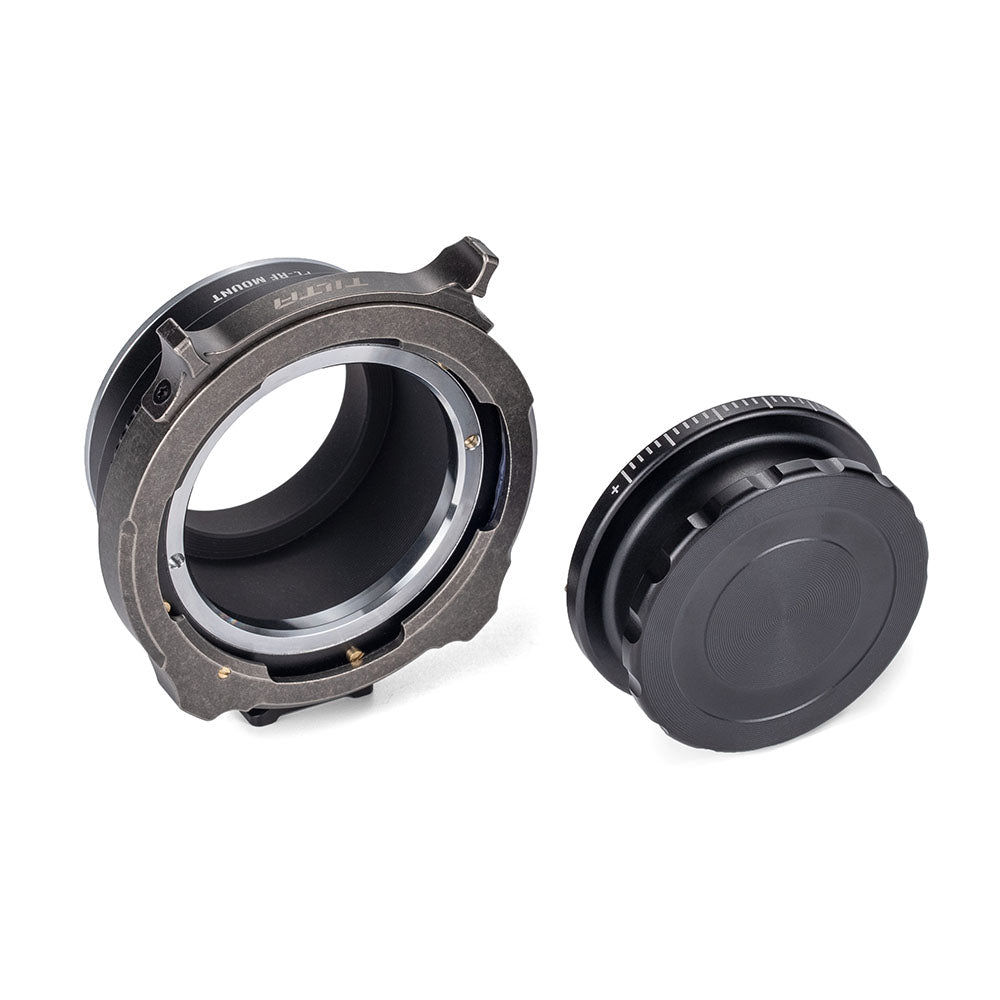

Manual Back Focus Adjustment Tool

The total rotating distance is 0.15mm with 30 grid units. Every grid unit is 5um (0.005mm). There are two metal locating points on the adjustment tool which when aligned with the lens adapter, can be used to adjust the back focus.

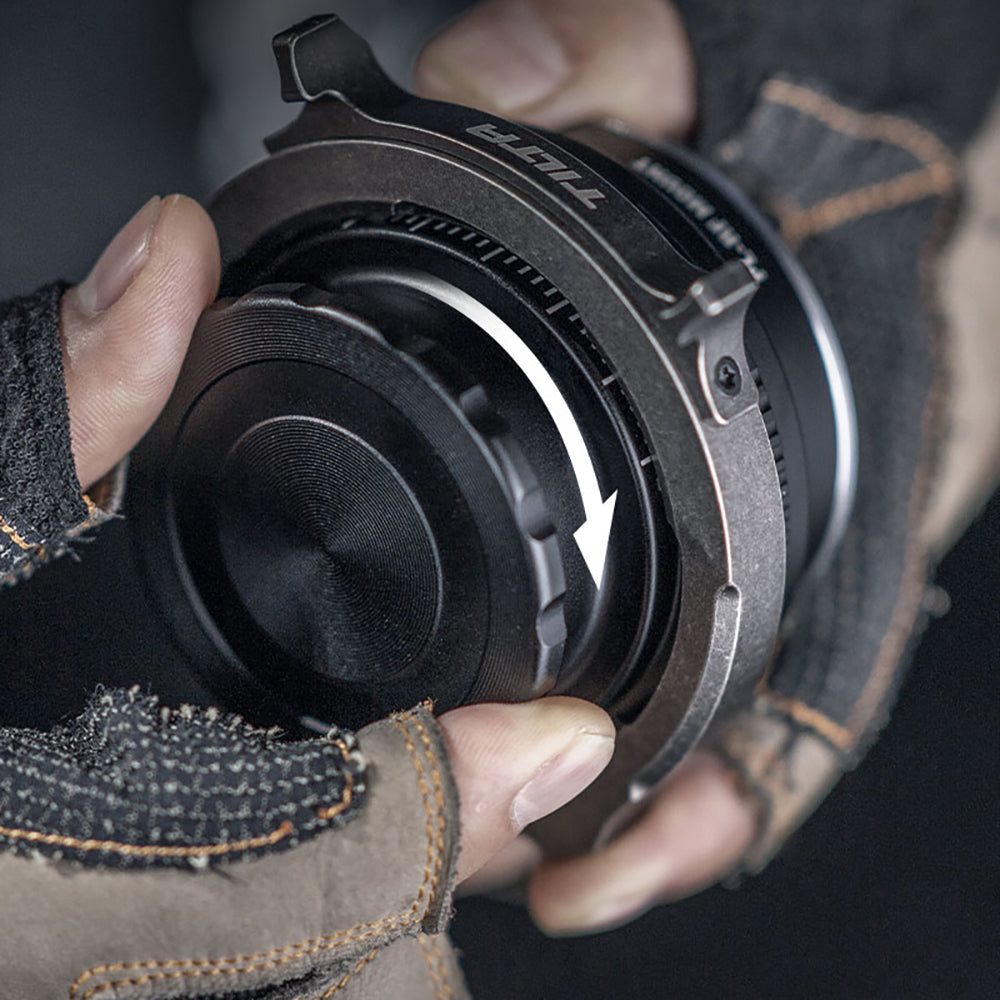

Manual Back Focus Adjustment

Rotate the adjustment tool clock-wise to reduce the flange focal distance. Rotate the adjustment tool counter clock-wise to increase the flange focal distance. Every grid unit is 5um (0.005mm).

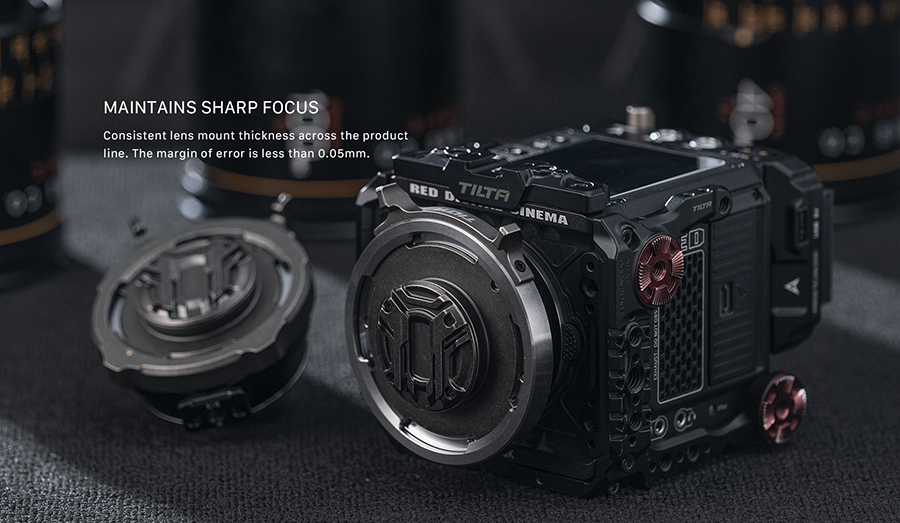

Snug Fitting With No Leeway

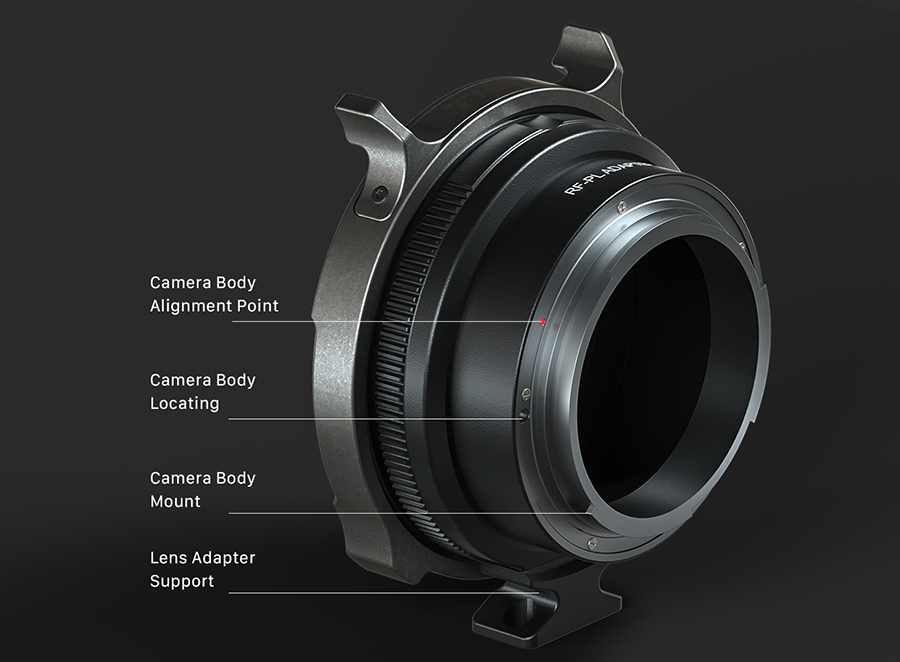

Highly compatible with the original camera body mount. The precise measurement guarantees a perfect fitting with no leeway.

Fine Craftsmanship Leads To High Reliability

Refined craftsmanship and polish at every corner.

Compatible With All Cameras With RF Mount

Support the mounting of an array of PL/LPL cinema lenses. More options lead to more creative possibilities.

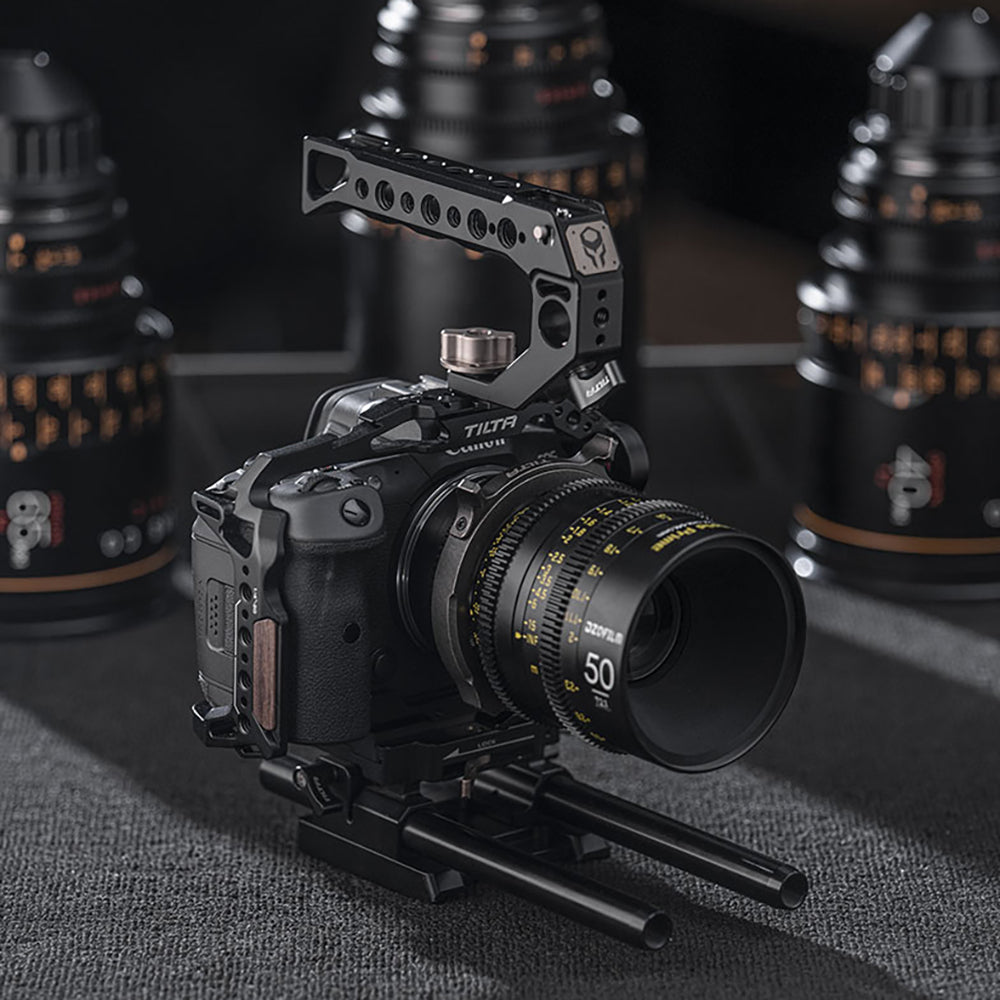

Compatible With Canon Full Frame Cameras

Supports mounting PL/LPL lenses to Canon full-frame cameras.


Electroplated surface for a tactical look.

Threaded Inner Wall With Matte Finish

Effectively absorbs reflected light and avoids veiling glare, flare, light leak, etc.


Dimensions: 7.5 x 5.5 x 3.5 inches
Weight: 1.21 lbs

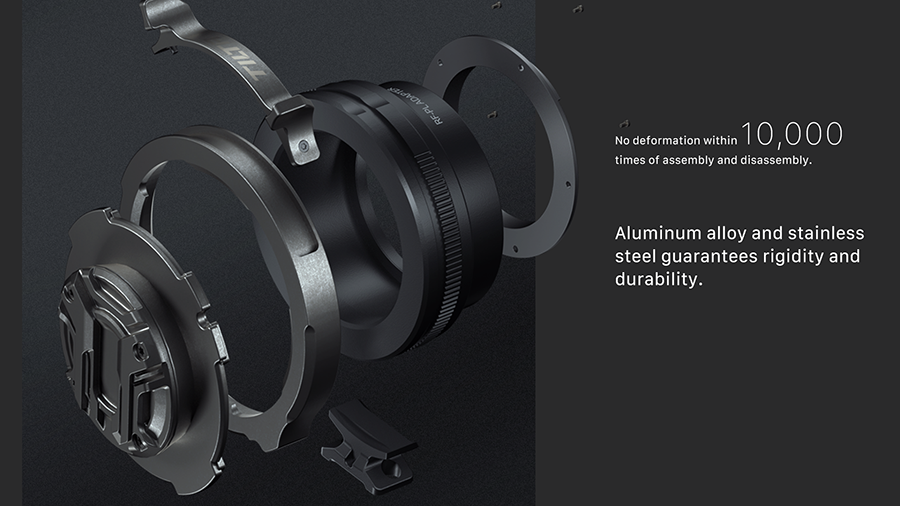

Materials: Aluminum-alloy
Color: Tactical Gray / Black

Package Contents:
1x Tiltaing Canon RF Mount to PL Mount Adapter

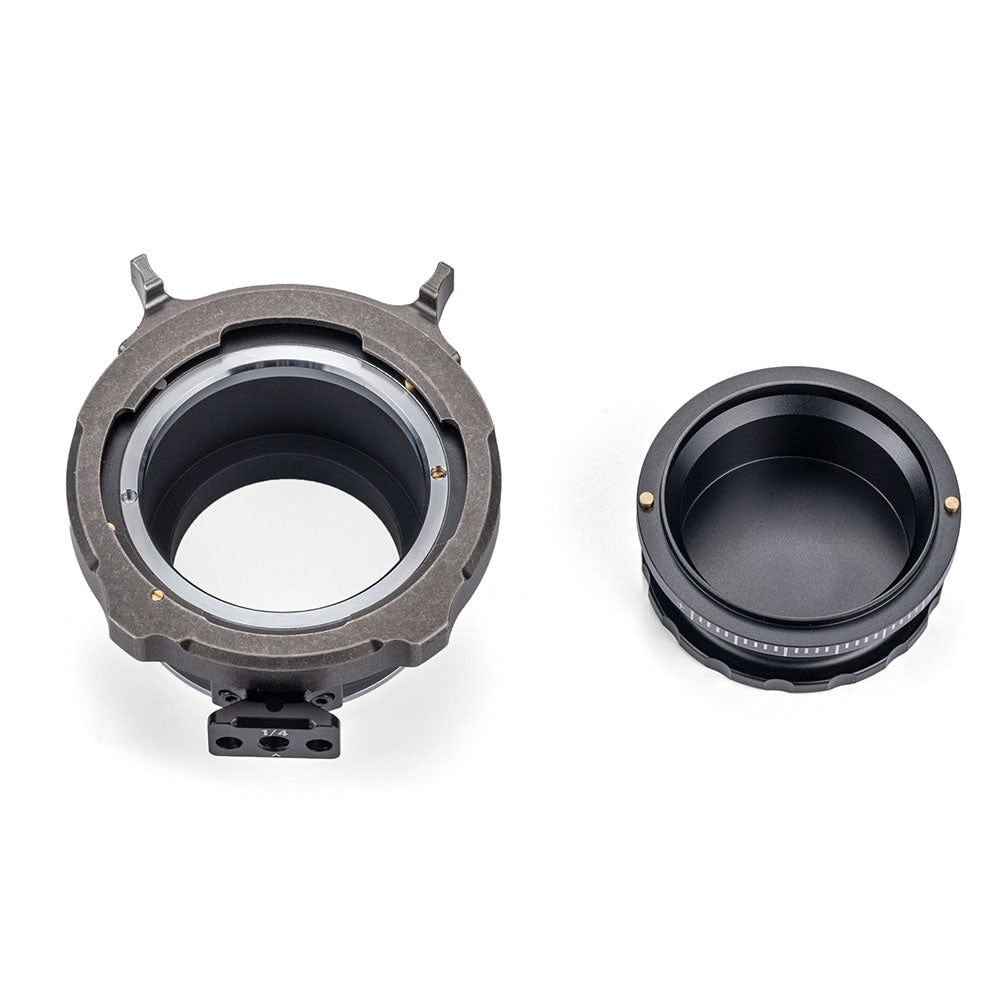

1x Adjustable Back Focus Tool
