TOP PL ATE
Multiple built-in 1/4"-20 and 3/8'-16 screw holes to meet your setup's needs.
FRONT TOP PLATE
Matches the same height as the original Red camera top plate. Built-in cold shoe mount, 1/4"-20, and 3/8"-16 screw holes.
SIDE ARM
Built-in NATO rail onthesideofthe camera cage. Reserved space for a rosette mount as well as 1/4"-20 and 3/8"-16 screw holes.

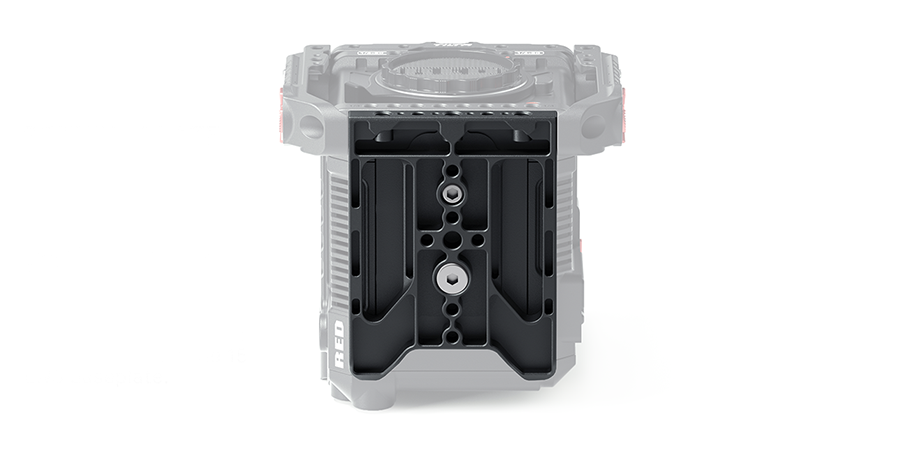

BOTTOM PLATE
A lens adapter support can be installed to the front of the bottom plate. Multiple . built-in 1/4"-20 and 3/8"-16 screw holes on the bottom plate for mounting to a shoulder rig. Mount to a Manfrotto quick release plate to pair with the 15mm LWS baseplate.

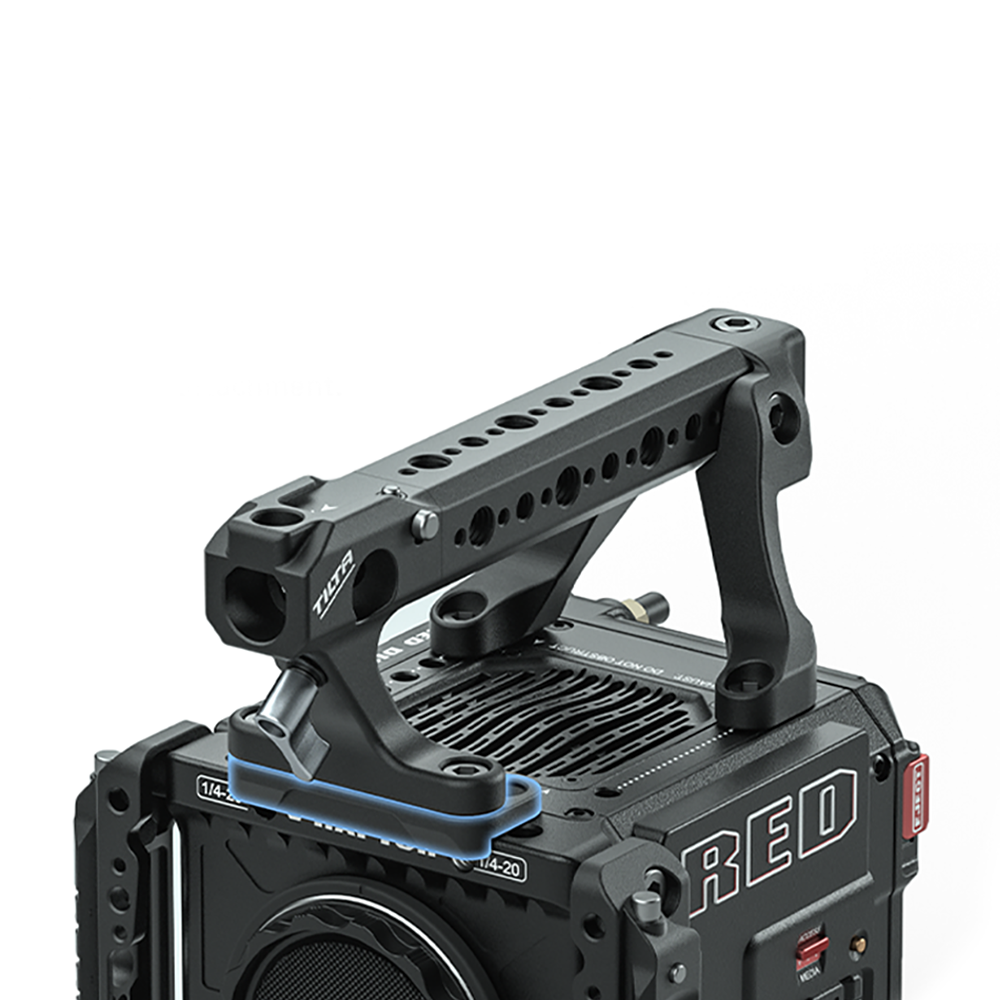

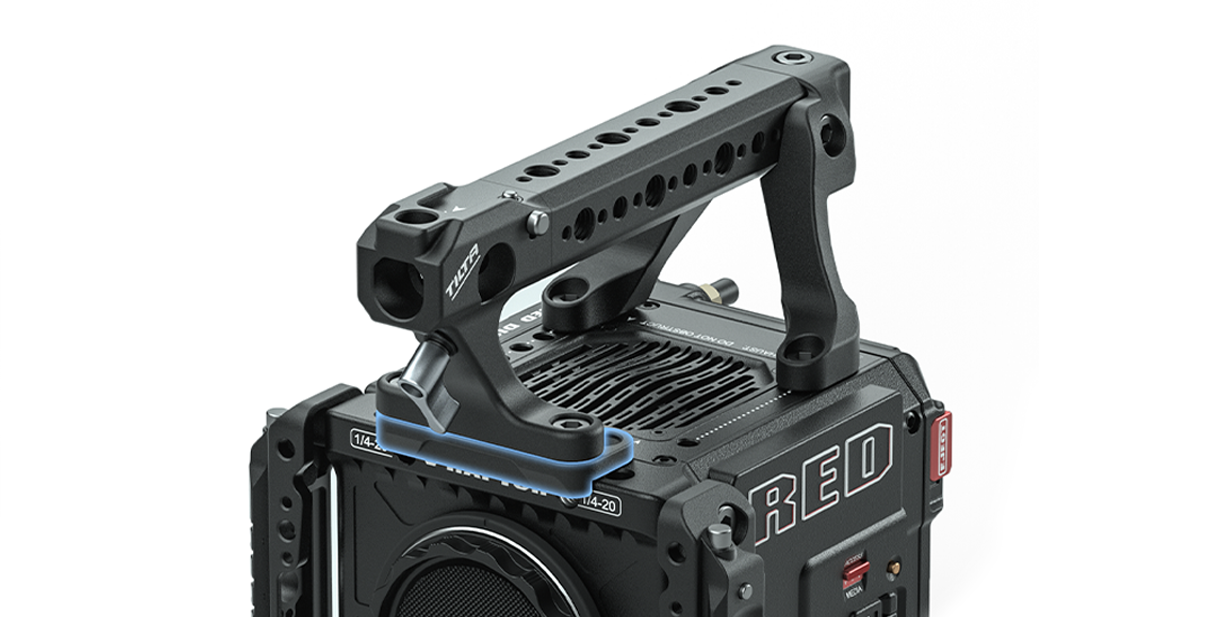

TOP HANDLE
Install directly to the camera body. Also compatible with Tilta's front top plate
TOP HANDLE ADAPTER ATTACHME NT
Install the top handle directly to the top of the camera body via the top handle adapter attachment.

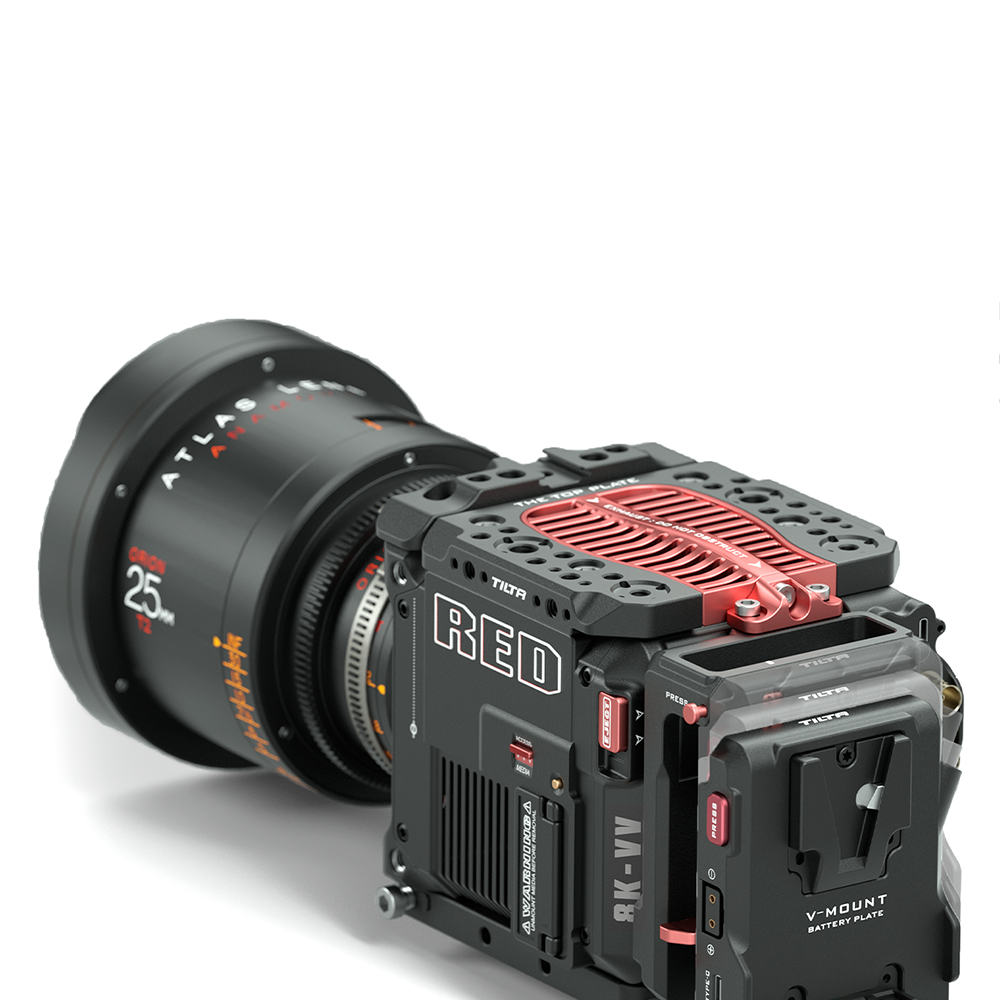

POWER SUPPLY SYSTEM

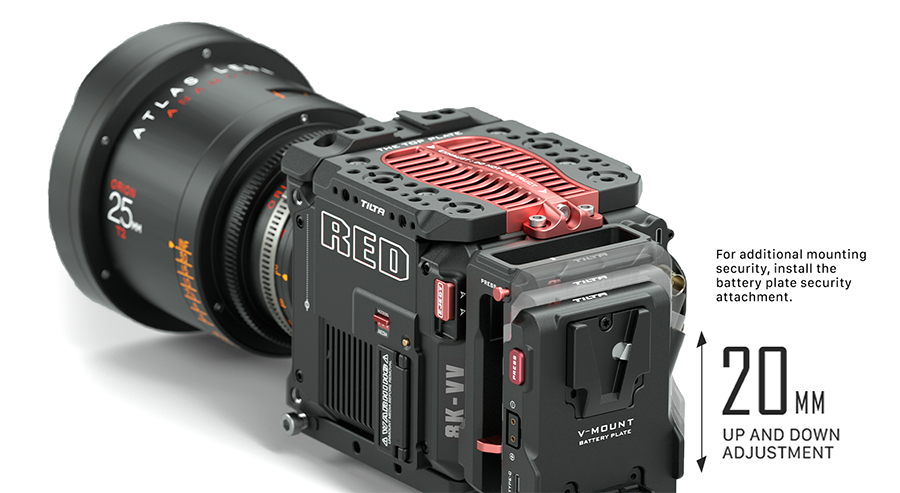

The original V-Raptor's V-lock cannot hold larger batteries securely. The Tilta V-mount battery plate can be adjusted up and down within a 20mm range to allow mounting larger-sized batteries than previously possible.

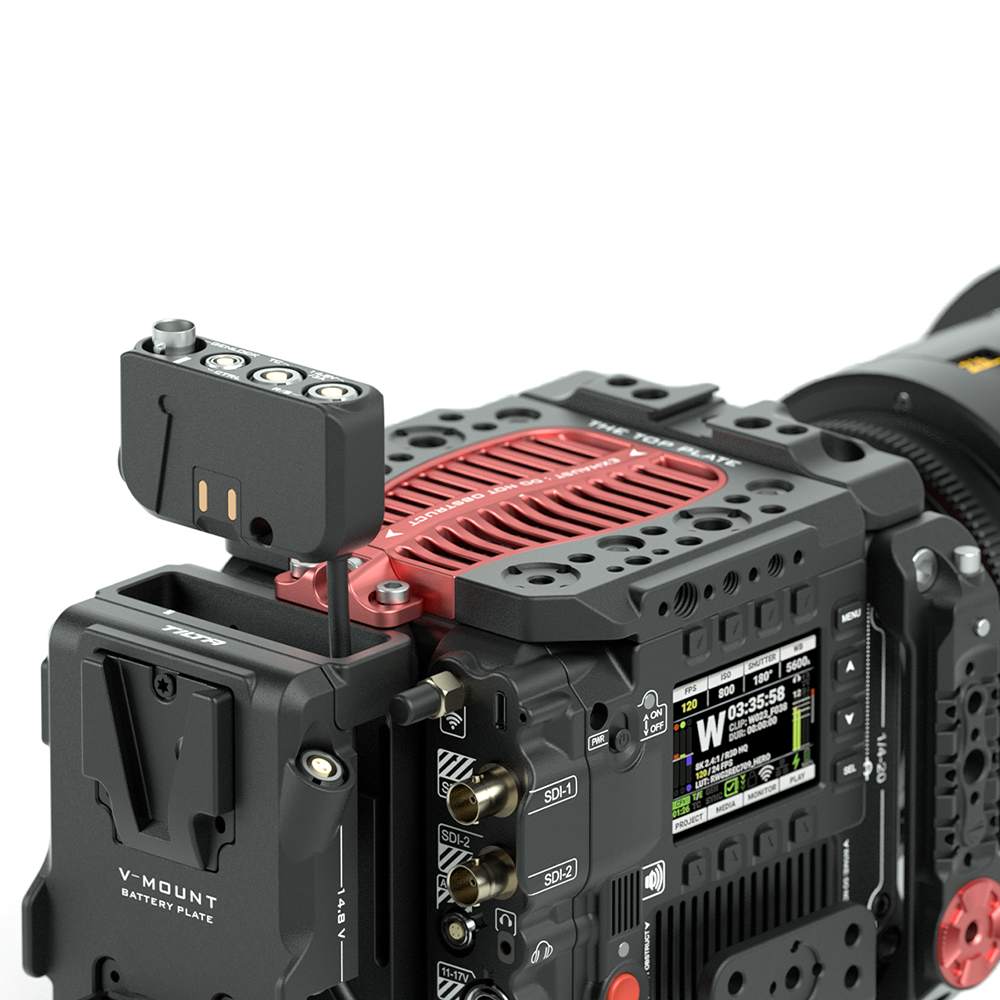

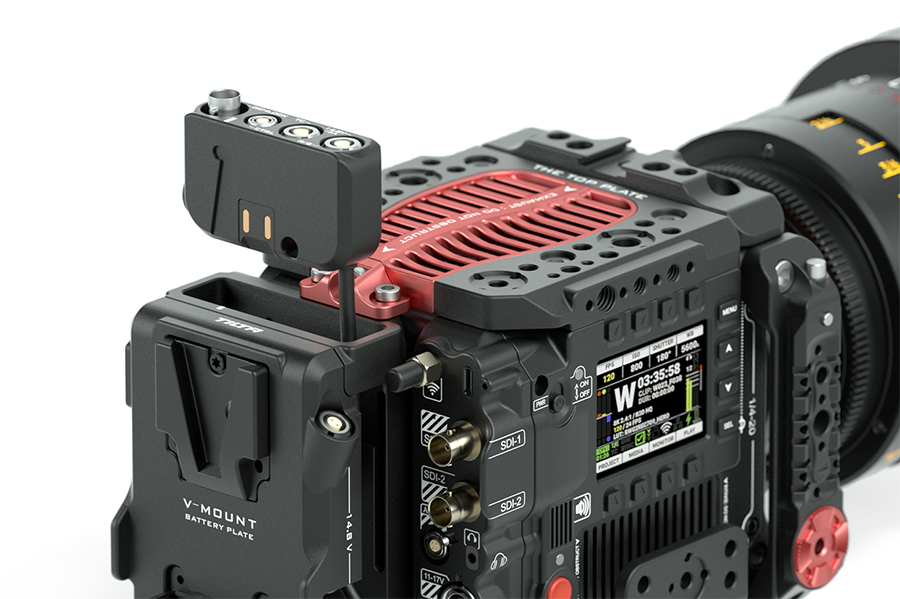

THE BATTERY PLATE CAN POWER HTE I/O MODULE DIRECTLY.
Align the I/0 module with the contact points on the battery plate. Slide the module into the slot. The battery plate can power the module directly via the contact points. The 2-pin LEMO port can provide 14.8V output power.
15MM BASEPLATE
Compatible with 19mm baseplate.
Features:
Various configuration possibilities
Black walnut wooden side handle with quick adjustable design.
The front top plate is interchangable with the RED monitor interface module.
The transformed handle has reserved space for battery access. Provides optimal precision while operating.

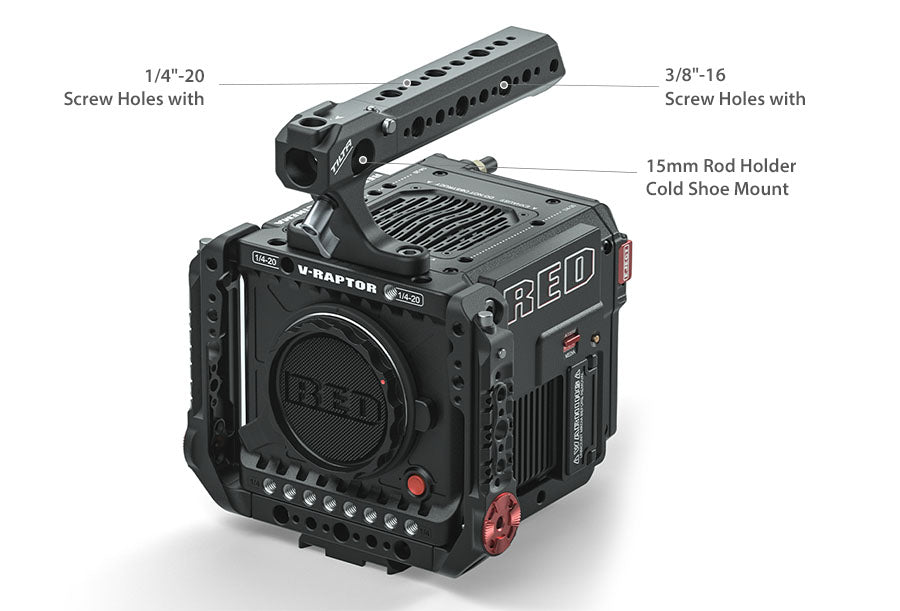

The top handle comes with built-in 15mm rod holder in the front and the side. Allows you to install a 15mm rod to work with the original monitor mounting adapter.
Custom side handles made from black walnut. Ergonomic and fully adjustable design to fit your operating needs. Easy installation via the NATO rail on the side arms. Quick angle adjustment via the release button.
14.8V 2-PIN LEMO port ×2; 14.8V P-tap port ×1; USB-C port ×1; Contact points power output (Provides power for the I/O module); Aux power output 7.5A total (MAX) ; DC output (11-17.5V)
Genlock port; CTRL (Purchase Tilta Indie 7 control cable to control camera settings.); Timecode port; R/S (14.8V) (This port can power the lens control motor.) ; Side 2-pin DC input (When the I/O module is installed to a different part of the camera cage, it can be powered through the 2-pin LEMO port.)
Mounts onto the side of the bottom plate on the full camera cage. Supports mounting of accessories such as an articulating arm, I/O module, wireless video transmitter, camera index patches, etc.* The mounting of the bottom mounting plate might affect access to the side of the camera. Please purchase accordingly.

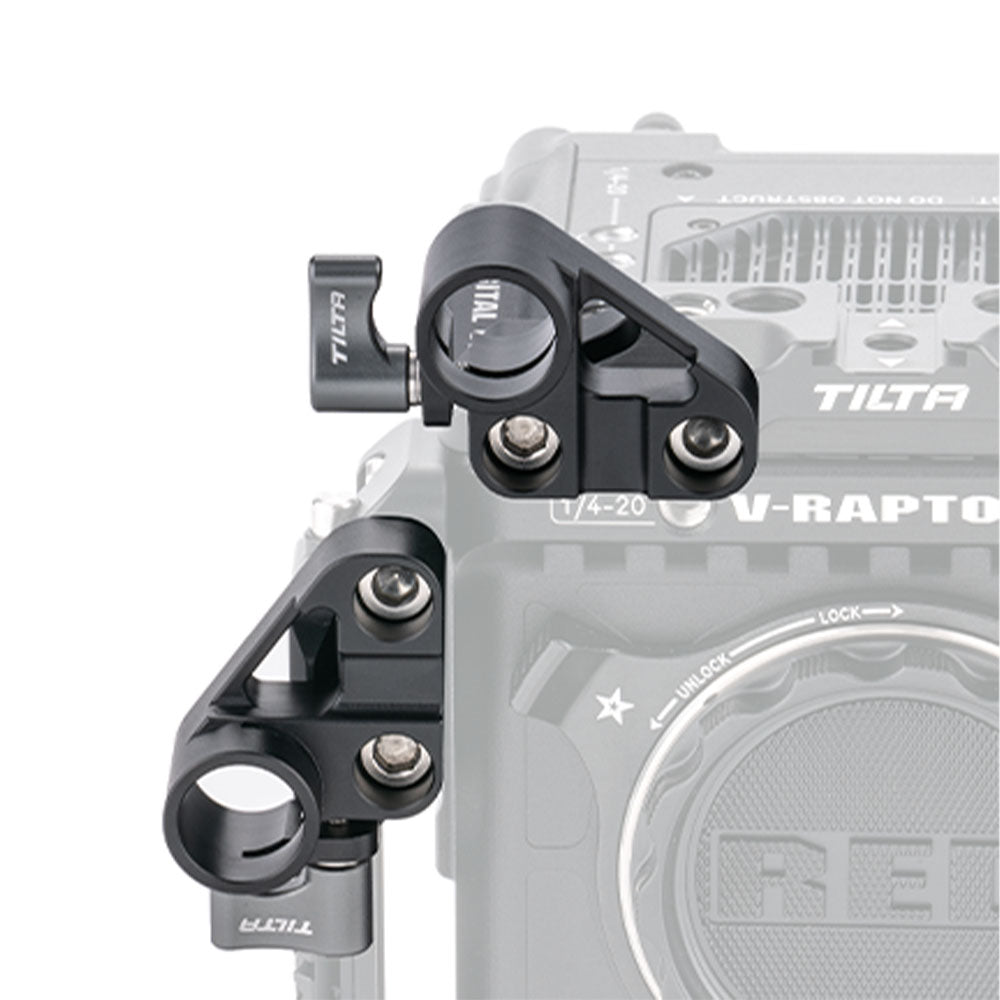

The 15mm single rod holder can be installed to the front top plate and the side arm of the full camera cage. Allows you to mount various accessories such as a wireless lens control motor.
Arm your camera with the Advanced Kit for RED V-RAPTOR.
The Full Camera Cage provides protective armor for the RED V-Raptor and greatly expands your options for mounting accessories. The cage features both ¼”-20 and 3/8”-16 threads, integrated NATO Rails for Side Handles and two Arri compatible rosettes. The included 15mm LWS Baseplate and two 15mm Rods allow you to utilize rod based accessories such as matte boxes and follow focus systems. Under the Baseplate you’ll find a Tilta Standard Dovetail Receiver which can be adapted to support Arri Standard Dovetails via our optional Tilta Standard to Arri Standard Multi-Functional Baseplate. The Top Plate and Rear Top Plate offer expanded options for mounting accessories without interfering with the camera’s ventilation. The Top Plates include 1/4″-20 and 3/8”-16 mounting points, both with and without locating pins and a single Cold Shoe Receiver. The Rear Top Plate also includes exhaust vents engineered to mimic the V-Raptor’s integrated ventilation system in order to provide maximum cooling capability. The Top Handle attaches to both the Top Plate and Front Top Plate which creates a secure point of contact for handling and operating your camera while also providing additional mounting points for accessories. This Top Handle features both 1/4”-20 and 3/8”-16 mounting points with locating pins as well as one cold shoe receiver. This Top Handle can also be broken down into a more compact configuration that only requires the Front Top Plate to mount in order to better accommodate lightweight camera builds. The Top Handle’s newly designed 15mm rod mount allows you to mount a single 15mm rod either parallel or perpendicular to the Top Handle, allowing for more flexibility when mounting electronic viewfinders or external monitors. The included Bottom Mounting Plate attaches near the bottom of the Camera Cage, offers additional 1/4”-20 mounting points with locating pins, and serves as an alternative location to mount the Advanced I/O Module. The Right and Left Side Single Rod Holders mount along the side of the Full Camera Cage which provide a lightweight alternative to the baseplate. The included Battery Plate adapts the RED V-RAPTOR’s Micro V-Mount Battery Plate to either a Gold Mount or Full Sized V-Mount Battery Plate, as well as provides a convenient slot to power and mount the included Advanced I/O Module. The V-Mount option features an adjustable plate that allows you to fine tune the height of your battery to better accommodate different sized batteries which helps keep your build balanced and clean. This Advanced I/O Module utilizes an integrated V-RAPTOR EXT Cable that expands communication with the camera body and offers increased functionality for Run Stop and Timecode via additional ports. This Module can be mounted in a few different locations on the V-Raptor’s Camera Cage including the Top Handle, Top Plate, Bottom Mounting Plate or the integrated slot on the Battery Plate which can provide power and support the module. When mounting the module in different locations other than the Battery Plate, the module can be powered via a 2 Pin Lemo input.
The Battery Plate and I/O Module include the following ports:
- 14.8V 2-Pin LEMO Input/Output
- 3 Pin Fischer R/S Port
- Timecode Port
- Red CTRL Port
- Genlock Port
- 14.8V 2-Pin LEMO Port
- 14.8V P-Tap Port
- USB-C Port
This product is also available in AB/Gold Mount. Please contact us for more information.
Specifications:
Dimensions: 16.5 x 9.5 x 6 inches
Weight: 6 lbs
Materials: Aluminum Alloy, Stainless Steel
Color: Black/White
Package Contents:
Cage Only(534590):
1x Full Camera Cage for RED V-RAPTOR
1x Front Top Plate for RED V-RAPTOR
1x Manfrotto Quick Release Bottom Plate for RED V-RAPTOR (4.01.12.ESRT08005.00)

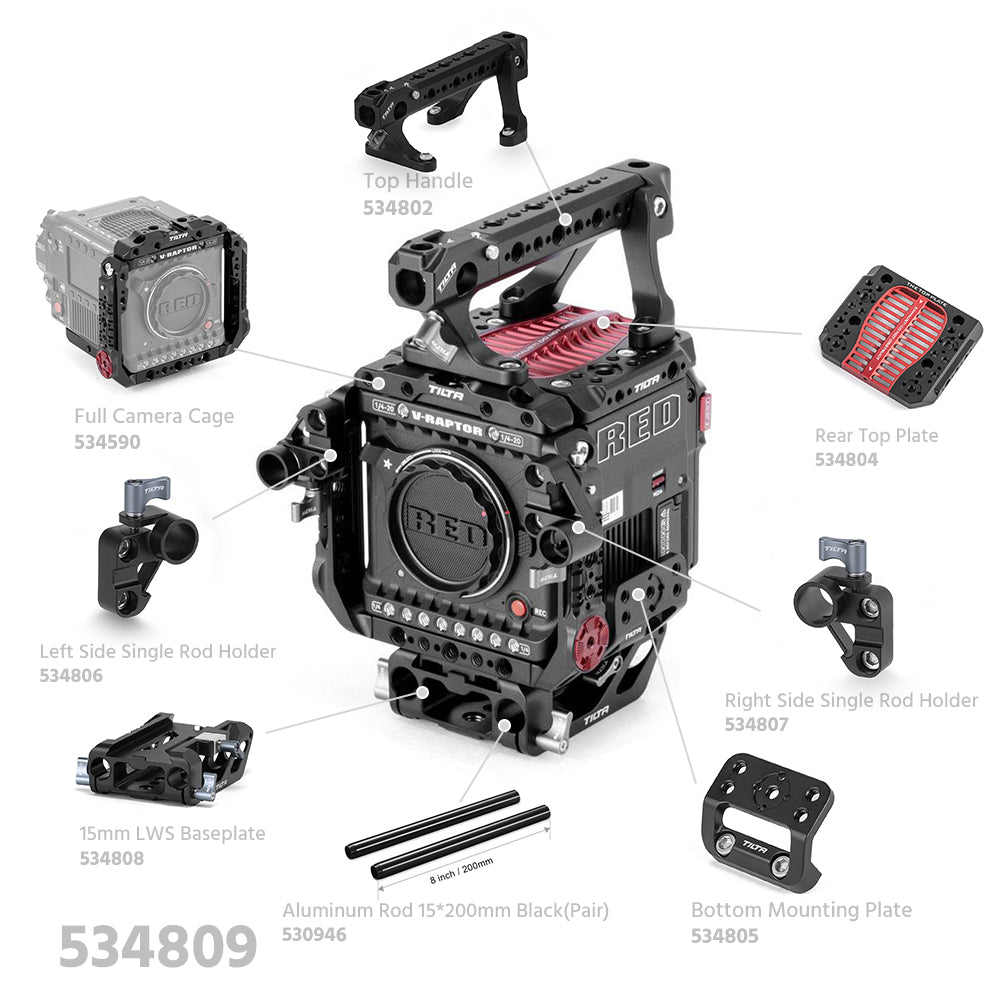

Basic Kit(534809):
1x Full Camera Cage for RED V-RAPTOR（ESR-T08-FCC）
1x Front Top Plate for RED V-RAPTOR（ESR-T08-FTP）
1x Rear Top Plate for RED V-RAPTOR（ESR-T08-RTP）
1x Bottom Mounting Plate for RED V-RAPTOR（ESR-T08-BMP）
1x Aluminum Rod 15*200mm Black(Pair)（R15-200-B-P）
1x 15mm LWS Baseplate for RED V-RAPTOR（ESR-T08-BSP）
1x Left Side Single Rod Holder for RED V-RAPTOR（ESR-T08-LRH）
1x Right Side Single Rod Holder for RED V-RAPTOR（ESR-T08-RRH）
1x Top Handle for RED V-RAPTOR（ESR-T08-TH）

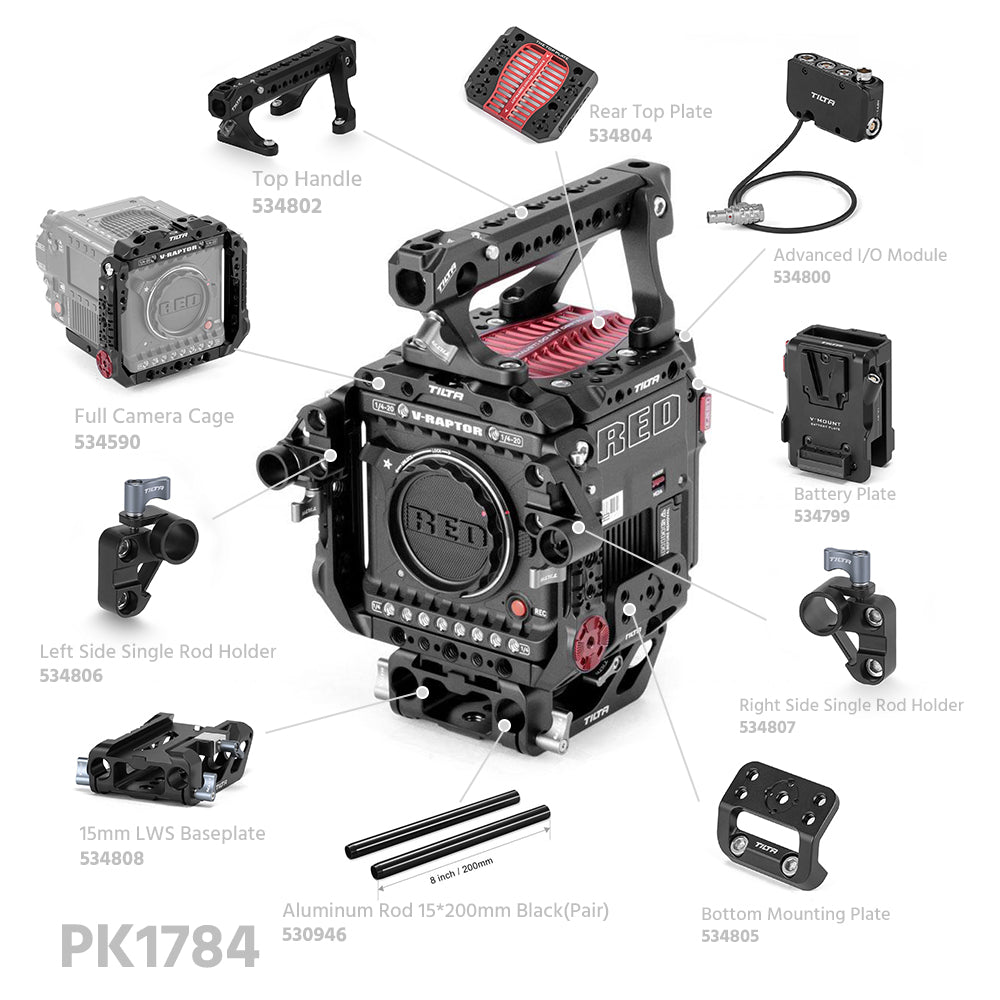

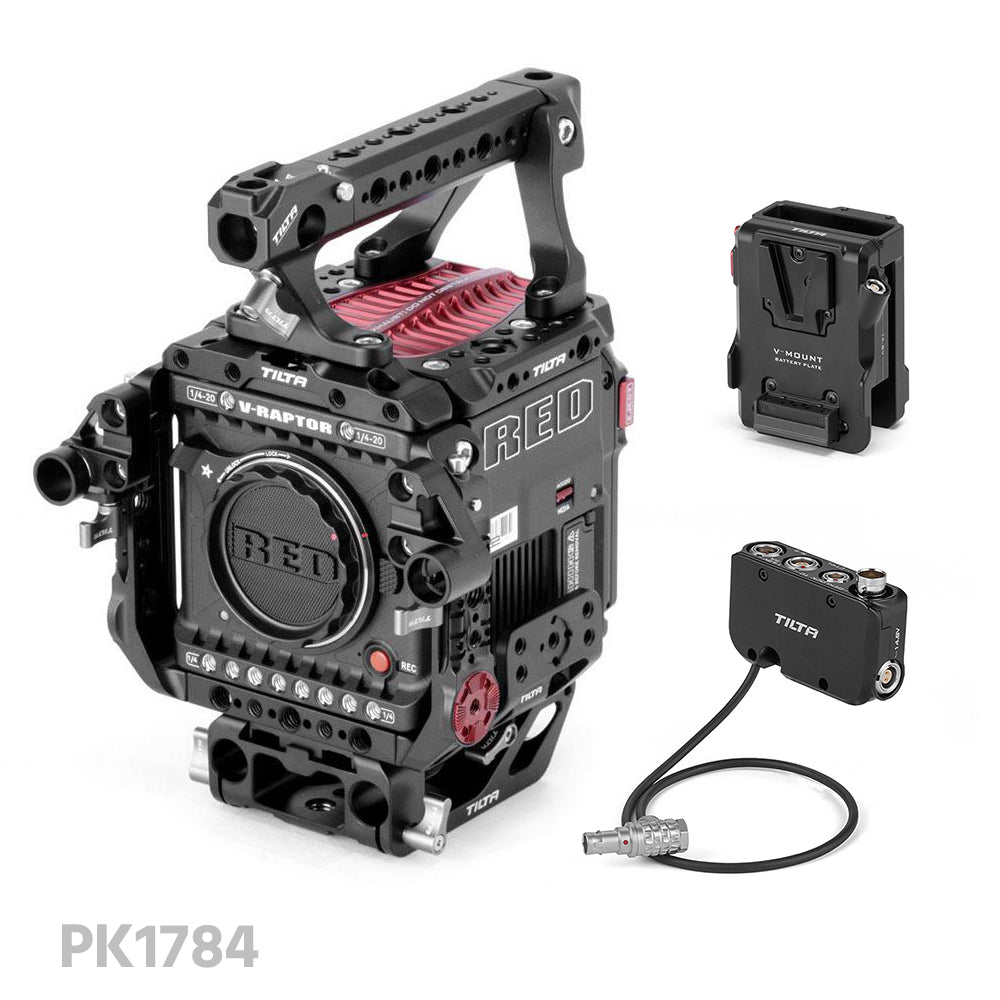

Advanced Kit(PK1784):
1x Camera Cage for RED V-RAPTOR Basic Kit（ESR-T08-A）
1x Advanced I/O Module for RED V-RAPTOR(ESR-T08-IOM)
1x Battery Plate for RED V-RAPTOR – V Mount（ESR-T08-BP-V)

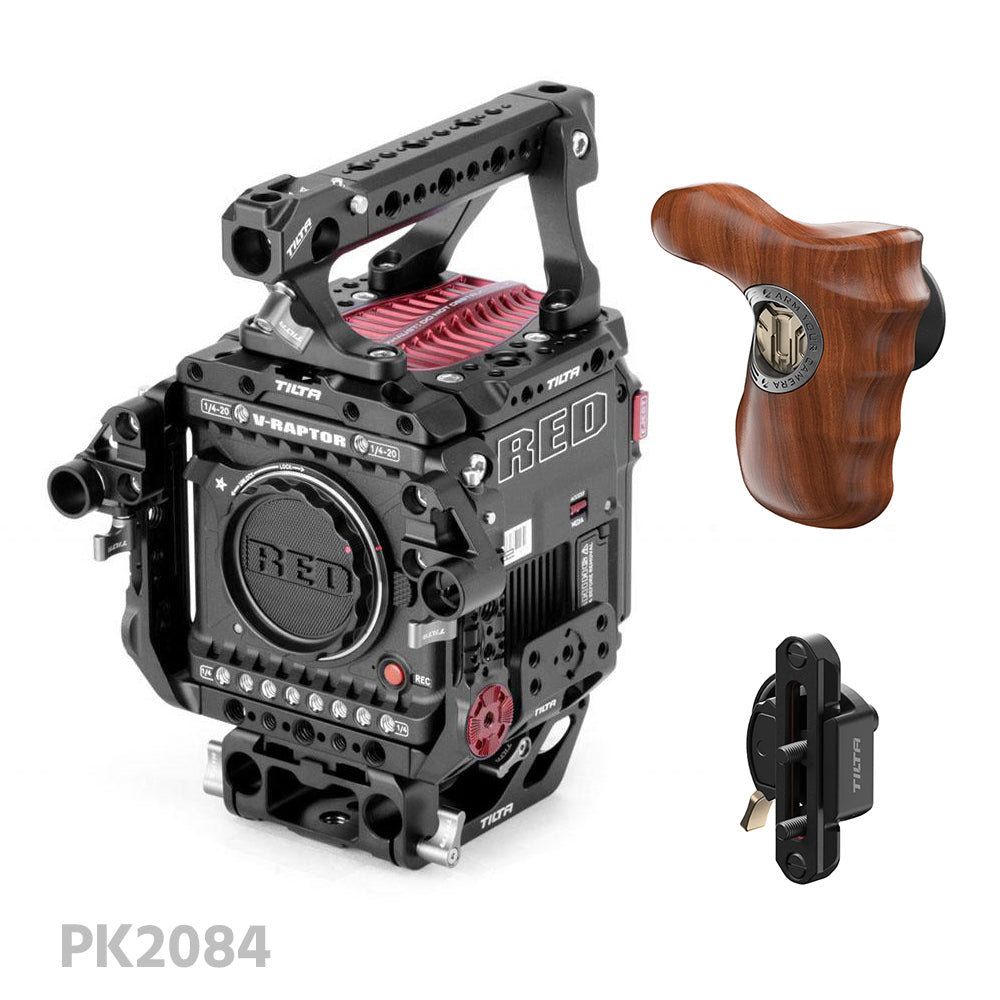

Handheld Kit(PK2084):
1x Camera Cage for RED V-RAPTOR Basic Kit（ESR-T08-A）
1x TiLTA Advanced Wooden right Handle(535222)
1x NATO Rail Attachment(right)(535228)

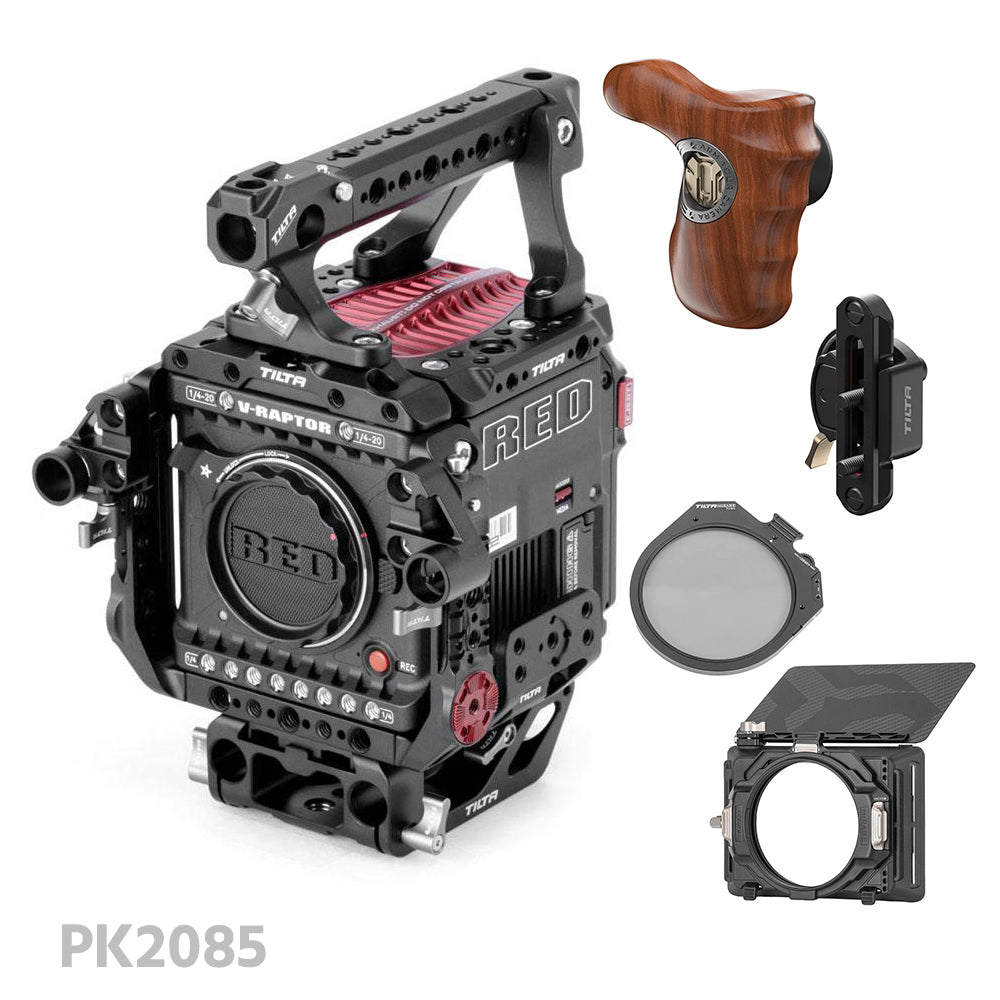

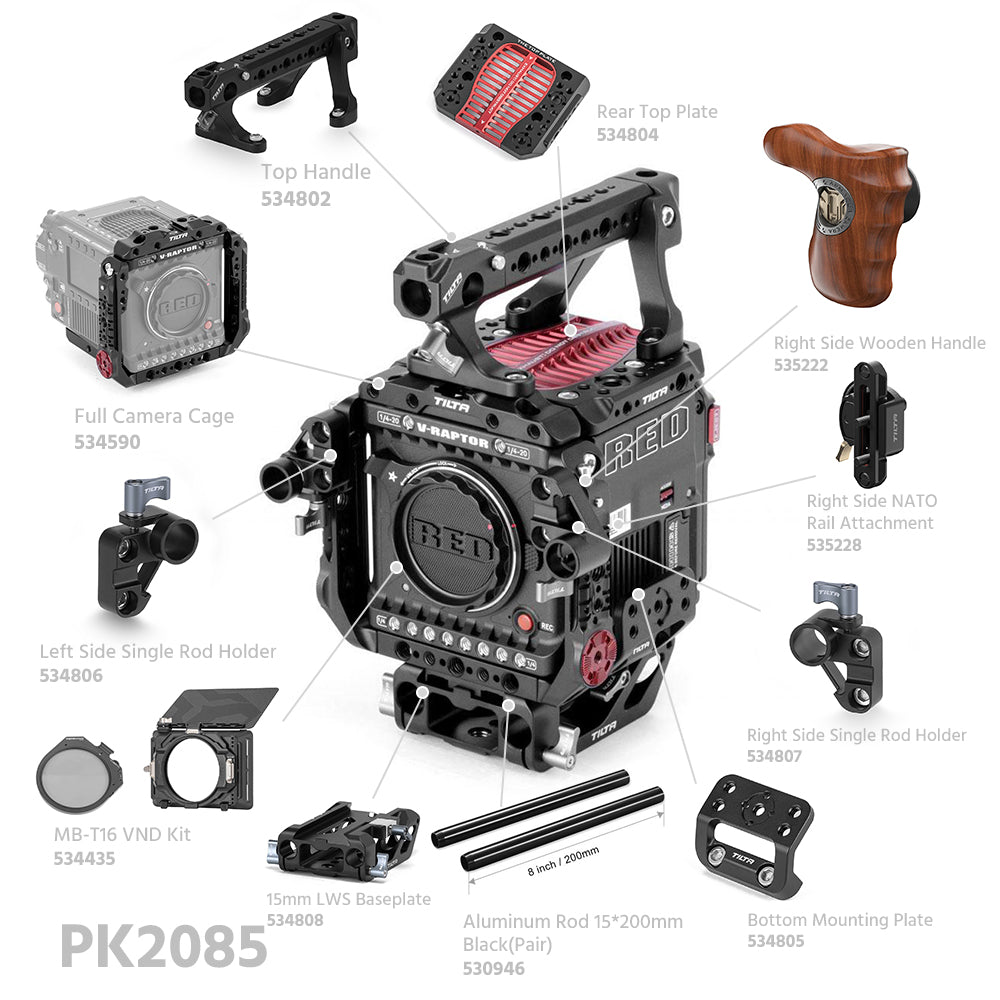

VND-Matte Box Kit(PK2085):
1x Handheld Kit(PK2084)
1x TiLTA MB-T16 Mirage Matte Box Motorized VND / 4x5.65" Filter Support VND Kit (MB-T16-A) (534435)

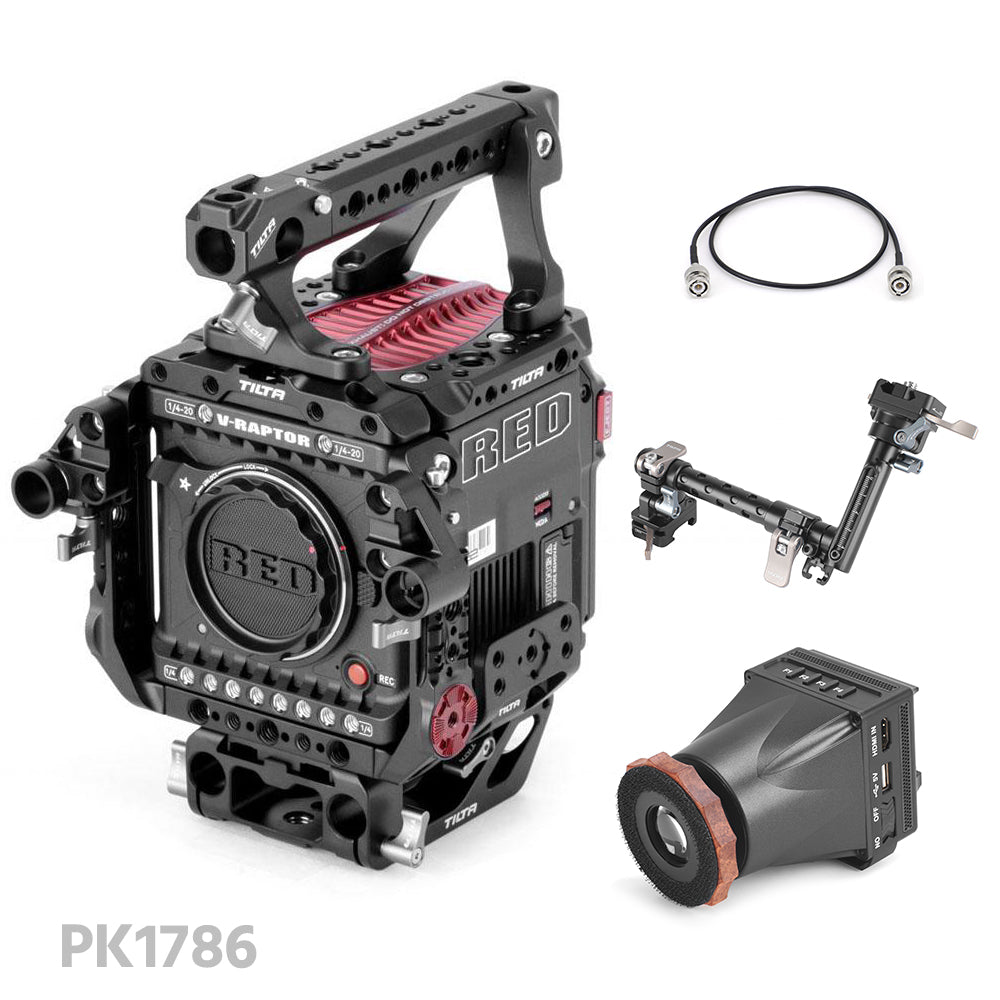

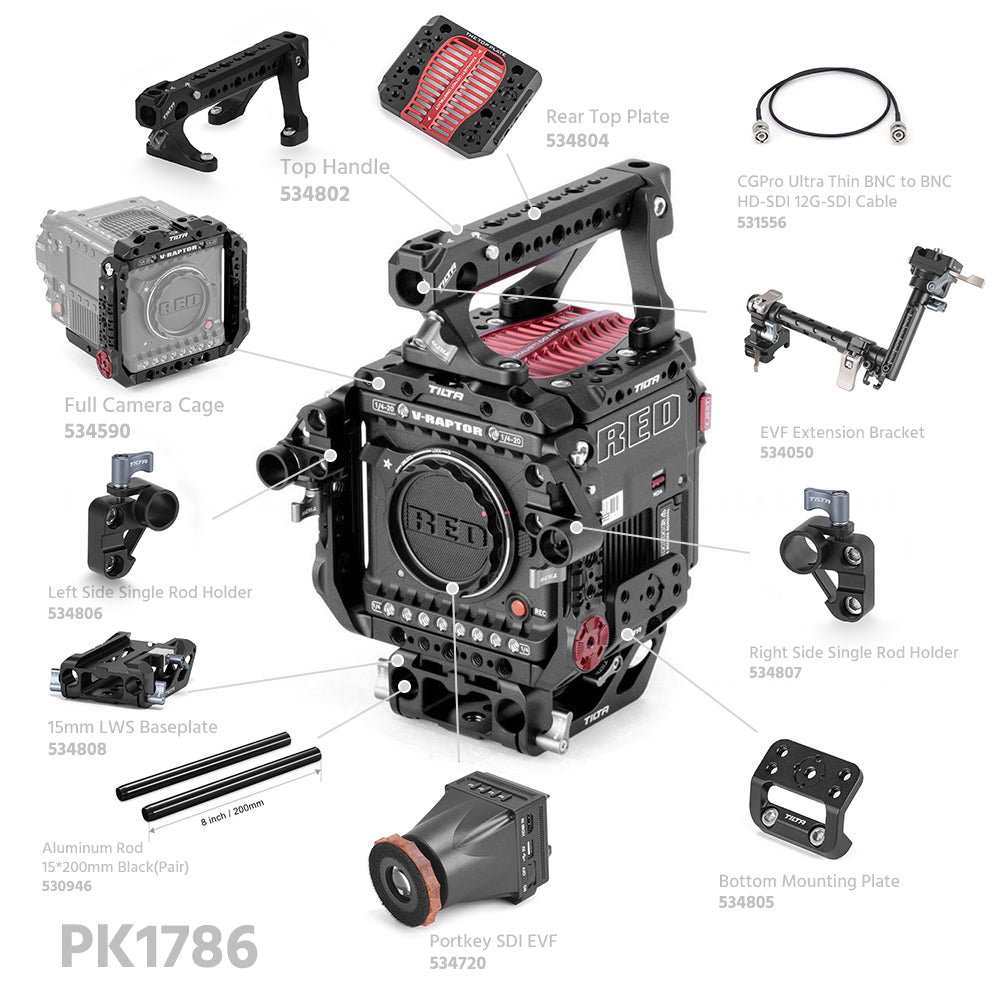

EVF Kit (PK1786):
1x Camera Cage for RED V-RAPTOR Basic Kit（ESR-T08-A)
1x Portkey SDI EVF (534720)
1x TiLTA EVF Extension Arm Bracket(534050)
1x CGPro Ultra Thin BNC to BNC HD-SDI 12G-SDI Cable(2FT)(531556)
|
TiLTA V-Raptor Cage Attachment
|
||

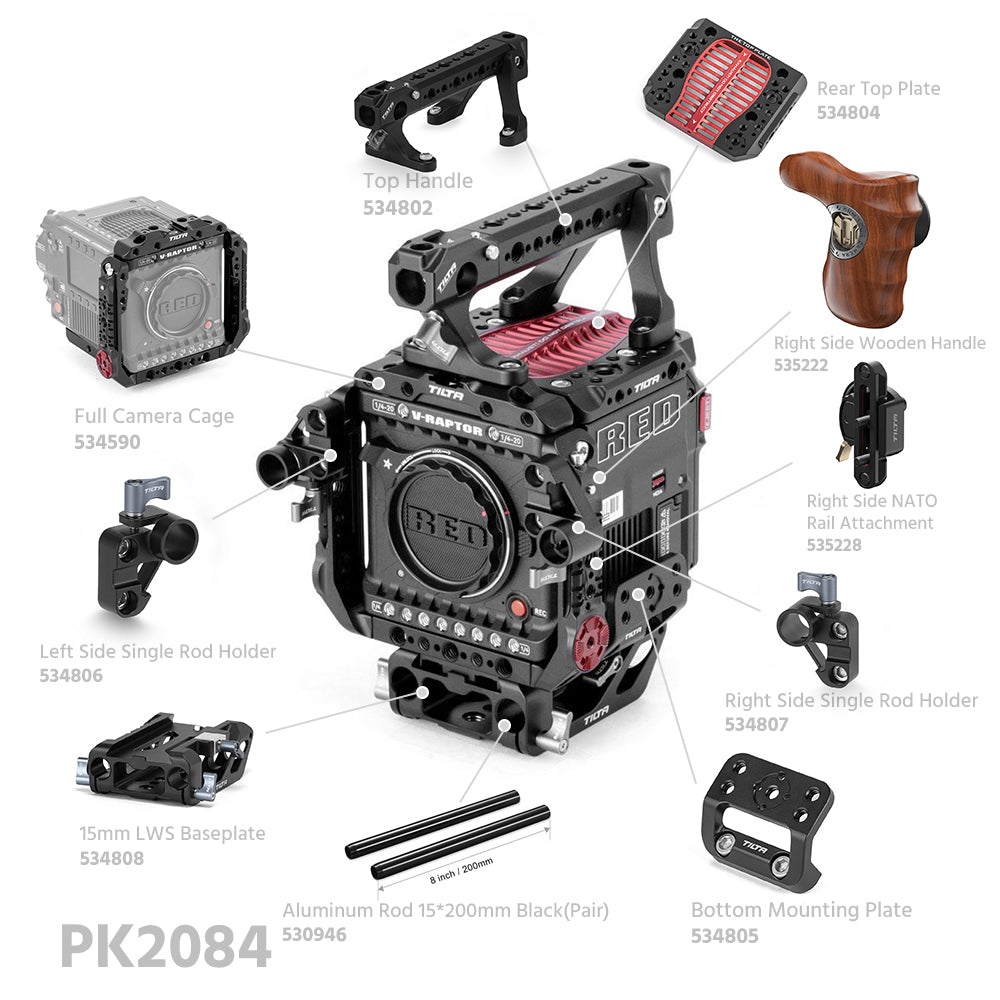

 ESR-T08 RED V-RAPTOR Cage System Black ESR-T08-FCC  |
 Battery Plate(Gold Mount) ESR-T08-BP-AB
|
 Battery Plate(V Mount) ESR-T08-BP-V |
 Advanced I/O Module ESR-T08-IOM
|
 Top Handle ESR-T08-TH |
 Top Handle Extension ESR-T08-THE |
 15mm LWS Baseplate ESR-T08-BSP |
 Front Top Plate ESR-T08-FTP |
|
 Adjustable Back Focus Canon RF Mount TA-RF-PL2
|
 RF To PL Lens Adapter TA-RF-PL
|
 PL Mount Adapter Support ESR-T08-PL
|
 LPL Mount Adapter Support ESR-T08-LPL
|
 Mount Support ESR-T08-MS
|
 Left Side Single Rod Holder ESR-T08-LRH
|
 Right Side Single Rod Holder ESR-T08-RRH
|
 Bottom Mounting Plate ESR-T08-BMP
|
 15mm Aluminium Rods (4 - 12inch) R15-200-B-P
|
