TiLTA Advanced Ring Grip For DJI RS2/RS3 Pro/RS4 Pro/RS4


  • Brand: TILTA
  • SKU: TGA-ARG
  • Product code: 533631
£582.40 £728.00 £698.88 Inc VAT Price Match
Custom Design For DJI RS2 Carbon fiber multi-functional ring grip. Supports dual-handed remote control of the gimbal and the camera. Lens Control With Zero Delay Left handle supports Nucleus series...


Custom Design For DJI RS2

Carbon fiber multi-functional ring grip. Supports dual-handed remote control of the gimbal and the camera.



Lens Control With Zero Delay

Left handle supports Nucleus series lens control motors. Easily control focus and zoom to get smoother images.



Flexible Operation

Right handle controls gimbal and mode settings, as well as the record and photo functions of the camera.



Constant Power Supply Equals More Productivity

A top handle bracket allows you to use the DJI RS 2 battery grip to provide power to your gimbal.



Reserved Space For Accessories

Reserved space for ARRI standard locating pins and cold shoes. Supports on-board monitor, microphone, and phone.



External Power Supply

Provides options for gimbal battery and external V-mount/gold mount battery. Allows for continuous shooting and more productivity.

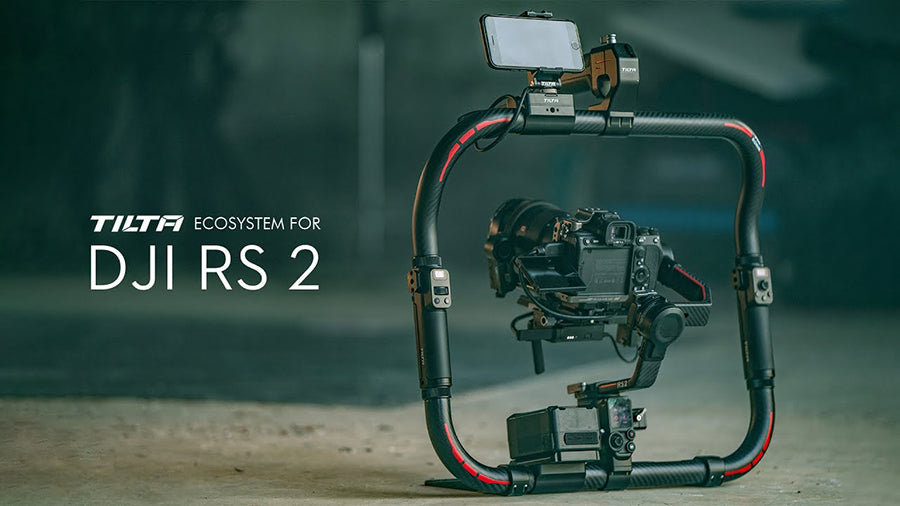

The Advanced Ring Grip for RS2 and RS3 Pro allows you more flexibility when powering your gimbal, mounting accessories, controlling wireless follow focus motors and operating the gimbal body.

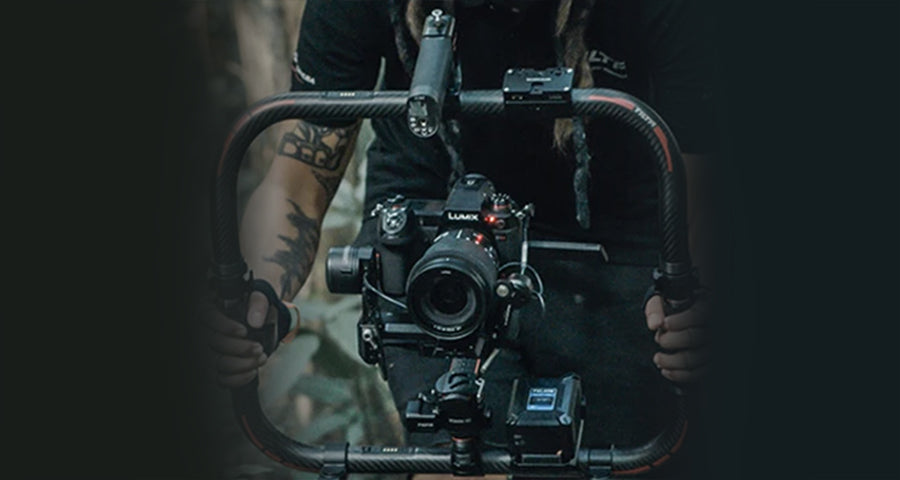

The design of the Ring Grip allows for further stability via multiple points of contact when operating the RS 2 and the included kickstands allow you to set the gimbal down after long takes to ensure the operator does not become fatigued.

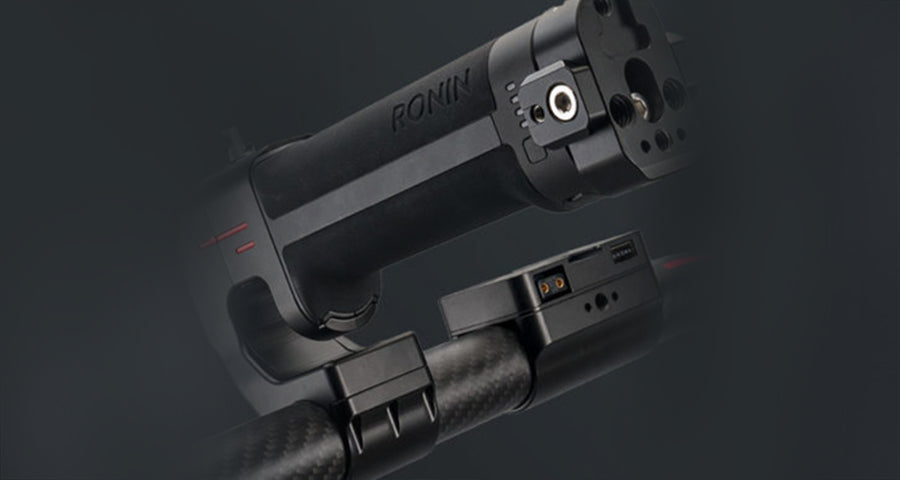

The Ring Grip allows you to turn the RS2 or RS3 Pro’s Battery Handle into a Top Handle so you can quickly transition to low angle shots while providing additional power to your gimbal.

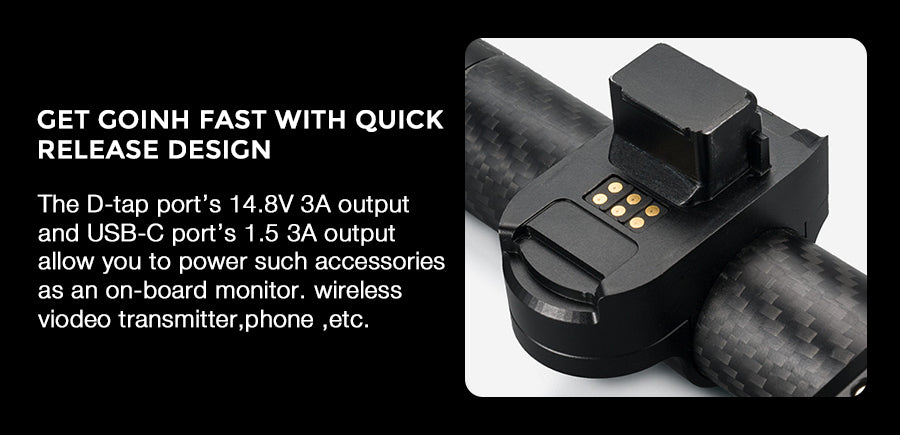

The system allows you to power the RS2 or RS3 Pro with either a Gold Mount Battery, V-Mount Battery, or the gimbal’s Battery Handle. The Advanced Ring Grip allows you to mount the Battery Handle to the top of the ring which doubles as a power source and top handle.

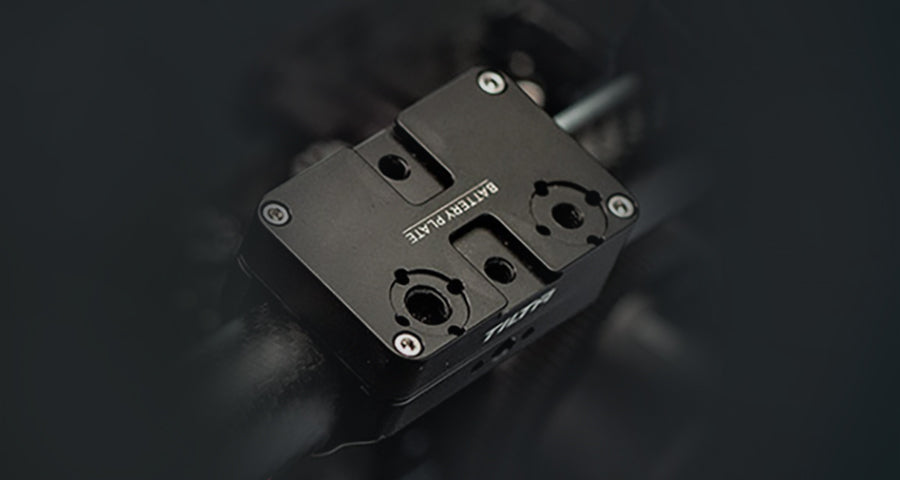

This can be used in combination with a Gold or V-Mount Battery Plate, which gives you more flexibility for powering accessories and longer battery life on set.

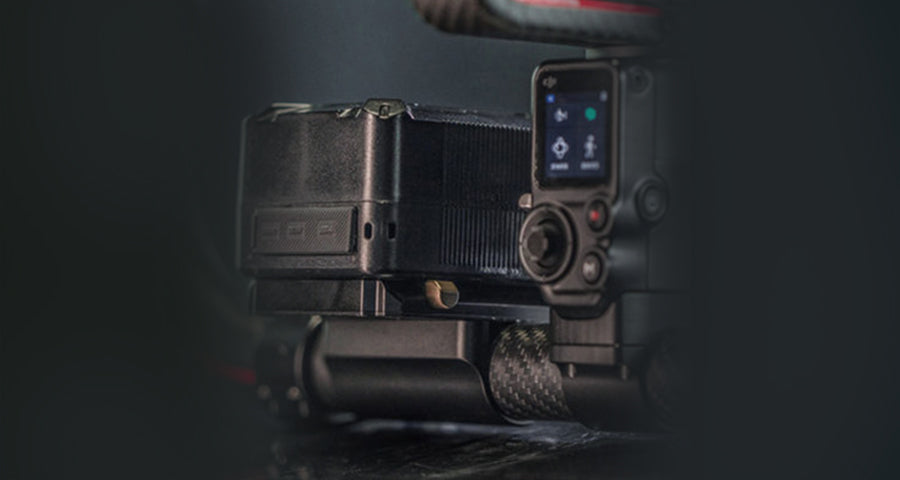

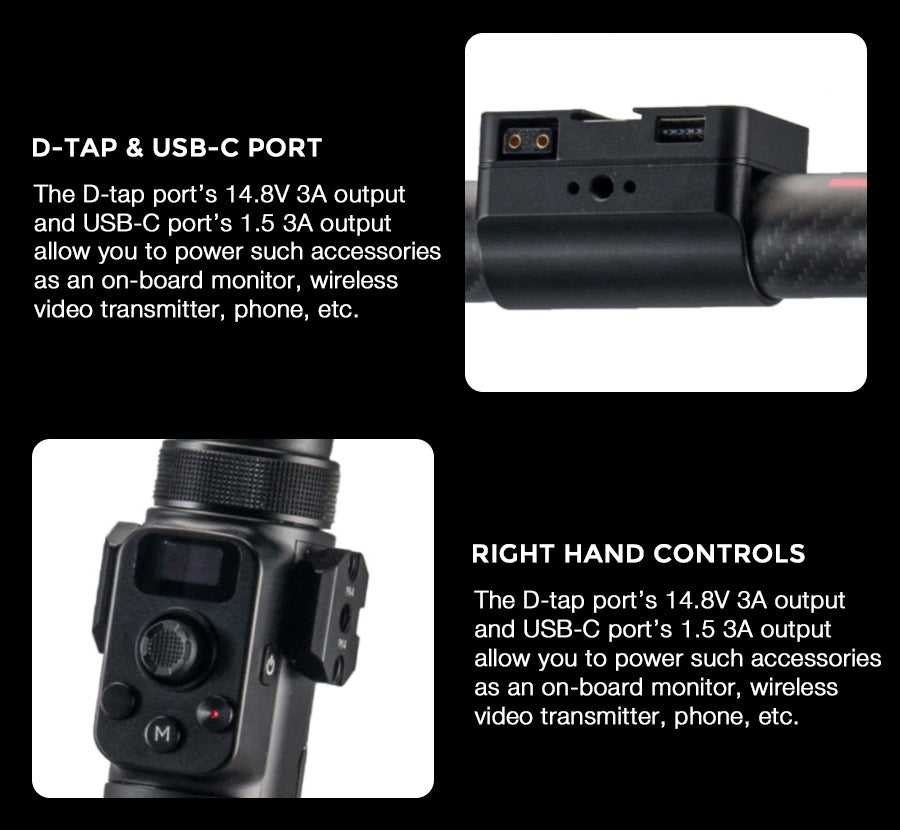

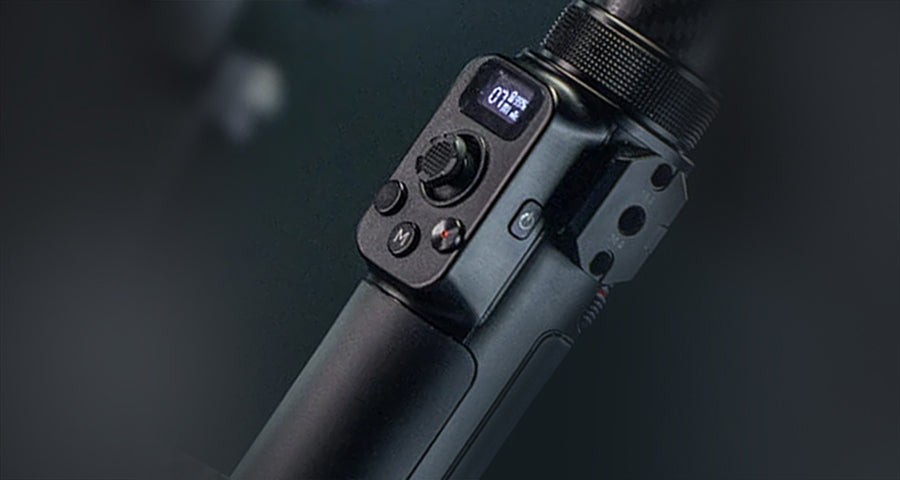

The included Remote Control Handle attaches to the right side of the Advanced Ring Grip to give you easy access to your gimbal’s settings as well as the record and photo functions of your camera.

The Thumbstick allows you to control the Pan and Tilt of your gimbal for maximum precision while operating and the Focus Wheel allows you to wirelessly control either a DJI or Nucleus Series Lens Control Motor.

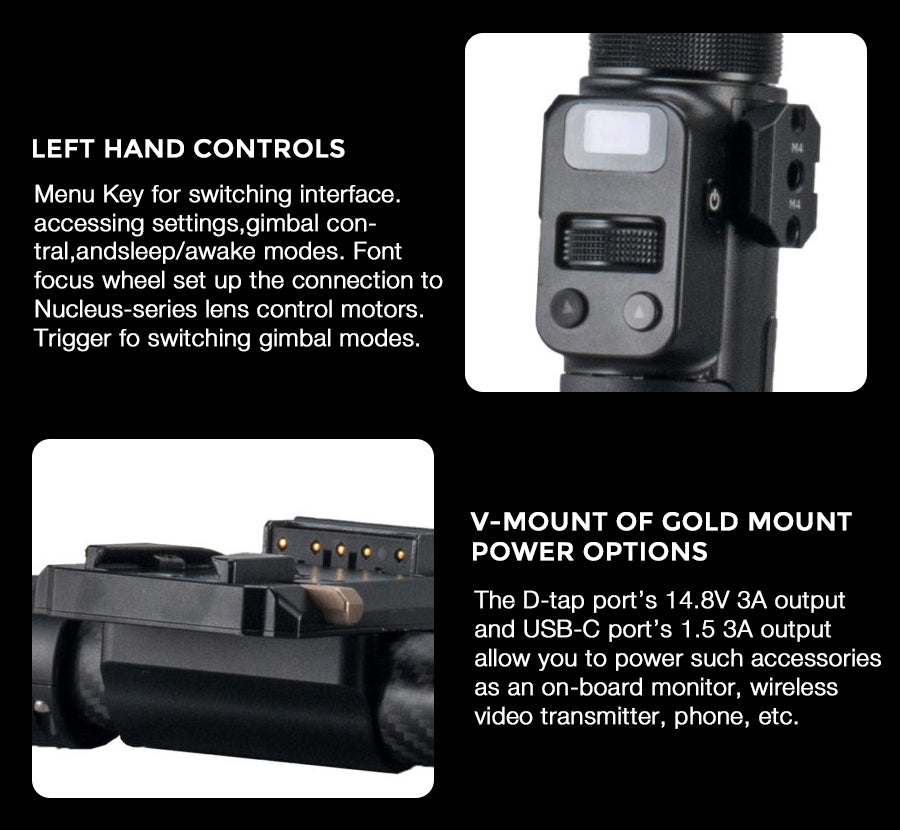

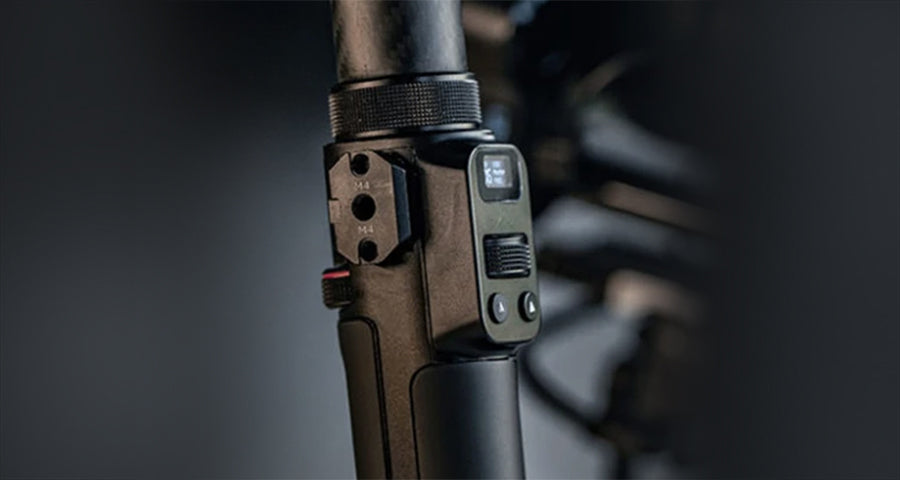

The included Dual Channel Wireless Lens Control Handle attaches to the left side of the Advanced Ring Grip and allows you to control two channels of the Nucleus Series Lens Control Motors.

Easily adjust the Focus, Iris, or Zoom on your lens with the two Focus Wheels on the Handle — one on the back of the handle for your thumb to rotate and one on the front for your index finger.

Includes limited control of the RS2 and RS3 Pro’s Menu Settings via the Menu Key and features a trigger for quick switching between gimbal modes.

Each handle requires a single 18650 battery to operate wirelessly.

They can be powered by the Top Handle or Battery Plate when connected to the Ring Grip.


NOTE: Please take extreme caution when mounting 18650 batteries as placing them in the wrong orientation can damage the handles.



Features:

  • [INCREASED STABILITY] Provides Smoother Movement and Flexibility while Operating
  • [RS2 & RS3 PRO CONTROL] Supports Full Control of the Gimbal via the Remote Control Handle
  • [WIRELESS FOCUS] Control Nucleus M, Nucleus Nano, and DJI Wireless Follow Focus Motors
  • [INCREASE BATTERY LIFE] Multiple Power Options Provide Longer Battery Life to RS2/RS3 Pro and Accessories
  • [SUPPORTS ACCESSORIES] Easily Mount and Power Monitors and More via the Power Supply Module (not included)


Specifications:

Dimensions:

24 x 13 x 4 inches

Weight:

4.6 lbs

Net Weight:

2.5 lbs

Material:

Carbon fiber

Colour:

Black

Compatibility

DJI RS2 / RS3 Pro / RS4 Pro/RS4

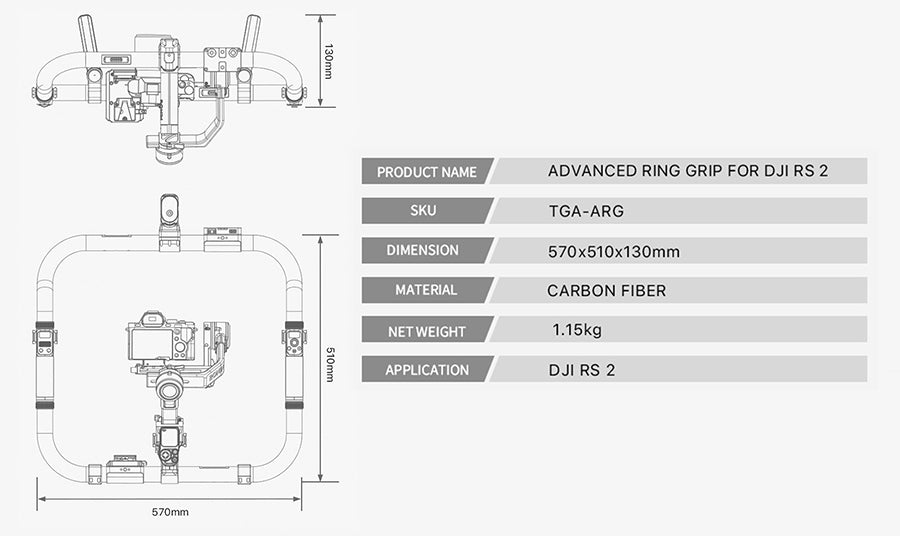

The diameter of the Basic/Advanced Ring Grip is 570mm x 510mm x 175mm.
The diameter of the Grip is 30mm.

WARNING: Please take extreme caution when connecting P-Tap power cables as connecting cables backwards can damage your gimbal.


NOTE:

  • Do not leave power sources attached overnight or when the system is not in use.
  • Do not attach power sources before attaching the RS2.
  • Make sure the positive/negative ends of any P-Tap Power Cable correctly align with the positive/negative ends of the P-Tap port on the Power Supply Module when in use.
  • Do not attach a gimbal to the Ring Grip if the RS2 body does not lock on tightly.
  • Please cover contact pins when not in use with electrical tape or something similar.

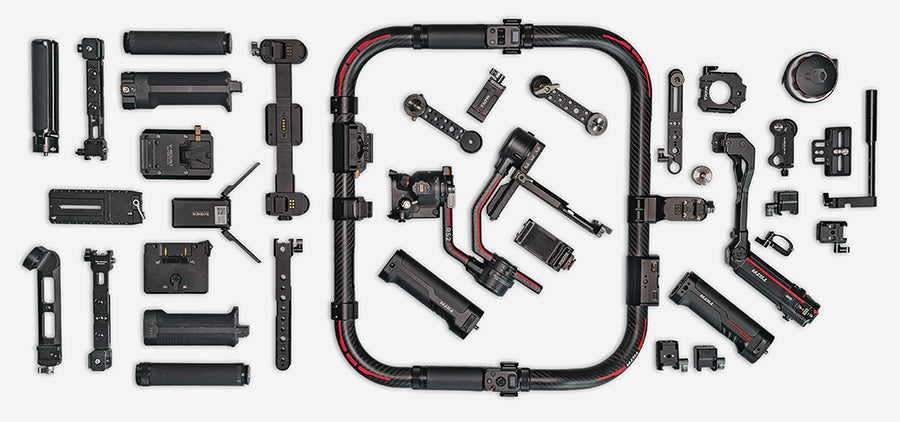

Package Contents:

Basic Kit (533631):
1x Ring Grip Part I(TGA-ARG-UP)
1x Ring Grip Part II(TGA-ARG-DOWN)
1x Wireless Control Receiver Module for RS 2 (TGA-WCR)
1x RS 2 Remote Control Handle for Advanced Ring Grip (Without Attachment) (TGA-ARG-RCH1) (18650 Battery not included)
1x Dual Channel Wireless Lens Control Handle (Without Attachment) (TGA-ARG-WCH1) (18650 Battery not included)

Basic Kit + Soft Case (PK1842):
1x TiLTA Advanced Ring Grip Basic Kit (533631)
1x TILTA TGA-ARG-SSC SOFT CASE FOR RING GRIP SYSTEM(534930)

Basic Kit + Power Supply Kit (PK1716):
1x TiLTA Advanced Ring Grip Basic Kit (533631)
1x TiLTA V-Mount Battery Plate for Ring Grip (533758)
1x TiLTA Power Supply Module for Ring Grip (533760)

Basic Kit + Power Supply Kit + 99Wh Battery (PK1715):
1x TiLTA Advanced Ring Grip Basic Kit (533631)
1x TiLTA V-Mount Battery Plate for Ring Grip (533758)
1x TiLTA Power Supply Module for Ring Grip (533760)
1x CGPro 99Wh Pocket Size V-Mount Battery (533569)
