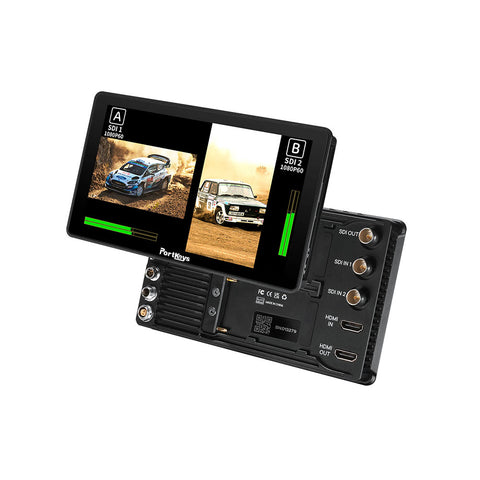

Portkeys BM7 II DS 2200 Nit HDMI/SDI Monitor Wireless Camera Control
- Brand: PortKeys
- SKU: BM7 II-DS
- Product code:
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/10008_57414f9a-ad26-45a8-a237-b5bfdbe8fab0.jpg?v=1681701425)
Wireless Camera Control
Wireless Camera Control:KOMODO | V-RAPTOR | BMPCC4K | BMPCC6K | BMPCC 6K Pro SONY: A7MⅢ | RX0 | A1 | A9Ⅱ | A7C | FX3 | FX30 | RX10 | A7SⅢ | A7M Ⅳ
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/10009_8970af42-b88c-4b2f-8246-3a342c8b59c0.jpg?v=1681701464)
Custom JPG Picture Freeze Frame
After capturing an image, it can be compared with real-time video by semi-transparent image superposition
Note: Must be a 16:9 1920×1080 jpg image
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/10010_721bcb3d-0e57-47a1-8948-20acf519f3f4.jpg?v=1681701498)
Split Screen Monitoring
Two screens can load the same 3D LUT file, support dual horizontal/dual vertical/left horizontal and right vertical/left vertical and right horizontal/ left horizontal and right vertical cropping of the same source
Note: Left and right screens can be flipped individually and mirrored
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/10011_0c6404ff-c159-4a97-8432-0e7b373188ac.jpg?v=1681701517)
3D LUT HDMI Output
HDMI、3G-SDI can output video after loading 3D LUT
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/10012_370057a9-b127-4205-bc28-cd472da64938.jpg?v=1681701523)
Wired Control Tilta Nucleus-N/M Motors
Compatible with Tilta Nucleus-N/M Motors and display the wireless follow the focus scale
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/10013_105c4417-947a-4545-adea-4f9613ef7da3.jpg?v=1681701711)
CNC Aluminum Alloy All-metal Shell
With fast heat dissipation and high durability
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/10014_501648f3-59f5-4cbb-b002-f64f1c5d4f44.jpg?v=1681701786)
Wired control of RED cinema camera
DSMC3 EXT control line (optional) to control DSMC3
DSMC2 CTRL control line (optional) to control DSMC2
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/10015_1947f511-e871-4aa0-a5ff-364b5b793273.jpg?v=1681701827)
Anamorphic Lens Calibration
Supported Ratio: 1.00X/1.33X/1.42X/1.50X/1.60X/1.66X/1.85X/2.00X/2.35X
User-defined adjustment range: 0.25X-4.00X
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/100161.jpg?v=1681701831)
HDMI to SDI Output
Built-in signal conversion, no external signal conversion box required
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/100162.jpg?v=1681701835)
False color and ARRI False color
Customisable overexposure and underexposure IRE scales
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/100171.jpg?v=1681701885)
Brightness and RGB Signal Detection Before/After Loading 3D LUT
Loading 3D LUTs for better picture quality and more intuitive monitoring
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/100172.jpg?v=1681701888)
Multiple Ways of Operating
Both button scroll wheel and touch screen, more flexibility in operation
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/100181.jpg?v=1681701891)
Various Interfaces
Video input 3G-SDI×2/HDMI×1, video output 3G-SDI×1/HDMI×1, 3.5mm headphone jack×1
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/100182.jpg?v=1681701895)
Customized Peaking Range(Peaking Frame)
Peaking perfectly avoids rendering camera parameters
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/10019_3ac329be-c84f-4953-a5cf-73599dc332ab.jpg?v=1681702028)
Custom Rectangular Image Crop
Easily and clearly monitor the details of your images
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/10020_f296f635-29ec-4c27-b968-705736dc30e9.jpg?v=1681702031)
Factory Color Calibration-709 colour gamut with X-Rite 1D hardware
More accurate color calibration and more intuitive image monitoring
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/10021_ca1443e8-e3b3-410a-bd09-7ecdb8a2f69f.jpg?v=1681702034)
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/10023_41ff8522-debf-459a-a4fa-e4f7e3153a00.jpg?v=1681702121)
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/10024_2fc6ce1d-0bcb-4b56-9835-de89ba0bb602.jpg?v=1681702124)
![](https://cdn.shopifycdn.net/s/files/1/1258/4351/files/10022_fea303b6-f94d-4b41-a241-ec998ab3c482.jpg?v=1681702118)
Package Contents:
1x BM7 II DS Monitor
1x Safety Box
1x Screw-in DC Power Cable
1x Micro USB Flash Drive
