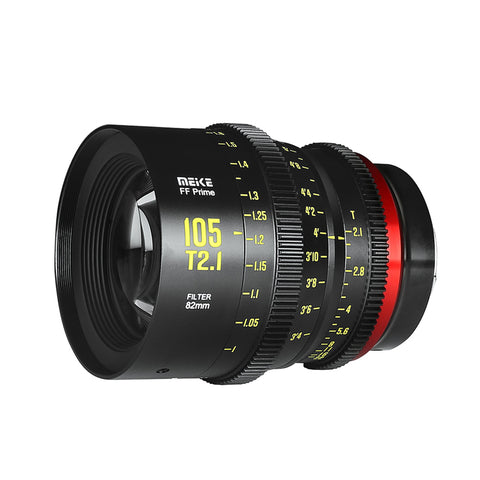

This is Meike’s fifth full-frame cine lens and it now joins the Full Frame cine lens family. It covers an image circle of 45mm. It is available in either PL, Canon EF, Canon RF, Sony E, and Panasonic L mounts.
The complete set includes
16mmT2.5,24mmT2.1,35mmT2.1,50mmT2.1,85mmT2.1,105mmT2.1,135mmT2.4.
It has industry-standard 0.8mm pitch gears on the focus and aperture ring.The lens design of the Meike 105mm T2.1 FF-Prime consists of eleven elements in seven groups.The aperture mechanism consists of 11 aperture blades. The minimum focus distance is 100cm.
Specifications:
| Lens Mount: | PL/EF/RF/E/L |
| Min Focal Dist: | 100cm |
| Filter Thread: | ø82 |
| Image Circle: | 45mm |
| Structure: | 11 Elements in 7 Groups |
| Focal Length: | 105mm |
| Aperture Range: | T2.1-T22 |
| Iris Blades: | 11 |
| Gear Mod: | M0.8 |
| Focus Rotation: | 330 Degree |
| Dimensions (Ø x L): PL: |
ø89.6 × 102.4 |
| EF(Canon): | ø89.6 × 110.5 |
| RF(Canon): | ø89.6 × 134.4 |
| E(Sony): | ø89.6 × 136.4 |
| L(Panasonic): | ø89.6 × 134.4 |
| Z(Nikon): | ø89.6 × 138.4 |
| Weight: | 1110~1176g |
FOV：
| on FF cameras: | on APS-C camera： |
| Diagonal:23.6° Horizontal: 19.7° Vertical: 13.2° |
Diagonal:15.6° Horizontal: 13° Vertical: 8.62° |
Compatible:
• Canon C700
• Sony VENICE
• Alexa LF
• Z Cam E2-F6
• Mavo LF
• All full-frame Sony, Panasonic. Canon, Sigma, Leica mirrorless
• All Super 35/ APS-C sensors
Package Contents:
1x MEIKE FF-Prime 105mm T2.1 Full Frame Cine Lens
