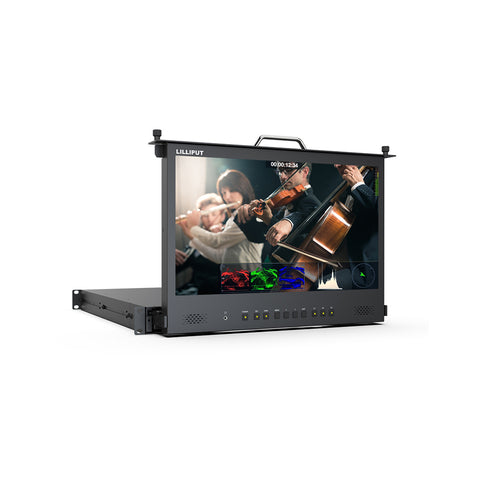

LILLIPUT RM-1731S 17.3 inch 3G-SDI 1RU Pull-out rackmount monitor
- Brand: LILLIPUT
- SKU: RM-1731S
- Product code:
As a 1RU pull-out rackmount monitor, features 17.3″ 1920×1080 FullHD IPS screen with fine picture quality and good color reduction. It’s interfaces support 3G-SDI and HDMI2.0 signals inputs and loop outputs;For the advanced camera auxiliary functions, such like waveform, vector scope and others, all are under professional equipment testing and correction, parameters accurate, and comply with industry standards.
Specifications:
| Display | |
| Size | 17.3” |
| Resolution | 1920×1080 |
| Brightness | 300cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 800:1 |
| Viewing Angle | 170°/170°(H/V) |
| Video Input | |
| SDI | 1×3G |
| HDMI | 1×HDMI 2.0 |
| LAN | 1 |
| Video Loop Output | |
| SDI | 1×3G |
| HDMI | 1×HDMI 2.0 |
| Supported In / Out Formats | |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60… |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60,2160P 24/25/30/50/60 |
| Audio In/Out | |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 8ch 24-bit |
| Ear Jack | 3.5mm – 2ch 48kHz 24-bit |
| Built-in Speakers | 2 |
| Power | |
| Operating power | ≤14W(12V) |
| DC In | DC 10-24V |
| Environment | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Other | |
| Dimension(LWD) | 482.5×44×507.5mm |
| Weight | 8.9kg |
