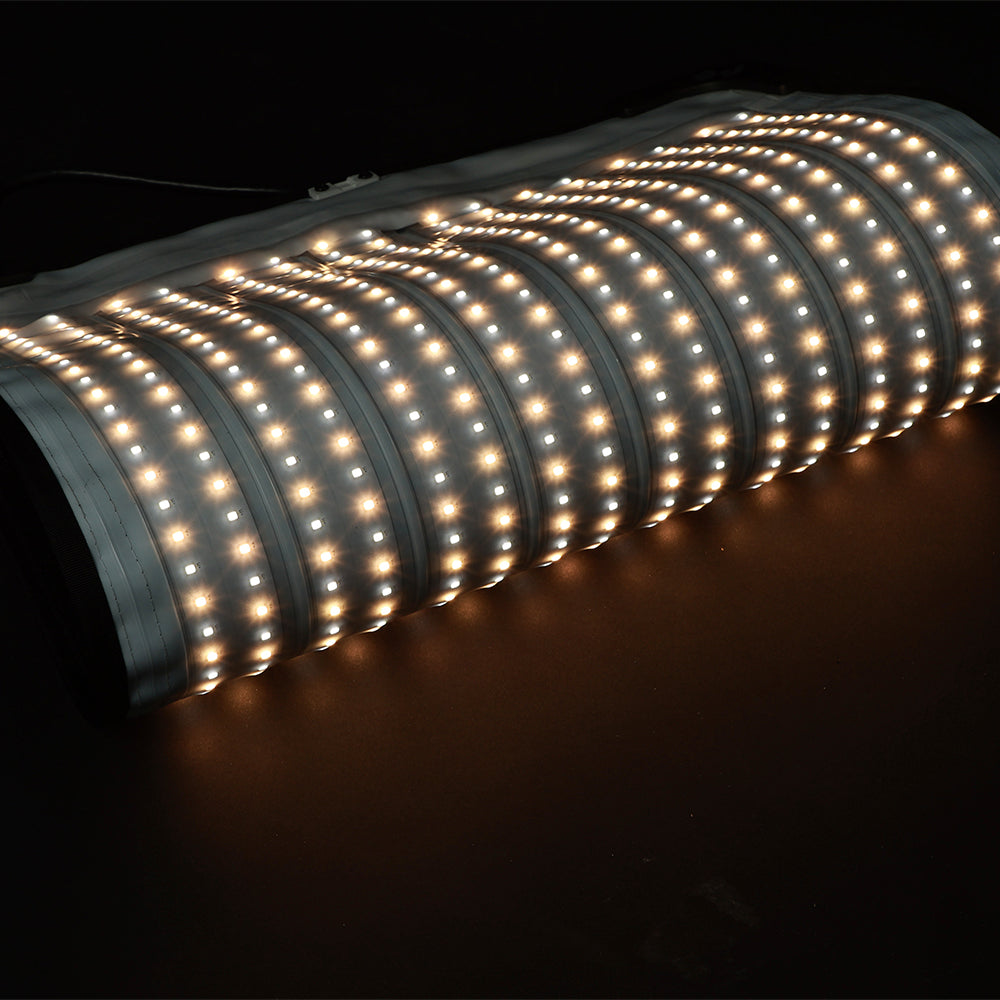

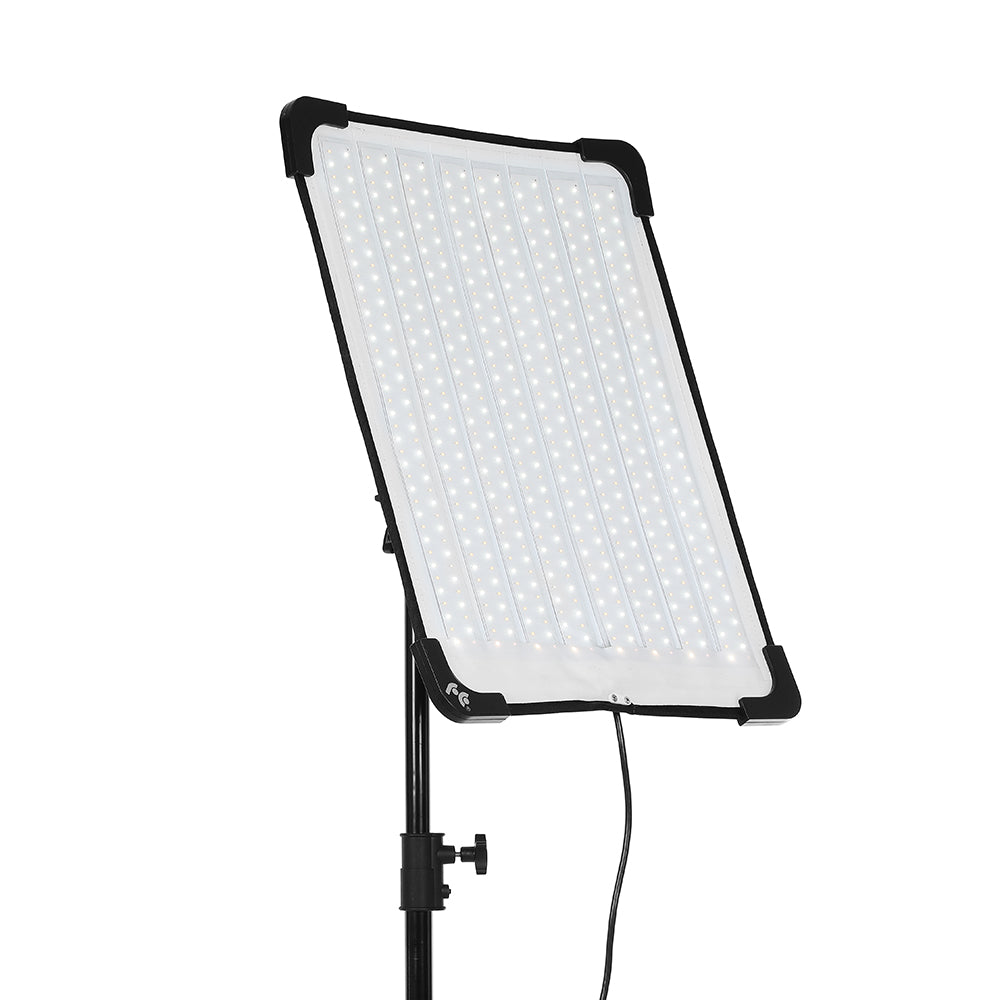

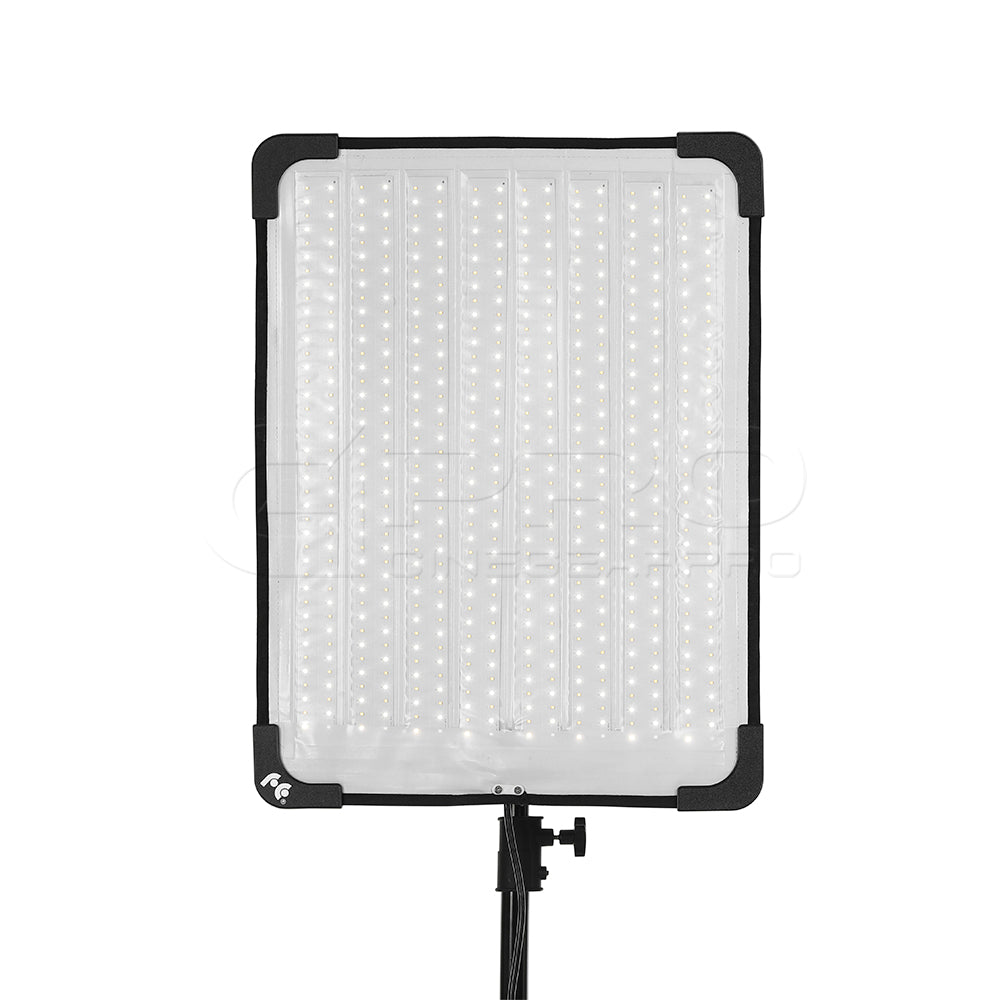

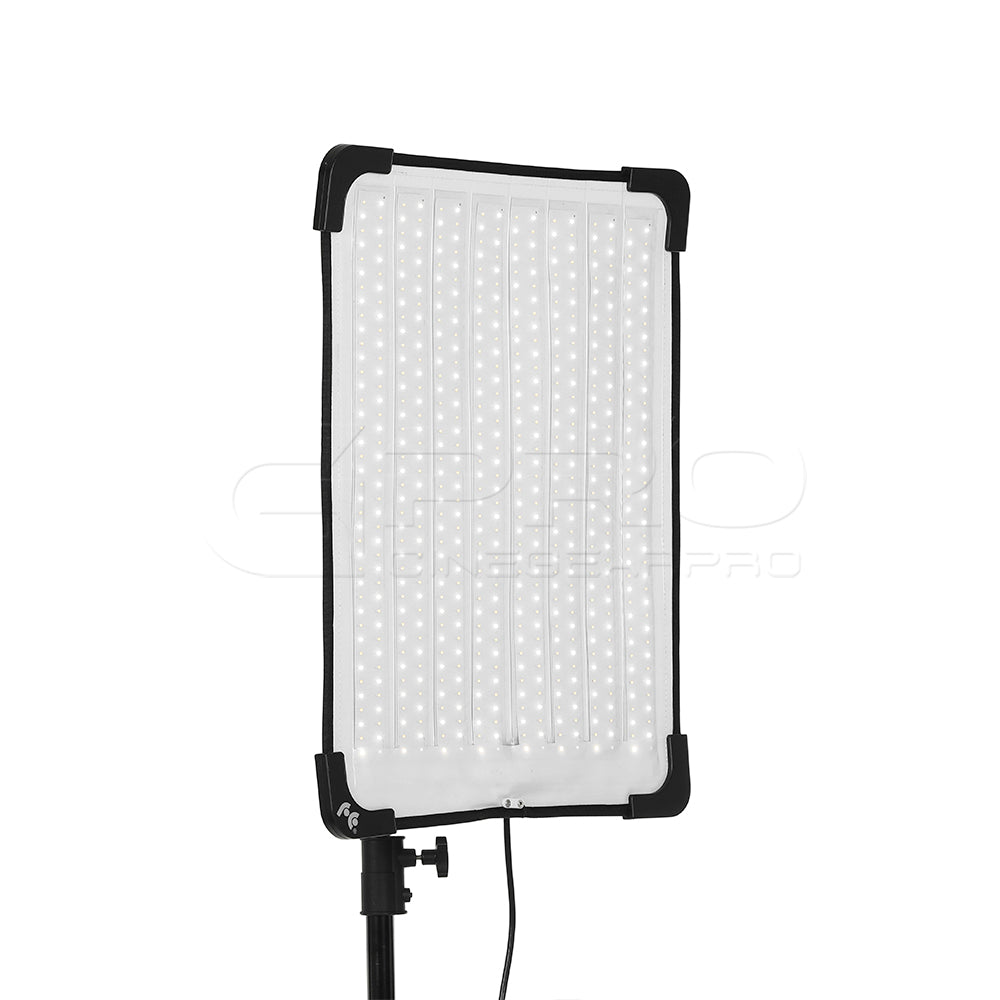

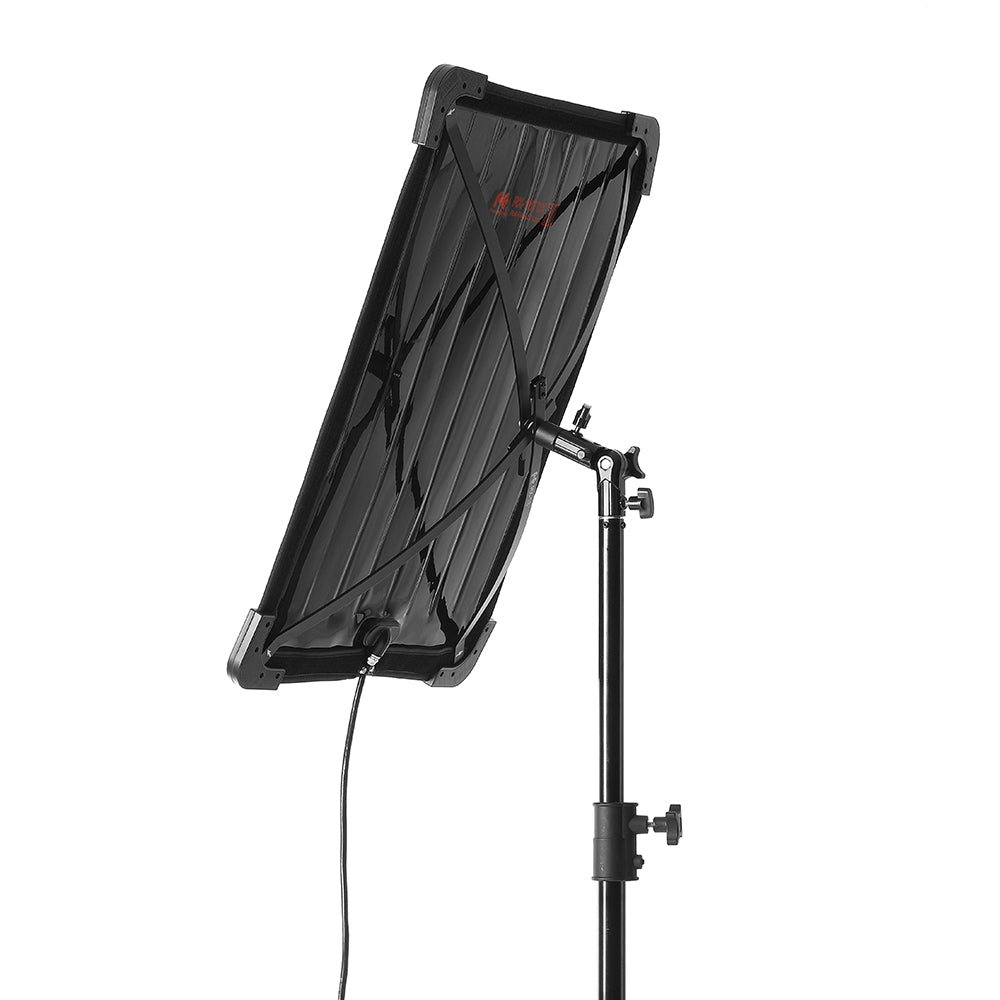

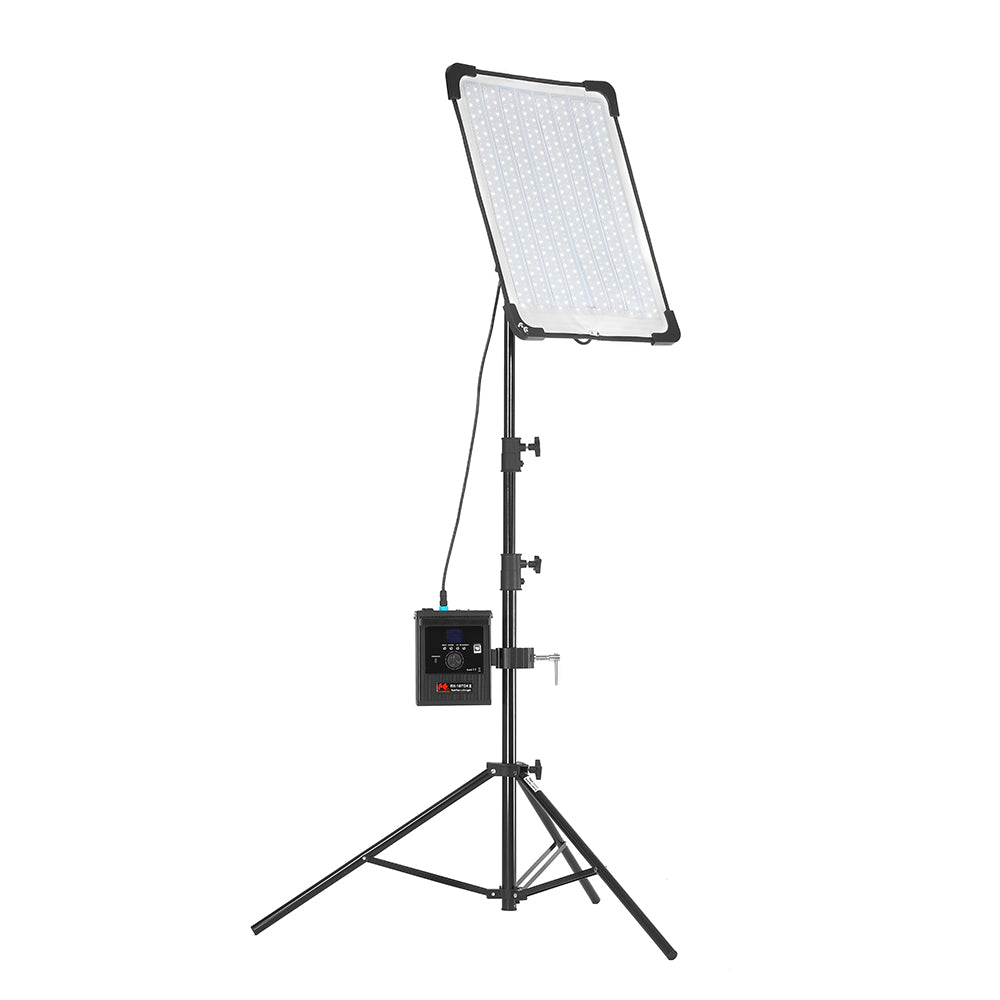

FalconEyes RX-18TDX III 130W Bi-Color Roll-Flex Flexible LED Panel
- Brand: FalconEyes
- SKU: RX-18TDX III
- Product code:
Specification:
|
Model |
RX-18TDX III |
RX-24TDX III |
RX-48TDX III |
RX-120TDX III |
|
LEDs |
yellow/320pcs white/320pcs |
yellow/440pcs white/440pcs |
yellow/880pcs white/880pcs |
yellow/1600pcs white/1600pcs |
|
Output |
130W |
220W |
360W |
680W |
|
Color Temperature |
3000-5600K |
|||
|
Operating Voltage |
AC 100V-240V |
|||
|
Compatibility |
AC Power / (DC)V-mount battery |
|||
|
Dimming |
0-100% Step-less dimming |
|||
|
Beam Angle |
64°(5600K) |
66°(5600K) |
66°(5600K) |
75°(5600K) |
|
Beam Control |

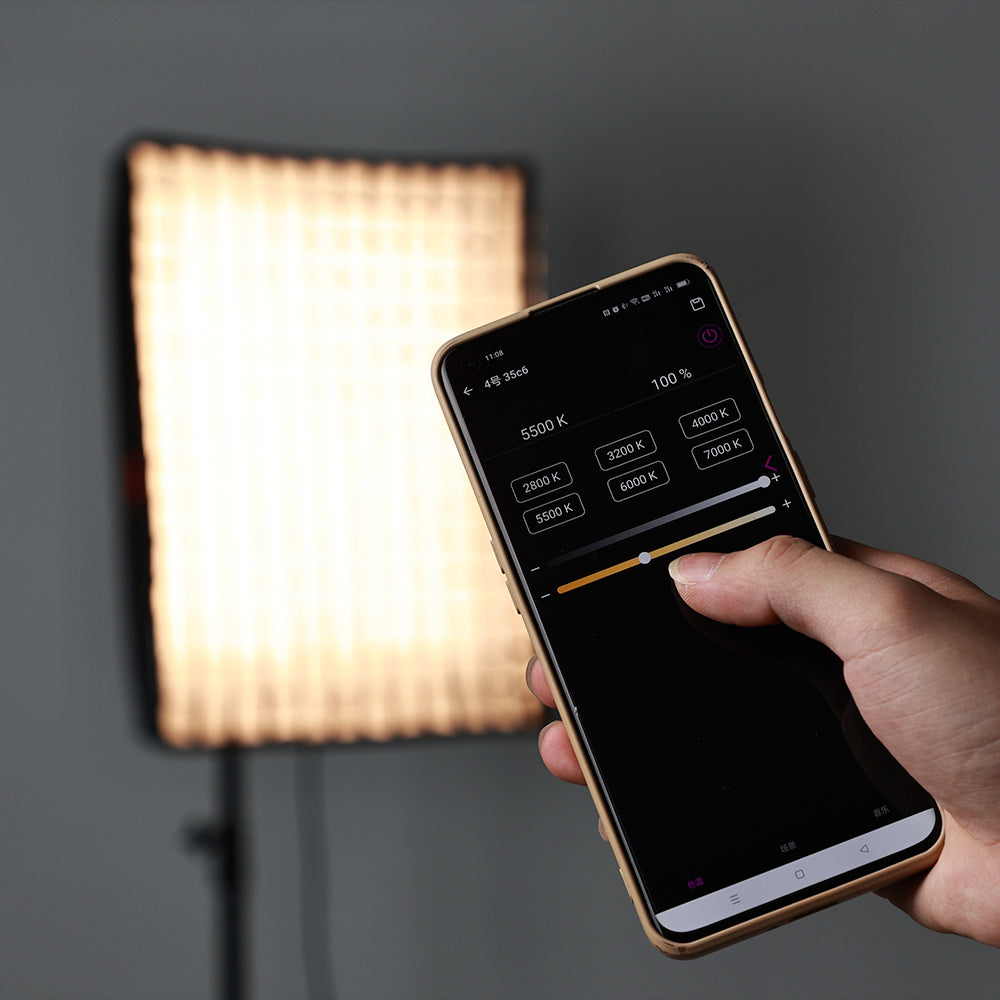

ON/OFF Turning Knobs /APP/Remote/DMX |
|||
|
CRI |
95 |
|||
|
TLCI |
97 |
|||
|
Dimensions |

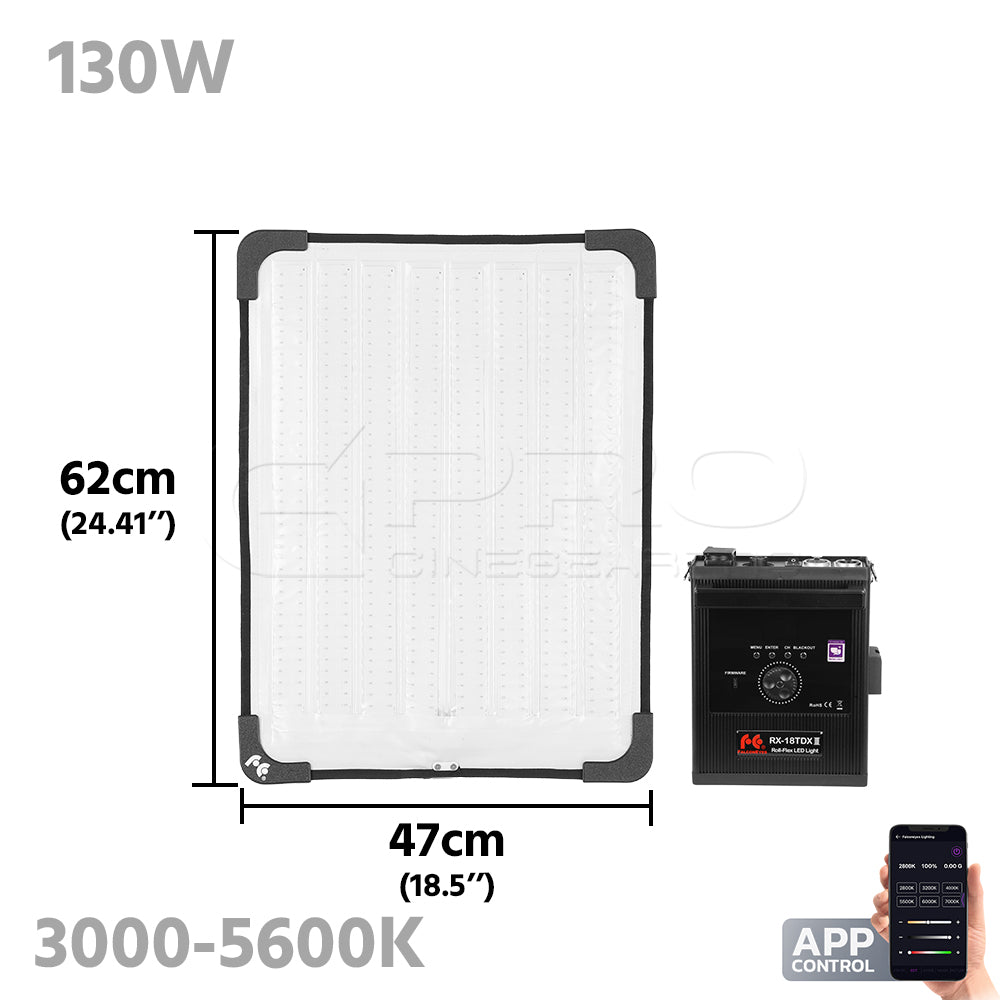

Light: 621x470mm Control box: 210x171x105mm |
Light:621x614mm Control box: 210x171x105mm |
Light: 1270x616mm Control box: 246x171x105mm |
Light: 1170x1160mm Control box: 281x195x181mm |
|
Weight |
Light: 1.04Kg Control box:1.52Kg |
Light: 1.25Kg Control box:1.6Kg |
Light: 2.03Kg Control box: 2.07Kg |
Light: 3.18Kg Control box: 4.24Kg |
Photometrics：
|
Model |
Distance |
||
|
RX-18TDX III |
0.5m |
1m |
2m |
|
15300lux 1421fc(3000k)/ |
4410lux 409fc(3000k)/ |
1180lux 109fc(3000k)/ |
|
|
RX-24TDX III |
21900lux 2035fc(3000k)/ |
6740lux 626fc(3000k)/ |
1860lux 172fc(3000k)/ |
|
RX-48TDX III |
25500lux 2369fc(3000k)/ |
10200lux 947fc(3000k)/ |
3090lux 287fc(3000k)/ |
|
RX-120TDX III |
34000lux 3160fc(3000k)/ |
15300lux 1422fc(3000k)/ |
5030lux 467fc(3000k)/ |

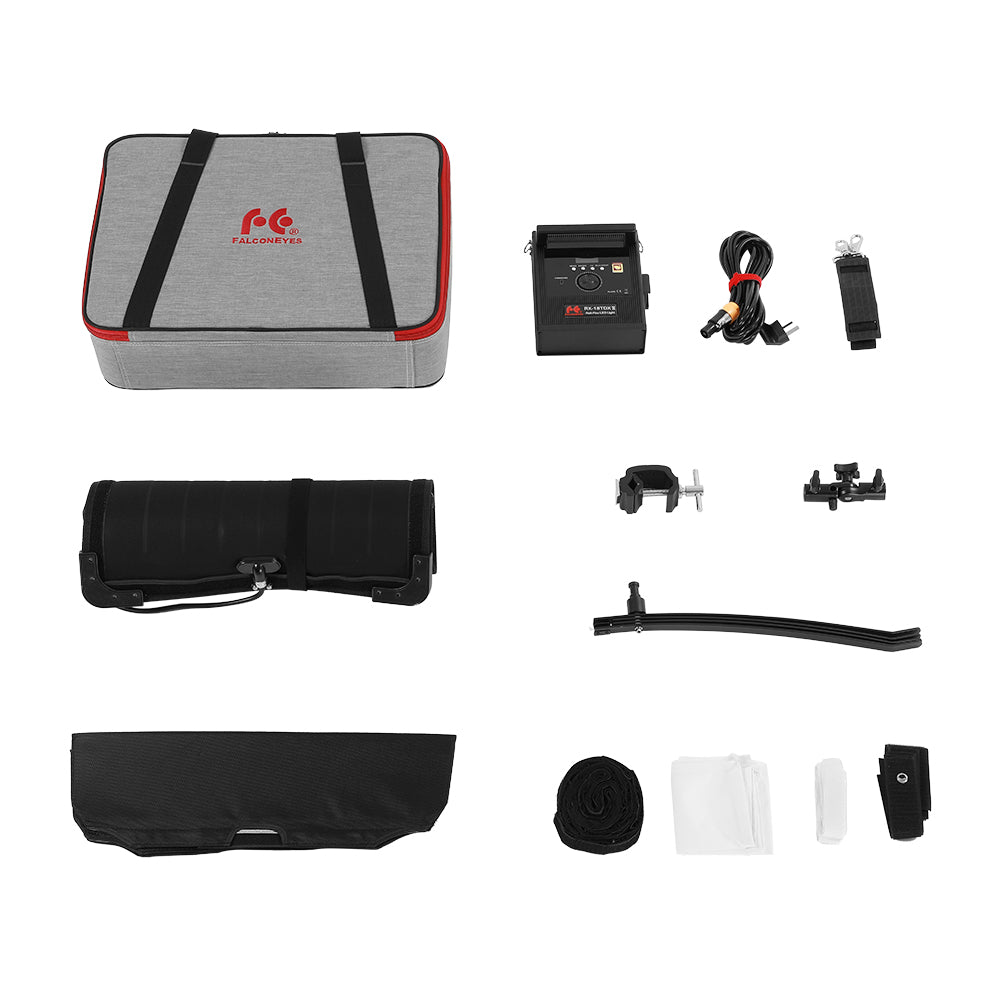

Package Contents:

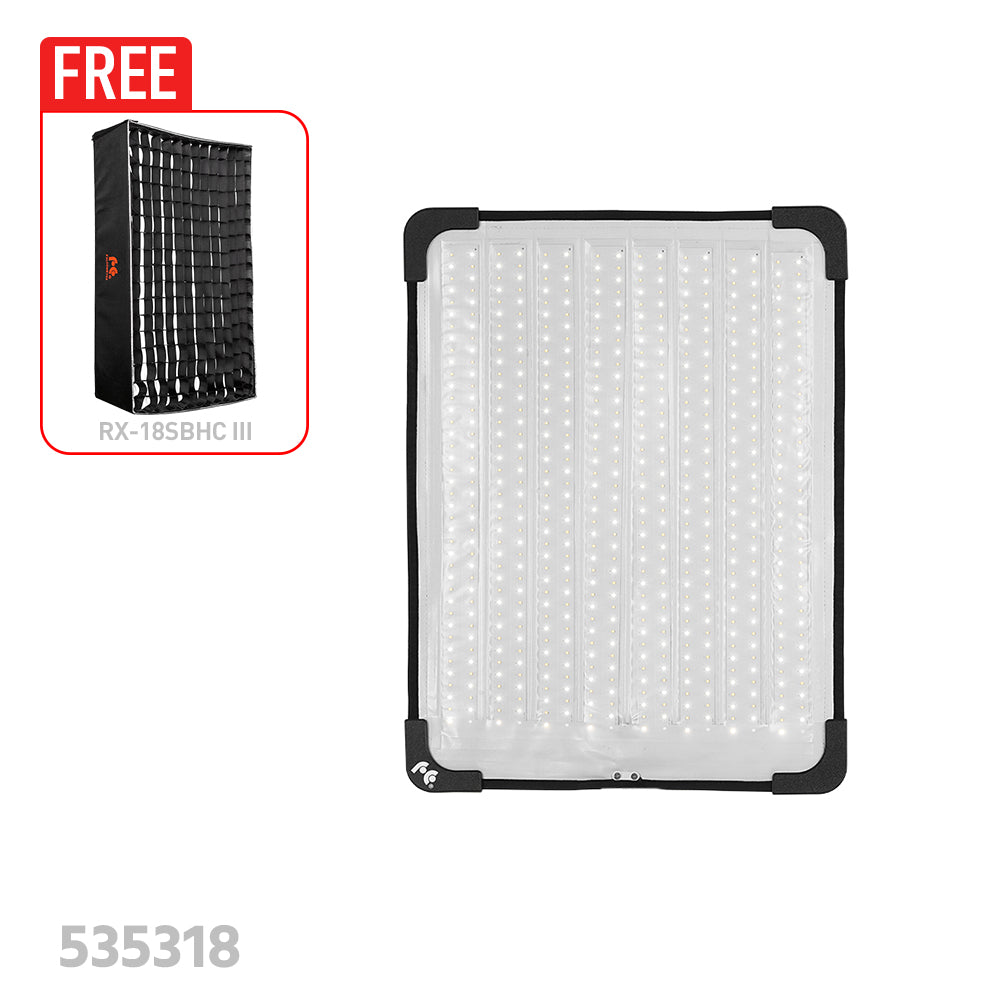

Basic Kit(535318):

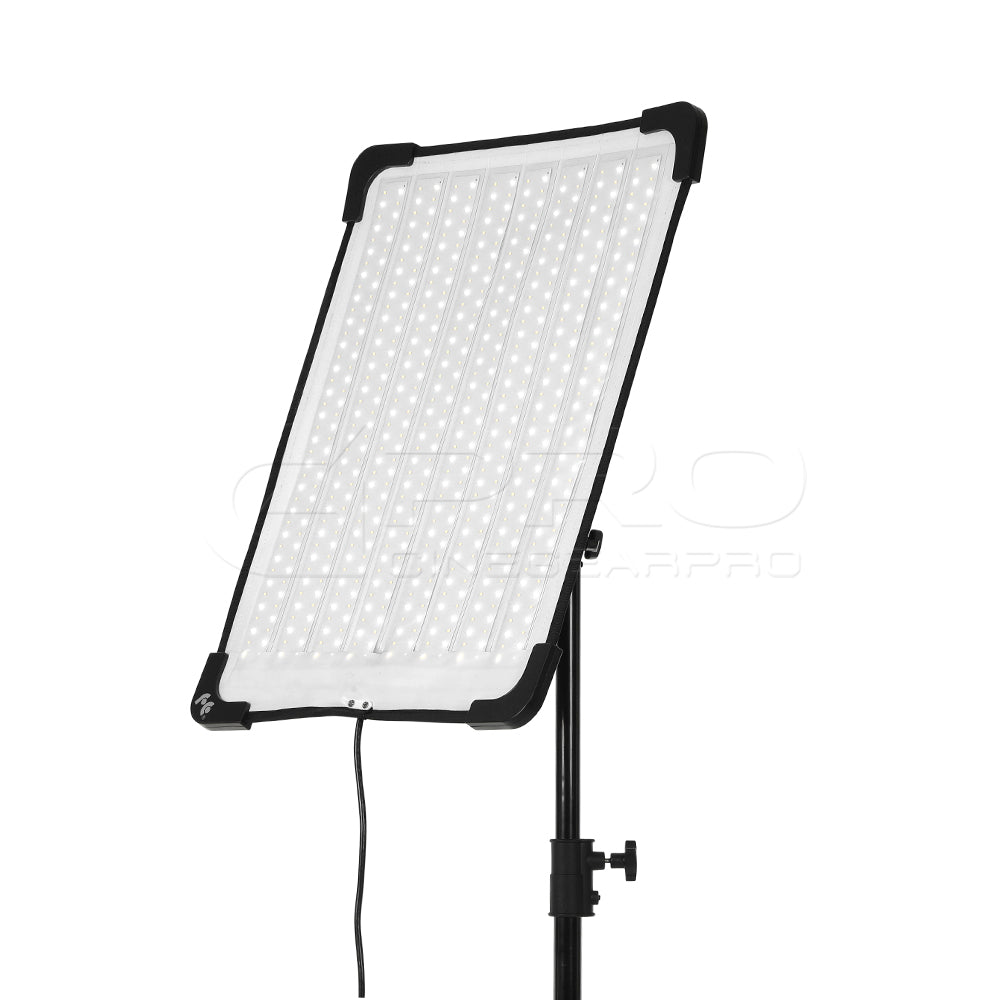

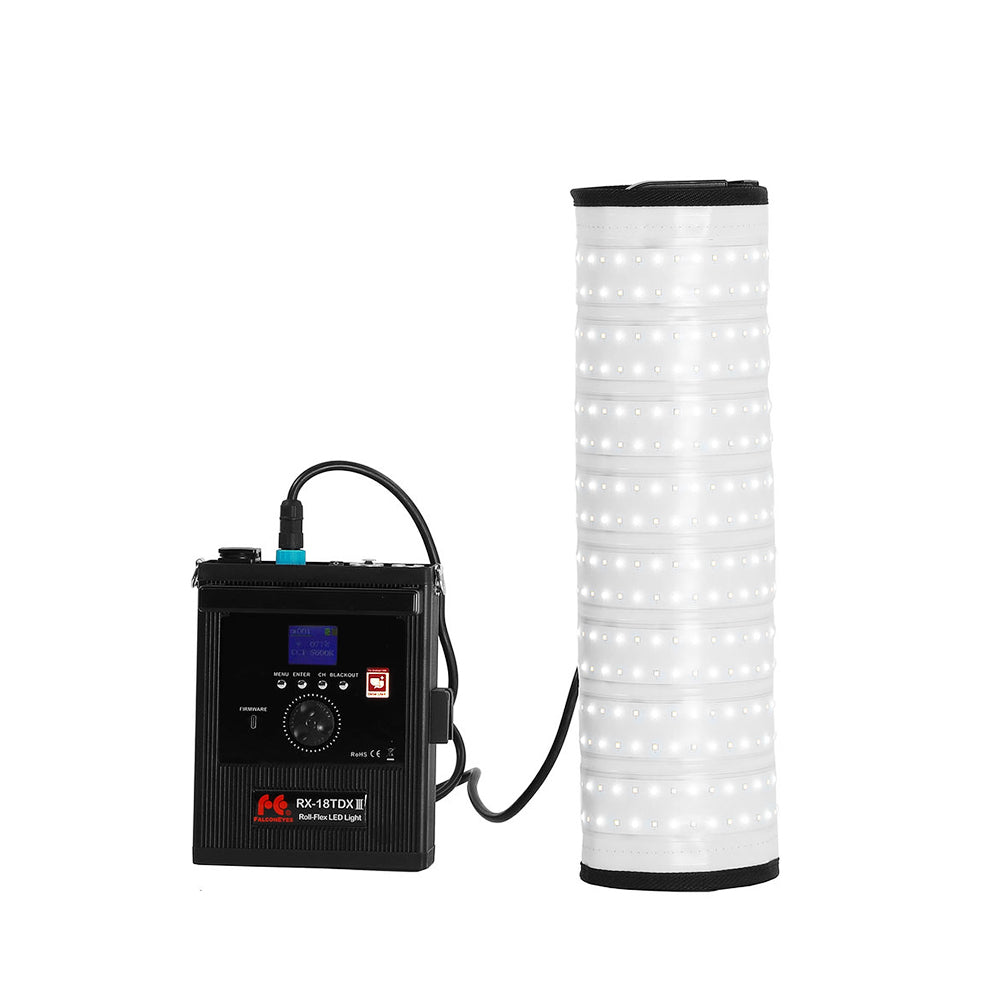

1x RX-18TDX III Roll-Flex Light

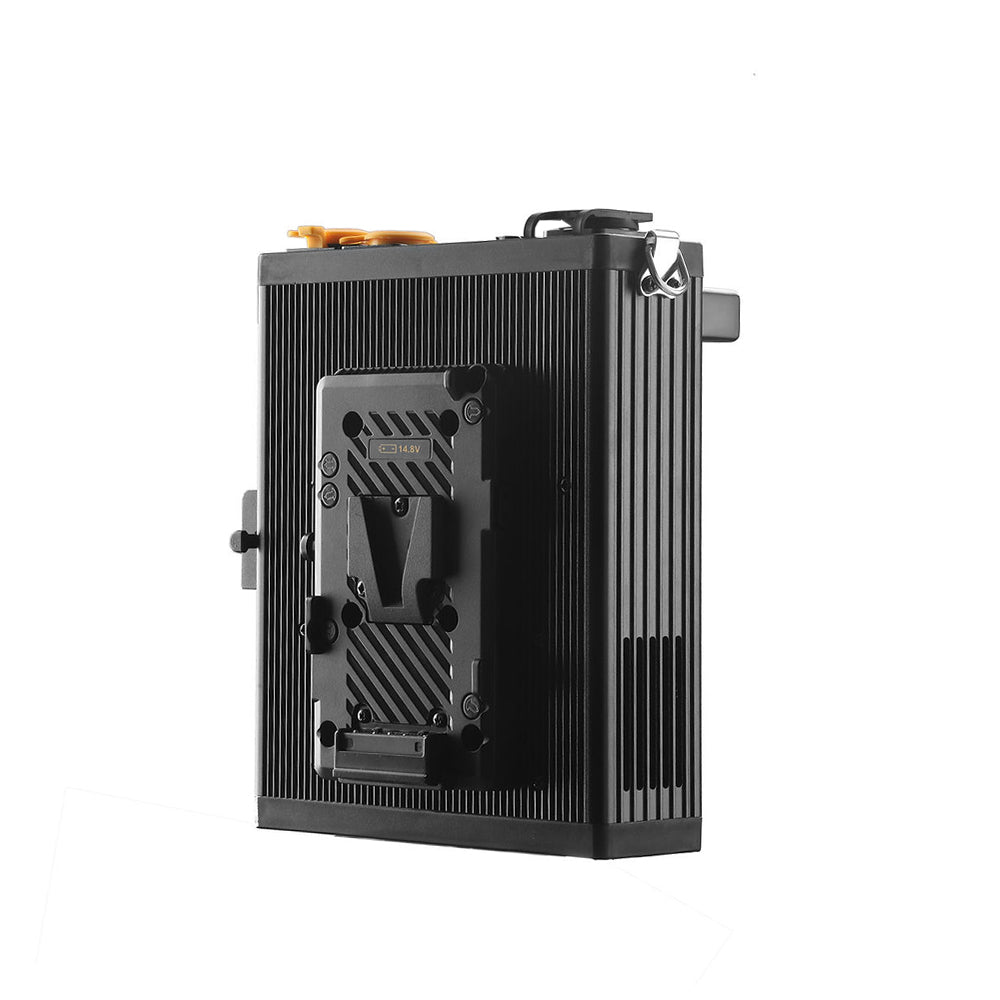

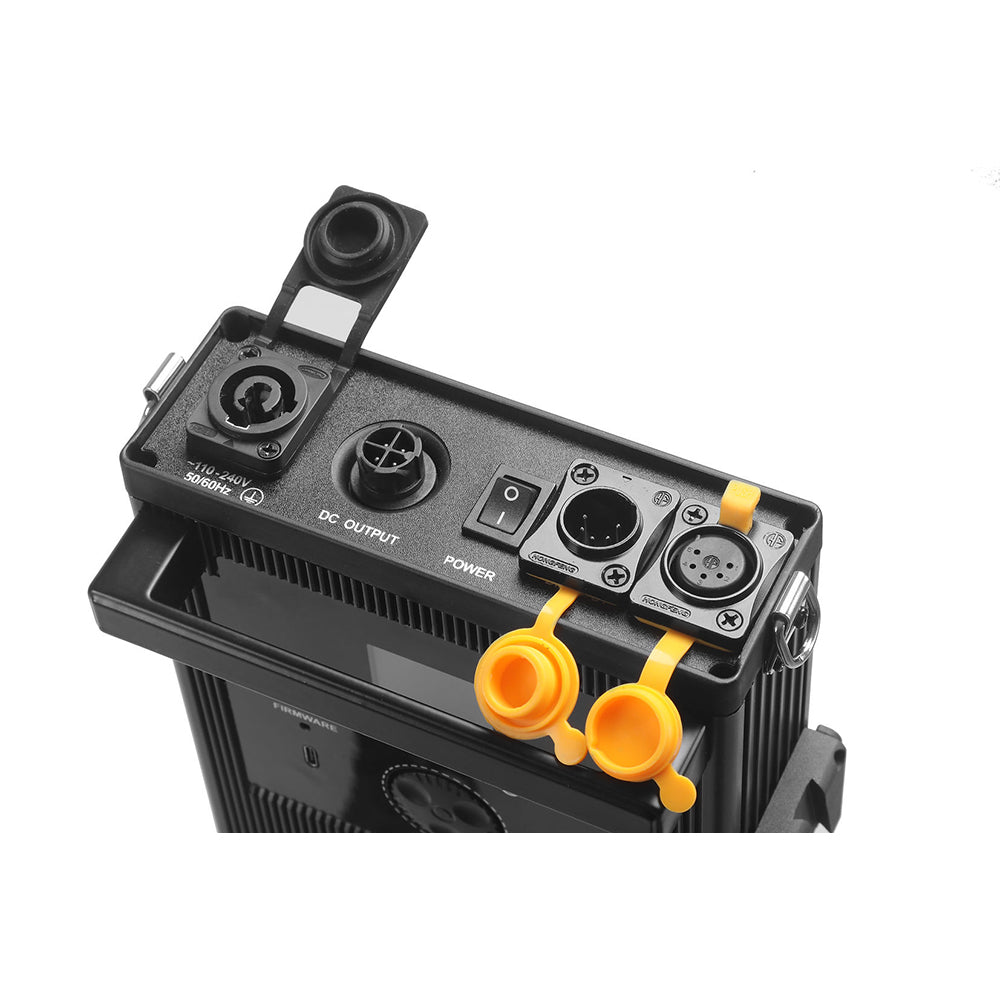

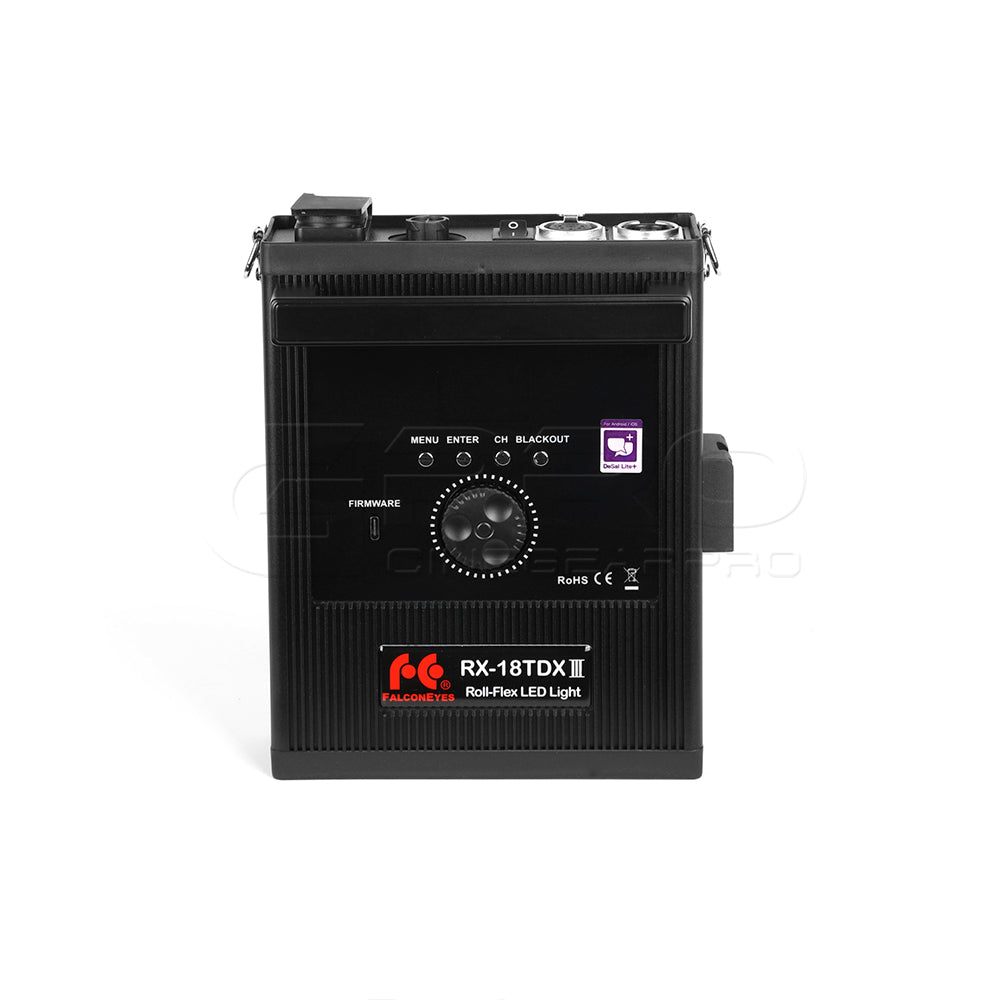

1x Control Box

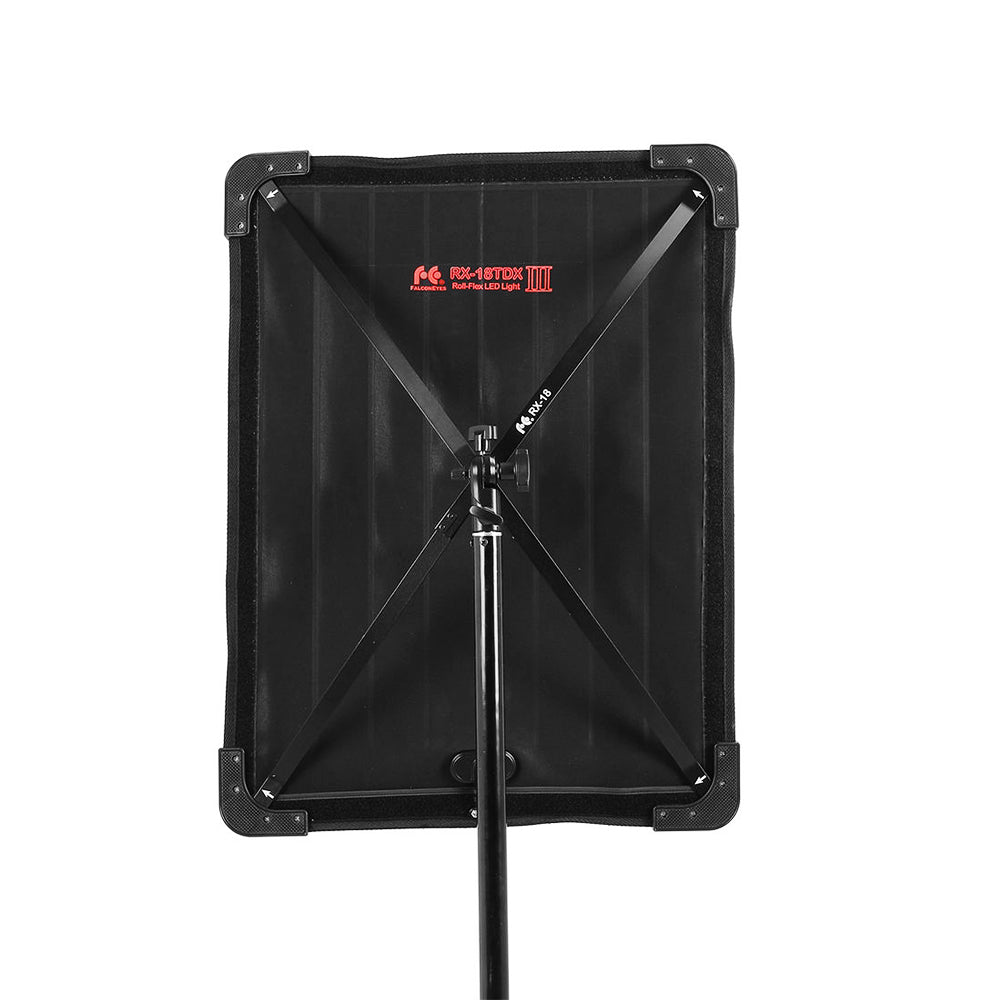

1x X-Shaped Bracket
1x V Mount Fixed Belt
1x L-Shape Bracket
1x Adaptor
1x Adaptor Power Cable
1x 2.4G Signal Enhancement Antenna
1x Carrying Bag
1x RX-18SBHC III

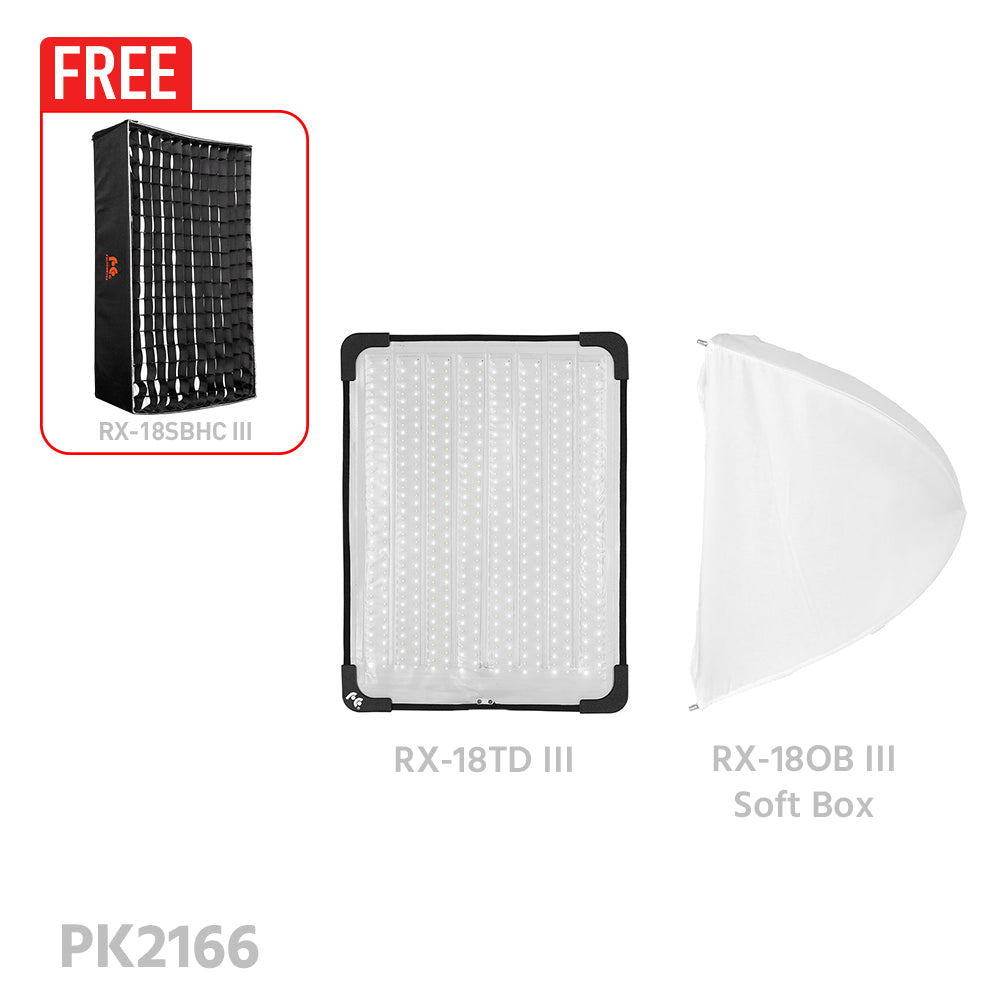

Advanced Kit (PK2166):
1x RX-18TDX III Light Basic Kit (535318)

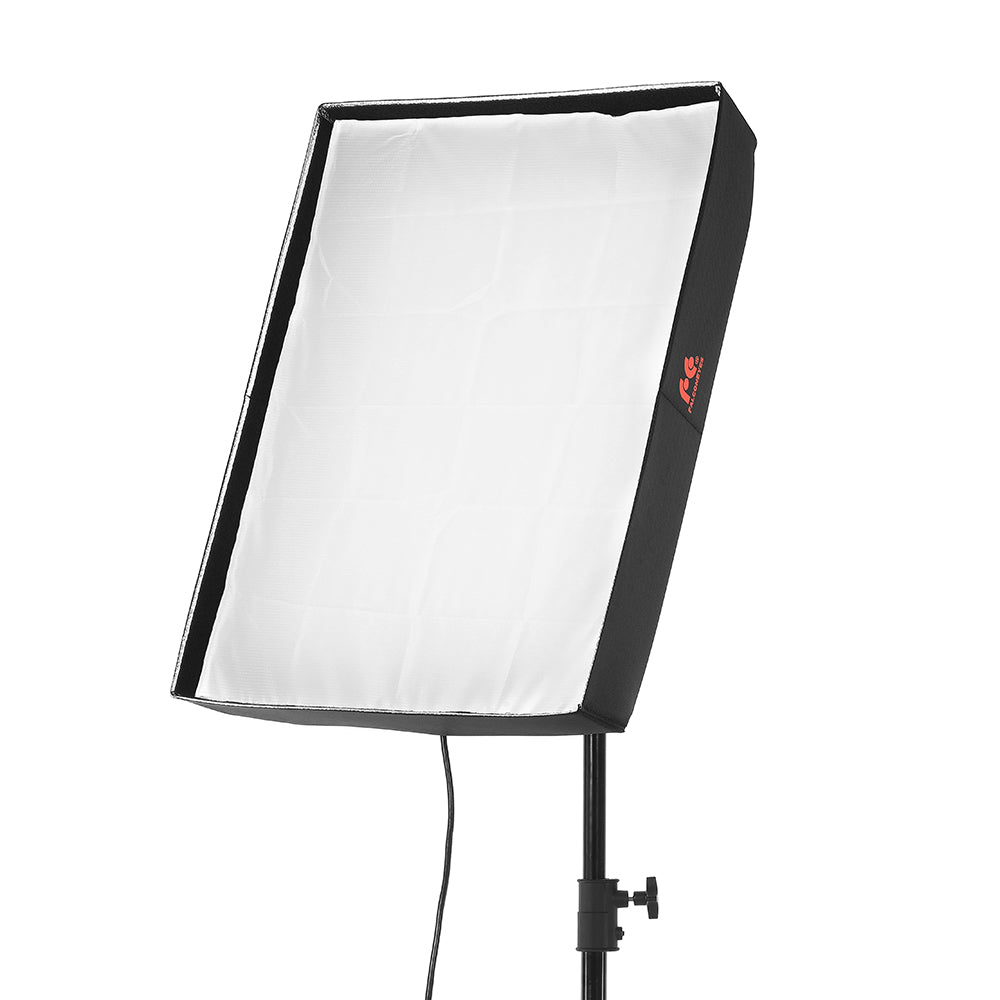

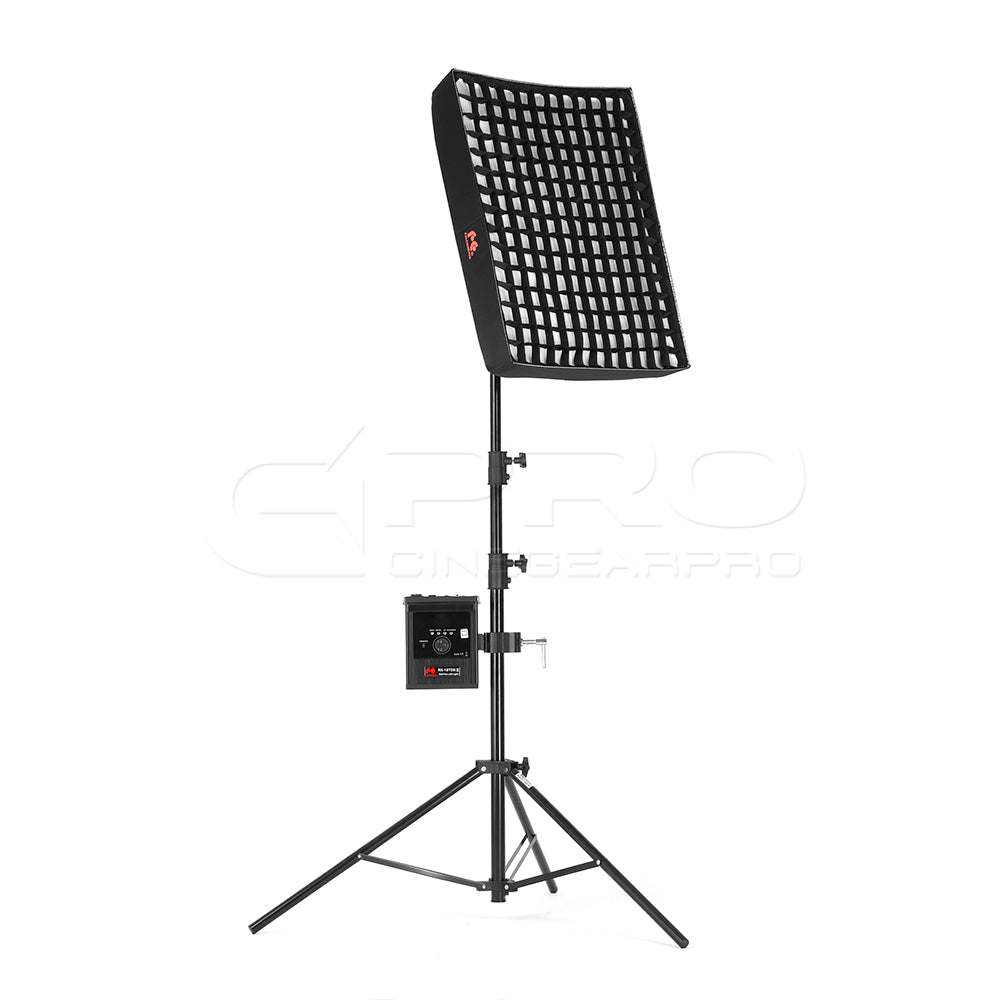

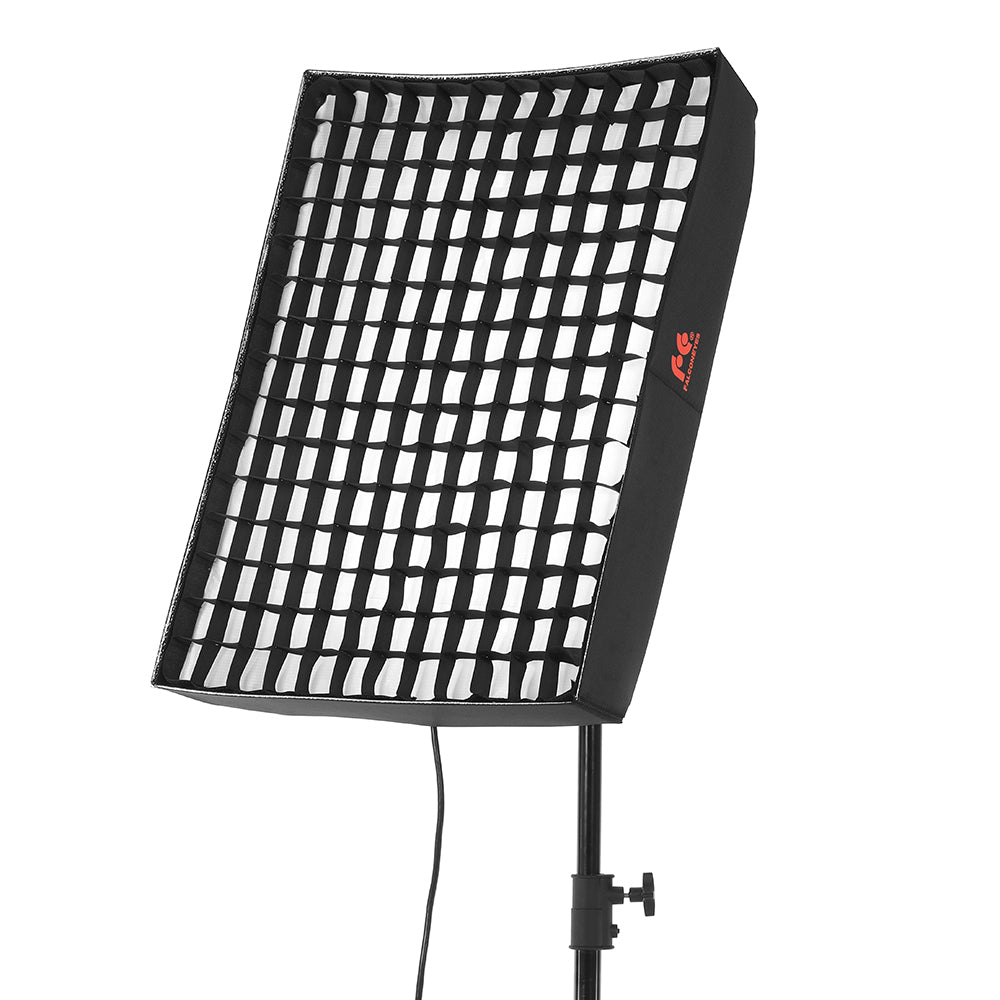

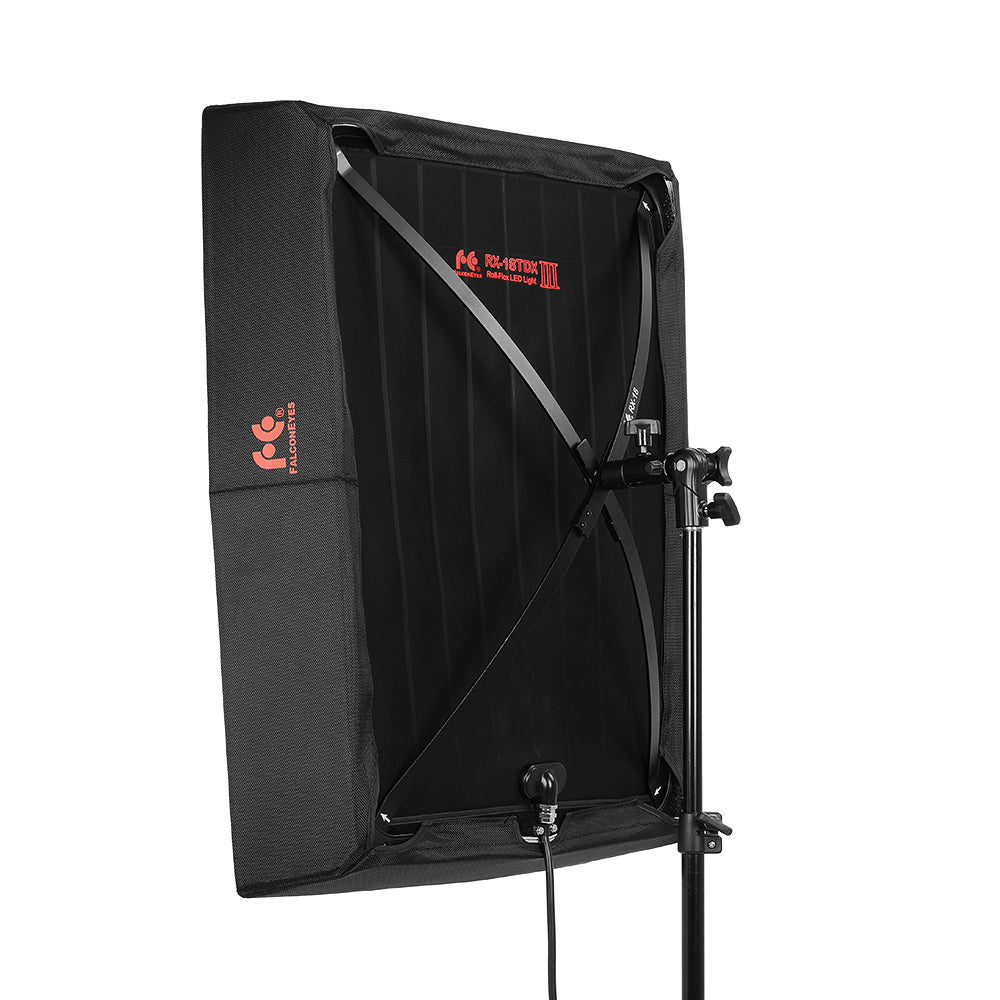

1x RX-18OB III Soft Box

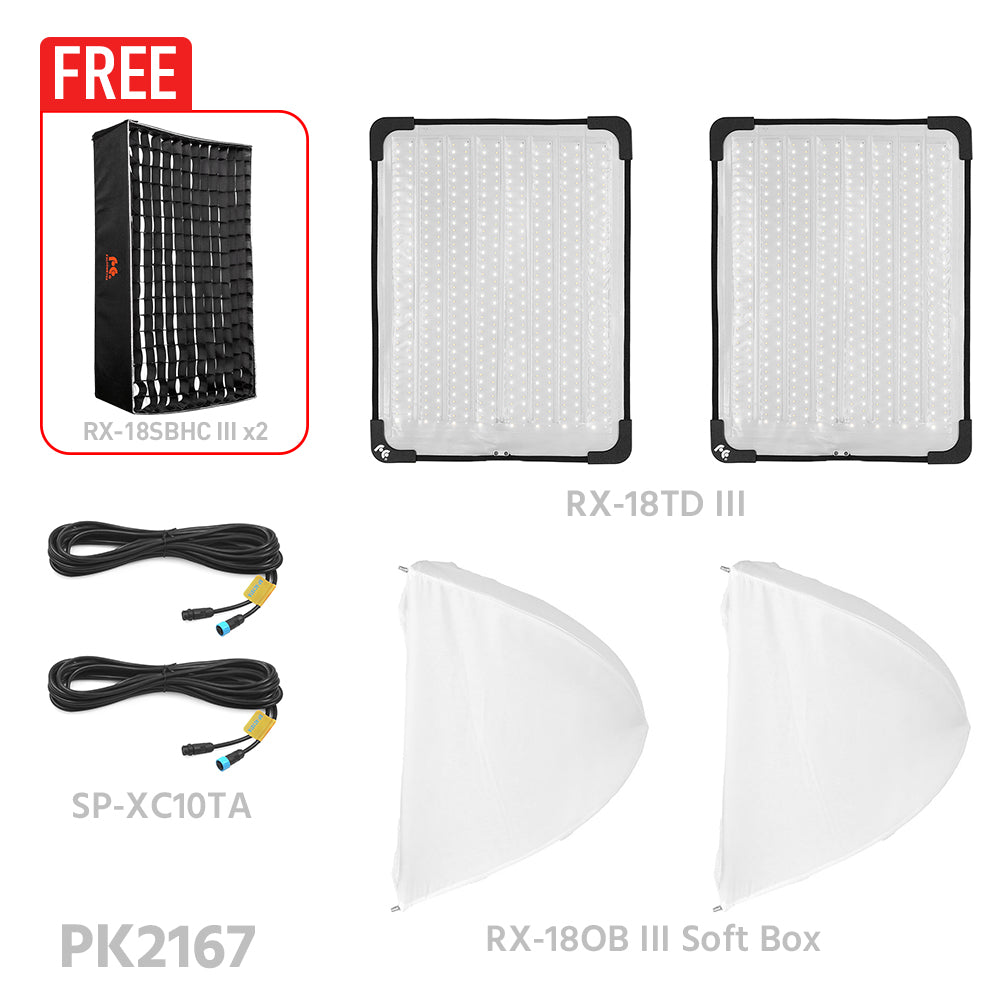

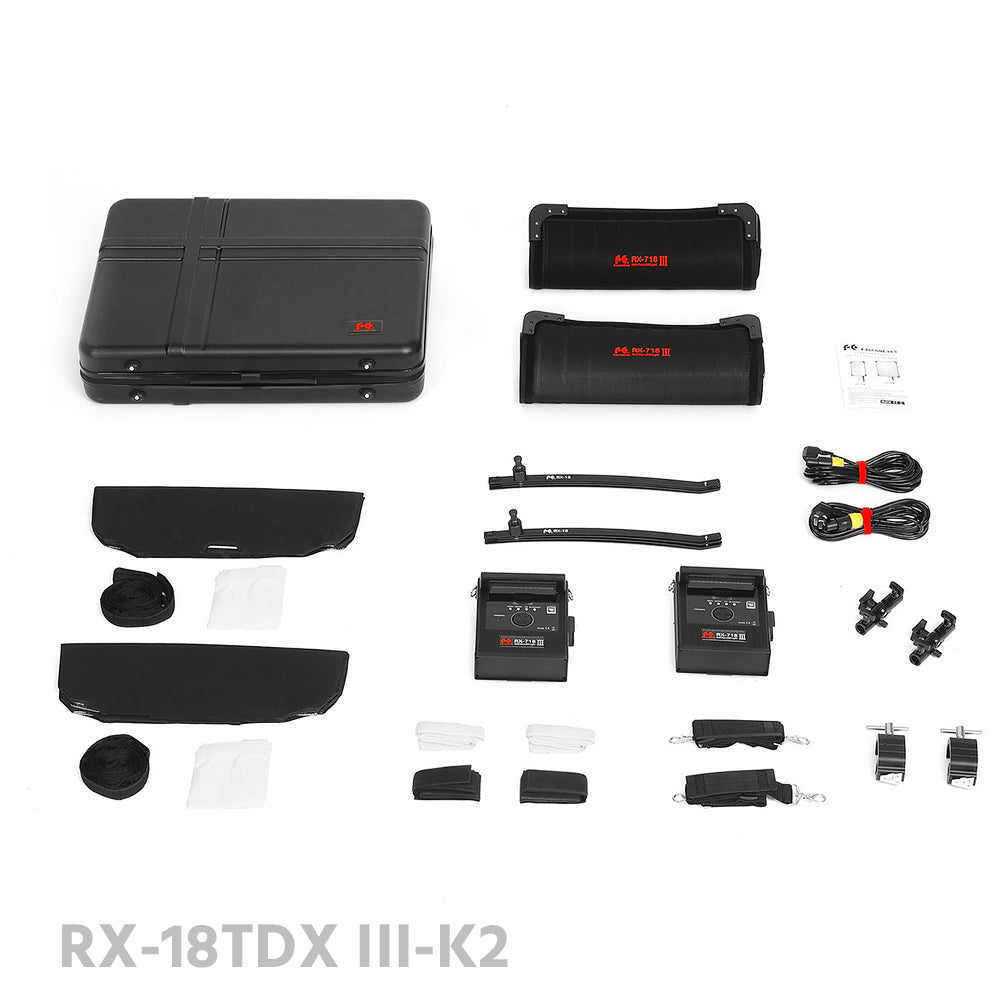

Dual Light Kit (PK2167):
2x RX-18TDX III Light Basic Kit (535318)
2x RX-18OB III Soft Box
2x FalconEyes Extension Power Cable 10m (SP-XC10TA)
Dual Light Power Kit (PK2188)
2x RX-18TDX III Light Basic Kit (535318)
2x RX-18OB III Soft Box
2x FalconEyes Extension Power Cable 10m (SP-XC10TA)
2x 135Wh Battery (531925)
1x Dual Charger (532171)
