DZOFILM Pictor Zoom 3 Lens Bundle 12-25mm + 20-55mm + 50-125mm T2.8 (PL&EF interchangeable Mount, Black)


  • Brand: DZOFiLM
  • SKU: DZO-7220001B/2B/4B-Kit
  • Product code: PK2294
£4,161.60 £5,202.00 £4,993.92 Inc VAT Price Match
Professional Cine Lenses with Concrete Build The new lineup of Pictor Zoom lenses from DZOFILM cover Super35/APS-C sensors. With a constant T/2.8 maximum aperture at every focal length, both lenses...



Professional Cine Lenses with Concrete Build

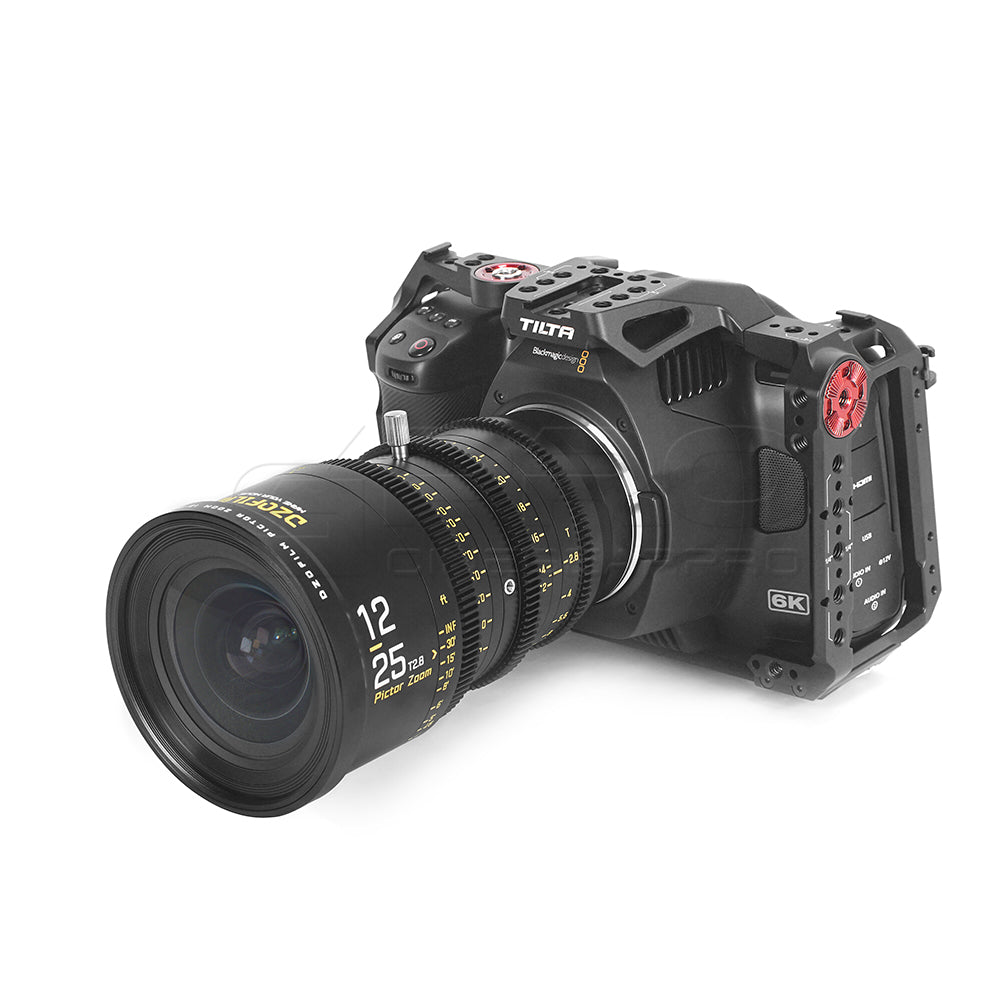

The new lineup of Pictor Zoom lenses from DZOFILM cover Super35/APS-C sensors. With a constant T/2.8 maximum aperture at every focal length, both lenses will cover a total range of 12-125mm at T2.8! Pictor Zoom lenses are completely parfocal and the aperture diaphragm consists of 16 blades for a beautiful smooth and creamy bokeh. These lenses work perfectly with cameras that feature a Super35/APS-C sensor like the Canon C200, ZCAM E2, BMPCC 6K, URSA Mini Pro 12K and the RED Komodo camera.



Capturing

The distortion of wide angle lens, exaggerates emotion of characters and highlights the dramatic expression.


Visual Effect

Capturing exaggerating movement, aggrandizes the rhythm of image and enhances the visual impact in the story.



Parfocal Design

Center image stay sharp during zooming in or out. No matter from close-up to wide shot, Or rapidly zoom out to long shot, Under Parfocal design, focus keeps still all the way along.


Minimal Breathing

Thanks to the floating structure, the breathing of Pictor Zoom lenses are negligible during focusing.



Versatile and Ultra compact

At just 1.6kg (3.5 lbs), Pictor Zoom can be easily mounted on a crane, jib, tripod, ROV or other moving platforms, and provides safer and more efficient work methods by reducing heavy lifting. Be a better Run-and-Gun Filmmaker and have no fear of any complicated scenes or quick shooting. Time saving without frequent lens changing, Pictor zoom, in no way miss an inspiring moment.



Gentle Sharpness & Vivid Look

From feature film, commercial, to documentary, Pictor Zoom captures crisp details while expressing organic look and cinematic texture.


Soft Bokeh Increases Sense of Separation.

Dreamy Bokeh & Esthetic Transition
Excellent subject seperation is achieved using 16 aperture blades which creates soft dreamy out of focus areas. This adds depth to the scene and isolates the subject from the background.



Speed up your Shooting!

Consistent Design & Higher Efficiency
Highly consistent in color and mechanical control, which satisfies the needs on demanding shoots. Cinema 0.8 standard pitch on Focus, Iris, Zoom ensures maximum compatibiltiy with multipe Follow Focus and wireless systems, Experience exeptional build quality and attention to even the smallest details with Pictor Zoom lens.



Seek for More Possibility

Interchangeable mount system
compatible with PL, E, EF and LPL mounts,
provides more possibility of shooting videos.



Specifications:



Focal length

12-25mm

14-30mm

20-55mm

50-125mm

Mount

PL/EF

PL/EF

PL/EF

PL/EF

T-Stop

T2.8-22

T2.8-22

T2.8-22

T2.8-22

Image Circle

31.5mmS35

31.5mmS35

31.5mmS35

31.5mmS35

Optical Construction

21 Elements in 15 Groups

21 Elements in 17 Groups

18 Elements in 15 Groups

18 Elements in 13 Groups

Flange Distance

52mmPL/44mmEF

52mmPL/44mmEF

52mmPL/44mmEF

52mmPL/44mmEF

Close Focus(From Sensor Plane

0.4m/1ft4in

0.6m/2ft

0.8m/2ft8in

0.8m/2ft8in

zoom ratio

2.08X

2.14X

2.75X

2.5X

IRIS Control

64.4°

61°

65°

72°

Focus Control

270°

270°

270°

270°

Zoom Control

100°

100°

100°

100°

Front Dia.

95mm/3.74"

95mm/3.74"

95mm/3.74"

95mm/3.74"

Length

150mmPL5.9”

159mm(EF)6.26"

173mmPL6.81”

181mm(EF)7.13”

164mm(PL)6.46"
171.9mm
EF6.77”

175mm(PL) 6.88"
182.9mm
EF7.20”

IRIS Blades

16

16

16

16

Filter Size

M86*0.75

M86*0.75

M86*0.75

M86*0.75

Gear Pitch

0.8 Mod

0.8 Mod

0.8 Mod

0.8 Mod

Weight

around 1600g

around 1880g

around 1520g

around 1700g

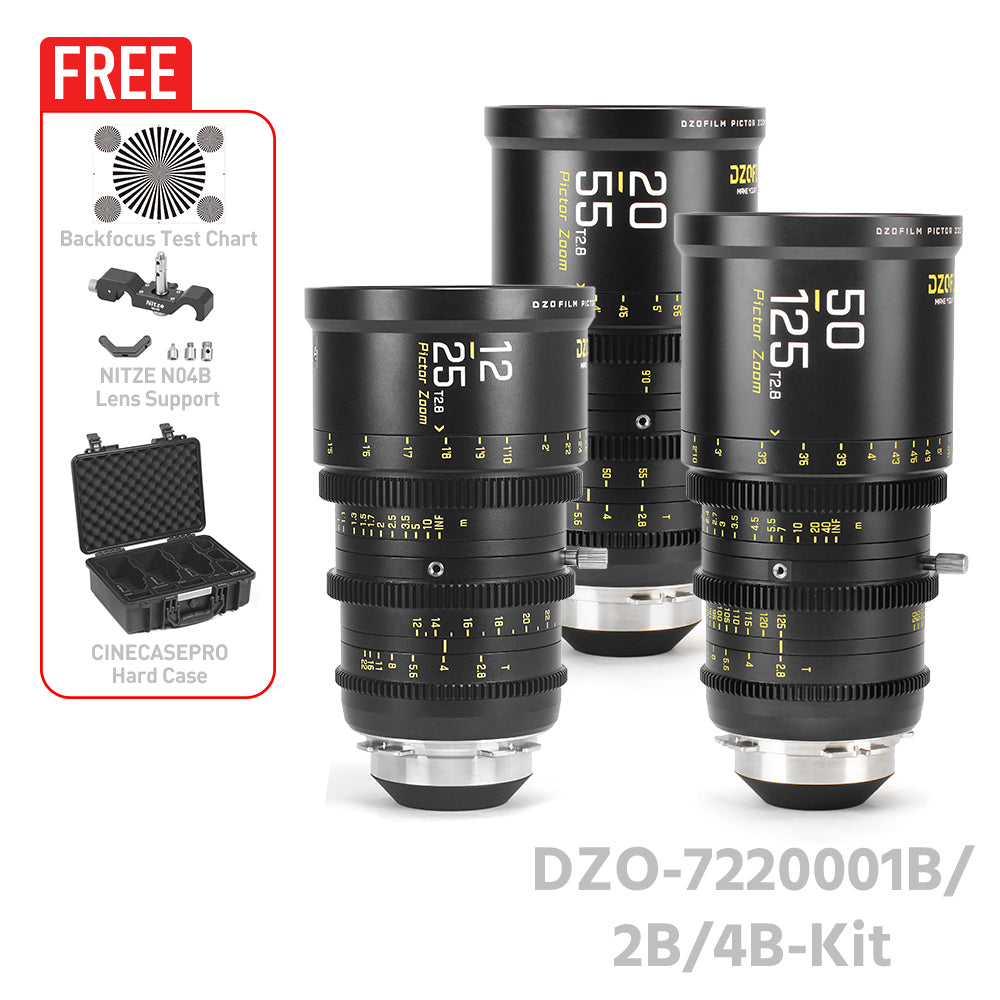

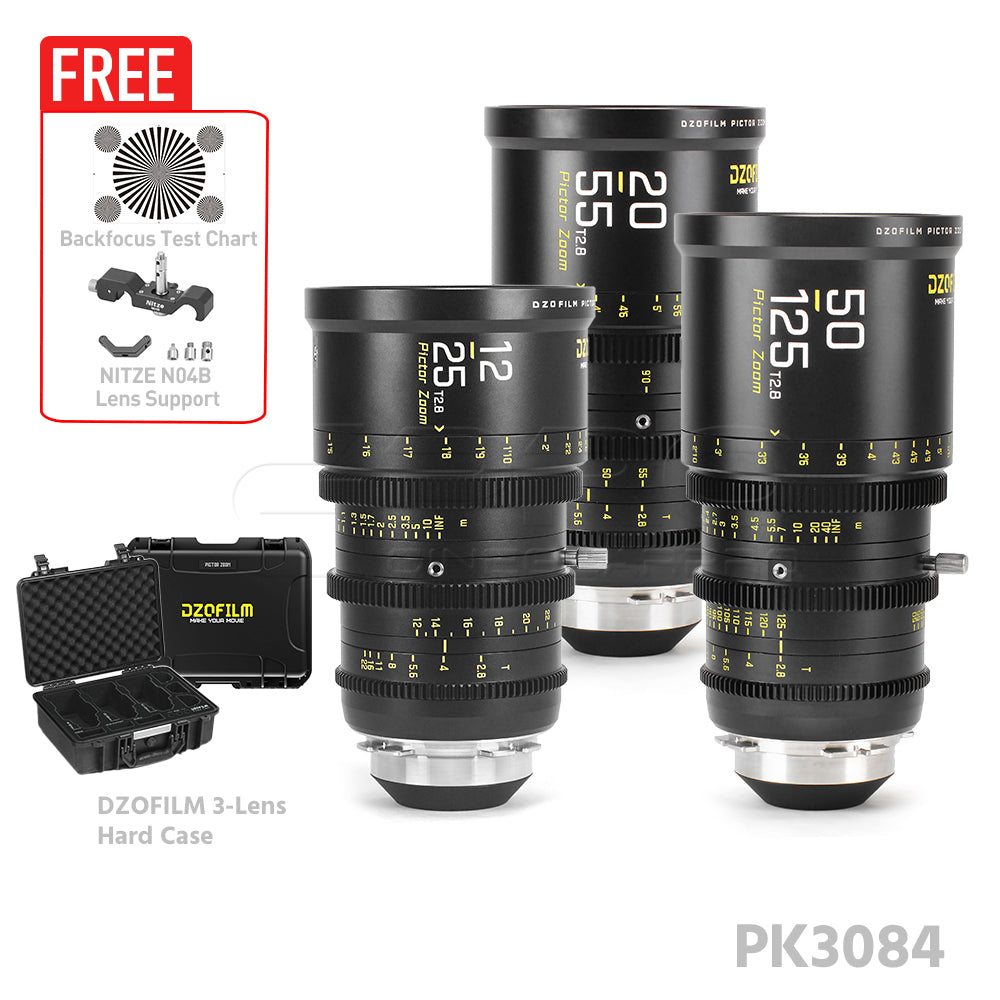

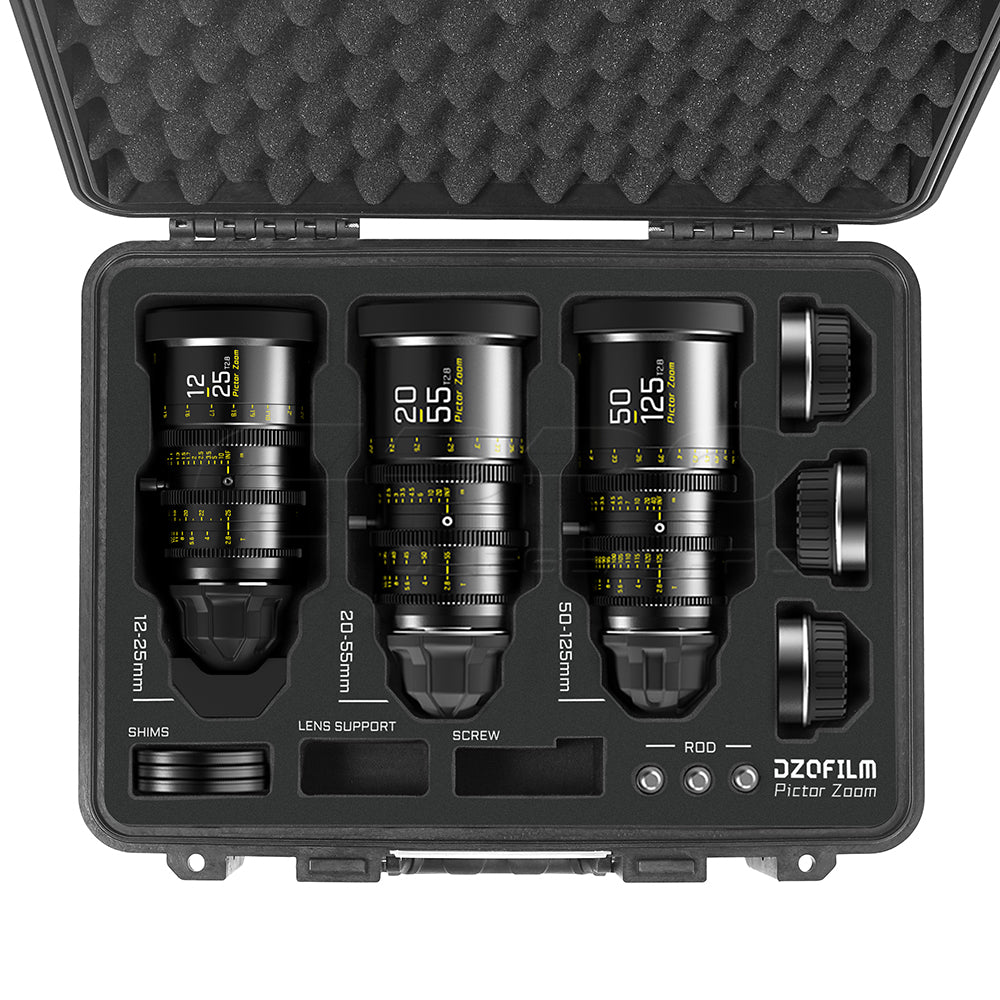

Package Contents:

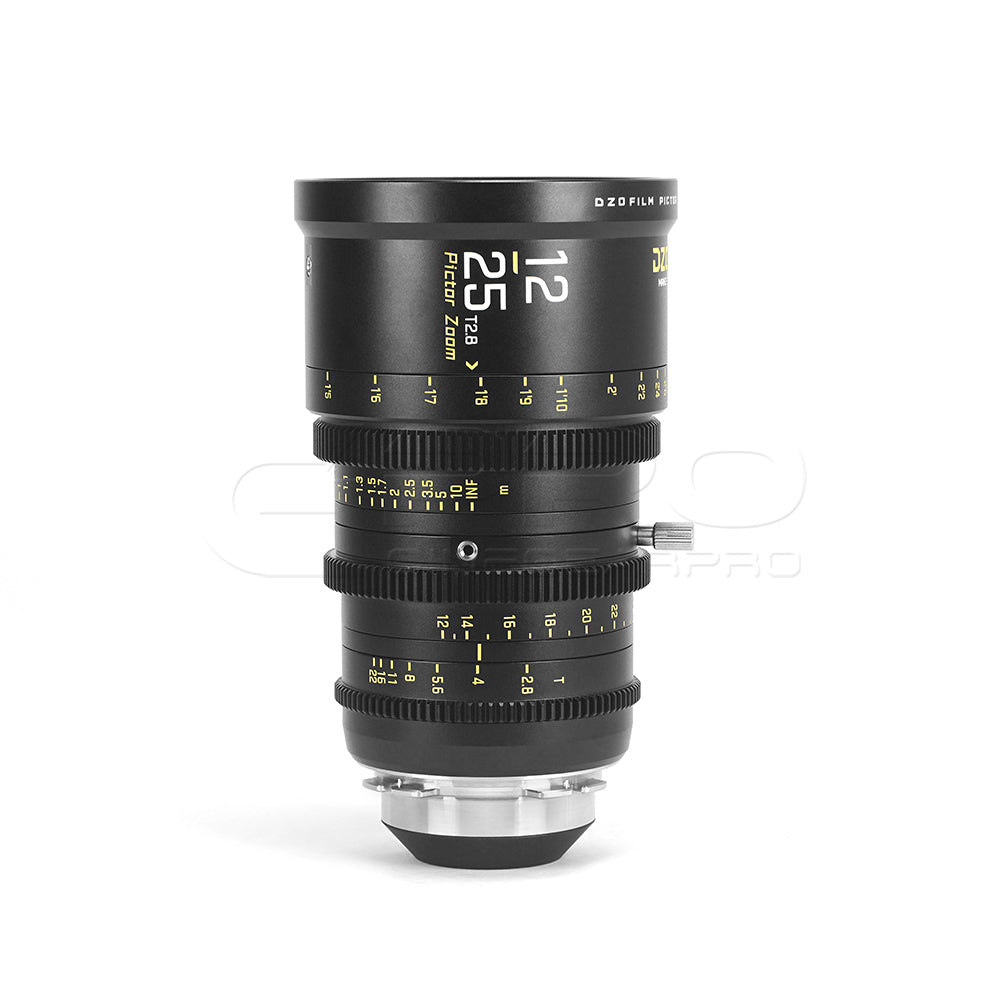

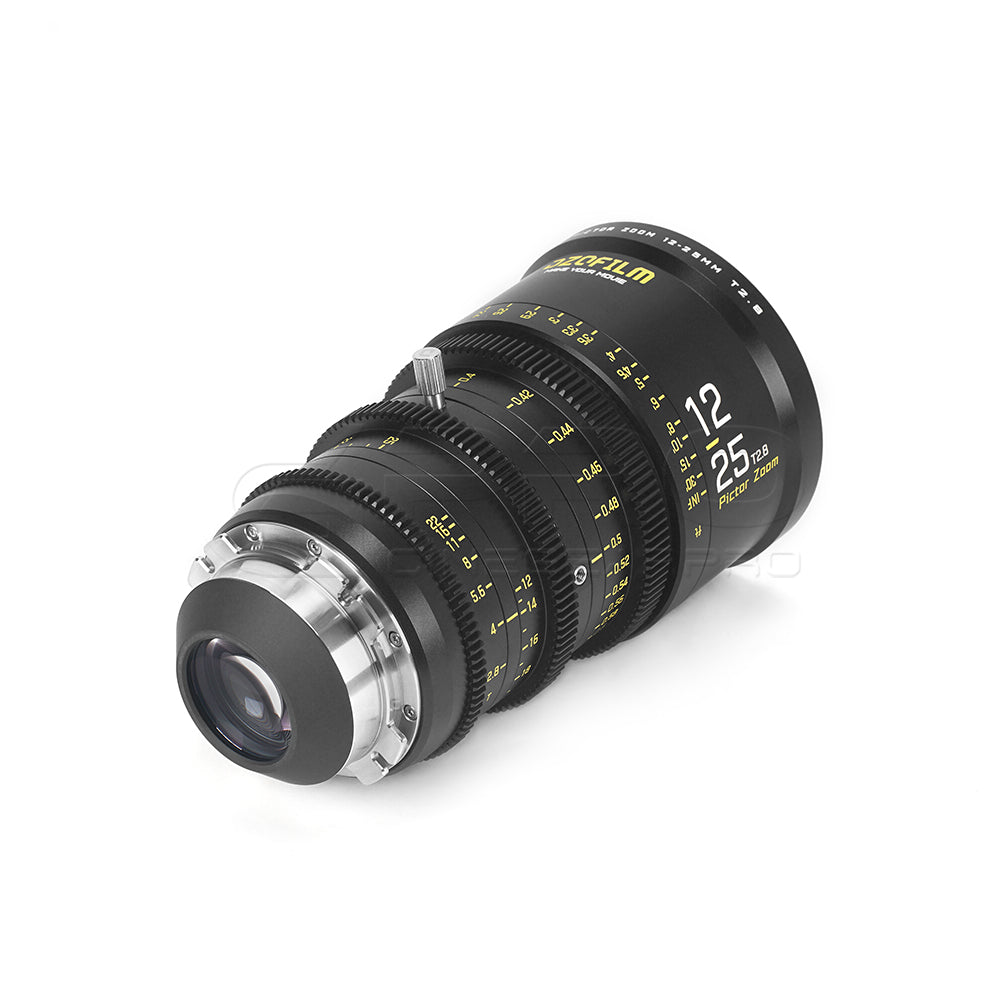

1x DZOFiLM 12-25mm T2.8 Cinema Pictor Zoom Lens (535520)

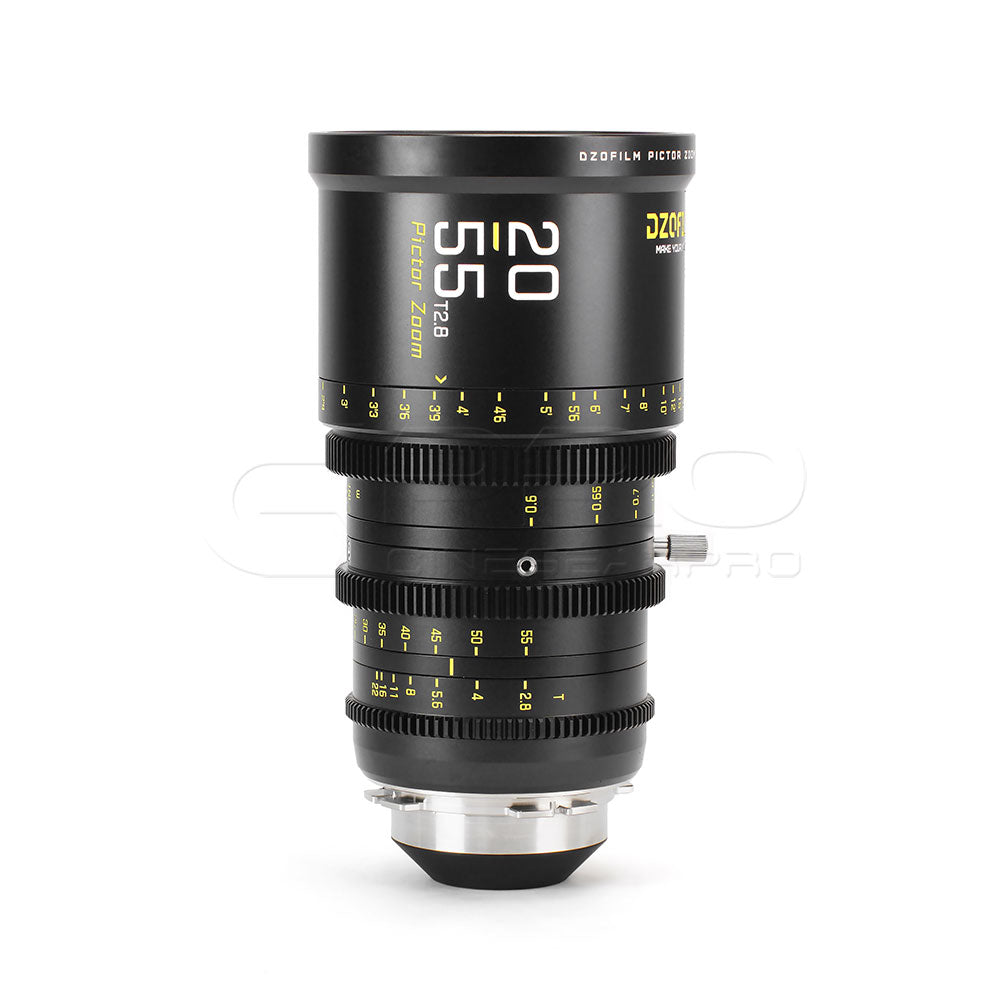

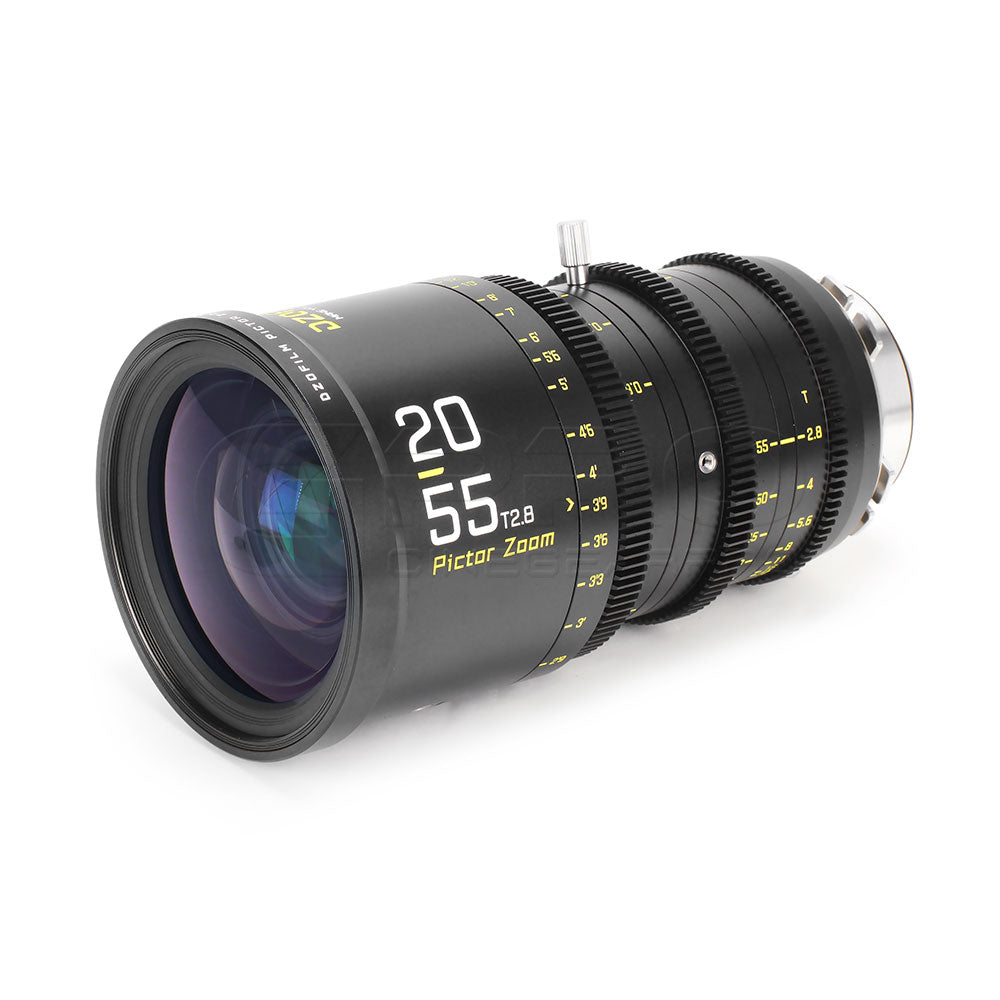

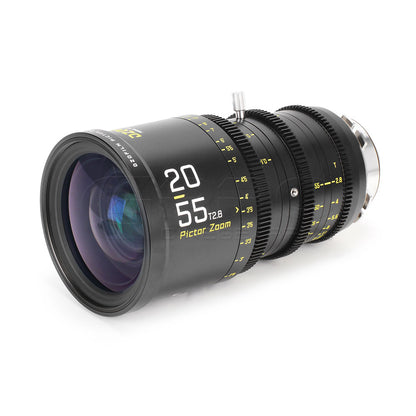

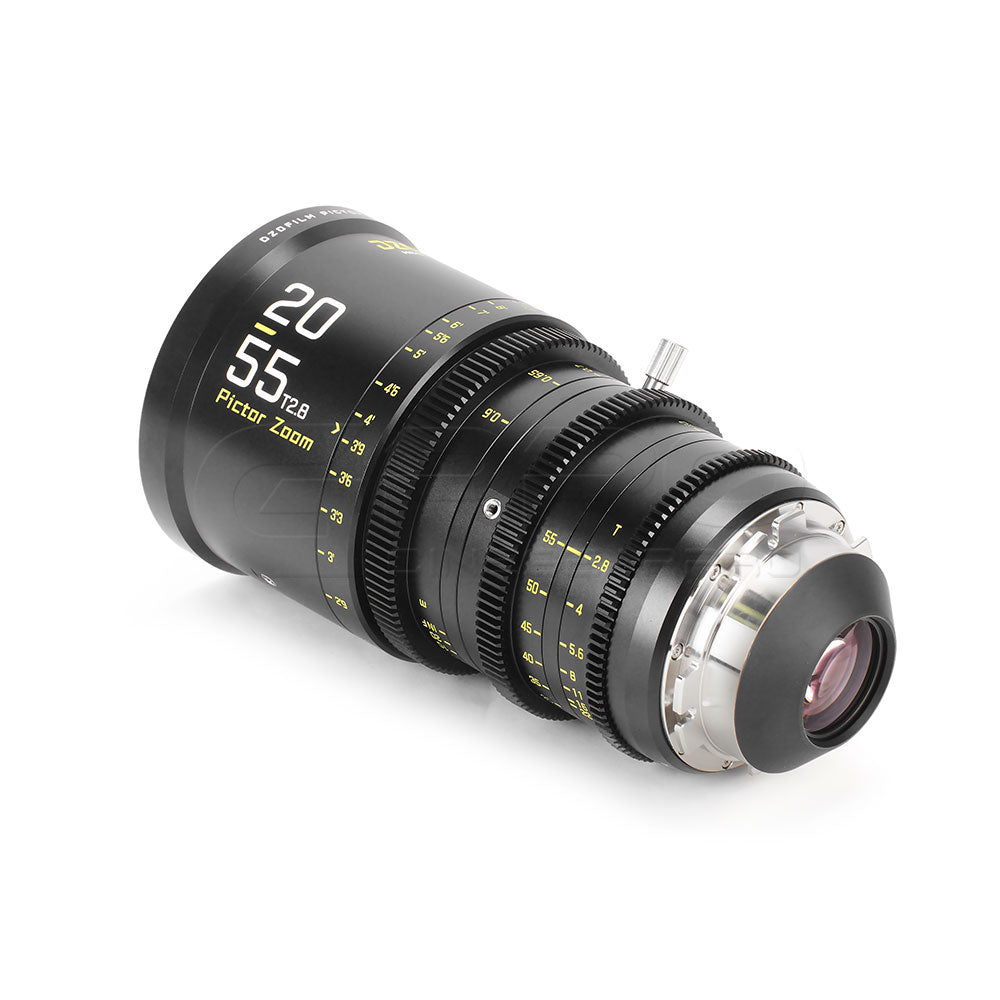

1x DZOFiLM 20-55mm T2.8 Cinema Pictor Zoom Lens (533435)

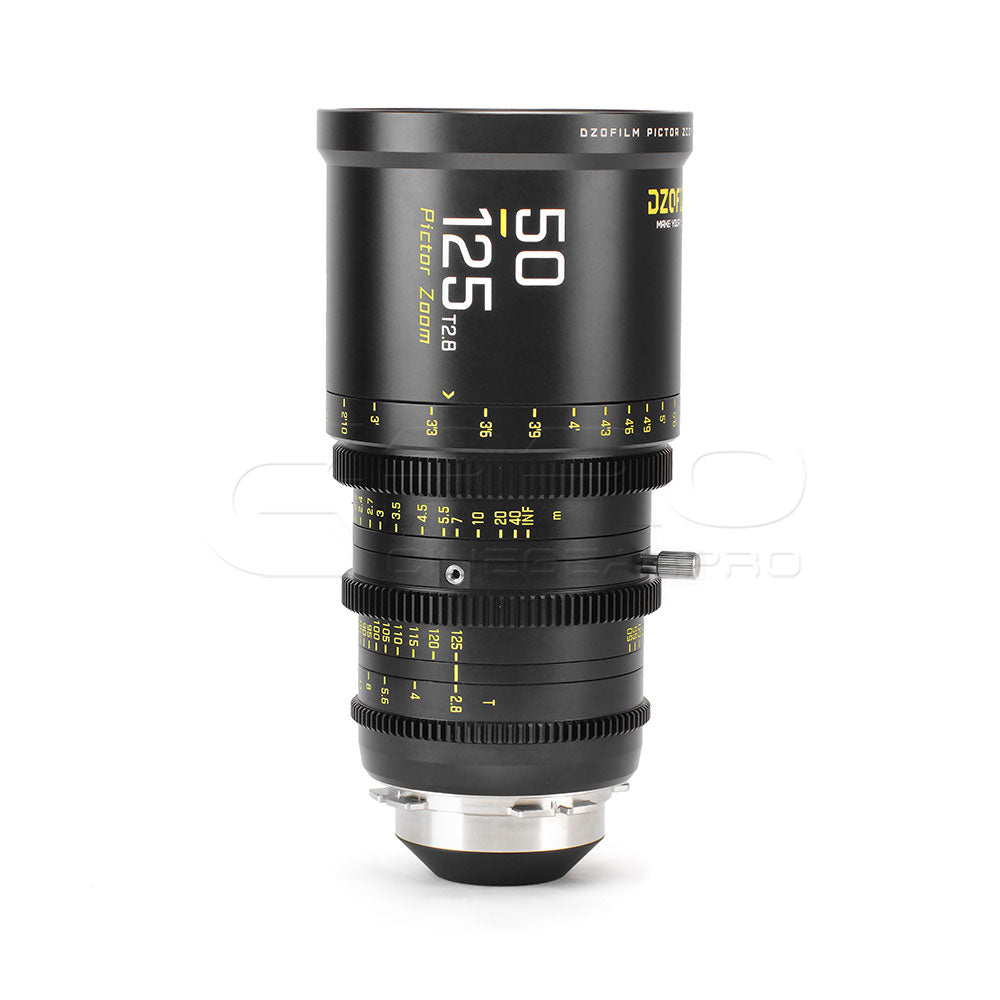

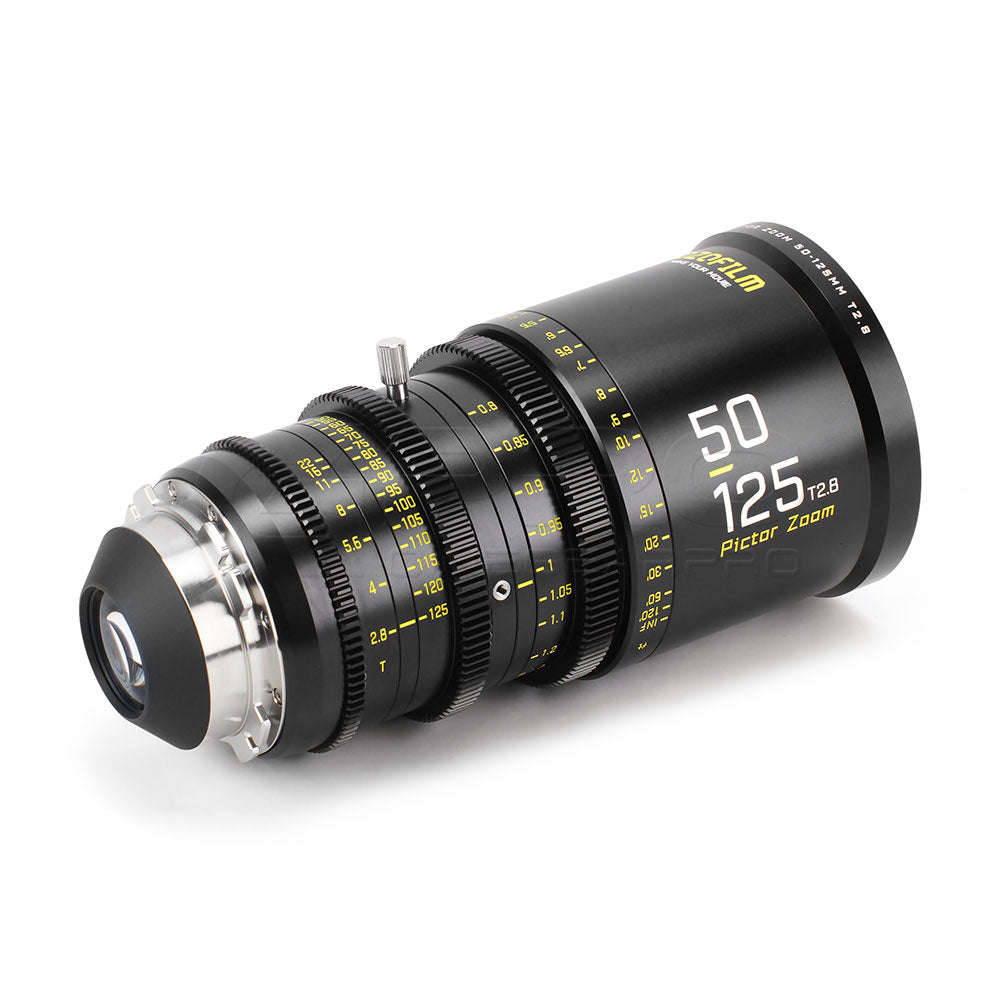

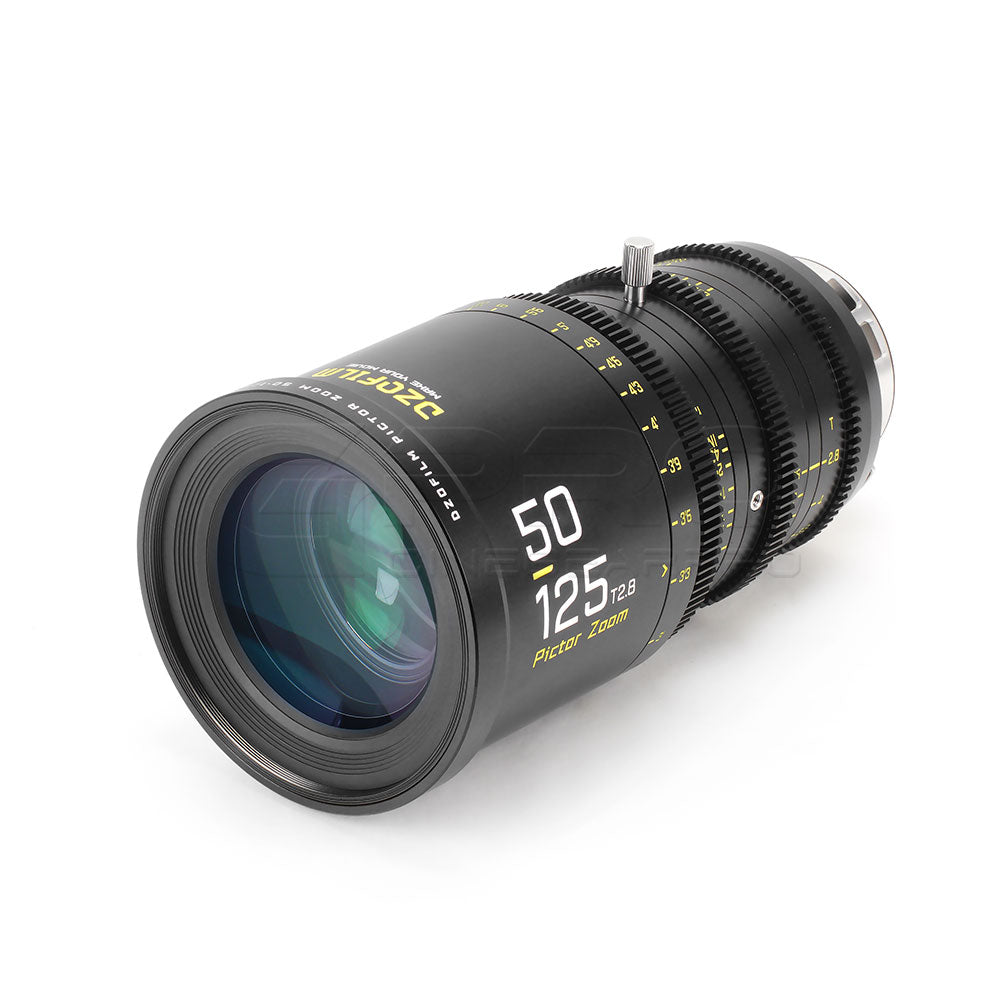

1x DZOFiLM 50-125mm T2.8 Cinema Pictor Zoom Lens(533437)

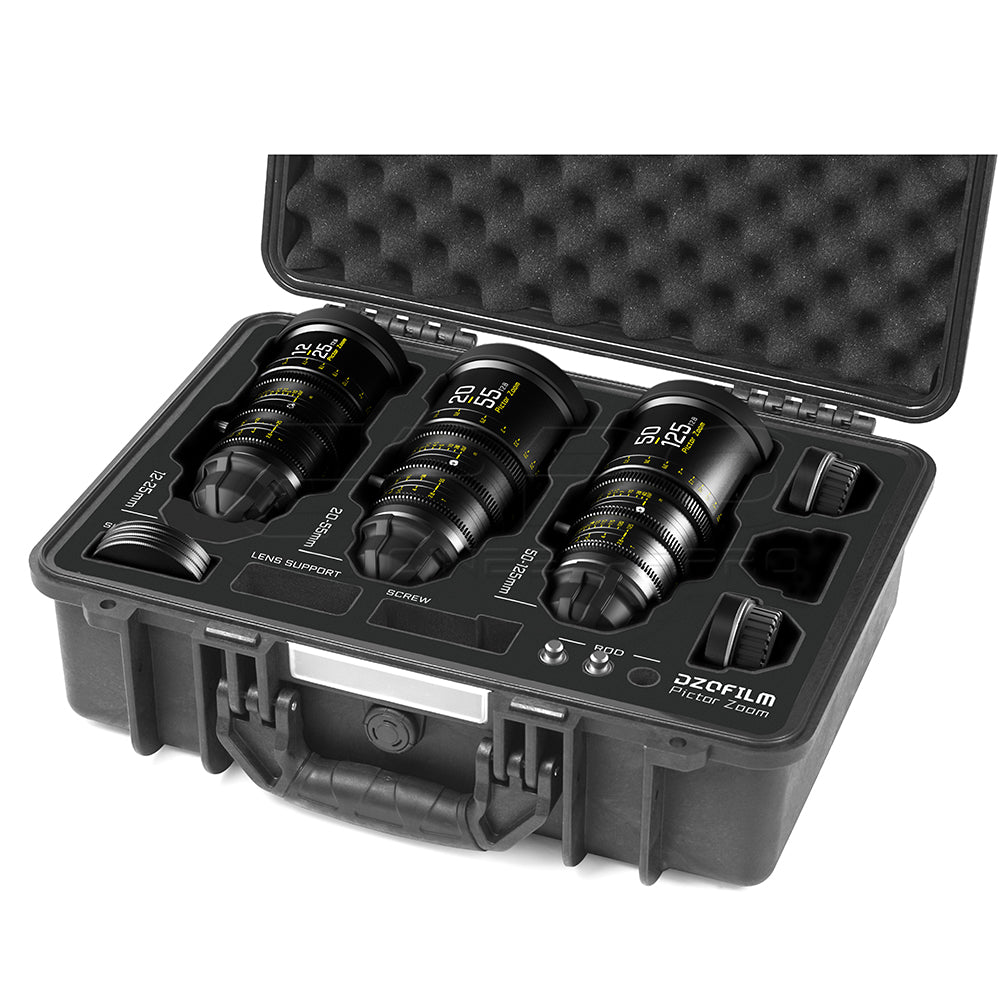

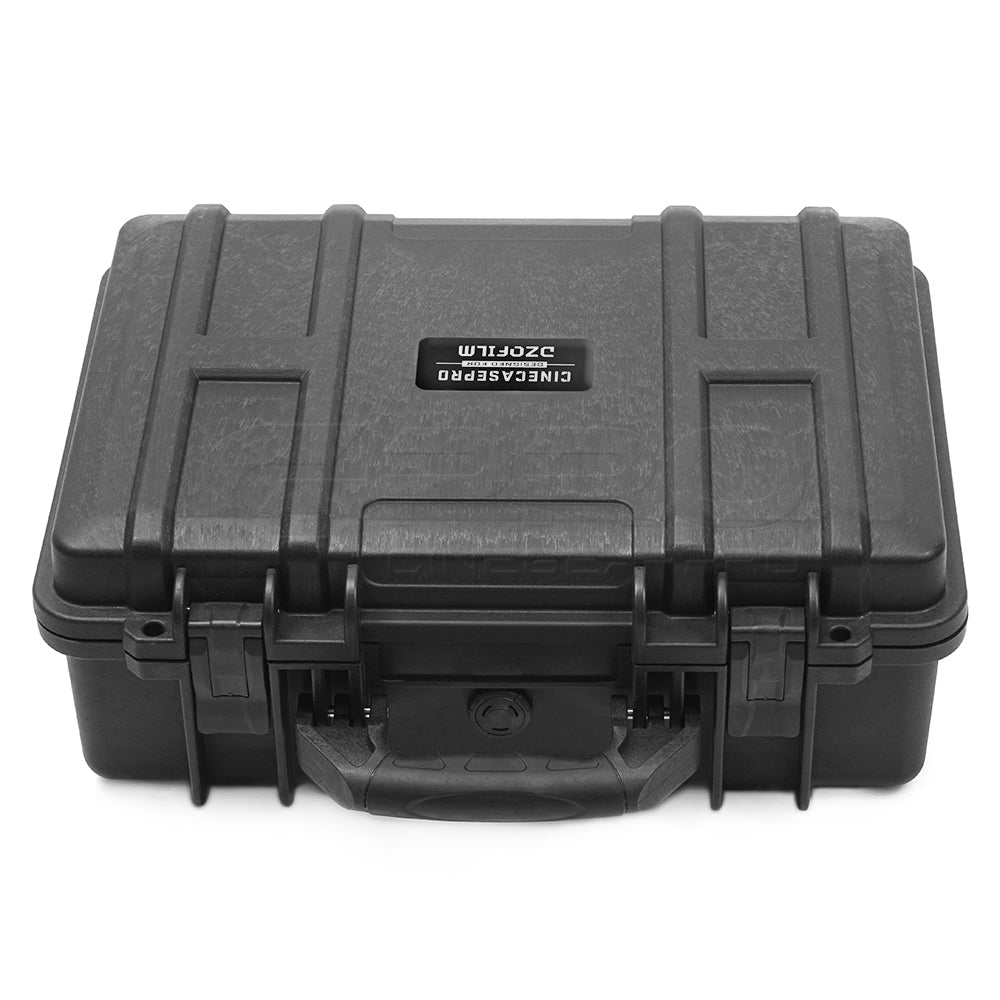

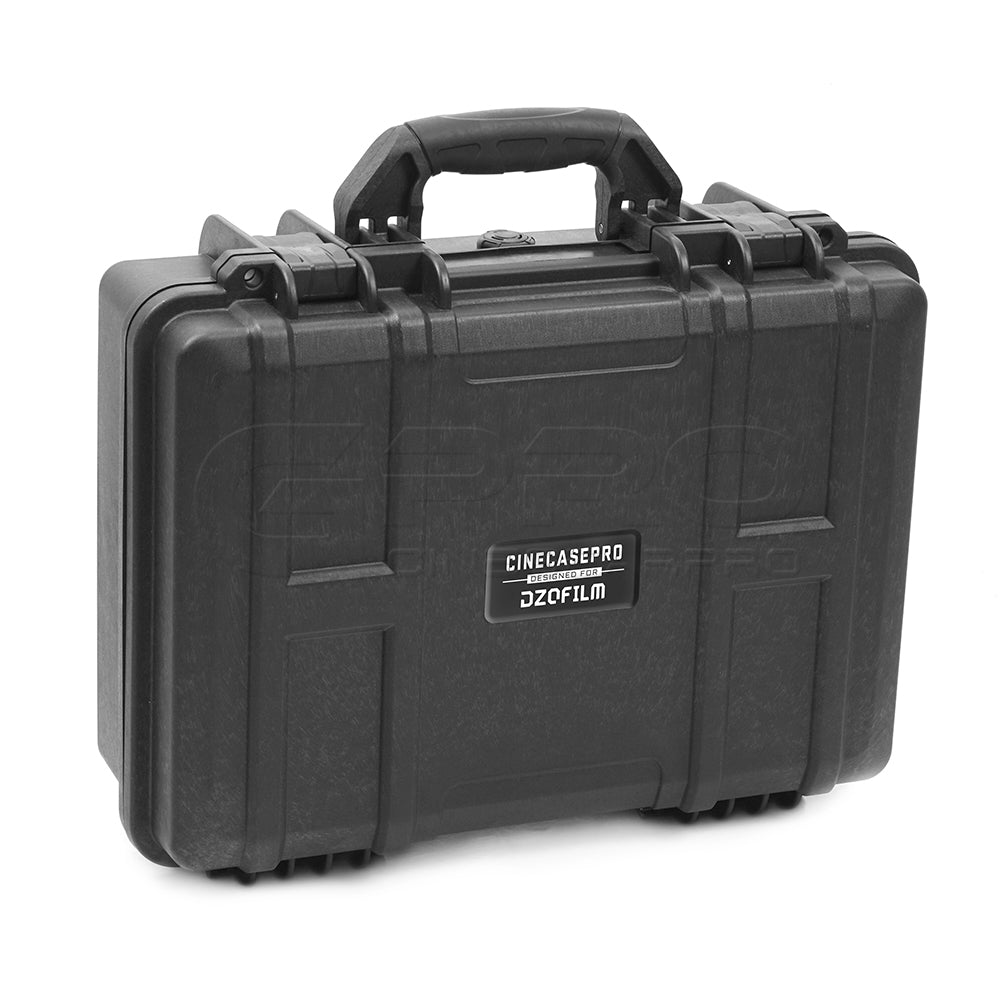

1x CINECASEPRO Hard Case(535011)(Free)
1x
Lens Backfocus Test Chart(533558)(Free)
1x
Nitze N04B 15mm LWS Lens Support(534504)(Free)
