Desview R6 UHB 2800nits 5.5" Touch Screen Full HD 4K HDMI Monitor Ultra High Brightness with 3D LUTs/HDR/waveform/vectorscope
- Brand: Desview
- SKU: R6 UHB
- Product code:
The Perfect choice for on camera monitoring!

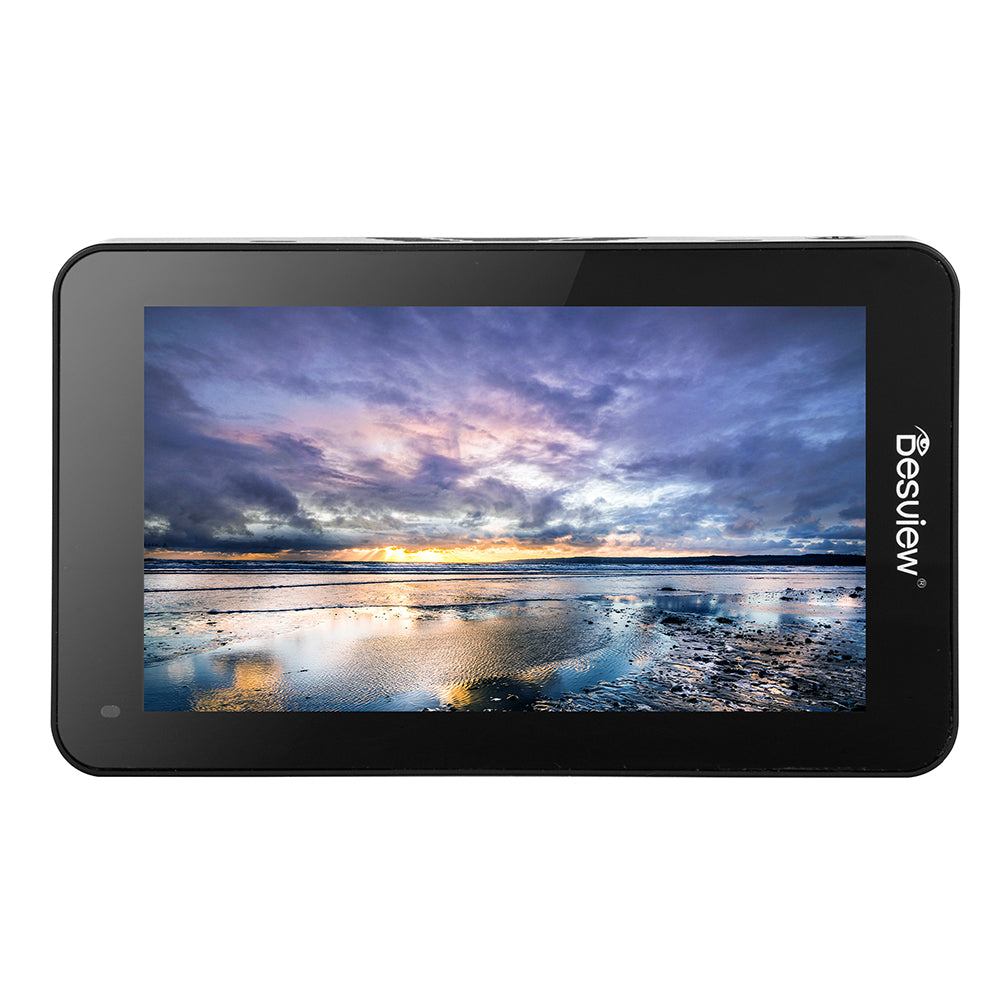

The Desview R6 has an incredible 5.5" touch screen display, boasting a pixel density of 401ppi! The images are extremely sharp and the colours are vivid! The 1080p native resolution provides excellent clarity for critical focus, and the screen can reach brightness levels of 2800nits to operate even in the brightest conditions.
The Desview R6 can pre-load any custom 3D LUT file using the included SD card. Navigating the UI and applying various commands on this monitor is made super easy with the multi-touch gesture controls. From zooming into the screen to adjusting the brightness or volume.
The compact and lightweight chassis is ideal for on-camera mounting to provide a larger and brighter display to monitor image sharpness and colours with a greater accuracy than all on board camera monitors.
Features:
- 5.5" 1080p display
- Ultra Bright 2800nits

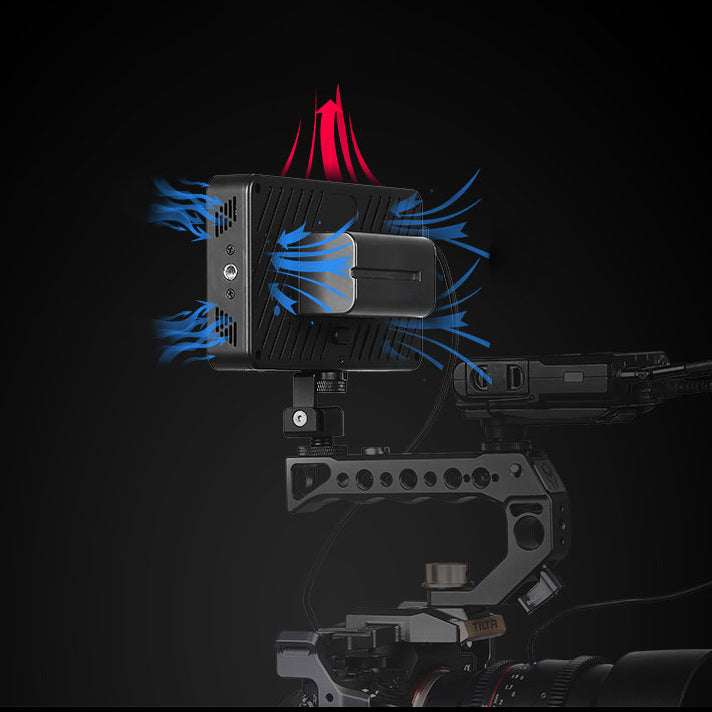

- Unique thermal cooling design

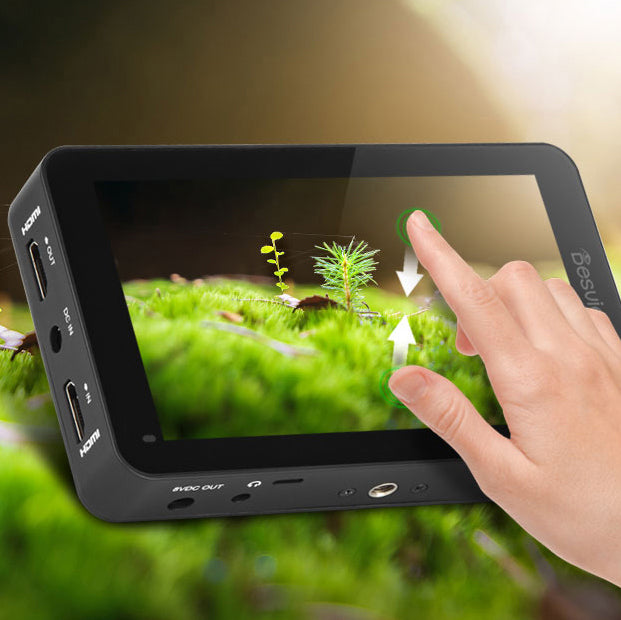

- Multi touch capacitive screen
- Custom 3D LUT input
- Pre-loaded LUT's on SD card

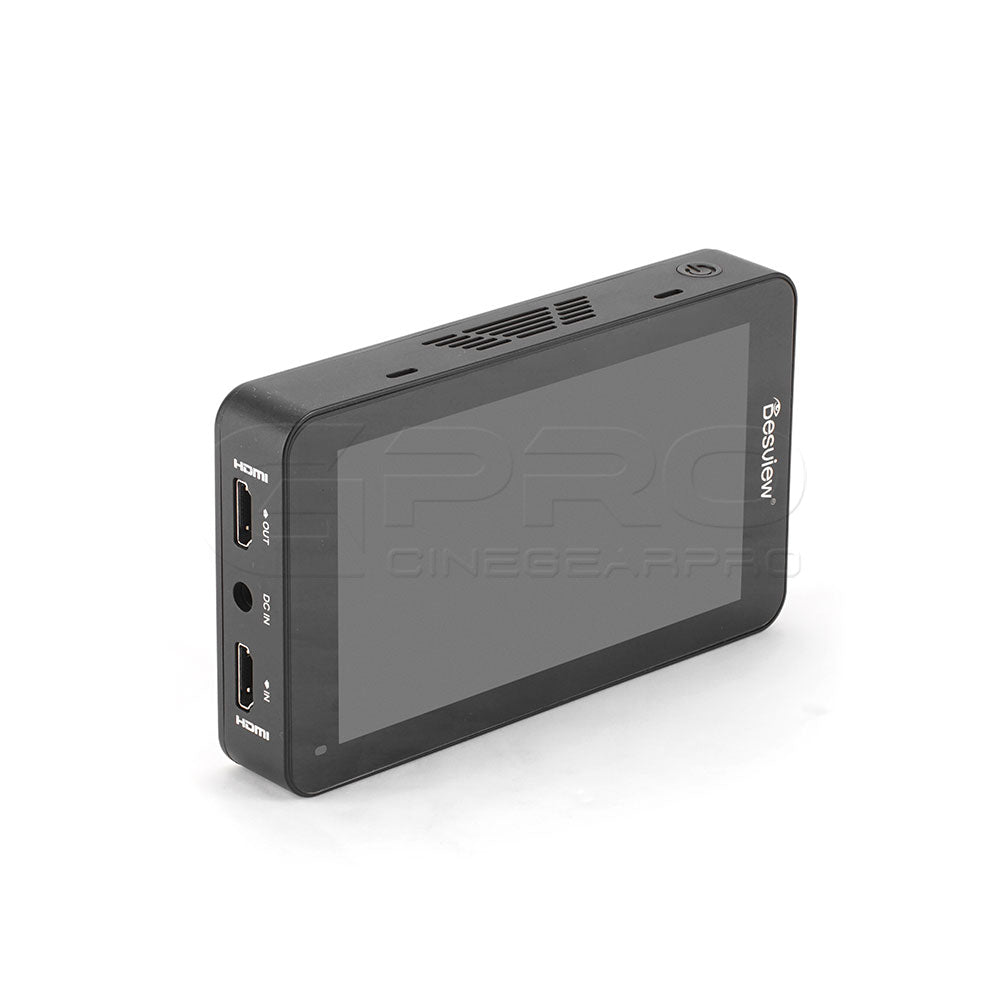

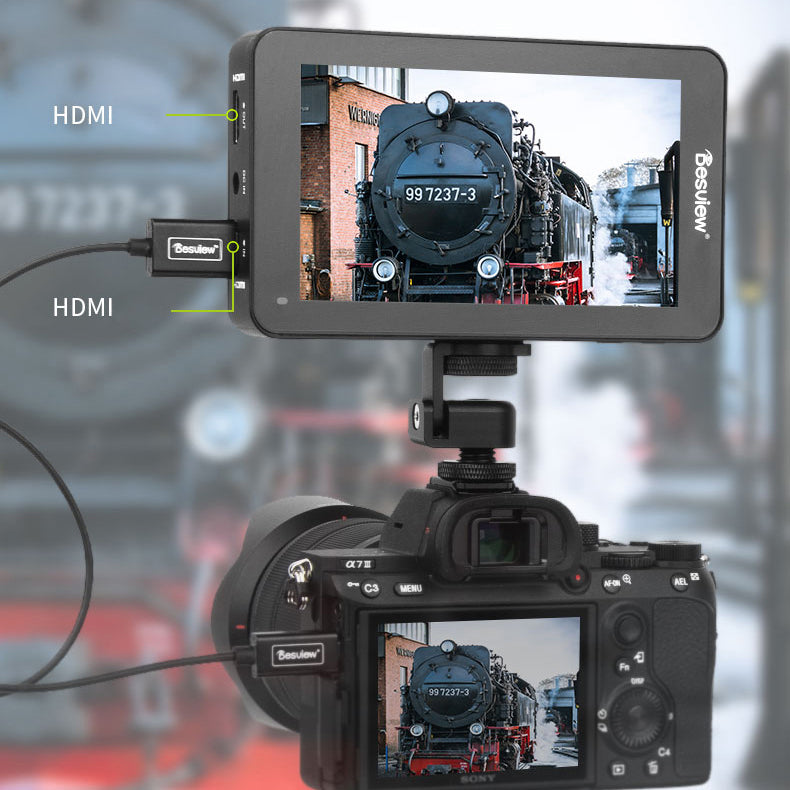

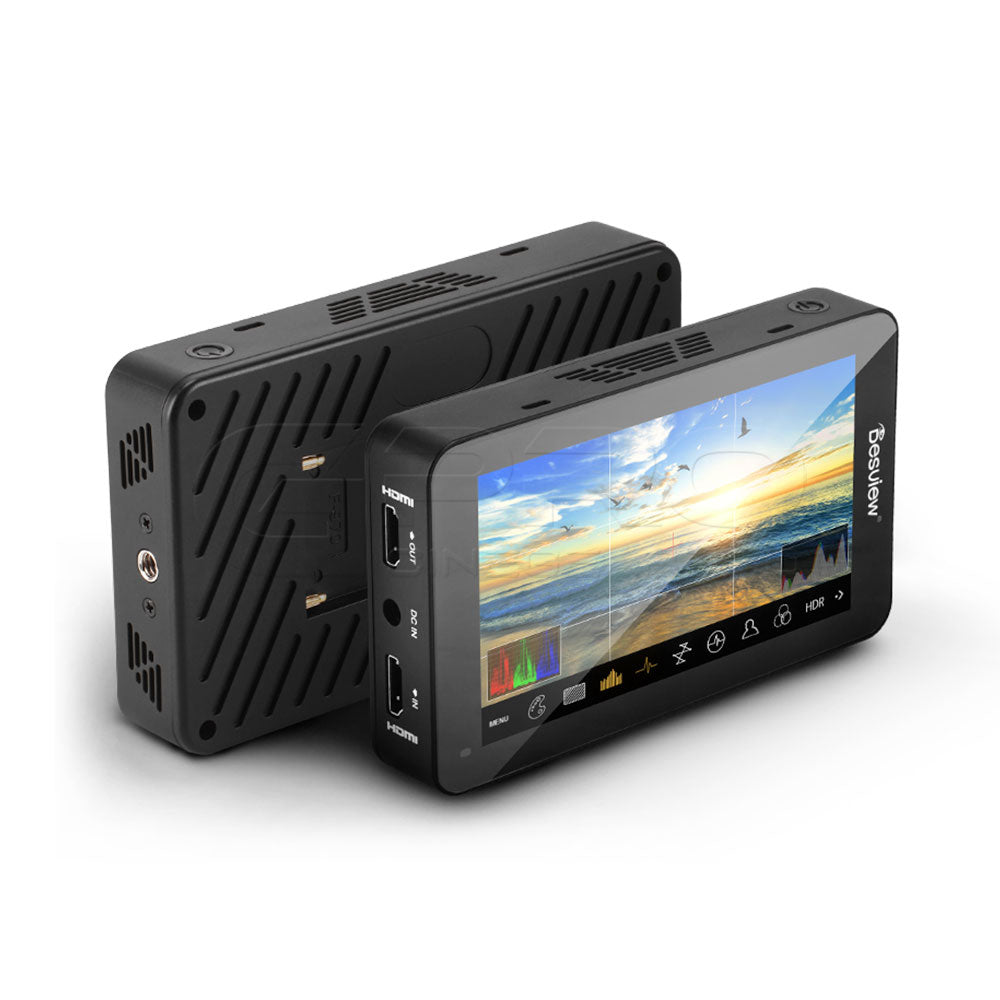

- HDMI in/out
- HDR function: provides wider colour gamut and higher brightness range
- Pixel Density 401ppi

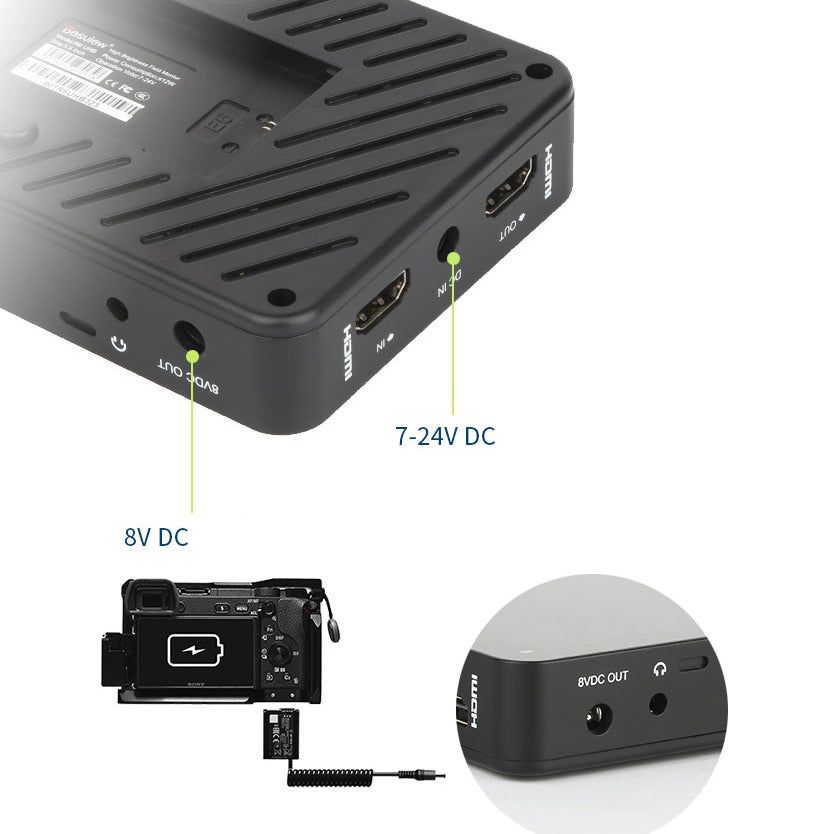

- 8V DC output for real-time camera charging

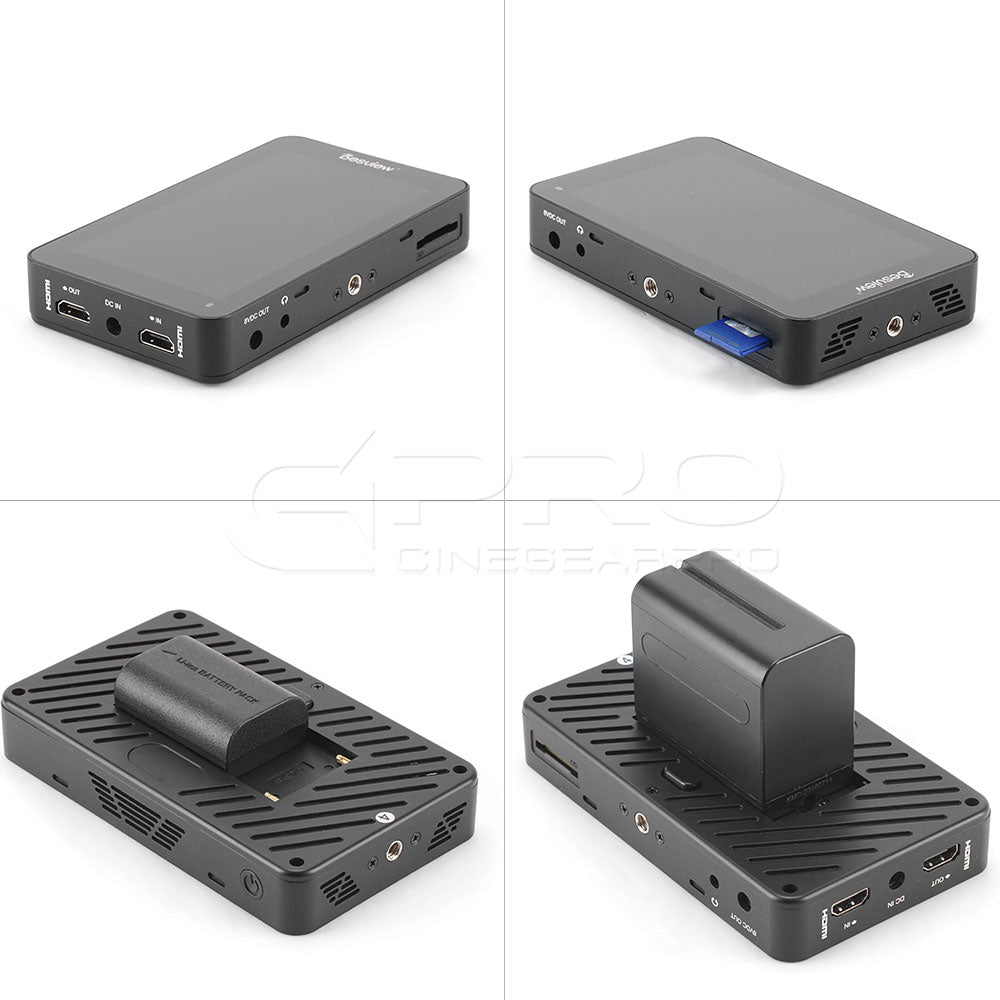

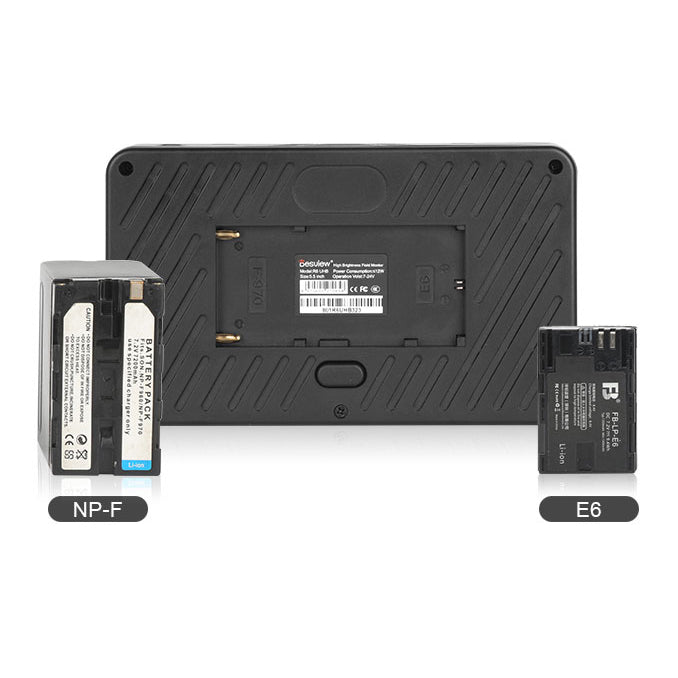

- Compatible with : E6 battery, NP-F series, V-Lock battery
Specifications:
Screen Size |
5.5 inch |
Resolution |
1920*1080 |

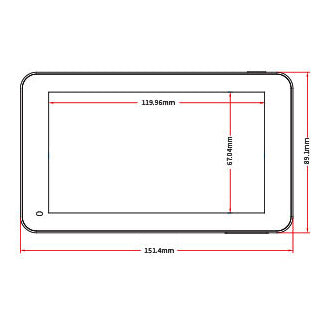

Display Area |
120.96(W) Å ~ 68.04(H)mm |
Display Colors |
16.7M |
Pixel Pitch |
0.021Å ~ 0.063 (HÅ~V)mm |
Brightness |
2800nits |
Contrast Ratio |
1000:1 |
Aspect Ratio |
16:9 |
Backlight |
LED |
Viewing Angle |
178°(89°/89°L/R) 178°(89°/89°U/D) |
Input |
HDMI |
Output |
HDMI |
Audio |
3.5mm Headphone Jack |
HDMI Signal Format |
4096x2160p@24Hz 3840x2160p@24,25,30Hz 1920x1080p@23.93, 24, 25, 29.97,30,50,59.94,60Hz 1920x1080i@50, 59.94, 60Hz 1920x1080psf@24, 25, 29.97, 30Hz 1280x720p@50, 59.94, 60Hz 720x576i&720x576p@50Hz 720x480i&720x480p@59.94, 60Hz |
Functions |

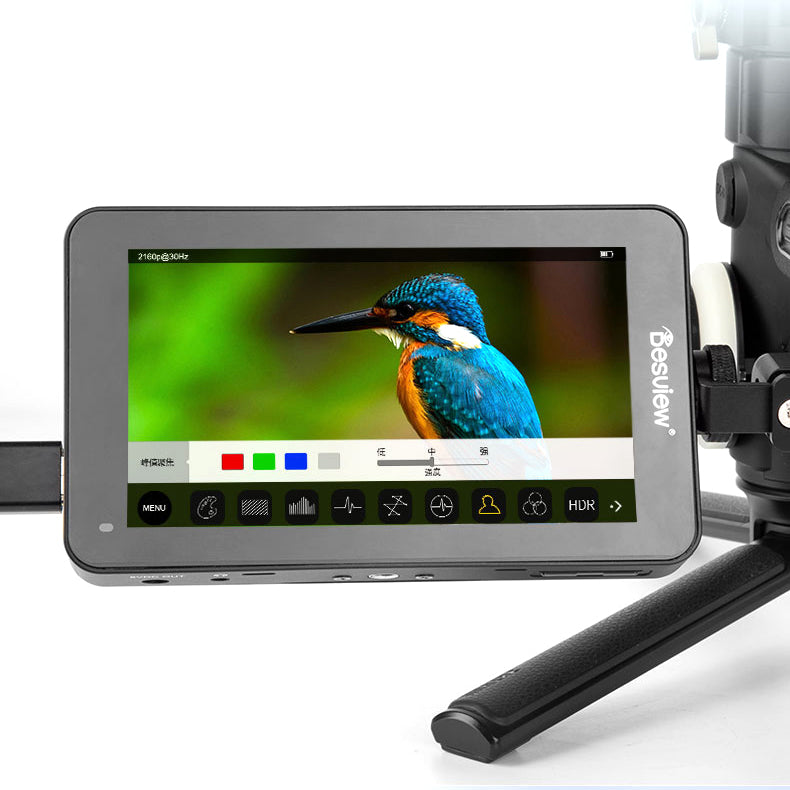

False Color, Single Color, Brightness Histogram, RGB Histogram, Vector Scope, RGB Waveform, Luminance Waveform, Full Waveform, Peaking Filter, Zebra, HDR, LUT, Mark Ratio, Center Mark, Safe Area, Pixel to Pixel, HV Delay, Color Temperature, Audio Meter, Image Flip, Battery Notification, Grid Lines, Display Ratio, Zoom-in |
SD card slot |
Support 3D LUT Loading |
Power Consumption |
≤12W |
Power Supply |
Support NP-F550,NP-F750,NP-F970 & E6 Battery |
Input Voltage |
DC7-24V |
DC Output Voltage |
8V |
Operating Temperature |
-20℃~55℃ |
Storage Temperature |
-30℃~65℃ |
Packing Size |
182x120x75mm |

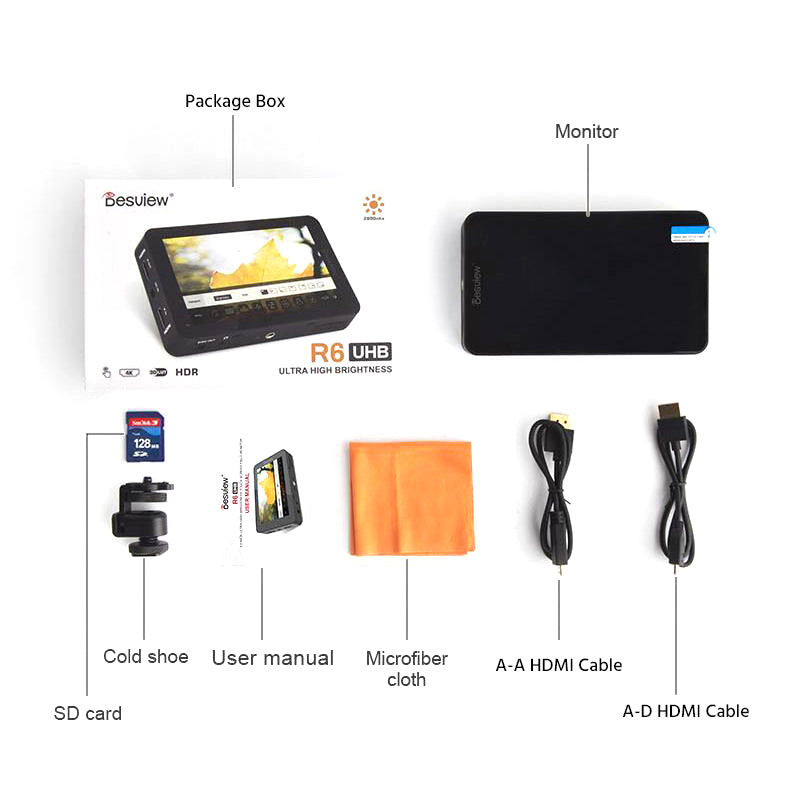

Package Contents:
1x Monitor
1x HDMI A To HDMI A Cable
1x HDMI A To HDMI D Cable
1x SD Card
1x Cold Shoe Adapter
1x Cleaning Cloths
1x User Manual
1x Package Box
