Prime 6 is a very cost-effective 100mm bowl tripod system solution for ENG camcorders,up to a Ioad of 9.5kg(21lbs),but its typical payload range between 2-9.5kg(4.4-22 Ibs) .So the system can be used well for handheld camcorders too.
Recommend for professional DV,DVCAM,HDV,ProHD portable camcorders and most broadcast DVCPRO and XDCAM camcorders in ENG configuration.
Specifications:
System
• Payload capacity: 2-12.84kg/ 4.41-28.31 lbs(at C.0.G height 50-75mm)
• Maximum height: 170cm/ 66.93 in
• MInimum height: 63cm/ 24.08 in
• TransportIength: 90cm/ 35.43 in
• Wejght: 8.23kg/ 18.14 Ibs
• Bowl diameter: 100mm
FIuid Head
• Payload capacity:2-12.84kg/ 4.41-28.31 lbs(at C.O.G height50-75mm)
• Camera fitting:Wedge plate(1/4 screw and pin)
• Balance platform sliding range:70mm
• Counte rbalance:8 grades(1-8steps)
• Drag(damping):6 grades
Horizontal:0-5steps
Vertical:0-5steps
• Pan and til tbrakes:Yes(each axis)
• Tilt range：-75° -90°
• Pan range:360°
• Leveling bubble
Tripod
• Construction: 2 stages
• Material: aluminum-alloy
• Weight: 5kg/ 11 Ibs(with ground spreader)
Package Contents:

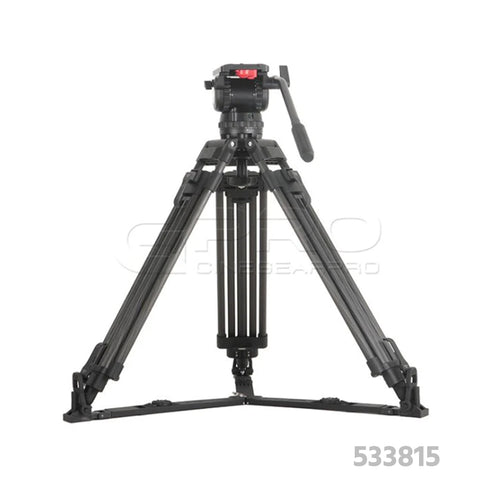

Tripod + Fluid Head (Aluminium-Alloy)(533815):
1x CGPro Prime 6 Tripod Legs(Aluminium-Alloy)
1x CGPro Prime 6 Tripod Fluid Head
1x Sofe Case
1x Floor Spreader
Tripod + Fluid Head + Mid-spreader (Aluminium-Alloy)(PK1396):
1x CGPro Prime 6 Tripod Legs(Aluminium-Alloy)
1x CGPro Prime 6 Tripod Fluid Head
1x Sofe Case
1x Floor Spreader
1x Mid Spreader
3x Rubber Feet
Tripod + Fluid Head (Carbon Fiber)(533816):
1x CGPro Prime 6 Tripod Legs(Carbon Fiber)
1x CGPro Prime 6 Tripod Fluid Head
1x Sofe Case
1x Floor Spreader
Tripod + Fluid Head + Mid-spreader (Carbon Fiber)(PK1398):
1x CGPro Prime 6 Tripod Legs(Carbon Fiber)
1x CGPro Prime 6 Tripod Fluid Head
1x Sofe Case
1x Floor Spreader
1x Mid Spreader
3x Rubber Feet
