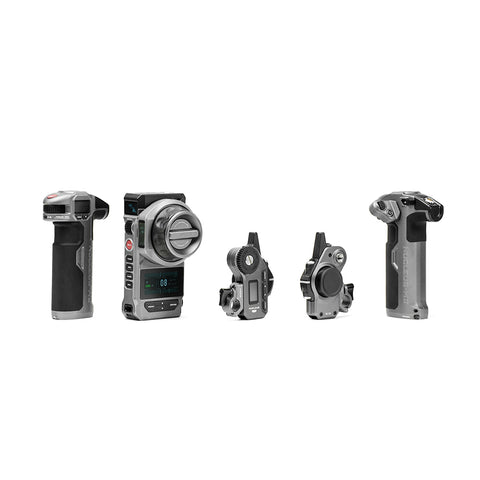

TiLTA WLC-T06 Nucleus-M II Wireless Lens Control System Ultimate Kit



Backward Compatibility
Compatible with Nucleus M1 Wireless System and its accessories. Users can also control Tilta Nano II Wireless System, Mirage Motor, and Blackmagic Camera App.

Smaller, Stronger, And Faster
Improved 0.02s fast response and ultra-smooth focus adjustments. Higher torque
than the Nucleus M1 & Nano II Motor at a compact size.

Powered By NP-F550 Battery
Both FIZ Hand Unit and Hand Grips are each powered by one NP-F500 Battery, which supports 8-12 hours of operation.
Battery life varies based on battery condition and specifications.

SEAMLESS OPERATION & INTUITIVE CONTROL

INTRODUCING THE NEW ELECTRONIC MARKING DISK

With its innovative detachable design, this marking disk expands the ability of the physical focus marking discs by adding smart digital functionality.

Digital Display Mode
Switch to an on-screen digital overlay with a precise depth-of-field indicator-a helpful tool for more accurate focus pulling.

Manual Marking Mode
Mark focus points directly on the disk for tactile control with a pen or marker

UPGRADED ALGORITHM


ERGONOMIC DESIGN, WIRELESS CONTROL


DIVERSE COMPATIBILITY

Compatible with Tilta's current wireless follow focus systems and DJl Focus Motor when connected through DJI RS Gimbals

UNLOCK SDK ACCESS FOR THIRD-PARTYINTEGRATION IN VR, XR, AND VIRTUALPRODUCTION




PROFESSIONAL DETAILS

Lens Mapping
Users can create custom lens profiles or quickly access pre-set data from our extensive lens library.

Detachable Hand Wheel
Switch the hand wheel to your preferred side for ergonomic operation.

Monitor & Baby Pin Mounts
Easy placement on a C-Stand. This allows focus pullers to quickly reference live
footage and make precise adjustments while maintaining mobility on set.

Camera Control
Control your camera setting such as ISO, White Balance, and Run/Stop via
Bluetooth or cable connection.
Camera control varies based on camera models and firmware compatibility.

Four Channels Control
Control up to 4 Motors (Focus, Iris, Zoom, ND), all in FIZ Hand Unit

Damping Adjustable
Easily customize the Hand Wheel’s resistance for optimal control.

The Nucleus-M II Wireless Lens Control System is the cutting-edge successor to the
system that revolutionized affordable wireless follow focus pulling.

Designed for both independent filmmakers and professional productions, the NucleusM II delivers high-end functionality at an accessible price, bridging the gap between affordability and premium performance.

This system supports up to four wireless motors simultaneously, allowing complete
remote control over manual cinema lenses.

The fourth motor can be mounted to a Variable ND Filter for the Mirage Pro Matte Box, enabling real-time exposure adjustments without ever touching the camera. This is an essential feature for complex shots, gimbal setups, Steadicams, or handheld rigs where traditional physical lens adjustments are not ideal.

At the heart of the Nucleus-M II is the FIZ Hand Unit, a versatile controller that provides pinpoint accuracy when adjusting lens settings and now can be powered more easily than ever via NP-F550 batteries.

The Hand Wheel now features adjustable tension for fine-tuned focus pulls, built-in lens mapping for precise motor positioning, and a clear display of focus distance, iris, and zoom information on up to 4 different displays, the most notable of which is the
Electronic Focus Marking Disc, which displays focus information from a normal operating position.

The FIZ Hand Unit features various options for wireless camera control that allows users to adjust settings such as ISO, White Balance, Shutter Speed and more.

The newly redesigned wireless motors feature a streamlined UI, color-coded LED
indicators, and a compact, high-torque design, making them perfect for gimbals,
drones, and handheld rigs.

One of the biggest innovations in the Nucleus-M II is its ability to store and load
mapped lens data. This makes it quick and easy for a 1st AC to adjust focus to a specific distance, Iris to a standard T-Stop or Zoom to an exact focal length.

Filmmakers upgrading from previous systems will find full compatibility with existing
Nucleus-Series Wireless Controllers and Motors, enabling a gradual upgrade path for
users who cannot fully upgrade all at once.

As the demand for vintage manual lenses and wireless filmmaking tools continues to
grow, the Nucleus-M II provides an accessible, professional-grade solution. Whether
you’re an independent filmmaker, content creator, or professional camera assistant, this system offers industry-leading precision, adaptability, and affordability.

Delivering big-budget features at a fraction of the cost, the Nucleus-M II redefines what’s possible in wireless follow focus technology.


Features:

• MULTI-MOTOR CONTROL Accommodates Wireless Adjustment of a Focus, Iris, Zoom, and ND Motor
• LENS MAPPING Allows Users to Save and Display Focus, Iris, and Zoom Information
• CAMERA CONTROL Allows Users to Wirelessly Adjust Settings like ISO, White
  Balance, and Shutter Speed
• COMPATIBLE with Cinema and Photography Lenses via the Motor's 0.8 or 0.5 Gear Pitch
• ECOSYSTEM INTEGRATION Makes the M II Compatible with Previous Nucleus  Systems such as Nucleus-M and Nano II
