Two types of rods.| Flexible and secure mounting.

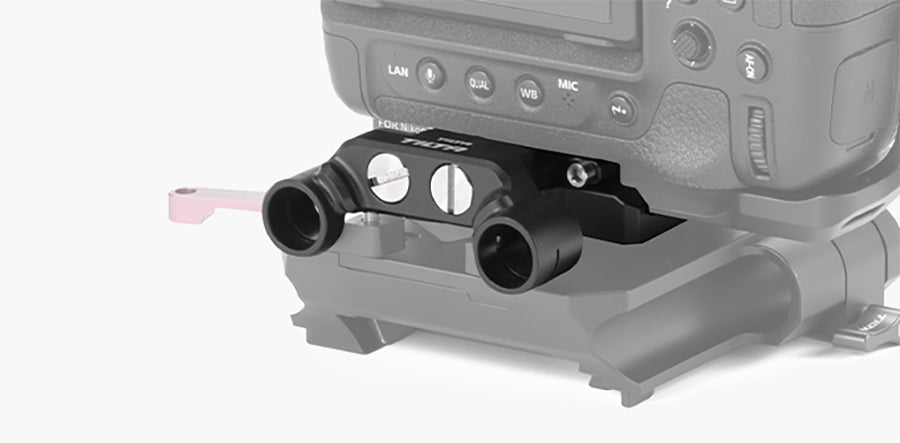

The 15mm rod holder attachment can be mounted to both the front and the i back of the camera body. Ready for mounting extensions.
Demonstration for Battery Installation
Push the battery release on the bottom of the side handle.
Insert the battery all the way. (F550/F570 batteryKl Battery not included.)
This Pro Camera Cage Kit provides protective armor for the Nikon Z9 and includes many relevant accessories to expand the functionality of the Z9 in a video production environment.
The cage features 1/4”-20 threads with and without locating pins, as well as cold shoe receivers, one uniquely located on the side of the cage.
The included Side Power Handle mounts to the left side of the cage via a NATO Rail connection.
The Handle features convenient USB-C and Micro DC power outputs, offers a comfortable way for operating the system and includes a Run Stop Cable to start and stop recording via the handle.
The included Quick Release Top Handle can be attached to the cage to provide an additional way to operate and handle your camera rig, while providing expanded options for mounting accessories.
The top handle includes multiple cold shoe connections for mounting external monitors or other accessories via our Cold Shoe Accessory Mounting Bracket.
This Top Handle also features a perpendicular 15mm rod holder that can secure a rod across the width of the camera, perfect for Electronic Viewfinders or monitor mounts that utilize a 15mm rod.

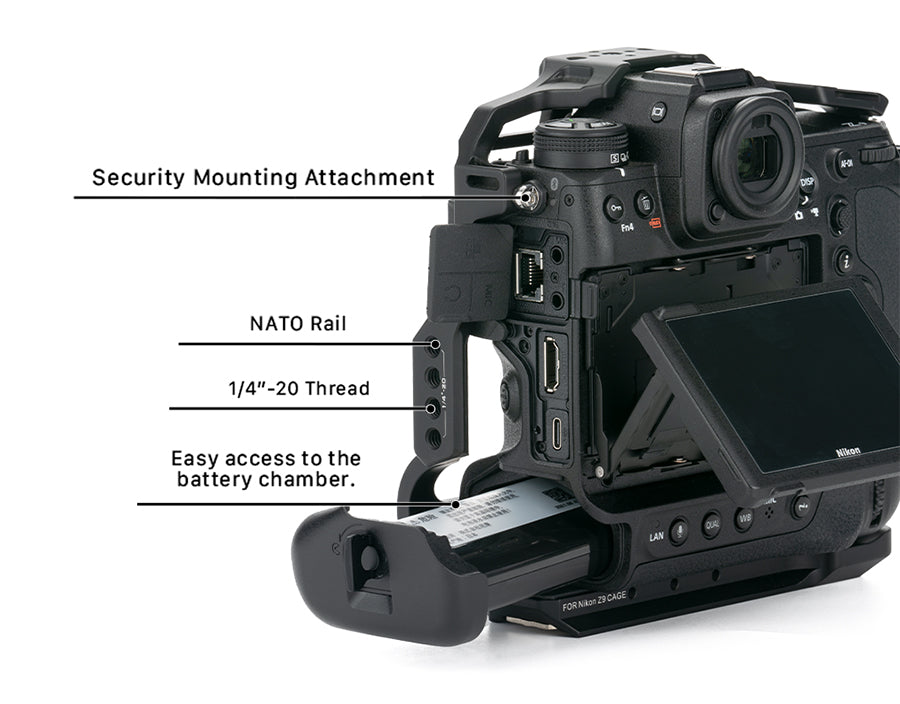

The bottom of the cage connects to your camera body and utilizes two additional points of contact via Security Mounting Attachments, found near the top right and left side of the camera.

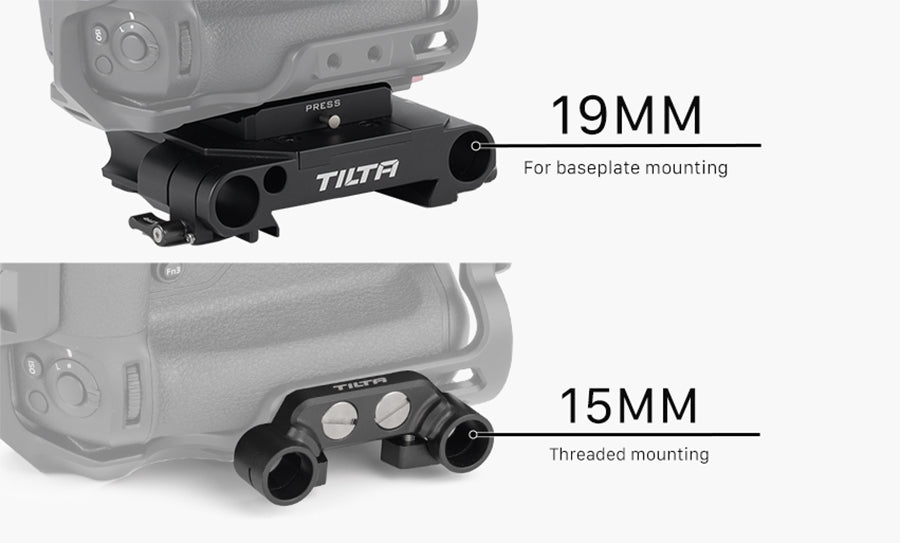

The base of the cage features 1/4″-20 threads for attaching your camera to different quick release plates and natively supports the included Tiltaing 19mm Studio Baseplate Type I which allows you to secure your Z9 to an ARRI standard dovetail as well as mount accessories via 19mm studio rods.

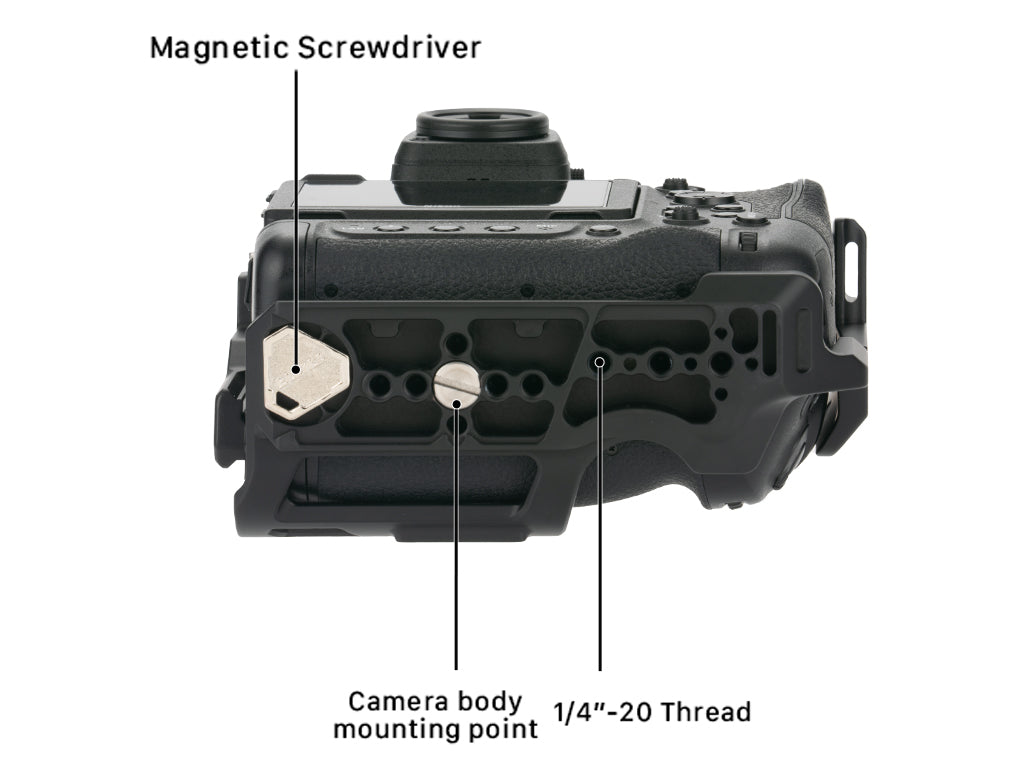

The cage provides full access to the battery compartment, features a magnetic screwdriver, and can natively connect to the DJI RS2.
The system features a convenient mounting point for the Dual 15mm Rod Holder Attachment, allowing you to mount dual 15mm LWS rods to your rig.
This is a great lightweight option for securing accessories such as follow focus systems or matte boxes via LWS rods.
The cage also supports an optional 15mm Single Side Rod Holder which is an even lighter solution for mounting follow focus motors and other single rod based accessories.
Features:
The high quality aluminum alloy materials provide complete protection for your camera body. The built-in silicone cushions protect the camera from scratches. Camera Cage for Nikon Z9 Basic Kit - Black

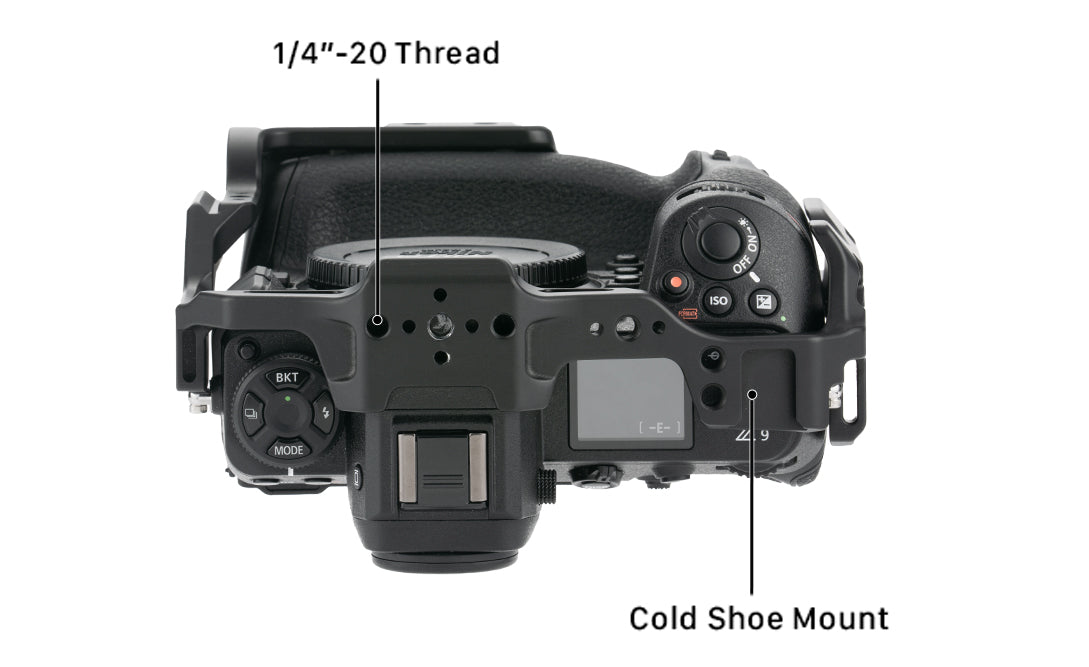

The top of the cage has a built-in cold shoe mount and multiple 1/4”-20 screw holes with locating points. Supports mounting of multiple camera accessories.
The built-in NATO rail supports quick mounting of accessories such as a side handle. Multiple 1/4”-20 screw holes are ready for expansion.

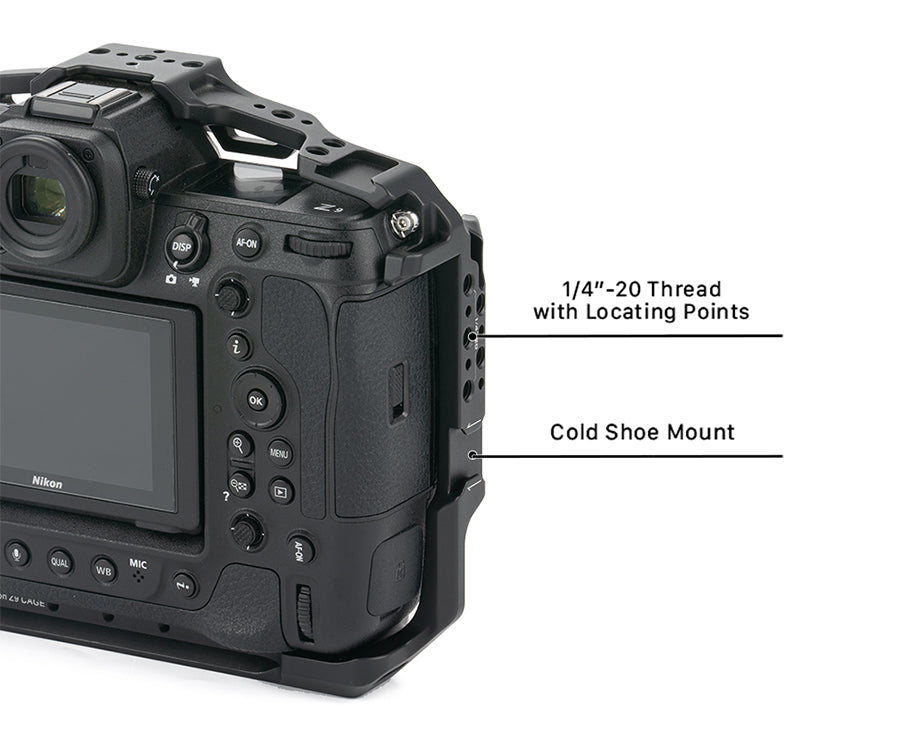

Easily switch between vertical & horizontal operating modes.The right side arm has built-in cold shoe mount and multiple 1/4”-20 screw holes with locating points. Ready for mounting accessories while in vertical shooting mode.
Optimized structure for secure mounting.Use the 1/4”-20 screw hole and the two security mounting points to mount your camera securely and avoid unnecessary movement. The Arca-Swiss standard bottom plate has multiple 1/4”-20 screw holes and supports a quick transition from tripod to gimbal.
Compatible with the DJI RS2 gimbal. Supports quick transition to the gimbal or Arca-Swiss tripod head.

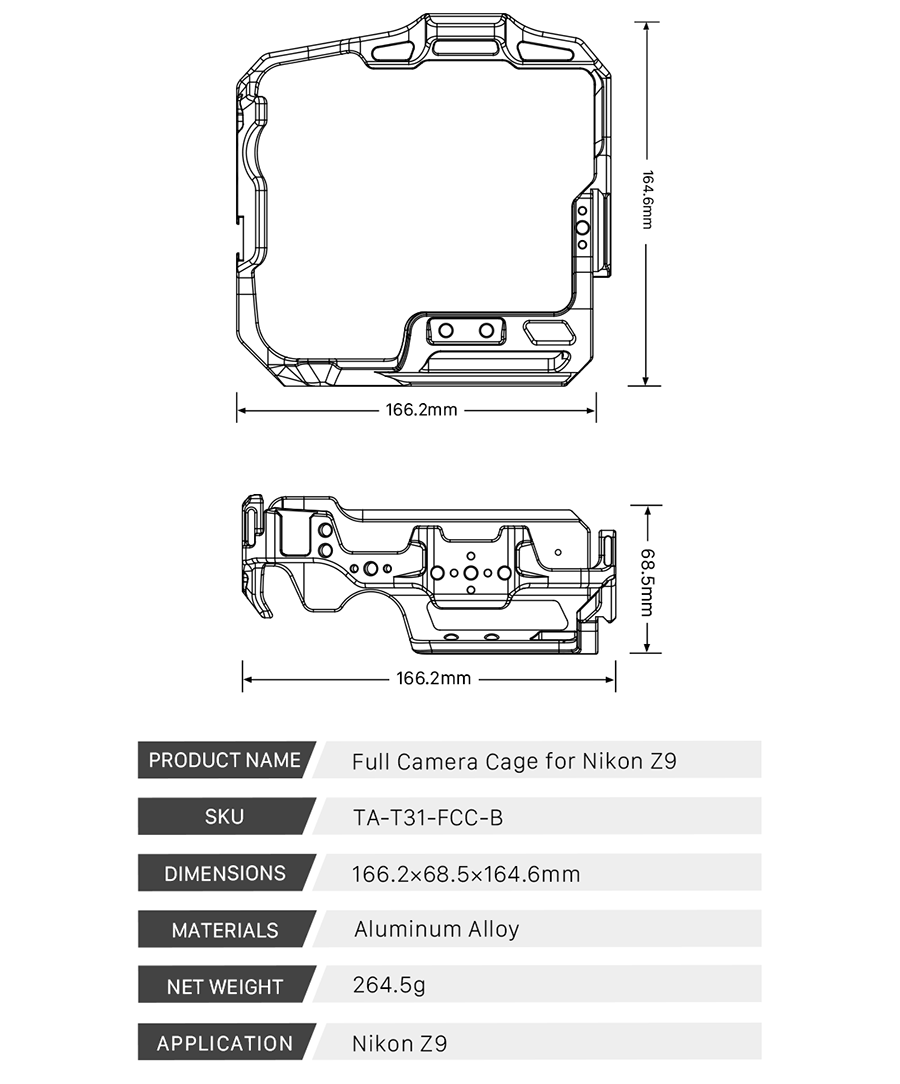

Specifications:
Package Contents:
Full Cage(534859):
1x Full Camera Cage for Nikon Z9
Basic Kit(536505):
1x Full Camera Cage for Nikon Z9
1x Tiltaing Dual 15mm Rod Holder Attachment (TA-DRH-B)
1x Tiltaing Lightweight Quick Release Top Handle with Arri Locating Pins(TA-QRTH2-B)

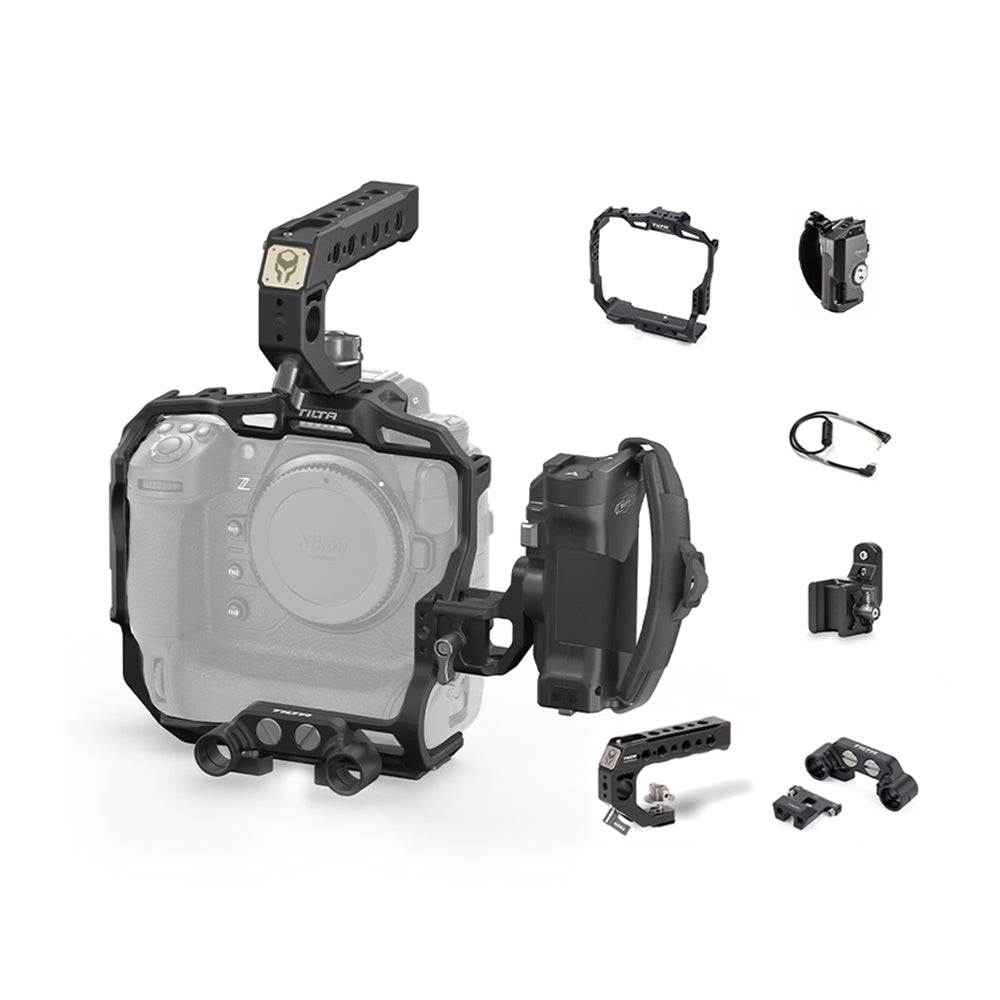

Pro Kit(536506):
1x Full Camera Cage for Nikon Z9
1x Tiltaing Dual 15mm Rod Holder Attachment (TA-DRH-B)
1x Tiltaing Lightweight Quick Release Top Handle with Arri Locating Pins (TA-QRTH2-B)
1x Tiltaing Left Side Advanced Power Handle with Run/Stop (F570 Battery)(TA-LRH-57-B)
1x Advanced Side Handle Run/Stop Cable for USB-C Port(RS-USBC-USBC)
1x Tiltaing Advanced Left Side Handle Attachment Type VI (TA-AHA6-L-B)
1x Tiltaing 19mm Studio Baseplate Type I (TA-BSP-19-B)
