TiLTA HDA-T02-V Hydra Alien Car Mounting System For DJI RS 2 / RS3 / RS3 Pro


  • Brand: TILTA
  • SKU: HDA-T02-V
  • Product code: 533629
£1,250.00 £1,966.00 £1,500.00 Inc VAT Price Match
This product is also available in AB/Gold Mount. Please contact us for more information. The Hydra Alien Car Mounting System was designed from the ground up to work in conjunction...

This product is also available in AB/Gold Mount. Please contact us for more information.


The Hydra Alien Car Mounting System was designed from the ground up to work in conjunction with smaller gimbals to allow for a lightweight solution to car-mounted cinematography.


The system utilizes a highly customizable combination of dovetail-like plates and suction cups that can support a payload of 50kg each.




Highly elastic shock-absorbing silicon provides longer durability and less abrasion, while the updated suction cup plungers create a stronger seal for improved security in colder weather.




When interconnected, the system allows users to fine-tune the exact placement of their shot to achieve almost any angle possible when mounting to a vehicle.




The system also uses a shock absorbing arm to better stabilize the camera for certain shots as well as a spring-loaded cradle head if the intended shot requires that the gimbal be flipped upside down.




The newly included Hydraulic Dampening Pole further stabilizes the arm to provide smoother results when driving conditions are less than optimal.




The Hydra Alien supports full wireless control of the RS2 / RS3 Pro via the included Remote Control Kit for RS2 / RS3 Pro which allows you to control your RS2 / RS3 Pro gimbal’s settings as well as the record and photo functions of your camera via either a wired or wireless connection.




The new Hard Shell Safety Case is designed to store and protect the Hydra Alien.


This allows you to safely transport the system between shooting locations and neatly store the system when it is not in use.


The waterproof design protects the case and equipment from hazards like rain and snow.




This case functions as a replacement for the one included with the Hydra Alien, but can also be used to store other equipment if needed.


High, low. To the side of the car, mounted on top of it — almost any car mounted shot can be configured using the Hydra Alien Car Mounting System. Let your imagination run wild!




NOTE: This system supports any gimbal that can mount via 1/4″-20 screws and power via P-Tap


The Remote Control Handle supports the RS2 / RS3 Pro

*This system is compatible with the DJI RS2, RS3, RS3 Pro, Crane 3S, Ronin 4D and any other gimbal that can mount via 1/4″-20 screws and power via P-Tap or internally*






Features:
  • [UNLIMITED CREATIVITY] Durable & Lightweight with Flexible Installation Angles
  • [FAST & STEADY] Optimized Shock Absorption for Smooth Camera Movement
  • [RS2/RS3 PRO CONTROL] Supports Wireless Control of the RS2/RS3 Pro with Remote Control Kit (optional)
  • [FLEXIBLE POWER OPTIONS] Longer Shooting Duration via Gold/V-Mount Battery Plates
  • [COMPATIBILITY] Supports any Gimbal that Connects with 1/4"-20 Threads and can Power via P-Tap

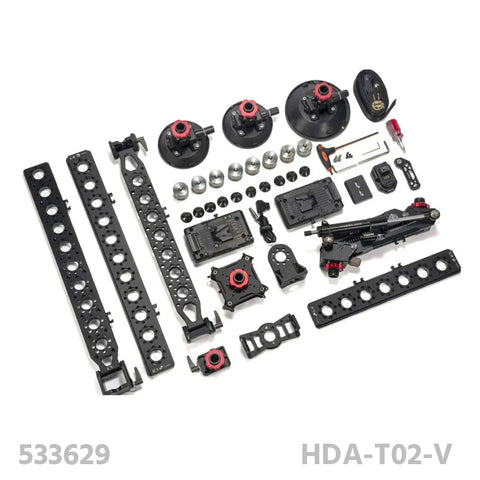

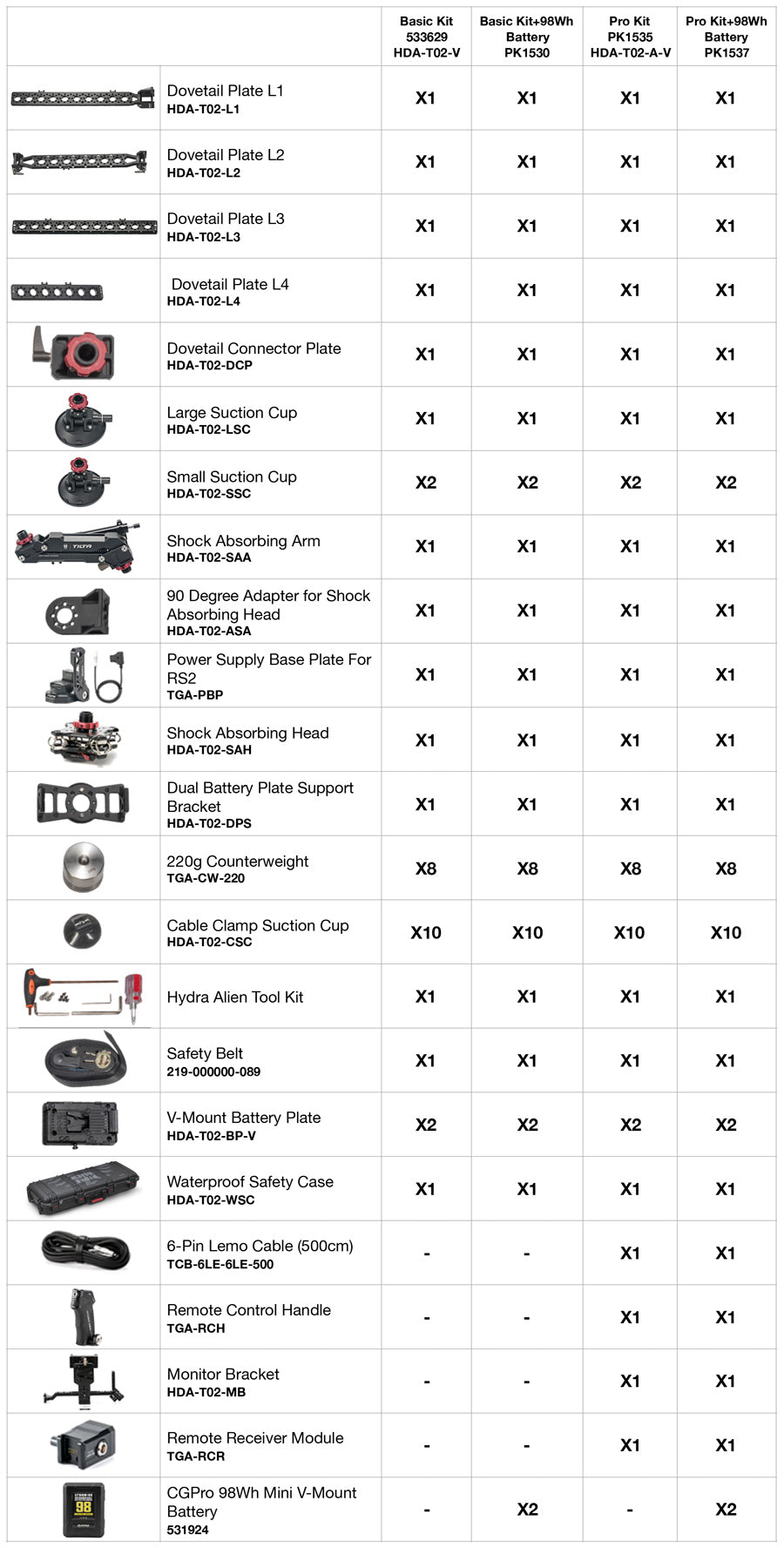

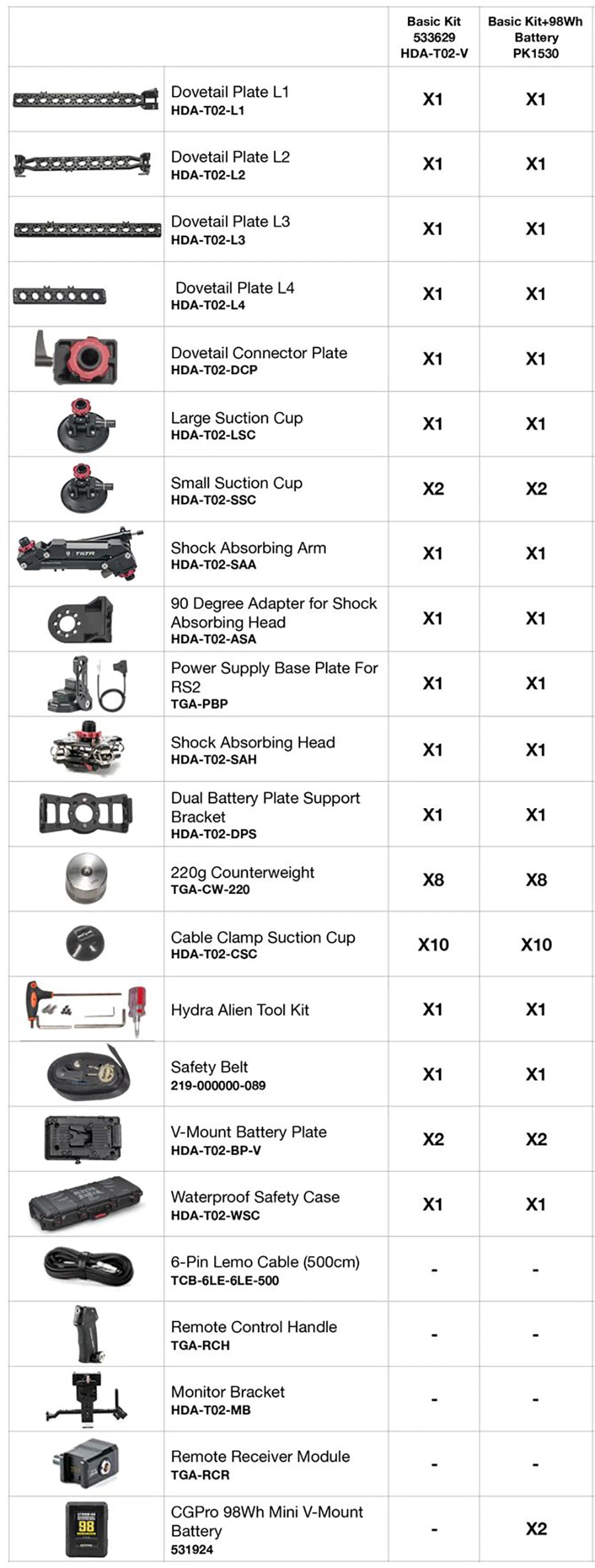

Package Content:


Basic Kit (533629):

1x Dovetail Plate L1 (HDA-T02-L1)
1x Dovetail Plate L2 (HDA-T02-L2)
1x Dovetail Plate L3 (HDA-T02-L3)
1x Dovetail Plate L4 (HDA-T02-L4)
1x Dovetail Connector Plate (HDA-T02-DCP)
1x Large Suction Cup (HDA-T02-LSC)
2x Small Suction Cup (HDA-T02-SSC)
1x Shock Absorbing Arm with Hydraulic Damping Pole (HDA-T02-SAA)
1x 90 Degree Adapter for Shock Absorbing Head (HDA-T02-ASA)
1x Shock Absorbing Head (HDA-T02-SAH)
1x Power Supply Base Plate for RS 2 with power cable (TGA-PBP)
1x Dual Battery Plate Support Bracket (HDA-T02-DPS)
8x 220g Counterweight (TGA-CW-220)
10x Cable Clamp Suction Cup (HDA-T02-CSC)
1x Tool Kit (HDA-T02-TK)
1x Safety Belt (219-000000-089)
2x V-Mount Battery Plate (HDA-T02-BP-V)
1x Car Mounting Hard Shell Waterproof Safety Case (HDA-T02-WSC)


Basic Kit + 2x 98Wh Battery (PK1530):

1x TiLTA Hydra Alien Car Mounting System Basic Kit HDA-T02-V (533629)
2x CGPro 98Wh Mini V-Mount Battery (531924
