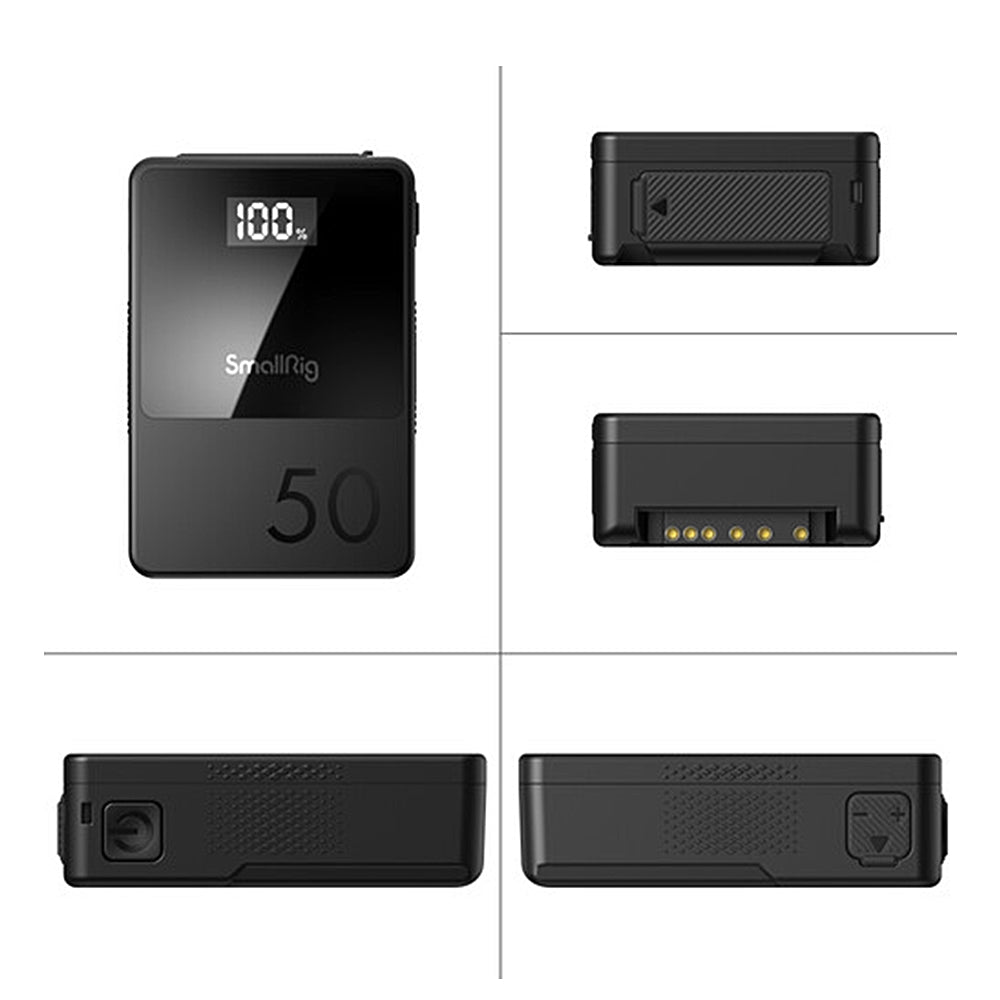

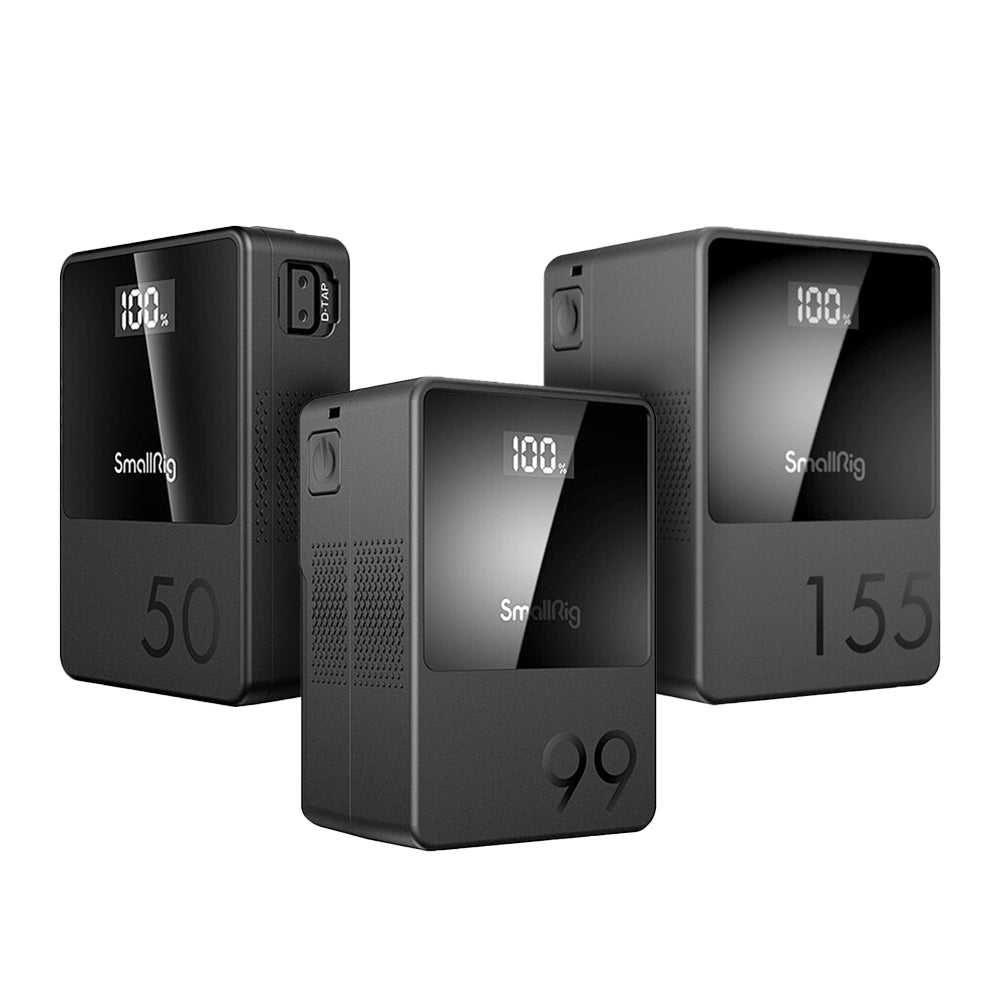

SmallRig Mini V-Mount Battery VB50/VB99/VB155 50/99/155Wh
- Brand: SmallRig
- SKU: SR-3579
- Product code:

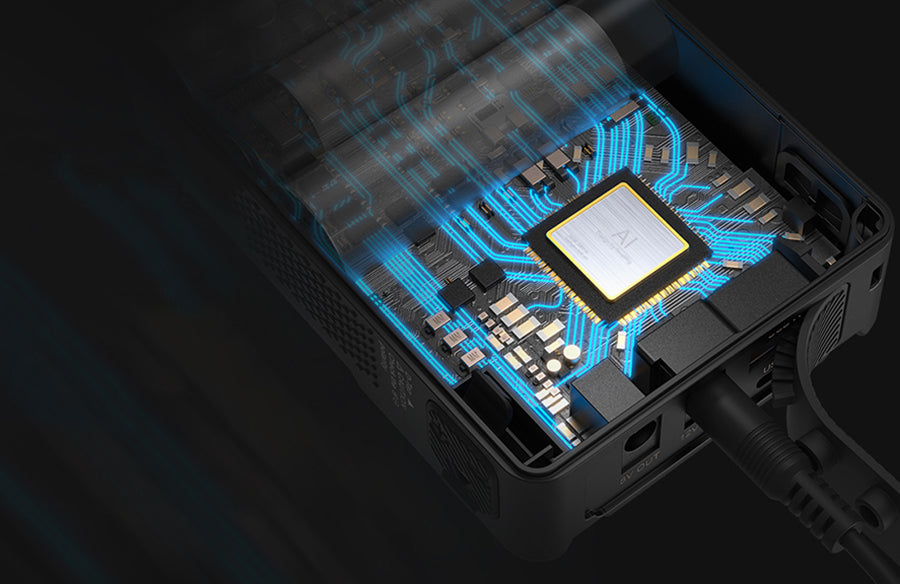

Intelligent Chip for High-Power Fast Charging
The BMS intelligent control chip adopts customized system and supports multi-protocol fast-charging*. Supports
high-power USB-C bi-directional PD fast-charging up to 45W(VB50 mini V Mount Battery)/ 65W
(VB99 mini V Mount Battery & VB155 mini V Mount Battery)
*Supports PD/QC/SCP/PPS/APPLE-2.4A and other quick charge protocols

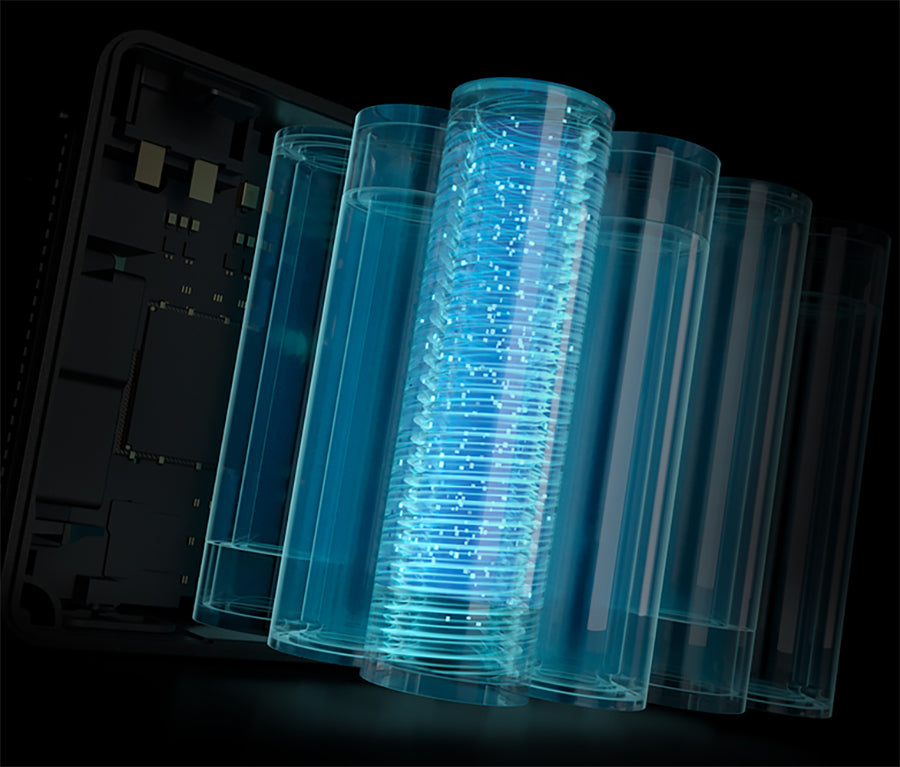

3500mAh Per Battery
High-Capacity Battery for Outstanding Performance
Features built-in 3500mAh high-capacity per lithium battery pack*, provides high-rate charge & discharge, excellent cycle performance, and powerful output while adding less weight to the camera setup.
*The product has passed
CE/ROHS/FCC/UKCA/ISED/RCM/MSDS/UN38.3/EC62133/UL2054/UL62368 and other safety certifications

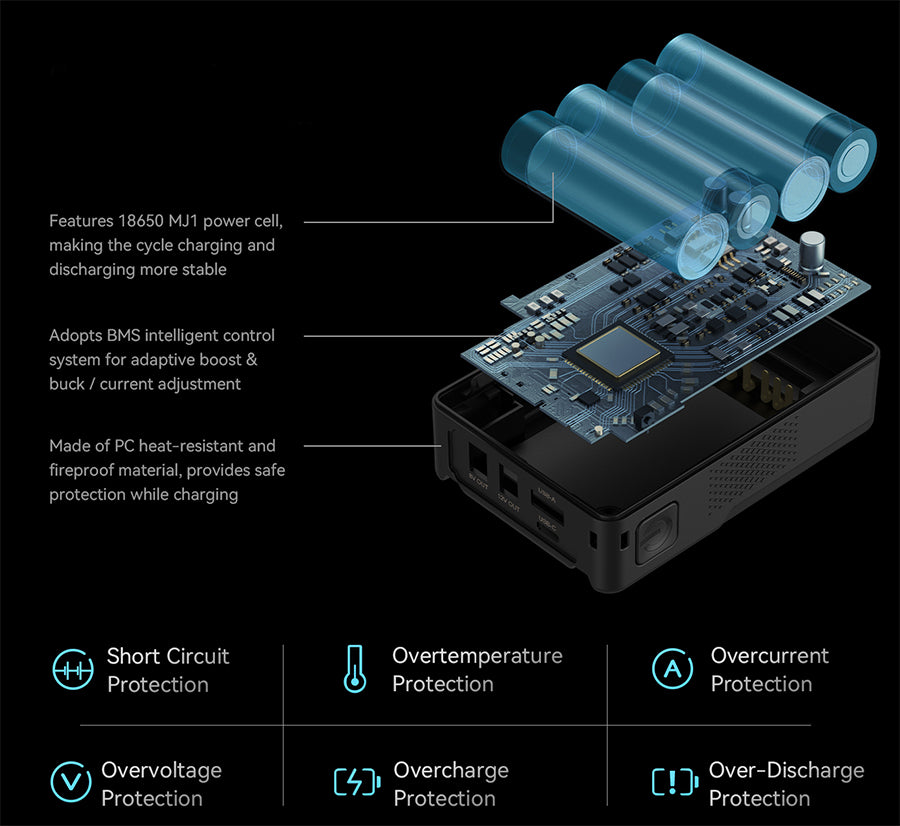

Reliable Protection for Safe Production
Multiple Interfaces for Wider Compatibility

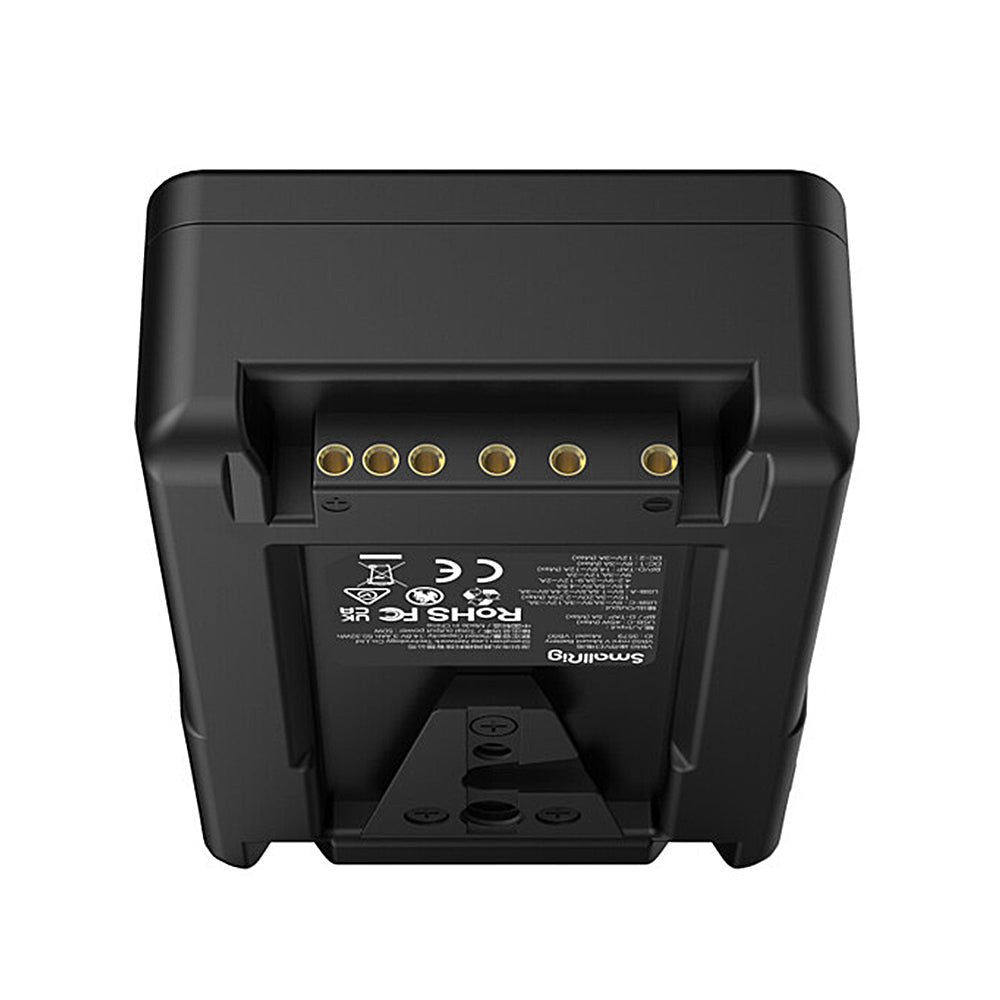

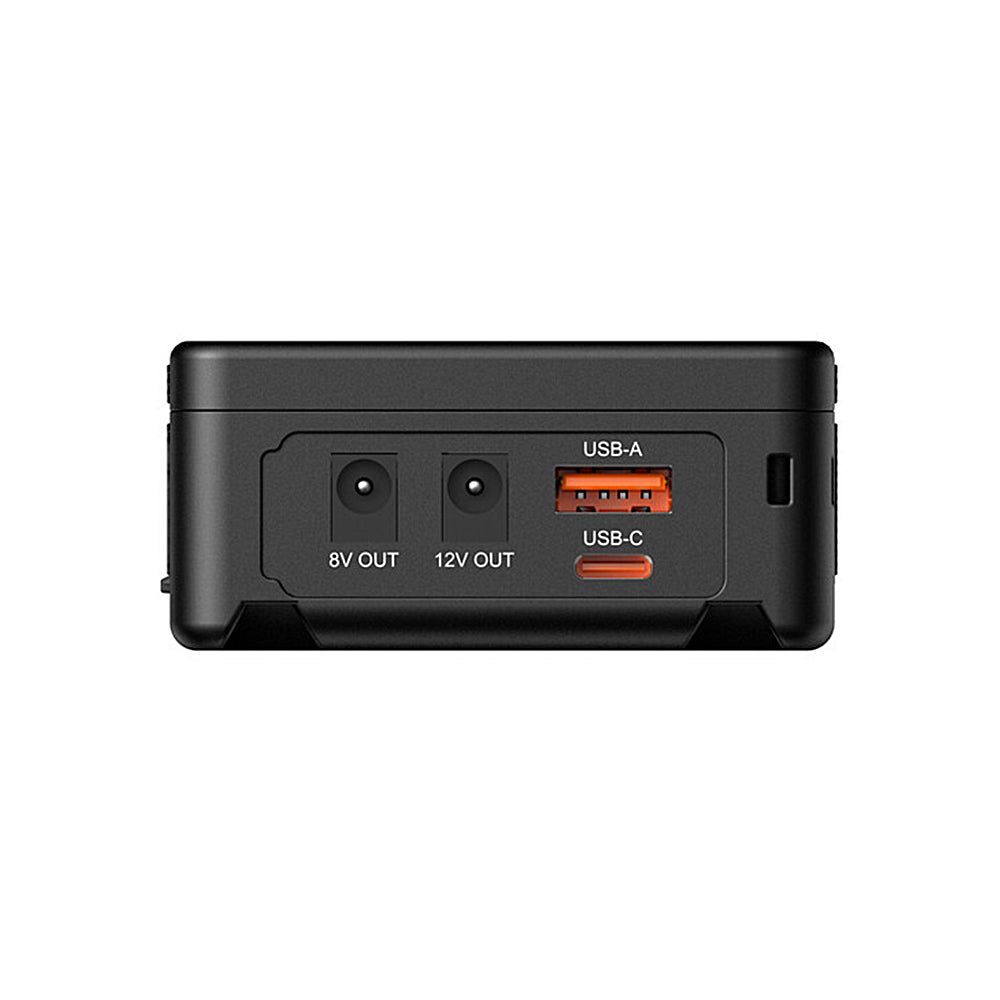

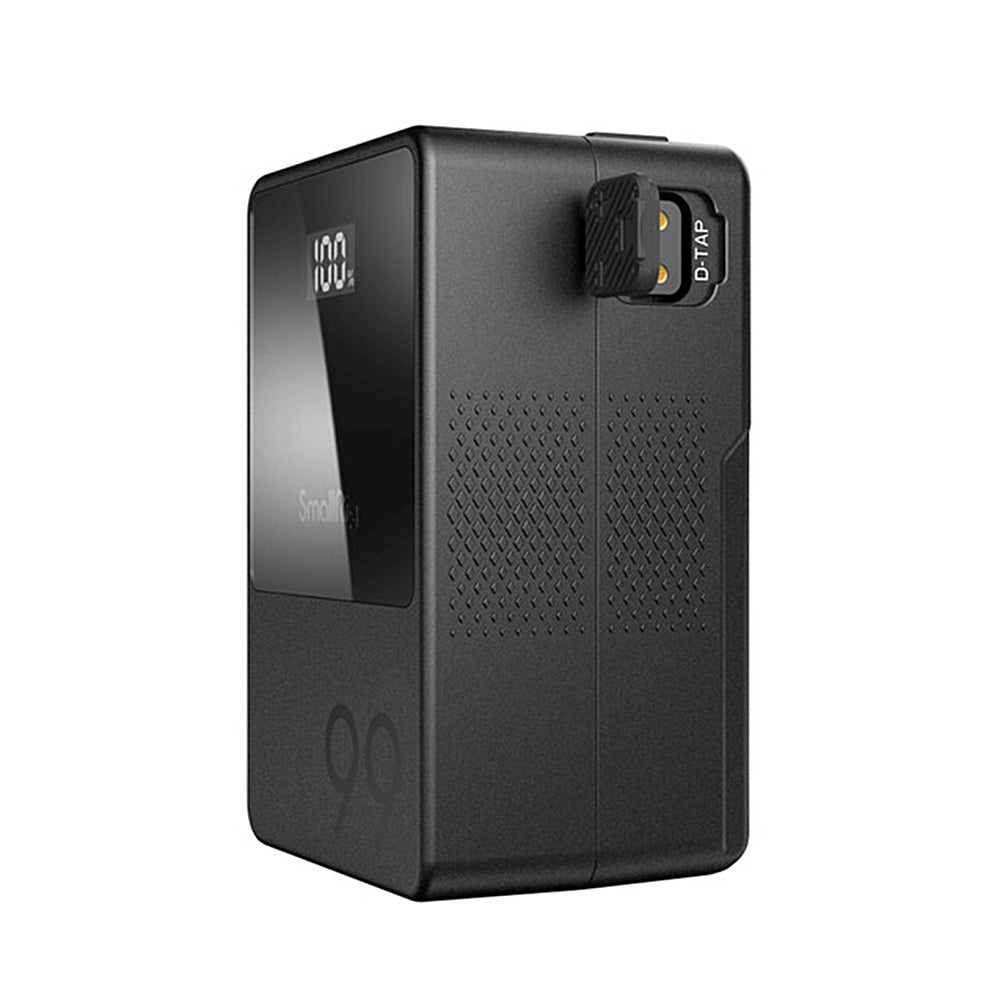

The battery comes with built-in USB-A/ USB-C / D-TAP / DC 8V / DC 12V / V Mount and other interfaces,

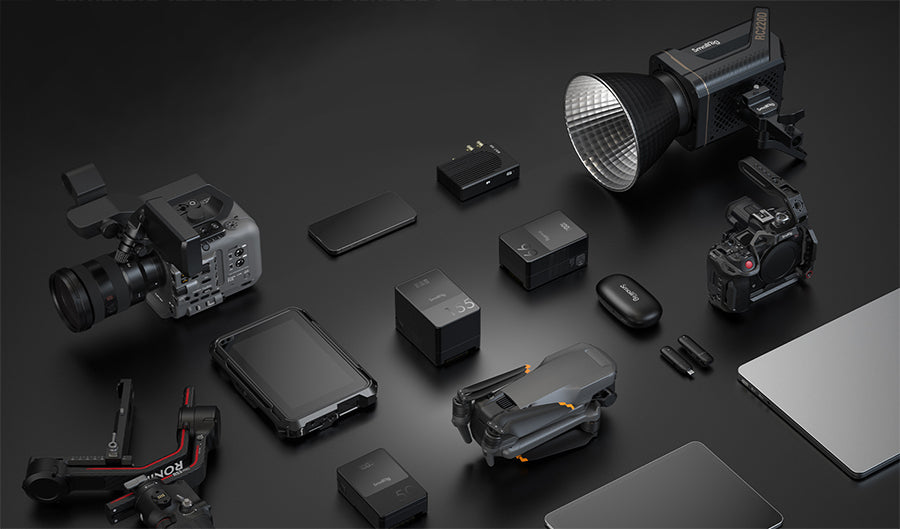

which can be directly connected to camera / video camera / monitor / image transmitter / video light / mobile phone / laptop or other devices without the need for attaching V Mount battery adapter plate
Lightweight and Portable
Compared with other batteries of the same capacity and power, the mini V Mount Battery System is about 30%
smaller in size, lightweight and portable

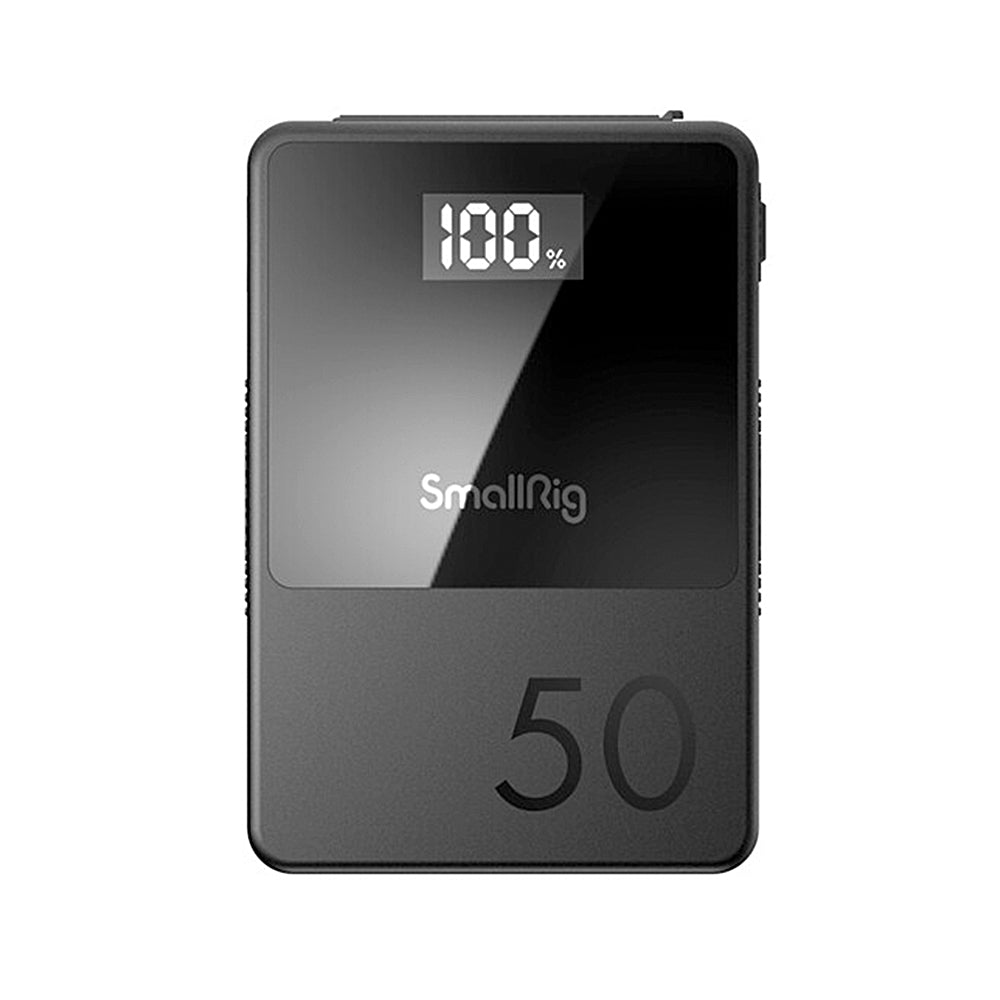

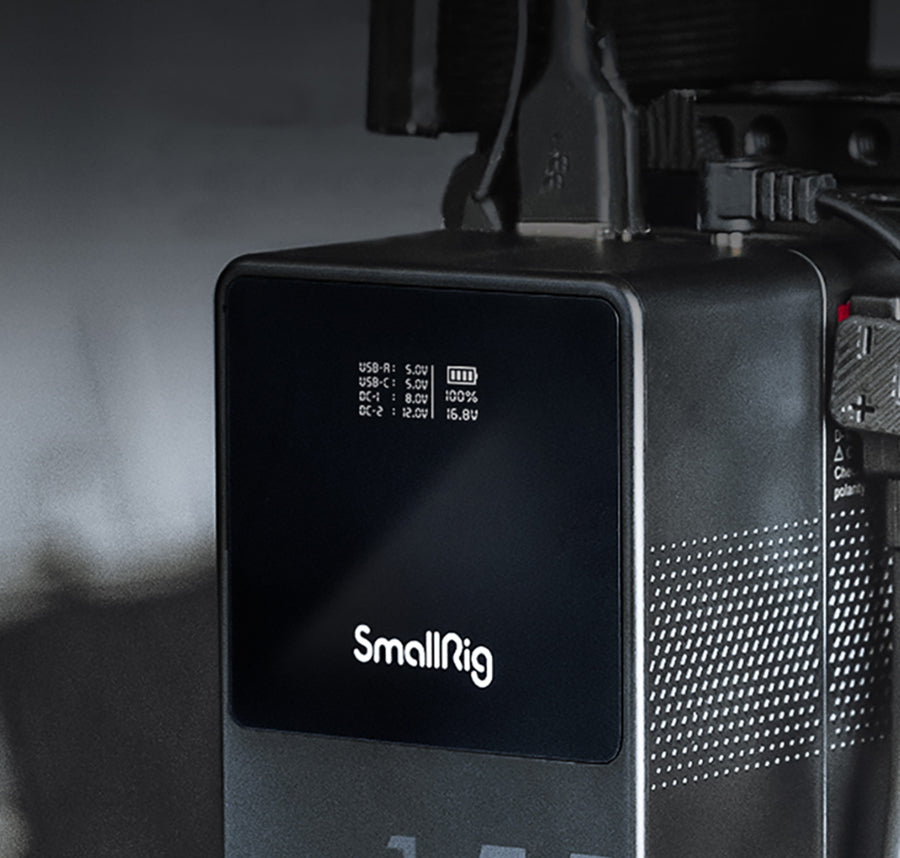

OLED Digital Display
The BMS chip has a built-in 16bit ADC/voltage monitoring system, and is matched with the main control MCU and OLED digital display to accurately check the working status of the battery

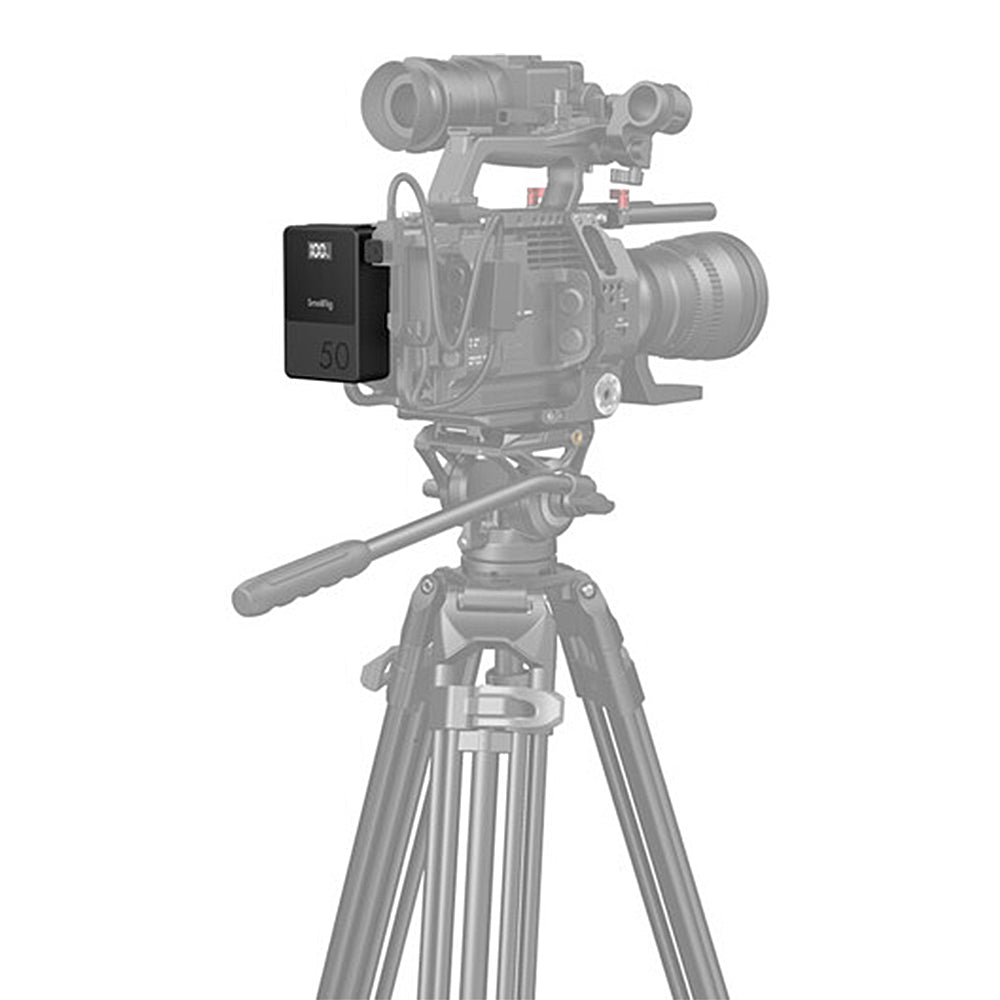

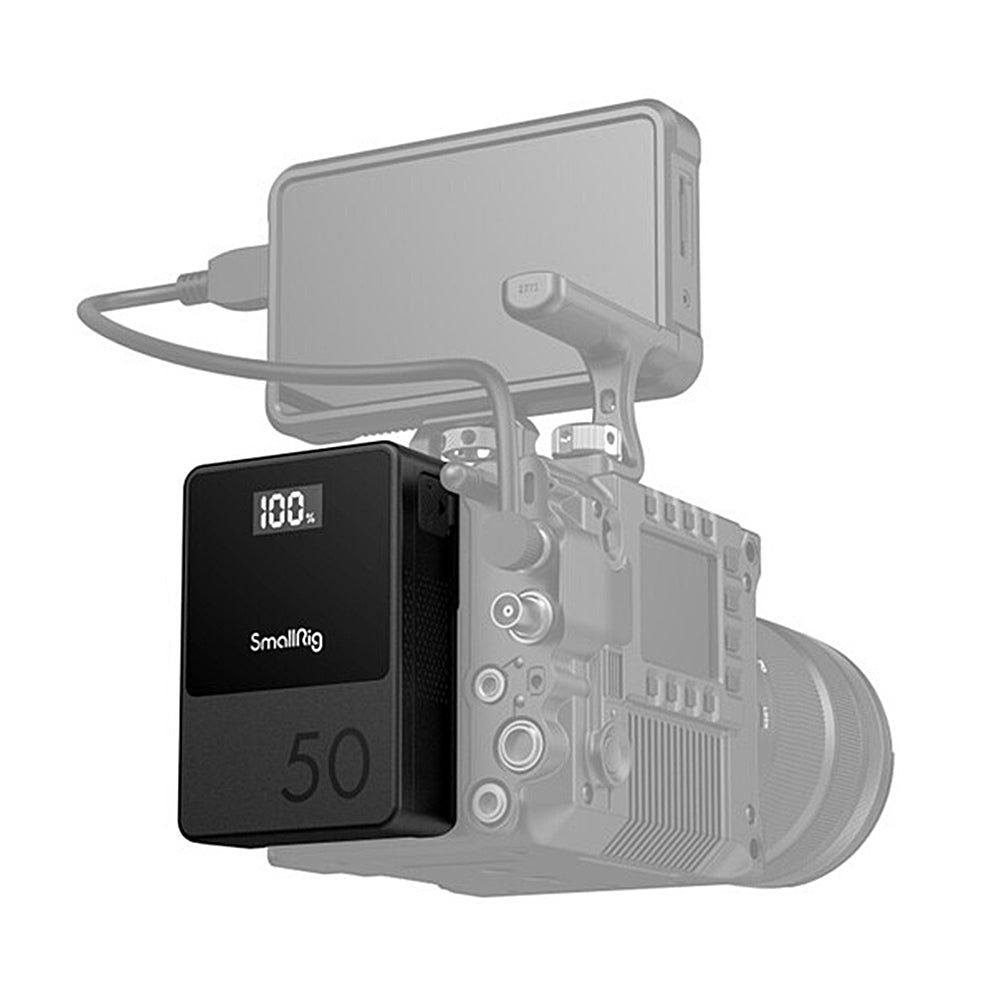

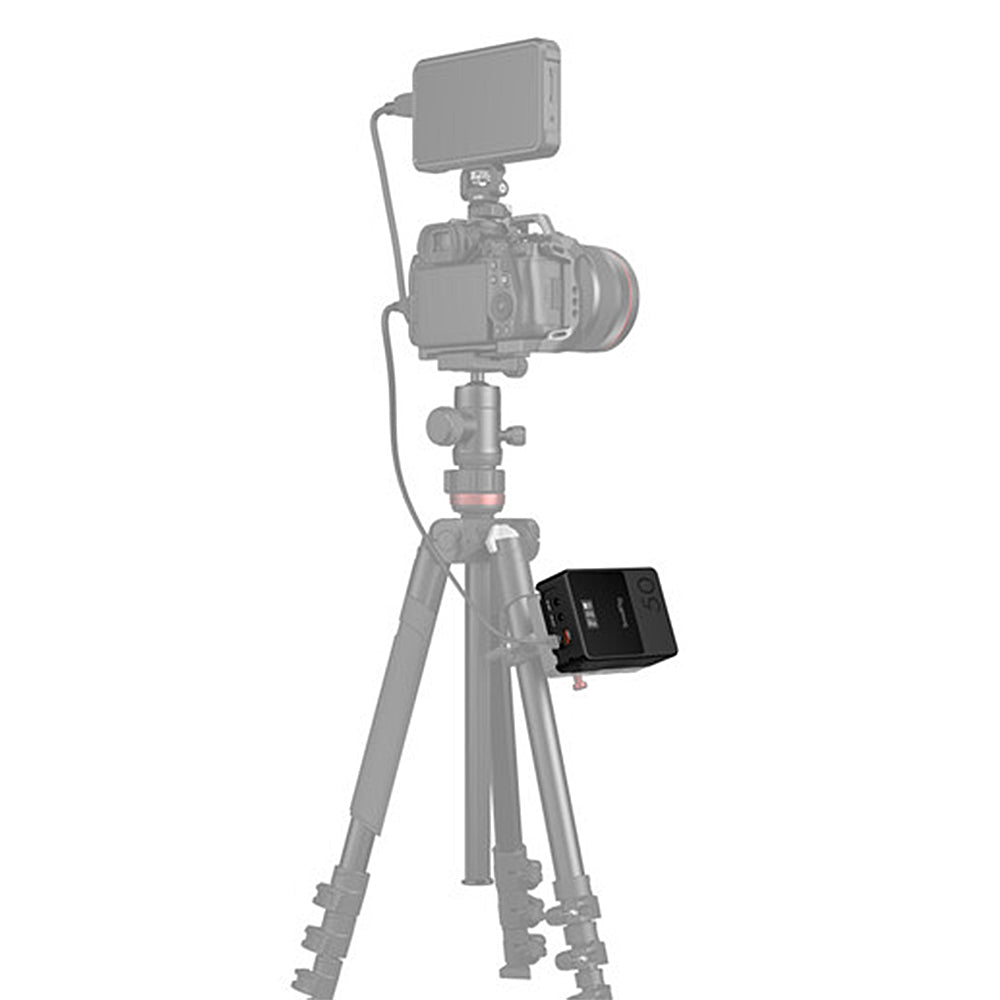

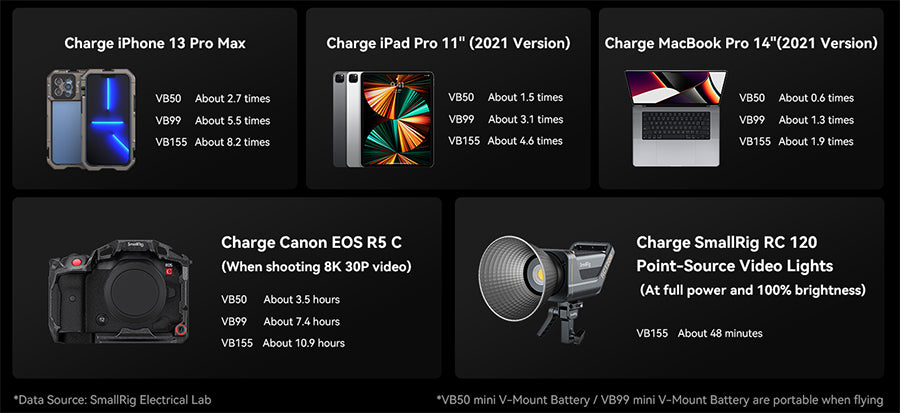

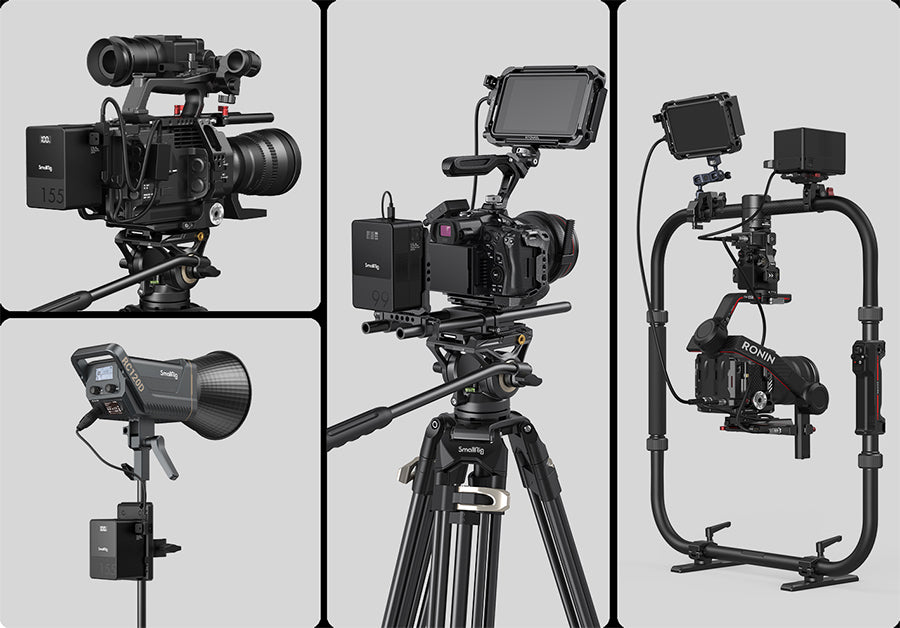

Application Scenes
Specifications:
| VB50 mini V Mount Battery | VB99 mini V Mount Battery | VB155 mini V Mount Battery | |
| Material | Fireproof PC | Fireproof PC | Fireproof PC |
| Capacity | 14.8V 3.4Ah 50Wh | 14.8V 6.7Ah 99Wh | 14.8V 10.5Ah 155Wh |
| Rated Total Power | Discharge: 50W Charge: 45W | Discharge: 99W Charge: 65W | Discharge: 155W Charge: 65W |
| V Mount / D-TAP Input | 5A (Max) | 8A (Max) | 8A (Max) |
| V Mount / D-TAP Output | 14.8V / 12A (Max) | 14.8V / 14A (Max) | 14.8V / 14A (Max) |
| USB-A Output (Supports QC2.0 / QC3.0 / AFC / FCP / SCP / DCP-1.5A / APPLE-2.4A) |
QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V / 2A QC3.0: 4.2-9V / 3A, 9-12V / 2A SCP: 4.5V / 5A, 5V / 4.5A DCP-1.5A: 5V / 1.5A APPLE-2.4A: 5V / 2.4A |
QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V /2A QC3.0: 4.2-9V / 3A, 9-12V / 2A SCP: 4.5V / 5A, 5V / 4.5A DCP-1.5A: 5V / 1.5A APPLE-2.4A: 5V / 2.4A |
QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V / 2A QC3.0: 4.2-9V / 3A, 9-12V / 2A SCP: 4.5V / 5A, 5V / 4.5A DCP-1.5A: 5V / 1.5A APPLE-2.4A: 5V / 2.4A |
|
USB-C Input/Output (Supports PD3.0 / QC2.0 / QC3.0 / PPS / AFC/ FCP / SCP / DCP-1.5A / APPLE-2.4A) |
PD3.0: 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 2.25A QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V / 2A QC3.0: 4.2-9V / 2A, 9-12V / 2A SCP: 4.5V / 5A, 5V / 4.5A DCP-1.5A: 5V / 1.5A PPS: 3.3-16V / 3A APPLE-2.4A: 5V / 2.4A |
PD3.0: 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 3.25A QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V / 2A QC3.0: 4.2-9V / 2A, 9-12V / 2A SCP: 4.5V / 5A, 5V / 4.5A DCP-1.5A: 5V / 1.5A PPS: 3.3-21V / 3A APPLE-2.4A: 5V / 2.4A |
PD3.0: 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 3.25A QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V / 2A QC3.0: 4.2-9V / 2A, 9-12V / 2A SCP: 4.5V / 5A, 5V / 4.5A DCP-1.5A: 5V / 1.5A PPS: 3.3-21V / 3A APPLE-2.4A: 5V / 2.4A |
| DC1 Output | 8.0V/Max3A | 8.0V/Max3A | 8.0V/Max3A |
| DC2 Output | 12V/Max3A | 12V/Max3A | 12V/Max3A |
| Discharge Cut-Off Voltage | 11V | 11V | 11V |
| Optional Charging Methods | 16.8V D-TAP charger, USB-C charger such as GaN charger with PD fast charging tech (up to 45W) | 16.8V D-TAP charger, USB-C charger such as GaN charger with PD fast charging tech (up to 65W) | 16.8V D-TAP charger, USB-C charger such as GaN charger with PD fast charging tech (up to 65W) |
| Product Dimensions | 107.0 × 73.0 × 34.0 mm | 107.0 × 73.0 × 53.0 mm | 107.0 × 73.0 × 71.0 mm |
| Net Weight | 330 g ± 10 g | 550 g ±10 g | 770 g ± 10 g |
| Package Dimensions | 147.0 × 114.0 × 57.0 mm | 147.0 × 114.0 × 75.0 mm | 147.0 × 114.0 × 93.0 mm |
| Gross Weight | 490 g ± 10 g | 740 g ± 10 g | 990 g ± 10 g |
Package Contents:

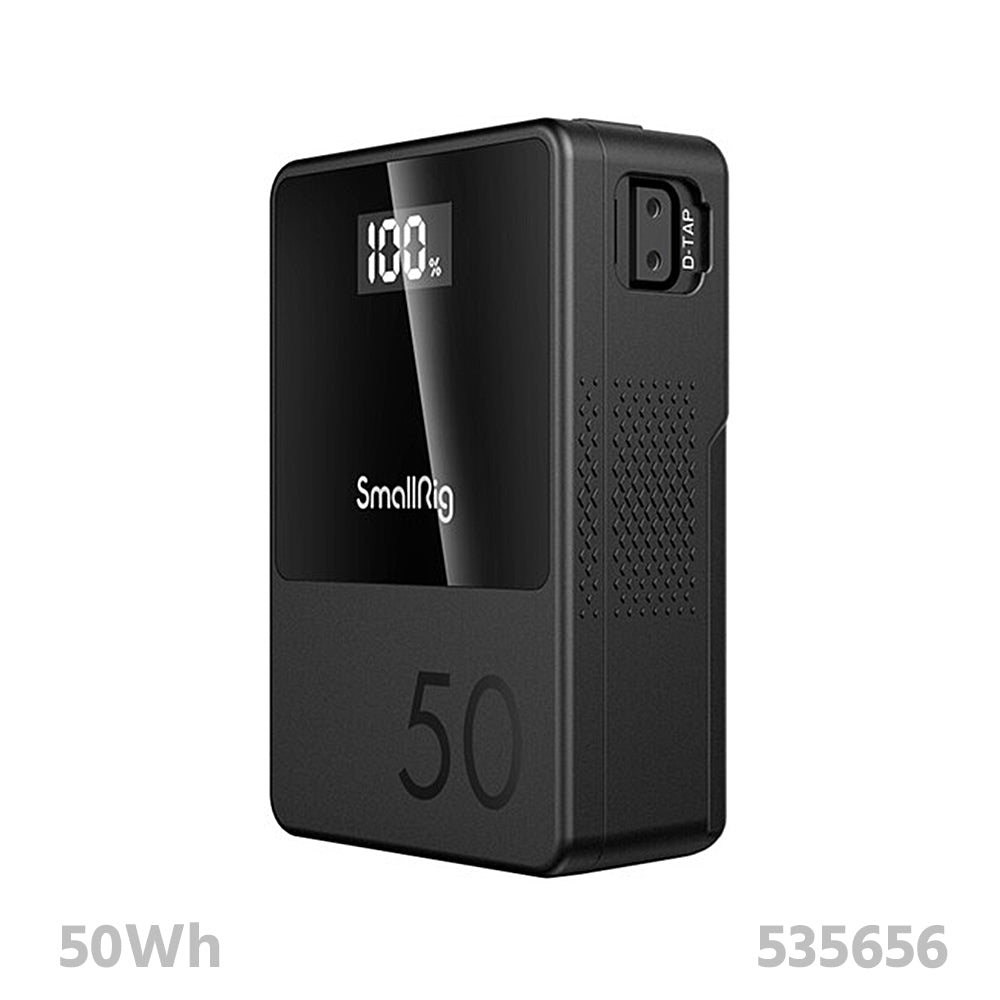

50Wh(535656):
1x SmallRig VB50Wh Mini V-Mount Battery
1x User Manual

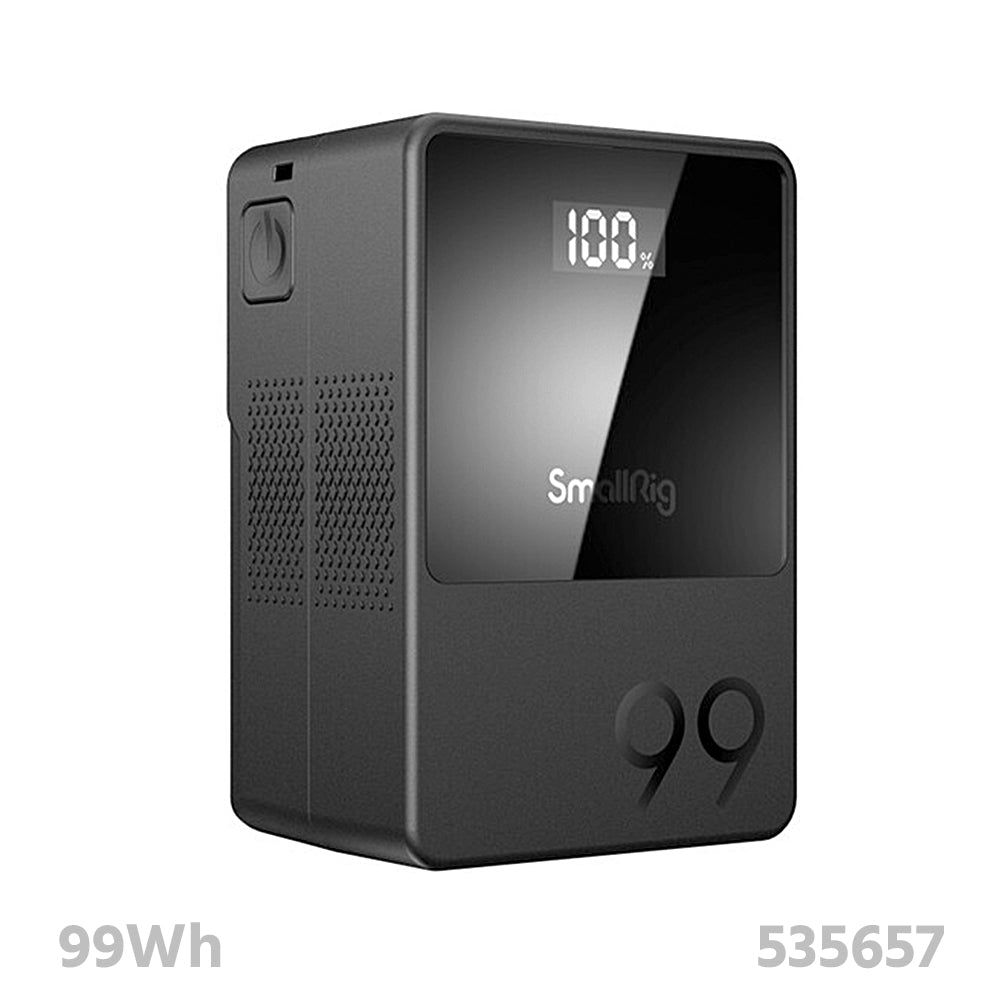

99Wh(535657):
1x SmallRig VB99Wh Mini V-Mount Battery
1x User Manual

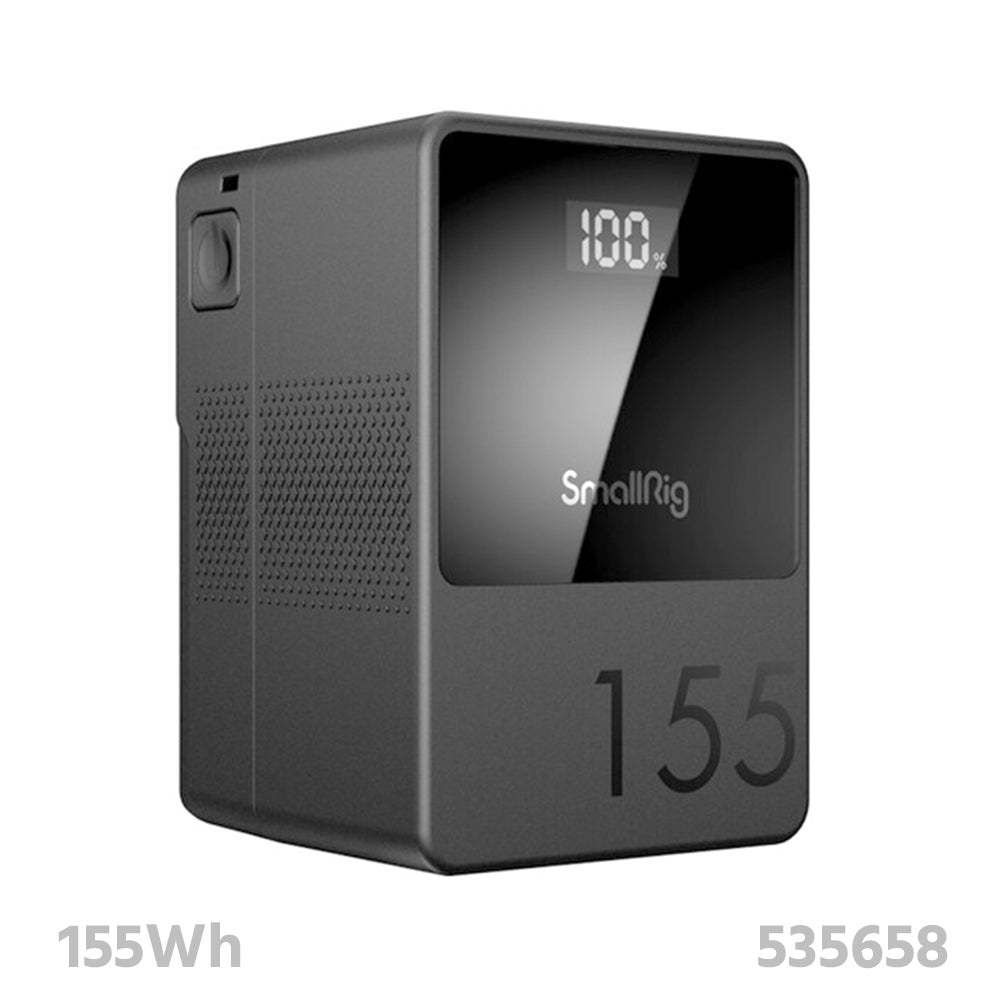

155Wh(535658):
1x SmallRig VB155Wh Mini V-Mount Battery
1x User Manual
Note
Please keep it clean, dry area, and away from corrosive substances to reduce the risk of short circuits.Please check its battery life regularly in case you need it anytime anywhere.
If the battery is left unused for a long time, please charge it to about 70% every three months and put it in a dry and ventilated environment for a longer lifespan.
Working temperature: -10℃- 45℃ (14℉ - 113℉),
Storage temperature:
One month: -20℃ - 60℃ (-4℉ - 140℉)
Three months: -20℃~45℃ (-4℉ - 113℉)
One year: -20℃~20℃ (-4℉ - 68℉)
Reference storage temperature/humidity:
temperature: 20℃±5℃
humidity: 60±15%
It is normal for the battery to heat up slightly during charging or using.
When using the D-TAP connector, please distinguish the positive and negative terminals, and do not reverse the battery.
It’s normal that for long time storage the battery will lose some power cause it has self-consumption.
Do not exceed its rated output when powering up other devices.
Keep it away from water or fire when using.
Please avoid dropping or crushing.
Children can only use it under adult supervision.
