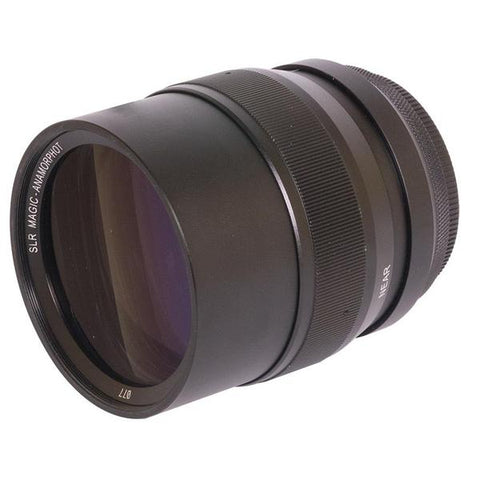

SLR Magic Anamorphot Adapter 2x 50 and Rangefinder Adapter 77mm
- Brand: SLR Magic
- SKU: SLR-BUNSLRA50277RFWM
- Product code:
The Anamorphot 2x 50 is a anamorphic lens adapter designed for cinematography. Increases image resolution and detail by squashing / compressing the image horizontally by a factor of 2x to allow maximum utilisation of the cameras' sensor, especially those of "full frame" dimensions.
Increases image resolution and detail by squashing / compressing the image horizontally by a factor of 2x to allow maximum utilisation of the cameras' sensor. Anamorphic lenses therefore require subsequent stretching, in post-production or at projection. Intended for use with shooting at 4:3, bringing the intended output to a standard 2.39:1 wide format with a higher resolution than simply letter-boxing the image in camera. The lens features an adjustable dioptre for "sweet spot" adjustment controls on focus, "near" and "far".
This anamorphic adapter also offers unique effects such as horizontal flare and streaks from light sources and ellipsoidal bokeh (great with the use of the optional +1.8 diopter), for cinematographers wanting a characteristic filmic look. Depth of field is also affected, as in practice when using an anamorphic lens a longer focal length is required in order to achieve the same angle of view. Therefore anamorphic lenses produce a shallower, more cinematic depth of field than a the same lens without the adapter.
This anamorphic adapter also offers unique effects such as horizontal flare and streaks from light sources and ellipsoidal bokeh, for cinematographers wanting a characteristic filmic look. Depth of field is also affected, as in practice when using an anamorphic lens a longer focal length is required in order to achieve the same angle of view. Therefore anamorphic lenses produce a shallower, more cinematic depth of field than a the same lens without the adapter.
The adapter has a 77mm front filter thread and a native 62mm rear thread. As such it is only suitable for lenses which have a front element size of 50mm or less. Limitations of close focusing is helped with the use of dioptres which further enhances image. resolution and sharpness on close / medium distance applications.
PLEASE NOTE: Due to the additional weight of the Anamorphot adapter and extra strain placed on the taking lens the use of of lens support is essential at all times.
The Rangefinder CINE Adapter is an optical device with integrated follow focus gears. When attached to a compatible taking lens, one could overide the focus control of the taking lens with the Rangefinder’s built-in focus ring. Provides calibrated focus markings from 3’6 ft (1.1M) to Infinity. Highly recommended for users wanting to have single focus capability on the SLR Magic Anamorphot series of adapters, currently 1.33x and 2x. Furthermore the Rangefinder CINE adapter can be placed on many taking lenses to offer those wanting to have "cinema like" manual focus capability on auto-focus lenses. Like many SLR Magic products, the Rangefinder CINE adapter is crafted using black anodised metal to the highest standard.
Features:
Anamorphot Adapter
• 2.0x Anamorphic Squeeze
• Creates 2.35:1 Images on 4:3 Sensors
• Near / Normal Focus Adjustment
• Mounts to Lenses with 62mm Front Thread
Rangefinder Adapter
• Rangefinder Adapter 77mm
• Manual Focus Control
• Minimizes Breathing on Still Lenses
• For Lenses with 77mm Front Thread
• Cine-Style Focus Gear
• Calibrated and Marked in Feet
• 3.5' to Infinity Focus Range
Specifications:
Anamorphot Adapter
• Focus type: Manual
• Format: 2x
• Thread diamater: 77mm
• Weight: 560g
Rangefinder Adapter
• Focus type: Manual
• Min focusing distance: 1.1M
• Dimensions: Length: 24.3mm, Width: 97mm
• Weight: 340g
• Fitment: MF & AF Lenses
• Rear filter thead: 77mm, step down rings can be used to adapt to smaller taking lenses (Not included)
• Front filter size: 82mm
Package Contents:
1× SLR Magic Anamorphot Adapter 2x 50
1× SLR Magic Rangefinder Adapter 77mm
