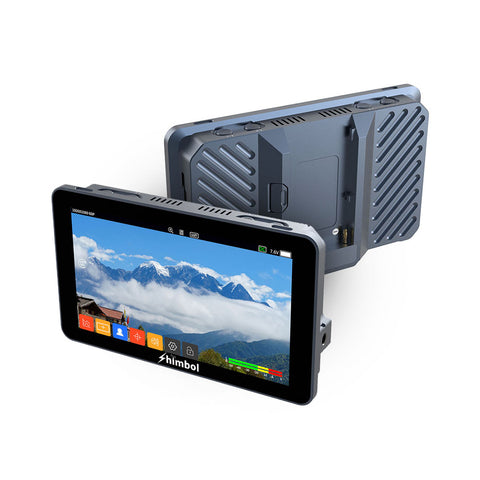

SHIMBOL M5 5.5" 3D LUT 4K HDMI HDR Touchscreen Monitor

Monitor your 4K HDR video on the M5 5.5" 3D LUT 4K HDMI Touchscreen Monitor by Shimbol with its 1200 nit brightness, 1000:1 contrast ratio IPS screen with viewing angles up to 160 degrees, and built-in HLG mode and PQ support. The M5 monitor is calibrated to cover 100% of the Rec. 709 color space with a low Delta E of 0.6 for color accurate monitoring, supports resolutions up to DCI 4K25 or UHD 4K30, and features extensive monitoring tools such as 17- and 33-cube 3D LUT monitoring. The aluminum housing encloses a passively cooled design, which is possible due to its low power consumption of 3.5 to 6.5W, for a lightweight, quiet, and capable on-camera monitor.

Professional Monitoring Tools

• In the scope menu, find your waveform, RGB parade, histogram, and vectorscope to facilitate color and exposure monitoring of your scene.
• In the focus menu, find adjustable peaking and zoom functions to assist with focus.
• Load 17- or 33-cube 3D LUTs in the color menu through the SD card, adjust your gamma from 2.2 to 2.6, toggle HLG mode or PQ for HDR monitoring, and adjust the color temperature.
• False color allows for quick and accurate exposure adjustments.
• The mask feature provides aspect ratio guides.

Buttons and Ports

• The top of the monitor features a power button and three programmable function buttons for your most used monitoring tools.
• On the left are two HDMI 1.4 ports, one input and one output, as well as a DC input for extended power.
• On the right is an SD card slot used to load up to 99 custom LUTs in addition to the included eight log-monitoring LUTs. A 1/4"-20 mounting thread below gives vertical or side-mounting options, and a 3.5mm input allows for audio monitoring. Levels are displayed on the monitor as well.
• Another 1/4"-20 thread on the bottom is for conventional on-camera mounting, which can be paired with the included cold shoe to 1/4"-20 mount. The adjacent USB-C port facilitates firmware updates.
• At the rear is an L-Series/F970 battery plate for mobile power.

Features:

• 1920 x 1080 Touchscreen Display
• Up to DCI 4K25 and UHD 4K30 HDMI Input
• 1200 cd/m² Brightness
• HDR Monitoring, 3D LUT Support

Specifications:

Package Contents:
1x Shimbol M5 5.5" 3D LUT 4K HDMI HDR Touchscreen Monitor
1x HDMI Cable
1x Micro-HDMI Cable
1x Cold Shoe to 1/4"-20 Mount
1x Screen Protector
1x Cleaning Cloth
1x Carry Case
