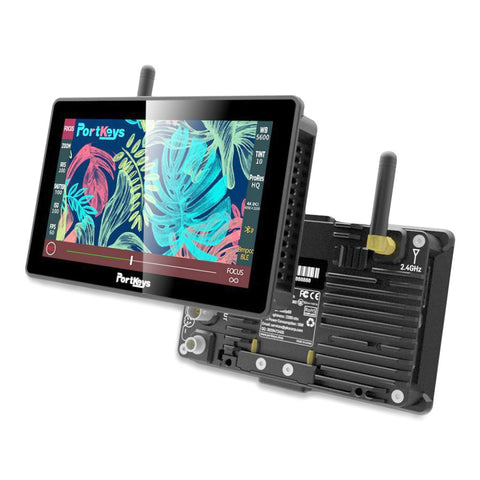

Portkeys BM5 WR HDMI/SDI 5.5" Touch Screen Wireless Control Monitor


  • Brand: PortKeys
  • SKU: BM5 III-WR
  • Product code: 534027
£559.00 £670.80 Inc VAT Price Match
-Camera Control Portkeys BM5WR comes with a wireless control module specially designed to connect with RED Komodo wirelessly. The BM5WR with Camera Control maintains the same reliable BM5 clarity, vivid...

-
Camera Control

Portkeys BM5WR comes with a wireless control module specially designed to connect with RED Komodo wirelessly. The BM5WR with Camera Control maintains the same reliable BM5 clarity, vivid color details, and dynamic touch screen camera control.



-
Support touch screen control focus on KOMODO, BGH1, E2

When you touch the screen of the monitor, it draws highlights around the edge of the focus, so you can focus quickly and accurately in real-time without any other tools.





-
Robust design

Rugged aluminum alloy shell design, durable and lightweight. BM5WR uses a sturdy aluminum alloy shell and weighs only 376g, which can withstand heavy daily operations, so it is easy to carry when shooting.





-
2200nits Super Bright, Sees Everything Clearly in Daylight

Portkeys BM5WR offers a 2200nits ultra-high brightness 5.5-inch display with a clear resolution, excellent color, and contrast, and precise image control.

-
HDMI/SDI Loop Out

The SDI input provides real-time monitoring. SDI OUT can output an image superimposed with 3DLUT and a new peak.


-
Color calibration

Each BM5WR has passed strict hardware color calibration before shipping to ensure the widest color gamut and the most accurate colors.


-
10-bit (8+2 FRC)

The 10-bit color depth makes the display color reproduction more accurate, the image quality is more delicate, and the level is richer.





-
ARRI false color mode

When you use the user mode, you can freely set the IRE.




-
New Peaking

The optimized new peaking algorithm can accurately capture the subtle facial focus.




-
High-precision Waveform

The high-precision full-screen waveform can accurately capture 1920X1080 pixels frame by frame.




-
Semi-Transparent Superimposable Frozen Frame Image

The freeze-frame can be semi-transparently superimposed on the HDMI or SDI video so that the photographer can correct the displacement.



-
TILTA Cursor Display

The BM5WR can display the position of the iron head wireless follow the focus scale. All in all, it can provide professional content creators with reliable tools for various scenari



-
Supported Camera:


  1. Support Wi-Fi control RED Komodo.

  2. Bluetooth control BMPCC 4K, 6K, 6K Pro.

  3. Wired control of Sony, Canon, Panasonic, BMD, and ZCam E2.

  4. It also supports motor control of the Tilta Nucleus N/M.

  5. It allows you to control the focus of Komodo, BGH1, E2 via the touch screen.




-
Blackmagic:


LANC control cable:

BMPCC4K, BMPCC6K, URSA MINI 4K, URSA MINI 4.6K, URSA MINI PRO 4.6K G2, URSA BROADCAST, CINERA CAMERA 2.7K, CINERA CAMERA 4K, MICRO STUDIO CAMERA 4K

-
Canon:


MINI USB control cable:
5D MARK III, 5D MARK II, 6D, 6D MARK II, 80D

MICRO USB control cable:

1DX, 1DX MARK II, 5DS, 5DS R, 5D MARK IV

TYPE-C/USB-C control cable:

R5, R6, C70, EOS R

LANC control cable:

C700 PL, C700 GSPL, C300 MARK 2, C300 MARK 2 PL, C200, C200B, C100, C100 MARK 2

-
Panasonic:


TYPE-C/USB-C control cable:
GH5, GH5S, S1, S1H, S1R, S5, G9, BGH1


-
Sony:


MULTI control cable:
A9, A7M II, A7R II, A7S II, A7M III, A7R III, A7R IV, A6000, A6300, A6400, A6500, RX100, RX02

LANC control cable:
FS5, FS7, FX6, FX9

TYPE-C/USB-C control cable:
A7S III

-
ZCAM:


LANC control cable:
E2, E2 S6, E2 F6

-
RED Komodo (Wifi)



-
REC Key





-
Video Function


3D LUT

HLG

Image Capture

Anamorphic

Osd Flip

Image and Video Overlay

New Peaking

False Color

Fan Adjustable

Histogram

H/V Delay

BMD SDI TALLY

Guides

Aspect

3D LUT SDI Output

Custom RGB

Zebra

HDMI to SDI Output

Check Field

Sharpness

Touch Switch(EXIT)

Grids

Chroma

High Precision Waveform

Audio Meters

Brightness

Battery Voltage Checking

Tint

Contrast

Wired/Wireless Camera Control

Backlight

UnderScan

Image Flip Automatically/

Manually

Zooming

Cross Hair

1080p Refresh Rate

Reduced to 1080i








Specifications:

Basic Parameters

Screen Size

5.5

Dimension

145.4*120.9*45.5mm

Viewing Angle

178°H/178°V

Brightness

2200nit

Resolution

1920*1080

Contrast Ratio

1000:1

Weight

376g

Color Depth

10bit(8+2 FRC)

Maximum Power

13W

Material

Aluminum alloy + Tempered glass

Input Voltage

4pin Aviation Connector IN 7.4-24V

Output Voltage

4pin Aviation Connector OUT 7.4V(NPF)

Video Signal Input

SDI/HDMI

Video Signal Output

SDI

Motor Control Port

5pin Aviation Connector

Camera Control Port

Mini USB 10pin

USB-A

Upgrade Firmware/Load LUT

Antenna

2.4G


HDMI Signal

1920*1080p@23.97Hz,24Hz,25Hz,

29.97Hz,30Hz,50Hz,59.94Hz,60Hz

1920*1080psf@23.97Hz,24Hz,

25Hz,29.97Hz,30Hz

1920*1080i@50Hz,59.94Hz,60Hz

1280*720p@50Hz,59.94Hz,60Hz

720*576i@50Hz

720*576p@50Hz

720*480p@59.94Hz,60Hz

720*480i@59.94Hz,60Hz

SDI Signal

1920*1080p@50fps,59.94fps,60fps

1920*1080p@50Hz,59.94Hz,60Hz

1920*1080p@23.98Hz,24Hz,25Hz,

29.94Hz,30Hz YUV444/YUV422/RGB444

1920*1080i@50Hz,59.94Hz,60Hz

YUV444/YUV422/RGB444

1280*720p@50Hz,59.94Hz,60Hz

YUV444/YUv422/RGB444



Package Contents:

1x BM5WR Monitor
1x Power Cord 100cm(Aviation Port D-TAP)
1x Power Cord 40cm(Aviation Port DC)
2x L-Type Antenna
1x USB Flash Drive (Manual, 3D LUTs, Firmware Inside)
1x Safety Box
