Feature:
- Suitable for connecting PD4-HT / PD2-HT / PD3-T / PD-MX / PD- MP
- Apply to control various cine lenses or SLR lenses
- 20 signal channels optional; 6 control channels optional
- Automatically calibrated lens travel
- Manually calibrated the lens travel
- Motor rotation direction setting
- Torque adjustable
Specifications:
Weight: 196.5g
Size: L 108mm * W 66mm * H 23mm
Maximum torque: 0.8Nm
Operating Voltage: 7-20V
Temperature: +60°C;-20°C
Power supply: D/P-tap power supply
connections: Wireless 2.4G
Working distance: Straight line - Max 100m
Package Content:

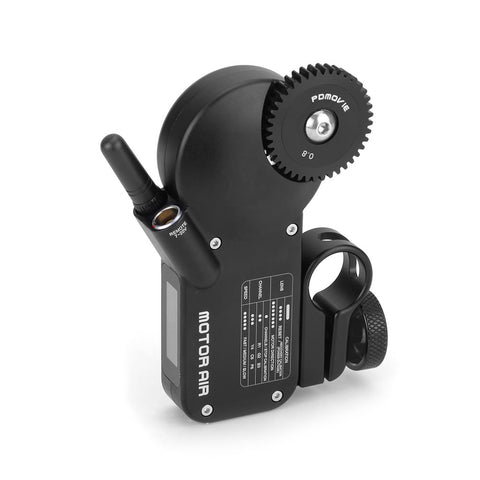

1x Master Motor torque 0.8Nm(PD-RX)
1x Motor D-TAP power cable 0.7m(6pin)
