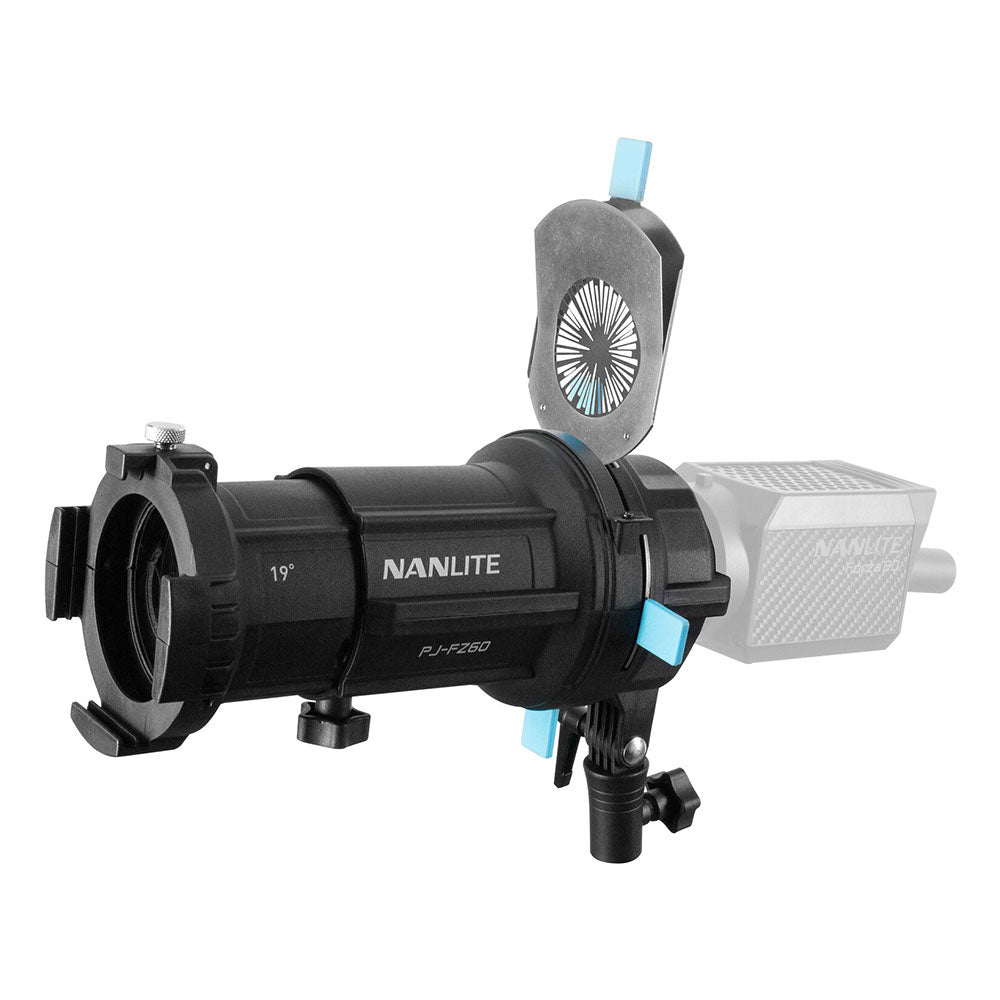

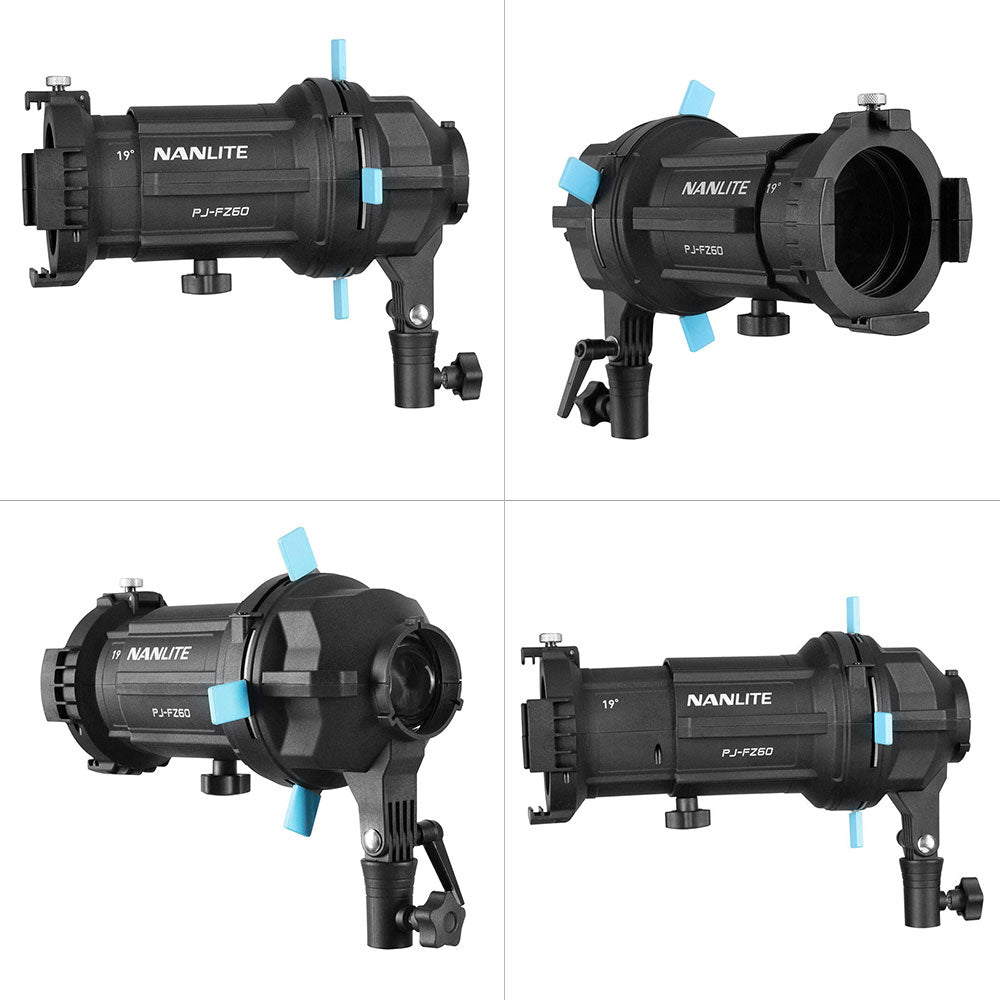

Nanlite Projector Mount for Forza 60 and 60B LED Monolights


  • Brand: Nanlite
  • SKU: PJ-FZ60-19
  • Product code: 533879
£270.00 £418.00 £324.00 Inc VAT Price Match

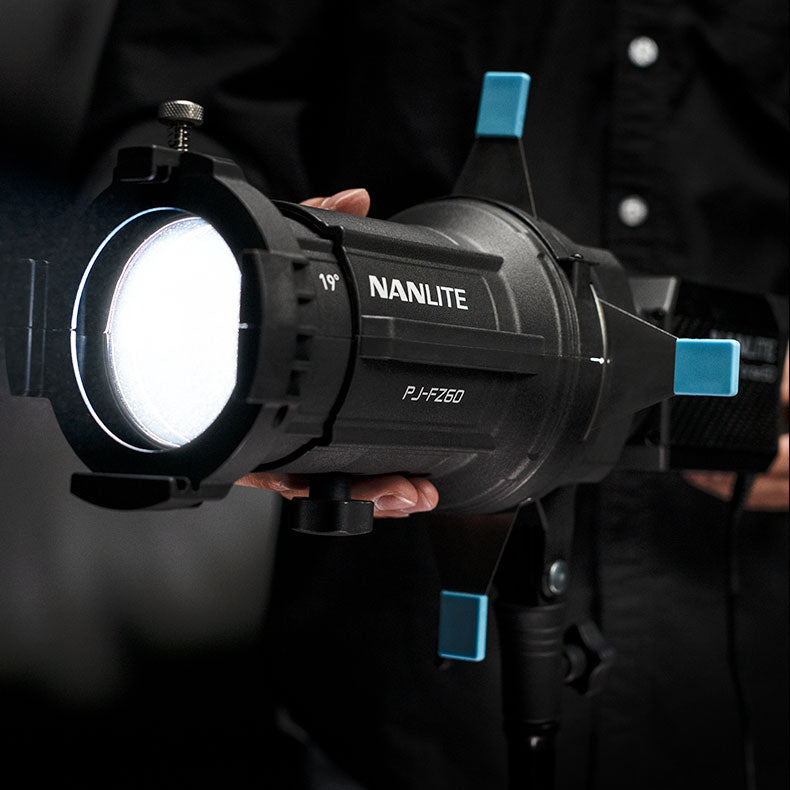

The 19° Projector Mount for Forza 60 and 60B LED Monolights from Nanlite is an accessory for controlling the Forza's output for theatrical effects, hair lighting, and selective lighting of...

The 19° Projector Mount for Forza 60 and 60B LED Monolights from Nanlite is an accessory for controlling the Forza's output for theatrical effects, hair lighting, and selective lighting of your subject, via its non-curved lenses that eliminate aberration and minimize distortion, while rendering a 19° beam spread. Advanced features include etched interior walls to prevent edge dispersion and fringing and a nylon-coated housing that allows easy handling after shooting.

The Projector Mount has internal shutters for light shaping and includes a gobo holder with four B-size gobos a gel frame and a case. Optional accessories include an 18-bladed iris.

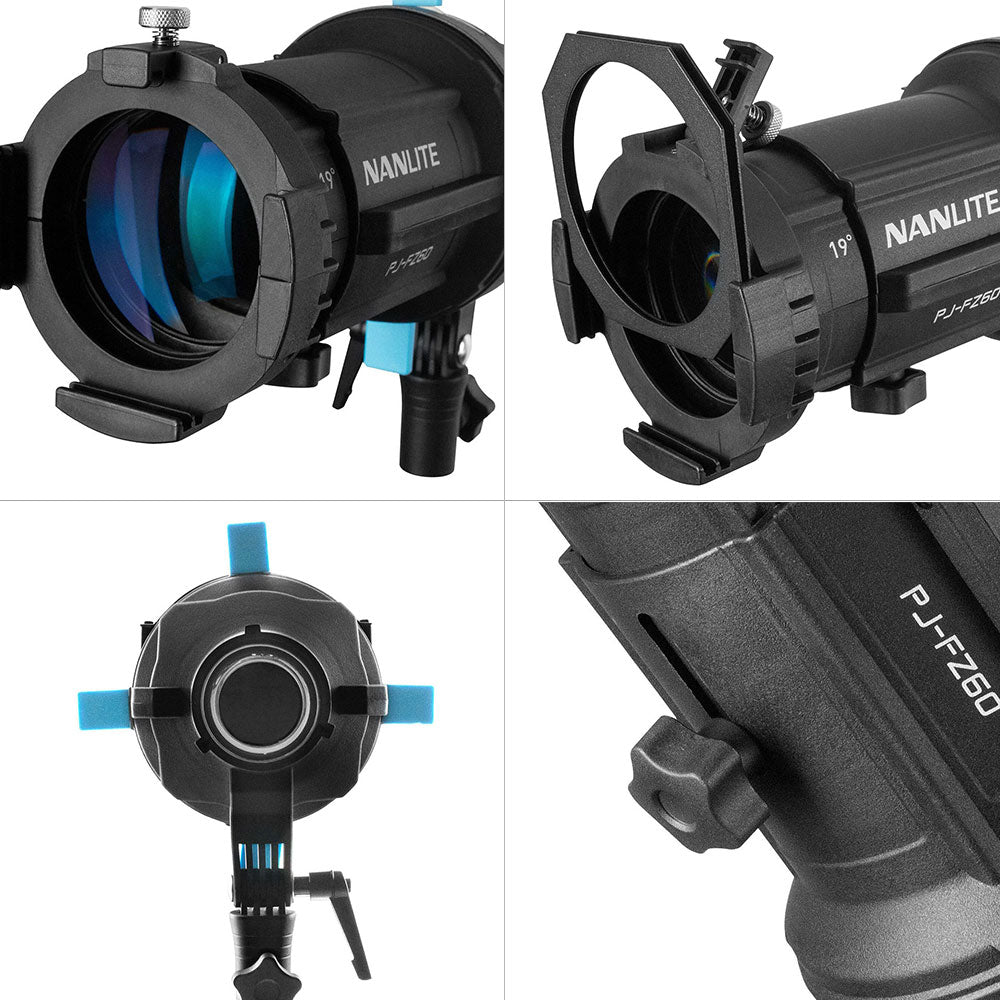

Expertly Crafted Details

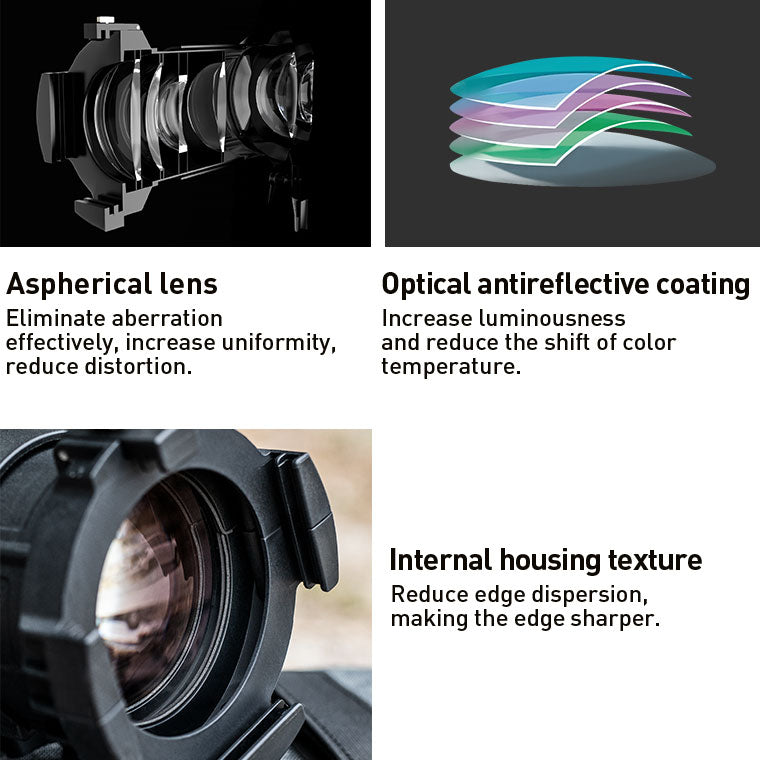

Nanlite has gone to great lengths to ensure the light quality emitted by the Forza 60/60B Projector Mount. It utilizes non-curved lenses to eliminate aberration and minimize distortion, while optical metallic-membrane plating increases luminousness and color temperature accuracy. Finally, the internal walls of the housing are etched to reduce edge dispersion and fringing.

Extra Durability and Heat Dispersion
The Forza 60/60B Projector Mount's housing keeps heat absorption to a minimum through the use of nylon coated metal. Users can easily handle the projector after use, and the nylon design also keeps the fixture lightweight but still robust enough for travel.

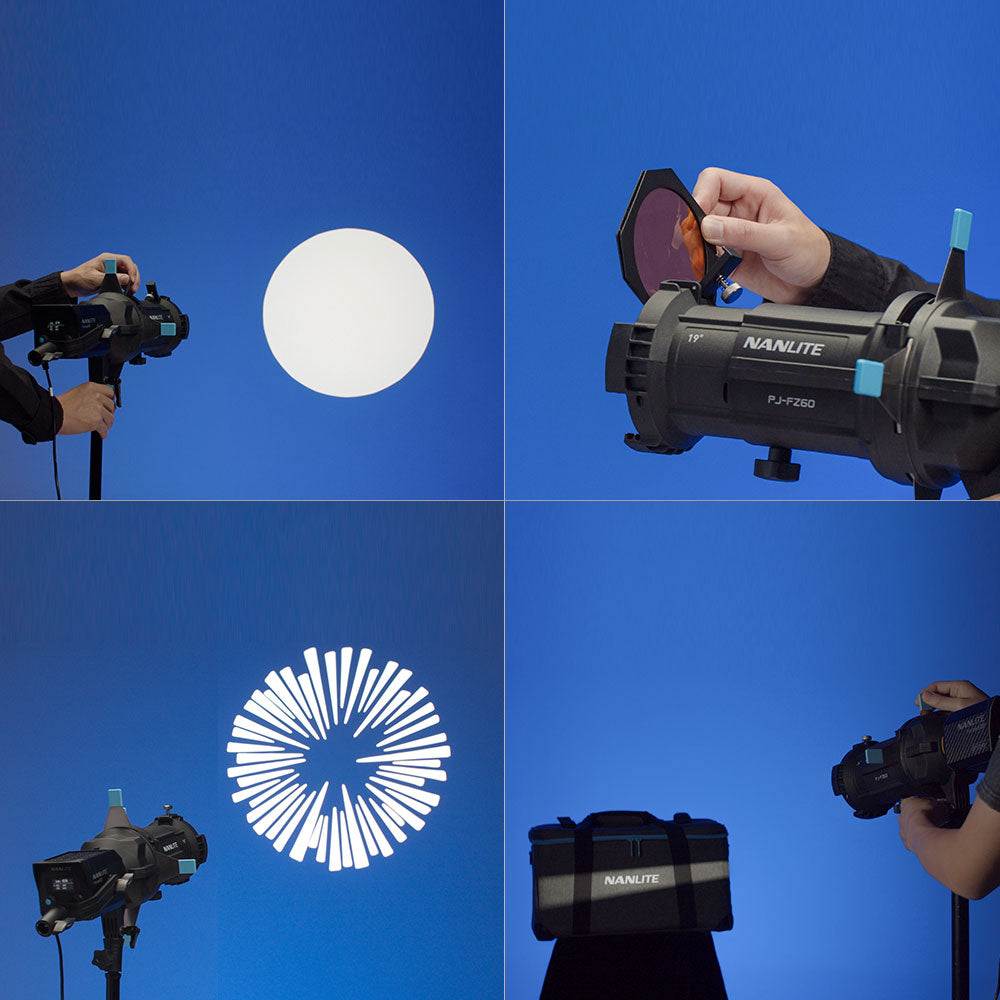

Control, Shape, and Layer Your Light

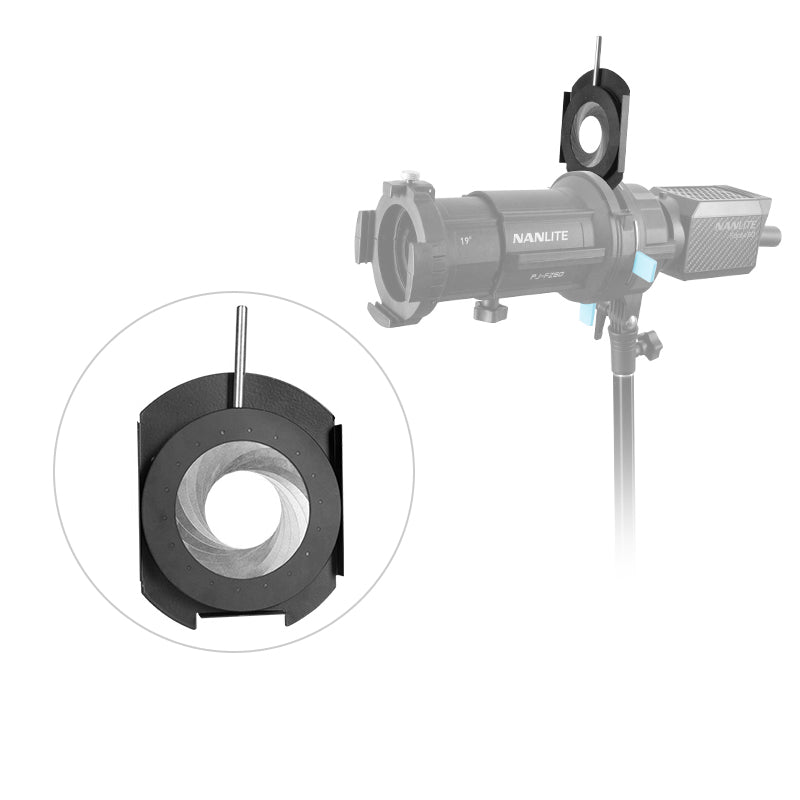

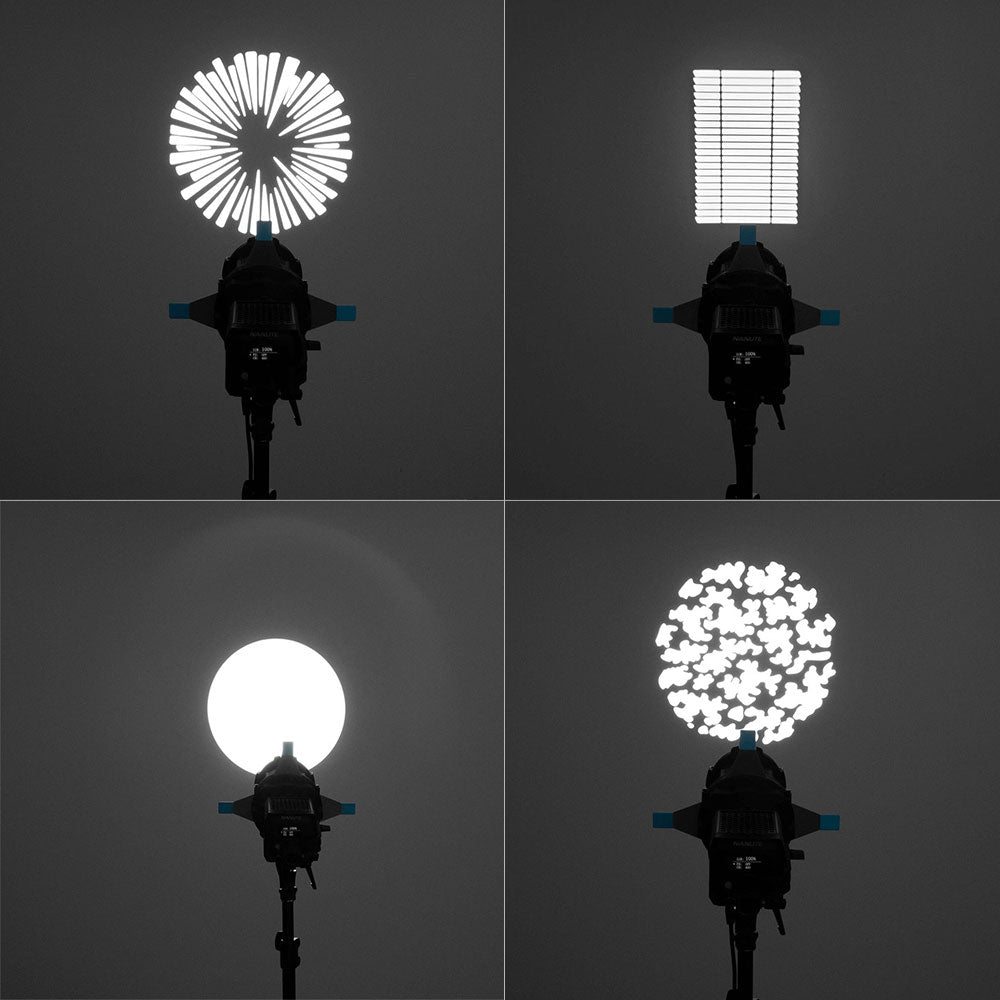

For maximum flexibility in light shaping and control, the Forza 60/60B Projector Mount features internal shutters and include four B-Size Gobos, a gobo frame, and a gel frame. For even further control of the light's size and shape, an 18-bladed iris is available separately.

Sturdy Protective Case
Every Forza 60/60B Projector Mount ships in a purpose-built protective case created to stand up to the rigors of traveling to and from the set. It ensures your optics stay safe while still leaving space for additional accessories.

Features:

• 19° Beam Spread
• For Dramatic, Theatrical Effects
• Ideal Accent Light, Selective Lighting
• Includes 4 Gobos, Gel and Gobo Holders
• Optional 18-Bladed Iris
• Nylon-Coated Metal Housing

Specification:

Technical Data

Model

PJ-FZ60-19 / 36

Beam Angle19°/ 36°

19°/ 36°

Compatible Product or Mount

Forza 60Forza 60B

Product Size

Projection Attachment without Lens: 215 × 160 × 235mm/8.46 × 6.30 × 9.25"

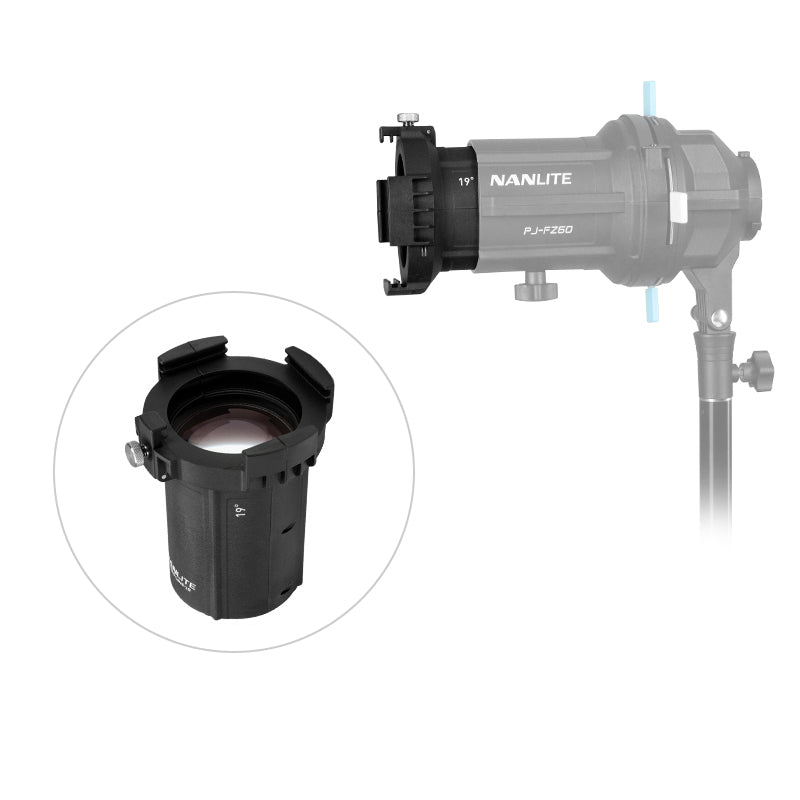

19° Lens: φ117 × 150mm

36° Lens: φ4.61 × 5.91"

Product Weight

Projection Attachment without Lens: 0.89kg/1.96lb

19° Lens: 0.64kg/1.41lb

36° Lens:  0.69kg/1.52lb



Model

PJ-FZ60-AI

Beam Angle

PJ-FZ60-LENS-19

PJ-FZ60-LENS-36

Product Size

89 × 134 × 8mm/3.5 × 5.28 × 0.31"

Product Weight

0.1kg/0.22lb

Includes

PJ-FZ60-AI Adjustable Iris diaphragm ×1



Illumination (lux / fc)

Forza 60+PJ-FZ60-19

Distance

1M

3M

5M

7M

5600K

54620 lux / 5074 fc

4229 lux / 393 fc

1441 lux / 134 fc

717 lux / 67 fc


Forza 60B+PJ-FZ60-19

Distance

1M

3M

5M

7M

2700K

31700 lux / 2945 fc

2465 lux / 229 fc

837 lux / 78 fc

424 lux / 39 fc

3200K

36190 lux / 3362 fc

2743 lux / 255 fc

907 lux / 84 fc

460 lux / 43 fc

4300K

45210 lux / 4200 fc

3550 lux / 330 fc

1197 lux / 111 fc

597 lux / 55 fc

5600K

46710 lux / 4339 fc

3800 lux / 353 fc

1258 lux / 117 fc

622 lux / 58 fc

6500K

49880 lux / 4634 fc

3848 lux / 357 fc

1308 lux / 122 fc

652 lux / 61 fc

Forza 60+PJ-FZ60-36

Distance

1M

3M

5M

7M

2700K

22707 lux / 2109 fc

1776 lux / 165 fc

614 lux / 57 fc

313 lux / 29 fc

Forza 60B+PJ-FZ60-36

Distance

1M

3M

5M

7M

2700K

13142 lux / 1221 fc

1027 lux / 95 fc

353 lux / 33 fc

179 lux / 17 fc

3200K

14230 lux / 1322 fc

1111 lux / 103 fc

382 lux / 35 fc

194 lux / 18 fc

4300K

18003 lux / 1672 fc

1398 lux / 130 fc

479 lux / 44 fc

243 lux / 23 fc

5600K

18542 lux / 1723 fc

1444 lux / 134 fc

494 lux / 46 fc

250 lux / 23 fc

6500K

19708 lux / 1831 fc

1533 lux / 142 fc

523 lux / 49 fc

268 lux / 25 fc



Package Contents:

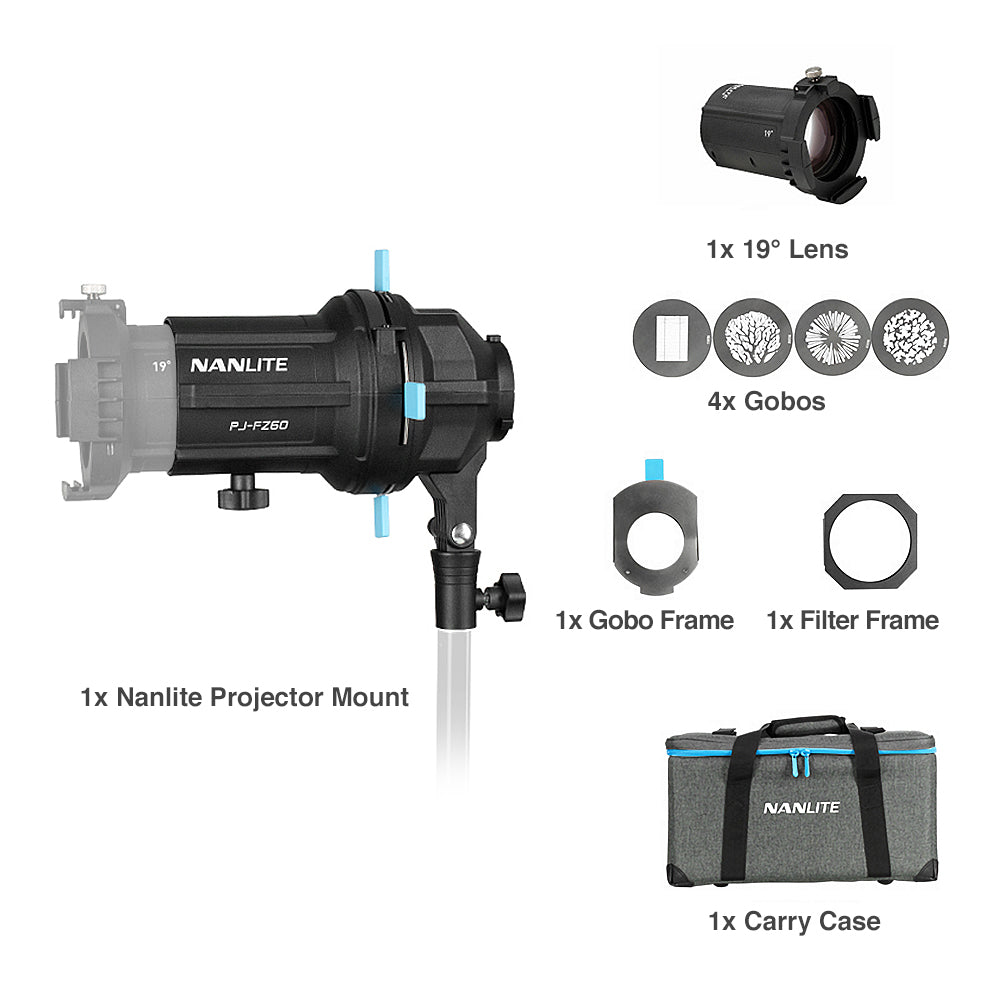

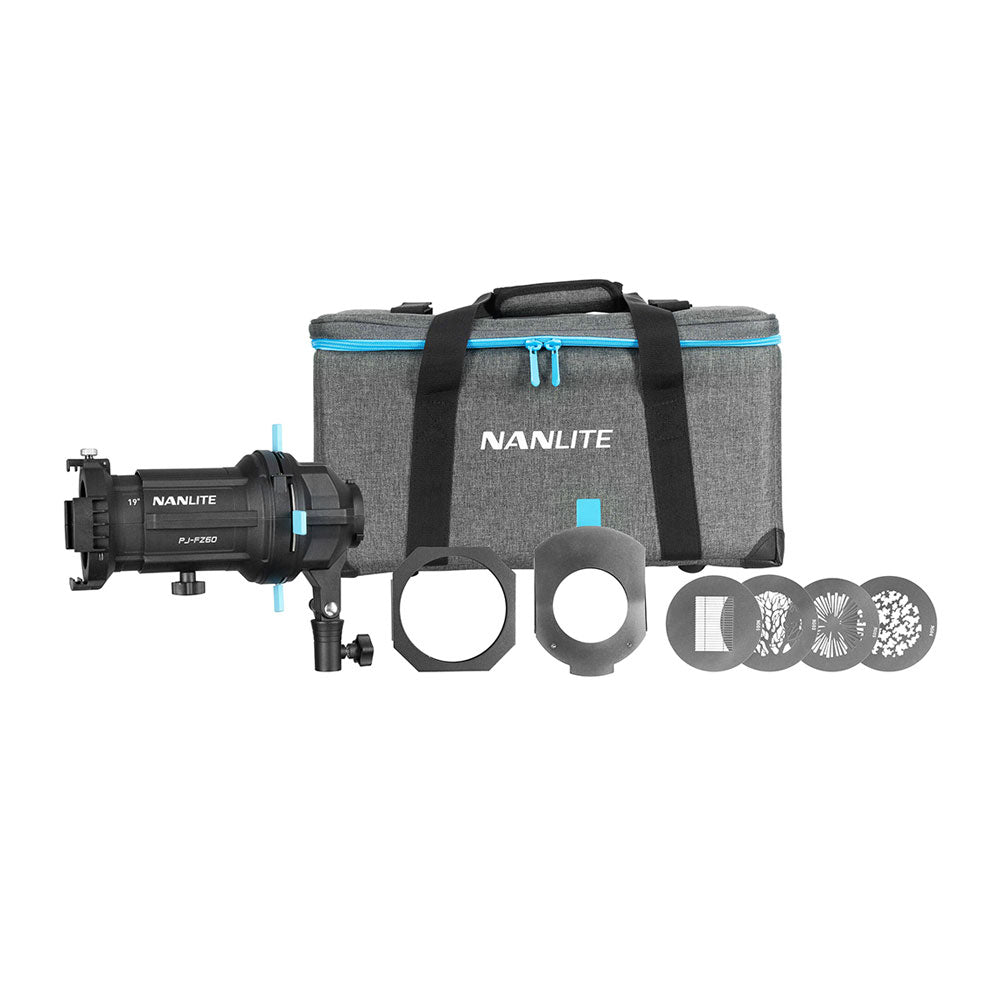

19° Projector Mount Kit (533879):
1x Nanlite Projector Mount for Forza 60 and 60B LED Monolights
1x 19° Lens
4x Gobos
1x Gobo Frame
1x Filter Frame
1x Carry Case

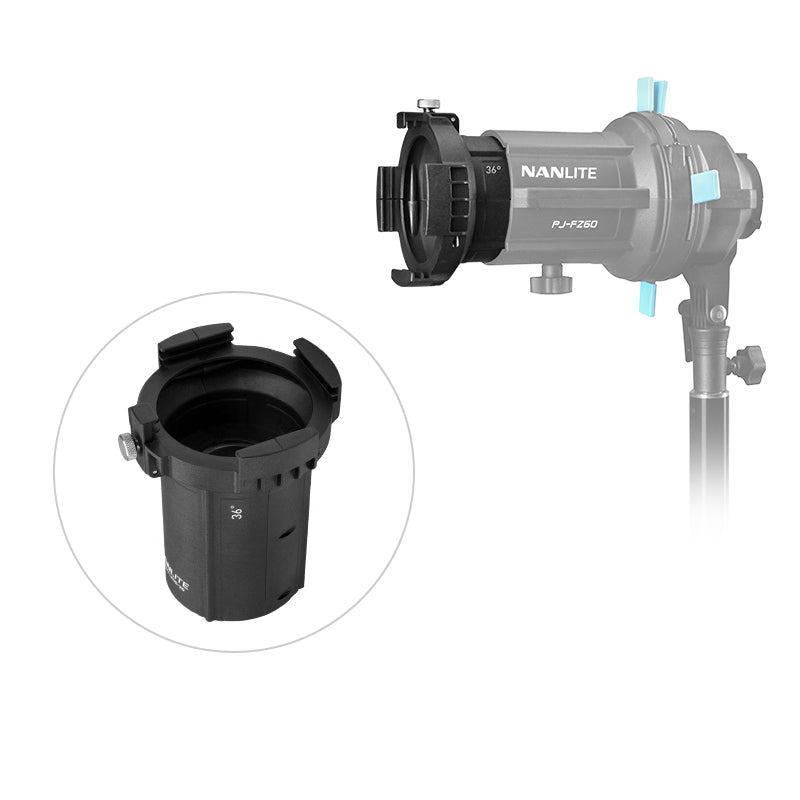

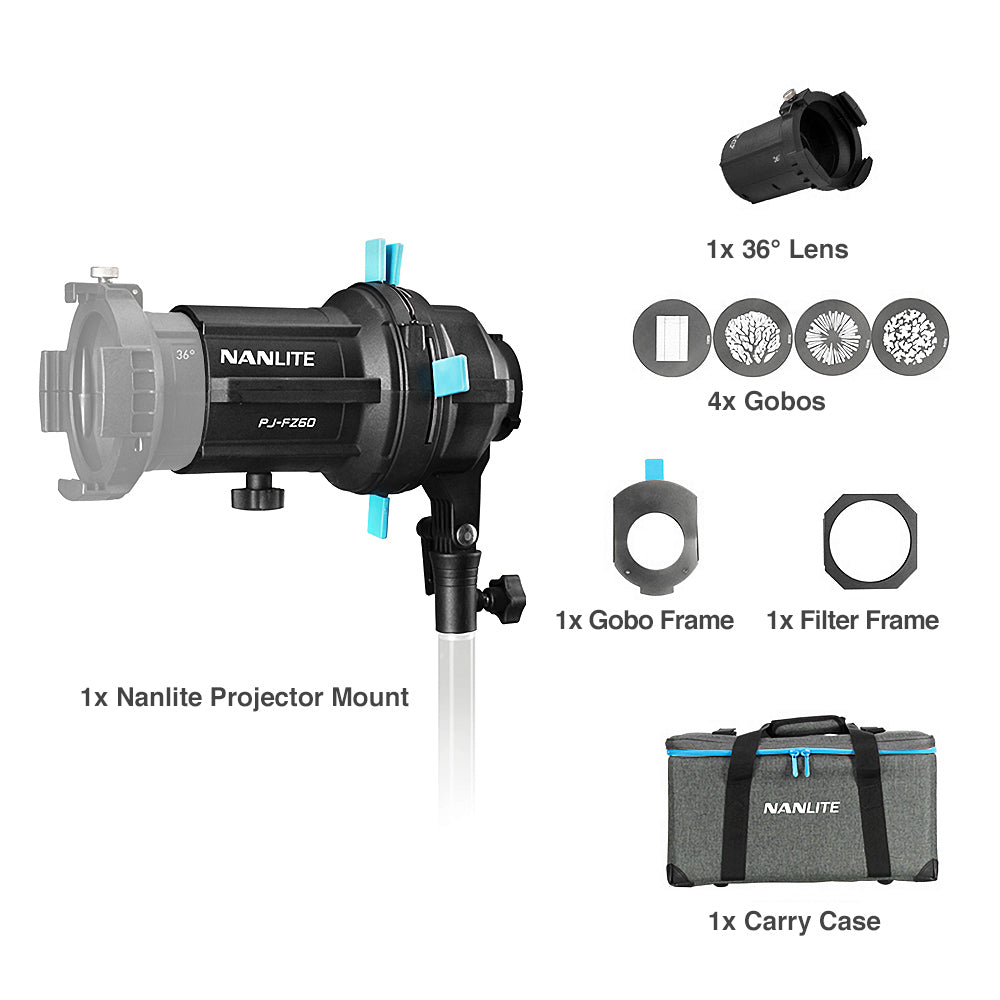

36° Projector Mount Kit (533880):
1x Nanlite Projector Mount for Forza 60 and 60B LED Monolights
1x 36° Lens
4x Gobos
1x Gobo Frame
1x Filter Frame
1x Carry Case

19° + 36° + IRIS Projector Mount Kit (PK1470):
1x
36° Projector Mount Kit (533880)
1x Nanlite 19° Lens For Projector Mount (533979)

1x Nanlite Iris For Projector Mount (533978)
