DZOFILM Pictor Zoom 50-125mm T2.8 Super35 Cinema Lens (PL&EF interchangeable Mount, Black)
- Brand: DZOFiLM
- SKU: DZO-7220001B
- Product code:
Professional Cine Lenses with Concrete Build
The new lineup of Pictor Zoom lenses from DZOFILM cover Super35/APS-C sensors. With a constant T/2.8 maximum aperture at every focal length, both lenses will cover a total range of 20-125mm at T2.8!
Pictor Zoom lenses are completely parfocal and the aperture diaphragm consists of 16 blades for a beautiful smooth and creamy bokeh.
These lenses work perfectly with cameras that feature a Super35/APS-C sensor like the Canon C200, ZCAM E2, BMPCC 6K, URSA Mini Pro 12K and the RED Komodo camera.
Parfocal Design
Center image stay sharp during zooming in or out.No matter from close-up to wide shot,Or rapidly zoom out to long shot, Under Parfocal design, focus keeps still all the way along.
Minimal Breathing
Thanks to the floating structure, the breathing of Pictor Zoom lenses
are negligible during focusing.

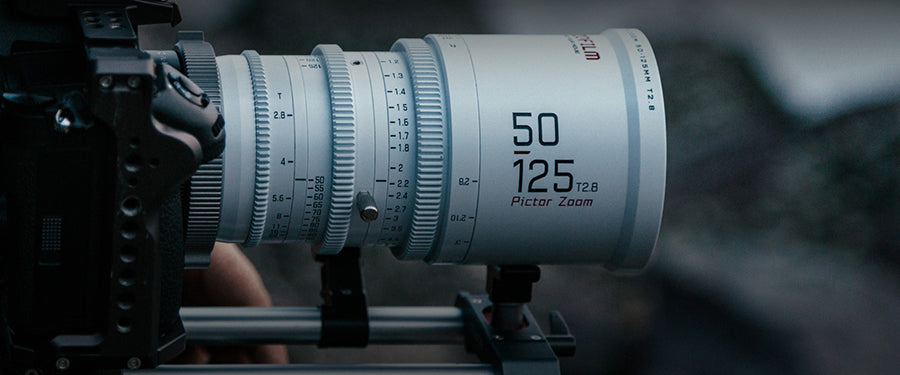

Versatile and Ultra compact
At just 1.6kg (3.5 lbs), Pictor Zoom can be easily mounted on a crane, jib, tripod, ROV or other moving platforms, and provides safer and more efficient work methods by reducing heavy lifting. Be a better Run-and-Gun Filmmaker and have no fear of any complicated scenes or quick shooting. Time saving without frequent lens changing, Pictor zoom, in no way miss an inspiring moment.
Gentle Sharpness & Vivid Look
From feature film, commercial, to documentary, Pictor Zoom captures crisp details while expressing organic look and cinematic texture.
Soft Bokeh Increases Sense of Separation
Dreamy Bokeh & Esthetic Transition. Excellent subject seperation is achieved using 16 aperture blades which creates soft dreamy out of focus areas. This adds depth to the scene and isolates the subject from the background.

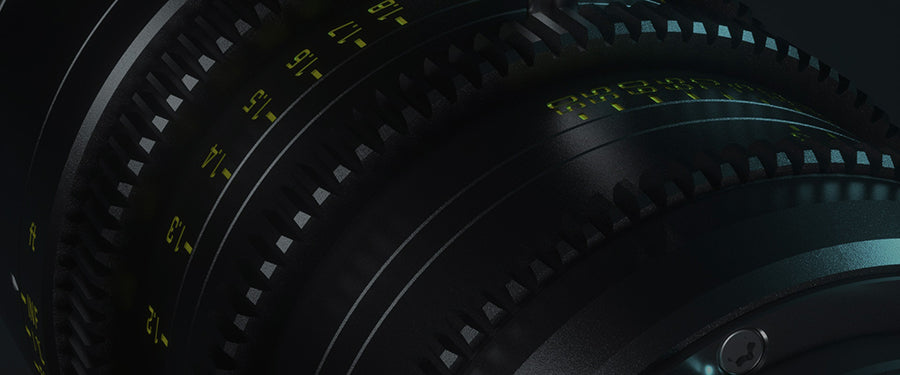

Speed up your Shooting!
Consistent Design & Higher Efficiency. Highly consistent in color and mechanical control, which satisfies the needs on demanding shoots. Cinema 0.8 standard pitch on Focus, Iris, Zoom ensures maximum compatibiltiy with multipe Follow Focus and wireless systems, Experience exeptional build quality and attention to even the smallest details with Pictor Zoom lens.
Seek for More Possibility
Interchangeable mount system compatible with PL, E, EF and LPL mounts,
provides more possibility of shooting videos.
Features:
- Versatile & Ultra Compact
- Parfocal Design
- Low Breathing
- Clean and Vivid Look
- Maintains focus throughout the zoom range
- Minimal breathing
- 16-blade iris produces round out-of-focus highlights
- T2.8 to T22 aperture
- 95mm front diameter
- Compatible with standard cine-style lens accessories
- Dual markings (metric and imperial)
Specifications:
Focus Distance
|
20-55mm
|
50-125mm
|
T- stop
|
T2.8 - T22
|
T2.8 - T22
|
Format
|
Super35 / APS-C
|
Super35 / APS-C
|
Focus Rotation Angle
|
≈270°
|
≈270°
|
Zoom Rotation Angle
|
100°
|
100°
|
Iris Rotation Angle
|
65°
|
72°
|
Gear pitch
|
0.8 M
|
0.8 M
|
Iris Blades
|
16
|
16
|
Zoom Ratio
|
2.75x
|
2.5x
|
Image Circle
|
24.89mm x 18.66mm
(φ31.1mm)
|
24.89mm x 18.66mm
(φ31.1mm)
|
Flange Distance
|
52mm (PL mount)
44.14mm (EF mount)
|
52mm (PL mount)
44.14mm (EF mount)
|
Close Focus Distance
|
0.6m / 2ft
|
0.8m / 2ft8in
|
Focus Scales
|
Imperial + Metric
|
Imperial + Metric
|
Filter Diameter
|
86mm
|
86mm
|
Front Diameter
|
Φ95mm
|
Φ95mm
|
Length
|
164mm (PL mount)
171.9mm (EF mount)
|
175mm (PL mount)
182.9mm (EF mount)
|
Weight
|
≈1520g
|
≈1700g
|
Package Content:
Basic Kit (533437):
1x DZOFiLM 50-125mm T2.8 Cinema Pictor Zoom Lens
1x PL Mount
1x PL Mount Rear Cap
1x EF Mount
1x EF Mount Rear Cap
1x Front Cap
1x Shim Set
2x Installation Tool
3x Screws Set
1x Lens Support Adapter

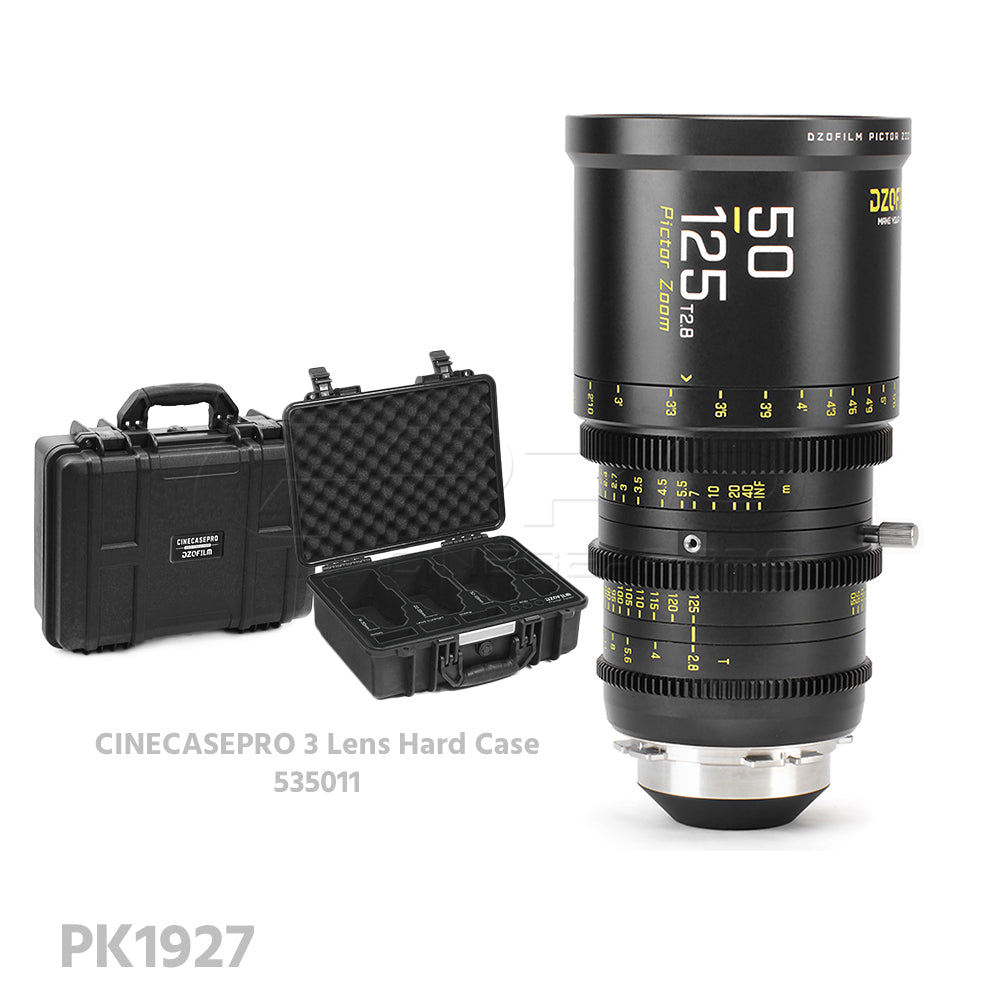

Basic Kit W/ Hard Case (PK1927):
1x DZOFiLM 50-125mm T2.8 Cinema Pictor Zoom Lens Basic Kit(533437)
1x CINECASEPRO Dual Lens Hard Case (535011)
