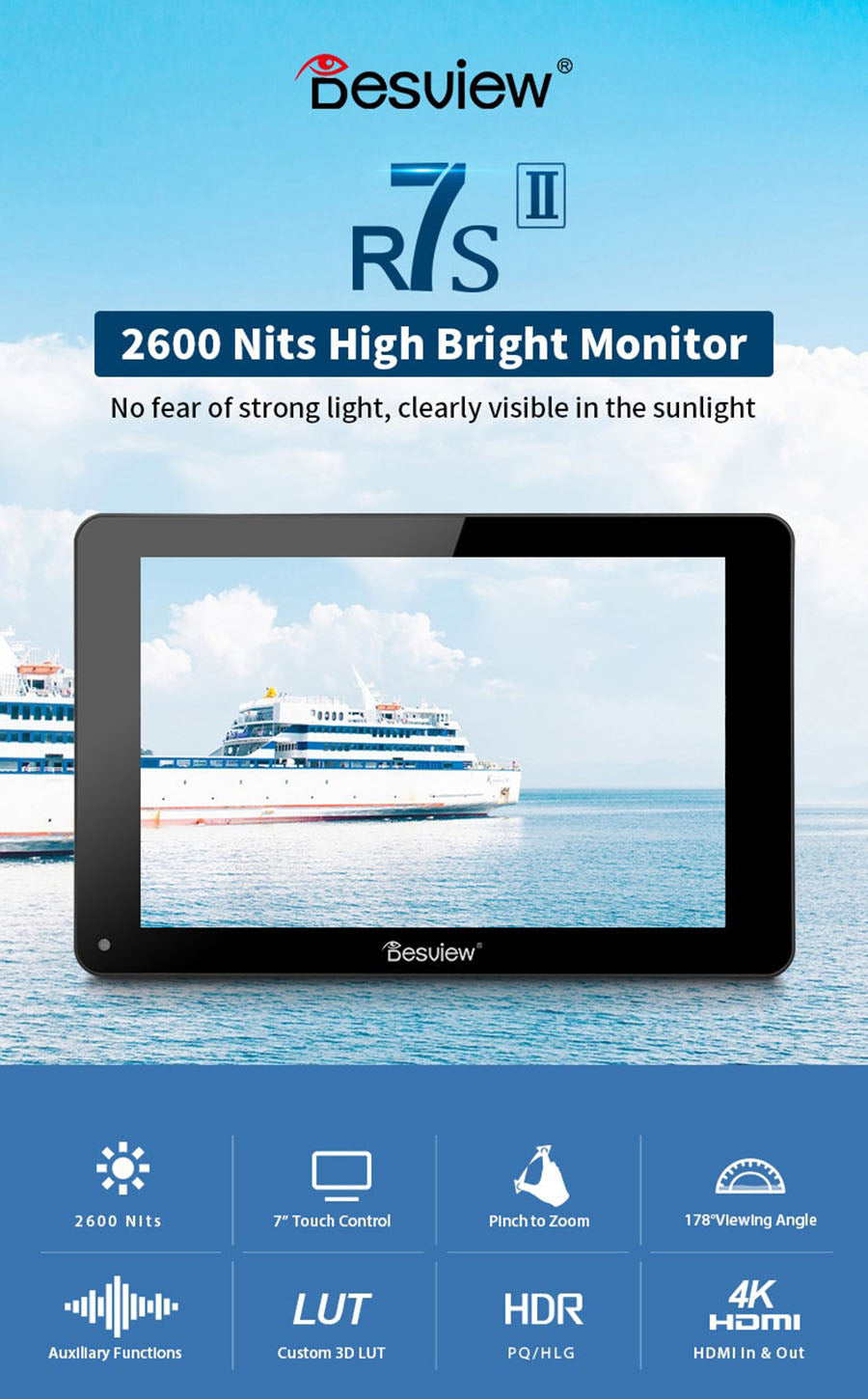

Desview R7S II SDI/HDMI High Bright Monitor

  • Brand: Desview
  • SKU: R7S II
  • Product code: 534628
£375.00 £450.00 Inc VAT Price Match
Full Touch ScreenDesview R7S monitor adopts a 7“ touch screen panel with 1920×1200 resolution and 16:10 aspect ratio. Tapping the screen with one finger can control the whole monitor, just...

Full Touch Screen

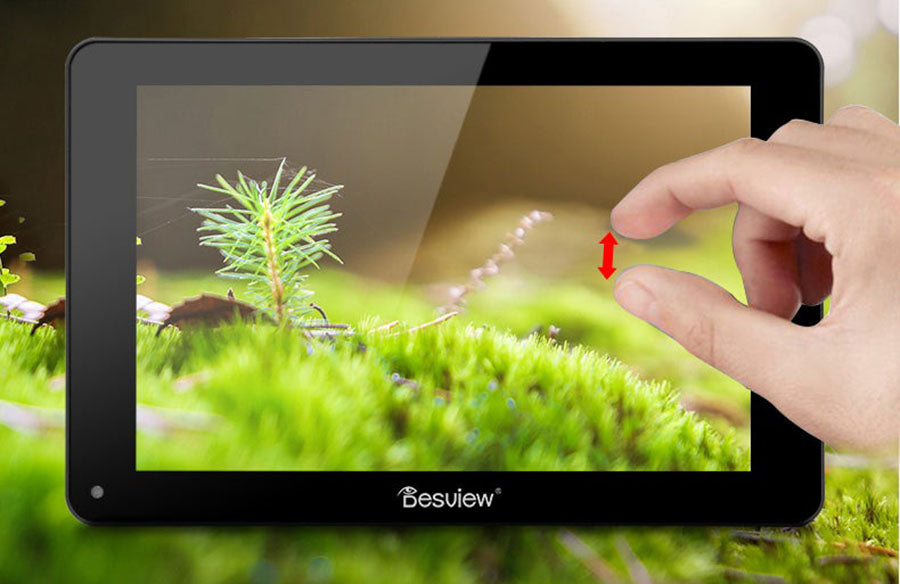

Desview R7S monitor adopts a 7“ touch screen panel with 1920×1200 resolution and 16:10 aspect ratio. Tapping the screen with one finger can control the whole monitor, just like your smartphone. Pinch to zoom helps check every corner and detail of the image. The short Press power button can lock the screen, to prevent misoperation, user-friendly design!

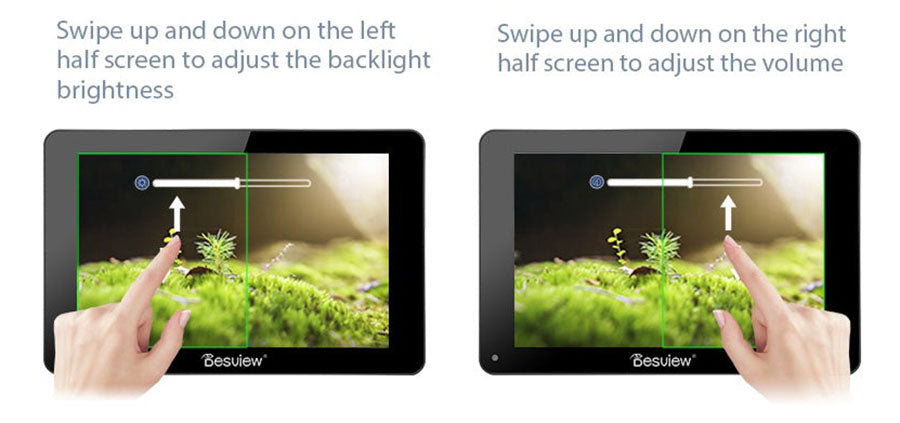

Quickly adjust the backlight and volume

3G-SDI & 4K HDMI Input/Output

The monitor supports both 3G-SDI and 4K HDMI signal input/output, including 1920*1080p, 3840*2160p, 4096*2160p, which enables uncompressed video transmission and multiple devices monitoring. R7S monitor is compatible with canon sony Nikon Panasonic FujiFilm cameras and professional camcorders. 3.5mm headphone port for real-time audio checking

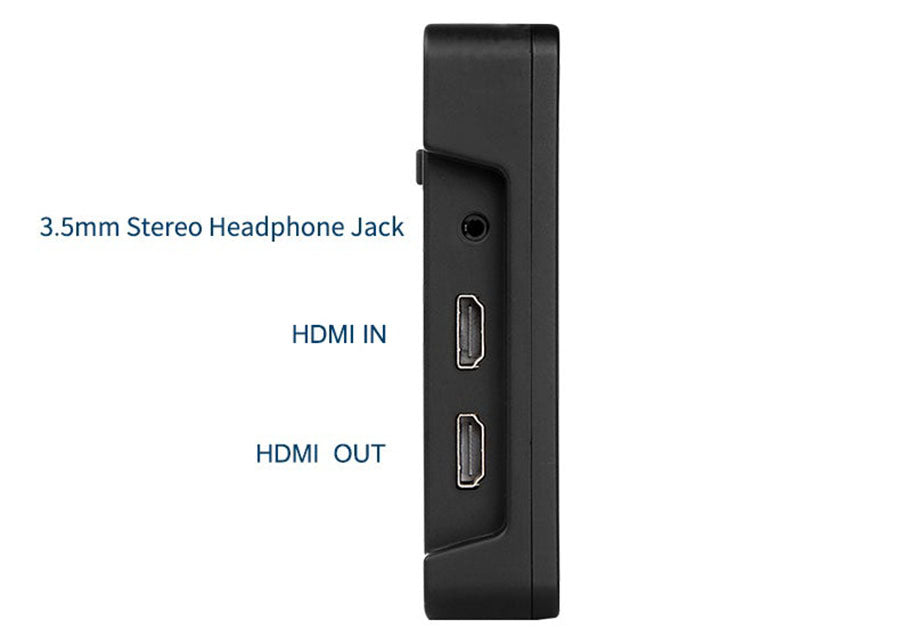

Supports 1x 4K HDMI Input and Output

Supports 1x HDMI 4K signal input and output, also supports 3.5mm
headphone monitoring in real time
1920*1080p@23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
3840*2160p @ 24,25,30Hz
4096*2160p @ 24Hz

Supports 1x 3G-SDI Input and Output

Supports professional SDI ports, which can work with camcorder
to monitor the shooting image

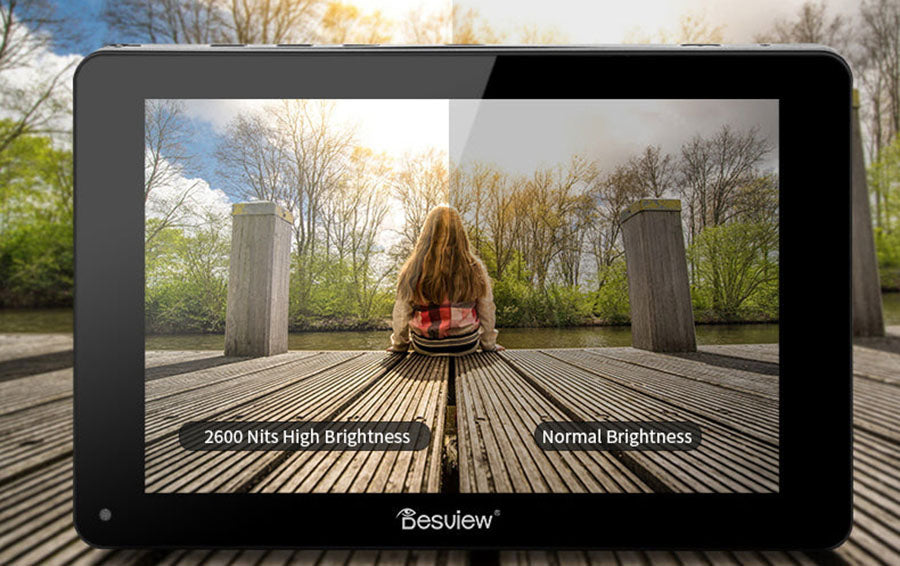

2600nits High Brightness with Light Sensor

2600nits high brightness provides a clear display even filming under the sunlight. 1100:1 contrast ratio and 178°viewing angle ensures a great monitoring experience from different angles. A light sensor will adjust the screen backlight brightness automatically according to the environmental change, which can protect your eyes and provide a comfortable monitoring experience at night.

2600 Nits High Brightness

Makes shooting more possible view the image clearly in outdoor sunlight view the image clearly in outdoor sunlight

HDR Display Function

In contrast to normal SDR images, High-Dynamic-Range (HDR) allows you to see more of the details and colors in images. HDR boosts a wider color gamut, meeting around 90 percent of the DCI-P3 standard, the color space currently used by the film industry for cinema. It also increases the color depth to reduce the occurrence of banding between similar colors, more control on contrast or black levels to create more realistic-looking images.

HDR Monitoring

HLG/PQ for option HDR provides more dynamic range and image details than the normal image, restore the real color of the image

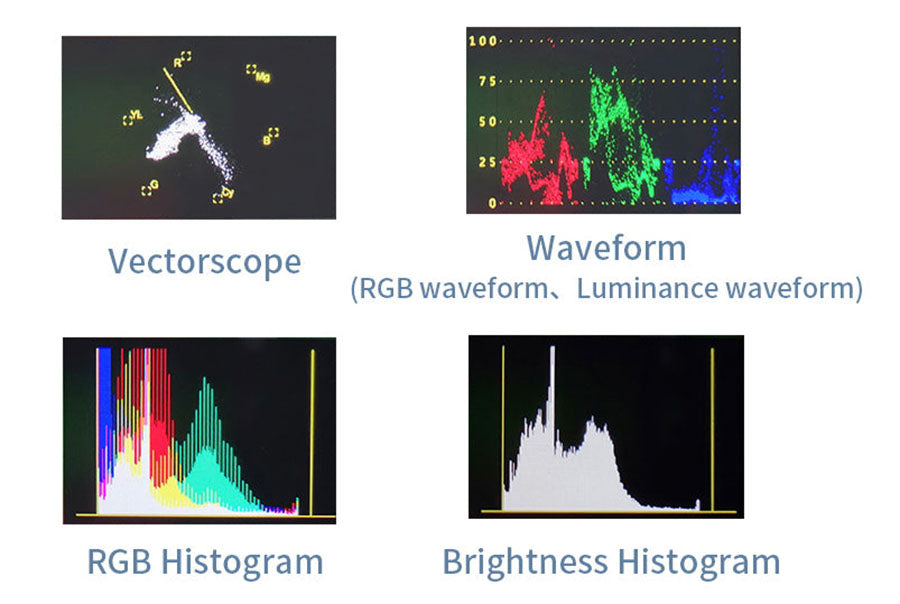

Custom 3D LUT, Waveform, and Vectorscope

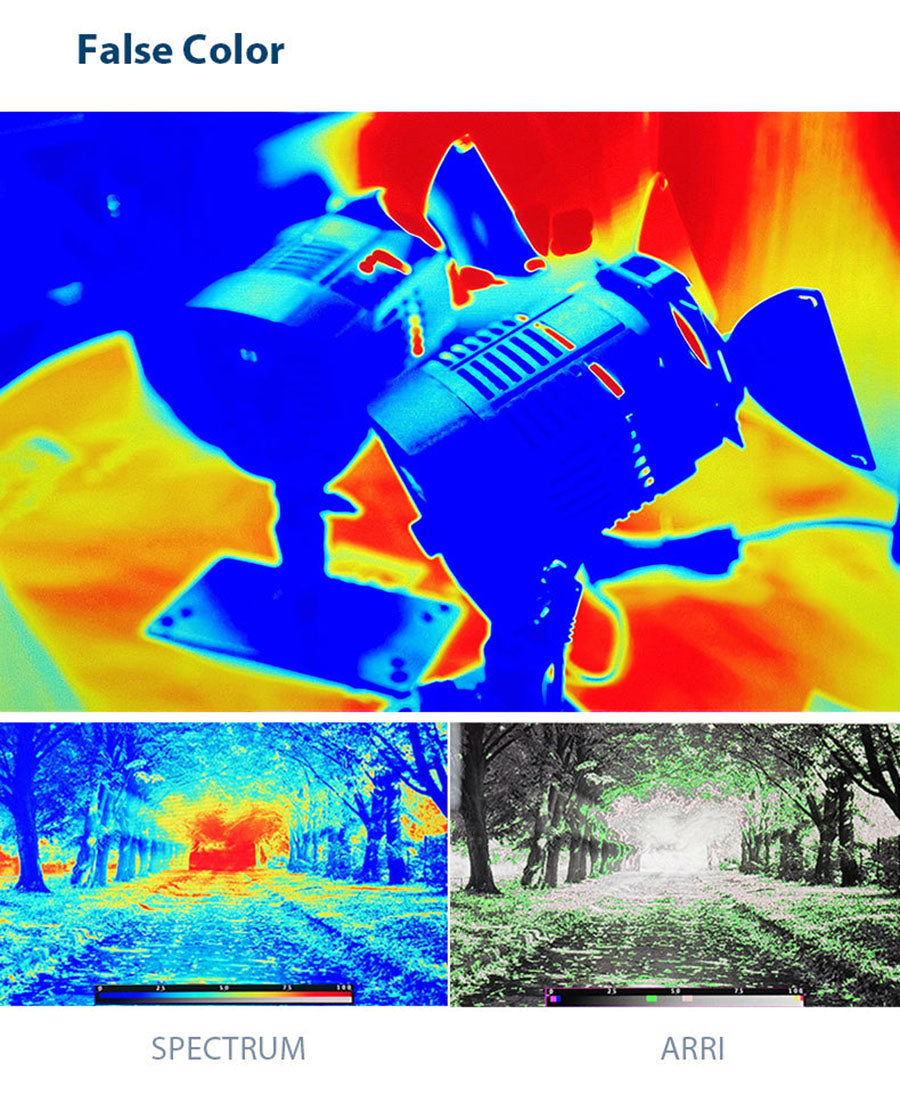

The Desview R7SII monitor has many professional Auxillary shooting functions, such as Histogram, Vectorscope, Waveform, False Color, Focus Peaking, Zoom, etc. You can import custom LUTs via SD card, to change the image color tone instantly. The histogram shows the brightness of images, The waveform shows exposure information, and the Vectorscope shows the image's color construction. Greatly facilitate the shooting process.


  • 7 Inch Full HD 1920x1200 Resolution IPS Panel
  • Touch Screen and Shortcut Keys Operation
  • 2600 cd/m² Ultra-high Brightness
  • Supports 3G-SDI & 4K HDMI Input/Output
  • Support Dual NP-F Battery

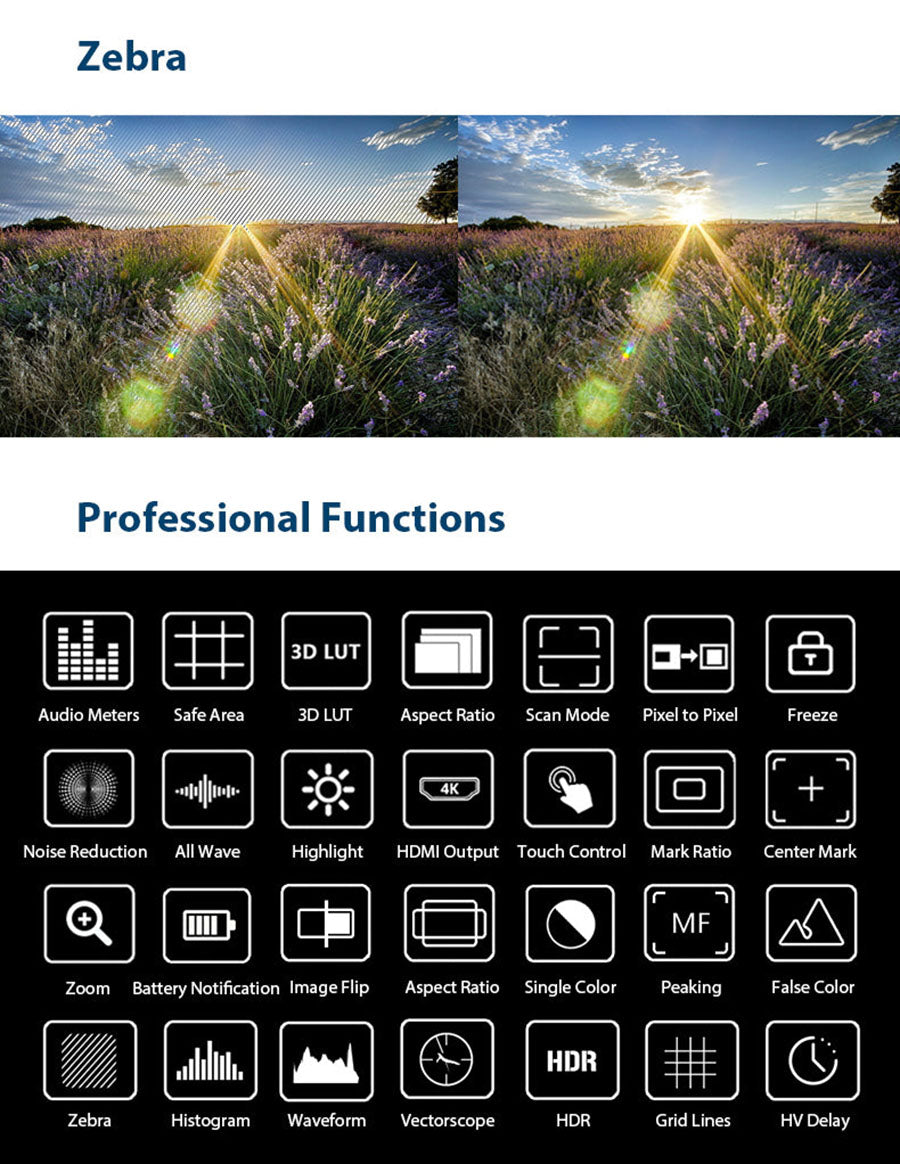

  • Professional Monitoring Features: Brightness/RGB Histogram, Luminance/RGB Waveform, Vectorscope,
    All Wave, HDR, Peaking, False color, etc.
  • Supports Custom 3D Luts and Load the LUTs to Preview
  • Equipped with Storage Bag, Cold Shoe, Micro & Mini HDMI Cable, D-Tap Cable, SD Card, Microfiber Cloth,
    User Manual

Package Contents:
1x Desview R7S II Monitor
1x Hard Case
1x DC to D-Tap Power Cable
1x Cold Shoe Adapter
1x A To C HDMI Cable
1x A To D HDMI Cable
1x HEX Driver
2x Screws
