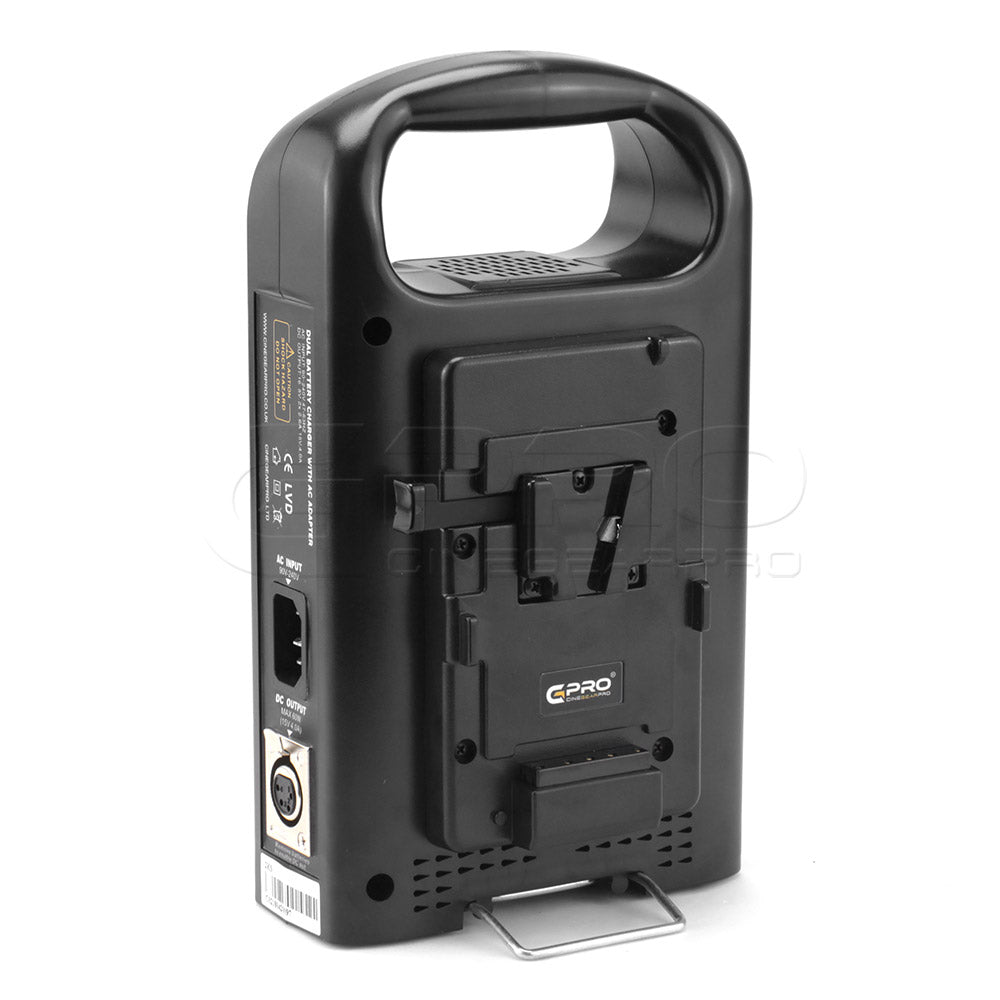

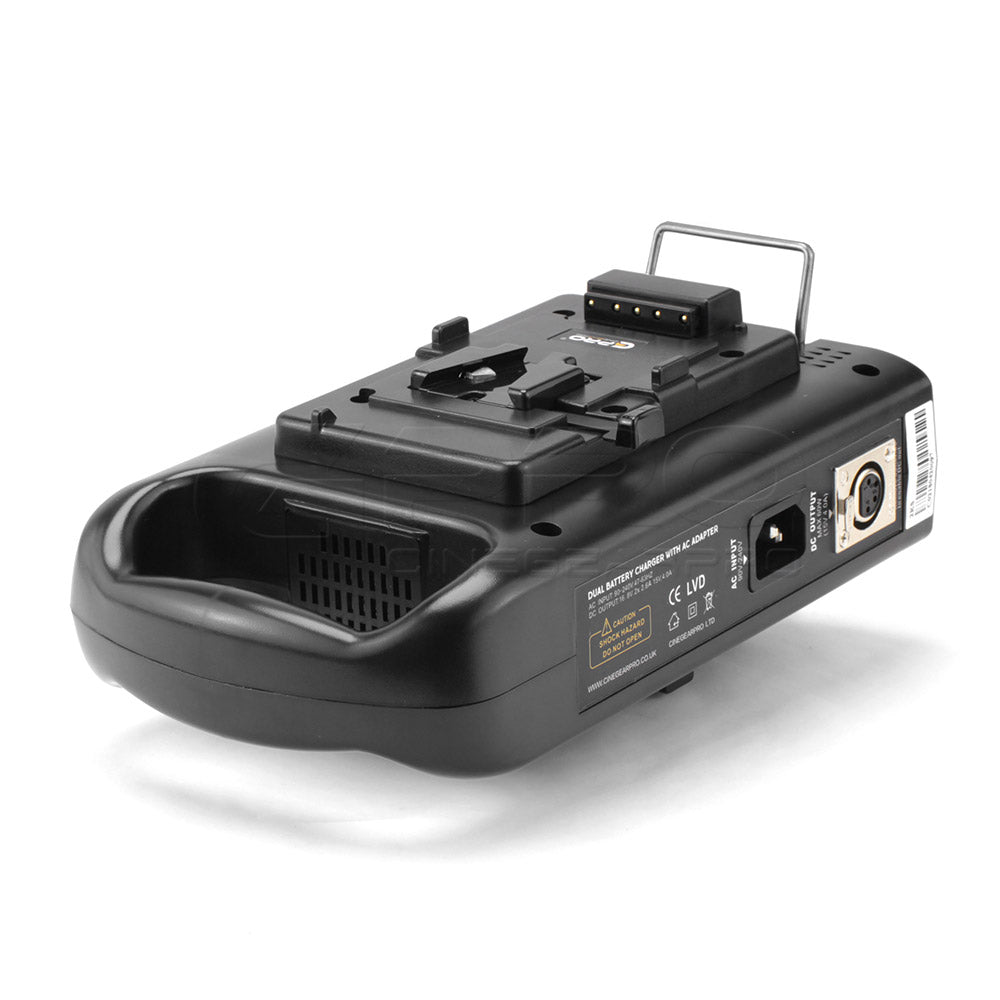

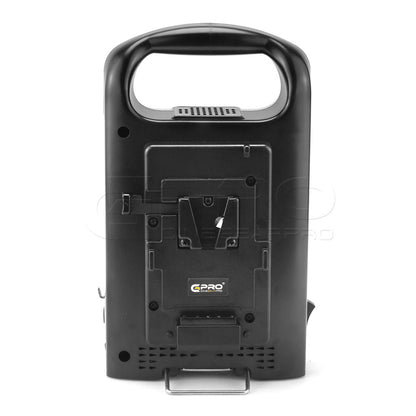

The CGPRO VC-2CH charger is specially designed for professional V lock Li-ion camera batteries.
Charge two batteries simultaneously.
Power the camera as power adapter.
• Connect the power cable onto charger and 100-240V AC power.

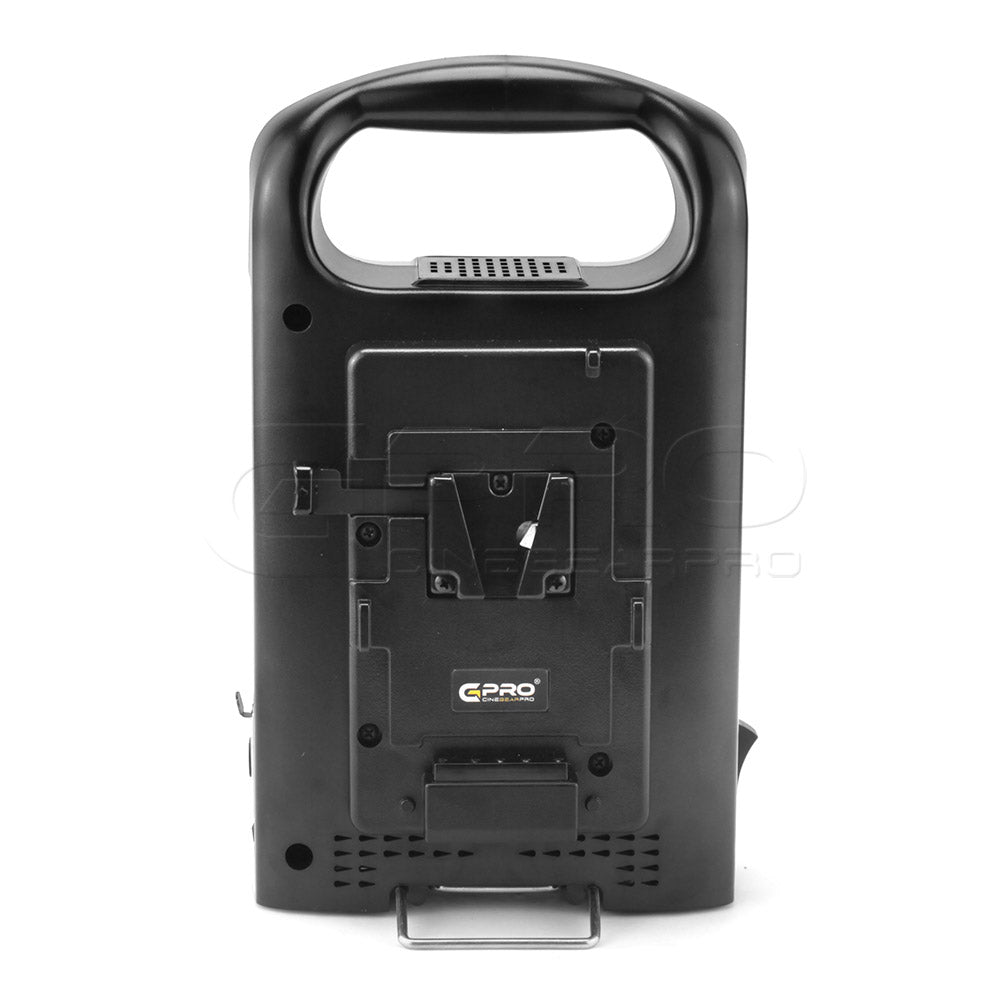

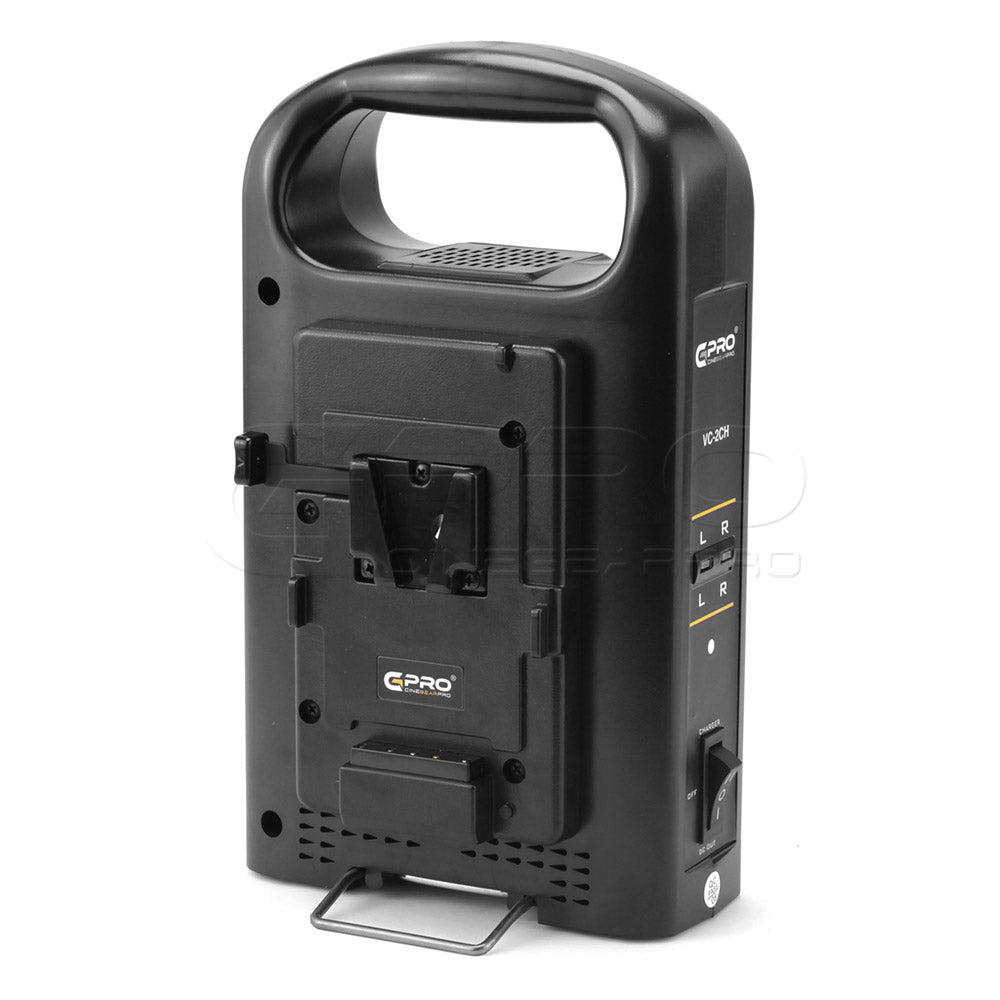

• Connect the battery onto the plate of the charger.

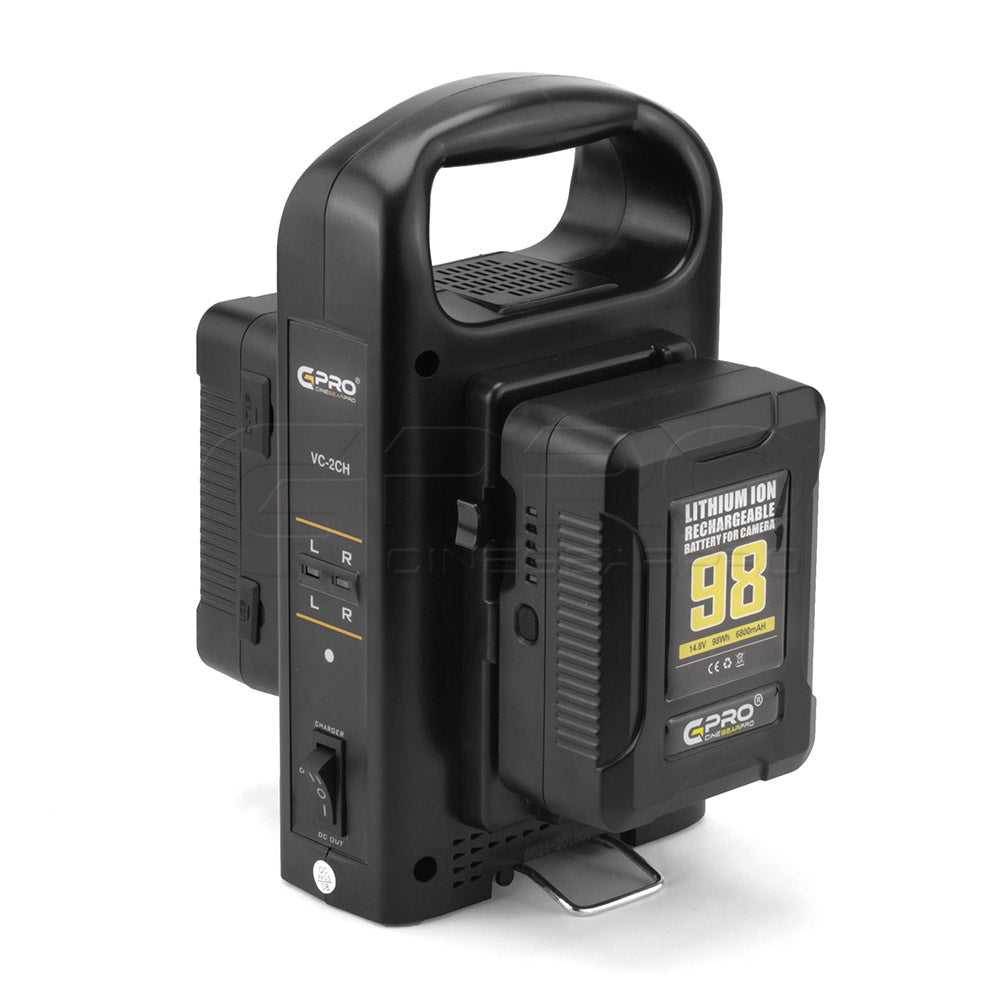

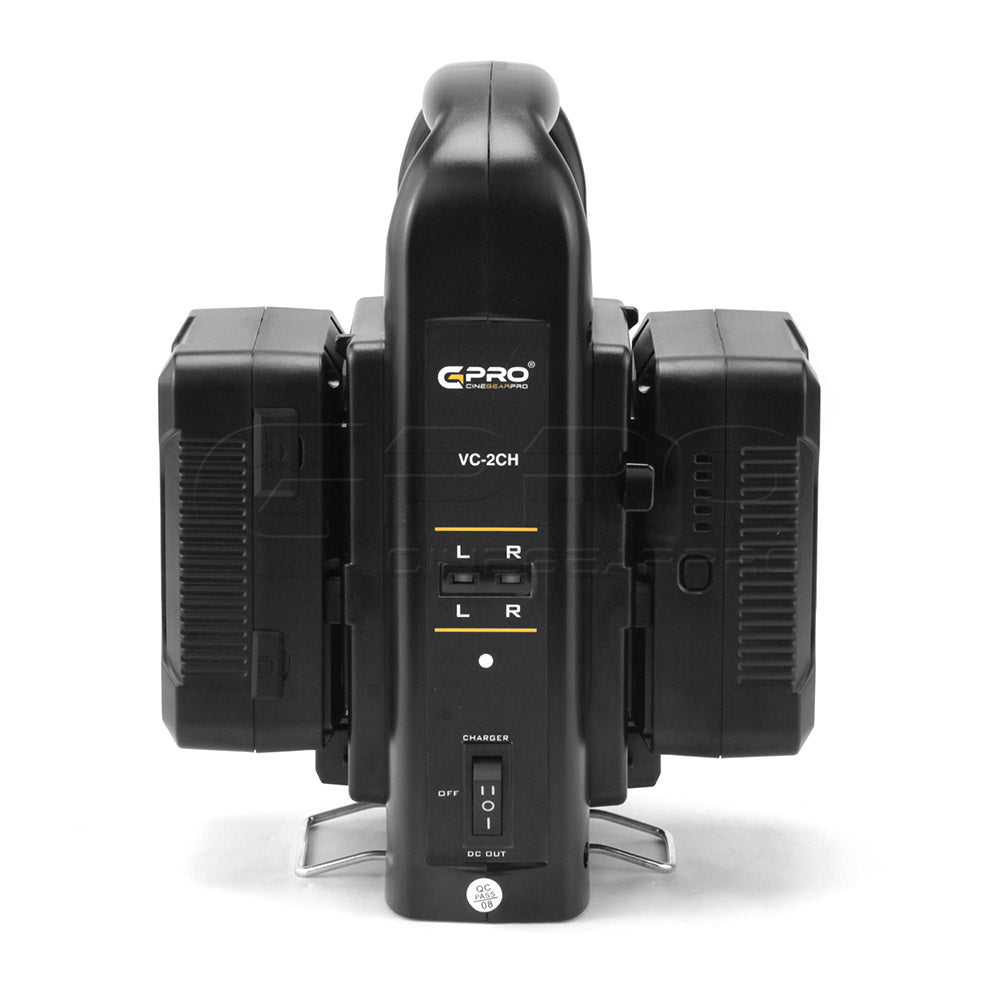

• Switch on charge section, the indicator RED means “charge work start”.
• Indictor ORANGE means nearly charge fully.
• Indicator GREEN means charge fully.
• Switch off and take off the battery from the charger.

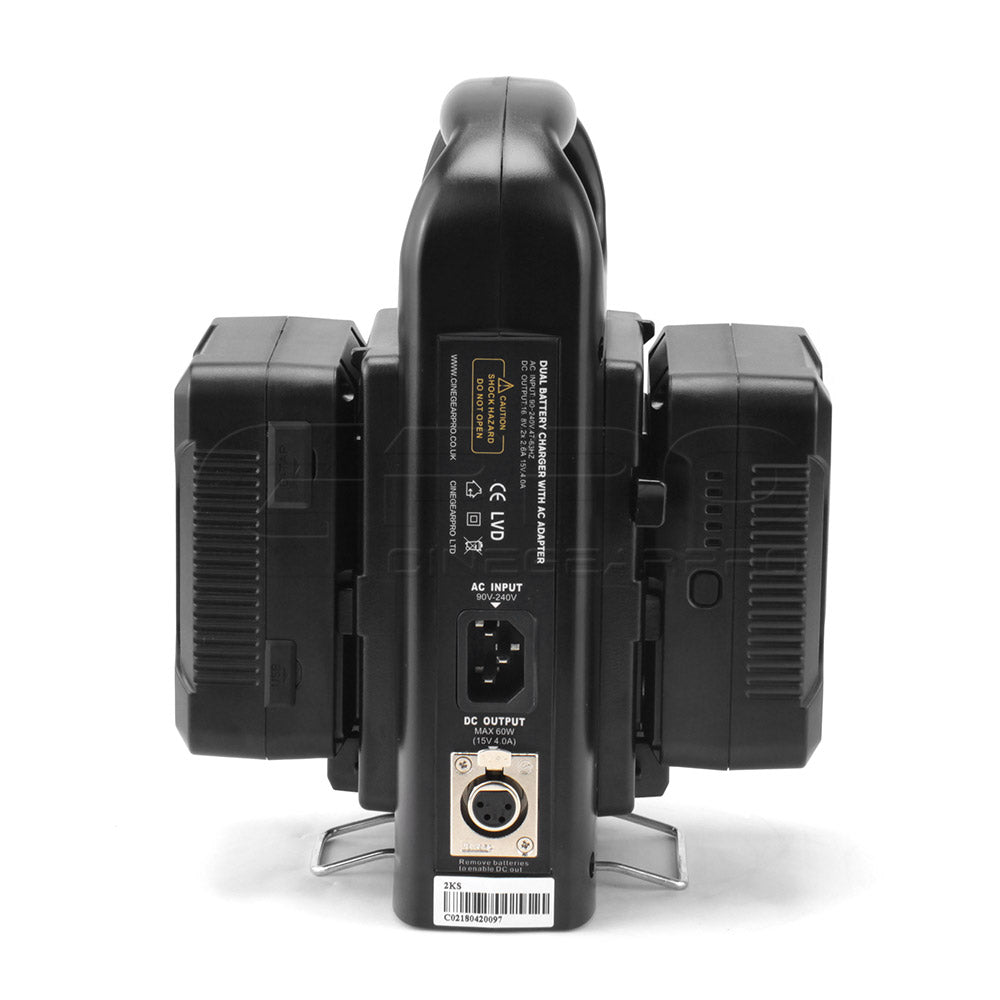

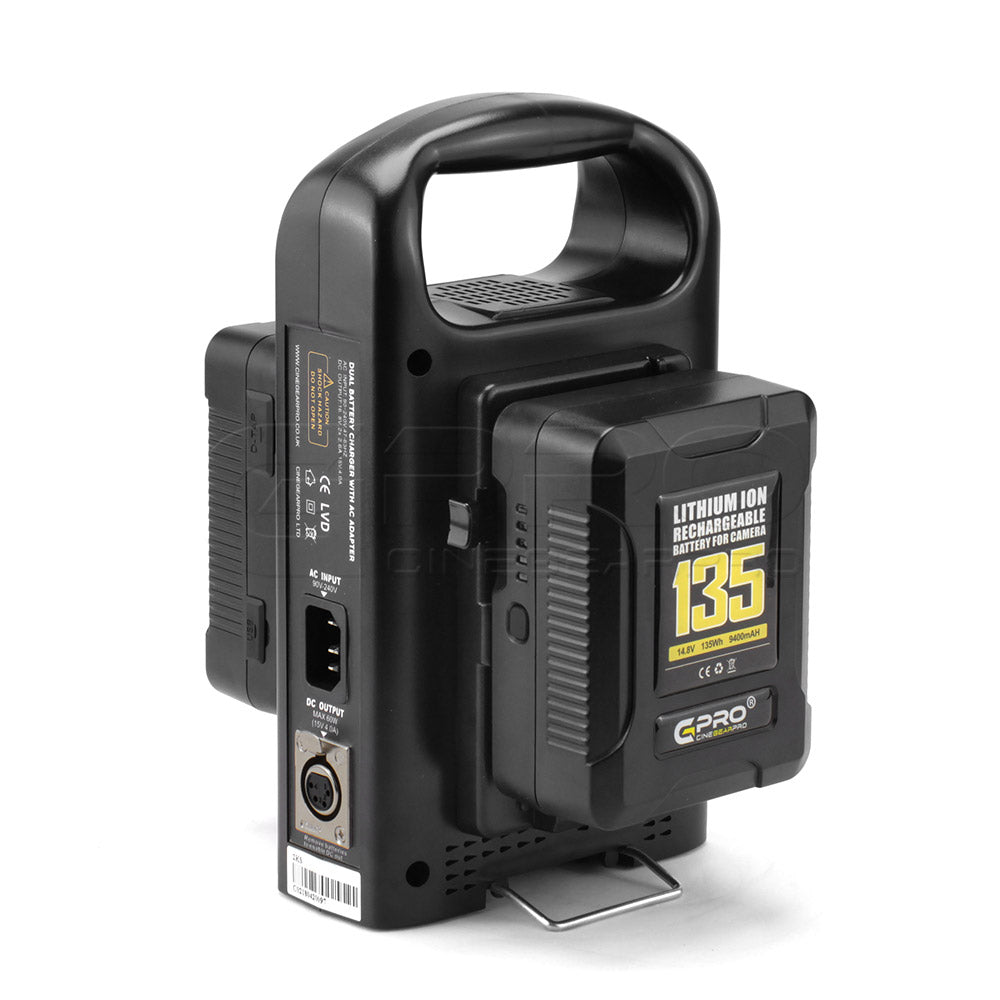

• Connect the adapter cable onto adapter connector of the charger.
• Power cable by 100-240V connection, switch on adapter, indicator RED means
powering the camera.
• Input: AC100~240V, 50~60Hz
• Output Charge: 16.8V 3.0A
• DC : 15V 4.0A
• Dimensions: 150(L) X100(W) X 245(H)mm
• Weight: 1.1 kg
• Operational Temperature: -10℃~35℃

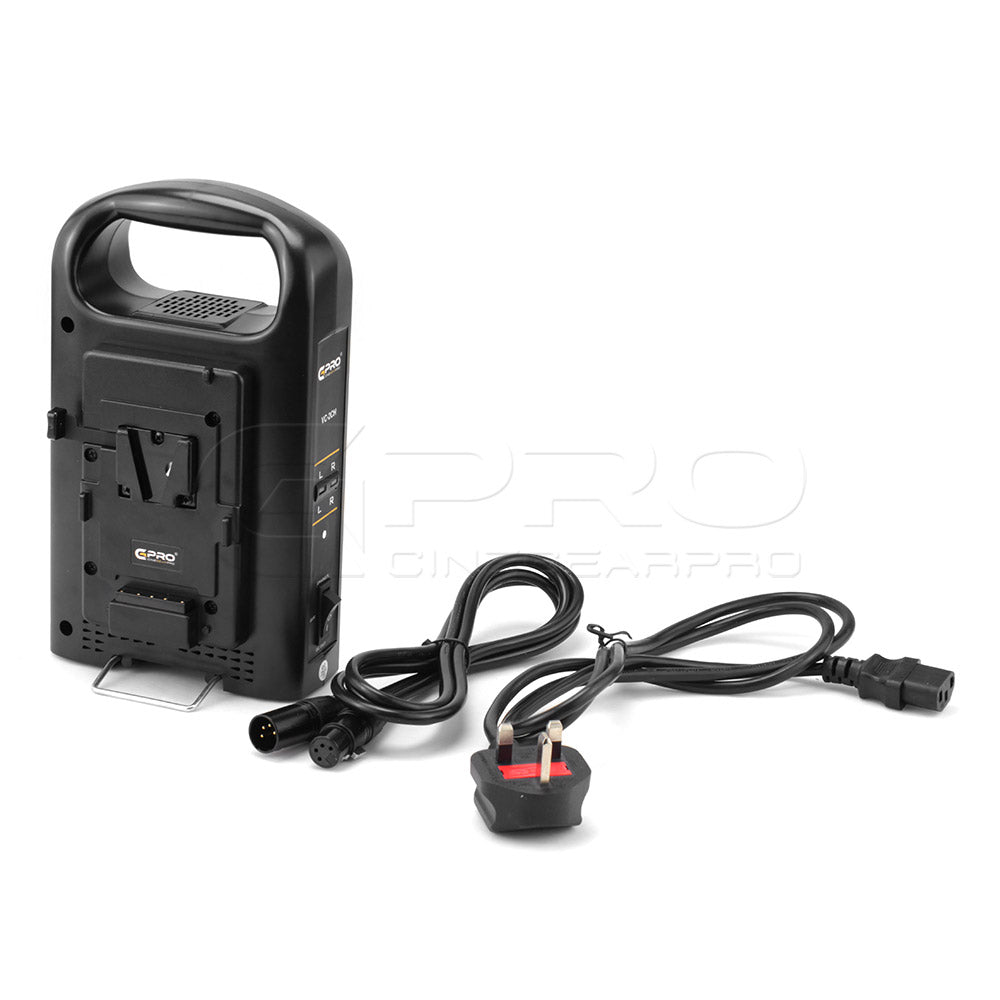

1x CGPRO VC-2CH Dual Channel Charger
1 x AC Adapter
