CGPro 12G SDI Cable Right Angle BNC to Right Angle BNC


  • Brand: CGPro
  • SKU: CGP-WSDIRARA-4FT
  • Product code: 534683
£12.50 £25.00 £15.00 Inc VAT Price Match
The CGPro ultra-thin 12G-SDI shielded  coaxial cable is designed for connecting 12G-SDI rated cameras and equipment and carrying a UHD 4K signal up to 120fps. This 12G-SDI cable is ideal for...

The CGPro ultra-thin 12G-SDI shielded  coaxial cable is designed for connecting 12G-SDI rated cameras and equipment and carrying a UHD 4K signal up to 120fps. This 12G-SDI cable is ideal for the transmission of uncompressed high definition video for professional environments, such as in the field of television, wireless transmission, viewfinder, or monitoring of cinema cameras.

The 12G-SDI cable features high quality PVC jacket body and outer diameter is only 3.5mm that give it flexibility and long life. The cable consists of 75-ohm male BNC connectors at both ends, with gold-plated contacts and highly foamed PE insulation for optimal attenuation. It's suitable for studios, mobile trucks, and installations among virtually all other applications.


With the copper foil and high-density tinned copper braided shielding, this 12G-SDI cable offering professional broadcast performance, guarantees a reliable signal transmission for the highest frequencies.

This ultra-thin 12G-SDI shielded  coaxial cable compatible with a wide variety of popular software and hardware, including Blackmagic, AJA, Grass Valley, Evertz, Marshall, Cobalt Digital, Atomos, Postium, AVID, and Red Camera.



Features:

  • Male BNC to Male BNC 75-ohm Alloy Connector
  • Diameter is 3.5mm, Ultra-Thin Flexible Cable
  • 12G-SDI Rated, Video Signal Support Up to 4K 120fps
  • High-Density Tinned Copper Braided Shielding
  • Lightweight and High Quality PVC Jacket Body For Long-term Use
  • Different Length Adaptation
  • Wide Compatibility for Professional Monitoring


    Specifications :


    Construction:


    Material

    Structure

    Inner Conductor

    Bare Copper

    1/0.27 ± 0.01 mm

    Insulation

    PE - Polyethylene

    1.60 ± 0.05 mm

    Wire Braid

    Bare Copper

    80 x 0.10 mm

    Jacket

    PVC - Polyvinyl Chloride

    2.80 ± 0.10 mm





    Electrical Physical and Properties:


    Value


    Frequency

    Nom. Attenuation

    Capacitance

    67 ± 5 pE/m

    10MHz

    14 dB / 100m

    Impedance

    75 ± 3 Ω

    100MHz

    17 dB / 100m

    Velocity Ratio

    66%

    200MHz

    46 dB / 100m

    Bent Radius

    14 mm

    400MHz

    76 dB / 100m

    Max Voltage

    1500 VMS

    900MHz

    115 dB / 100m

    Max Frequency

    3000 MHz

    1500MHz

    143 dB / 100m

    Temperature Scope

    -20 ~ +80 ℃

    2000MHz

    165 dB / 100m


    Dimension:


    Available Length:

    BNC To BNC 12G SDI Cable:



    1FT / 30CM




    2FT / 60CM




    4FT / 120CM



    BNC To Right Angle BNC 12G SDI Cable:



    1FT / 30CM



    2FT / 60CM



    4FT / 120CM

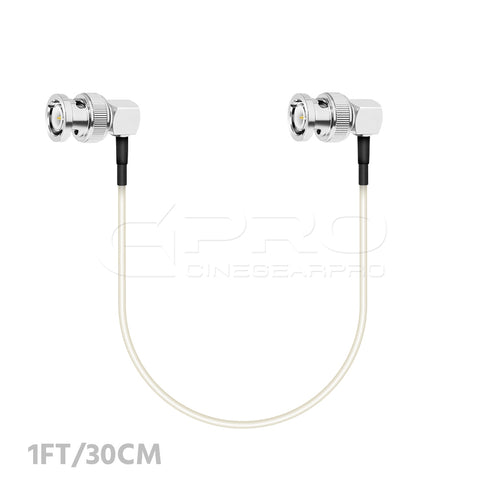

    Right Angle BNC To Right Angle BNC 12G SDI Cable:



    1FT / 30CM



    2FT / 60CM



    4FT / 120CM



    Package Contents:
    1x Ultra-Thin Flexible 12G-SDI Cable
