Aputure 2-Bay Power Station For NOVA P300C/200D/200X/100D/100X/ Falconeyes 120TDX II
- Brand: Aputure
- SKU: 2-Bay
- Product code:
Developed for the NOVA P300C/200D/200X/100D/100X, Compatible Falconeyes RX-120TDX/RX-120TDX II, the Aputure Battery Power Station is an accessory that will power the NOVA P300C on its own with 2x optional V-lock batteries. A must have power station for use on location for a wide range of Aputure lights!

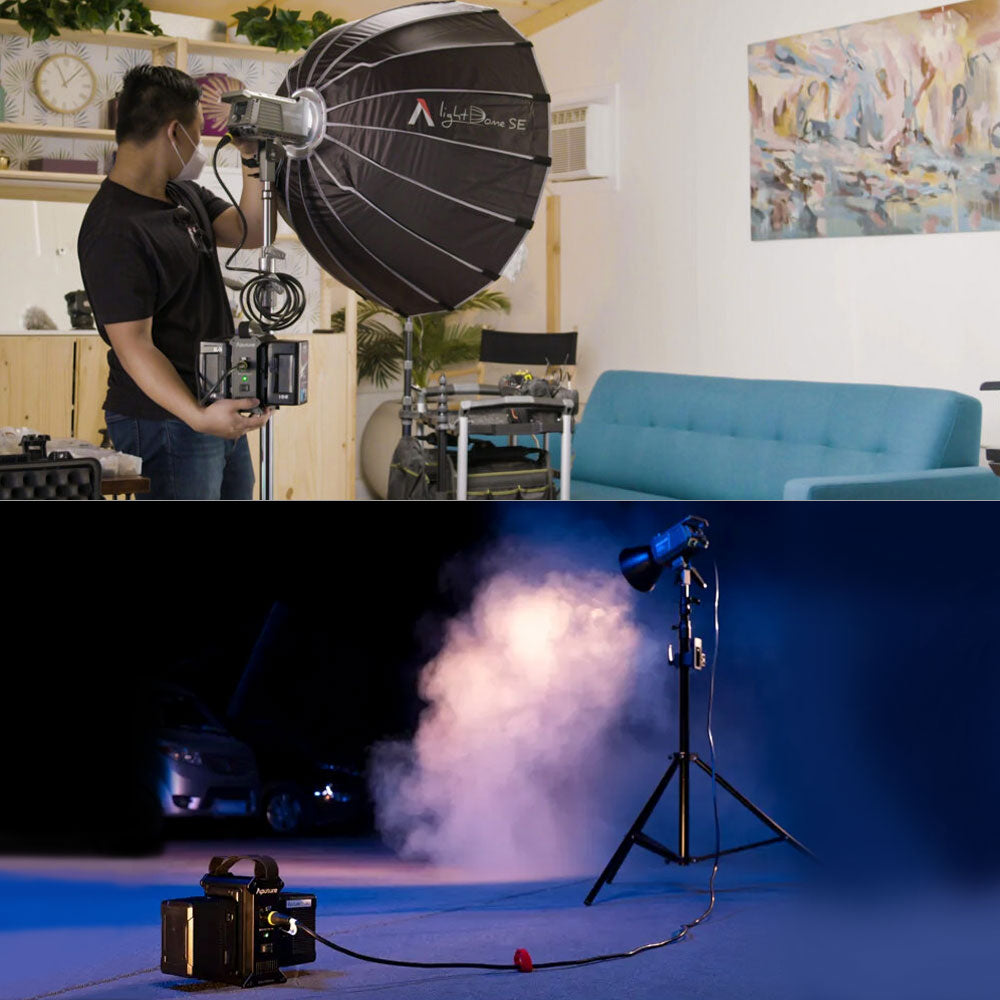

TAKE LIGHTING ANYWHERE

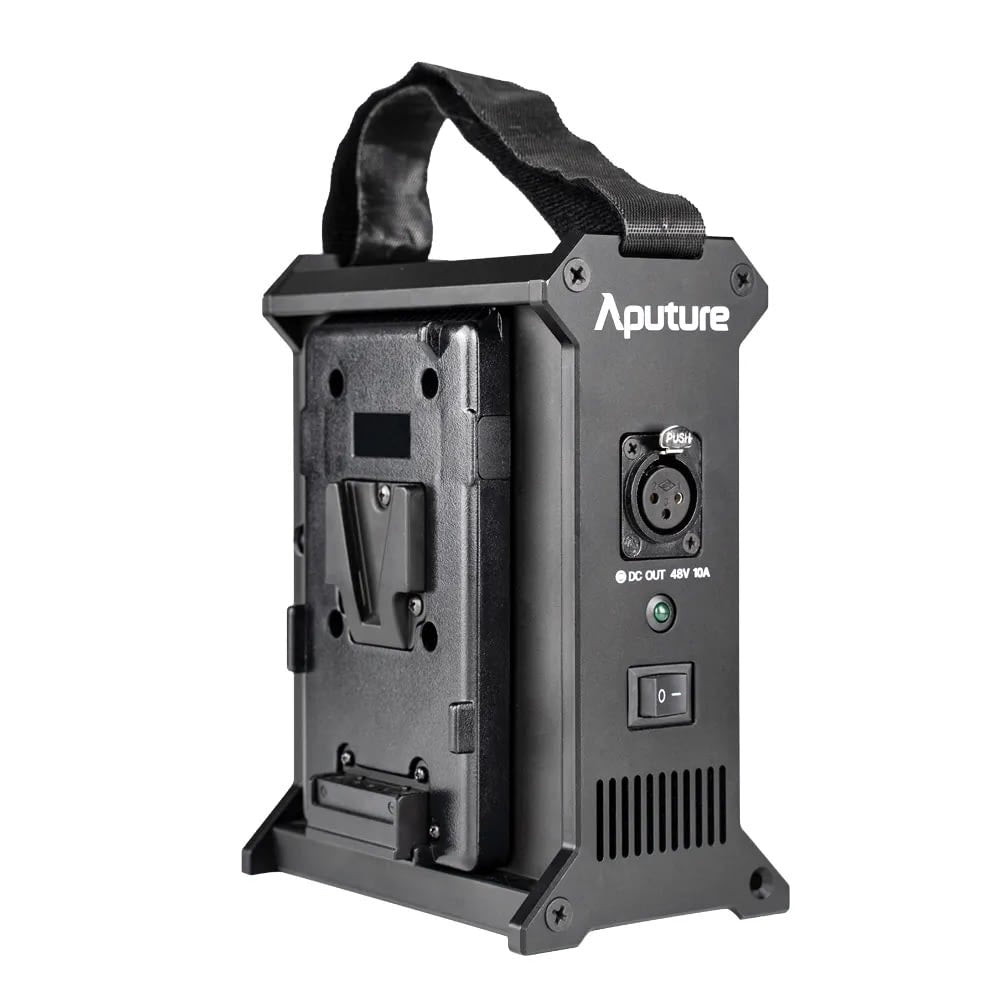

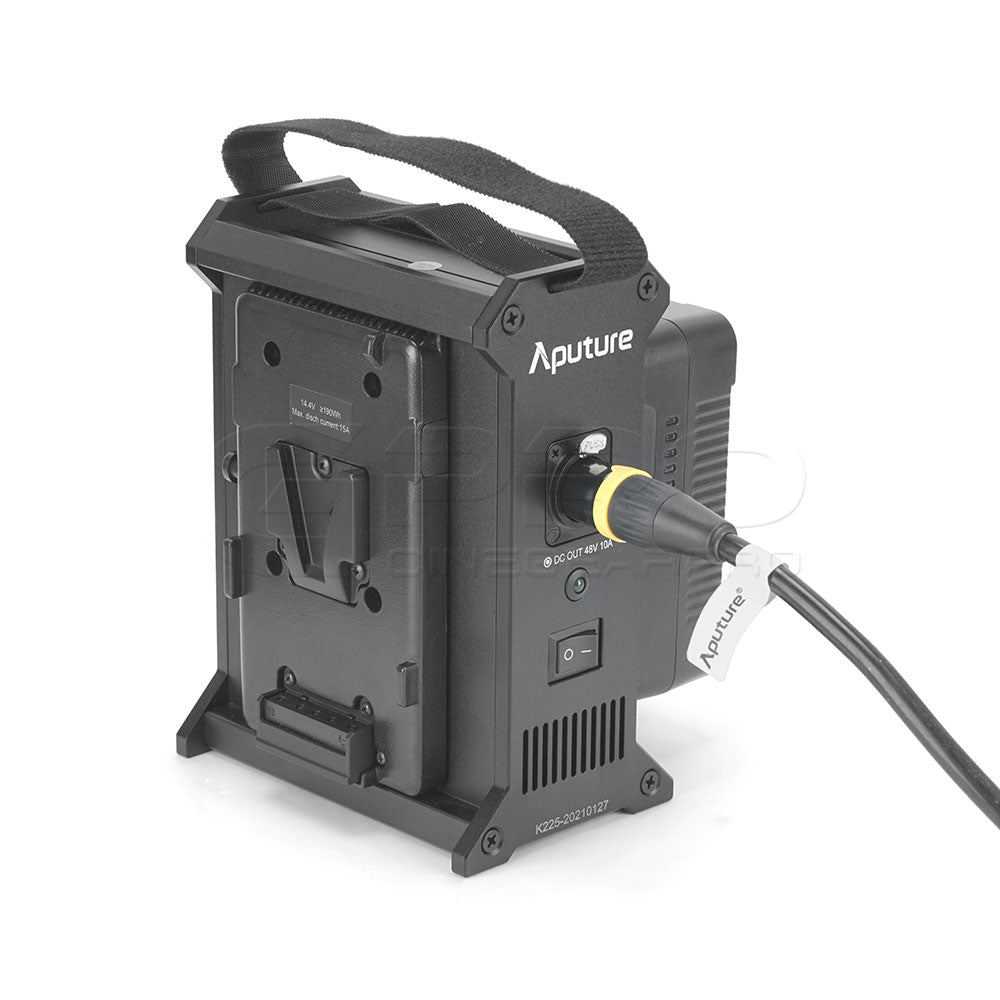

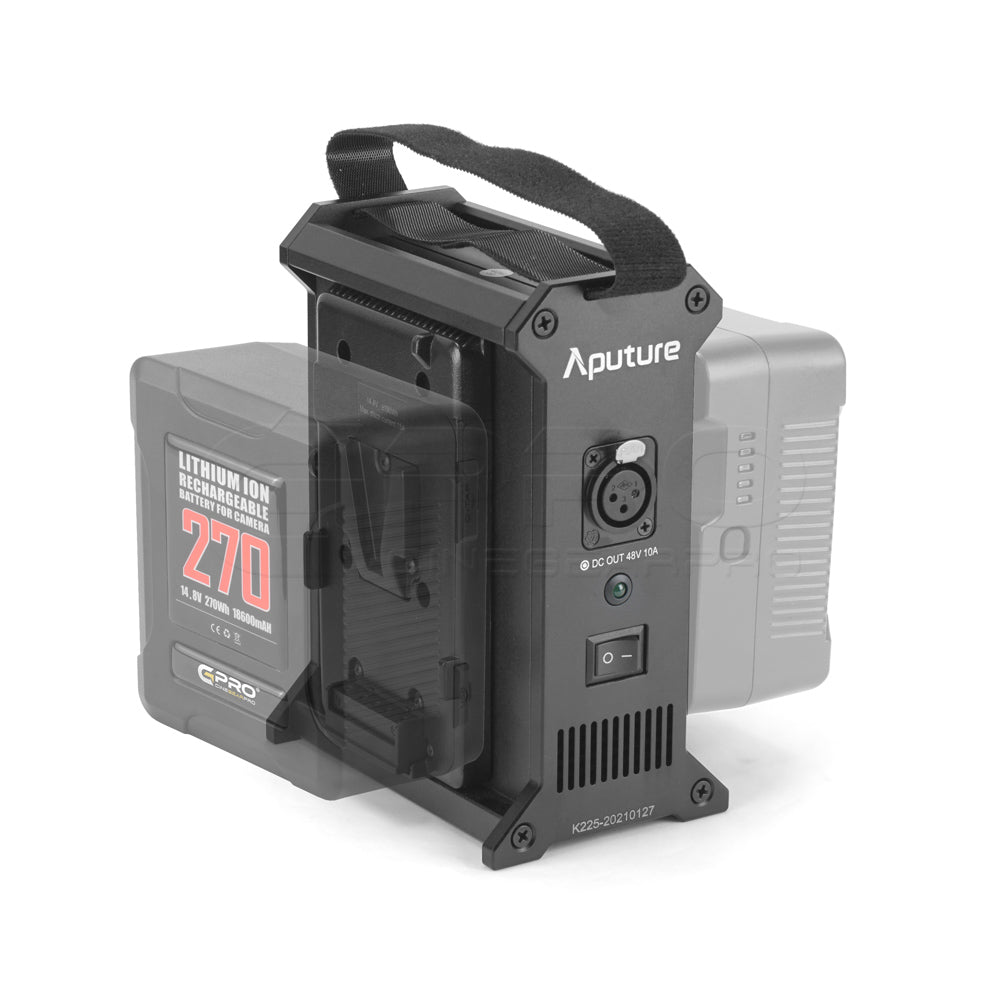

The Aputure 2-Bay Battery Power Station is a battery inverter that uses two industry-standard 14.4V/14.8V Gold or V Mount batteries and outputs a 48V DC current via 3-pin XLR. With this power station, users can bring the flexibility of battery power to any 48V lighting fixture, such as the Nova P300c or Amaran 100 & 200 series of LED lights.
EXTREMELY POWERFUL
With the capability of outputting 48V DC power at up to 10 Amps (480W), the 2-Bay Battery Power Station can easily power a Nova P300c (360W), Amaran 200 Series Light (250W), or any other more power-hungry 48V fixture, provided the batteries in use can sustain the discharge rate.
SEAMLESS WORKFLOW

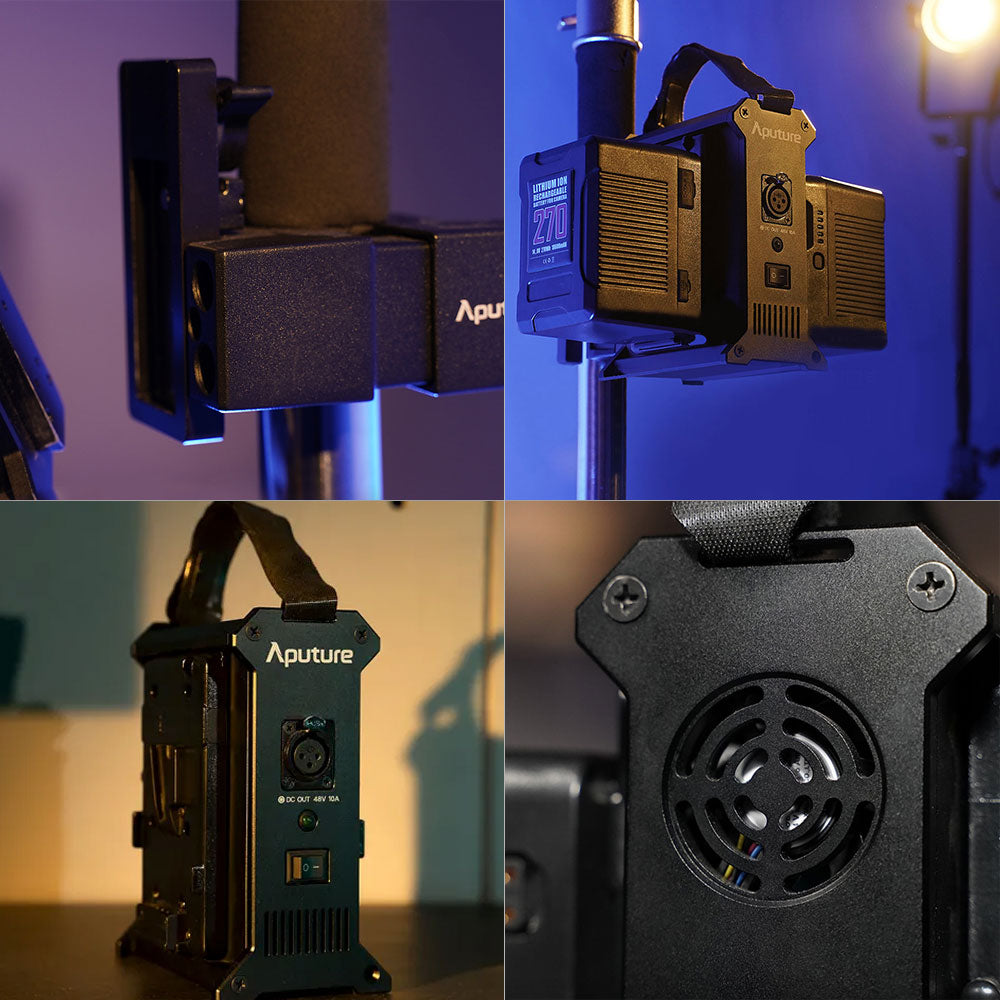

Made to be incredibly fast and easy to use, the 2-Bay Battery Power Station weighs in at under 3lbs, comes with a convenient carrying strap, as well as Aputure's Lightning Clamp Quick Release Plate, allowing it to mount mounted into any Lightning Clamp or on the back of a Nova P300c, for flexibility and fast-paced shooting.
Designed for the NOVA P300C
The Nova P300c is Aputure’s first light to accept a wider 24V to 48V DC input range. Using a 4-pin XLR DC input, the Nova is compatible with a wide range of battery power options and the Aputure 2-Bay Power Station is designed specifically for this product.
2 x 270W V-lock batteries = 1.5 hours @100%
Features:
- Directly delivers up to 480W power output

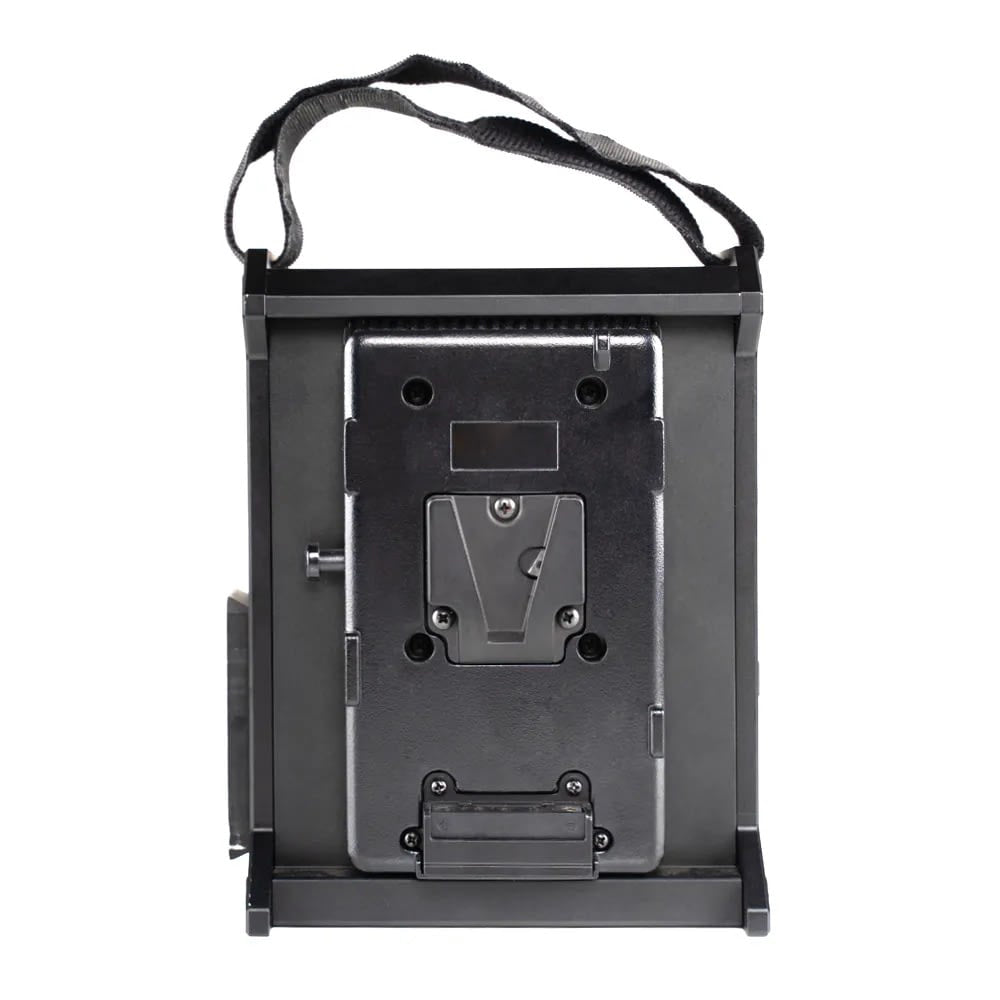

- 2x V-Mount battery mounts supporting 14.4v or 14.8v batteries

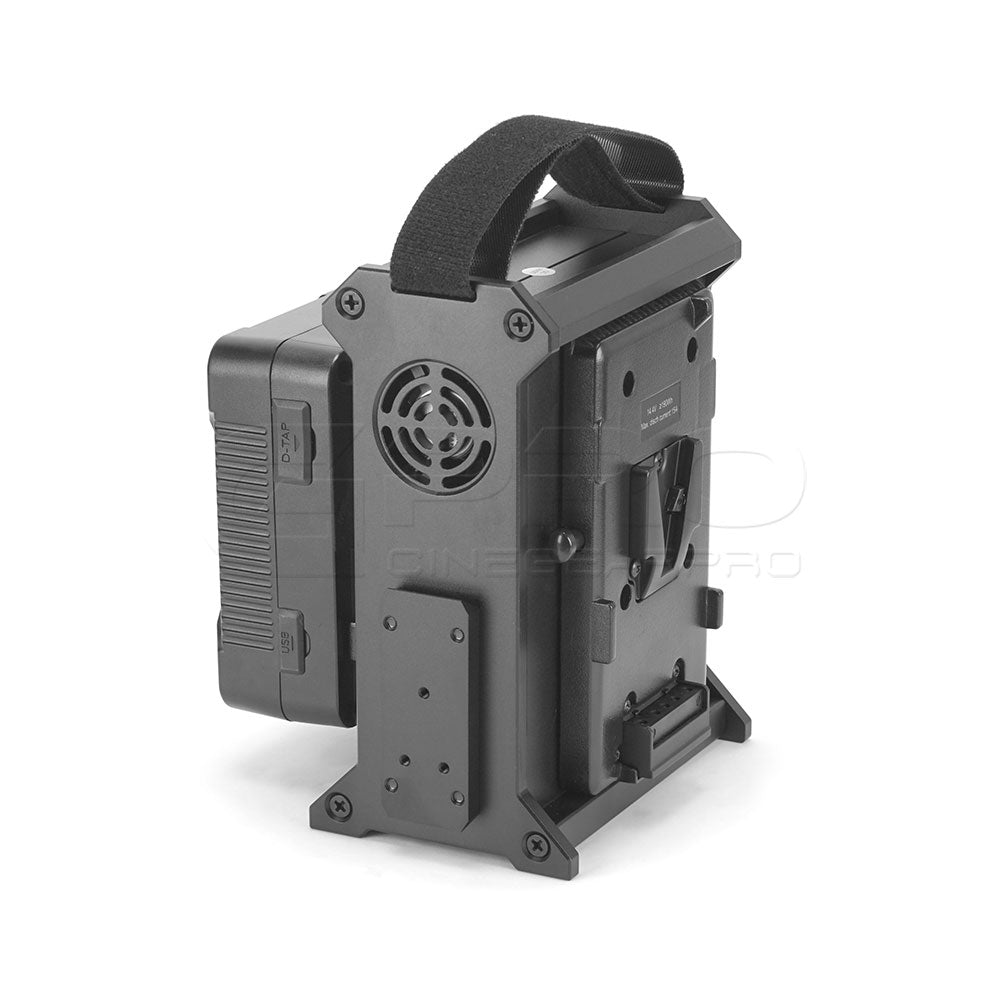

- Stand design with portable handle for easy carrying and placement

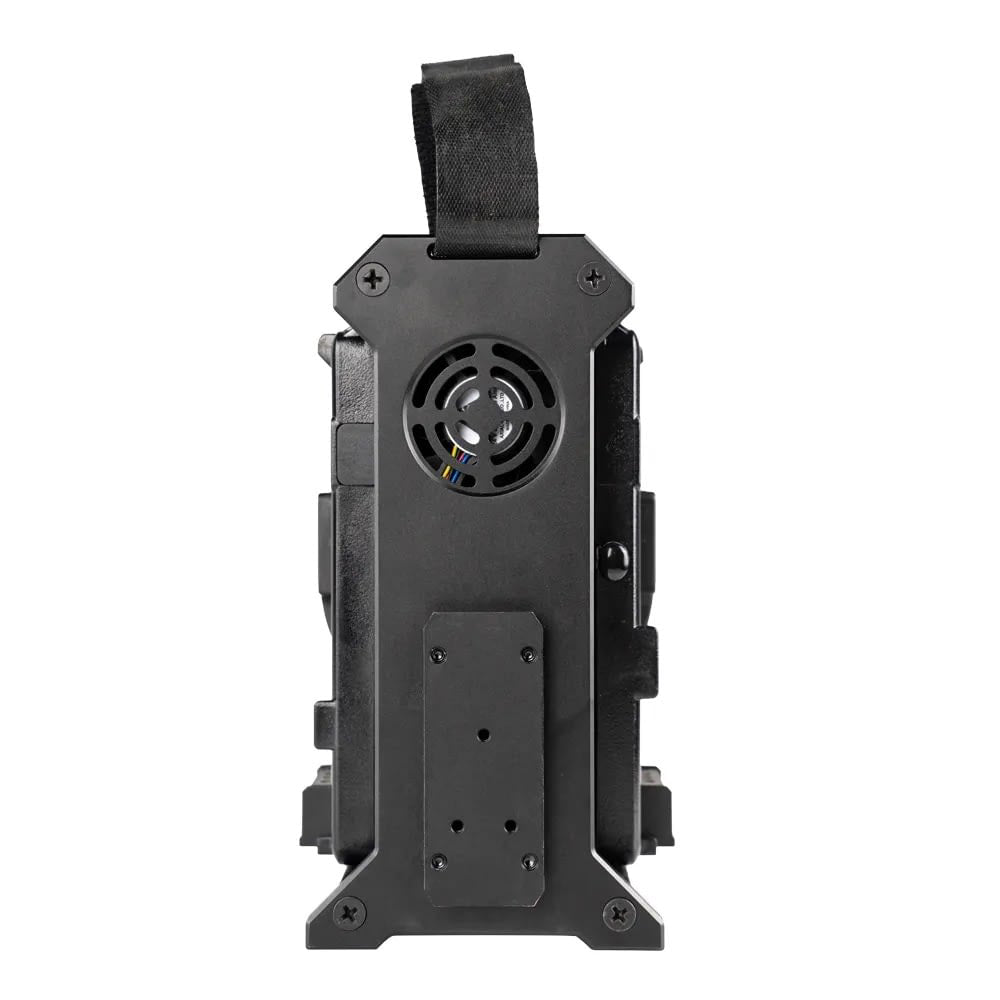

- With Aputure Lightning Clamp interface on body, it can be easily fixed and released in the appropriate position with Aputure Lightning Clamp
- Weight: Approx 1.3Kg
Specifications:
| Battery Input | 14.4V/14.8V V-Mount & Gold Mount Batteries (12~16.8V ) |
| DC Output | 48V/10A, Max 480W |
| Operating Temperature | -10°C ~ 40°C 14°F ~ 104°F |
| Dimensions (V-Mount) | 175 x 130 x 98mm 6.9 x 5.1 x 3.9in |
| Dimensions (Gold Mount) | 175 x 130 x 88mm 6.9 x 5.1 x 3.5in |
| Weight | Approx. 1.3kg / 2.9lbs |
Package Contents:
Basic Kit(533695)：
1x Aputure Battery Power Station

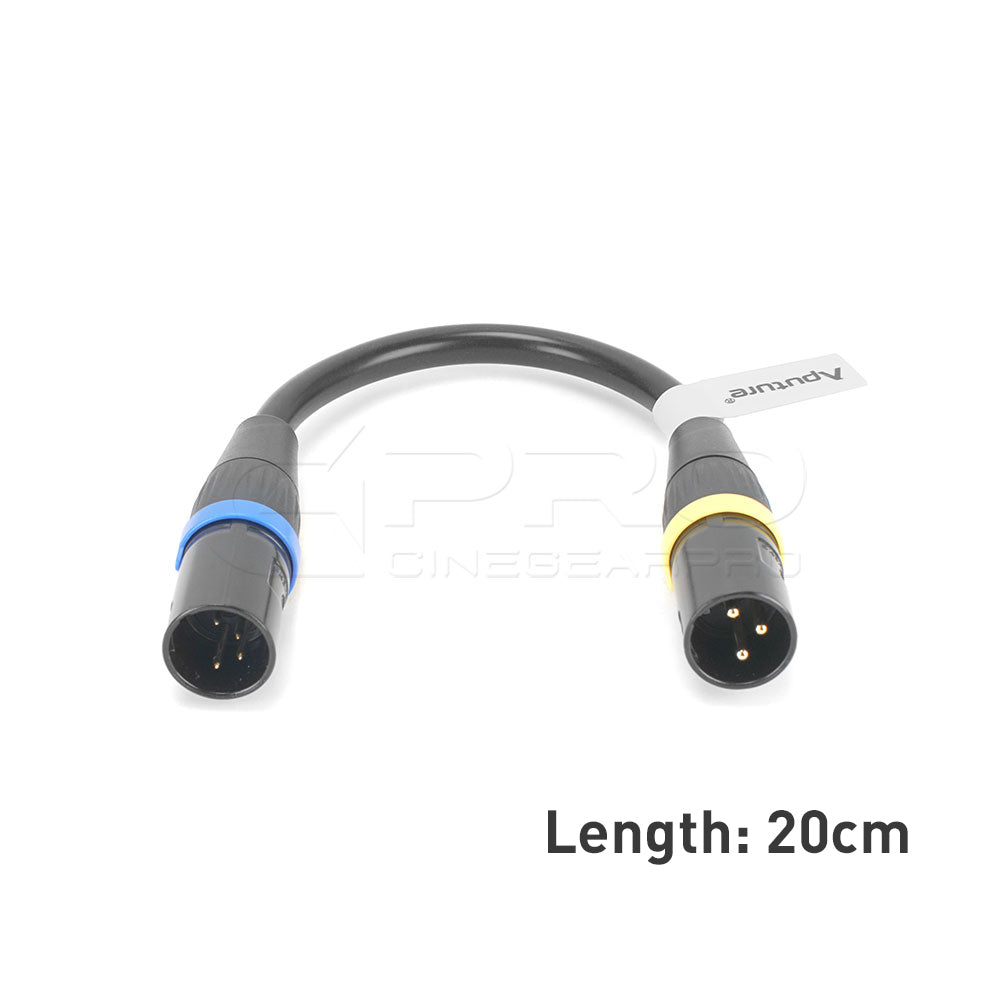

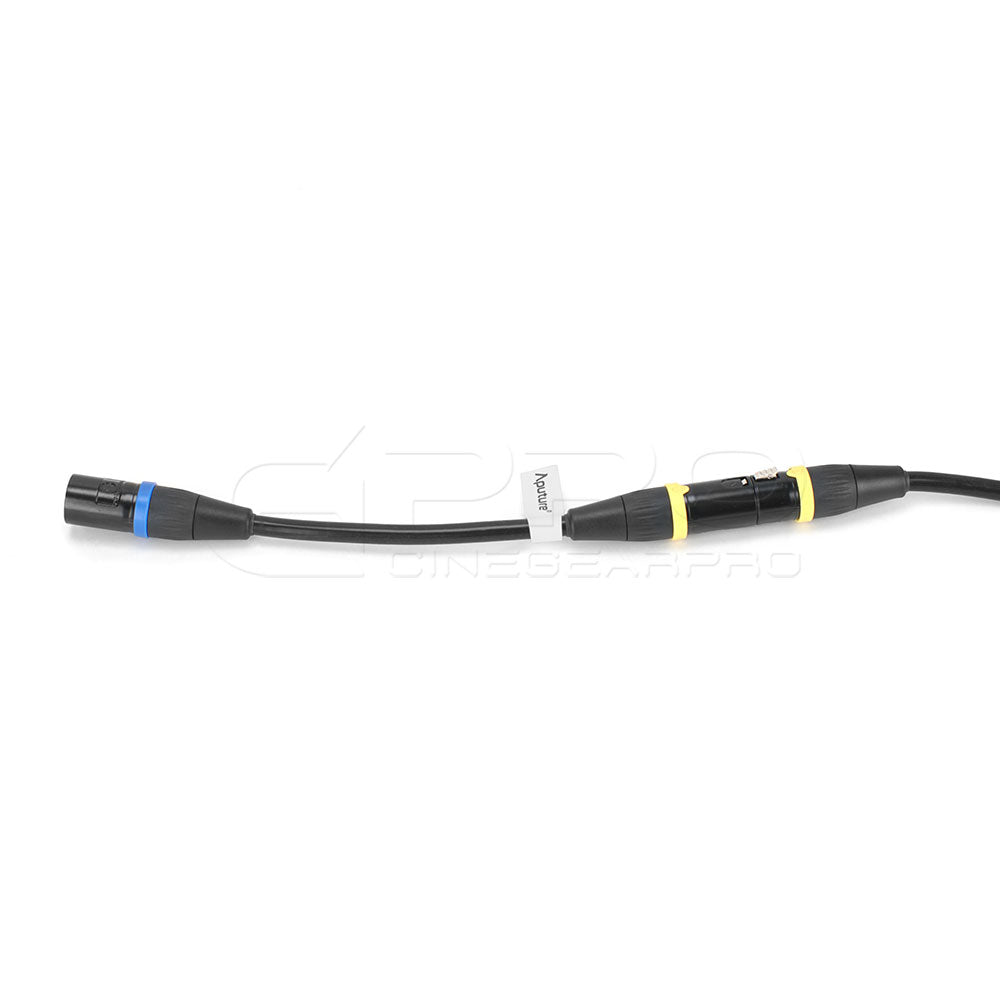

1x 0.25m Power Cable

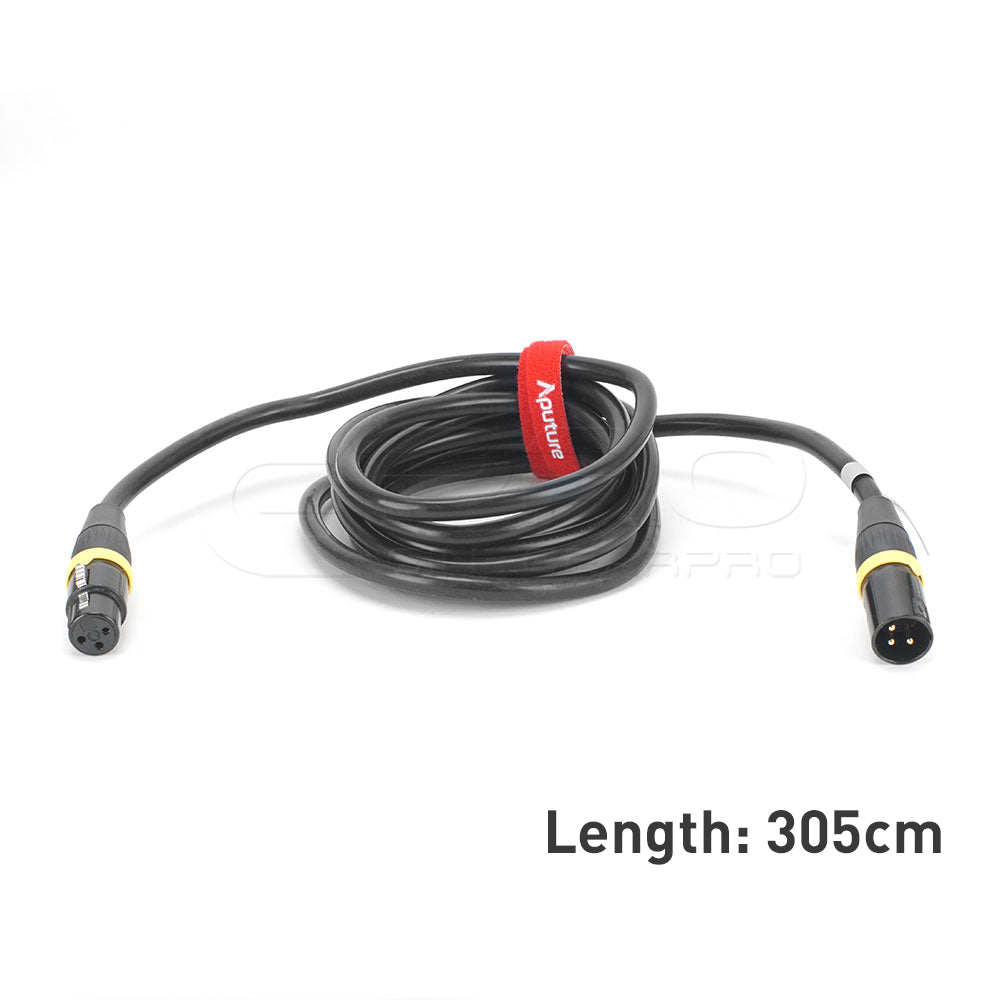

1x 3.05m Power Cable

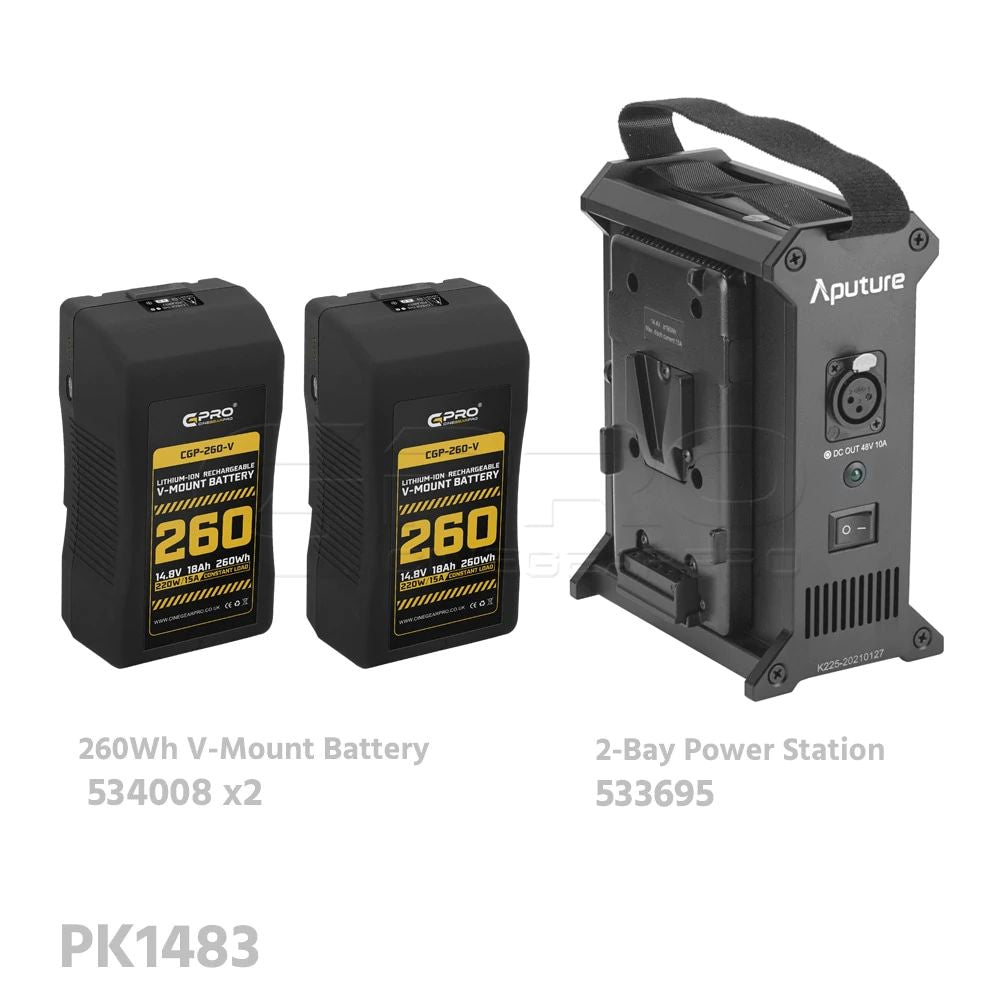

Battery Kit(PK1483):
1x Aputure Battery Power Station
1x 0.25m Power Cable
1x 3.05m Power Cable
2x 260WH V-Mount Battery(534008)
|
Light Compatibility List
|
||
 amaran 100D 533685
|
 amaran 200D 533686
|
 amaran 100X Bi-Colour LED Light 533684
|
 amaran 200X Bi-Colour LED Light 533687
|
 Aputure Nova P300c 533342
|
|
