Aputure PB6 8-Light Kit INFINIBAR 2ft/60cm RGBWW full-colour LED Pixel Bar

Aputure PB6 8-Light Kit INFINIBAR 2ft/60cm RGBWW full-colour LED Pixel Bar

£2,009.00 ex VAT
£2,009.00 ex VAT
Product Code:  535829 SKU: APM0300AX1

📦 Estimated delivery: Ships in 1–2 weeks
View full details

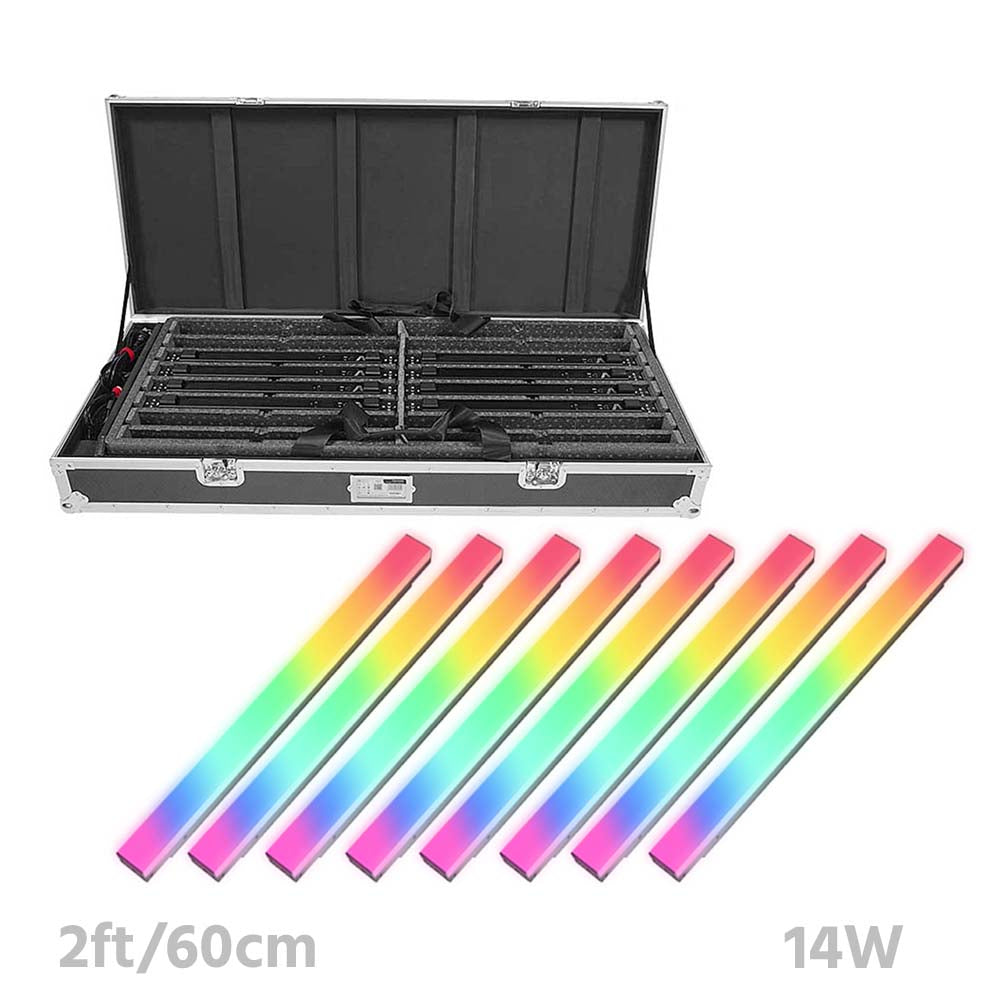

The INFINIBAR PB6 8-Light Kit includes eight of Aputure’s first 2-foot(60cm) full-color LED pixel bars. Featuring 48 pixels, intuitive mounting and connecting options with an infinite blending design, an integrated battery, and advanced connectivity methods, the INFINIBAR PB6 excels in constructing unique, colorful designs that bring scenes to life in new and exciting ways.

The 8-Light Kit expands this mid-sized multitool’s capabilities, with not only eight times the available light, but also additional power cables, adapters, and light control grids in a sturdy flight case to extend your creative possibilities. And in addition to charging each light individually, the 8-Light Kit is equipped with a 330W Power Adapter with 8-Way Splitters that can simultaneously charge all fixtures.

The INFINIBAR’s most unique feature is the ability to link multiple 1ft, 2ft, or 4ft INFINIBARs together using 10 differently-shaped connectors(1) to design creative shapes and effects. Users can operate multiple INFINIBARs using one power supply when linked by the power-sharing connectors or use their internal batteries for greater versatility. The pixel bar’s infinite blending design also eliminates visible gaps between fixtures to create seamless pixelated effects using the PB6’s 48 RGB pixels.

Featuring advanced wireless connectivity, the INFINIBAR PB6’s 48 pixels can be grouped and controlled via Sidus Link, LumenRadio CRMX, or through wired DMX using Aputure’s USB-C to DMX Adapter(2).It also incorporates critical color controls (including advanced HSI with whitepoint adjustability, RGB, and xy) for full creative freedom. Toggle between 9 built-in System FX and 7 built-in Pixel FX, or save up to 20 Custom FX in the Sidus Link app for easy access to different light modes.

The INFINIBAR PB6’s proprietary RGBWW chipset produces stunning color quality throughout its wide CCT range of 2,000K to 10,000K with full green-magenta adjustment, and can reproduce >90% of colors within the Rec.2020 Color Space. Matching Aputure’s high standards for color, the INFINIBAR PB6 also produces accurate skin tones, measuring scores of CRI:96+, TLCI: 98+, SSI (D56): 74, and SSI (Tungsten): 85.

With its lightweight yet durable aluminum housing, the INFINIBAR PB6 provides ultimate flexibility across all shooting environments. Whether linked together or used independently, the INFINIBAR’s built-in magnets, INFINIBAR Rail and Baby Pin Clamp system, and two ¼-20in threads allow the PB6 to be mounted with ease. And with its built-in 29.6Wh Lithium battery, the INFINIBAR PB6 can operate at its 14W max output for 100 minutes, making it a versatile and compact fixture for your lighting toolkit.

(1)INFINIBAR Includes 8 Straight Connectors. Remaining 9 Connectors Sold Separately
(2)Aputure Active USB-C to 5-Pin DMX In & Out Adapter Sold Separately



Features:

  • 8-Light Kit with 2ft (60cm) 14W RGBWW Full Color LED Pixel Bar
  • 48 Independent Pixels (Lighting Zones)
  • Infinite Blending Design to Reduce Visible Gaps When Connecting Multiple Lights

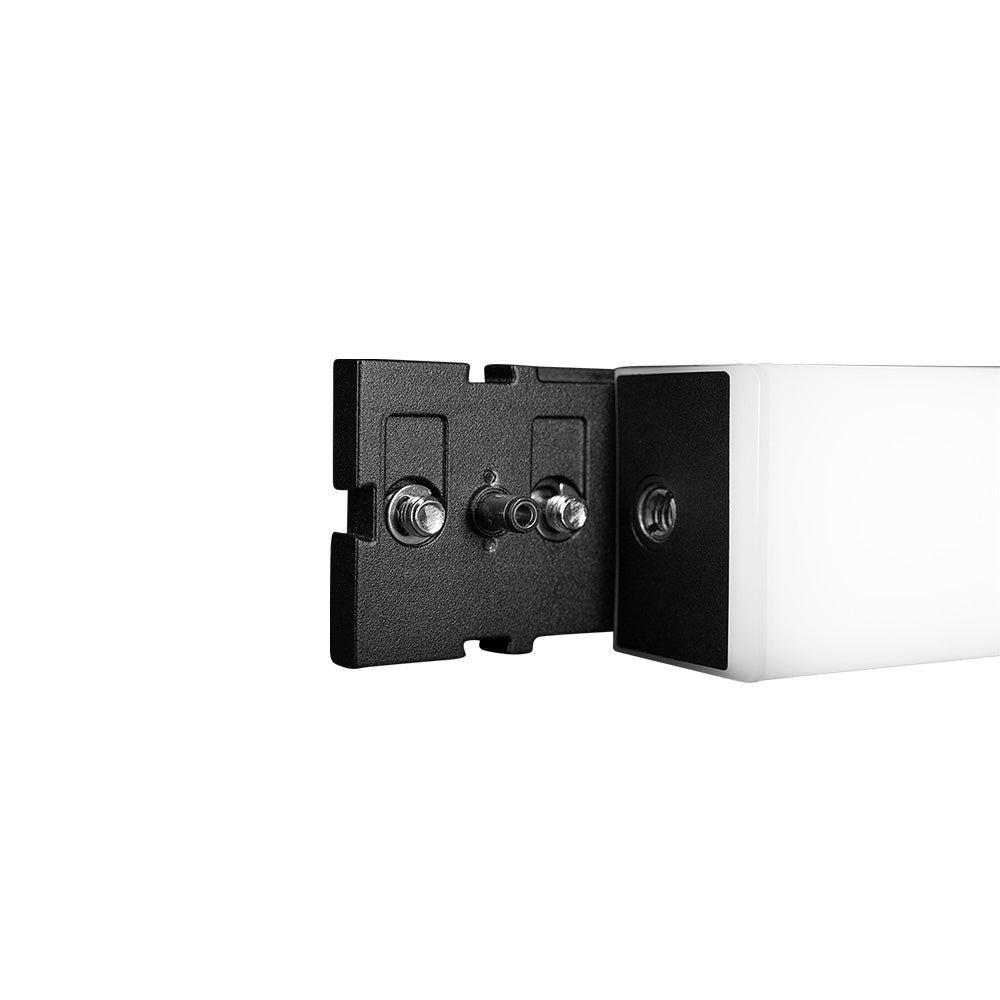

  • 10 Splicing Connectors: Straight, Triangle Flat, Triangle 3D, Hexagon Flat, Hexagon 3D, 3-Way Flat, 4-Way Flat, 6-Way Flat, Square Flat, Square 3D
  • Share AC Power Over Multiple INFINIBARs w/ Splicing Connectors

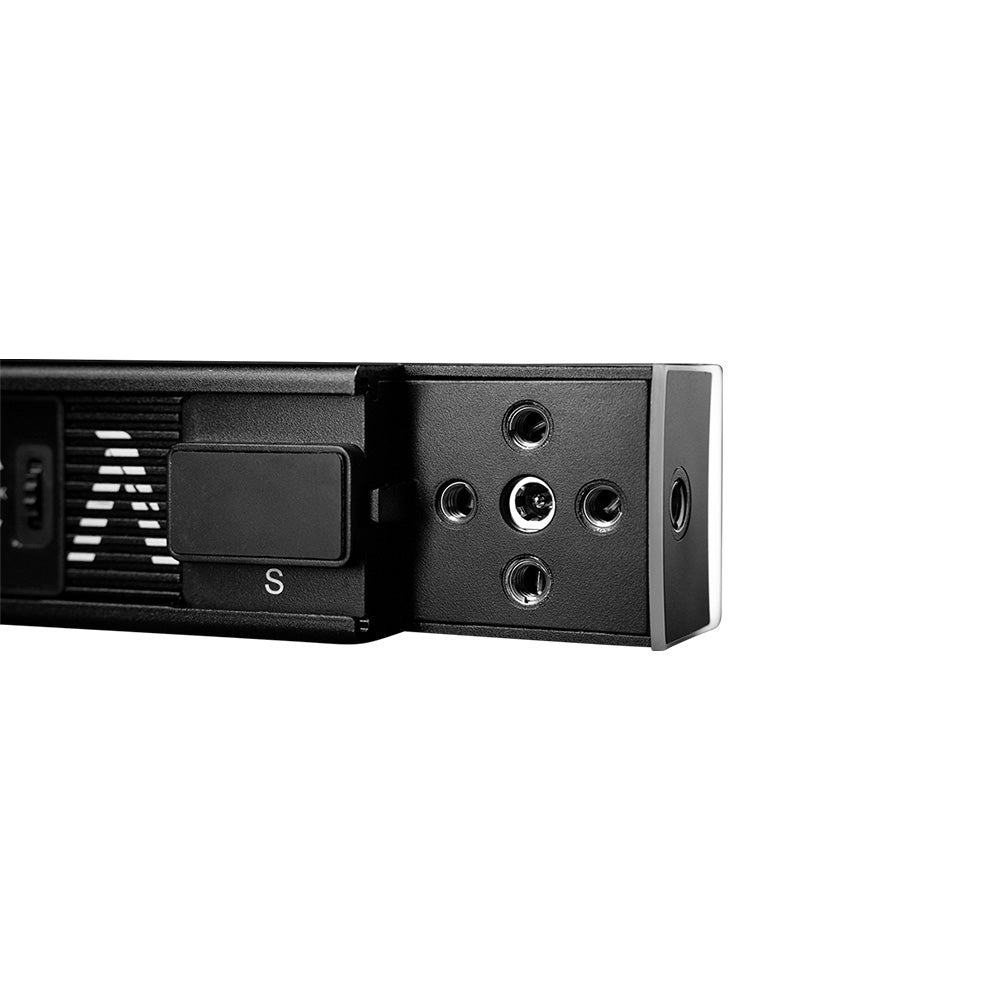

  • Mounting: INFINIBAR Clamp (Baby Pin) & Neodymium Magnets,1/4-20in Screw Mount
  • Frosted Diffusion Layer for Smoother Light and Reduced Glare
  • Approx. 100 Min Battery Life at Max Output (29.6Wh)
  • Simultaneously Charge Multiple INFINIBARs with Included Power Adapter with 8-Way Splitters
  • Included Flight Case and 8x 45º Slip-On Light Control Grids
  • Smart Battery Life Mode: Adjust Runtime to 2/4/6/8 Hours
  • 0-100% Brightness Control at 0.1% Increments
  • Fully Tunable CCT from 2,000K-10,000K + G/M Adjustment
  • CRI: ≥96, TLCI: ≥98, TM-30 Rf (Avg.) = 94, TM-30 Rg (Avg.) = 103,SSI(D56) ≥74, SSI(Daylight) ≥85
  • ≥90% of Colors within Rec.2020 Color Space
  • Advanced HSI with White Point CCT Control
  • Industry-standard xy (CIE 1931), RGB, 300+ Gel Presets
  • Multiple Control Methods: Sidus Link® App, DMX/RDM via USB-C,LumenRadio CRMX
  • 29 Built-In DMX Profiles: Supports DMX Loss Behaviors
  • 9 Built-in Lighting FX: Fireworks II, Fire II, Paparazzi II, Faulty Bulb II,TV III, Pulsing III, Cop Car III, Lightning III, Party II
  • 7 Built-In Pixel FX: Color Fade, Color Cycle, One Pixel Chase, Two Pixel Chase, Three Pixel Chase, Rainbow, Pixel Fire
  • Supports SidusPro® FX: Including Manual FX, System FX, Picker FX, Magic Program, and Music FX
  • Save up to 10 Custom FX and 10 Music FX
  • Frequency Selection to Reduce Flicker

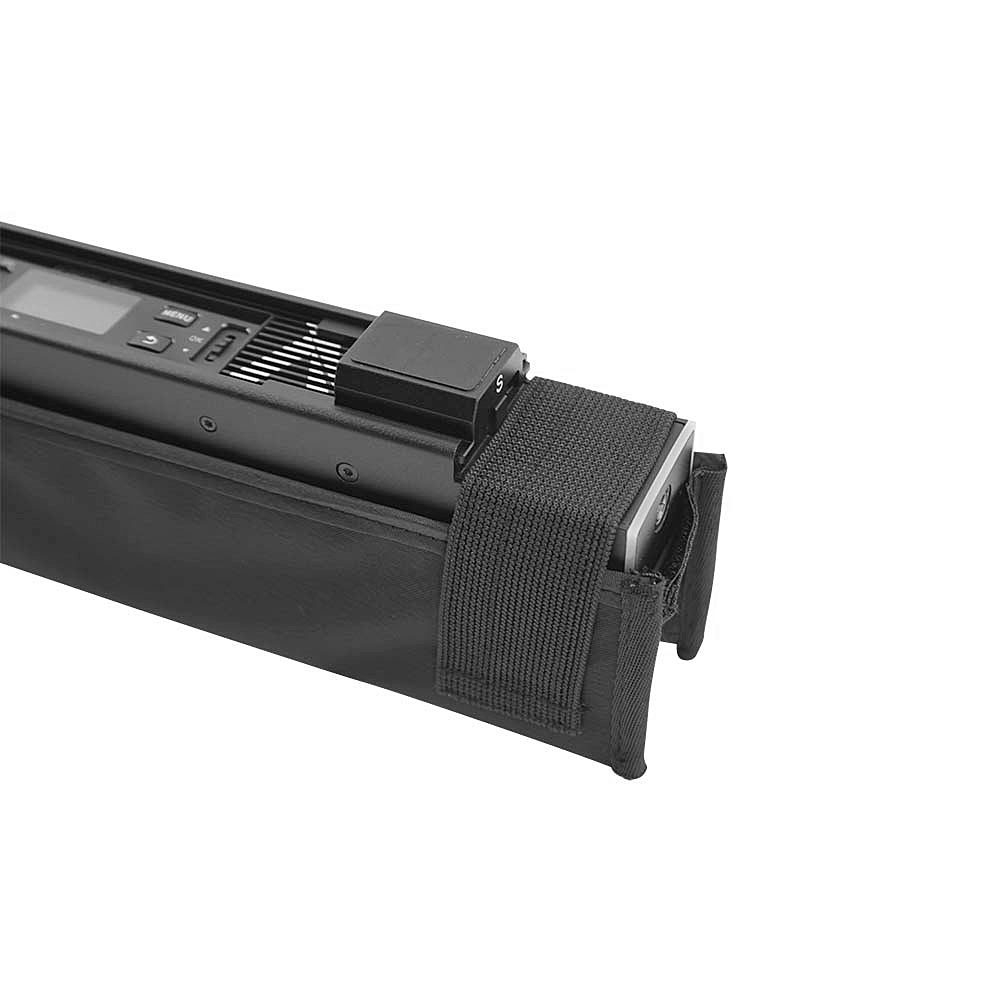

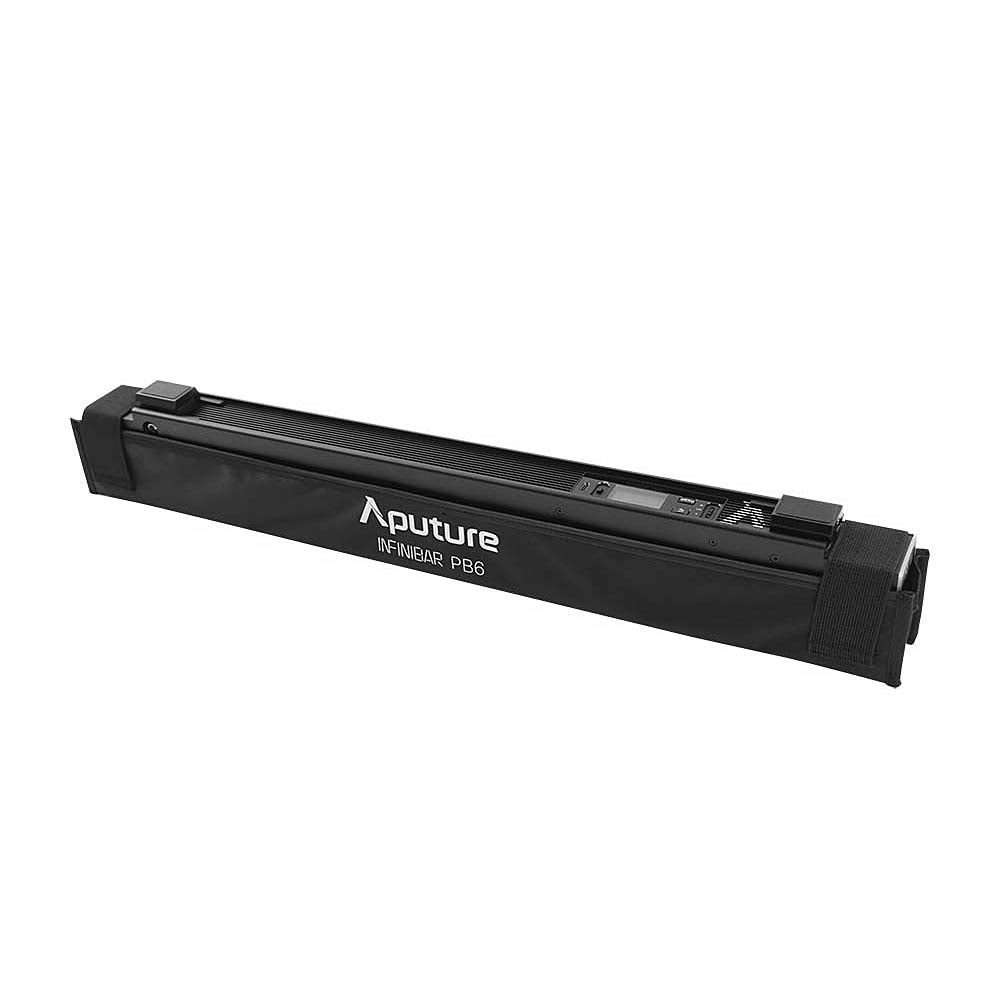

  • Optional Softbox for Added Lighting Control


Specifications:

CCT

2,000K-10,000K

Battery Capacity

7.4V,2000mAh,29.6Wh

CRI

96

Battery Life

Approx 100 Mins @Max Output

TLCI

98

Charge Time

Approx 120 Mins (24V/1A)

CQS

96

Pixel Mapping

48 Pixels

SSI (D56)

74

Operating Temperature

-10°C-45°C / 14°F-113°F

SSI (Tungsten)

85

Control Methods

Sidus Link App,DMX/RDM,LumenRadio CRMX

TM-30 RF (Average)

94

Wireless Operating Range

Bluetooth: ≤80m / ≤262.5ft       LumenRadio: ≤100m / ≤328.1ft

TM-30 RG (Average)

103

IP Rating

IP 20

Color Chipset

RBGWW

Screen Type

OLED

Bean Angle       (Half-Peak)

120°

Firmware Upgradeable

Sidus Link,USB-C

Lumens

1,110lm

Cooling Method

Passive Cooling

Max Power Output

14W

Mounting

INFINIBAR Rail

Max Power Consumption

Fixture: 18W

Dimensions

Fixture: 60.4 x 4.5 x 4.3cm / 23.8 x 1.8 x 21.7in

Fixture + Spacer : 60.4 x 4.5 x 5.2cm/ 23.8 x 1.8 x 2.1in                   AC Power Adapter: 12 x 5.3 x 3.2cm / 4.7 x 2.1 x 1.3in                    Clamp: 12.2 x 5.5 x 4cm / 4.8 x 2.2 x 1.6in                                        Case: 68.2 x 12.5 x 12.5cm/26.9 x 4.9 x 4.9 in

Power Supply: 20W

Operating Voltage & Current

Fixture: 24V,0.9A

Est. LED Lifetime(L70)

50,000 Hours

Power Supply: 100V-240V 50/60Hz,1.5A

Est. Color Shift Over Lifetime

2% Over  6,000 Hours

Weight

Fixture: 1kg / 2.2lbs                    Fixture+ Spacer: 1.13kg / 2.49lbs
AC Power Supply: 0.49kg / 1.08lbs Clamp : 0.27kg / 0.6lbs                     Total: 1.89kg / 4.17lbs

Certifications

CE,FCC,KC,NCC,ROHS,RCM,ICES,UKCA,PSE





Photometrics:

CCT

0.5m

1m

PB3

2,000K

448 lux / 42 fc

85 lux / 8 fc

2,700K

486 lux / 45 fc

127 lux / 12 fc

3,200K

512 lux / 48 fc

130 lux / 12 fc

4,300K

540 lux / 50 fc

137 lux / 13 fc

5,600K

545 lux / 51 fc

144 lux / 13 fc

6,500K

544 lux / 51 fc

145 lux / 13 fc

7,500K

544 lux / 51 fc

145 lux / 13 fc

10,000K

497 lux / 46 fc

135 lux / 13 fc

Red

111 lux / 10 fc

40 lux / 4 fc

Green

353 lux / 33 fc

98 lux / 9 fc

Blue

56 lux / 5 fc

20 lux / 2 fc

PB6

2,000K

635 lux / 59 fc

200 lux / 19 fc

2,700K

935 lux / 87 fc

282 lux / 26 fc

3,200K

940 lux / 87 fc

288 lux / 27 fc

4,300K

978 lux / 91 fc

301 lux / 28 fc

5,600K

1,026 lux / 95 fc

317 lux / 29 fc

6,500K

1,048 lux / 97 fc

328 lux / 30 fc

7,500K

1,046 lux / 97 fc

328 lux / 30 fc

10,000K

960 lux / 89 fc

288 lux / 27 fc

Red

189 lux / 16 fc

78 lux / 7 fc

Green

608 lux / 56 fc

188 lux / 17 fc

Blue

97 lux / 9 fc

39 lux / 4 fc

PB12

2,000K

975 lux / 91 fc

350 lux / 33 fc

2,700K

1,350 lux / 125 fc

532 lux / 49 fc

3,200K

1,410 lux / 131 fc

542 lux / 50 fc

4,300K

1,500 lux / 139 fc

564 lux / 52 fc

5,600K

1,600 lux / 149 fc

593 lux / 55 fc

6,500K

1,650 lux / 153 fc

607 lux / 56 fc

7,500K

1,650 lux / 153 fc

617 lux / 57 fc

10,000K

1,510 lux / 150 fc

563 lux / 52 fc

Red

227 lux / 21 fc

85 lux / 8 fc

Green

793 lux / 74 fc

297 lux / 28 fc

Blue

131 lux / 12 fc

49 lux / 5 fc

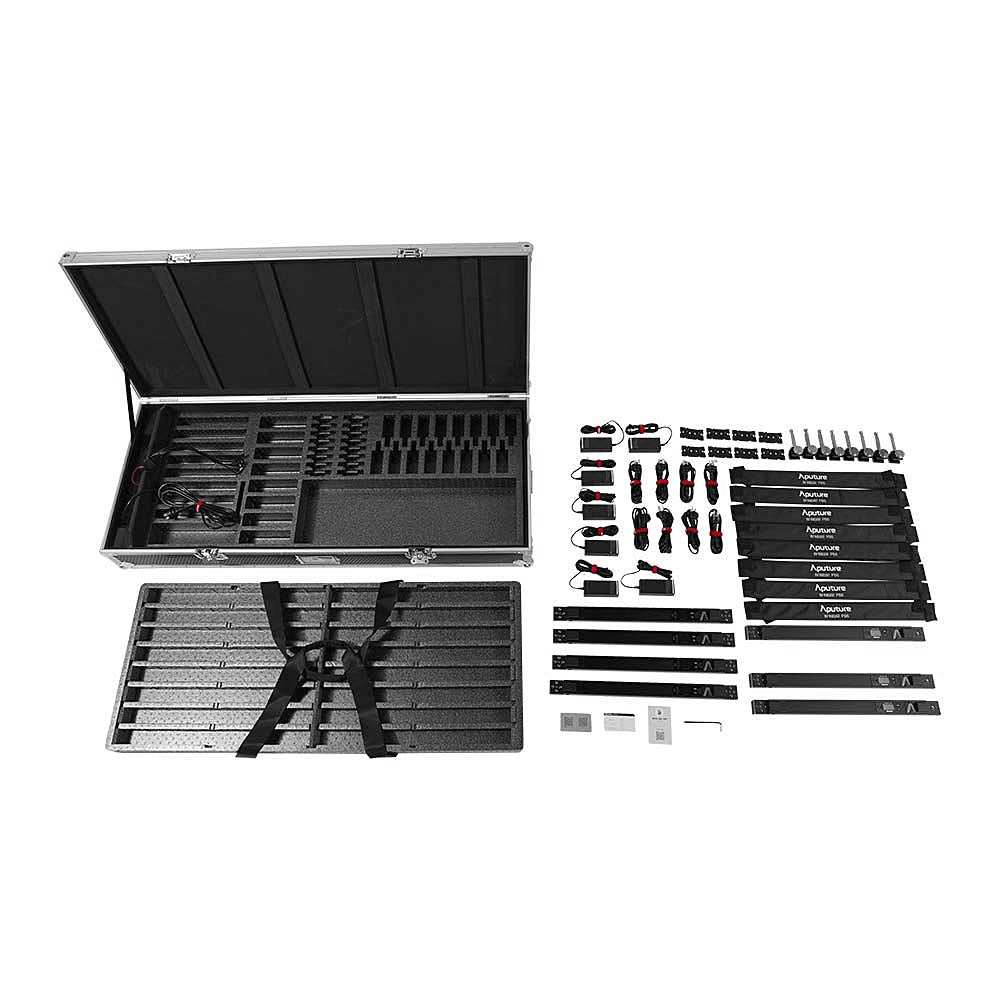

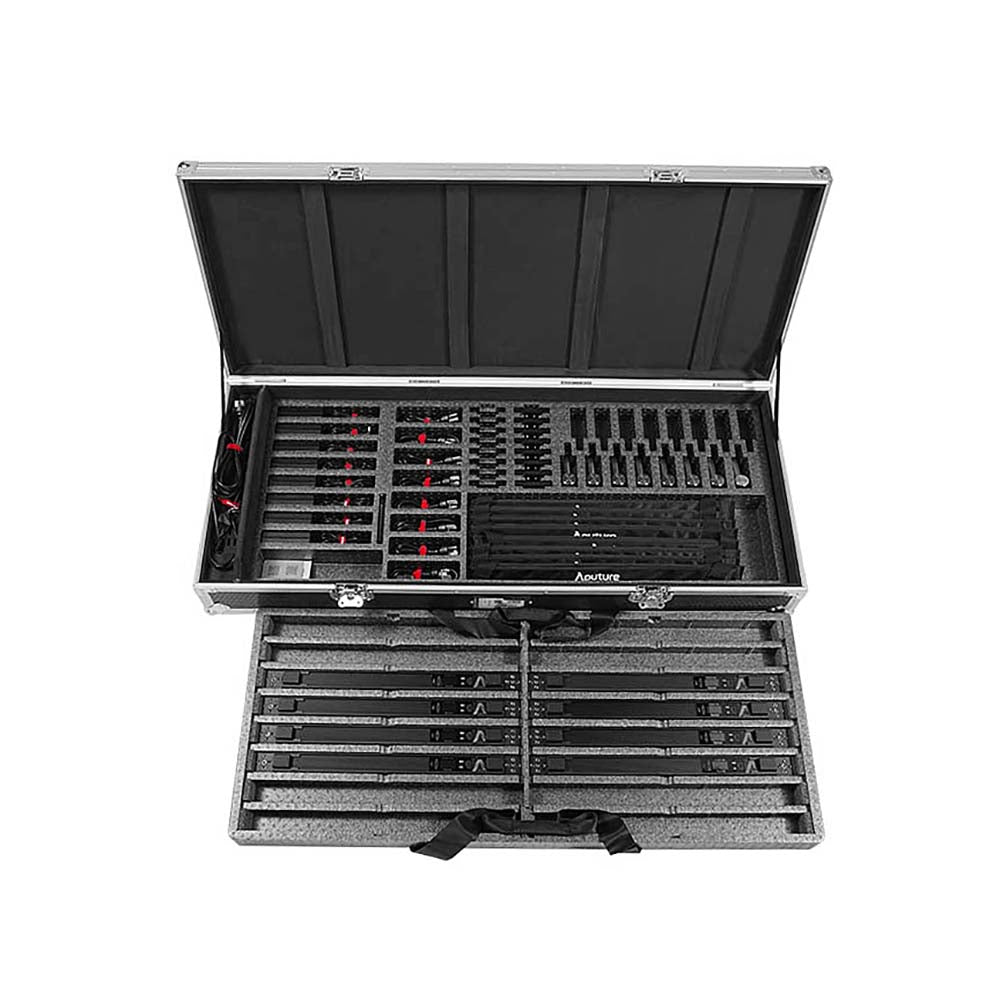

Package Contents:

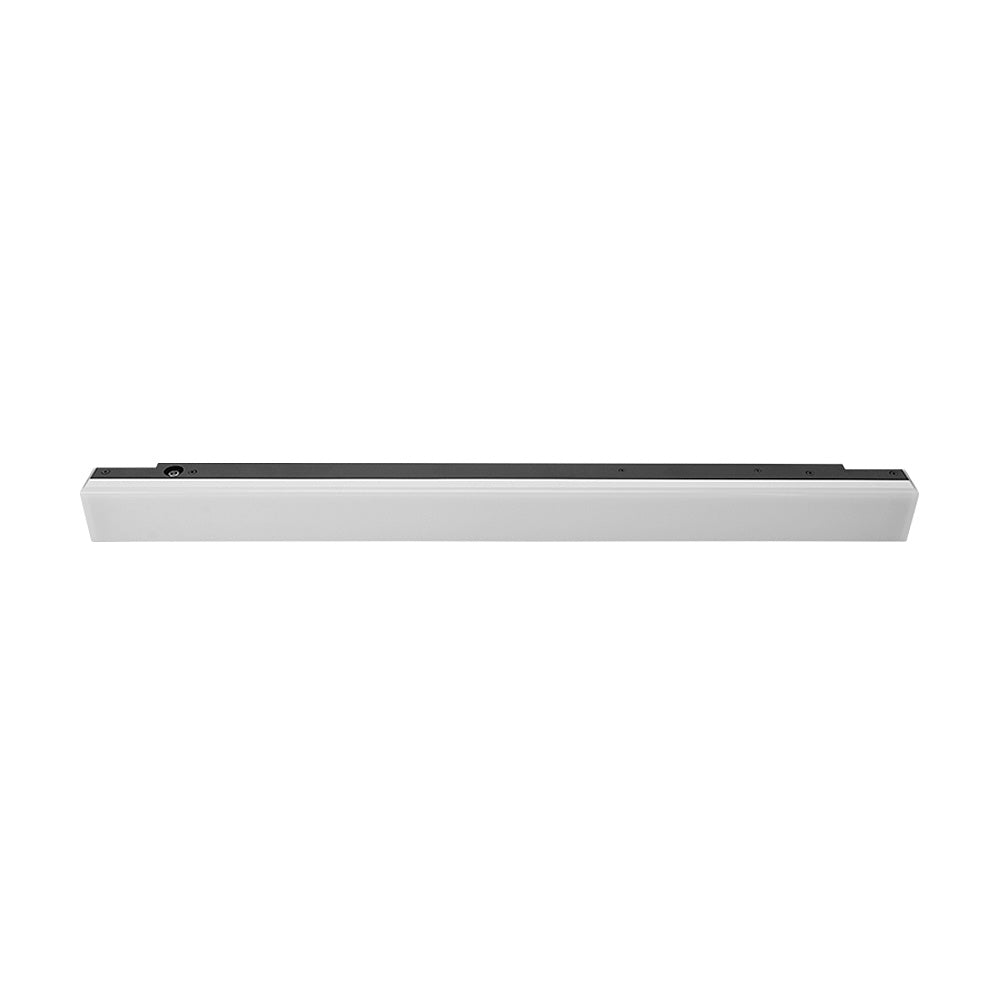

8x INFINIBAR PB6
8x 48W DC Power Adapter (3m)
1x AC Locking Power Cable (4m)
8x AC Locking Power Cable (1.5m)
1x 330W Power Adapter with 8-Way Splitters
16x Magnetic Spacer
8x INFINIBAR Clamp to Baby Pin Adapter
8x INFINIBAR Straight Connector
1x 5mm Hex Wrench

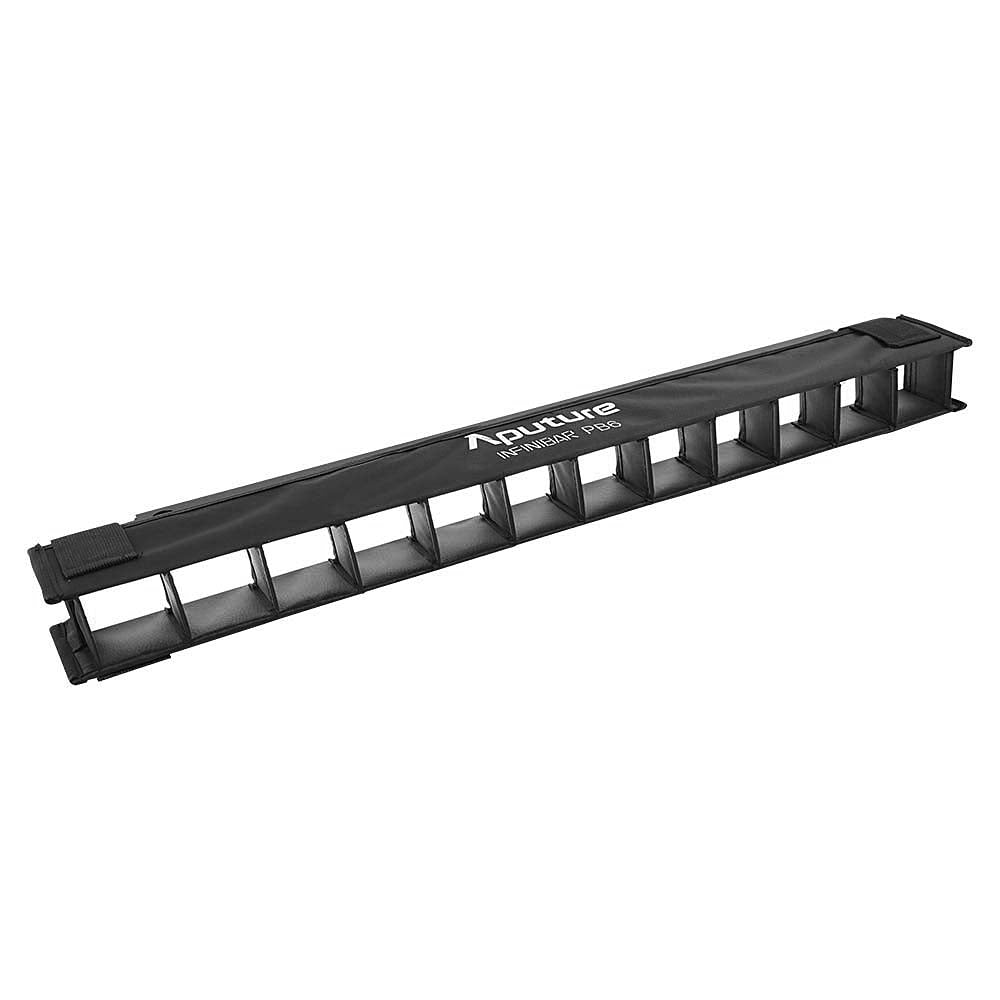

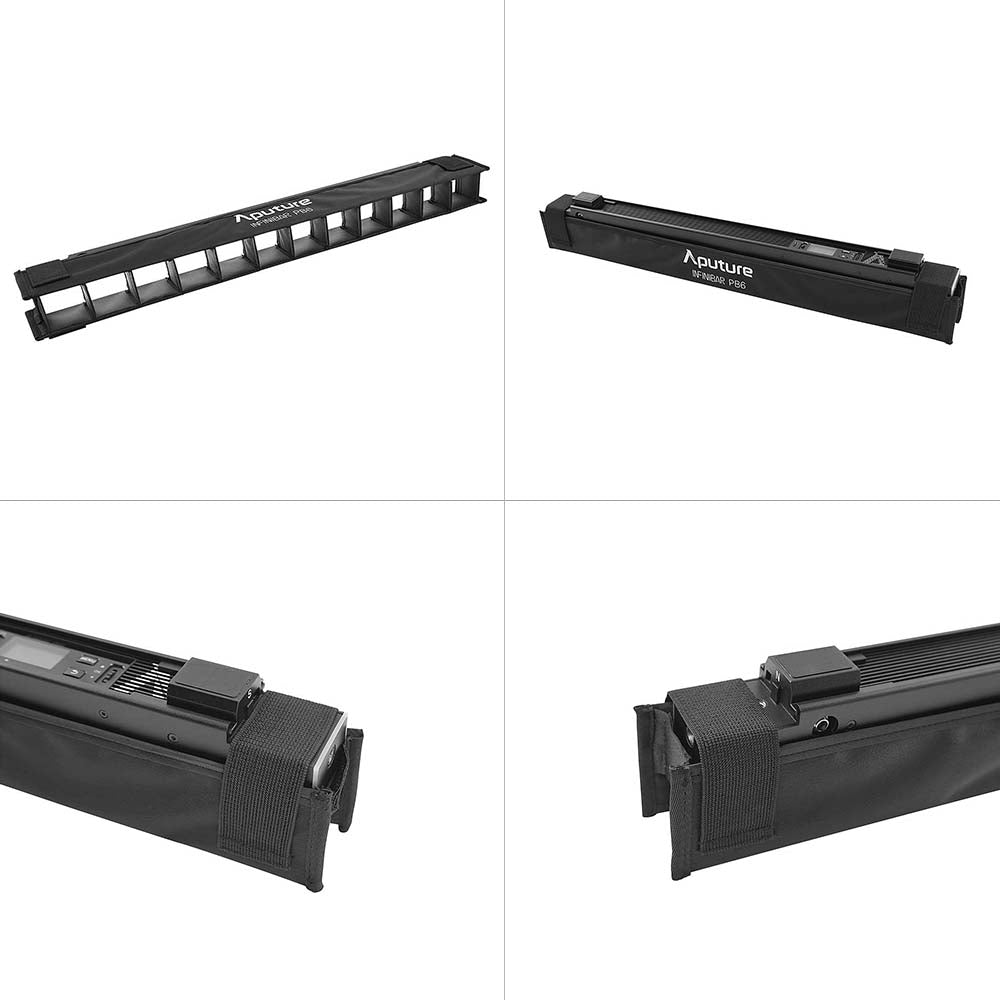

8x INFINIBAR PB6 45º Light Control Grid

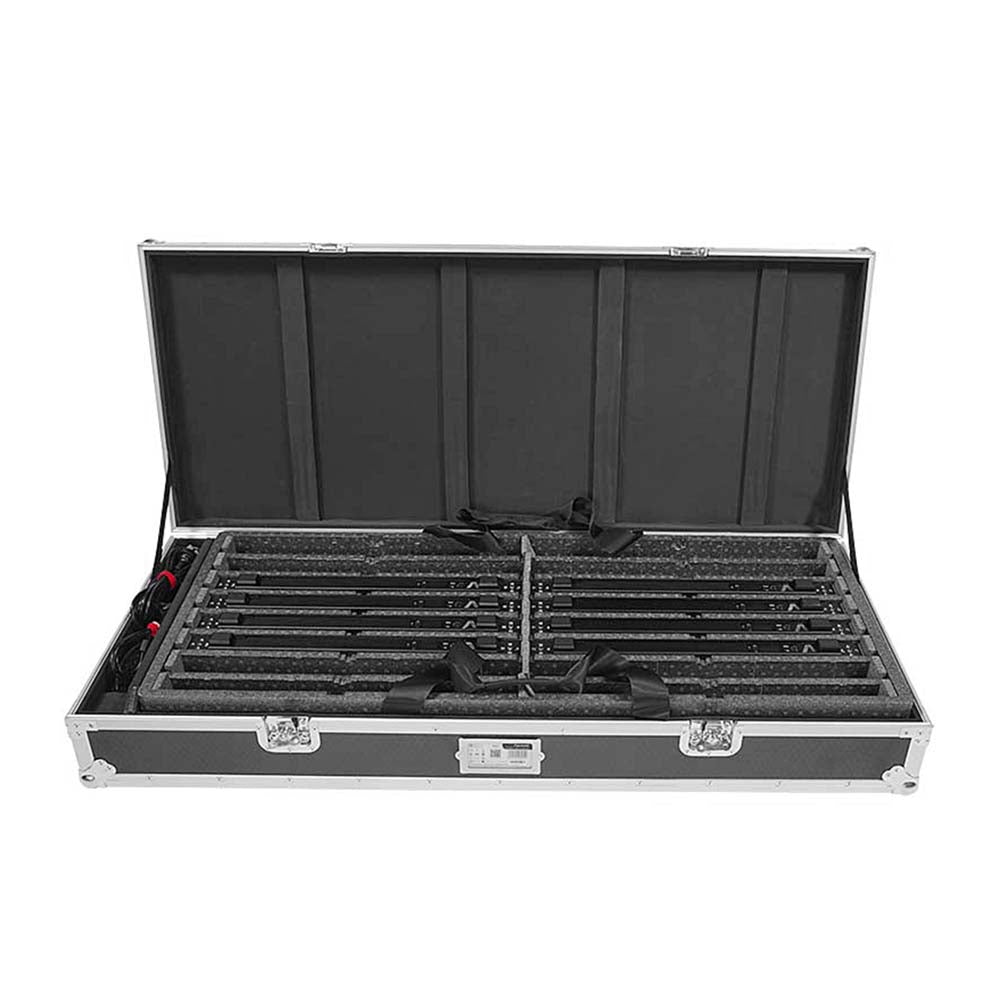

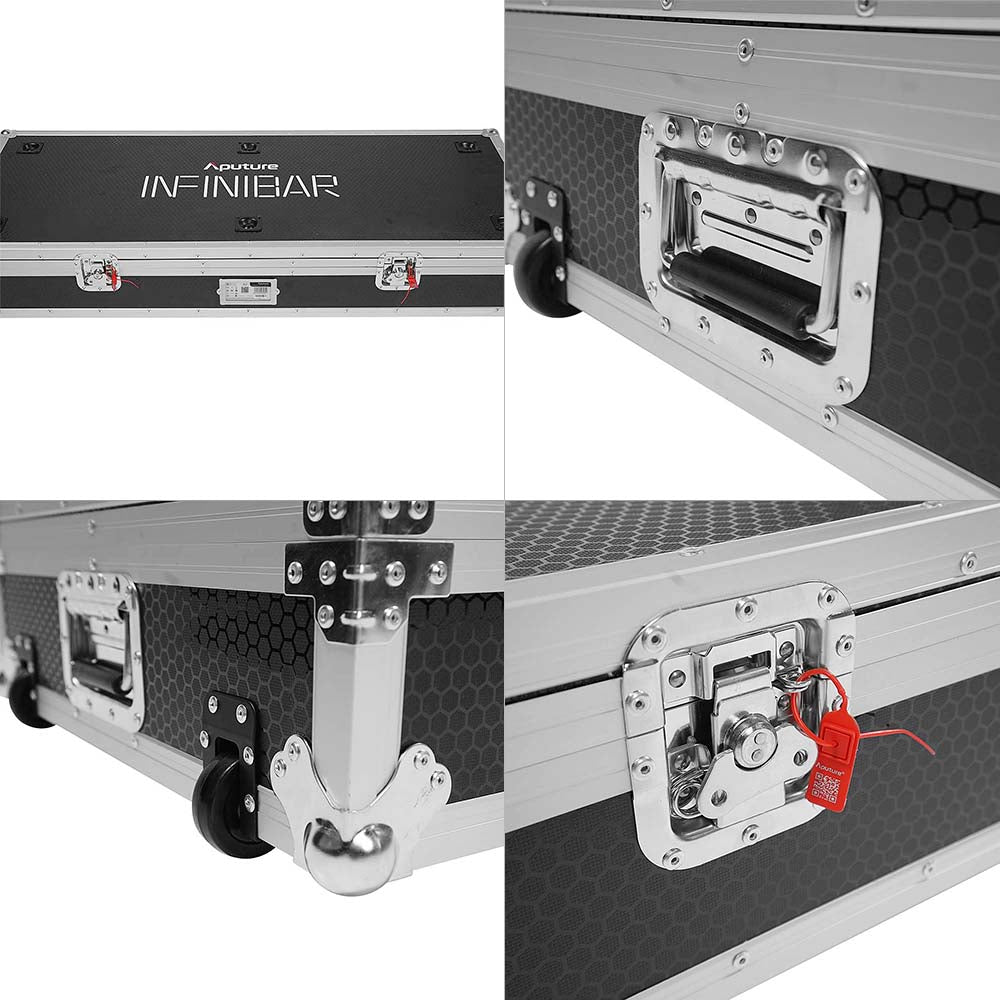

1x Flight Case
