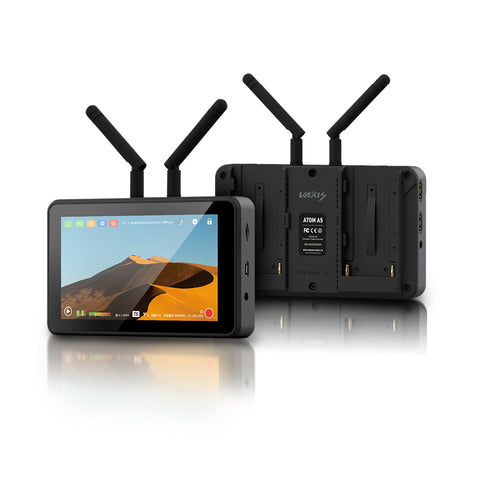

Highly Integration New Experience
AllInOne Video Transmission System + Monitor Video Record + Playback Wireless Video Transmit + Receive
AllInOne Video Transmission System + Monitor Video Record + Playback Wireless Video Transmit + Receive
Superior Performance
5.5" Standard Pixel , Super Retina Screen
Accurate Sharpening. No fear of bright sunlight,clearly display picture details.
Video Transmission System & Monitor In One
Wireless Monitoring. Video transmission system and monitor unit as one.
Wireless Monitoring. Video transmission system and monitor unit as one.
150m Transmission Range
Extreme Distance. Remains stable for long distances,meets most usage scenarios.
Extreme Distance. Remains stable for long distances,meets most usage scenarios.
Lower Latency Faster Follow Focus
80ms Delay. Almost insensitive time-lapse, easy to follow focus.
Dual NPF Battery Slots
Ultra-low Power Consumption.
A single NPF- 550 battery (3500mAh)
can last up to 4.5 hours of continuous use.
Multiple Ports
Dual HDMI Ports. Support HDMI loop out, it can be used as an on-camera monitor or as a receiver to loop out signal to broadcast monitor.
Lower Latency Faster Follow Focus
80ms Delay. Almost insensitive time-lapse, easy to follow focus.
Break The Chain
5.5" Screen Adaptation. Redesigned CINE os for 5.5" monitor screen, new interactive way, increase your creative passion.
TX/RX In One
Both TX and RX. The transmit and receive states can be switched according to your existing Atom series products.
Record & Playback
Record & Playback in one. The recorded MPG-4 files are stored in the TF Card, you can instantly playback and review the footage on set. Preserved files can also be edited directly as proxy files.
Synchronous Recording
Timecode Sync. No need to manually record. When the camera starts recordinlg, both the transmitter and receiver will start recording synchronously.
Timecode Sync. No need to manually record. When the camera starts recordinlg, both the transmitter and receiver will start recording synchronously.
Follow Focus Kit
/ Mini Tripod & Handle / Wireless Lens Control / Quick Release Plate Express install to form a follow focus kit.
Compatible For All Atom Series Products
Specifications:
|
Interface |
DC IN, DC OUT, DC IN, DC OUT, 3.5mm Audio Jack, Type- -C, 3.5mm-lR IN |
|
Input Voltage |
NPF970/DC1 2V |
|
Screen Size |
5.5 Inch Touch |
|
Screen Resolution |
1920*1080 pixels |
|
Screen Brightness |
1000cd/m |
|
Contrast Ratio |
1200: 1 |
|
Input Video Format |
1920*1080P 60/59.94/50/30/29.97/25/24/23.98 1920*1 080160/59.94/50 1280*720P 60/59.94/50 |
|
Output Video Format |
1920*1080P60/50/30/25/24 1920*1080160/50 1280*720P60/50 |
|
Audio Format |
48KHz |
|
Net Weight |
48g |
|
Size |
151*92*30.5mm |
|
DC Max Output Power |
8.5V/0.6A |
|
Wireless Operating Frequency |
5.1G- -5.8G |
|
Transmitting Frequency |
17dBm |
|
Transmission Latency |
80ms, 120ms(under interference environments) |
|
Receiving Sensitivity |
-80dBm |
Package Contents:
1x Monitor
2x Antenna
1x Instruction Card
1x HDMI Cable
1x 32G TF Card
