VAXIS ATOM 600 KV SDI/HDMI Wireless Transmission System For RED KOMODO 600ft (White)
- Brand: VAXIS
- SKU: VA20-600KV-TR01ST
- Product code:

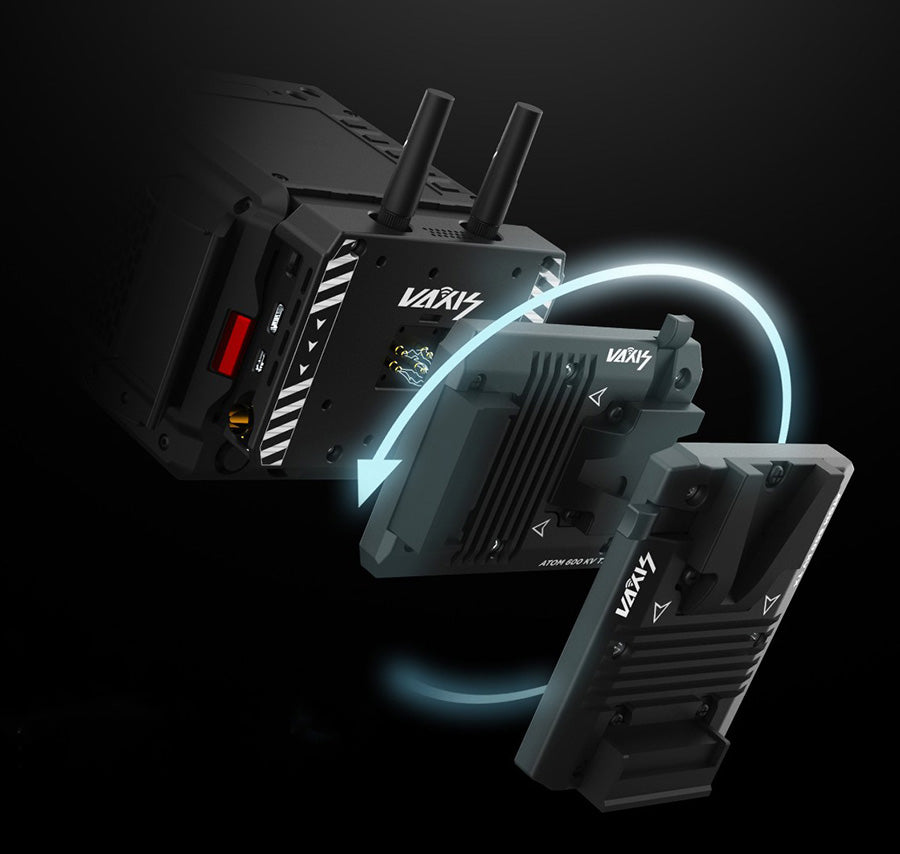

Adjustable Battery Plate:
Horizontal / Vertical

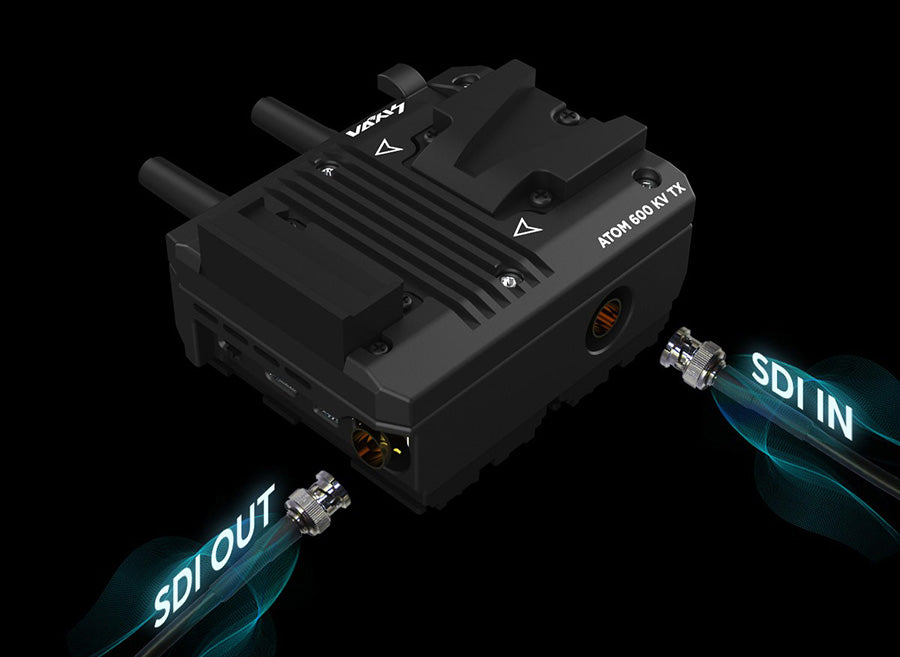

Support Up To 1080P@60/1080i@60

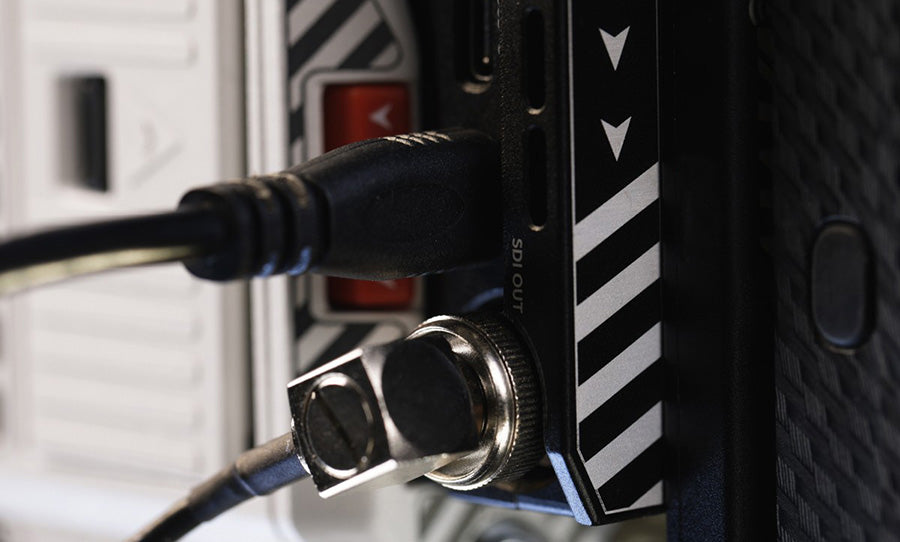

SDI/HDMI Loop Out
OLED SCREEN
Show All At A Glance Simple Interface With Functions.
REAL-TIME Monitoring
via Mobile APP & ATOM RX
Compatible ATOM Series
Compatible With All Vaxis Atom Series Receivers.

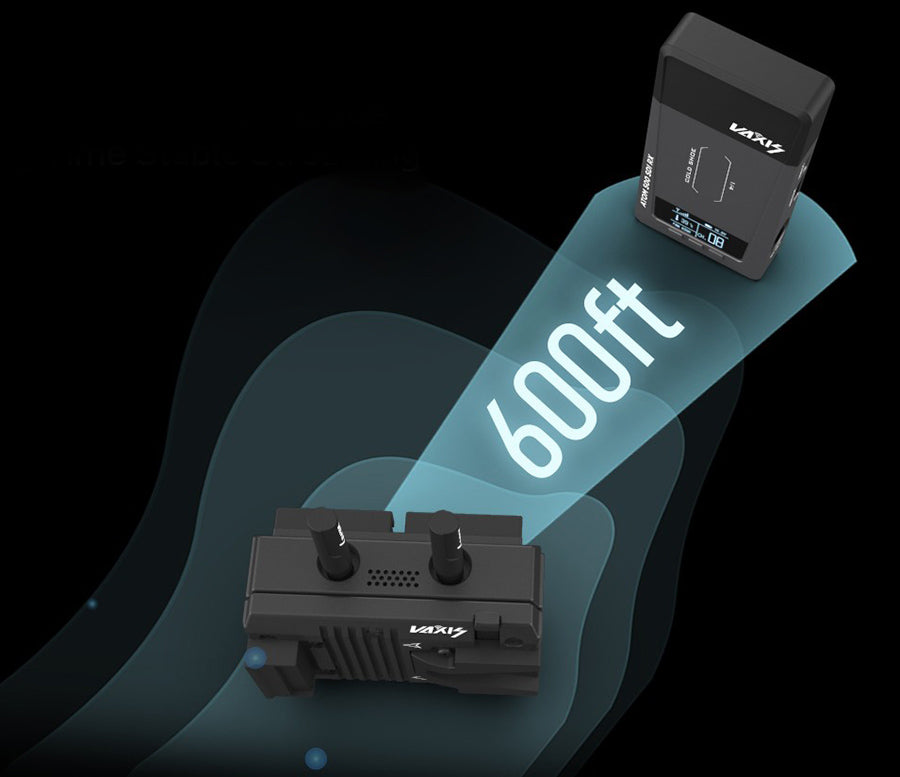

600ft
600ft Transmission Range, Long Time Stable Streaming.
Signal Amplifier
Extend yout RED Control to 600ft.

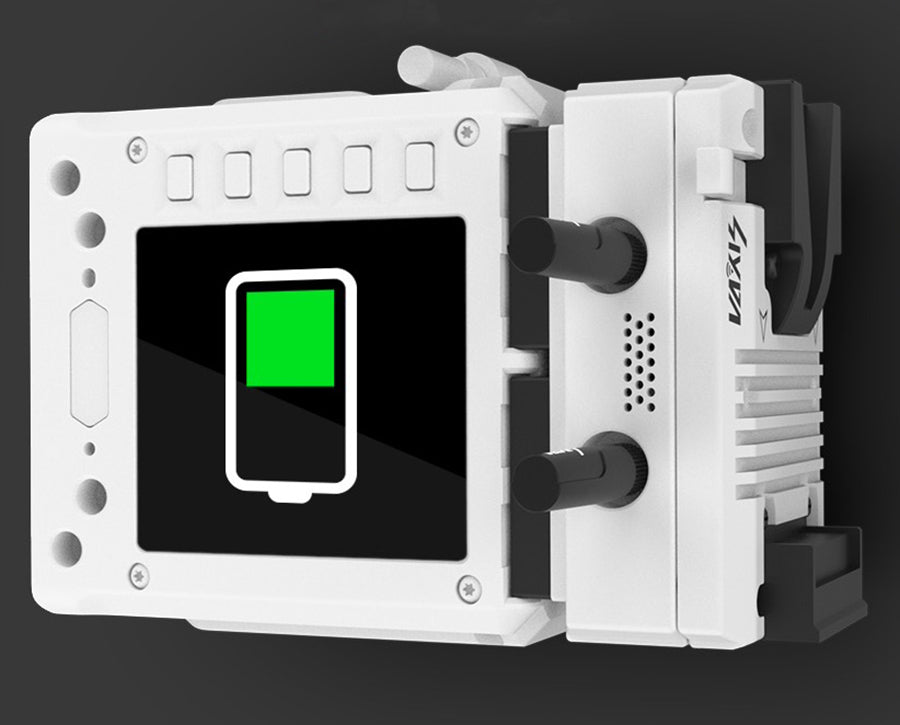

Having passed the RED Battery communication protocol, it accurately reads the voltage and power status.
Wirelessly transmit and receive up to 1080p60 video to monitor your RED KOMODO camera with this ATOM 600 KV Wireless TX/RX Kit from Vaxis. This transmitter and receiver kit allows you to wirelessly transmit 1080p60 video signals to the Vaxis ATOM 500 SDI receiver with less than 80 ms latency. The transmitter sends a powerful line-of-sight signal up to 600'.
The transmitter features one SDI input and SDI and HDMI loop outputs, and it also supports multicast over Wi-Fi to up to three mobile iOS devices using the Vaxis Vision app for monitoring. The ATOM 500 receiver features one SDI and one HDMI output for a monitor, switch, or other video destination. They both feature a bright, clear OLED display and both feature smart cooling fan that can be turned on and off to prevent noise during your production.
The transmitter mounts onto the KOMODO's dual-battery plate and powers using a V-mount plate for a separately available high-capacity V-mount battery, and it will also pass through power to the camera. The plate can be installed in a horizontal or vertical configuration that can be changed by the user by removing four screws on the battery plate. The receiver is powered using a USB Type-C power source or by using its L-series battery plate.
Features:
- Transmitter unit transmits up to 1080p60 wireless video up to 600' line of sight
- Transmits with less than 80 ms latency
- Transmitter features one SDI input and SDI and HDMI loop outputs; receiver features one SDI and one HDMI output
- TX powers using a single, separately available V-mount battery that passes power through to the dual battery plate
- RX powers using a USB Type-C power source or using L-series battery plate
- Multicast support for transmitting video via Wi-Fi to up to three iOS devices running the Vaxis Vision app
- Adjustable cooling fan that can be turned on and off
- Bright OLED screen
Specifications:
| Wireless Range | 600' / 182.9 m (Line-of-Sight) |
| # of Channels | 13 |
| Frequency Range | US: 5.1 to 5.9 GHz |
| Latency | < 80 ms |
| RF Power | 17 dBm |
| RF Sensitivity | -80 dBm |
| Wireless Video Compression | Compressed |
| Transmitter Video Connectors | 1 x BNC (3G-SDI) Input 1 x HDMI Loop Output 1 x BNC (3G-SDI) Loop Output |
| Receiver Video Connectors | 1 x BNC (3G-SDI) Output 1 x HDMI Output |
| Transmitter USB Port | 1 x USB Type-C: Firmware Update only |
| Receiver USB Port | 1 x USB Type-C: Input 5V 2A / Firmware Update |
| Embedded Audio | HDMI: 2-Channel SDI: 2-Channel |
| Broadcast System Compatibility | NTSC, PAL |
| Video Format | HDMI: 1080p at 24, 25, 30, 50, 60 fps 1080i/720p at 50, 60 fps SDI/BNC: 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1080PsF at 23.98, 24, 25, 29.97, 30 fps 1080i at 50, 59.94, 60 fps 720p at 50, 60 fps |
| Timecode | Yes |
| LUT Support | None |
| Transmitter Panel Type | OLED |
| Receiver Panel Type | OLED |
| Transmitter Battery Support | 1 x V-Mount |
| Receiver Battery Support | 1 x Sony L-Series / NP-F Type |
| Transmitter Power Consumption | Device: 5 VDC (6.5 W) |
| Receiver Power Consumption | Device: 5 VDC |
| Transmitter Dimensions | 3.8 x 2.9 x 2" / 96.5 x 74 x 50.4 mm |
| Receiver Dimensions | 4.13 x 2.5 x 0.79" / 10.5 x 6.35 x 2 cm |
| Transmitter Weight | 14.1 oz / 400 g |
| Receiver Weight | 4.6 oz / 130 g |
Package Contents:
600KV TX Only (533798):
1x VAXIS ATOM 600 KV Wireless Video Transmitter TX (White)
1x VAXIS ATOM 600 KV Wireless Video Receiver RX (White)
2x Antenna
2x SDI Cable
600KV TX + A5H RX Monitor (PK1652):
1x 600KV TX Only Kit (533798)
1x VAXIS ATOM A5H RX Wireless Monitor (534595)
