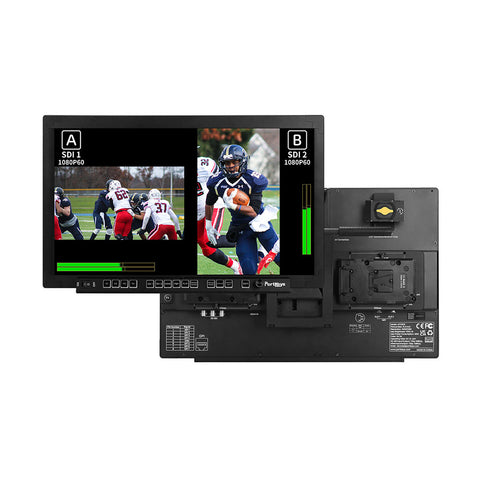

PortKeys MT22-DS 21.5″ Dual View Cinema Production Monitor
- Brand: PortKeys
- SKU: MT22-DS
- Product code:
Split Screen Monitoring
Two screens can load the same 3D LUT file, support dual horizontal/dual vertical/left horizontal and right vertical/left vertical and right horizontal/ left horizontal and right vertical cropping of the same source
Note: Left and right screens can be flipped individually and mirrored
Custom JPG Picture Freeze Frame
After capturing an image, it can be compared with real-time video by semi-transparent image superposition
Note: Must be a 16:9 1920×1080 jpg image
Wireless Video Transmission Power Supply Plate
Supports NPF battery wireless video transmissio and V-port battery wireless video transmissio with 90°/180°/270° adjustment
CNC Aluminum Alloy All-metal Shell
With fast heat dissipation and high durability
3D LUT HDMI Output
HDMI, 3G-SDI can output video after loading 3D LUT
Anamorphic Lens Calibration
Supported Ratio: 1.00X/1.33X/1.42X/1.50X/1.60X/1.66X/1.85X/2.00X/2.35X User-defined adjustment range: 0.25X-4.00X
HDMI to SDI Output
Built-in signal conversion, no external signal conversion box required
48V Phantom Audio Embedded SDI Output
Standard 4-pole XLR connector
Brightness and RGB Signal Detection Before/After Loading 3D LUT
Loading 3D LUTs for better picture quality and more intuitive monitoring
Customized Peaking Range(Peaking Frame)
Peaking perfectly avoids rendering camera parameters
Custom Rectangular Image Crop
Easily and clearly monitor the details of your images
Factory Color Calibration-709 colour gamut with X-Rite 1D hardware
More accurate color calibration and more intuitive image monitoring
Package Contents:
1x MT22DS Monitor
1x Folding Holder
1x Power Cable 12V8A
1x M2.5 Inner Allen Key
1x Crystal Drop Rubber Button
1x Micro USB Flash Drive
