OSEE Megamon 15 15.4inch 10bit 1000nits HDR Field Studio Production Monitor Kit

OSEE Megamon 15 15.4inch 10bit 1000nits HDR Field Studio Production Monitor Kit

Regular price £725.00 ex VAT
£870.00 inc VAT
£725.00 ex VAT
0% OFF
£870.00 inc VAT
Product Code:  535866 SKU: Megamon 15
View full details

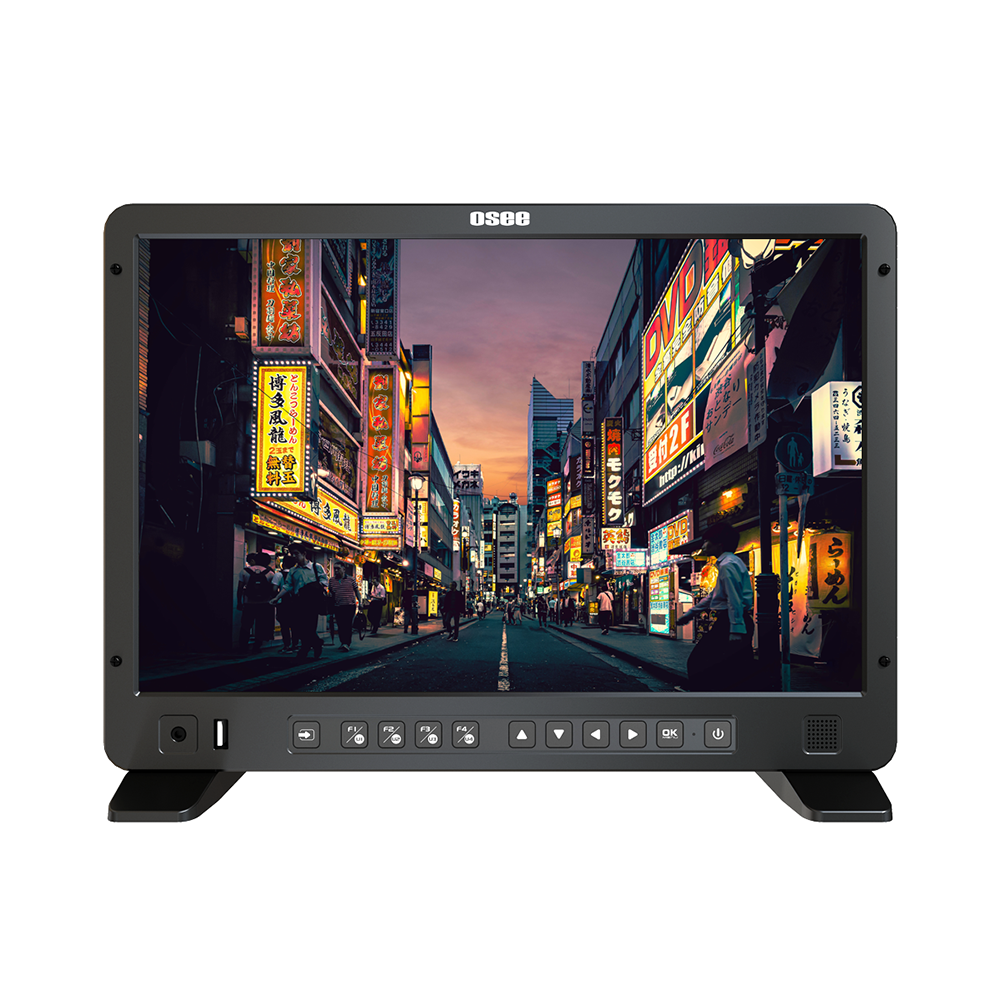

1000nits Brightness
Megamon 15 is a 1920*1200 FHD display which adopts an IPS screen of 1000 nits to achieve daylight visibility, a perfect brightness for production on location and in studio. Combined with a contrast ratio of 1450:1, it's also suitable for HDR preview. And this panel features a super wide viewing angle of 178 degrees with little to no image distortion and color shift.


Accurate Color Performance

By a color depth of 10 bit, Megamon 15 can produce over 1.07 billion colors and cover 100% Rec709 color gamut, and with a color engine of osee, it can generate a really natural and vivid image on screen. Megamon 15 is also equipped with the capability of accurate color calibration, with a color calibration probe and tools osee provides, it can be calibrated to Rec709 standard at anytime anywhere.

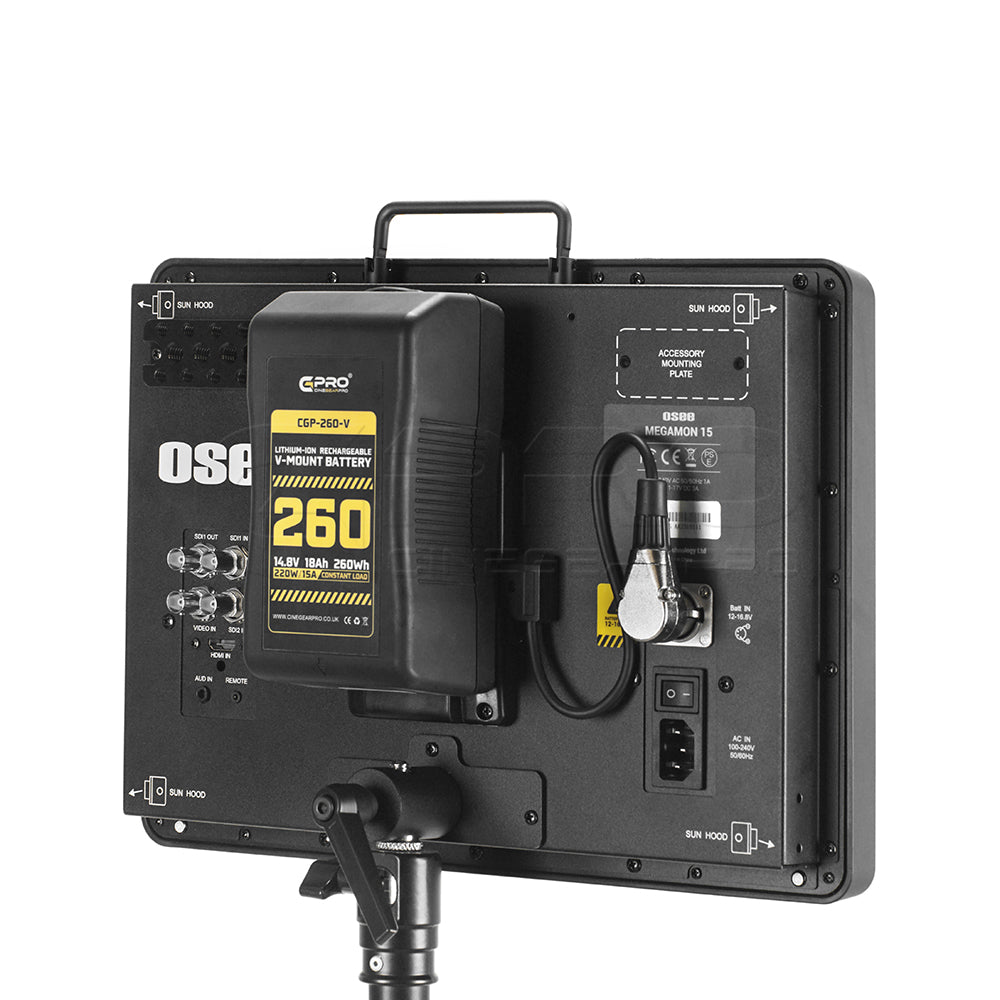

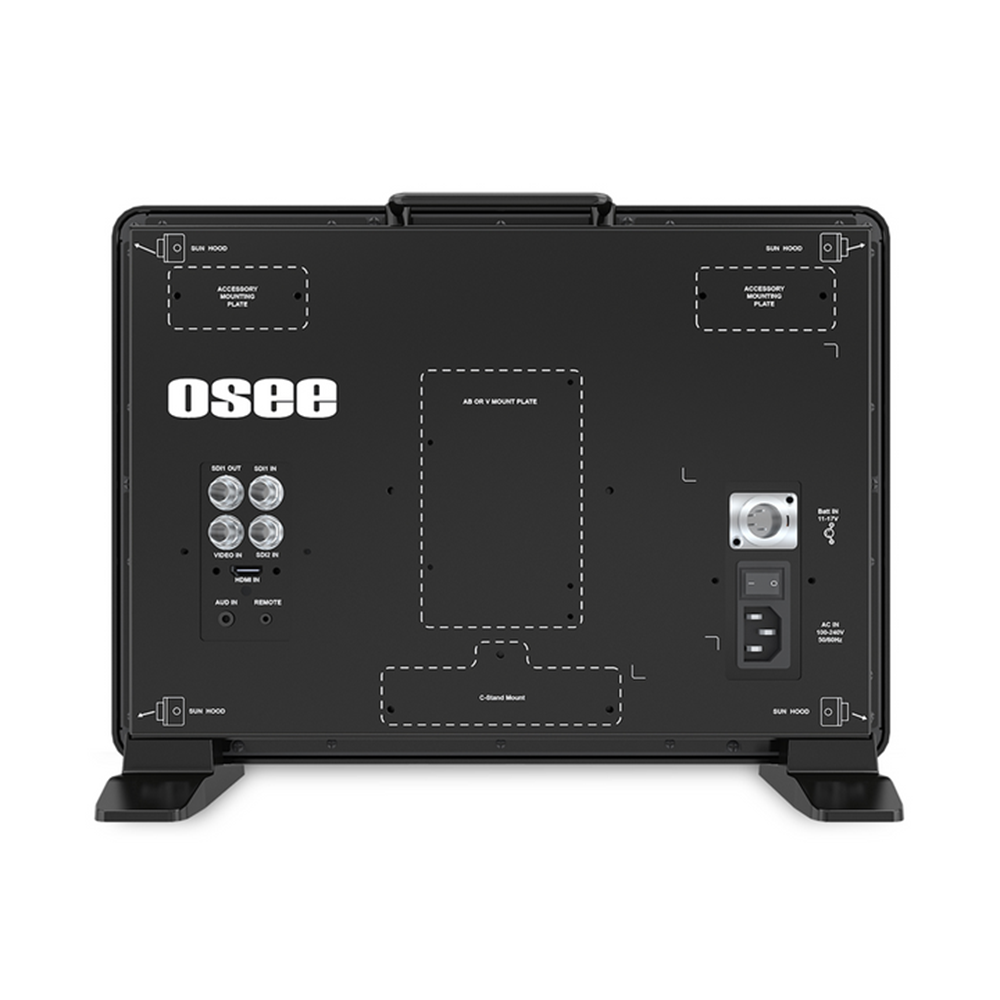

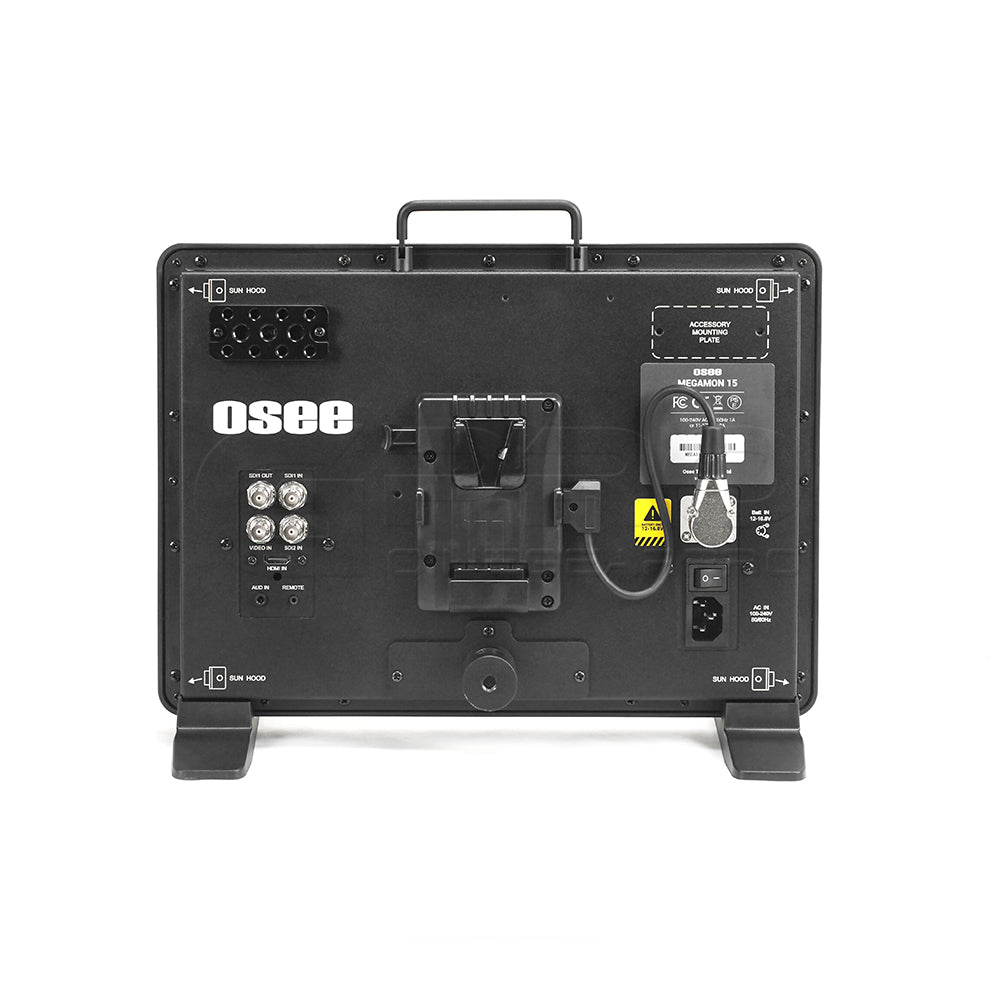

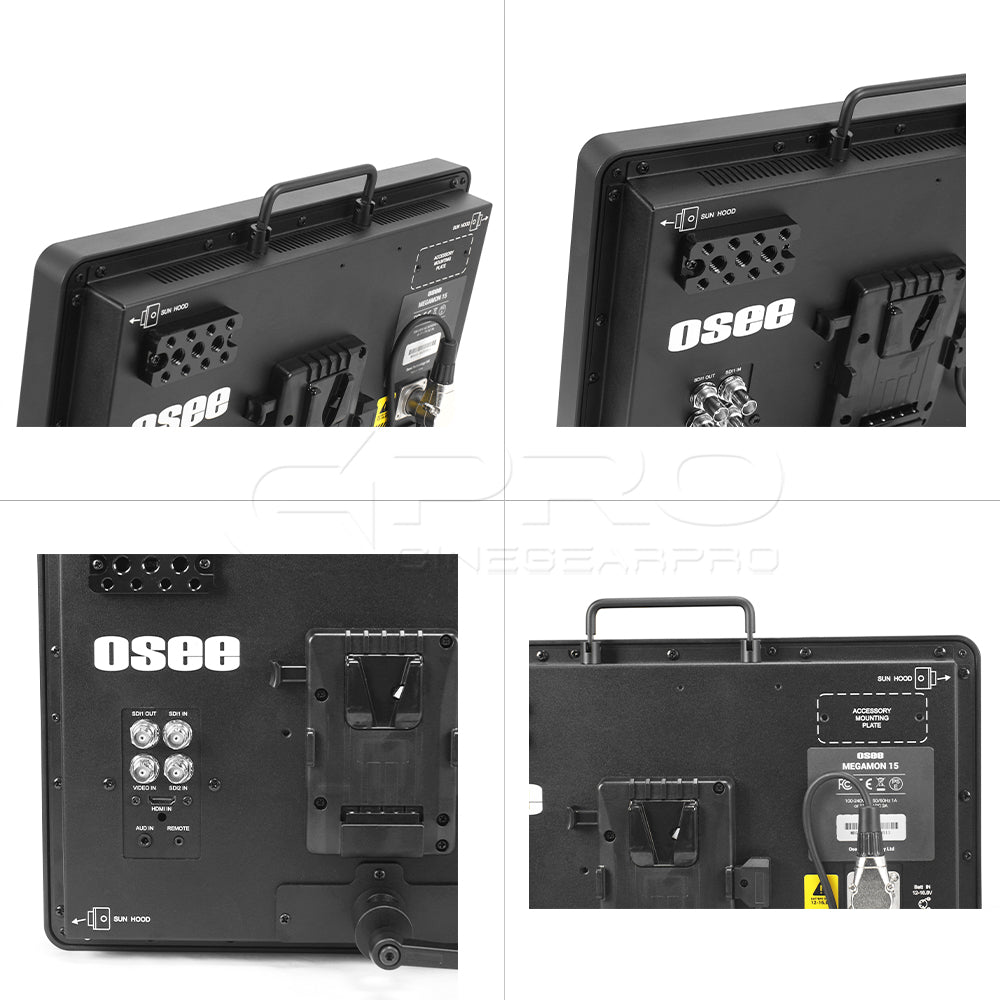

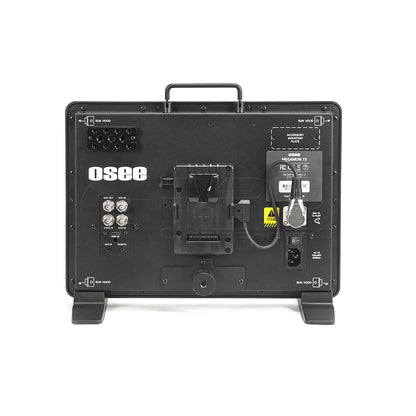

Various Connectors

Megamon 15 is equipped with various interfaces to meet the different needs of filmmakers on set. For power, there's AC and DC options, for mounting, there's C-stand adapter and VESA mount options. For signal, there's SDI and HDMI options. There are also cheese plate mounting positions for mounting extra accessories like video transmitters etc.



Full Set of Video Assist Tools

Waveform, false color, focus assist, histogram, anamorphic etc. Megamon 15 has a full set of professional image assisting tools to help you nailing framing, exposure, focus and audio accurately. It also has built-in SDR and HDR(HLG/PQ) LUTs of different camera curves for realtime LUT preview when shooting LOG, you can add your favorite custom LUT via USB as well. With user presets, these functions can be turned on or off on location quickly.

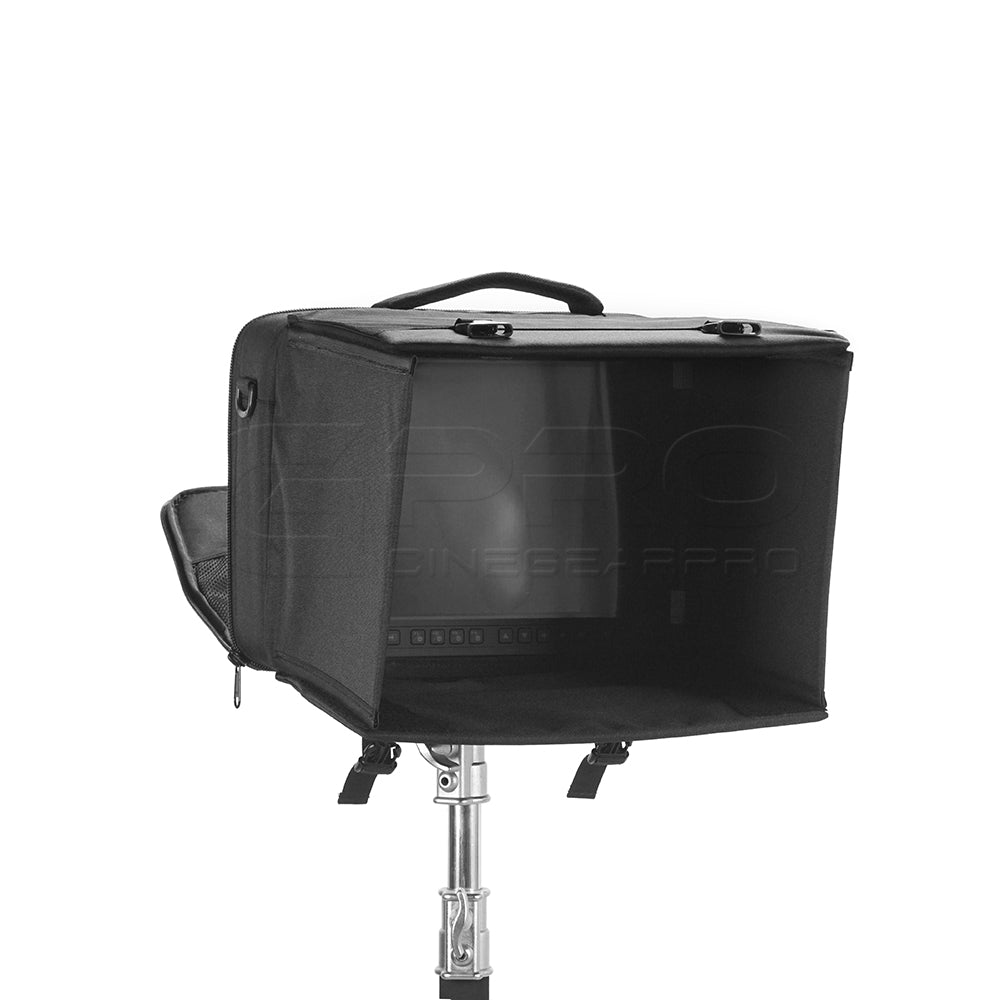

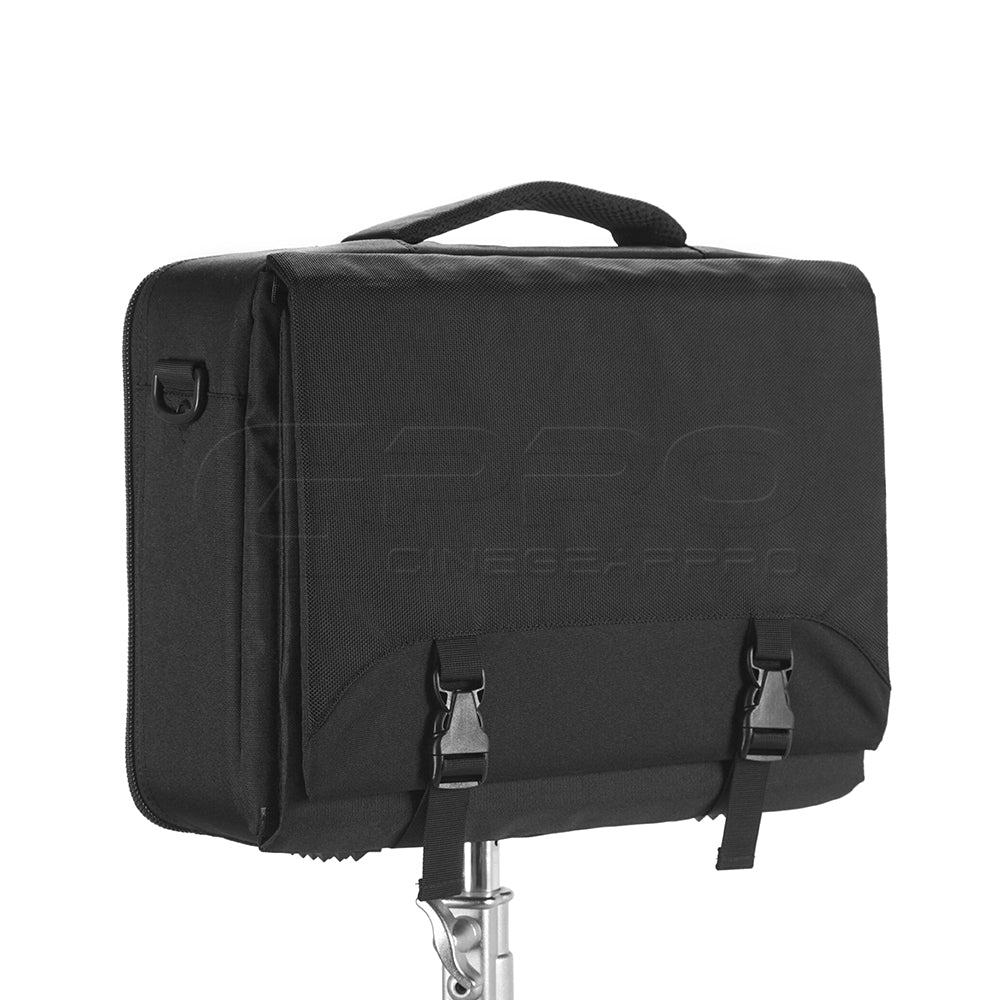

Convenient Portable Bag

Megamon 15 comes with a very convenient portable bag which can be put on a C-stand, what’s more, the front can be transformed into a sun hood and the back can be opened to adjust the connected accessories. It's a perfect tool for easy transportation and run&gun gigs.



Specifications:

Hardware
Display
Panel Size 15.4inch
Resolution 1920X1200
Aspect 16:10
Brightness 1000nits
Backlight White LED
Backlight Life 20000 Hrs Minimun
Contrast 1450:1
Color Depth 1.06G
Response Time 18ms
Viewing Angle 178˚
Data I/O
USB Slot 3D LUTs upload and Firmware Upgrade (USB under 16G and formatted to FAT32 is recommended)
Remote 2.5mm Jack
Environmental
Work Temperature 0°C~40°C
Dimensions 368.9mmx264.9mmx54.5mm
Weight 3.7kg (bare monitor)
Mounting Style Vesa Mount(retail)/C-stand Mount
Power
AC 100~240V 50/60Hz
DC Battery 11~16.8V
Power Consumption 29.3W
Software
Video Format
HDMI (10-Bit 4:2:2 YCC) 720p: 60/59.94/50 1080i: 60/59.94/50 1080PsF: 30/29.97/25/24/23.98 1080p: 30/29.97/25/24/23.98
SDI (10/12-Bit 4:4:4/4:2:2 RGB, YCC) 480i: 60 576i: 50 720p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K: 48/47.95/30/29.97/25/24/23.98 DCI 2K PsF: 30/29.97/25/24/23.98
Composite (10-Bit 4:2:2 YCC) 480i: 60 576i: 60
Color Management
Camera LUT 30 SDR&14 HDR LUTs, Detailed in User Manual
Load LUT File USB, Up to 16 User LUTs can be Stored
Gamma PQ, HLG
Color Temperature D55, D61, D65, D93, DCI, User1, User2
Color Space ITU709, EBU, SMPTE-C, Native, P3, ITU2020
Color Calibration Calman (osee calibrator will be released later) with Xrite i1 Display Pro/Plus
Audio Tools
Audio Source Embedded/External/No Signal
Speak Out L/R Select Channels for Left or Right Speaker, Embedded Signal Only
Meter Display
Meter Select CH1-2/G1/G2/G3/G4/G1+G2/G1+G3/G1+G4/G2+G3/G2+G4/G3+G4/G1-G4
Meter Position Left/Right
Display Mode Simple/with Channel Number&Frame
Meter Opacity Value 0-100 Adjustable
Frame Tools
Aspect 16:9/4:3/15:9/14:9/13:9/1.85:1/2.35:1/Variable(Value 1.00-3.00 Adjustable)/Off
Center Marker On/Off
Area Marker 80%/85%/88%/90%/93%/95%
Crosshatch On/Off
Marker Fit On/Off
Marker Level On: Area Marker Based on the Current Input/Off: Area Marker Based on the Aspect Marker
Marker Mat Darkness of the Outside Area of Aspect Marker Off/Half/Black
Scope Tools
Waveform Mode:LUMA/RGB/Parade; Size&Location:Small&Left UP/Left Center/Left Down/ Center Up/Center Down/Right Up/Right Center/Right Down, Middle&Right Down/Center Down/Left Down, Large&Center Down; Opacity: 25%/50%/75%/100%
Vectorscope Location:Left UP/Left Center/Left Down/ Center Up/Center Down/Right Up/Right Center/Right Down; Opacity: 25%/50%/75%/100%
Histogram Mode: LUMA/RGB; Location: Left UP/Left Center/Left Down/ Center Up/Center Down/Right Up/Right Center/Right Down; Opacity: 25%/50%/75%/100%
Exposure Tools
False Color Spectrum/SONY Slog3/SONY Slog2/ARRI LogC/Canon Clog2/Canon Clog3/Panasonic Vlog/RED RedLogFilm/RED RL3G10/BMD/BMD 4K/ARRI Rec709/SONY LC709A/SONY LC709/Panasonic V709/RED G3 and RED G4
Zebra Level 1-100 Adjustable
Focus Tools
Focus Assist Red/Green/Blue/Mono; Sensitivity Value 0-100 Adjustable
Peaking Level 1-16 adjustable
Other
Anamorphic 1X/1.33X/1.5X/1.66X/1.8X/2X/2XMAG/Off
Blue Only Blue/Green/Red
IMD Display Protocol: TSL3.1/TSL4.0/Local; Color:Red/Green/Yellow; ID Number:0-255; Baud Rate: 2400/4800/9600/19200/38400/57600/115200
Key Inhibit On/Off
Mono On/Off
Mute On/Off
Osd Time 10/30/60s
Scan On/Off

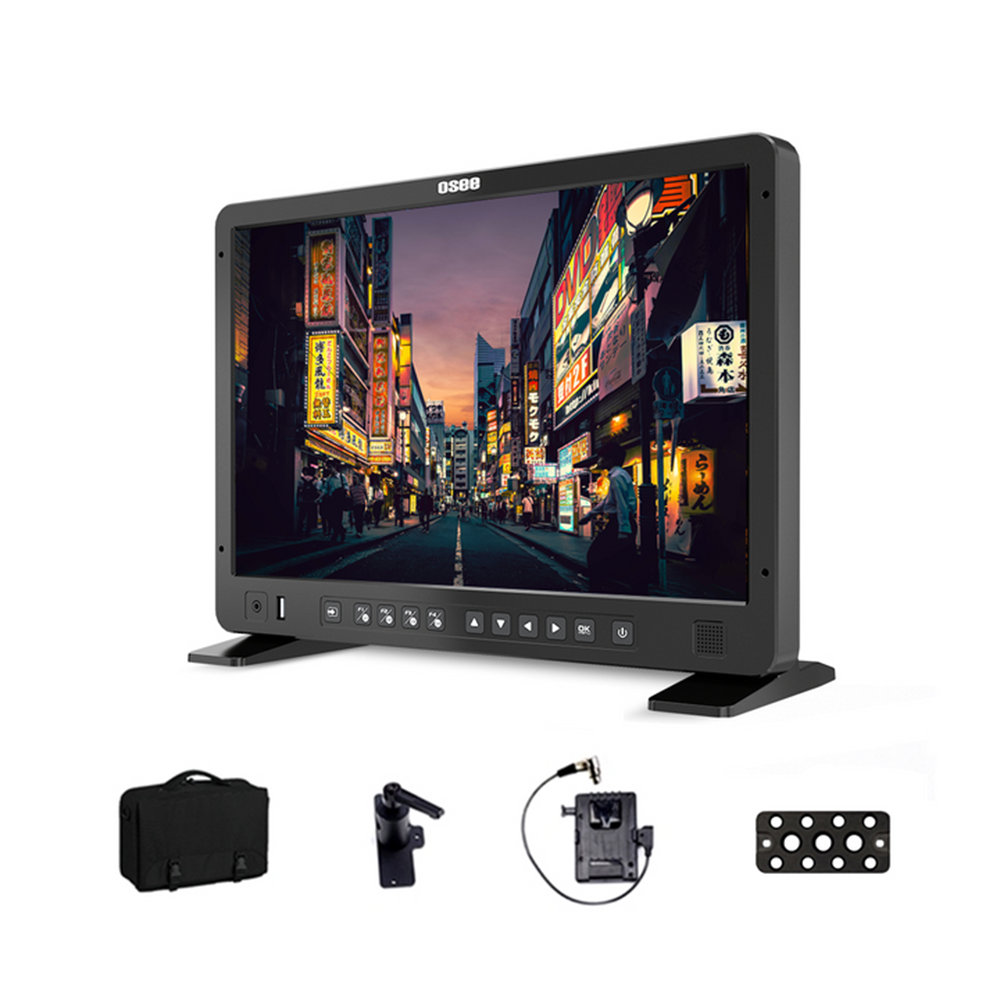

Package Contents:

1x Megamon 15 Monitor
1x Portable Bag
1x V-mount Battery Plate
1x C-stand Adapter
1x Cheese Plate
1x Desktop Stand Feet
1x Power Cable
