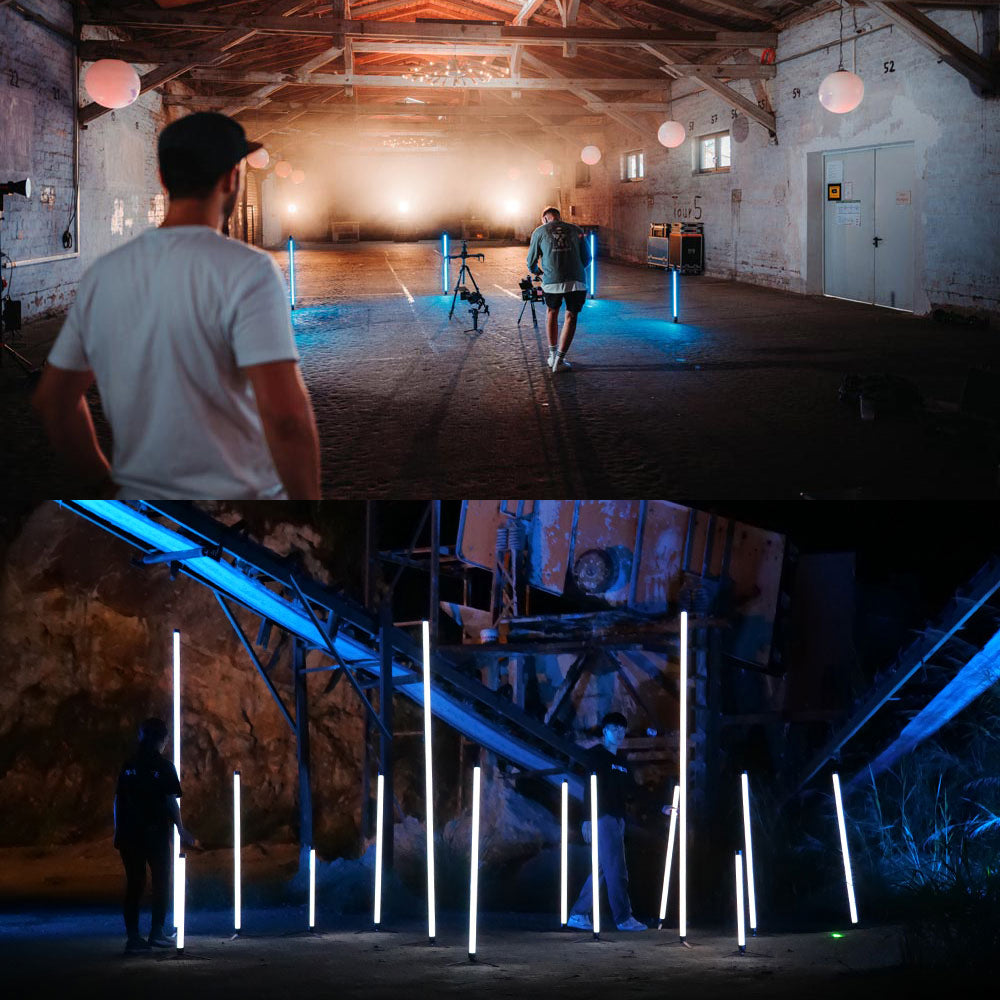

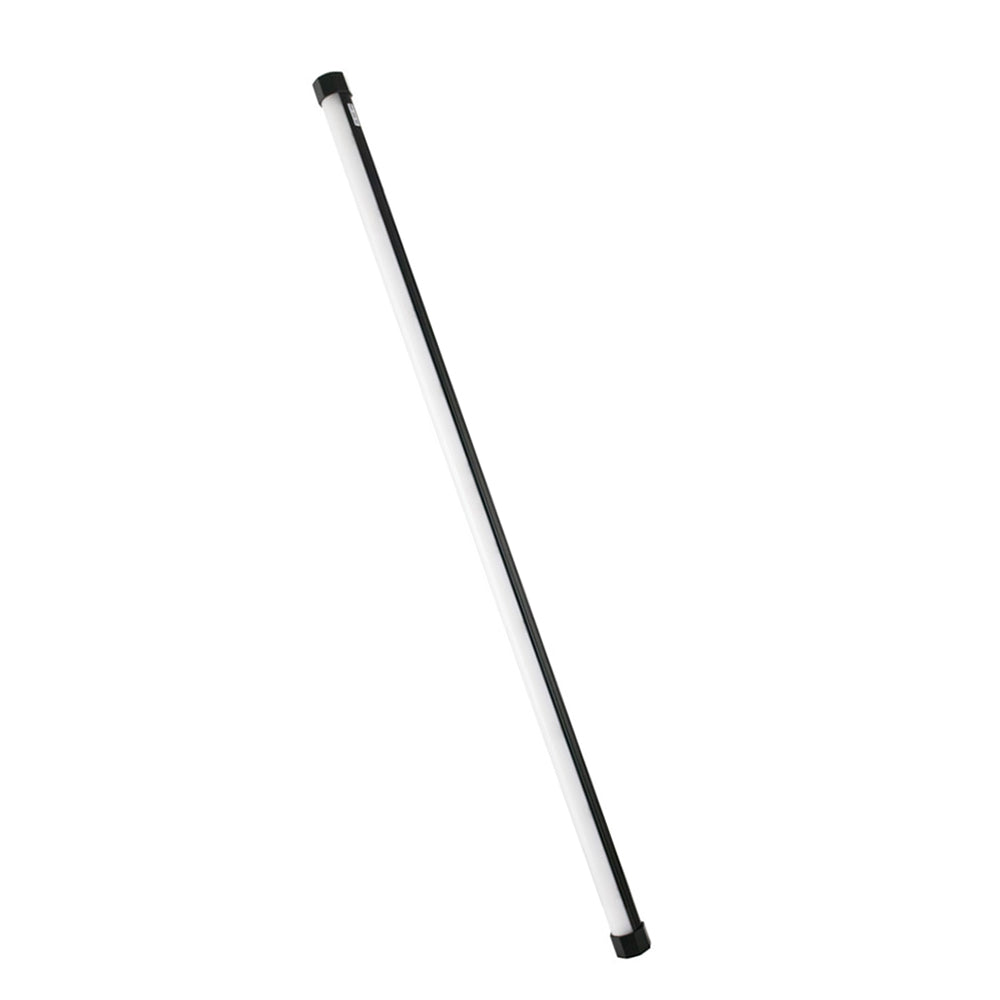

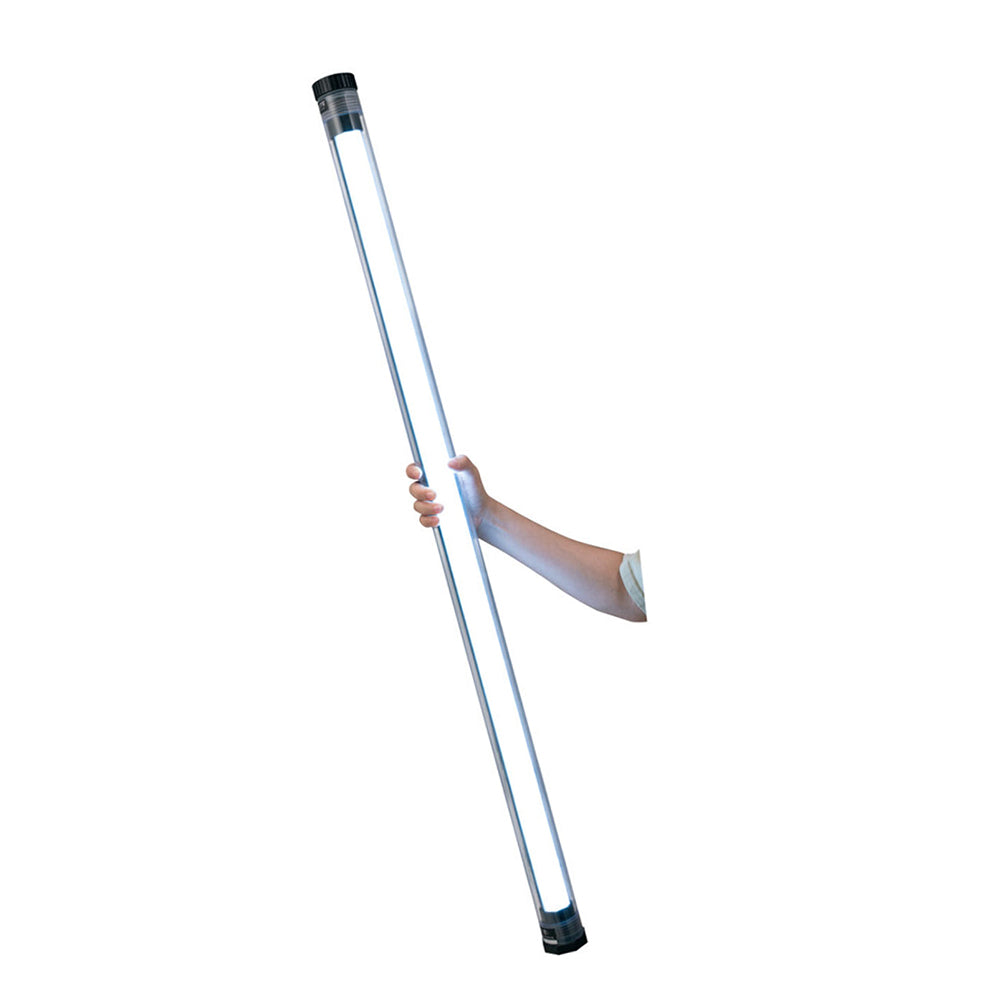

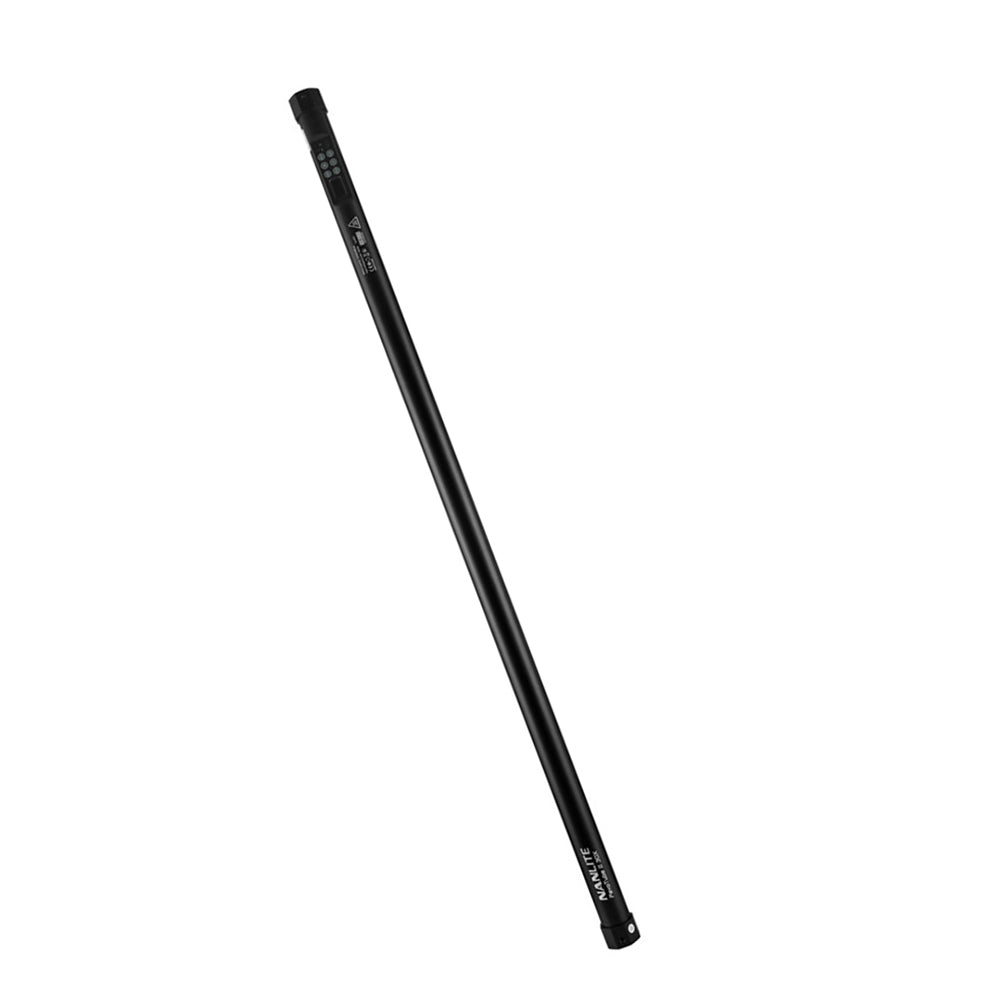

With its 1.7" diameter and T12 form factor, this PavoTube II 30X RGBWW LED Pixel Tube from NanLite measures 4' and is ideal for hiding unobtrusively in small areas on a set or for shooting in vehicles such as cars, boats, or planes. Not just fun to use, this fixture has serious professional color, control, and power features to make it a valuable asset for anyone.
With an expansive CCT color range of 2700-12,000K, it can handle any ambient light situation or match other fixtures. An RBG mode with green/magenta adjustment gives you access to literally millions of colors and hues to fit your requirements. The 30X runs on an internal, rechargeable Li-ion battery that gives you 1.5 hours of runtime at full power on a two hour and 40 minute charge. Since the tube has a receiver you can control its functions wirelessly via DMX, 2.4 GHz, or Bluetooth.

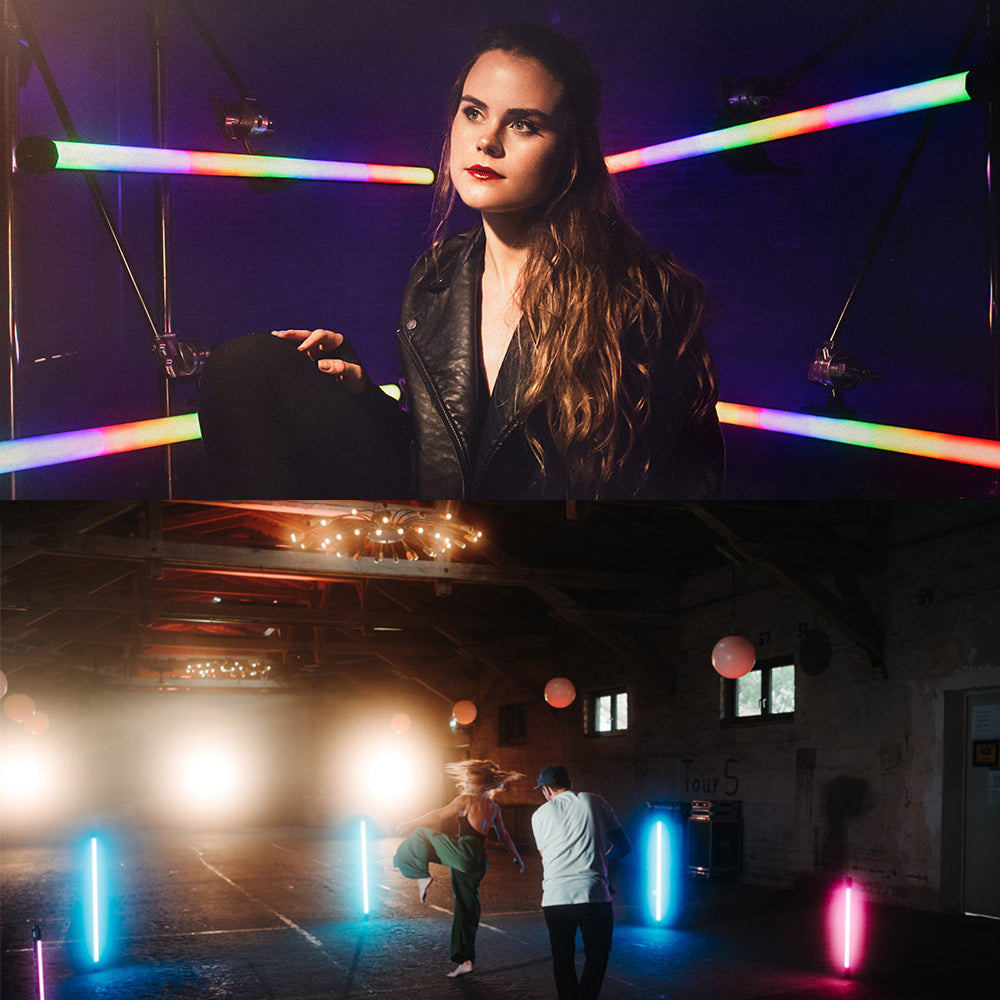

Color and Effects
A second-generation LED tube refined based on feedback from creators around the globe. Featuring 0 to 100% dimming, an output of 377 lux @ 3.28' (5600K), an average CRI of 95, an average TLCI of 98, adjustable color temperature from 2700-12000K with green/magenta adjustment. It also has full spectrum RGB, 15 practical special lighting effects, and 10 pixel-based lighting effects
Next Generation
The Nanlite PavoTube II RGBWW LED Pixel Tubes are the next evolution of Nanlite's signature light fixtures. These second-gen LED tubes have been refined based on feedback from creators around the globe with features including DMX compatibility and enhanced app control
No Cords Needed
Powered by an internal 4400mAh Li-ion battery, the PavoTube II 30X has a runtime of 1 hour and 36 minutes at full brightness while being completely untethered. Full battery recharge is achieved in 2 hours and 40 minutes via the included AC adapter, which can also power the PavoTube II 30X during longer shoots

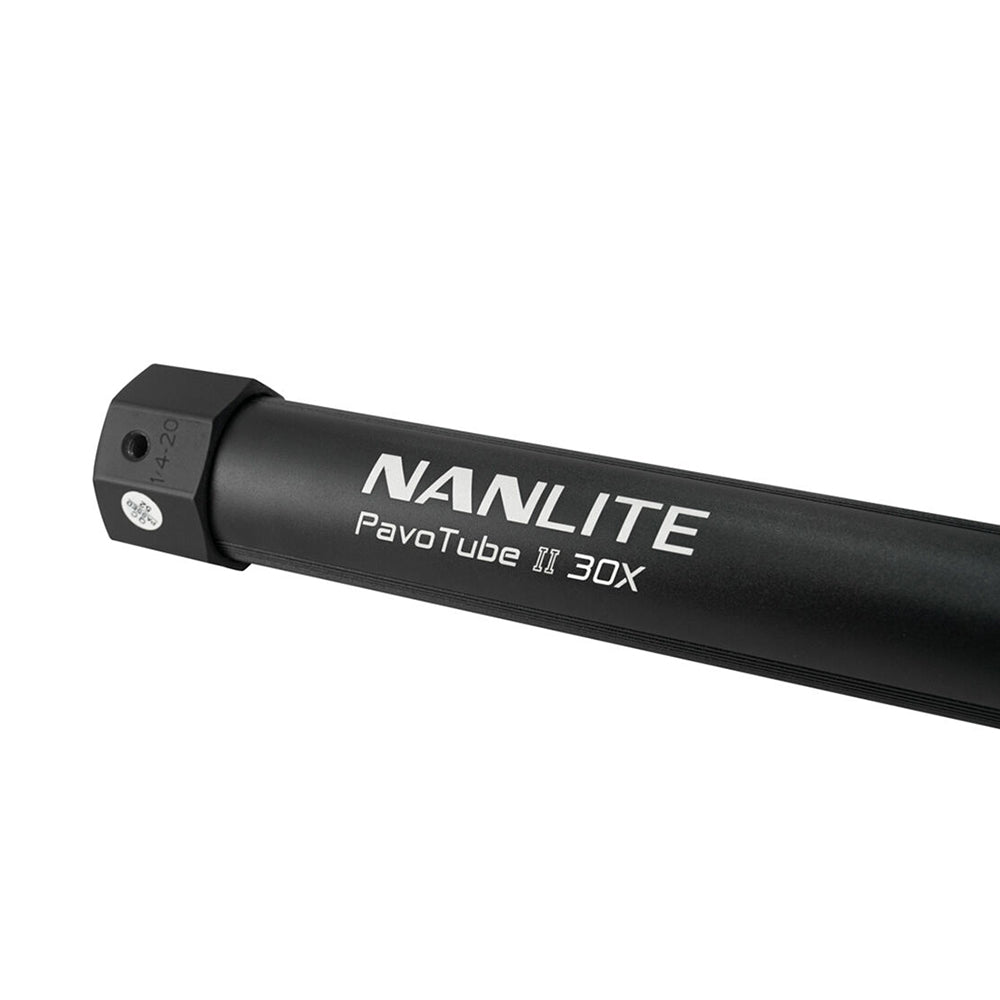

Robust Metal Housing

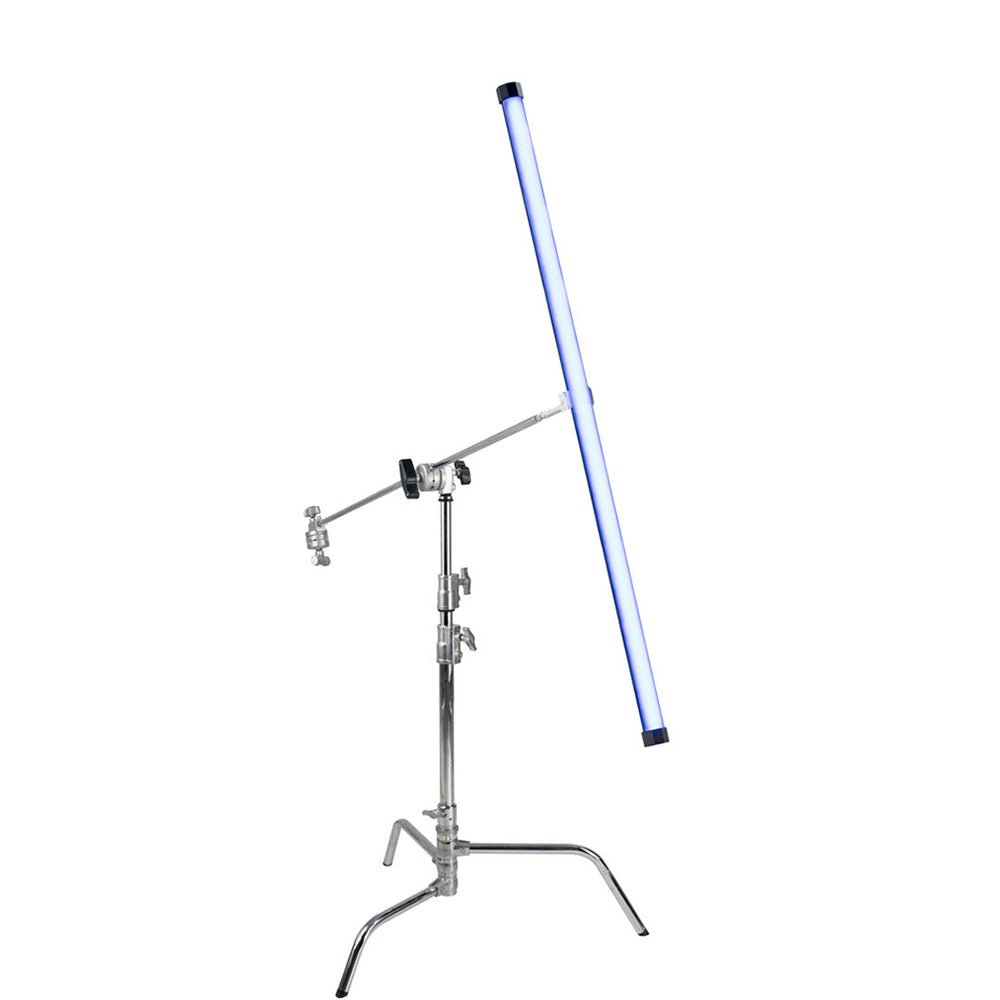

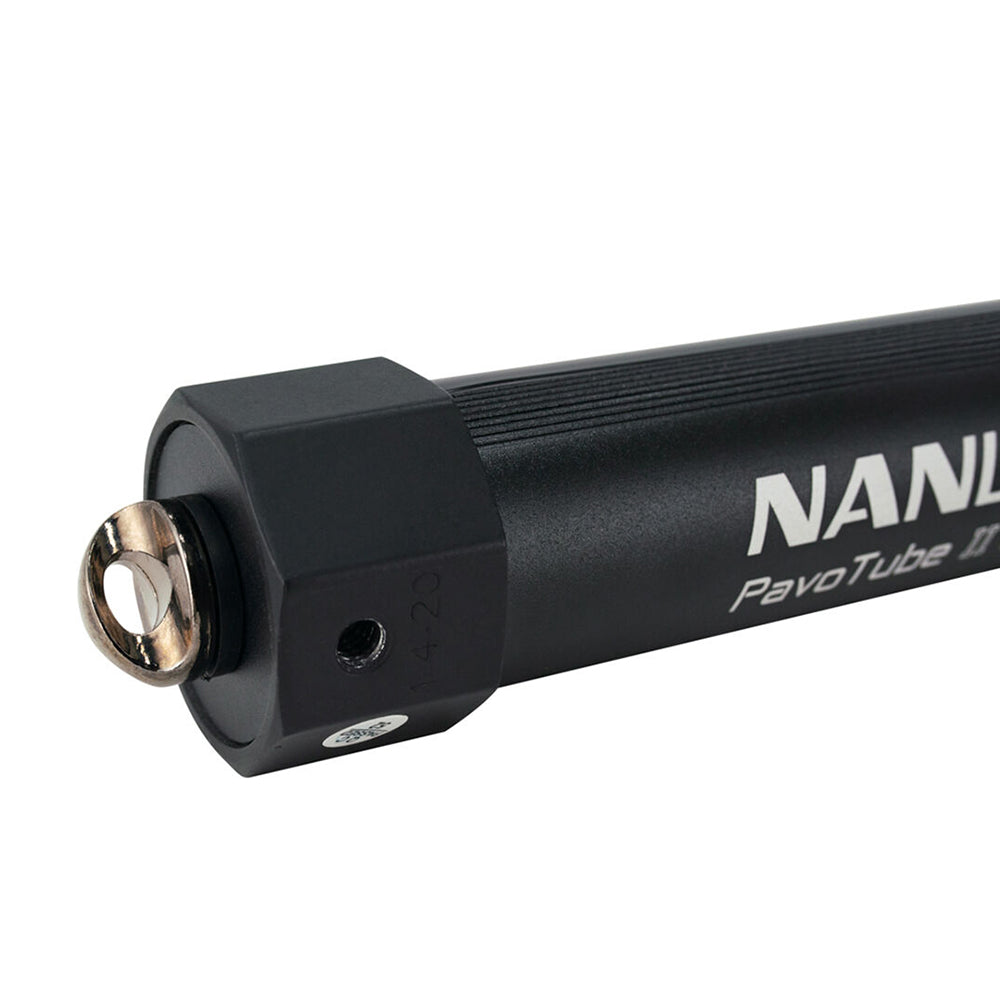

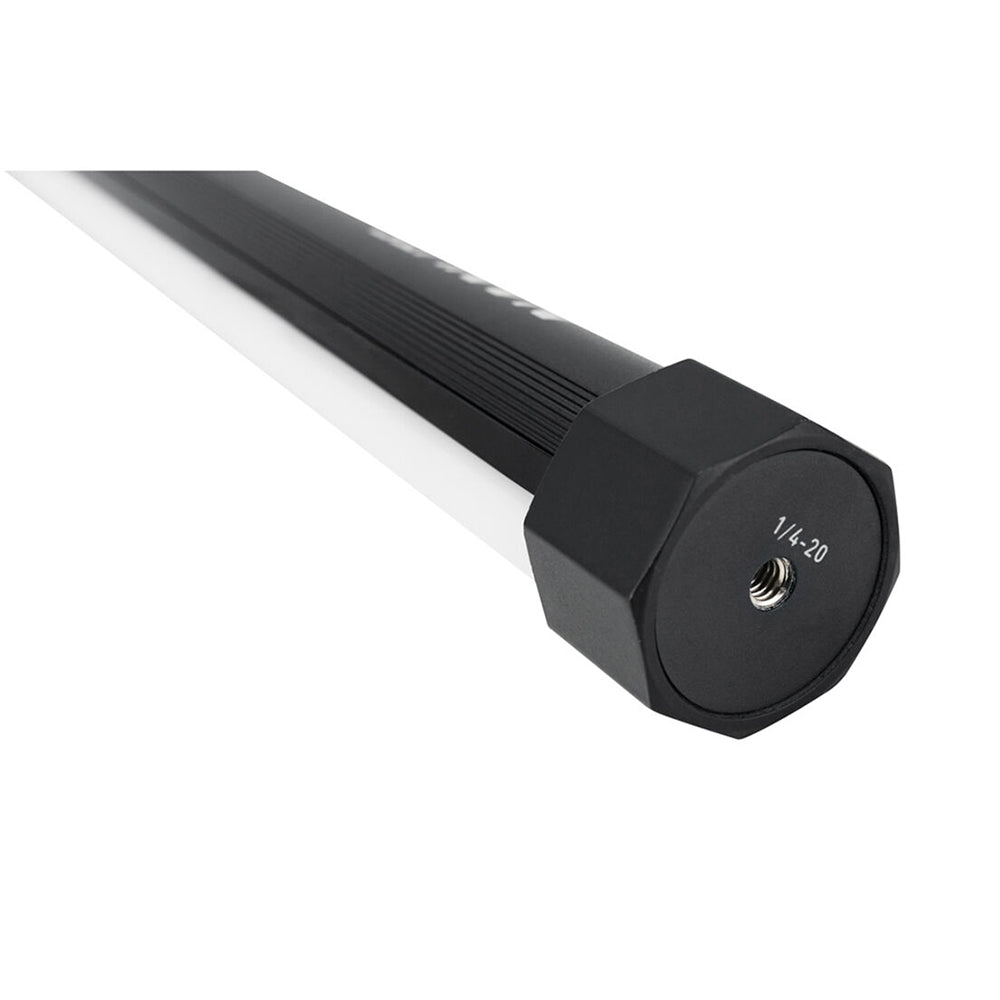

Upgraded metal housing makes worrying about an accidental drop or risky light placements a thing of the past. Three incorporated 1/4"-20 receivers expand mounting options
Basic Kit Features:
- Color Temp: 2700-12000K, CRI/TLCI: 95/98
- RGB Mode for a Myriad of Custom Colors
- Wireless 2.4 GHz, Bluetooth, DMX Control
- Built-In Rechargeable Li-Ion Battery
- All Metal Housing

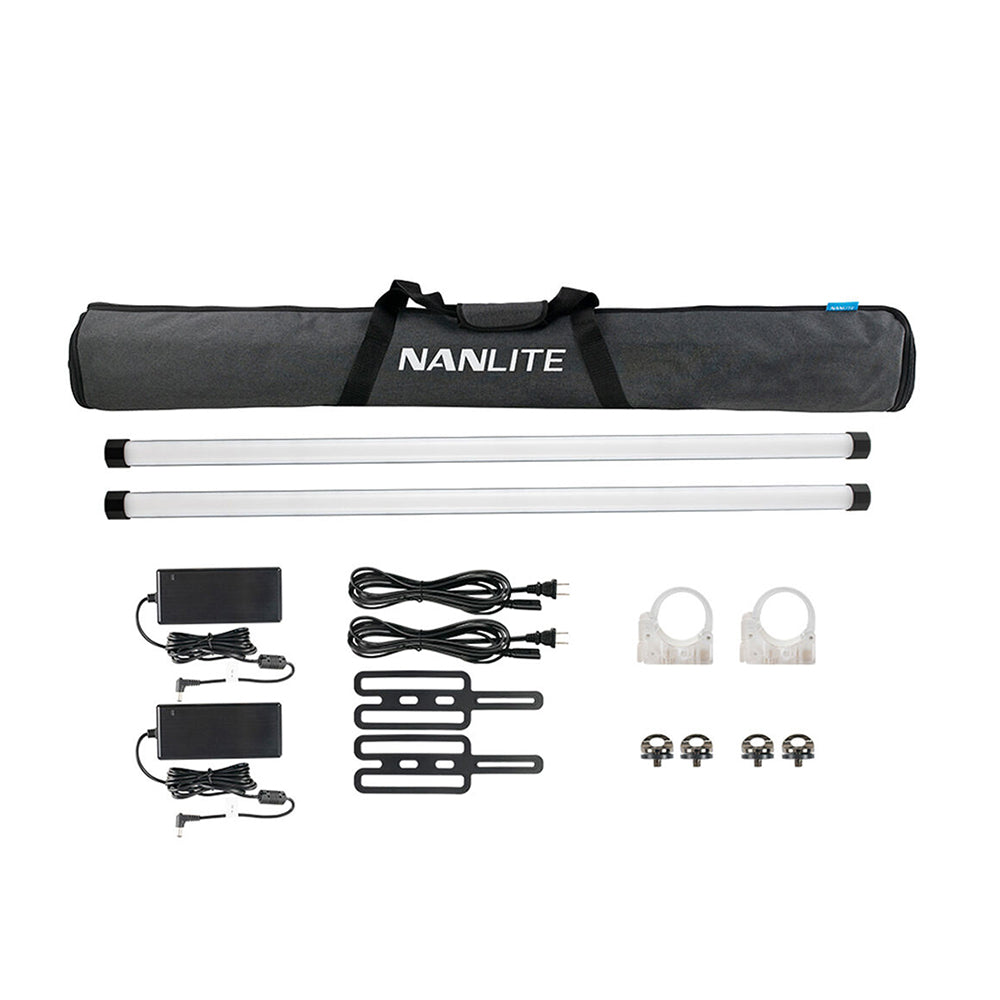

Dual Light Kit Features:
- Two 4' PavoTubes
- Two Power Cables, Two Carry Bags
- Color Temp: 2700-12000K, CRI/TLCI: 95/98
- RGB Mode for a Myriad of Custom Colors
- Wireless 2.4 GHz, Bluetooth, DMX Control
- Built-In Rechargeable Li-Ion Battery
- All Metal Housing
Four Light Kit Features:
- Four 4' PavoTubes
- Four Power Cables, Four Carry Bags
- Color Temp: 2700-12000K, CRI/TLCI: 95/98
- RGB Mode for a Myriad of Custom Colors
- Wireless 2.4 GHz, Bluetooth, DMX Control
- Built-In Rechargeable Li-Ion Battery
- All Metal Housing
Specifications:
| Color Temperature | 2799K ± 12000K |
| Color Modes | Full RGB Tuning |
| Color Accuracy Standard | CRI 95 TLCI 98 |
| Cooling System | Passive |
| Dimming | Yes, 0 to 100% |
| Housing Material | Metal |
| Photometrics | 3200K: 63.9 fc / 688 Lux at 39.4" / 1 m 5600K: 69.3 fc / 746 Lux at 3.28' / 1 m 10000K: 67 fc / 721 Lux at 39.4" / 1 m |
| Circular Panel Size | 1.7" / 4.3 cm Diameter (Circle) |
| Fixture Dimensions | Flood: 1.7 x 45.0 x 3.3' / 51.8 x 1371.6 x 100.6 cm |
| Fixture Weight | 3.8 lb / 1.7 kg |
| Lens Material | Glass |
| Yoke Mount | None |
| Fixture Mount | 1/4"-20 Female |
| Remote Control Type | Bluetooth, Proprietary Wireless |
| AC Input Power | None |
| DC Input Power | 18.5 VDC at 4.4 A |
| Power Source | Integrated Battery |
| Max Power Consumption | 36 W |
| Run Time | 160 Minutes at Full Power |
| Cable Length | 9.8" / 24.9 cm |
| Cable Type | None |
| Package Weight | 8 lb |
| Box Dimensions (LxWxH) | 50 x 5.5 x 5.5" |
Illumination (lux / fc)
| PavoTube II 30X | |||
|---|---|---|---|
| Distance | 1M | 2M | 3M |
| 2700K | 686 lux / 64 fc | 174 lux / 16 fc | 78 lux / 7 fc |
| 3200K | 688 lux / 64 fc | 175 lux / 16 fc | 78 lux / 7 fc |
| 5600K | 746 lux / 69 fc | 189 lux / 18 fc | 84 lux / 8 fc |
| 6500K | 770 lux / 72 fc | 194 lux / 18 fc | 87 lux / 8 fc |
| R | 272 lux / 25 fc | 69 lux / 6 fc | 30 lux / 3 fc |
| G | 586 lux / 54 fc | 144 lux / 13 fc | 64 lux / 6 fc |
| B | 123 lux / 11 fc | 31 lux / 3 fc | 14 lux / 1 fc |

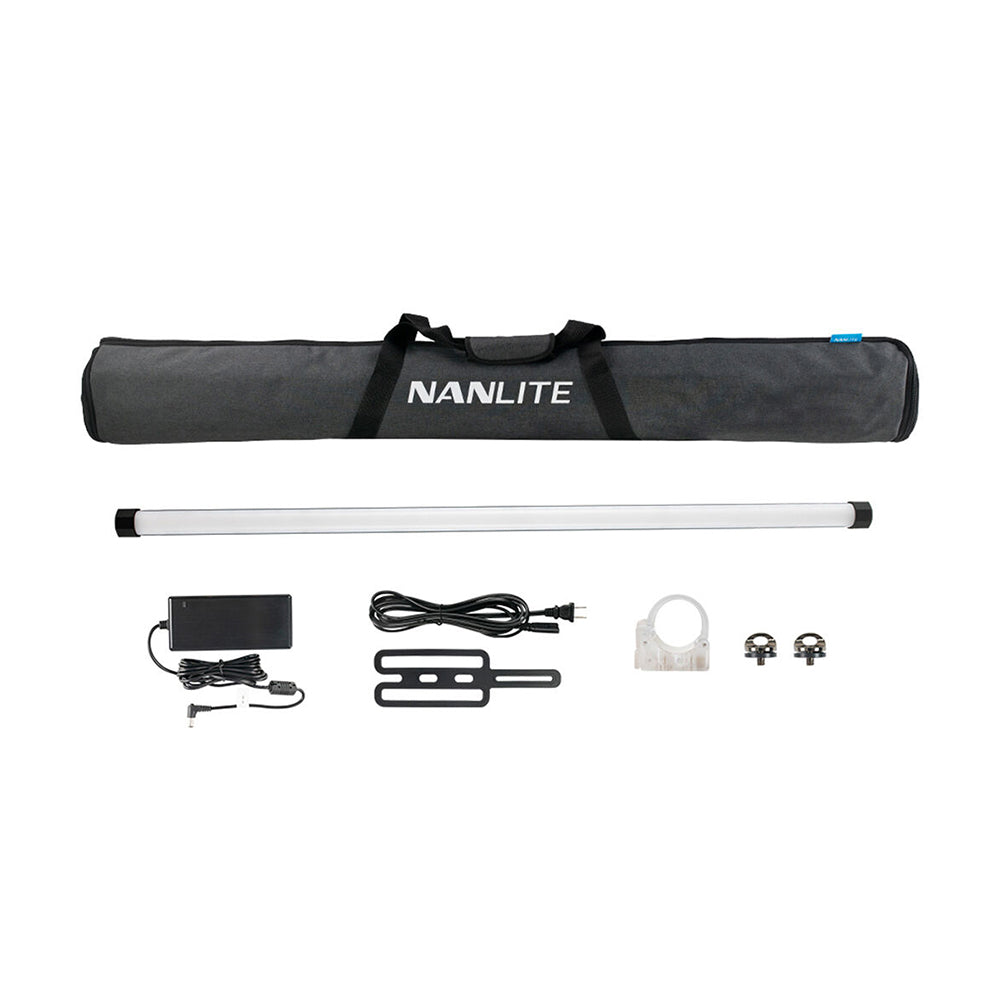

Package Contents:
Basic Kit (534560):
1x Nanlite PavoTube II 30X RGBWW LED Pixel Tube with Internal Battery
1x 9.8' Power Cable
1x Power Adapter Safety Strap
1x Transparent Polycarbonate T12 Clip
2 x 1/4"-20 Receiver
2 x 1/4"-20 Eye Bolt
1x Carrying Bag
2x Nanlite PavoTube II 30X RGBWW LED Pixel Tube 2-Light Kit with Internal Battery
9.8' Power Cable
2x Power Adapter Safety Strap
2x Transparent Polycarbonate T12 Clip
4x 1/4"-20 Receiver
4x 1/4"-20 Eye Bolt
1x Carrying Bag

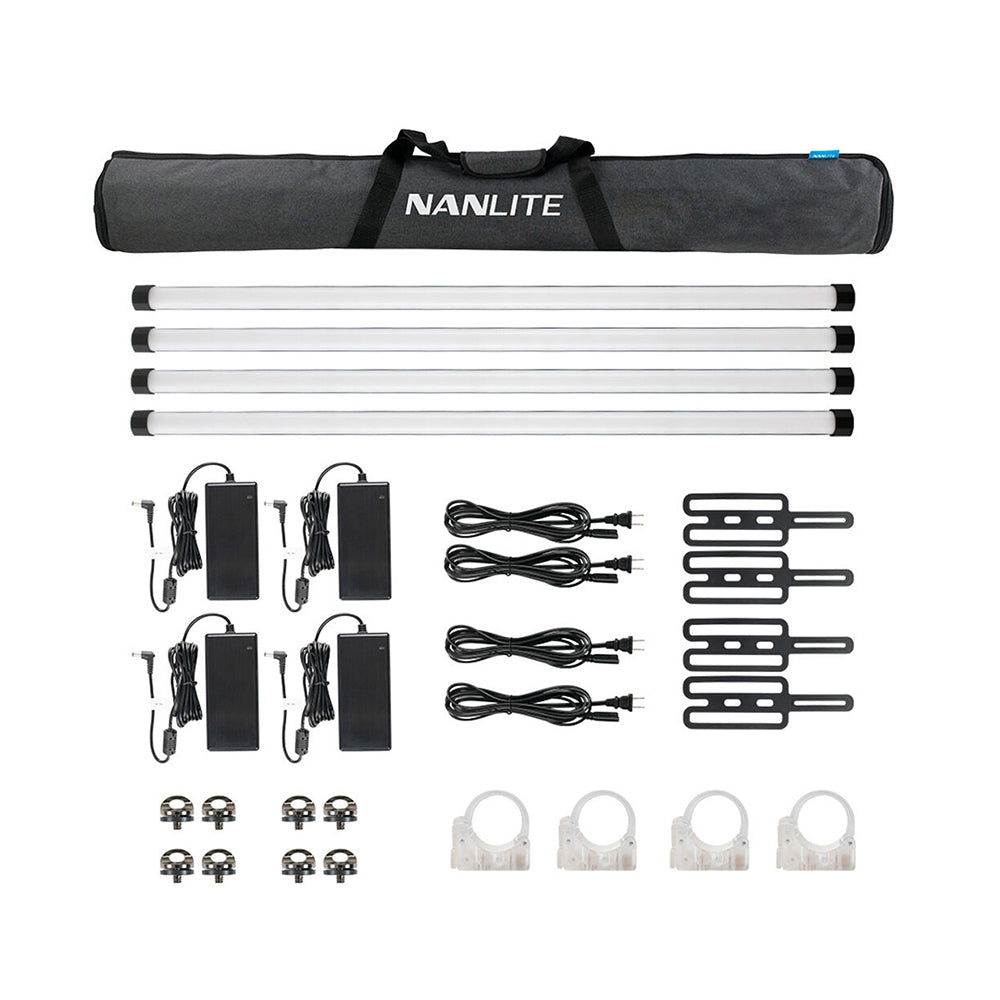

Four Light Kit (534559):
4x Nanlite PavoTube II 30X RGBWW LED Pixel Tube 4-Light Kit with Internal Battery
4x 9.8' Power Cable
4x Power Adapter Safety Strap
4x Transparent Polycarbonate T12 Clip
8x 1/4"-20 Receiver
8x 1/4"-20 Eye Bolt
1x Carrying Bag
