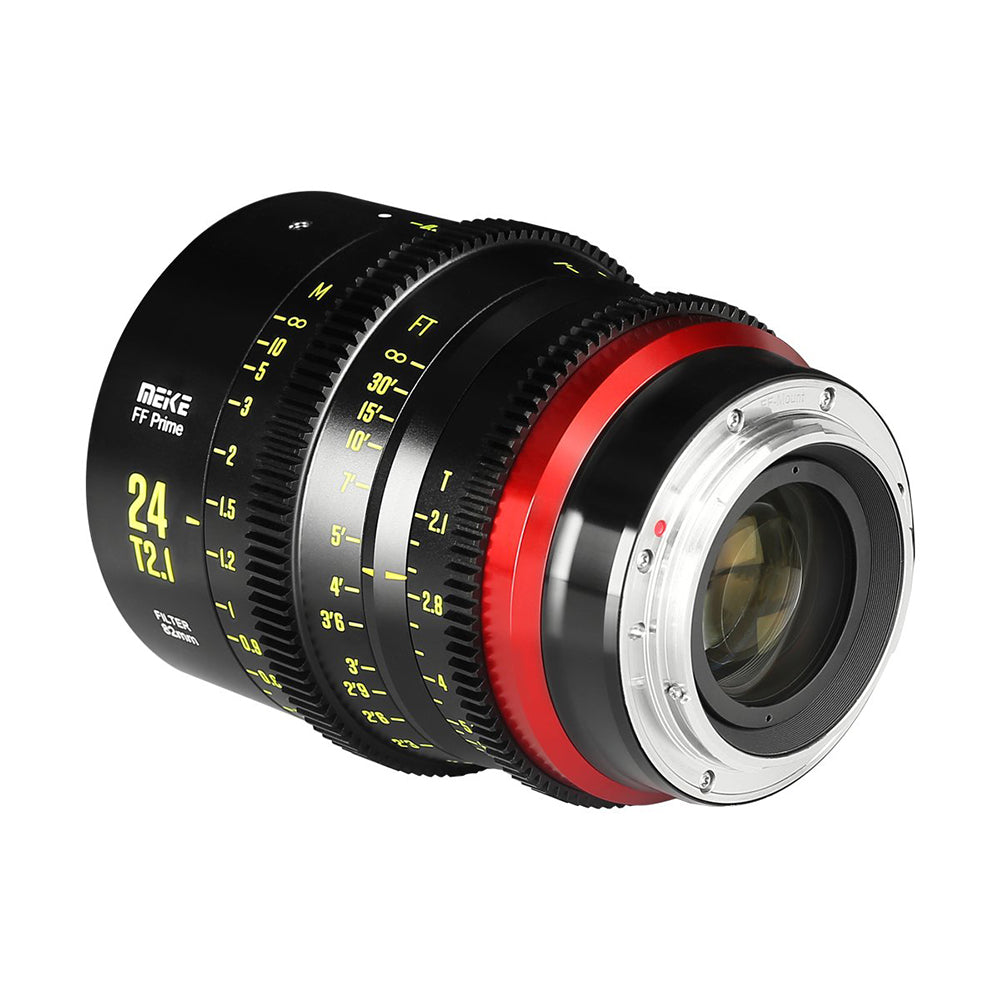

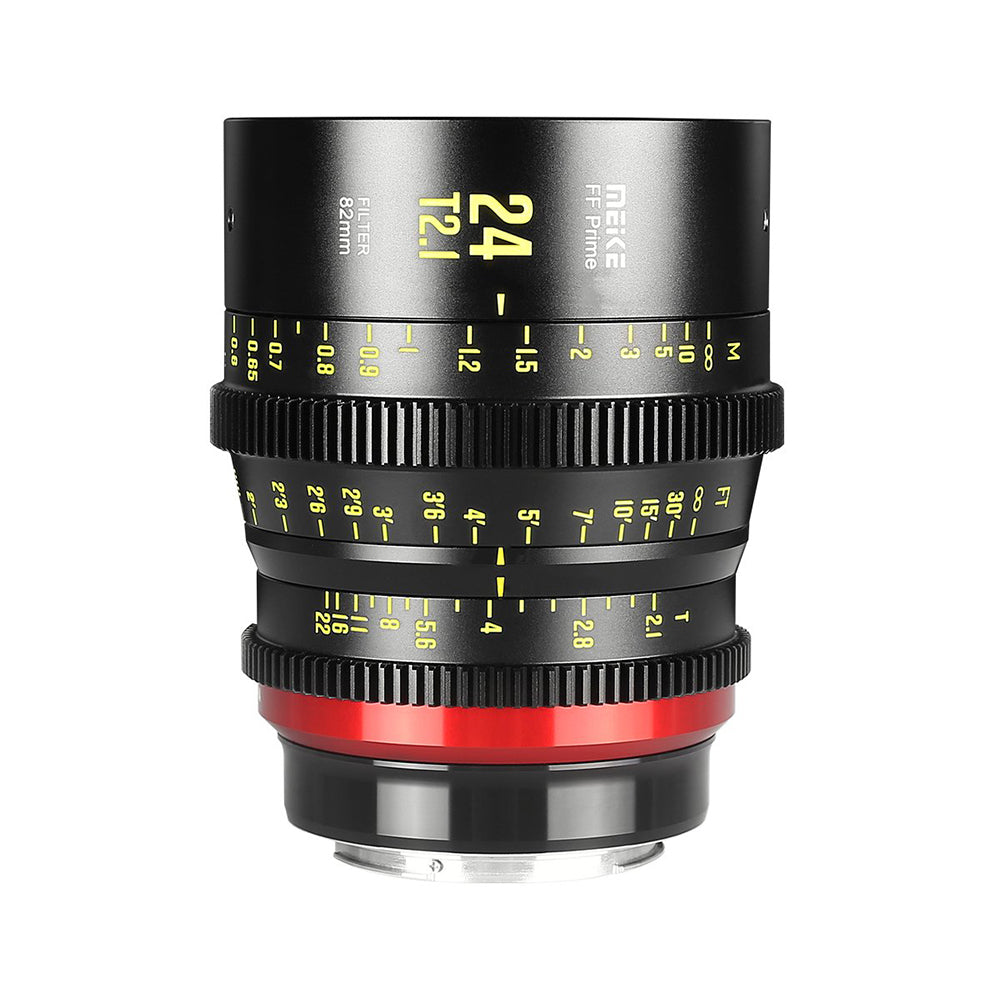

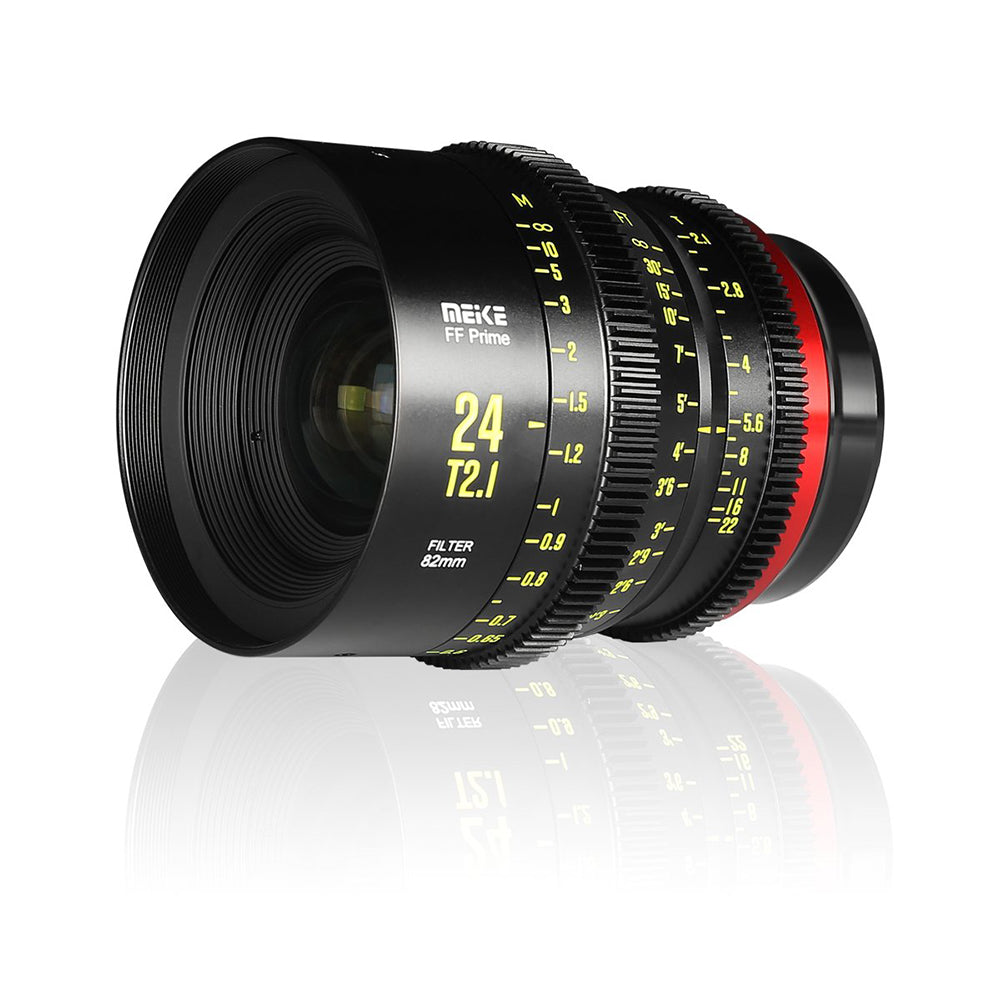

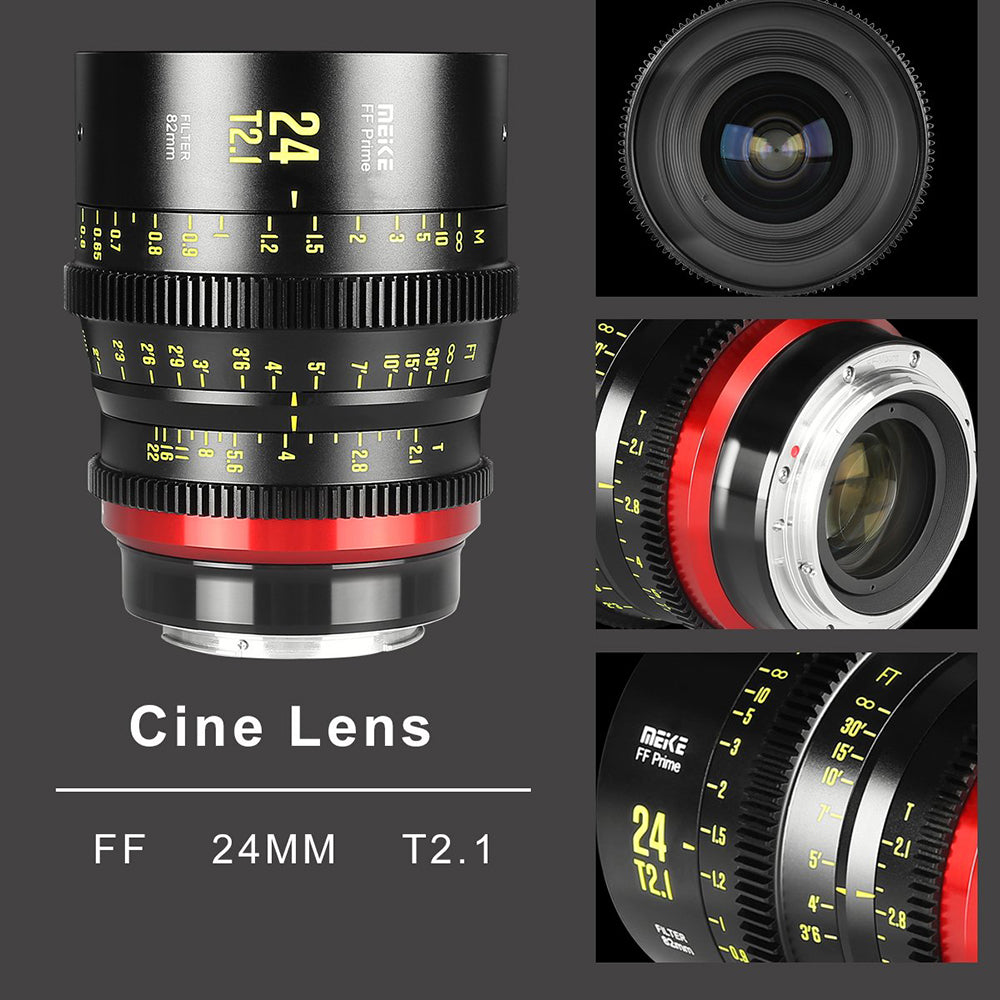

Capture crisp, cinematic images when using your full-frame cinema camera with this PL-mount 24mm T2.1 FF Prime Cine Lens from Meike. The 24mm prime adds to the Meike FF Prime series of lenses that features a 45mm image circle for full-frame sensor coverage. This prime lens has a fast T2.1 maximum aperture, standard 0.8 MOD focus and iris gears, and an 11-bladed iris for smooth, rounded bokeh.
Scale markings are provided in both feet and meters, it has an 82mm filter thread, and a focus rotation of 330° allows for precision manual focus adjustment. With a 35mm focal length, this cine lens has a horizontal angle of view of 72.6° with a full-frame sensor and a minimum focus distance of 11.8".

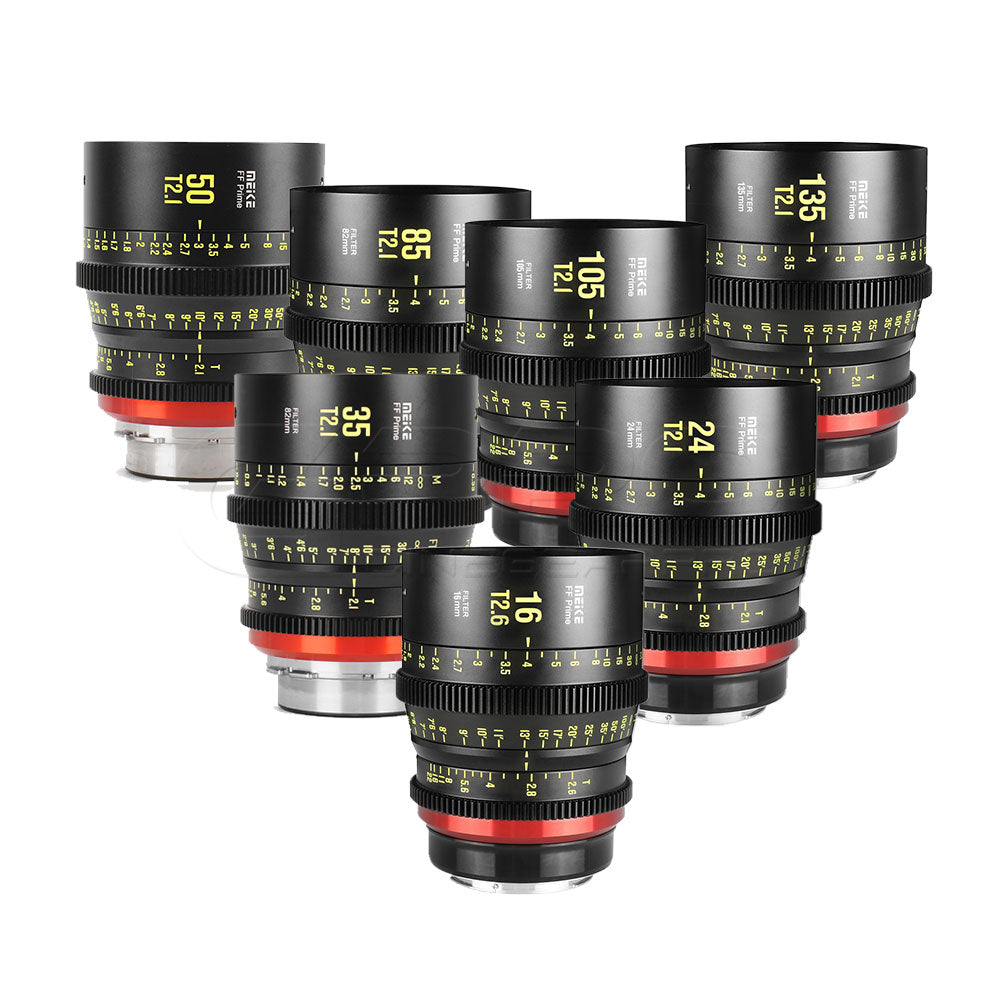

The complete set includes
16mmT2.6,24mmT2.1,35mmT2.1,50mmT2.1,85mmT2.1,105mmT2.1,135mmT2.1.
Launched:35mmT2.1,50mmT2.1,85mmT2.1
Features:
- PL mount
- 24mm image circle for full-frame coverage
- Fast T2.1 maximum aperture
- Cine-standard 0.8 MOD focus and iris gears
- 330° focus rotation
- 14 elements in 9 groups
- 90mm front diameter, 82mm filter thread

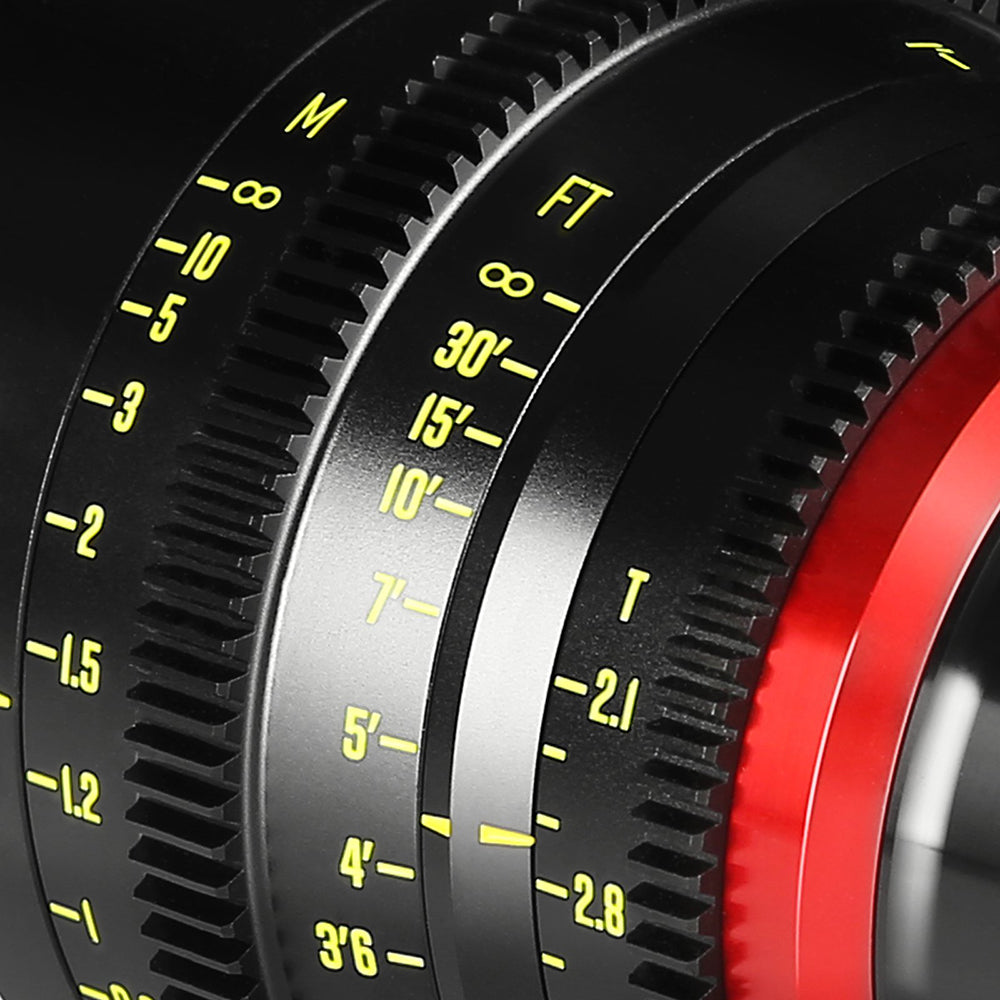

- Focus marks in feet and meter
Compatible:
• Canon C700
• Sony VENICE
• Alexa LF
• Z Cam E2-F6
• Mavo LF
• All full-frame Sony, Panasonic. Canon, Sigma, Leica mirrorless
• All Super 35/ APS-C sensors
Specifications:
| Focal Length | 24mm |
| Lens Mount | ARRI PL |
| Format | Full Frame |
| Image Circle | 45.0 mm |
| Maximum Aperture | T2.1 |
| Minimum Aperture | T22 |
| Diagonal Angle of View | Full Frame: 83.4° APS-C (1.5x): 60.1° |
| Horizontal Angle of View | Full Frame: 72.6° APS-C (1.5x): 51.3° |
| Minimum Focus Distance | From Image Plane: 11.8" / 30 cm |
| Optical Design | 14 Elements in 9 Groups |
| Diaphragm Blades | 11 |
| Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch |
| Front Diameter | 90 mm |
| Filter Thread | 82 mm |
| Focus Scales | Metric, Imperial |
| Focus Rotation | 330° |
| Image Stabilization | No |
| Length | 4" / 101.9 mm |
| Weight | 2.4 lb / 1111 g |
Package Contents:
1x Meike 24mm T2.1 FF Prime Cine Lens (PL Mount)
1x Front Lens Cap
1x Rear Lens Cap
