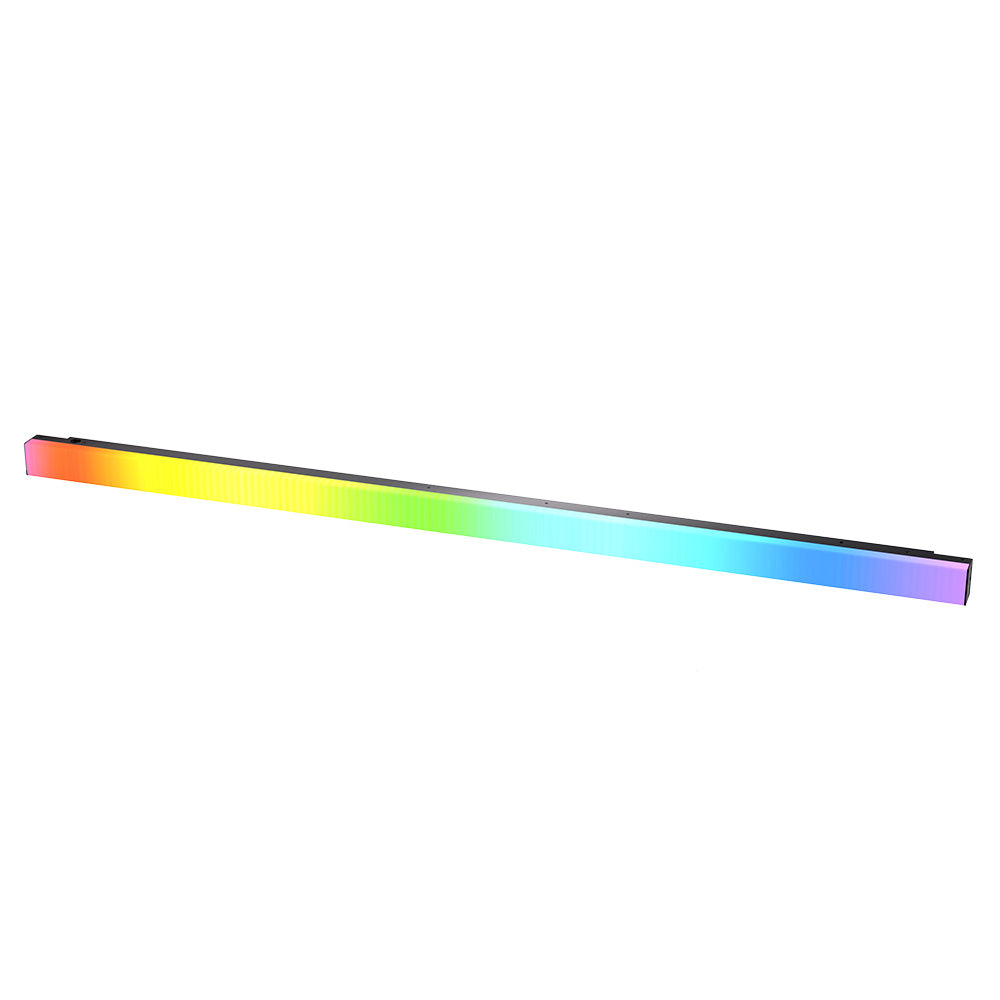

Aputure PB12 8-Light Kit INFINIBAR 4ft/120cm RGBWW full-colour LED Pixel Bar


  • Brand: Aputure
  • SKU: APL0300AX1
  • Product code: 535830
£5,483.55 £6,580.26 Inc VAT Price Match
The INFINIBAR PB12 8-Light Kit includes eight of Aputure’s first 4-foot (120cm) full-color LED pixel bars. Featuring 96 pixels, intuitive mounting and connecting options with an infinite blending design, an...

The INFINIBAR PB12 8-Light Kit includes eight of Aputure’s first 4-foot (120cm) full-color LED pixel bars. Featuring 96 pixels, intuitive mounting and connecting options with an infinite blending design, an integrated battery, and advanced connectivity methods, the INFINIBAR PB12 excels in constructing unique, colorful designs that bring scenes to life in new and exciting ways.

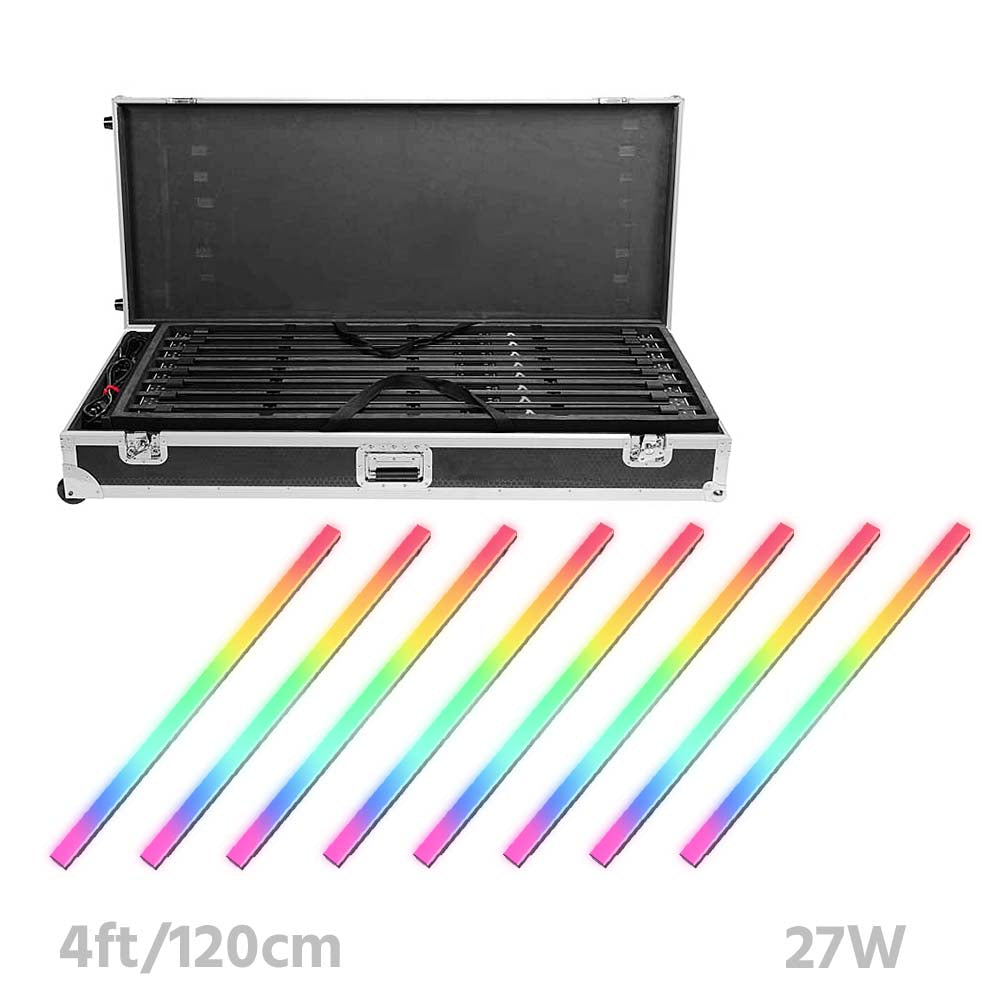

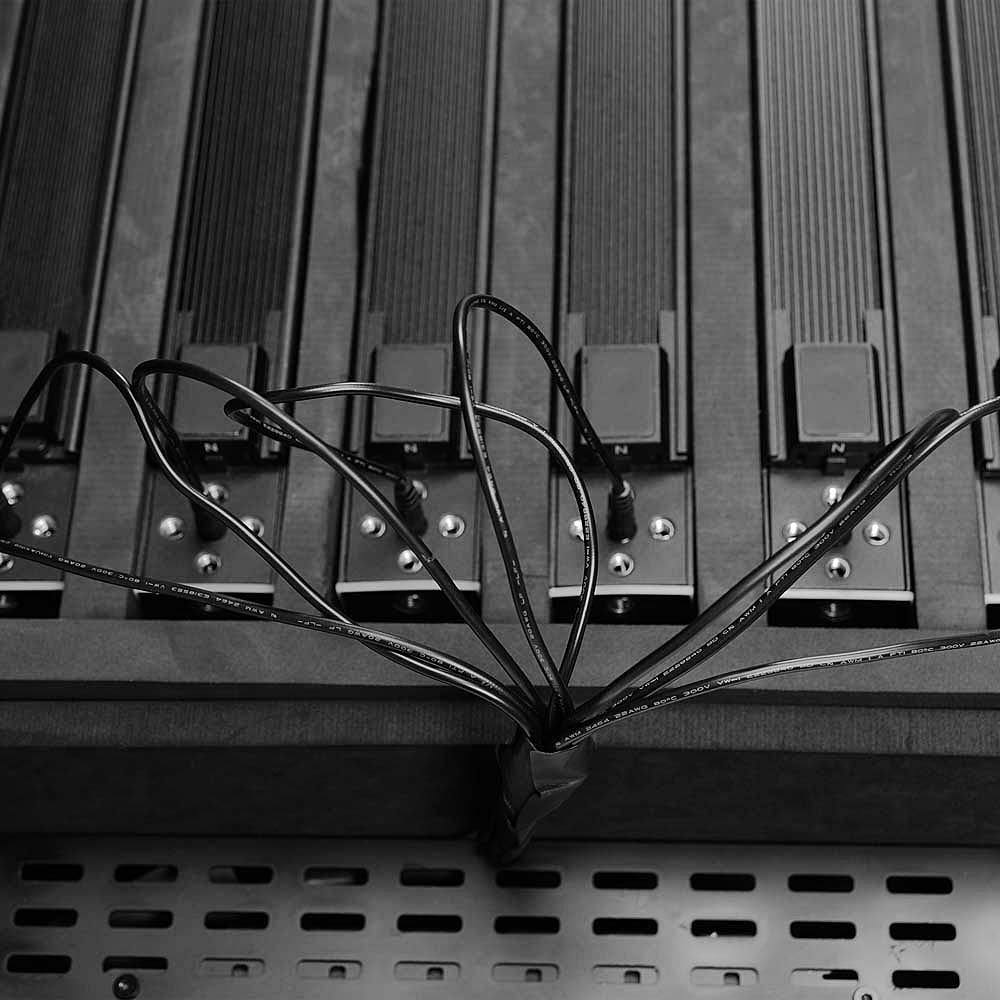

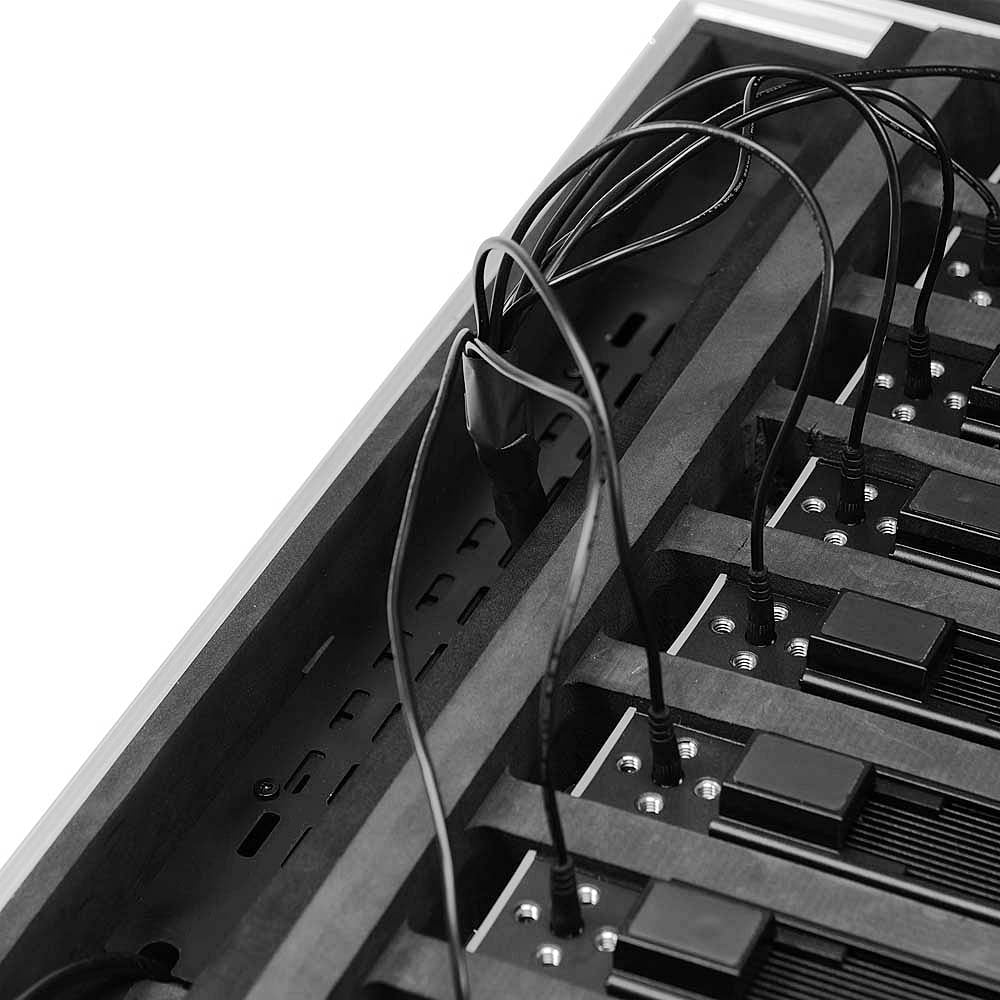

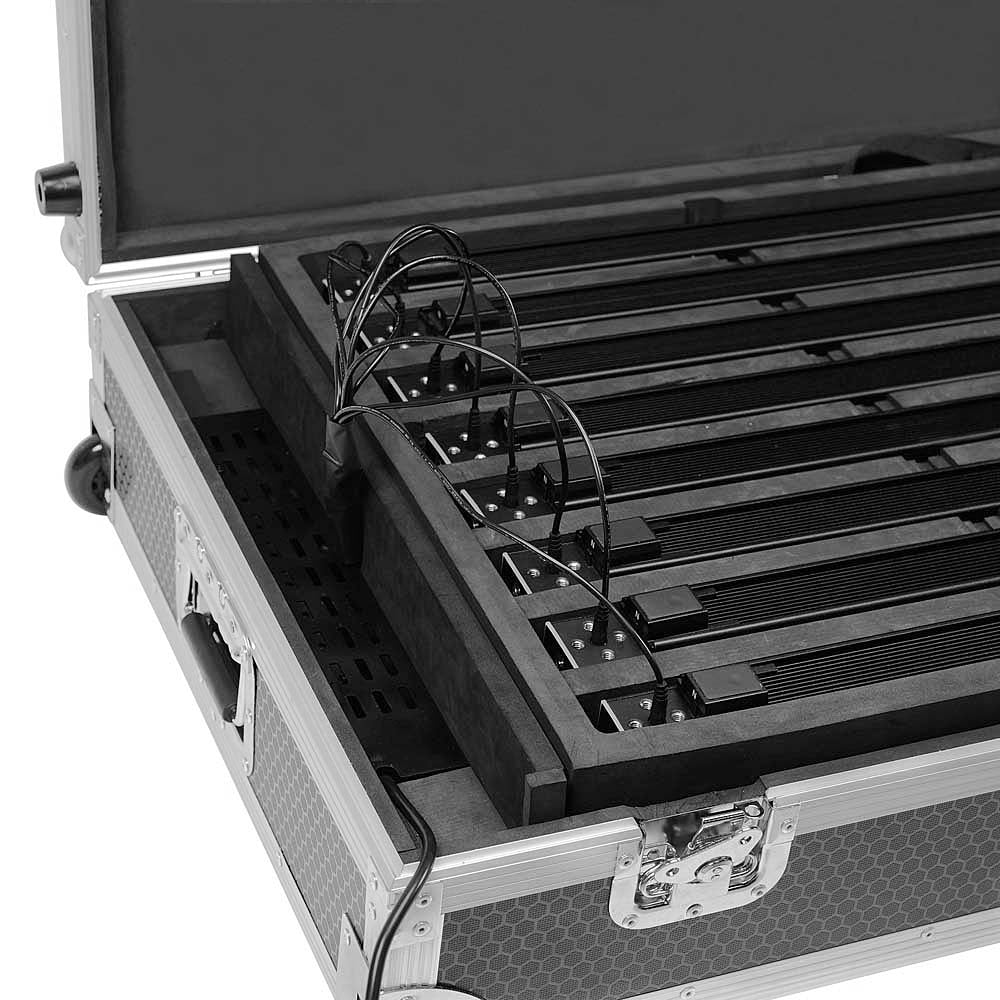

The 8-Light Kit expands this expansive multitool’s capabilities, with not only eight times the available light, but also additional power cables, adapters, and light control grids in a sturdy flight case to extend your creative possibilities. And in addition to charging each light individually, the 8-Light Kit is equipped with a 330W Power Adapter with 8-Way Splitters that can simultaneously charge all fixtures.

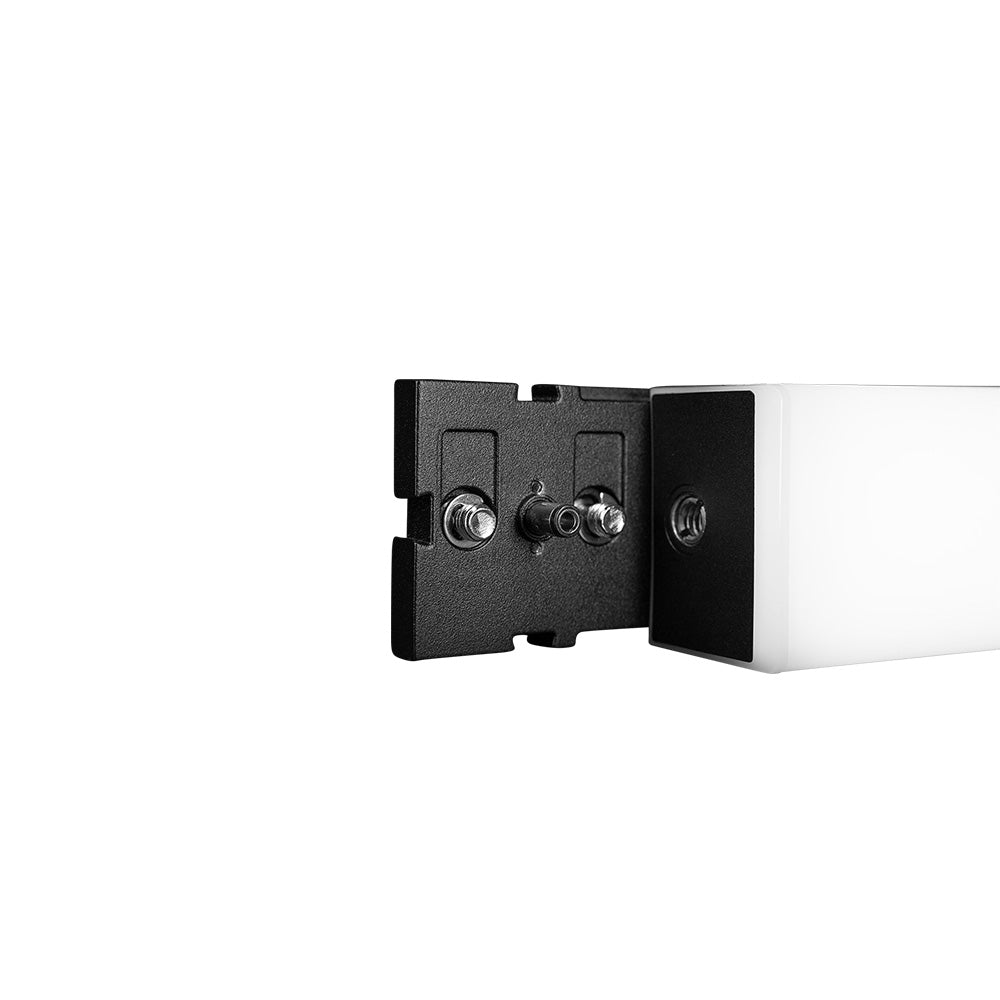

The INFINIBAR’s most unique feature is the ability to link multiple 1ft, 2ft, or 4ft INFINIBARs together using 10 differently-shaped connectors(1) to design creative shapes and effects. Users can operate multiple INFINIBARs using one power supply when linked by the power-sharing connectors or use their internal batteries for greater versatility. The pixel bar’s infinite blending design also eliminates visible gaps between fixtures to create seamless pixelated effects using the PB12’s 96 RGB pixels.

Featuring advanced wireless connectivity, the INFINIBAR PB12’s 96 pixels can be grouped and controlled via Sidus Link, LumenRadio CRMX, or through wired DMX using Aputure’s USB-C to DMX Adapter(2). It also incorporates critical color controls (including advanced HSI with white-point adjustability, RGB, and xy) for full creative freedom. Toggle between 9 builtin System FX and 7 built-in Pixel FX, or save up to 20 Custom FX in the Sidus Link app for easy access to different light modes.

The INFINIBAR PB12’s proprietary RGBWW chipset produces stunning color quality throughout its wide CCT range of 2,000K to 10,000K with full green magenta adjustment and can reproduce >90% of colors within the Rec.2020 Color Space. Matching Aputure’s high standards for color, the INFINIBAR PB12 also produces accurate skin tones, measuring scores of CRI: 96+, TLCI:98+, SSI (D56): 74, and SSI (Tungsten): 85.

With its lightweight yet durable aluminum housing, the INFINIBAR PB12 provides ultimate flexibility across all shooting environments. Whether linked together or used independently, the INFINIBAR’s built-in magnets, INFINIBAR Rail and Baby Pin Clamp system, and two ¼-20in threads allow the PB12 to be mounted with ease. And with its built-in 59.2Wh Lithium battery, the INFINIBAR PB12 can operate at its 27W max output for 80 minutes, making it a versatile fixture for your lighting toolkit.

(1)INFINIBAR Includes 8 Straight Connectors. Remaining 9 Connectors Sold Separately
(2)Aputure Active USB-C to 5-Pin DMX In & Out Adapter Sold Separately


Features:

  • 8-Light Kit with 4ft (120cm) 27W RGBWW Full Color LED Pixel Bar
  • 96 Individual Pixels (Lighting Zones)
  • Infinite Blending Design to Reduce Visible Gaps When Connecting Multiple Lights
  • 10 Splicing Connectors: Straight, Triangle Flat, Triangle 3D, Hexagon Flat, Hexagon 3D, 3-Way Flat, 4-Way Flat, 6-Way Flat, Square Flat, Square 3D
  • Share AC Power Over Multiple INFINIBARs w/ Splicing Connectors

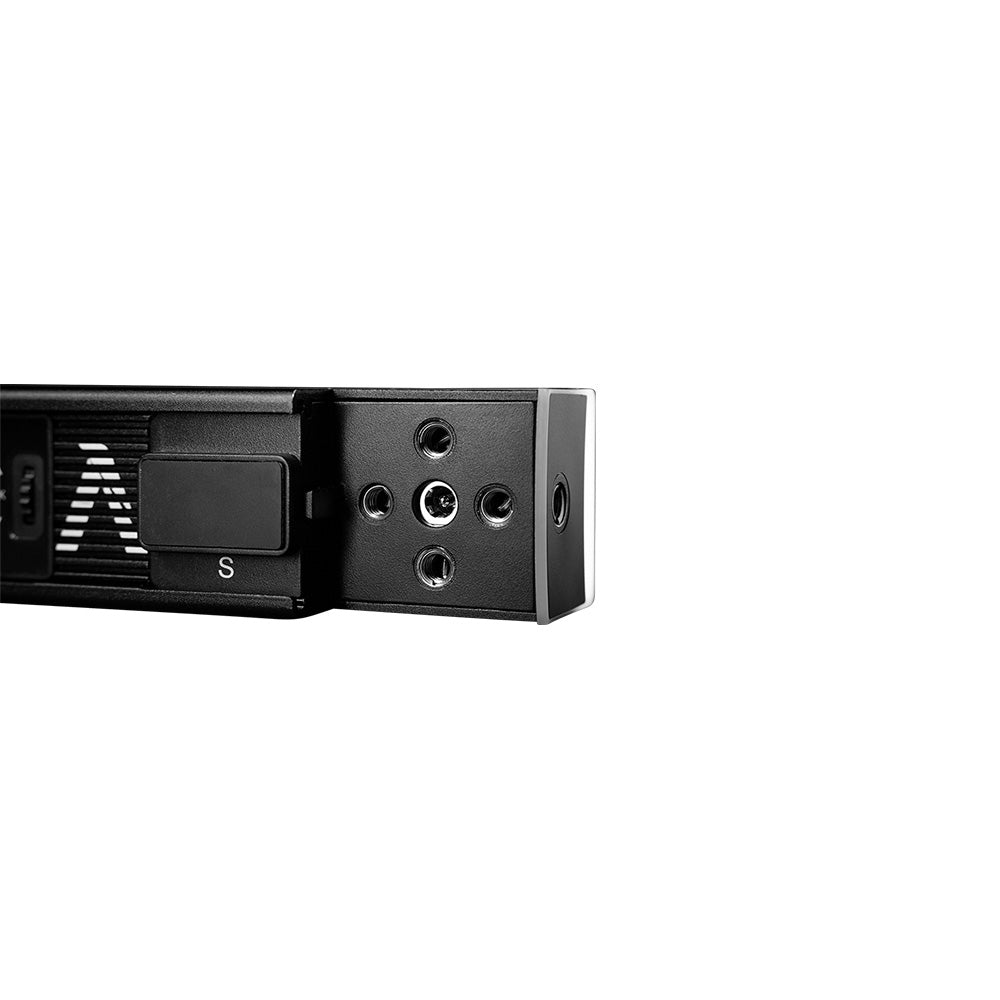

  • Mounting: INFINIBAR Clamp (Baby Pin) & Neodymium Magnets, 1/4-20in Screw Mount
  • Frosted Diffusion Layer for Smoother Light and Reduced Glare
  • Approx. 80 Min Battery Life at Max Output (59.2Wh)
  • Simultaneously Charge Multiple INFINIBARs with Included Power Adapter with 8-Way Splitters
  • Included Flight Case and 8x 45º Slip-On Light Control Grid
  • Smart Battery Life Modes: Adjust Runtime to 2/4/6/8 Hours
  • 0-100% Brightness Control in 0.1% Increments
  • Fully Tunable CCT from 2,000K-10,000K + G/M Adjustment
  • CRI: ≥96, TLCI: ≥98, TM-30 Rf (Avg.) = 94, TM-30 Rg (Avg.) = 103, SSI(D56) ≥74, SSI(Daylight) ≥85
  • ≥90% of Colors within Rec.2020 Color Space
  • Advanced HSI with White Point CCT Control
  • Industry-standard xy (CIE 1931), RGB, 300+ Gel Presets
  • Multiple Control Methods: Sidus Link®App, DMX/RDM via USB-C,LumenRadio CRMX
  • 32 Built-In DMX Profiles: Supports DMX Loss Behaviors
  • 9 System FX: Fireworks II, Fire II, Paparazzi II, Faulty Bulb II, TV III, Pulsing III, Cop Car III, Lightning III, Party II
  • 7 Pixel FX: Color Fade, Color Cycle, One Pixel Chase, Two Pixel Chase, Three Pixel Chase, Rainbow, Pixel Fire
  • Supports SidusPro® FX: Including Manual FX, System FX, Picker FX, Magic Program, and Music FX
  • Save up to 10 Custom FX and 10 Music FX
  • Frequency Selection to Reduce Flicker
  • Optional Softbox for Added Lighting Control






Specifications:

CCT

2,000K-10,000K

Battery Capacity

7.4V,8000mAh,59.2Wh

CRI

96

Battery Life

Approx 80 Mins @Max Output

TLCI

98

Charge Time

Approx 150 Mins (24V/2.67A)

CQS

96

Pixel Mapping

96 Pixels

SSI (D56)

74

Operating Temperature

-10°C-45°C / 14°F-113°F

SSI (Tungsten)

85

Control Methods

Sidus Link App,DMX/RDM,LumenRadio CRMX

TM-30 RF (Average)

94

Wireless Operating Range

Bluetooth: ≤80m / ≤262.5ft       LumenRadio: ≤100m / ≤328.1ft

TM-30 RG (Average)

103

IP Rating

IP 20

Color Chipset

RBGWW

Screen Type

OLED

Bean Angle       (Half-Peak)

120°

Firmware Upgradeable

Sidus Link,USB-C

Lumens

2,077lm

Cooling Method

Passive Cooling

Max Power Output

27W

Mounting

INFINIBAR Rail

Max Power Consumption

Fixture: 36.5W

Dimensions

Fixture: 1,204 x 45 x 43mm / 47.4 x 1.77 x 1.69in

Fixture + Spacer : 120.4 x 4.5 x 5.2cm/ 47.4 x 1.77 x 2.05in         AC Power Adapter: 12 x 5.3 x 3.2cm / 4.7 x 2.1 x 1.3in            Clamp: 12.2 x 5.5 x 4cm / 4.8 x 2.2 x 1.6in                            Case: 127.7 x 13 x 12.5cm/50 x 5.1 x 4.9 in

Power Supply: 40W

Operating Voltage & Current

Fixture: 24V,1.8A

Est. LED Lifetime(L70)

50,000 Hours

Power Supply: 100V-240V 50/60Hz,1.5A

Est. Color Shift Over Lifetime

2% Over  6,000 Hours

Weight

Fixture: 1.96kg / 4.31lbs
Fixture+ Spacer: 2.09kg / 4.61lbs  AC Power Supply: 0.49kg / 1.08lbs
Clamp : 0.27kg / 0.6lbs                     Total: 2.85kg / 6.28lbs

Certifications

CE,FCC,KC,NCC,ROHS,RCM,ICES,UKCA,PSE





Photometrics:


CCT

0.5m

1m

PB3

2,000K

448 lux / 42 fc

85 lux / 8 fc

2,700K

486 lux / 45 fc

127 lux / 12 fc

3,200K

512 lux / 48 fc

130 lux / 12 fc

4,300K

540 lux / 50 fc

137 lux / 13 fc

5,600K

545 lux / 51 fc

144 lux / 13 fc

6,500K

544 lux / 51 fc

145 lux / 13 fc

7,500K

544 lux / 51 fc

145 lux / 13 fc

10,000K

497 lux / 46 fc

135 lux / 13 fc

Red

111 lux / 10 fc

40 lux / 4 fc

Green

353 lux / 33 fc

98 lux / 9 fc

Blue

56 lux / 5 fc

20 lux / 2 fc

PB6

2,000K

635 lux / 59 fc

200 lux / 19 fc

2,700K

935 lux / 87 fc

282 lux / 26 fc

3,200K

940 lux / 87 fc

288 lux / 27 fc

4,300K

978 lux / 91 fc

301 lux / 28 fc

5,600K

1,026 lux / 95 fc

317 lux / 29 fc

6,500K

1,048 lux / 97 fc

328 lux / 30 fc

7,500K

1,046 lux / 97 fc

328 lux / 30 fc

10,000K

960 lux / 89 fc

288 lux / 27 fc

Red

189 lux / 16 fc

78 lux / 7 fc

Green

608 lux / 56 fc

188 lux / 17 fc

Blue

97 lux / 9 fc

39 lux / 4 fc

PB12

2,000K

975 lux / 91 fc

350 lux / 33 fc

2,700K

1,350 lux / 125 fc

532 lux / 49 fc

3,200K

1,410 lux / 131 fc

542 lux / 50 fc

4,300K

1,500 lux / 139 fc

564 lux / 52 fc

5,600K

1,600 lux / 149 fc

593 lux / 55 fc

6,500K

1,650 lux / 153 fc

607 lux / 56 fc

7,500K

1,650 lux / 153 fc

617 lux / 57 fc

10,000K

1,510 lux / 150 fc

563 lux / 52 fc

Red

227 lux / 21 fc

85 lux / 8 fc

Green

793 lux / 74 fc

297 lux / 28 fc

Blue

131 lux / 12 fc

49 lux / 5 fc






Package Contents:
8x INFINIBAR PB12
8x 48W DC Power Adapter (3m)
1x AC Locking Power Cable (4m)
8x AC Locking Power Cable (1.5m)
1x 330W Power Adapter with 8-Way Splitters
16x Magnetic Spacer

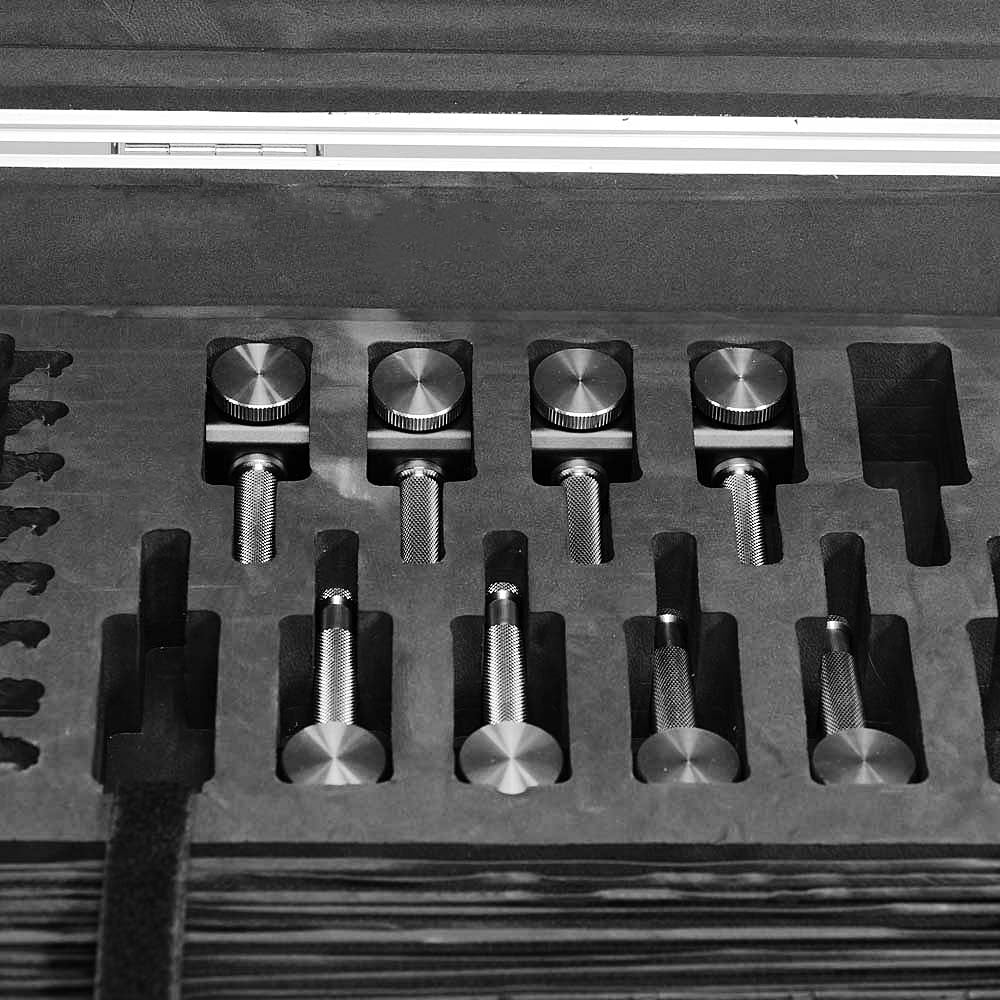

8x INFINIBAR Clamp to Baby Pin Adapter
8x INFINIBAR Straight Connector
1x 5mm Hex Wrench
8x INFINIBAR PB12 45º Light Control Grid

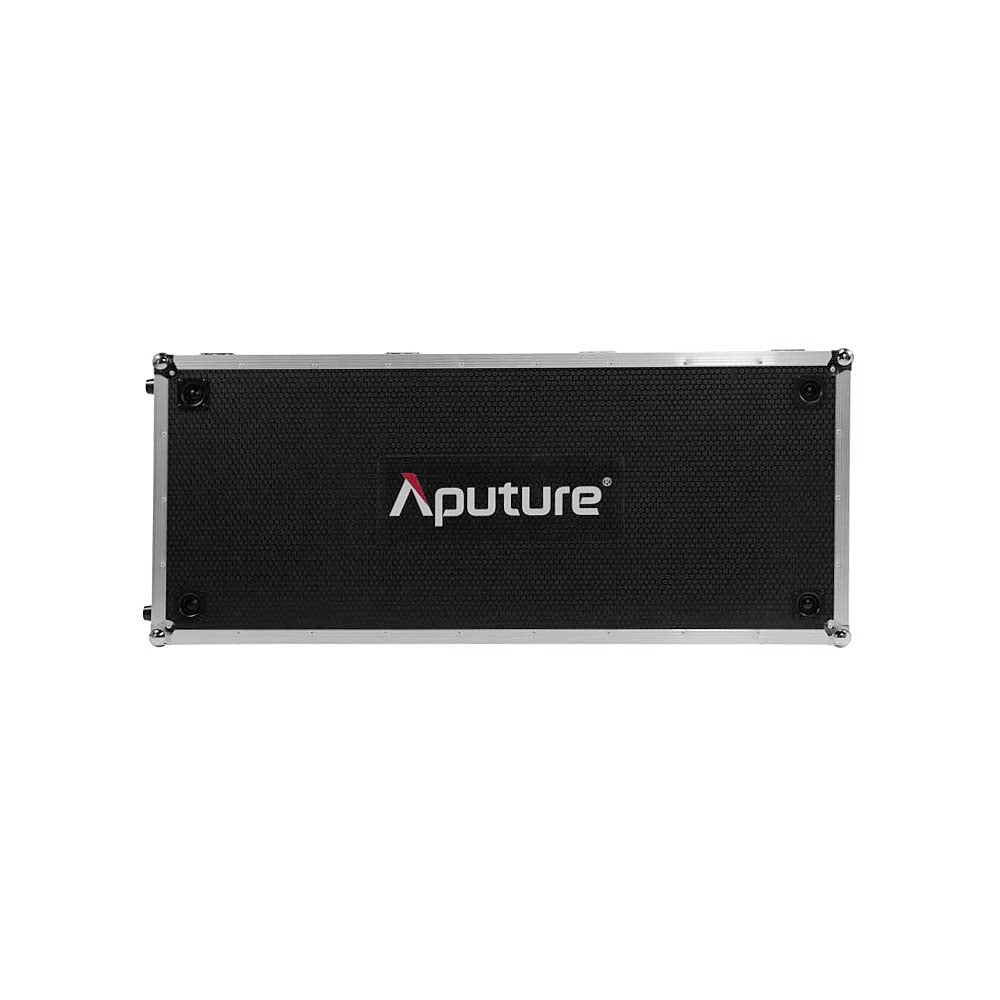

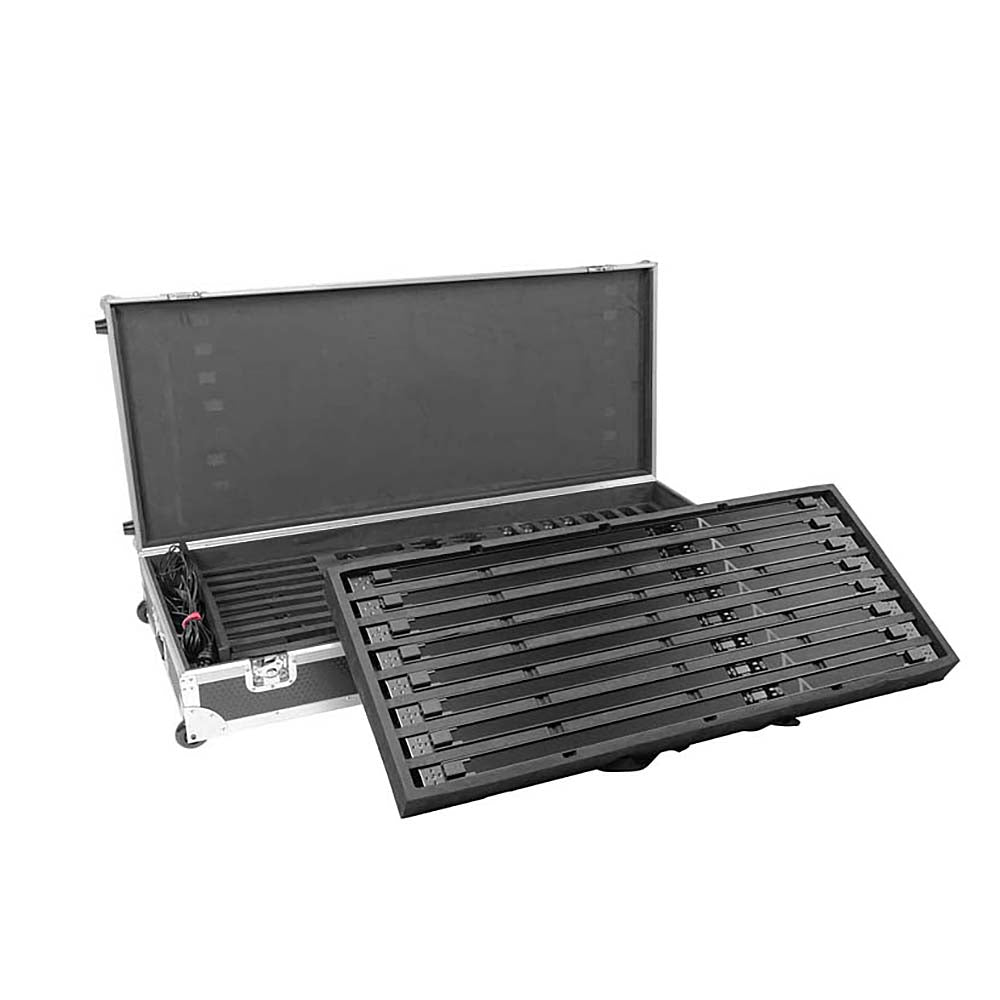

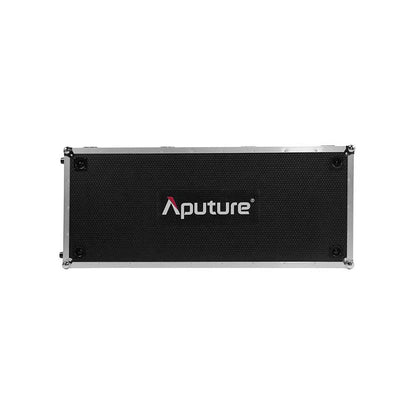

1x Flight Case
