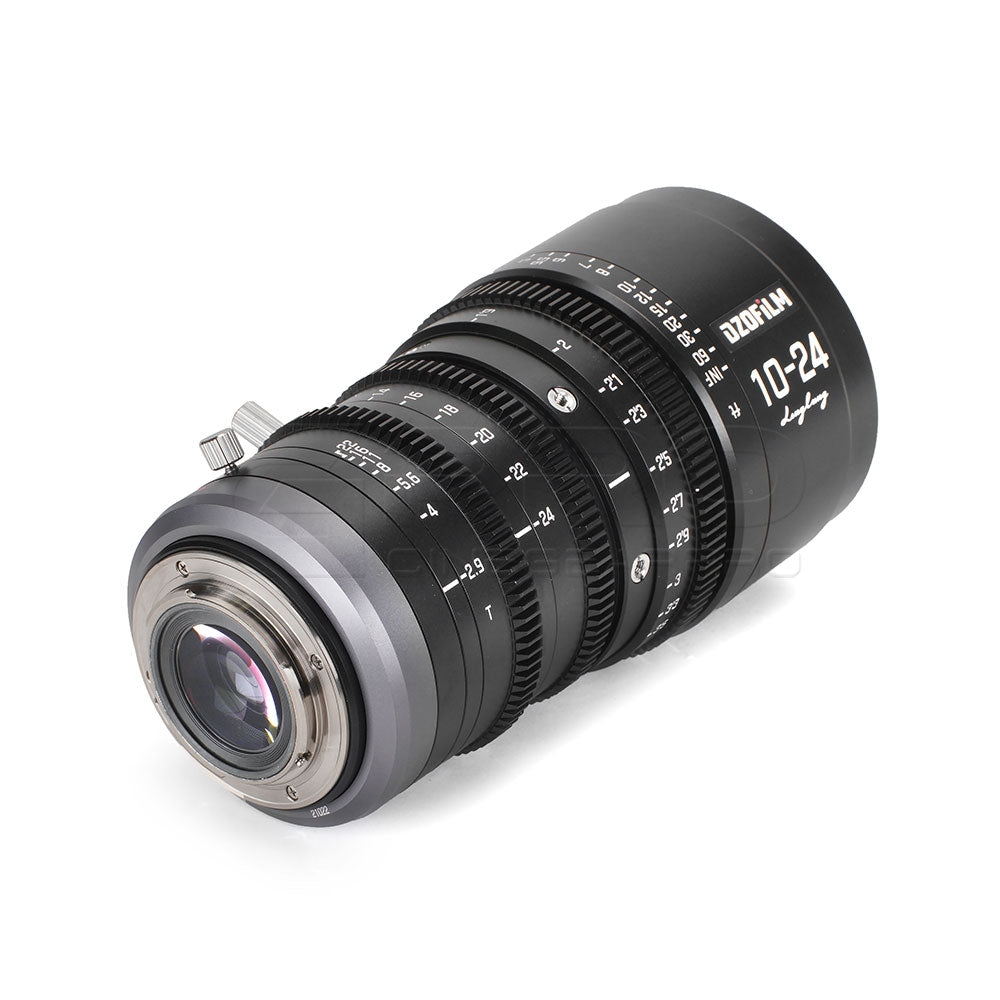

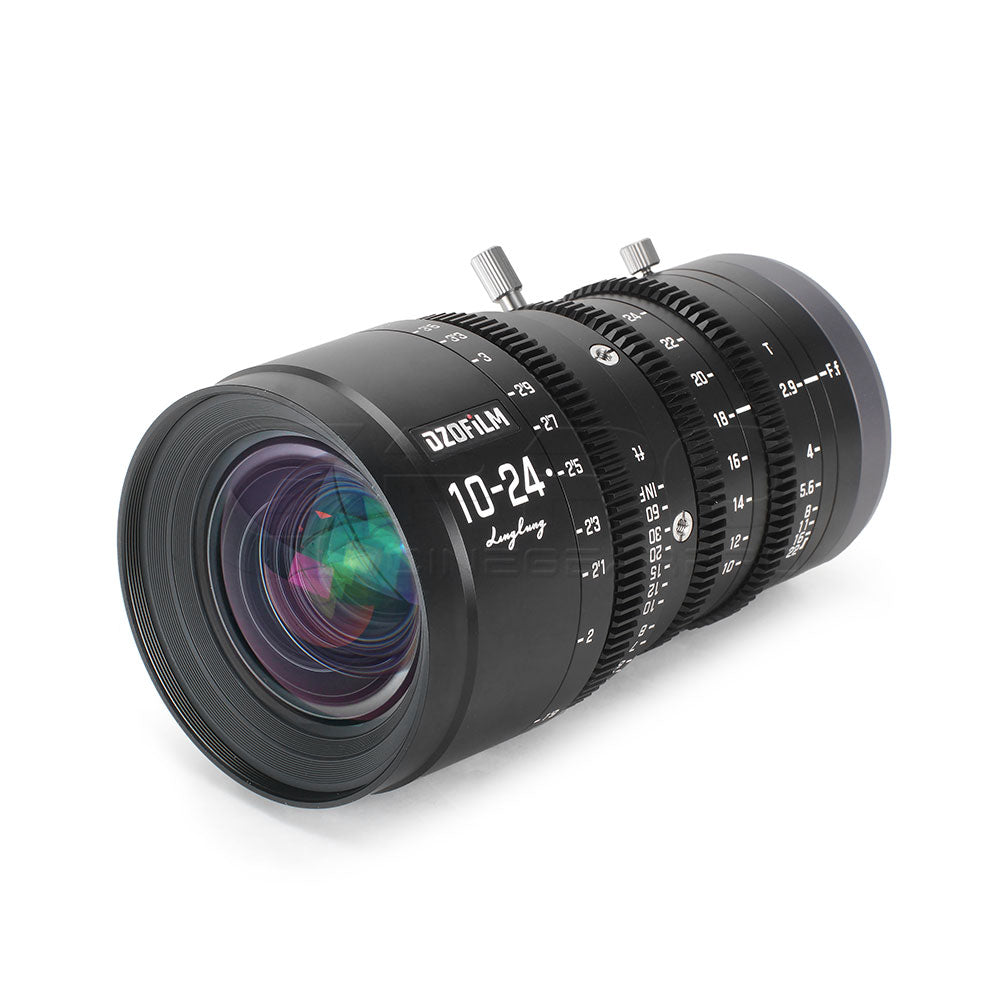

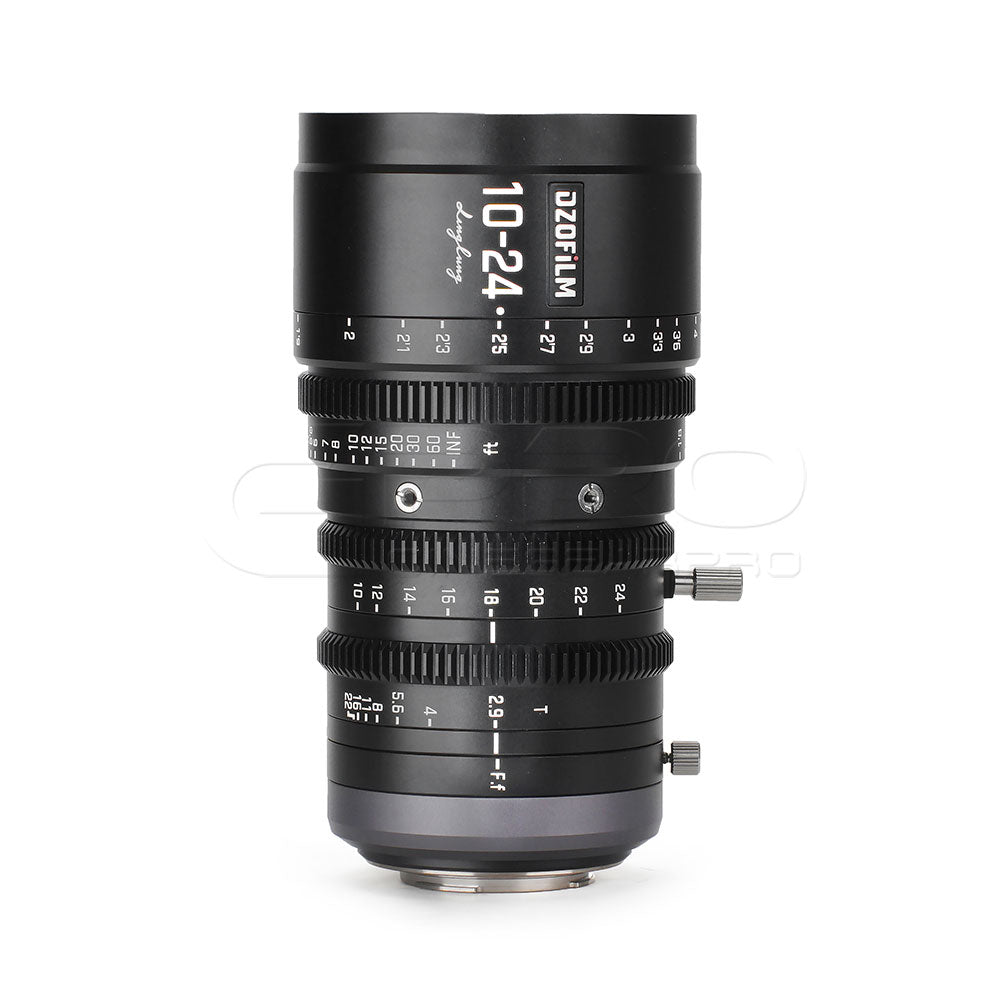

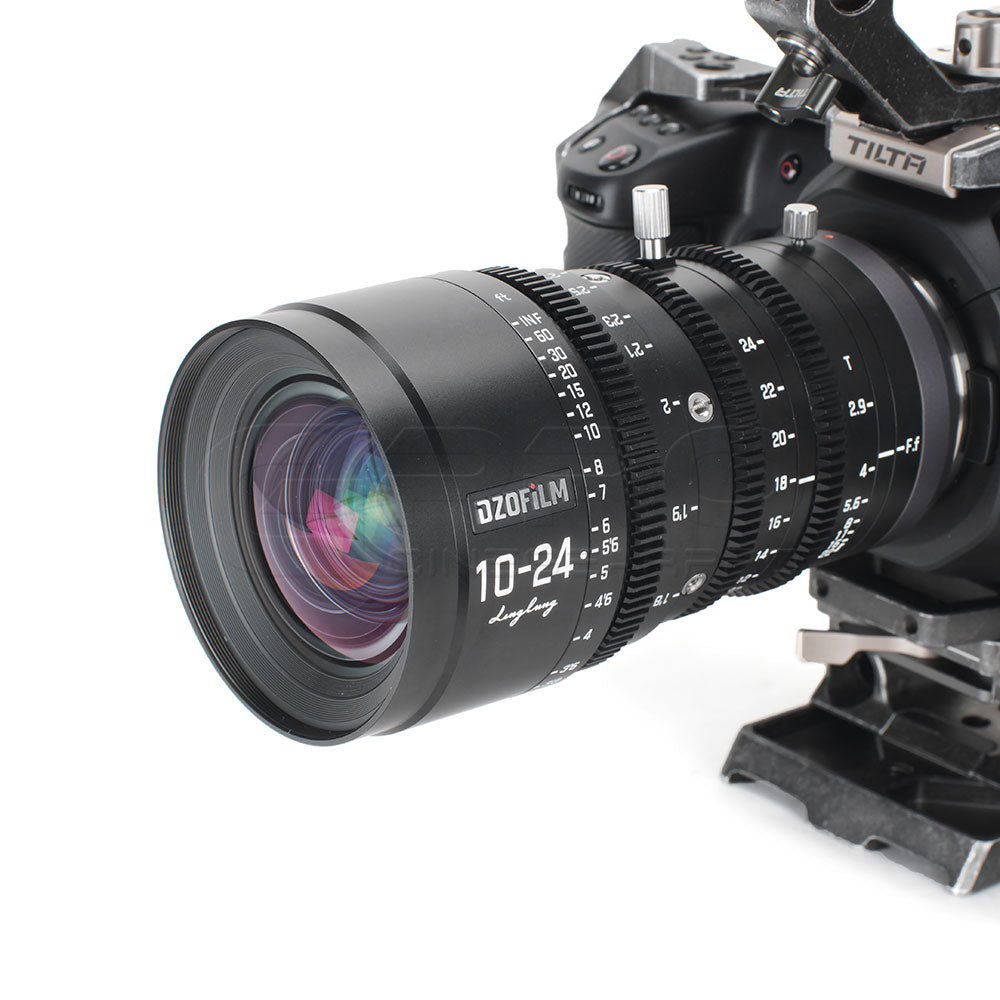

DZOFILM LingLung 10-24mm T2.9 Cinema Zoom Lens MFT/M43 Mount
- Brand: DZOFiLM

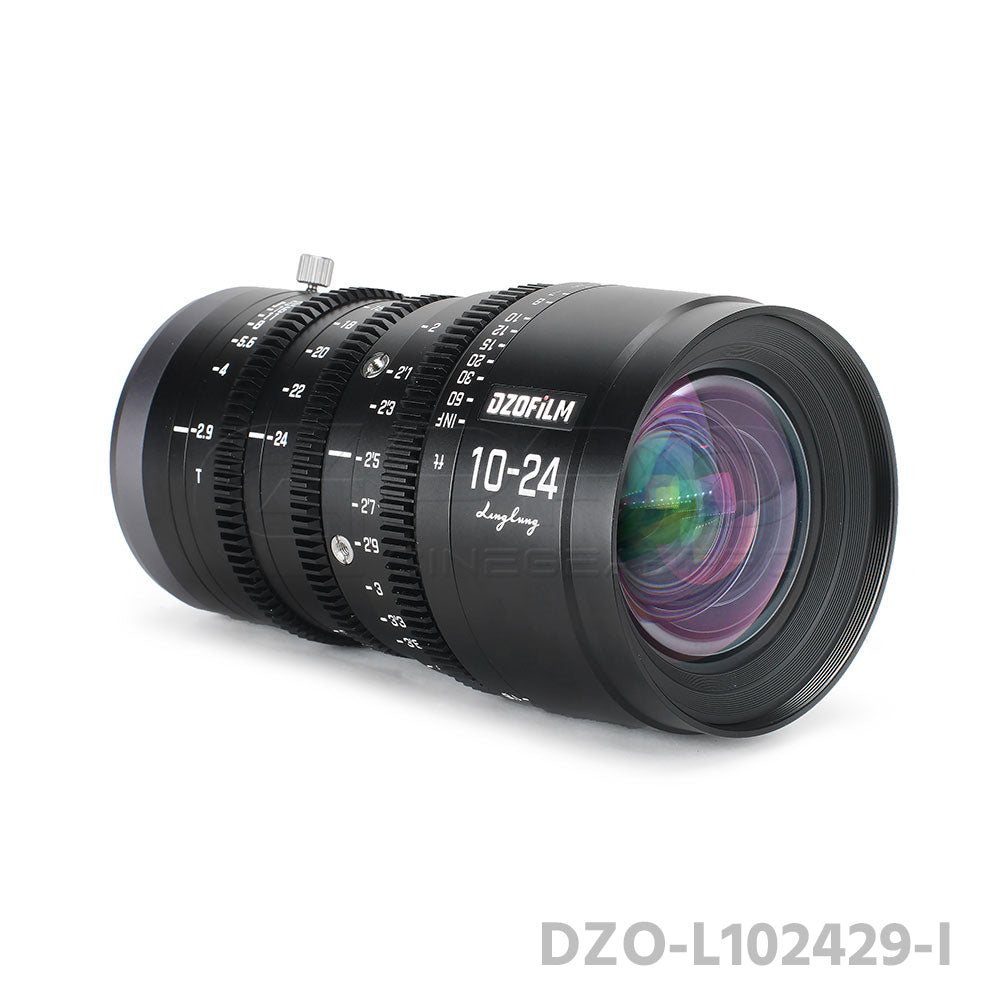

- SKU: DZO-L102429-I
- Product code:
Professional Cinema Lens
Cinematic Proceeding And Precise Mechanism Control
Forming “Muscle Memory” For Professional Filming And Moving To A Upper Step Of Art.
Parfocal Design
Steady Focus Remains The Same Even In Or Out
No Matter From Close-Up To Wide Shot Or Rapidly From Wide To Long Shot Under Parfocal Design, Focus Keeps Unchanged All The Way Allowing You To Spray The Etrtnsl Cteativity Freely.
Minimal Breathing
Near Zero Breathing, Allowing For Decent Expression Through Images
DZOFILM Linglung Provides Users With A High Standard And A Better Experience Of Lens.
Elaborate Optical Design
Smooth and creamy Bokeh with clear layer and natural transition.
12-Pieces blade design, generating elegant and round Bokeh.
Neutral and natural style Obiectively reflect the true color of complexion.

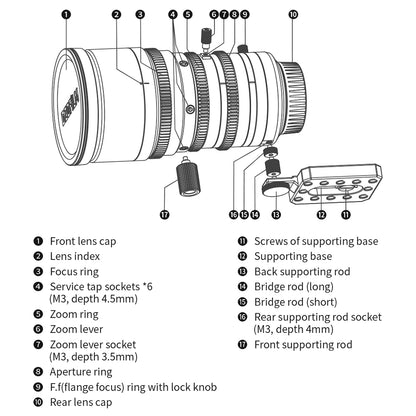

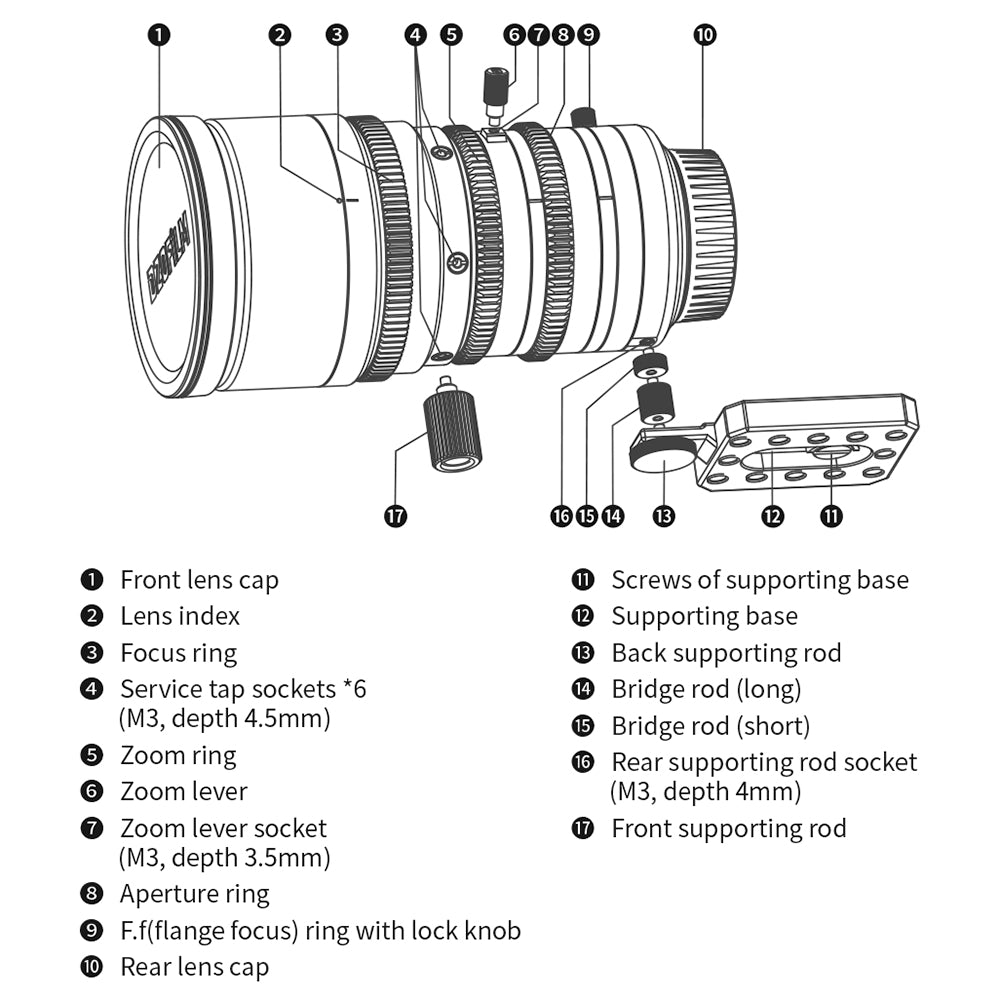

Mechanical & Design Feature
- Two-sided focus scale
- 270° Focusing travel with 26 focus marks
- 100° Zoom rotation angle
- 70° Iris rotation angle
- Fast back flange adjusting mechanics
- Double strengthening mount design

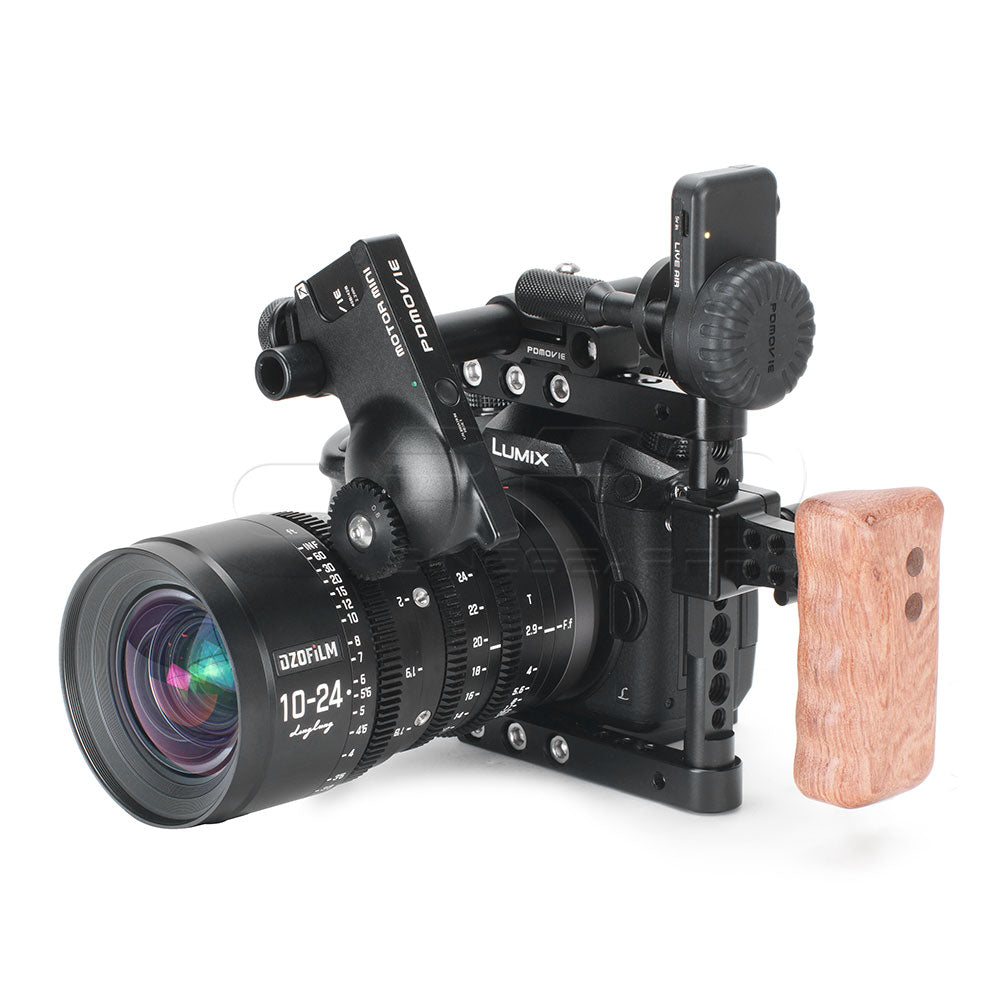

Compatibility:

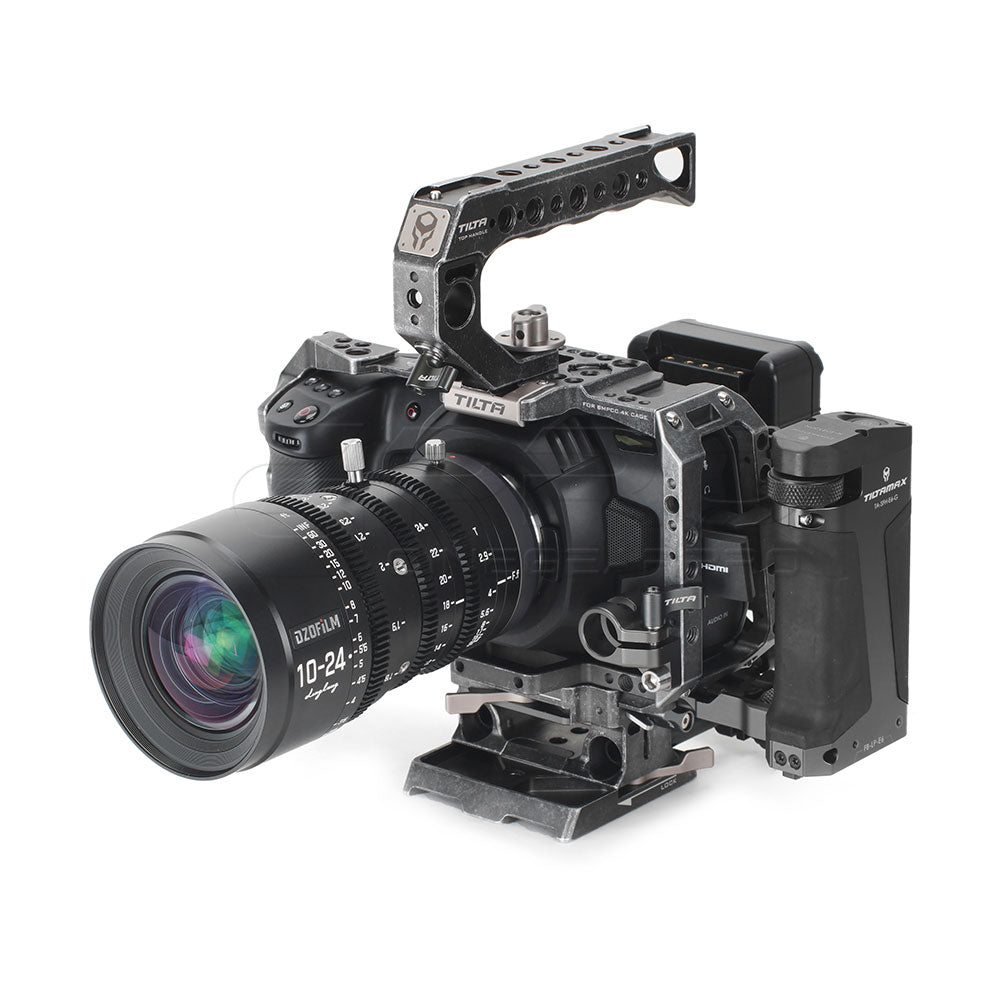

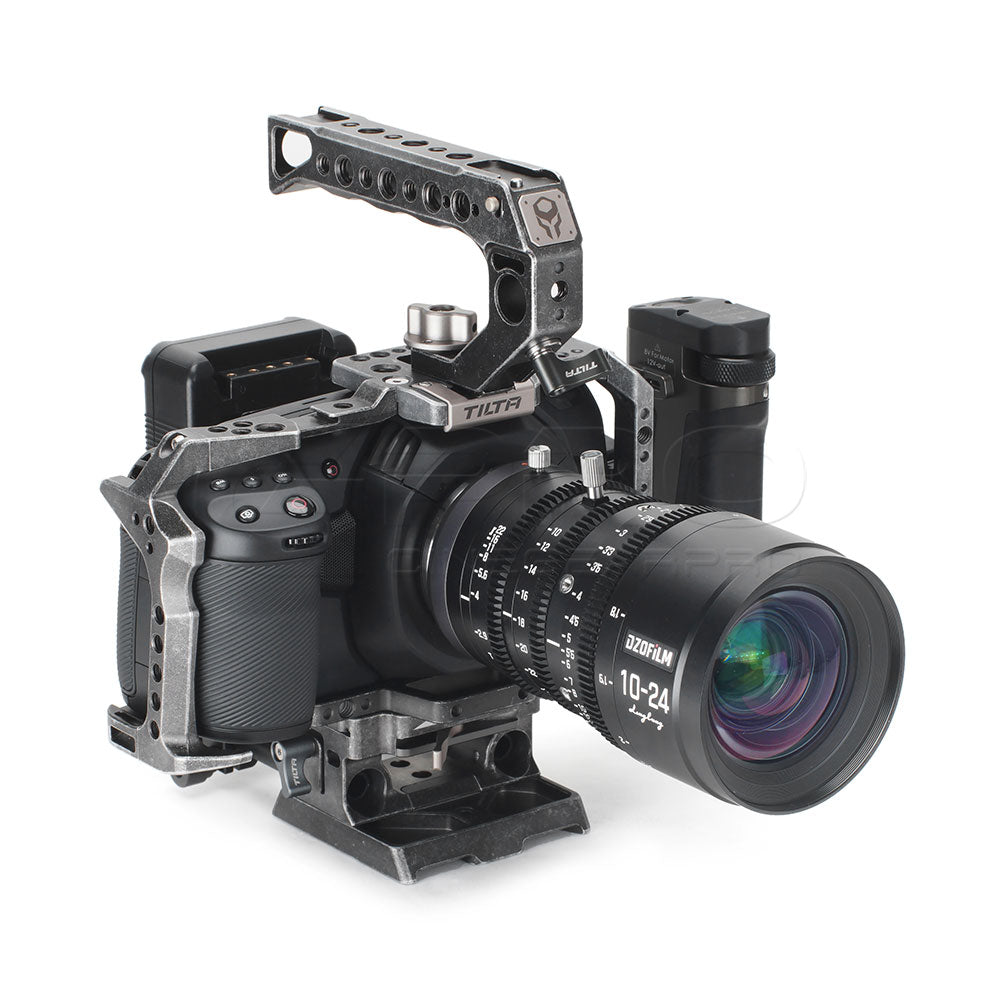

- BMPCC 4K

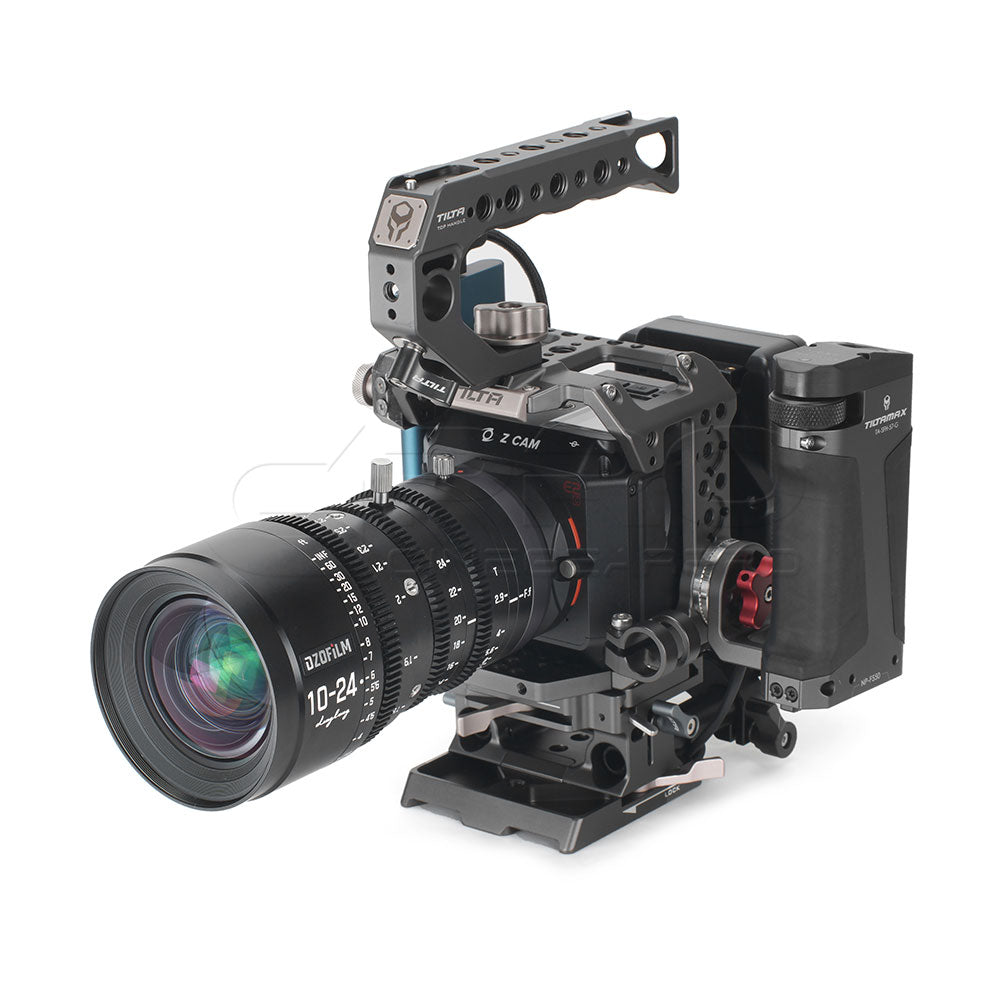

- Z CAM E2
- Panasonic

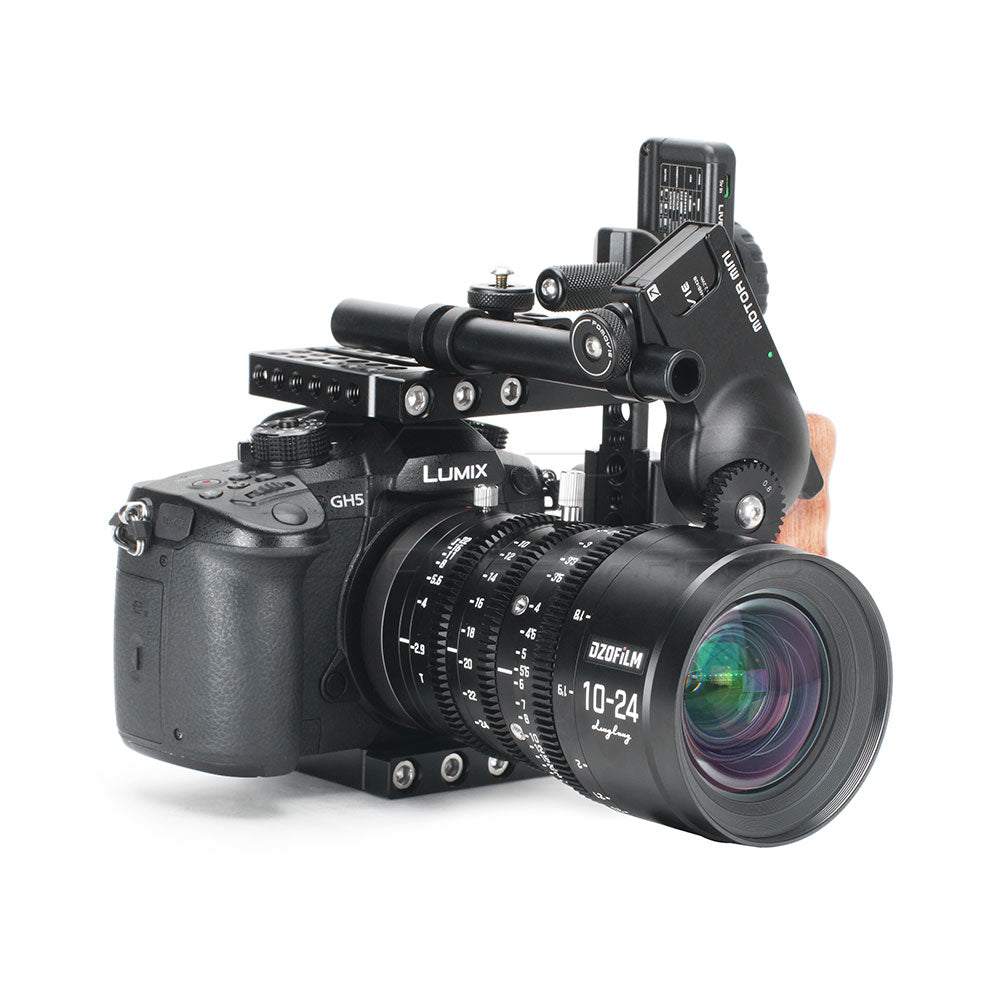

- GH5
- GH5S
- Other MFT Mount Cameras
Specifications:

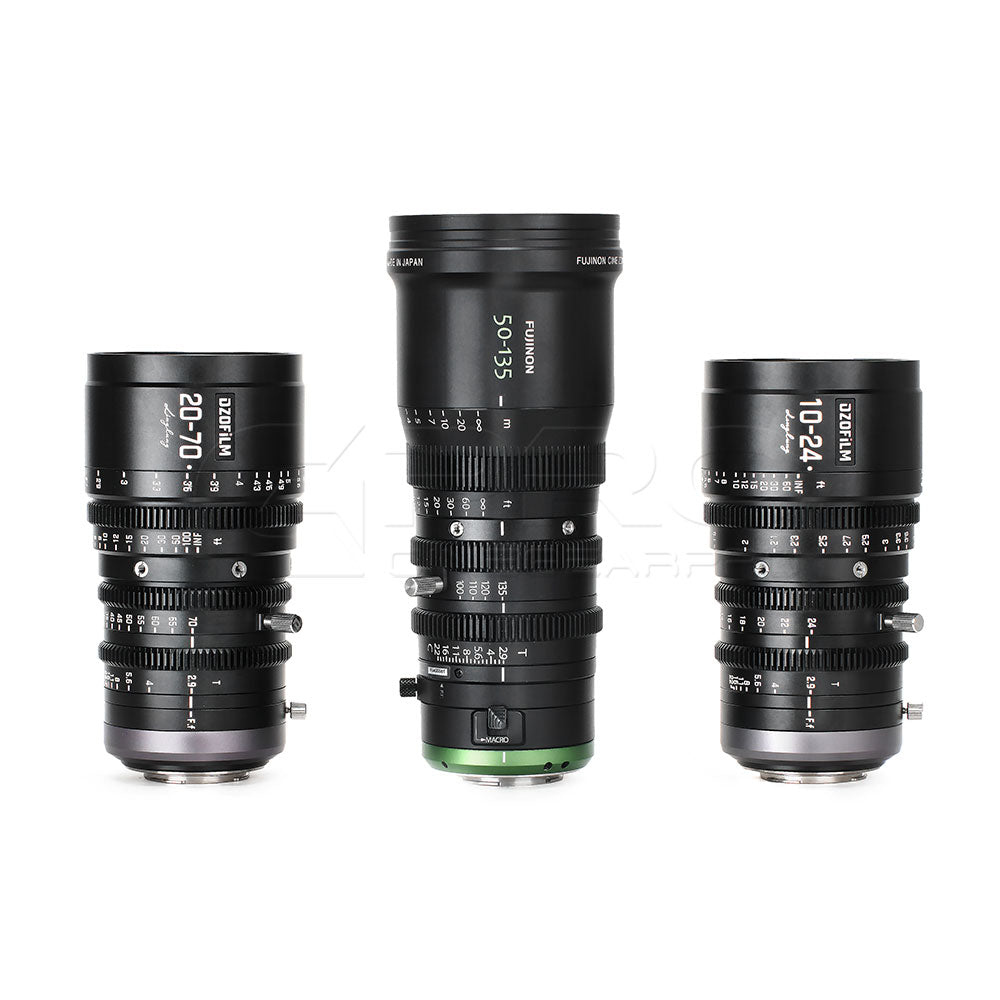

Model |
10-24mm |
20-70mm |
Focal Length |
10 to 24mm |
20 to 70mm |
Lens Mount |
Micro Four Thirds |
Micro Four Thirds |
Format |
MFT |
MFT |
Image Circle |
21.6 mm |
21.6 mm |
Maximum T-Stop |
T2.9 |
T2.9 |
Minimum T-Stop |
T22 |
T22 |
Diagonal Angle of View |
MFT: 92.5 to 49.3° |
MFT: 57.6 to 17.9° |
Horizontal Angle of View |
MFT: 79.7 to 40.3° |
MFT: 47.5 to 14.3° |
Minimum Focus Distance from Image Plane |
19.69" / 50 cm |
31.10" / 79 cm |
Iris Blades |
12 |
12 |
Gear MOD & Pitch |
Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch Zoom: 0.8 MOD / 32 Pitch |
Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch Zoom: 0.8 MOD / 32 Pitch |
Front Diameter |
80 mm |
80 mm |
Filter Thread |
77 mm |
77 mm |
Focus Scales |
Metric, Imperial |
Metric, Imperial |
Focus Rotation |
270° |
270° |
Iris Rotation |
70° |
70° |
Zoom Rotation |
100° |
100° |
Zoom Ratio |
2.4x |
3.5x |
Length |
6.11" / 155.1 mm |
6.2" / 157.5 mm |
Weight |
2.43 lb / 1.1 kg |
2.43 lb / 1.1 kg |

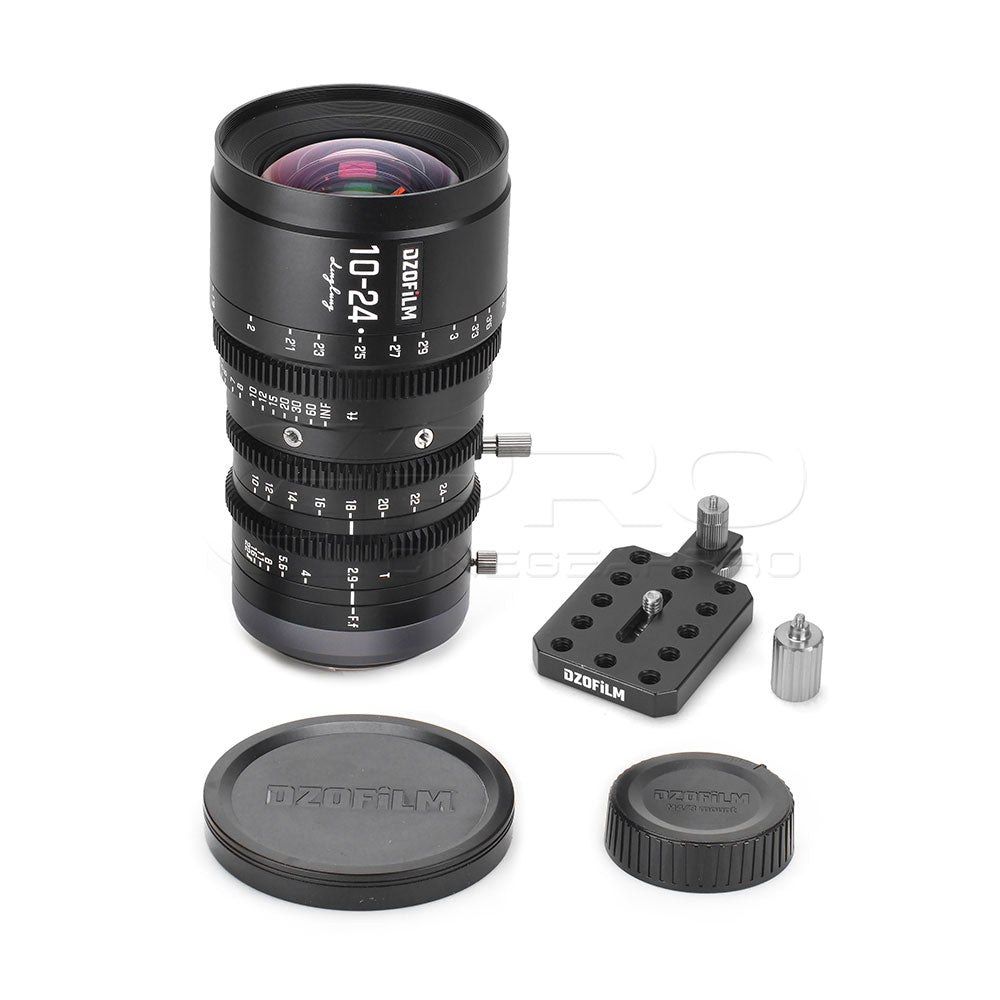

Package:
10-24mm T2.9 Imperial (532660):
1x 10-24mm T2.9 Cinema Zoom Lens Imperial (532660)
1x Front Lens Cap
1x Rear Lens Cap
1x Lens Support Baseplate
10-24mm T2.9 Metric (532694):
1x 10-24mm T2.9 Cinema Zoom Lens Metric (532694)
1x Front Lens Cap
1x Rear Lens Cap
1x Lens Support Baseplate

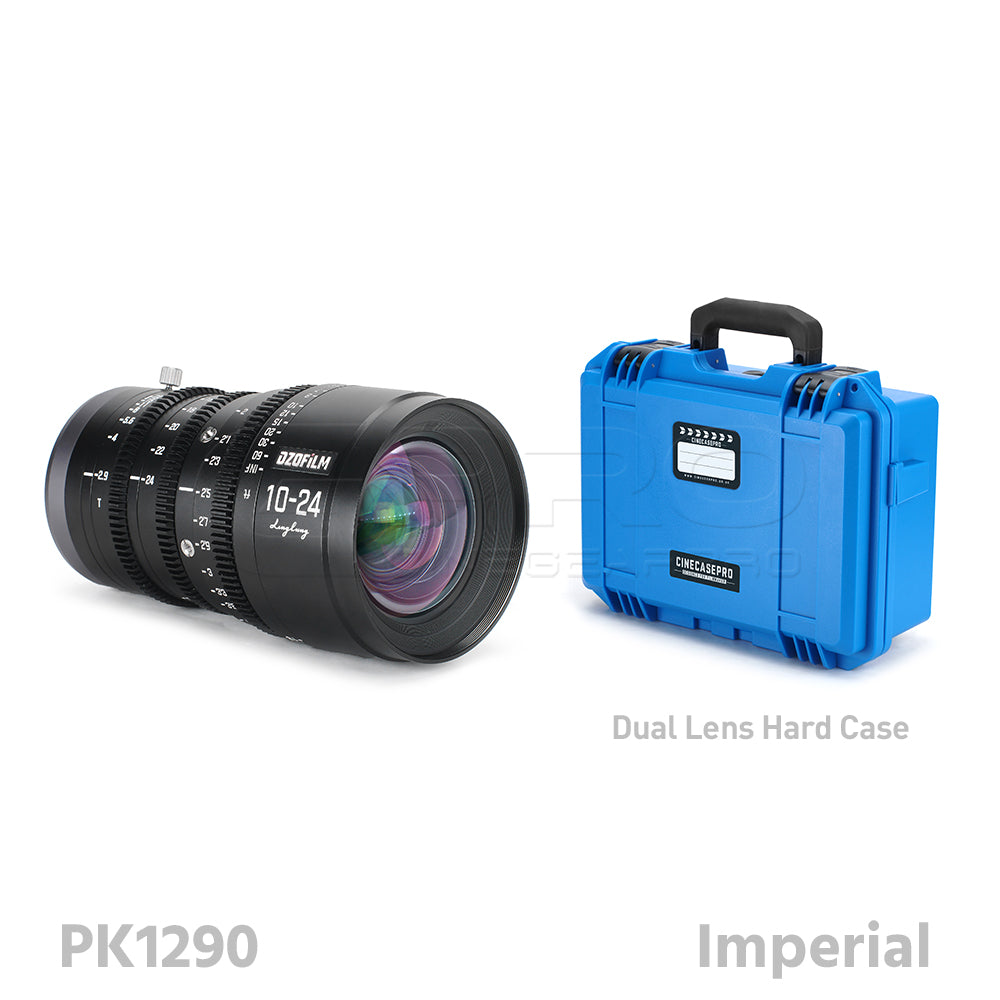

10-24mm T2.9 + Dual Lens Hard Case Imperial (PK1290):
10-24mm T2.9 Imperial (532660)
1x Dual Lens Hard Case (PK1218)
10-24mm T2.9 + Dual Lens Hard Case Imperial (PK1291):
10-24mm T2.9 Metric (532694)
1x Dual Lens Hard Case (PK1218)
10-24mm T2.9 + Dual Lens Hard Case Imperial (PK1225):
10-24mm T2.9 Imperial (532660)
1x TiLTA MB-T15 Matte Box (533326)
10-24mm T2.9 + Dual Lens Hard Case Imperial (PK1226):
10-24mm T2.9 Metric (532694)
1x TiLTA MB-T15 Matte Box (533326)
