Advanced features like PDAF and I.S. (Image stabilization) make using the LUMIX S5IIX a truly rewarding experience. Capture high-quality photos and video with unlimited recording and enjoy enhanced mobility with this compact full-frame mirrorless camera.
LUMIX DESIGN PHILOSOPHY: SHAPING EMOTIONS

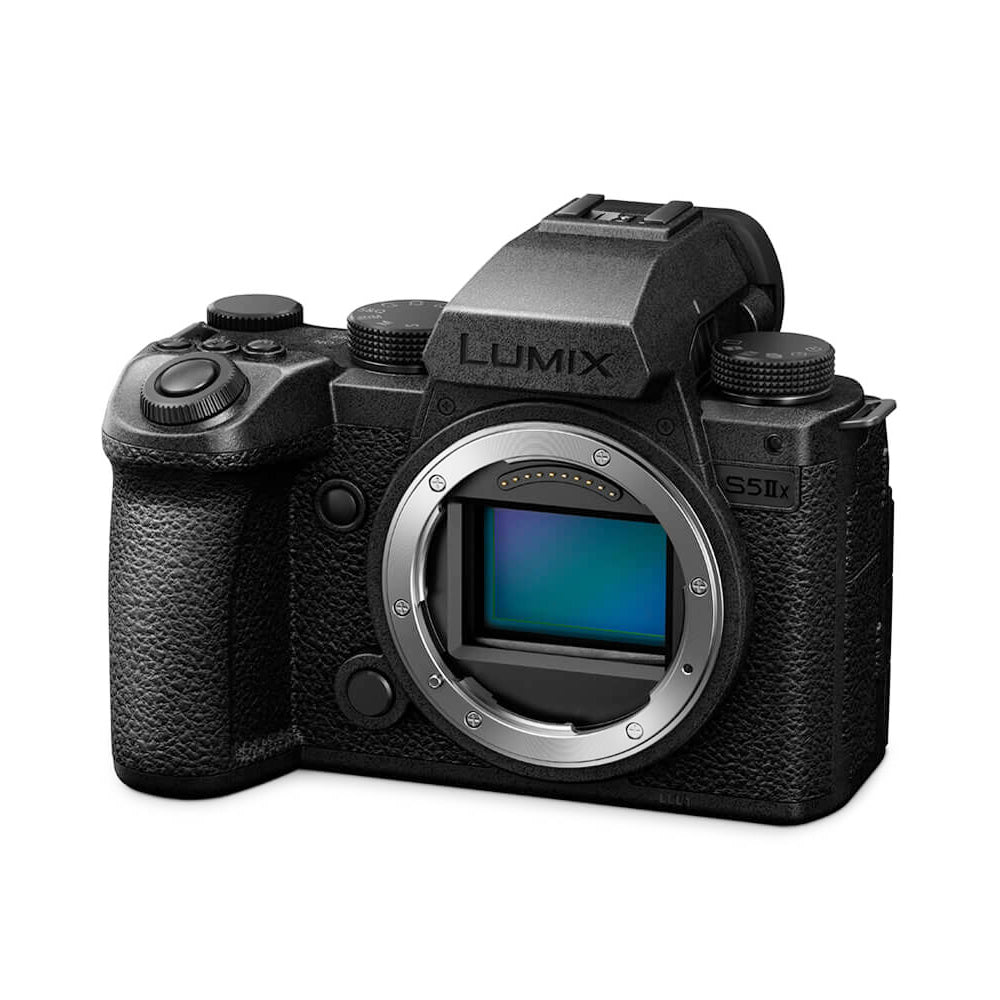

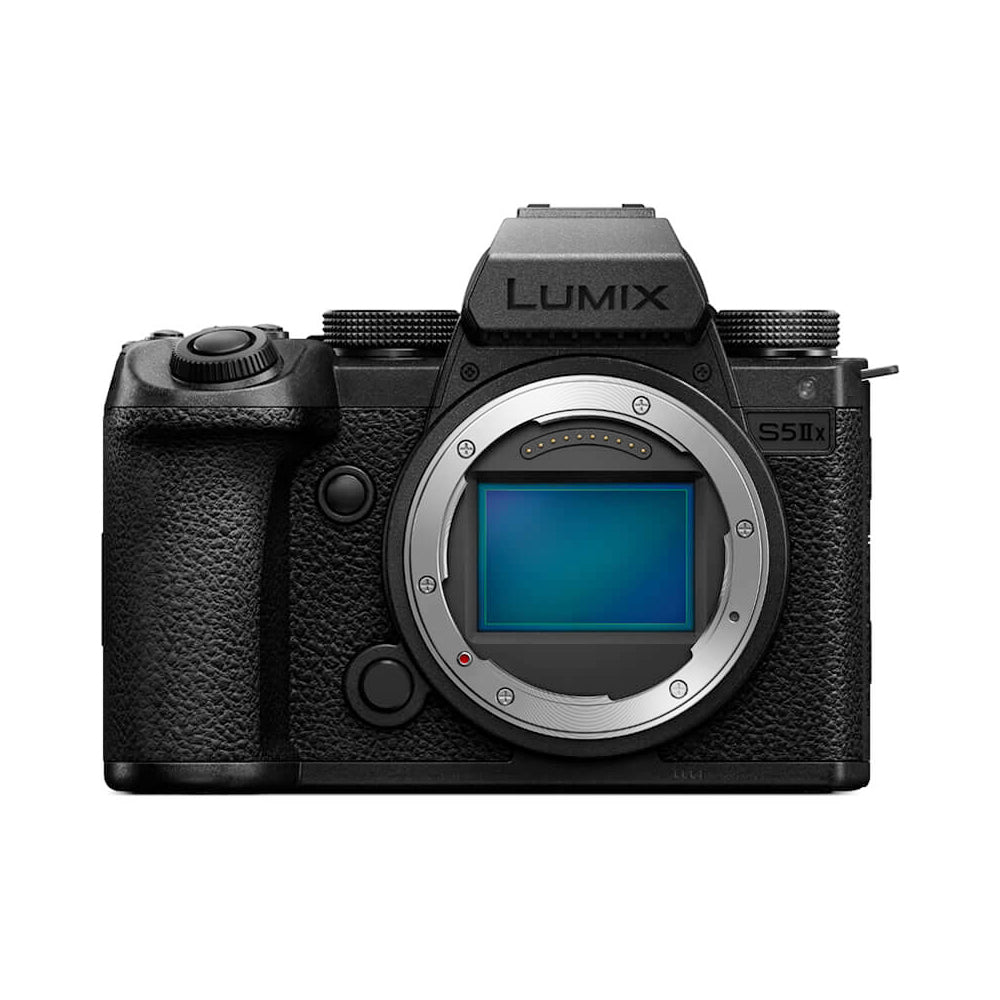

The new all-black design of the LUMIX S5IIX is made to encourage the creator to becomes immersed in capturing the subject, oblivious to the tools in use. It’s designed to harmonize with the shooting environment and prevent reflections on the iris or recording media supporting artistic creativity.
A HIGHER GRADE OF VISUAL EXPRESSION
With the LUMIX S5IIX, recording and playback is supported using an external SSD via USB. In addition, the ability to record ProRes 422 HQ (maximum 1.9Gbps) and 4:2:2 10-bit All-Intra directly to SSDs, which combine portability and high capacity has improved efficiency in data backup and post-processing.
GO LIVE ANYTIME, ANYWHERE
Choose your favorite streaming approach to share your latest in real time! For outdoor use, wireless live streaming (RTMP/RTMPS) is easy to set up with the LUMIX Sync app. For indoor use, highly stable wired live streaming (RTP/RTSP) is also available.
Live streaming to the platforms that comply with RTMP/RTMPS is basically possible (Compatibility with all the platforms is not guaranteed.) There may be the cases where the live streaming is not possible when the service of the platform changes. For more information, please refer to the terms and conditions of the platform. ･Since the transmission speed of live streaming varies depending on the Internet environment, smartphone performance, etc., we recommend that you conduct a transmission test in advance. ･A commercially available USB ethernet adaptor is required to convert the DC-S5IIX's USB Type C terminal to a LAN terminal.
PHASE HYBRID AF FOR AGGRESSIVE SHOOTING
The most important thing in autofocus is to be dependable. The new Phase Hybrid AF delivers speed and accuracy to help you capture the target subject even in the most challenging scenes where multiple subjects are involved, and even in backlit or low-light environments.
GREAT FOR SHOOTING AS YOU WALK: ACTIVE I.S. TECHNOLOGY
New Active I.S. lets you walk and shoot at the same time. By determining the status of camera shake and optimizing correction ratios, Active I.S. can compensate for even significant camera shake, approximately 200%* more than conventional systems. *Compared with LUMIX S5. Focal length 20mm, when using S-R2060.
HEAT MANAGEMENT FOR UNLIMITED RECORDING TIME
4:2:2 10-bit C4K/4K 60p/50p unlimited recording time.* With a compact body equivalent to the S5, the LUMIX S5IIX’s new optimized heat dissipation structure enables extended recording even when shooting at heavy loads (e.g. high-resolution video over 4K, HFR video). *The camera may stop recording when used in a temperature that is lower or higher than the recommended operating temperature (0 to 40 degrees). Recording stops when the continuous recording time exceeds 30 minutes in [6K/29.97p] [6K/25.00p] [5.9K/29.97p] [5.9K/25.00p] when Thermal Management mode is set to Standard.
LUMIX COLOUR SCIENCE TECHNOLOGY
-
The LUMIX commitment to superior image quality
The new engine delivers more true-to-life colours, finer resolution, and a natural three-dimensional effect, and combined with Dual Native ISO technology, effectively suppresses noise even when shooting at ultra-high sensitivities, beautifully rendering even dark areas. -
Easy colour grading with REAL TIME LUT
LUT-applied photos and videos can be recorded internally without any special software. Even if you don’t have specialized editing skills, the camera helps you expand your range of expression as much as you want.
Features:
- Digital Single Lens Mirrorless camera
- Lens mount: L-Mount
- Type: 35mm full-frame (35.6mm x 23.8mm) CMOS sensor
- Camera effective pixels / Total pixels: 24.20 megapixels / 25.28 megapixels
- AR (Anti Reflection) coating: Yes
- Aspect ratio / Color filter: 3:2 / Primary color filter
- Dust reduction system: Image sensor shift type
Specification:
| TYPE: | |
| Type | Digital Single Lens Mirrorless camera |
| Lens mount | L-Mount |
| IMAGE SENSOR: | |
| Type | 35mm full-frame (35.6mm x 23.8mm) CMOS sensor |
| Camera effective pixels / Total pixels | 24.20 megapixels / 25.28 megapixels |
| AR (Anti Reflection) coating | Yes |
| Aspect ratio / Colour filter | 3:2 / Primary colour filter |
| Dust reduction system | Image sensor shift type |
| LATITUDE | 14+ stops (V-Log) |
| STILL IMAGE: | |
| Recording file format | JPEG (DCF, Exif 2.31), RAW |
| Aspect ratio | 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1 |
| File size (Pixels): | |
| When using full-frame lenses | 3:2: 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* / 8496x5664(LL)* |
| *High Resolution mode. | |
| 4:3: 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* / 7552x5664(LL)* | |
| *High Resolution mode. | |
| 16:9: 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* / 8496x4784(LL)* | |
| *High Resolution mode. | |
| 1:1: 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* / 5664x5664(LL)* | |
| *High Resolution mode. | |
| 65:24: 6000x2208(L) | |
| 2:1: 6000x3000(L) | |
| When using APS-C/Super 35mm lenses | 3:2: 3984x2656(L) / 2880x1920(M) / 2064x1376(S) |
| 4:3: 3536x2656(L) / 2560x1920(M) / 1840x1376(S) | |
| 16:9: 3984x2240(L) / 2880x1624(M) / 1920x1080(S) | |
| 1:1: 2656x2656(L) / 1920x1920(M) / 1376x1376(S) | |
| Image quality | RAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine) |
| Colour space | sRGB, AdobeRGB |
| MOTION PICTURE: | |
| Recording file format | MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes |
| MP4: H.264/MPEG-4 AVC, H.265/HEVC | |
| Audio format | MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**) |
| MP4: AAC (2ch 48kHz/16-bit) | |
| *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately). | |
| SLOW & QUICK: | |
| MOV (*1): | |
| 59.94Hz FULL | [FHD] 1920x1080: 59.94p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, |
| LPCM)** | |
| 59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 29.97p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** | |
| 29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 23.98p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** | |
| 23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| *Angle of view narrows if you select a frame rate with a number of frames 151 or more. | |
| **External USB-SSD recording. | |
| APS-C | [C4K] 4096x2160: 29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* |
| 29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* | |
| 23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| *External USB-SSD recording. | |
| [4K] 3840x2160: 29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* | |
| 29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* | |
| 23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| *External USB-SSD recording. | |
| [FHD] 1920x1080: 59.94p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** | |
| 59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 29.97p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** | |
| 29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 23.98p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** | |
| 23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| *Angle of view narrows if you select a frame rate with a number of frames 151 or more. | |
| **External USB-SSD recording. | |
| 50.00Hz FULL | [FHD] 1920x1080: 50.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, |
| LPCM)** | |
| 50.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 25.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** | |
| 25.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| *Angle of view narrows if you select a frame rate with a number of frames 151 or more. | |
| **External USB-SSD recording. | |
| APS-C | [C4K] 4096x216: 25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* |
| 25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| *External USB-SSD recording. | |
| [4K] 3840x2160: 25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* | |
| 25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| *External USB-SSD recording. | |
| [FHD] 1920x1080: 50.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** | |
| 50.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 25.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** | |
| 25.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| *Angle of view narrows if you select a frame rate with a number of frames 151 or more. | |
| **External USB-SSD recording. | |
| 24.00Hz FULL | [FHD] 1920x1080: 24.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, |
| LPCM)** | |
| 24.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| *Angle of view narrows if you select a frame rate with a number of frames 151 or more. | |
| **External USB-SSD recording. | |
| APS-C | [C4K] 4096x2160: 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* |
| 24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| *External USB-SSD recording. | |
| [4K] 3840x2160: 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* | |
| 24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| *External USB-SSD recording. | |
| [FHD] 1920x1080: 24.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** | |
| 24.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| *Angle of view narrows if you select a frame rate with a number of frames 151 or more. | |
| **External USB-SSD recording. | |
| EXTERNAL USB-SSD RECORDING | Yes (ON / OFF) |
| HDMI RAW DATA OUTPUT: | |
| Compatible external devices | ATOMOS HDMI field monitor/recorder "Ninja V+" |
| *Selectable recording mode depends on the firmware version of ATOMOS Ninja V+. | |
| *Please refer to the ATOMOS website for the information on the corresponding firmware version of ATOMOS Ninja V+. | |
| *All functions may not be available depending on the situation. | |
| Rec quality: | |
| 59.94Hz FULL | [5.9K] 5888x3312 (16:9): 29.97p, 12-bit (LPCM) |
| 23.98p, 12-bit (LPCM) | |
| APS-C | [4.1K] 4128x2176 (17:9): 59.94p, 12-bit (LPCM) |
| 29.97p, 12-bit (LPCM) | |
| 23.98p, 12-bit (LPCM) | |
| [3.5K] 3536x2656 (4:3): 29.97p, 12-bit (LPCM) | |
| 23.98p, 12-bit (LPCM) | |
| 50.00Hz FULL | [5.9K] 5888x3312 (16:9): 25.00p, 12-bit (LPCM) |
| APS-C | [4.1K] 4128x2176 (17:9): 50.00p, 12-bit (LPCM) |
| 25.00p, 12-bit (LPCM) | |
| [3.5K] 3536x2656 (4:3): 50.00p, 12-bit (LPCM) | |
| 25.00p, 12-bit (LPCM) | |
| Audio format | LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**) |
| *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately). | |
| STREAMING: | |
| Wi-Fi: | |
| Protocol | RTMP / RTMPS |
| 59.94Hz | [FHD] 1920x1080: 59.94p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set. |
| 29.97p, 6Mbps / 3Mbps (H.264) | |
| [HD] 1280x720: 59.94p, 6Mbps (H.264) | |
| 29.97p, 4Mbps (H.264) | |
| 50.00Hz | [FHD] 1920x1080: 50.00p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set. |
| 25.00p, 6Mbps / 3Mbps (H.264) | |
| [HD] 1280x720: 50.00p, 6Mbps (H.264) | |
| 25.00p, 4Mbps (H.264) | |
| USB Tethering: | |
| Protocol | RTMP / RTMPS |
| 59.94Hz | [4K] 3840x2160: 29.97p, 12.5Mbps (H.264) |
| [FHD] 1920x1080: 9.94p, 16Mbps / 8Mbps (H.264) | |
| 29.97p, 6Mbps / 3Mbps (H.264) | |
| [HD] 1280x720: 59.94p, 6Mbps (H.264) | |
| 29.97p, 4Mbps (H.264) | |
| 50.00Hz | [4K] 3840x2160: 25.00, 12.5Mbps (H.264) |
| [FHD] 1920x1080: 50.00p, 16Mbps / 8Mbps (H.264) | |
| 25.00p, 6Mbps / 3Mbps (H.264) | |
| [HD] 1280x720: 50.00p, 6Mbps (H.264) | |
| 25.00p, 4Mbps (H.264) | |
| Wired LAN: | |
| Protocol | RTP / RTSP |
| 59.94Hz | [4K] 3840x2160: 59.94p, 50Mbps / 25Mbps (H.265)* |
| 59.94p, 50Mbps / 25Mbps (H.264)* | |
| 29.97p, 25Mbps / 12.5Mbps (H.265) | |
| 29.97p, 25Mbps / 12.5Mbps (H.264) | |
| *When Image Area of Video is set to APS-C or PIXEL/PIXEL. | |
| [FHD] 1920x1080: 59.94p, 20Mbps / 16Mbps (H.265) | |
| 59.94p, 16Mbps / 8Mbps (H.264) | |
| 29.97p, 12Mbps / 6Mbps (H.265) | |
| 29.97p, 6Mbps / 3Mbps (H.264) | |
| [HD] 1280x720: 59.94p, 6Mbps (H.264) | |
| 29.97p, 4Mbps (H.264) | |
| 50.00Hz | [4K] 3840x2160: 50.00p, 50Mbps / 25Mbps (H.265)* |
| 50.00p, 50Mbps / 25Mbps (H.264)* | |
| 25.00p, 25Mbps / 12.5Mbps (H.265) | |
| 25.00p, 25Mbps / 12.5Mbps (H.264) | |
| *When Image Area of Video is set to APS-C or PIXEL/PIXEL. | |
| [FHD] 1920x1080: 50.00p, 20Mbps / 16Mbps (H.265) | |
| 50.00p, 16Mbps / 8Mbps (H.264) | |
| 25.00p, 12Mbps / 6Mbps (H.265) | |
| 25.00p, 6Mbps / 3Mbps (H.264) | |
| [HD] 1280x720: 50.00p, 6Mbps (H.264) | |
| 25.00p, 4Mbps (H.264) | |
| VIEWFINDER: | |
| Type | OLED Live View Finder |
| Pixels | Approx. 3.68 million dots |
| Field of view / Magnification | Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2 |
| Eye point / Diopter adjustment | Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt) |
| Eye sensor | Yes |
| Display speed | 120fps / 60fps |

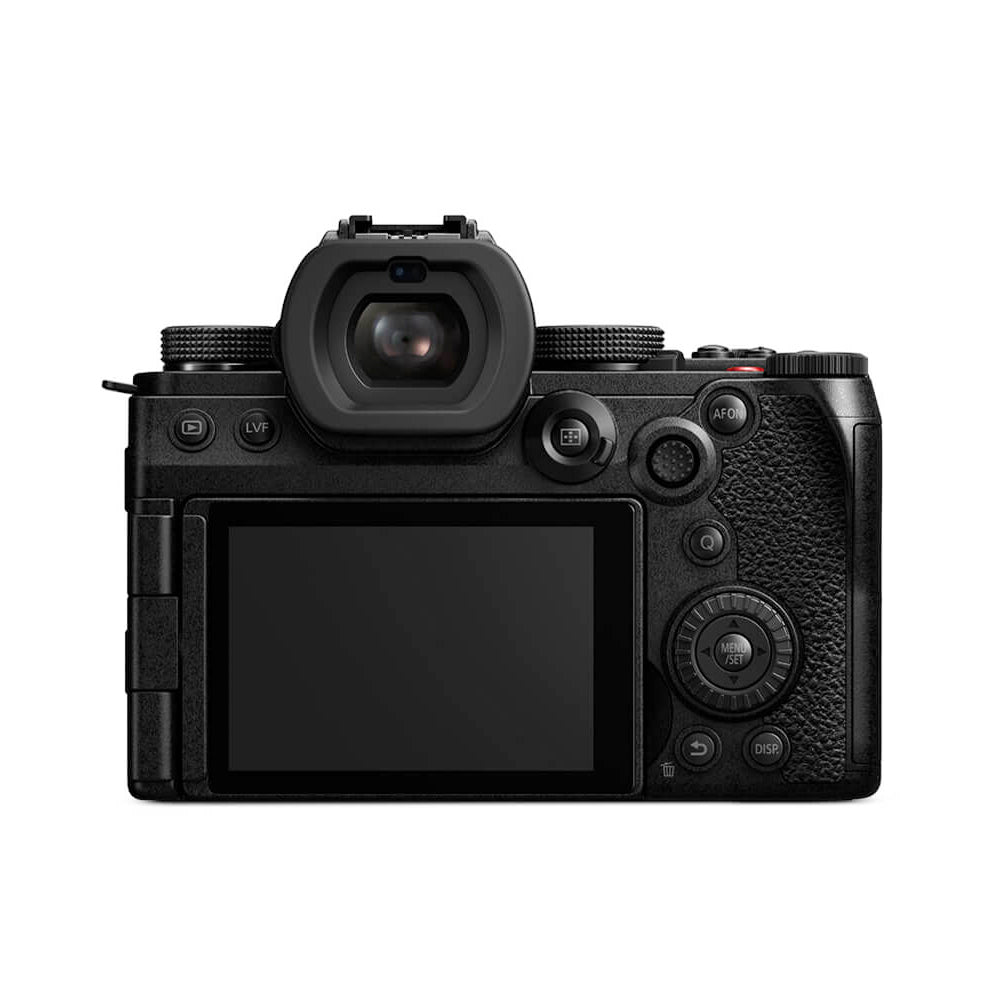

| REAR MONITOR: | |

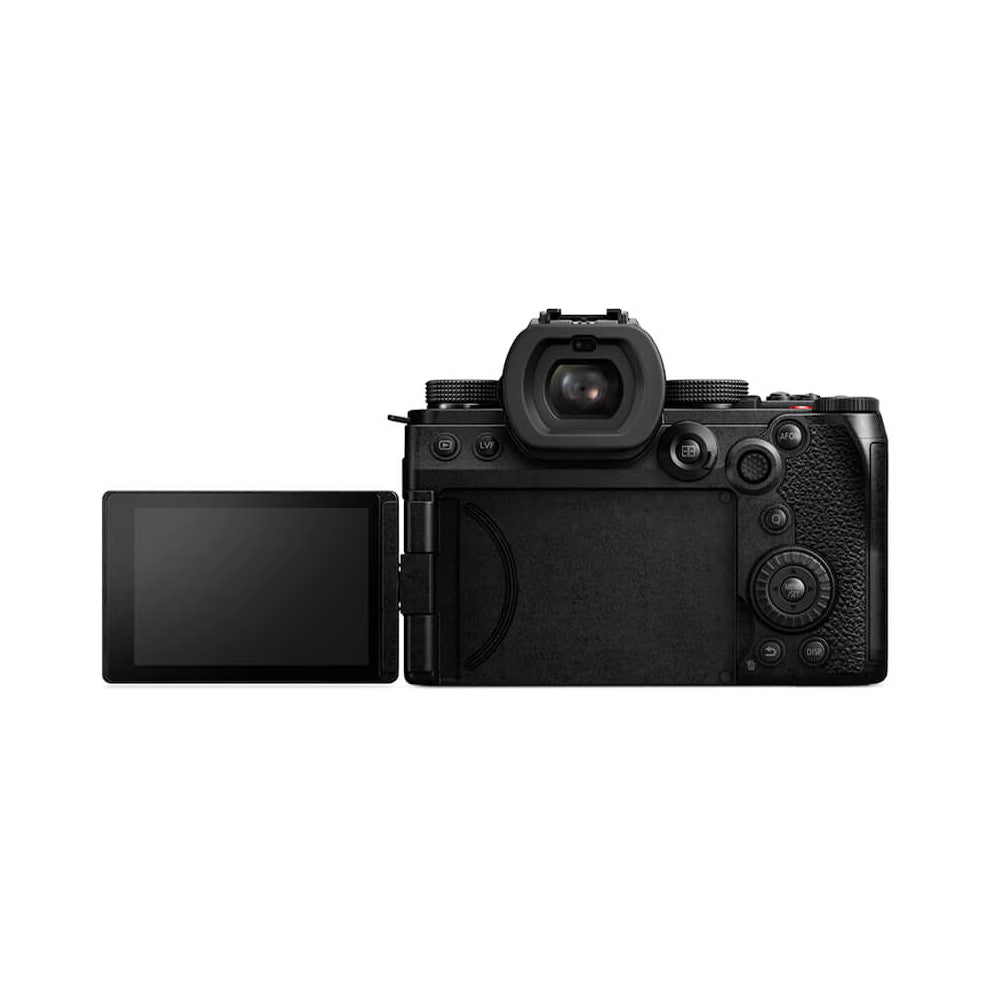

| Type | TFT LCD monitor with static touch control |
| Monitor size | Free-angle, 3.0-inch (7.6cm), 3:2 aspect |
| Pixels | Approx. 1.84 million dots |
| Field of view | Approx. 100% |
| STATUS LCD | - |
| FOCUS (*3): | |
| Type | Phase Detection AF system / Contrast AF system |
| DFD technology | Yes |
| Focus mode | AFS (Single) / AFC (Continuous) / MF |
| AF mode | Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint |
| *Automatic Detection can be turned ON to switch between Human/ Face/Eye/ Animal+Human. Except when Pinpoint is set. | |
| AF detective range | EV -6 - 18 (F1.4, ISO100 equivalent, AFS) |
| AF custom setting | AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction |
| AF assist light | Yes |
| AF lock | Set the Fn button in custom menu to AF lock |
| Focus ring control | Nonlinear / Linear (90/ 120/ 150/ 180/ 210/ 240/ 270/ 300/ 330/ 360/ 720/ 1080/ Maximum) |
| Others | AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, |
| 1-Area AF Moving Speed, AF Micro Adjustment, Continuous AF (during motion picture recording), | |
| Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, | |
| MF Guide, Focus Ring Lock, Show/Hide AF Mode, Shutter AF, Half Press Shutter, | |
| Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), | |
| Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resum | |
| EXPOSURE CONTROL: | |
| Light metering system | 1,728-zone multi-pattern sensing system |
| Light metering mode | Multiple / Center Weighted / Spot / Highlight Weighted |
| Metering range | EV0-18 (F2.0 lens, ISO100 equivalent) |
| Mode dial | Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / |
| Manual Exposure (M) / Creative Video (P/A/S/M)* / Slow&Quick / Custom 1, 2, 3 / Intelligent Auto | |
| *The same exposure operations as P/A/S/M mode is available. | |
| Exposure compensation | 1/3 EV step ±5EV (±3EV for motion picture) |
| ISO sensitivity (Standard output sensitivity) | [Normal] |
| Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO | |
| [V-Log] | |
| Auto / 320* / 640-51200 (1/3 or 1 EV step) *Extended ISO | |
| [HLG] | |
| Auto / 400-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO | |
| Dual Native ISO | [Normal] |
| Native ISO: 100, 640 | |
| Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO | |
| Low: Auto / 50* / 100-800 *Extended ISO | |
| High: Auto / 320* / 640-51200 / 102400* / 204800* *Extended ISO | |
| [V-Log] | |
| Native ISO: 640, 4000 | |
| Auto: Auto / 320* / 640-51200 *Extended ISO | |
| Low: Auto / 320* / 640-5000 *Extended ISO | |
| High: Auto / 2000* / 4000-51200 *Extended ISO | |
| [HLG] | |
| Native ISO: 400, 2500 | |
| Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO | |
| Low: Auto / 400-3200 | |
| High: Auto / 2500-51200 / 102400* / 204800* *Extended ISO | |
| [Cinelike D2 / Cinelike V2] | |
| Native ISO: 200, 1250 | |
| Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO | |
| Low: Auto /100* / 200-1600 *Extended ISO | |
| High: Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO" | |
| AE lock | Set the Fn button in custom menu to AE lock |
| IMAGE STABILIZATION SYSTEM | B.I.S. (5-axis / 5-stop*) |
| *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.] | |
| Dual I.S. 2 (6.5-stop*) | |
| *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.] | |
| WHITE BALANCE: | |
| White balance | AWB / AWBc / AWBw / Daylight / Cloudy / Shade / |
| Incandescent / Flash / White Set 1, 2, 3, 4 / Colour temperature setting 1, 2, 3, 4 | |
| White balance adjustment | Blue/Amber bias, Magenta/Green bias |
| Colour temperature setting | 2500-10000K in 100K |
| SHUTTER: | |
| Type | Focal-plane shutter |
| Shutter speed | Still image: Bulb (Max. 30 minutes), 1/8,000 - 60 |
| Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60 | |
| Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60 | |
| Motion picture: 1/16,000 - 1/25 | |
| Creative Video M mode / MF mode: 1/16,000 - 1/2 | |
| Self timer | 10sec, 3 images / 2sec / 10sec / Custom Time |
| Remote control | Remote control by DMW-RS2 (sold separately) |
| Silent mode / Shutter type | Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR) |
| BRACKET: | |
| AE bracket | 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst |
| Aperture bracket | 3, 5 or all positions |
| Focus bracket | 1 to 999 images, focus steps can be set in 10 levels |
| White balance bracket | 3 images in blue/amber axis or in magenta/green axis, colour temperature setting |
| BURST SHOOTING: | |
| Burst speed: | |
| Mechanical shutter / Electronic front curtain shutter | "H: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View) |
| M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View) | |
| L: 2 frames/sec (AFS/AFC/MF) (with Live View) | |
| Electronic shutter | SH30: 30 frames/sec (AFS/AFC/MF) |
| H: 9 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View) | |
| M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View) | |
| L: 2 frames/sec (AFS/AFC/MF) (with Live View) | |
| Number of recordable images | H/M/L* |
| RAW+JPEG: More than 200 images | |
| RAW: More than 200 images | |
| JPEG: More than 300 images | |
| *Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic. | |
| *When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)". | |
| SH | |
| RAW / RAW+JPEG / JPEG: 200 images | |
| FLASH: | |
| Flash type | TTL External Flash (sold separately) |
| Synchronization speed | Less than 1/250 second |
| *The guide number decreases at 1/250 second. Only when set to M mode or S mode. | |
| Flash mode | Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / |
| Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only. | |
| Flash synchronization | 1st Curtain Sync, 2nd Curtain Sync. |
| Flash output adjustment | 1/3EV step ±3EV |
| Wireless control | Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch |
| EXTRA TELE CONVERSION | 2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) |
| (When using APS-C / Super 35mm lenses), 1.4x (EX M) *Only for still image recording. | |
| COLOUR SETTINGS: | |
| Photo Style: | |
| Photo Style | Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / |
| Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / | |
| Like709 / V-Log / REAL TIME LUT / Like2100 (HLG) / Like2100 (HLG) Full Range* / My Photo Style 1-4 (5-10)* | |
| *Set to ON from Show/Hide Photo Style to select. | |
| Picture adjustment | Contrast / Highlight / Shadow / Saturation / Colour Tone / Hue / |
| Filter Effect / Grain Effect / Colour Noise / Sharpness / Noise Reduction / ISO / WB / LUT | |
| *Adjustable settings vary depending on the Photo Style mode. | |
| Filter | Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass |
| LUT Library | Vlog_709 / Set 1-10 |
| *REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, | |
| LUT View Assist in V-Log View Assist, LUT can be applied from these settings. | |
| MOTION PICTURE FUNCTION: | |
| Time lapse shot | Yes |
| Stop motion animation | Yes |
| Live cropping | Yes (Supports cropping from 5.9K (FULL) 30p/25p/24p video to 4K/FHD sizes) |
| SS/Gain operation | Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB |
| Luminance level | 8-bit: 0-255 / 16-235 / 16-255 |
| 10-bit: 0-1023 / 64-940 / 64-1023 | |
| Synchro scan | Yes |
| Master pedestal level | 31 steps |
| Colour bars / 1kHz test tone | Yes (SMPTE / EBU / ARIB) / Yes |
| LUT view assist | Supported file types: .vlt, .cube |
| Monitor / HDMI | |
| HLG view assist | Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF) |
| Anamorphic desqueeze display | 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF |
| Wave form monitor / Vectorscope | Selectable |
| Knee control | Yes (in Like709 mode) |
| Red REC frame indicator | ON / OFF |
| VERTICAL POSITION INFORMATION | Still image / Motion picture (ON/OFF) |
| LEVEL GAUGE | Yes |
| OSD LANGUAGE | Please refer to "OSD" Sheet |
| INTERFACE | |
| USB | USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2)) |
| HDMI (*2): | |
| HDMI | HDMI TypeA |
| Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.) | |
| Monitor-through | 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].) |
| 4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].) | |
| Playback | 59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p* |
| 50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p* | |
| 24.00Hz: C4K/24p / 4K/24p / 1080p | |
| *Only for playback. | |
| Remote input | φ2.5mm |
| Audio: | |
| Build-in microphone | Stereo |
| Wind Noise Canceller: OFF / Standard / High | |
| External microphone / External audio device input | φ3.5mm for external microphone / external audio device |
| MIC (Plug-in Power) / MIC / LINE | |
| Wind Cut: OFF / Low / Standard / High *When attaching 3.5mm microphone (sold separately). | |
| Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately). | |
| XLR microphone | Yes with DMW-XLR1 (sold separately) |
| 4ch mic input | Yes with DMW-XLR1 (sold separately) |
| Speaker | Monaural |
| Headphone output | φ3.5mm |
| SD card slot | Slot 1, Slot 2 |
| SD Memory Card / SDHC Memory Card* / SDXC Memory Card* | |
| *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC | |
| Memory Cards. | |
| TC IN/OUT: | |
| Count up | Rec Run / Free Run |
| Time code mode | Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.) |
| HDMI time code output | ON / OFF |
| FAN | Auto1 / Auto2 / Fast / Normal / Slow* / OFF** |
| *Not selectable when the resolution is higher than C4K, or the frame rate is higher than 60p. | |
| **OFF can be set when in iA/P/A/S/M mode. | |
| WIRELESS: | |
| Wi-Fi | 2.4GHz bands (STA/AP) (IEEE802.11b/g/n) |
| 5GHz bands (STA) (IEEE 802.11a/n/ac) | |
| Security: WPA/WPA2/WPA3 | |
| Please refer to "Wi-Fi" Sheet | |
| Bluetooth | Bluetooth v5.0 (Bluetooth Low Energy (BLE)) |
| DUST AND SPLASH RESISTANT* | Yes. |
| *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water. | |
| POWER: | |
| Battery | Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled) |
| USB power supply, USB power charging, USB power delivery | |
| Battery life (CIPA standard) | Approx. 370 images, 1,250 images (Power Save LVF mode*) with S-R2060 |
| Approx. 370 images, 1,200 images (Power Save LVF mode*) with S-S50 | |
| *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec. | |
| Continuous recordable time (Motion picture) (*1) | MP4 [4K/60p]: Approx. 90 min (APS-C), |
| MP4 [FHD/60p]: Approx. 130 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged. | |
| Actual recordable time (Motion picture) (*1) | MP4 [4K/60p]: Approx. 45 min (APS-C), |
| MP4 [FHD/60p]: Approx. 65 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged. | |
| Battery grip | DMW-BGS5 (sold separately) |
| DIMENSIONS / WEIGHT: | |
| Dimensions (W x H x D) | Approx. 134.3 x 102.3 x 90.1 mm / 5.29 x 4.03 x 3.55 inch (Body only, excluding protrusions) |
| Approx. 134.3 x 102.3 x 157.0 mm / 5.29 x 4.03 x 6.19 inch (with S-R2060, excluding protrusions) | |
| Approx. 134.3 x 102.3 x 151.8 mm / 5.29 x 4.03 x 5.98 inch (with S-S50, excluding protrusions) | |
| Weight | Approx. 740g / 1.64 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap) |
| Approx. 657g / 1.45 lb (Body, Hot Shoe Cover) (excluding body cap) | |
| OPERATING ENVIRONMENT: | |
| Operating temperature (*3) | 0℃ to 40℃ (32℉ to 104℉) |
| Operating humidity | 10%RH to 80％RH |
Package Contents:

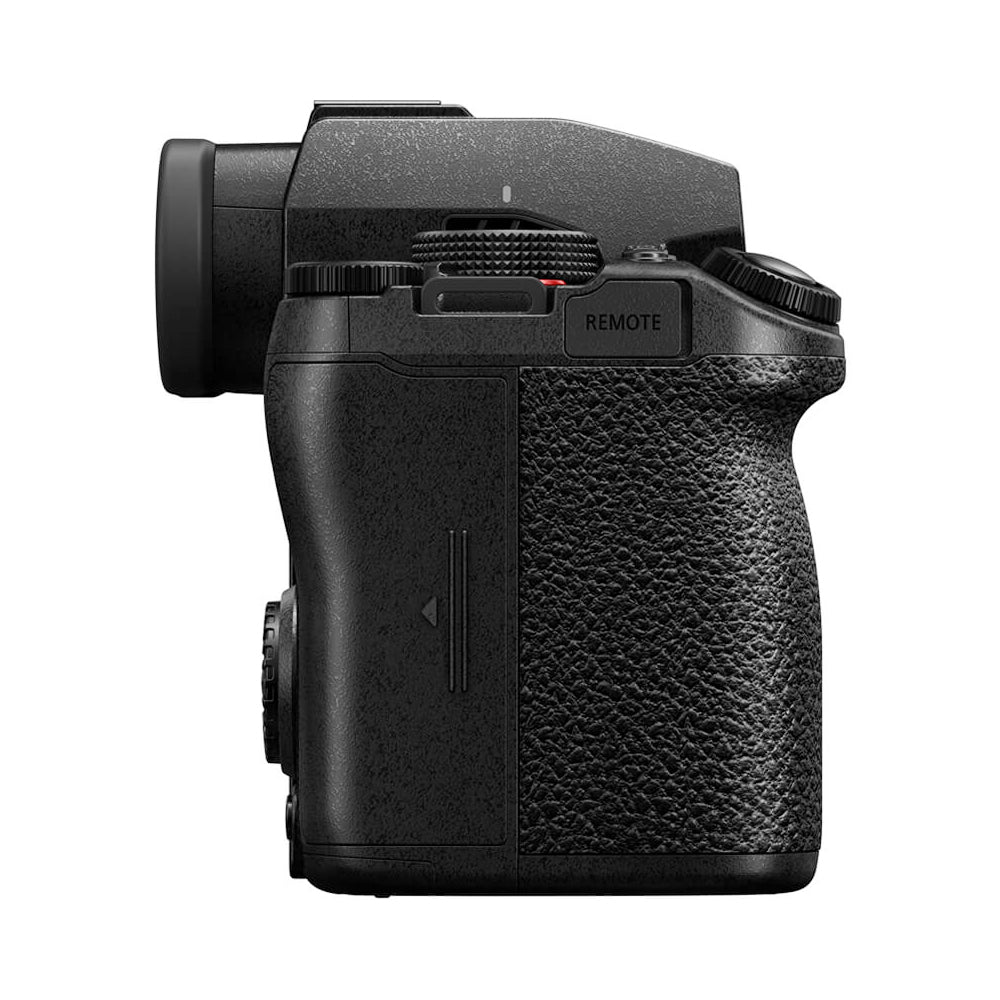

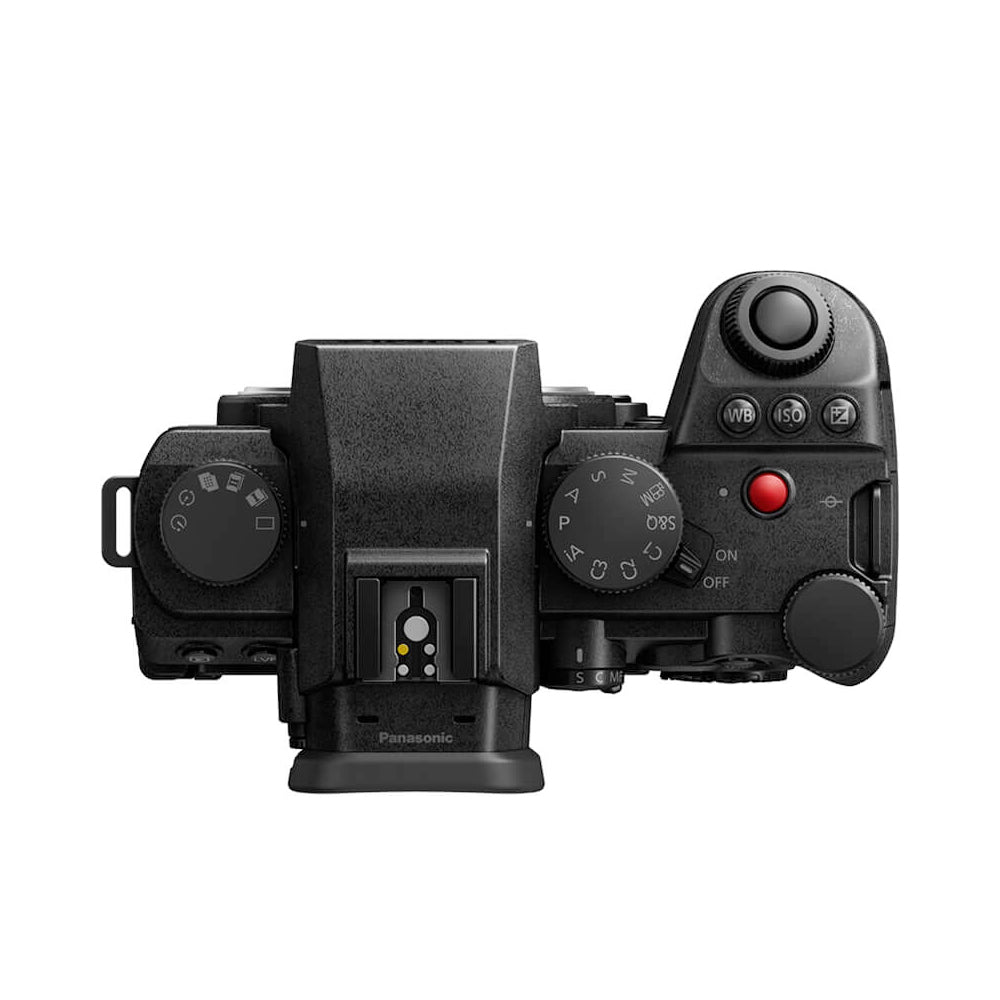

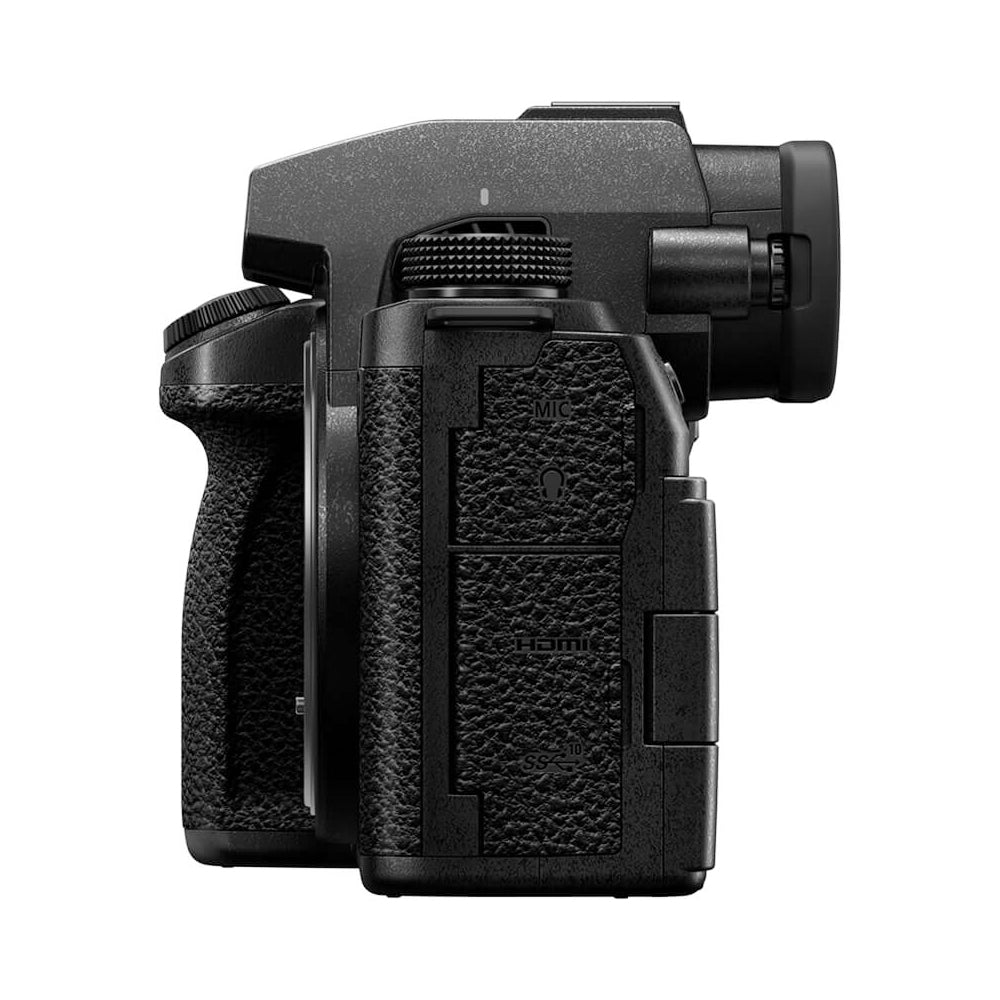

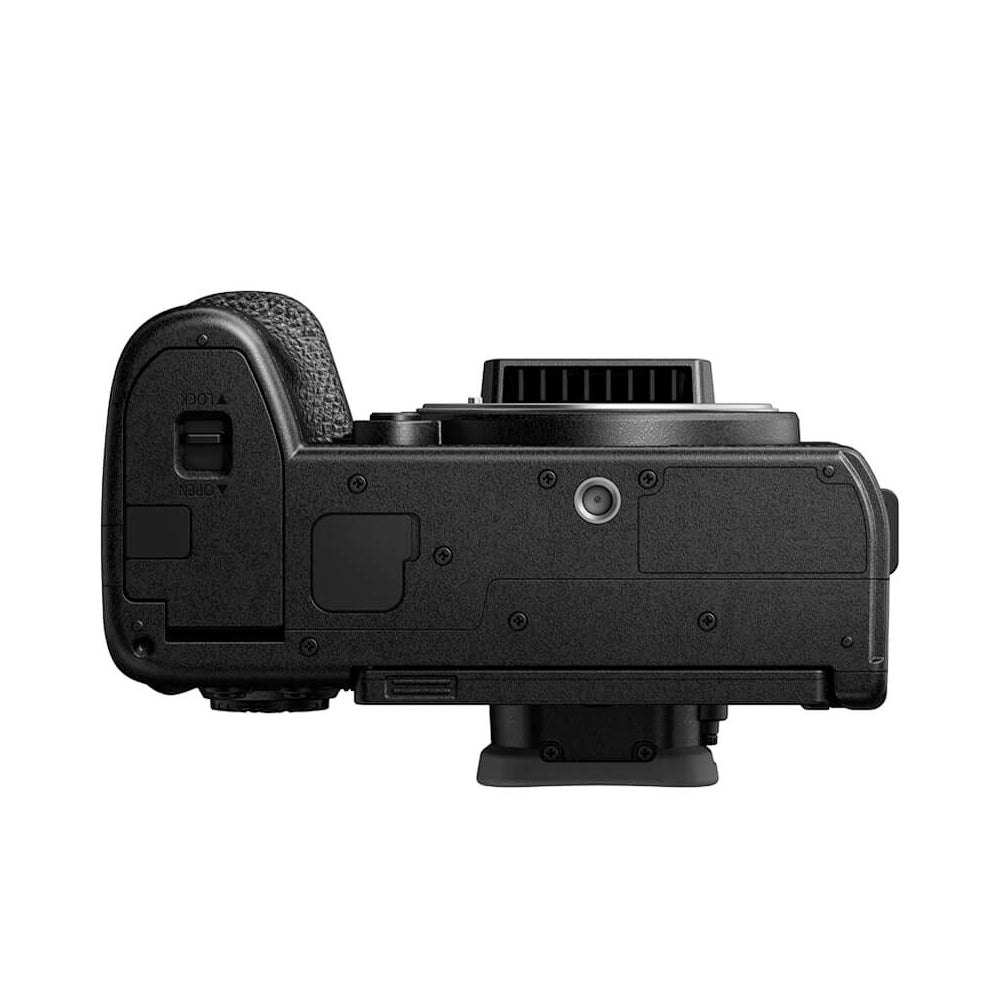

1x Panasonic LUMIX S5IIX Body
- How long will my order take to arrive?
Delivery times will vary depending on where you are based. If the item is in stock, UK Mainland deliveries should take roughly 1-2 working days. Anywhere else outside the UK Mainland, delivery times will vary. You will be able to check shipping times in the checkout process when choosing a shipping method, along with other delivery options.
- When will my order be shipped?
If your order has been placed before 1 pm, your order will be dispatched on the same day. Anytime after this will be dispatched the next day. Please bear in mind this is subject to stock availability (pre-order items will vary with different lead times).
- How can I track my parcel status?
Once we dispatch your order, we will provide you with the tracking information in a shipping confirmation email. We will provide you with the tracking number and the courier it will be with so you can check the status of your order.
- What couriers will deliver my order?If you are based in the UK Mainland, your order will most likely be delivered by DPD. If you are based outside of the UK, your order will be handled by either, DPD, DHL, UPS, FedEx or Royal Mail (depending on the nature of the item and location).
- Can I collect in store?
Yes, you can. When going through the checkout process, under the ‘Delivery’ section, you can select the ‘Pick Up’ option. Selecting this option and completing your order will notify the team and then they will prepare your order for collection. We will let you know when the order is ready for collection (via a ‘Ready to Collect’ email).
- What is the cut off time for next-day delivery?
The cut-off point for next-day delivery is 11am. Any orders past this time will be dispatched on the next working day. If the cut-off time has passed and you need this item urgently, please contact us at info@cinegearpro.co.uk. It is not guaranteed that we can get this dispatched on the same day but we will try our best to.
- Do you have insurance for high value shipments?
Yes, we can provide insured delivery for high value shipments. You will be able to locate delivery with insurance throughout the checkout process as the delivery option will be stated with insurance.
- Do you offer free delivery?
Yes, all deliveries over £100 (excl. VAT) will be granted UK free delivery.
- Do you ship internationally?
Yes, we ship globally! If you have any doubts that we will be unable to deliver to you address, please get in contact with us at info@cinegearpro.co.uk.
- How much will I be charged for international delivery?
International delivery charges vary, and you can check these during the checkout process. If you see "Please contact us for shipping costs," please get in touch with us at info@cinegearpro.co.uk to confirm the shipping fees.
- Can I have my order sent to a different address?
Yes, if the order has not been dispatched yet, get in contact with us as soon as you can from the time of the order placed. If we are able to change the shipping address, please confirm the one you want with the team.
- When and how will I receive the tracking number for my order?
The tracking information will be provided in a shipping confirmation email. This will be sent once the package has been dispatched. You can expect this email within 1-2 working days from the time of purchase.
- We need this item urgently, how do I upgrade the shipping service to an express service?
Our general cut-off point for deliveries is 1pm. If you have placed an order and you desperately need the delivery service to be changed, please let us know immediately at info@cinegearpro.co.uk. If the order has not been dispatched yet, we will be able to upgrade to an express service and provide an invoice to pay the remaining difference on shipping costs.
- How do I change the shipping address or other details of my order after it has been dispatched?
Please get in contact with us at info@cinegearpro.co.uk in good time. This is so we can change the shipping address before the order is dispatched. If you feel like you may have left this too late, please contact us as soon as you can and we can assist you. You can also download the DPD app and redirect the order yourself using the same email address/phone number.
- My parcel which is showing “Parcel Delivered” but I haven’t received it yet, what should I do?
A Denial Of Receipt will be issued to you by DPD and you will have 14 days to complete and return to DPD, otherwise the claim will be closed. Before this, you must check the delivery image on the DPD app. If you can’t check the app, contact us at info@cinegearpro.co.uk. If DPD have lost your parcel, we will open a request and require further information from you.
- There are no updates on the tracking number, where is the parcel now?
Usually, if you are still waiting on an order for a few days or more, the parcel may have been lost, held in a sorting depot etc. To find out further information, please get in contact with us at info@cinegearpro.co.uk and we can check for you. You can always check with courier directly as well.
- My order has arrived damaged, what should I do?
If the order has been damaged in transit, contact us at info@cinegearpro.co.uk within 24 hours from the receipt of delivery and we will provide further instructions on how to get this solved for you.
- How can I combine multiple orders to sent out together?
When you have multiple orders, please get in contact with us at info@cinegearpro.co.uk and we can organise the shipment to be sent out all together. You will need to provide all order numbers of the orders you want sent out. Delivery will then proceed as normal.
- How can I let the courier know to leave the parcel in a safe place/pick-up point if I am not at home?
Depending on the courier used to deliver your order, you can directly go to them to change your order to be delivered to a safe place or pick-up point. Sometimes, the courier may have an app which you can access on your phone but you will be able to change it on their website (for example; DPD is the most used courier at CINEGEARPRO and you can change to leave the parcel in a safe place/pick-up point via their app).
- I received the wrong item, what should I do?
In the unfortunate circumstance of this occurring, please contact us at info@cinegearpro.co.uk immediately within 24 hours from the receipt of the delivery and we can arrange a return. We will then send out the correct order for you.
- The parcel was sent to the incorrect address, what do I do?
In the unlikely event of this happening, if you are unable to check the address that it was incorrectly sent to, please contact us at info@cinegearpro.co.uk as soon as you can.
- What information do I need to provide when I collect my parcel?
When collecting a ‘Pick-Up’ order from us, you will need to provide your order number along with your confirmation email to verify that you are authorised to collect this order. You may collect your order via an Addison Lee or courier. In this case, please provide the order number, our email address and our phone number to the courier so we can verify the correct person collecting.
- Can you ship batteries outside of the UK?
Anything under 270wh can be sent via UPS, anything over this amount they will contact us
- Part of my order is in-stock, can the in-stock items be shipped to me?
Yes, if you have a large order and some of the items are in stock and some are out of stock, we can send the in-stock items first and the other items later once they arrive to our unit. To do this, you will need to get in contact with us at info@cinegearpro.co.uk and then we will send your order in two separate shipments. Please note; Due to multiple shipments, additional shipping costs may be charged.
- What does it mean when an item is on pre-order?
When an item is on pre-order this usually means that we currently do not have the item in stock or the stock is pending. However, we can get the item into our store. Once a customer has made the order, the order will be actioned and we will get the item into our store. The lead times will vary depending on the nature of the item. On the page of the item, there will be information displaying the ETA and how long the lead times are. If you are unsure about the ETA on any pre-order item, please feel free to contact us at info@cinegearpro.co.uk and a member of the team will be able to assist you.
- I would like to know if a product is in stock. How do I check this?
You can locate the stock level just above the ‘Add to Cart’ button. This stock level is usually very accurate but you can always contact us at info@cinegearpro.co.uk to make sure.
- Is it possible to cancel my order which I placed by mistake?
Yes, this is possible. However, please contact us at info@cinegearpro.co.uk as soon as possible from the time of purchase if you would like to cancel your order. Otherwise, this order could already be processed and dispatched.
- How do I know my order has been confirmed?
Shortly after your purchase, an order confirmation email should arrive into your email inbox. You will find your order number there, starting with ‘CGP’.
- What warranty do you provide on your products?
We provide a 1-Year UK Warranty on the majority of all products. Warranties may vary depending on the item’s condition and the actual item itself. You can find more about the warranty here. The warranty will be listed but if you are still unsure, please contact us at info@cinegearpro.co.uk.
- Is this item brand-new?
All the listed items we sell are brand-new. If you are looking for used/open-box items, you can browse our B-Stock here.
- Do you sell Ex-Demo/Open-Box items?
We have a great range of B-stock items that are sold at a discounted price when compared to a brand-new version. You can browse our B-Stock here.
- Do you offer discounts for bulk orders or large purchases?
If you are ordering an excessive amount of the same/different items that come up to an expensive sum, we are willing to help out with a discount. To check if you are eligible, please get in contact with us at info@cinegearpro.co.uk and then we can see what we can do.
- How do I apply a discount code to my order?
In the checkout process, above the total amount of your order, there will be a section (it will say ‘Discount code or gift’) where you can input your code.
- I want to know where this product was manufactured. How do I check this?
To check where a product is manufactured, please get in contact at info@cinegearpro.co.uk with us so we can provide the relevant information. Disclaimer; For carnets, we do not keep a record of serial numbers.
- Do you provide user manuals for products?
On a listing page, near the bottom of the page, you will be able to find the product description with information on technical specifications etc. If you are looking for a manual for a specific product, you can get in contact with us at info@cinegearpro.co.uk and we will be able to help.
- Do you offer educational or charity discounts?
For any educational or charity discounts, please get in contact with us at info@cinegearpro.co.uk.
- How can I find my order number?
Your order number can be found in the order confirmation email.
- How can I get my VAT receipt?
Once the order has been confirmed, you will receive a VAT invoice in another email straightaway along with your confirmation email. If you are unable to find this, you can always contact us at info@cinegearpro.co.uk.
