Designed for Every Situation
When attached to your camera, the size and weight of your monitor matters. We shaved F5 Pro V4 down to just 245g and added 1/4-20 screw mounts top, bottom and right for ease of cage, adaptor rigging, and tilt arm. There are an F970 battery plate and an install/ power kit on the back of the monitor, the install/ power kit can power and install the external equipment, like wireless transmitter, LED light and others which equipped with Sony F970 battery plate. F5 Pro V4 is compatible with most cameras and HDMI-ready devices and is the perfect companion for the shooters that are always on the go.

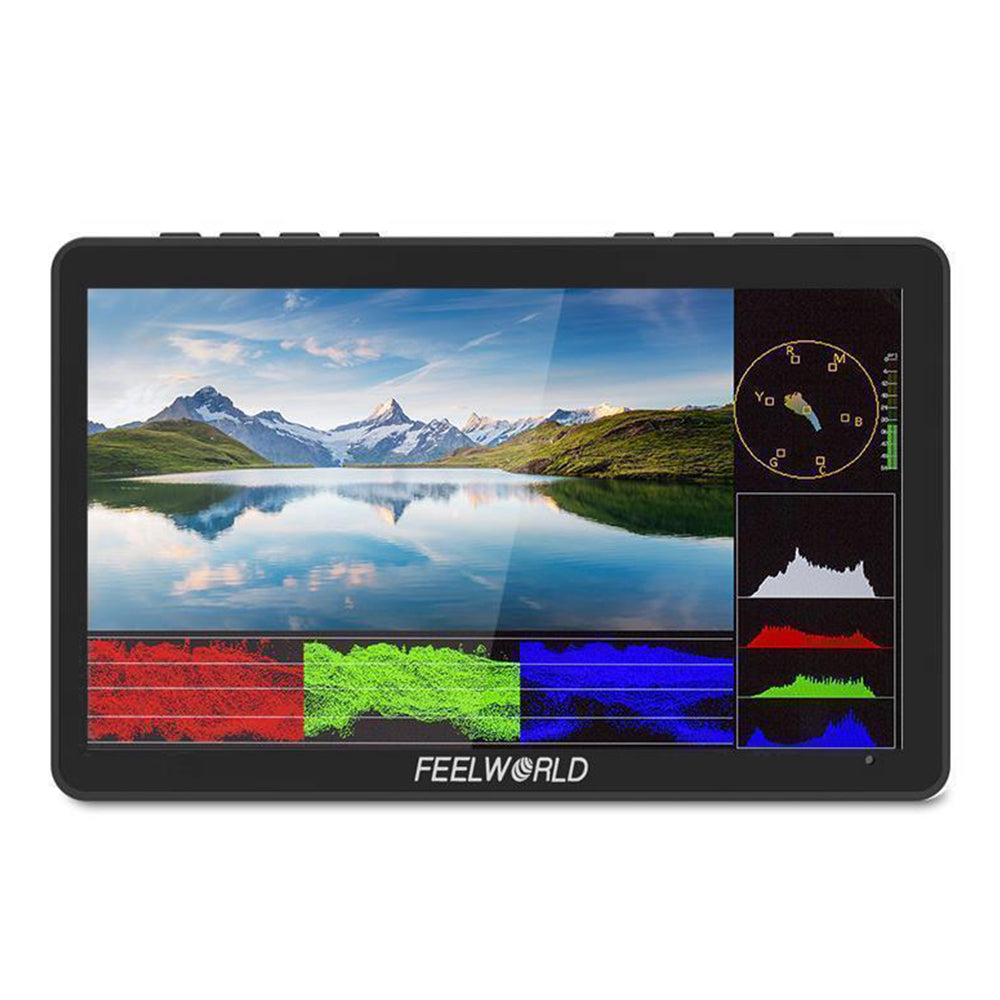

6" LCD, 1920x1080 Resolution
High resolution, brighter full of colors
F5 Pro V4 provides a sharp image, ideal for focus pulling and image analysis on set and in the field. With native 1920x1080 high resolution and 16:9 display, 450cd/m2 brightness, 1000:1 contrast ratio, delivers excellent detail, so you can enjoy sharper and richer colors image. The wide viewing angle of IPS 160 degrees is convenient for monitoring from multiple angles. FEELWORLD follows the standard of REC-709 and calibrates each monitor so that it can eliminate the trouble of color cast.
Easy Touchscreen Controls, Freely Zoom In and Out
Adopt full touch screen control, you can easily and intuitively zoom in and Out of your shot with the pinch-to-zoom gesture.
All Control At Your Fingertips
Use simple tap and swipe gestures to make adjustments!
The built-in monitor is also an interactive touchscreen that makes setting up the F5 Pro V4 incredibly intuitive. All of the functions are at your fingertips, allowing you to use simple tap and swipe gestures to change function settings. When you need to turn off the touch screen function to prevent misuse, you can turn it off in the menu setting function.
Touch Screen Operating Instruction
1. When the monitor and touch are both on, continuously click the screen twice to enter the main menu. 2. Swipe up from the bottom of the screen to open the shortcut menu and click on the corresponding menu to open or set the corresponding function. Double-click the shortcut menu function and select the function setting with the "<" or ">" key. 3. On the left side of the screen (1/2 split screen), you can directly adjust the brightness of the screen backlight; on the right side of the screen (1/2 split screen), you can directly adjust the volume. 4. Click any space beside menu to exit the menu.

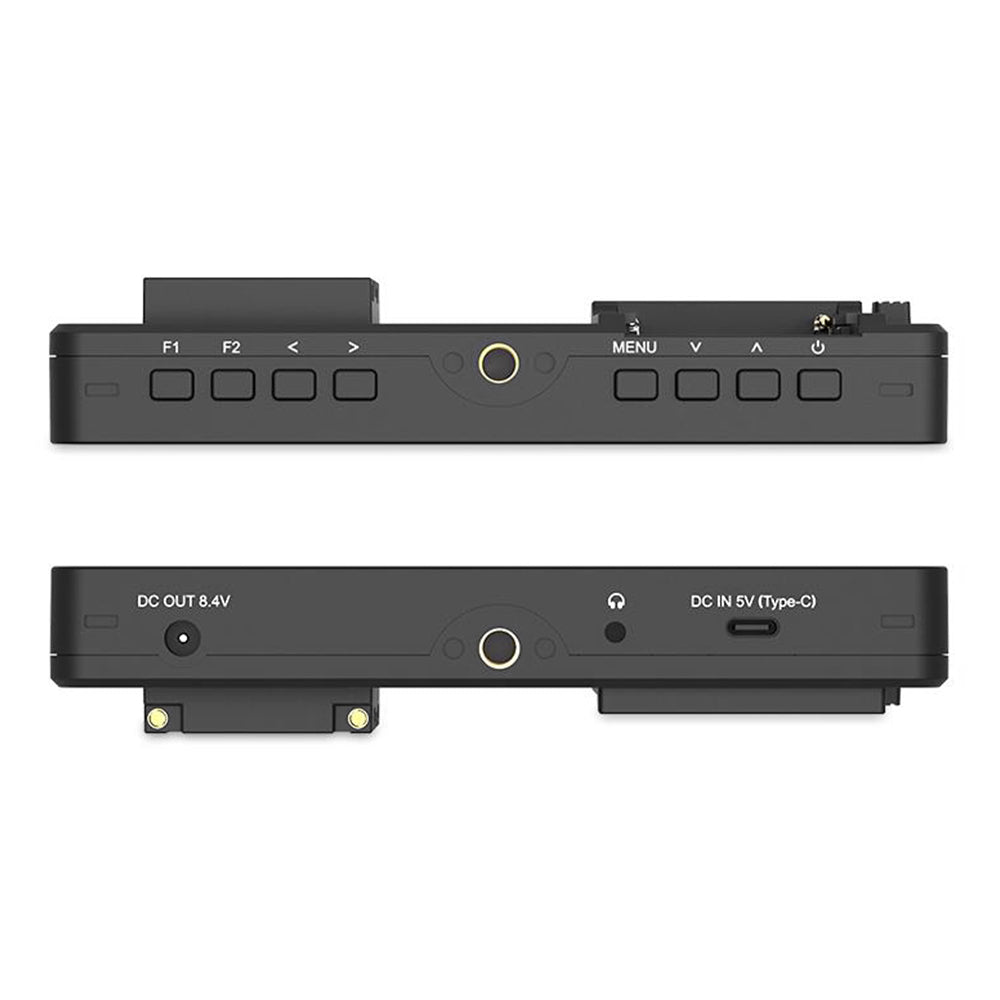

Intuitive Controls and Menus
You can touch the screen or physical buttons to browse the menu and set functions. F5 Pro V4's key distribution design is simple and easy to operate. At the top of the monitor, there are 2 custom function buttons, you can set them as commonly used functions. You can also set the shortcut function of the left and right keys directly in the menu setting function, which can be set to backlight adjustment or volume adjustment, directly press "﹤" to decrease the value; directly press "﹥" to increase the value. And the monitor will automatically save the parameters you have previously set, and keep the original settings when you turn it on next time. It does not need to be reset, which is convenient and simple.

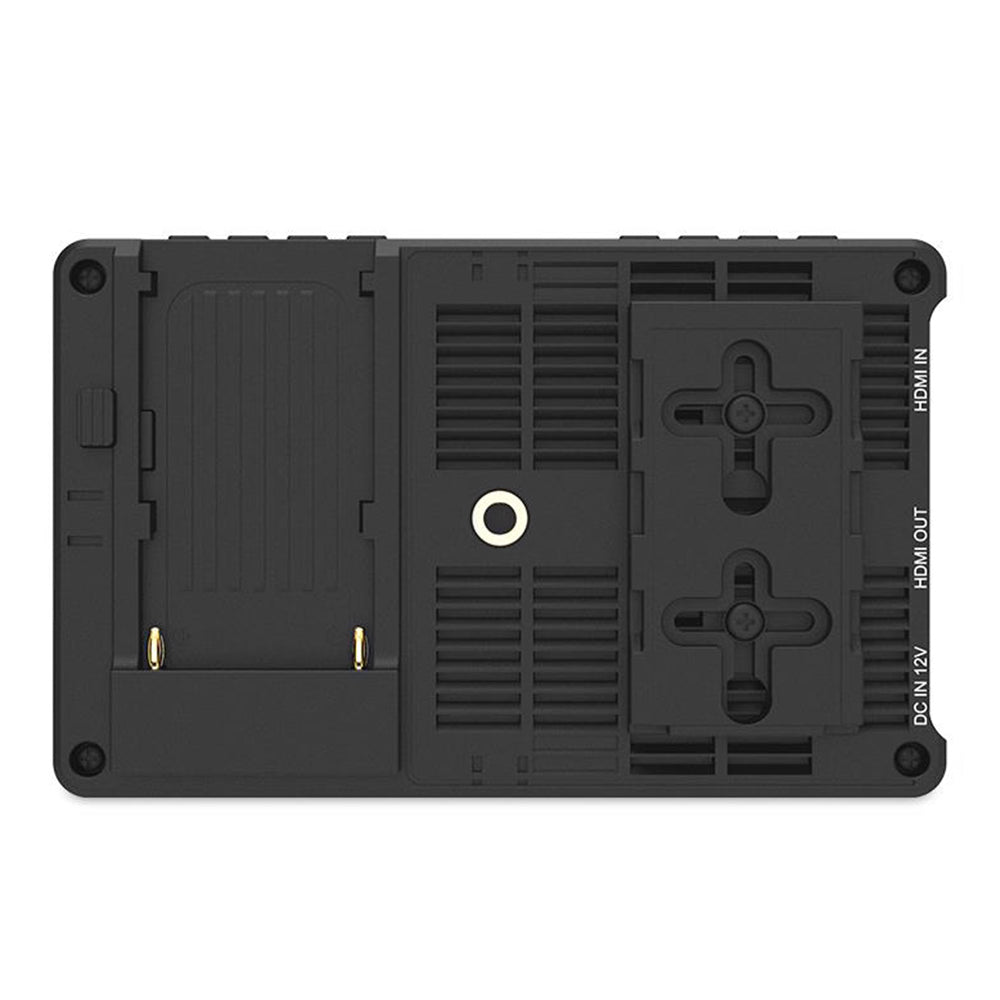

Innovative External Install and Power Design
Simplify your photography equipment
A Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmitter, LED light, video converter and others which can be powered by Sony F970 battery. This innovative external power supply design reduces the need for photographers to connect to external wireless transmission, LED light and other equipment, greatly saving the space occupied by the equipment and reducing the weight of photography equipment. The kit has two cross slots, you can adjust the position of the external device by loosening the screws. When you don't need the kit, you can directly loosen the screws to remove the kit.

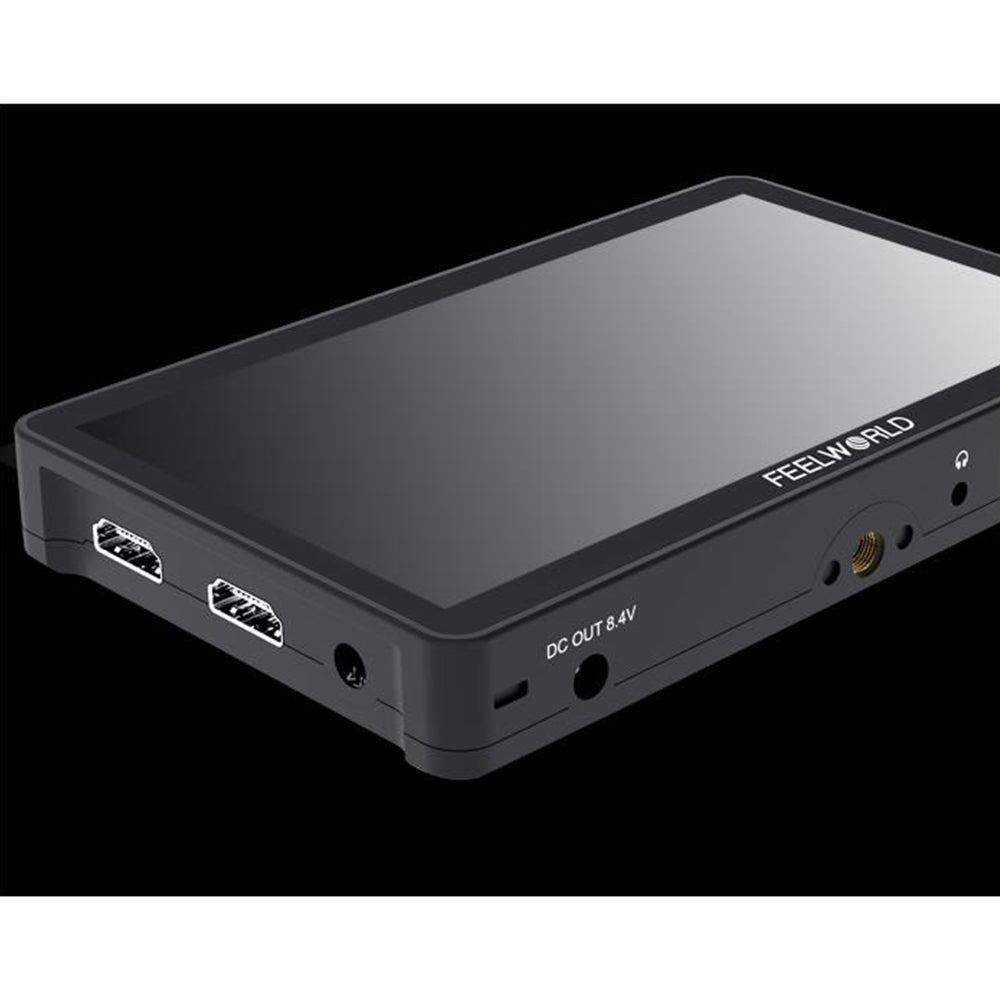

4K HDMI Input & Loop Output
The F5 Pro V4 has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality. Plus, you can monitor audio using the 3.5mm stereo headphone jack.
HDMI Output Application

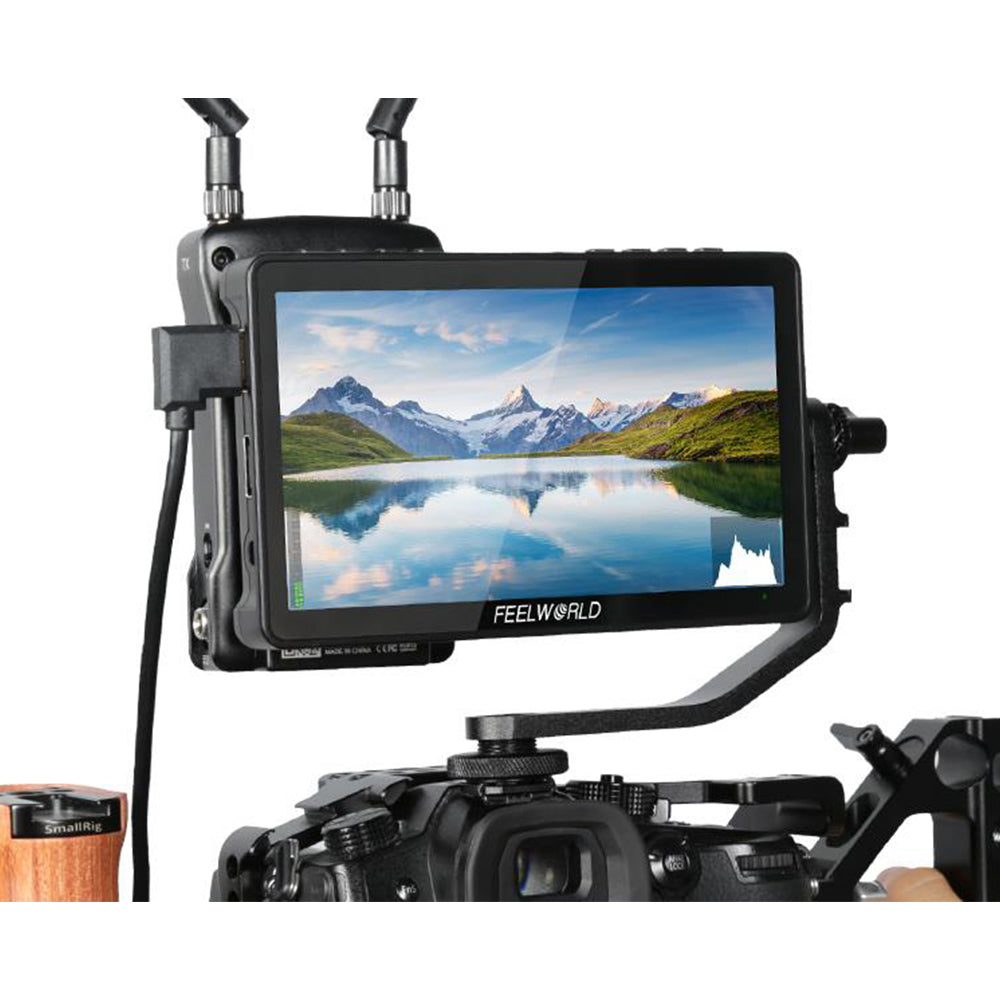

Connect to Wireless Transmitter
Transmission to film crew director monitoring at the same time. Without the cable more flexible to transition between scenes effortlessly for outdoor shooting.
Connect to Director Monitor
Display live picture on multiple displays simultaneously.
Power Your DSLR or Mirrorless Camera
The F5 Pro V4 is an ideal camera-top monitor for DSLR and mirrorless camera shooters. Because the F5 Pro V4 provides auxiliary power out; allowing shooters to power their cameras. With a battery adapter cable (Optional), the F5 Pro V4 extends camera run-time, while providing a more usable display.
Multiple Power Supply Ways
In addition to the power supply through the F970 battery plate and 12V DC power input (can be using 12V/1.5A adapter), it also supports 5V Type-C input, which can be powered by mobile phone charger or power bank. (At least 5V/2A)
True Colour · Professional Colour Calibration
Use Rec.709 colour standard
FEELWORLD uses the professional Rec.709 HD colour standard, and uses the colour calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate colour reproduction easily, do not distort the colour, show the real image when you shooting video.
FEELWORLD uses the professional Rec.709 HD colour standard, and uses the colour calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate colour reproduction easily, do not distort the colour, show the real image when you shooting video.
Accurate Colour Reproduction
FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent colour space, advanced image processing technology, so that the image clearly presented, the colour is extremely natural, to ensure accurate colour reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.
Have Professional Tools for Framing, Focusing and Exposing
The F5 Pro V4 is sure to add instant production value for mirrorless and DSLR shooters. Its bright touch screen, professional software tools, and convenient mounting is invaluable for shooters looking to do more with less gear. The monitor includes a plethora of useful features such as histogram, false color, focus assist, embedded audio, pixel to pixel, frame guides, nine grid etc.
Load Custom 3D LUTs to Recreate Film Looks!
Supports up to 32 Luts
Some cameras can output logarithmic colours pace to preserve the dynamic range, which is great for later post production, however when these files are viewed on a monitor they can look flat and washed out. 3D LUTs solve this problem because they allow you to apply a "look" to the monitor so you get an idea of how the finished images will look like when editing. You could use 4 built-in LOG to Rec.709 video or upload .cube files ( A single file must not exceed 7.9M, supports files with LUT_3D_SIZE of 16, 17, 32, 33, 64, 65.). F5 Pro V4 allows you to load internally up to custom LUTs (Up to 32 user files can be imported), looks or profiles at any time via the TYPE-C interface to USB . Slot and instantly select between them, maintaining creative intent, always.
Accurate waveform monitoring
Save your budget
When you need to analyze image quality more accurately than simply looking at the picture then use F5 Pro V4's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. F5 Pro V4 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Convenient Mounting - Tilt Arm
Every F5 Pro monitor will ship with a cold shoe mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.
• Allows the F5 Pro V4 monitor to rotate 360 degrees for viewing convenience • Secure and lightweight mounting via shoe mount or 1/4"-20 thread
• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.
• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.

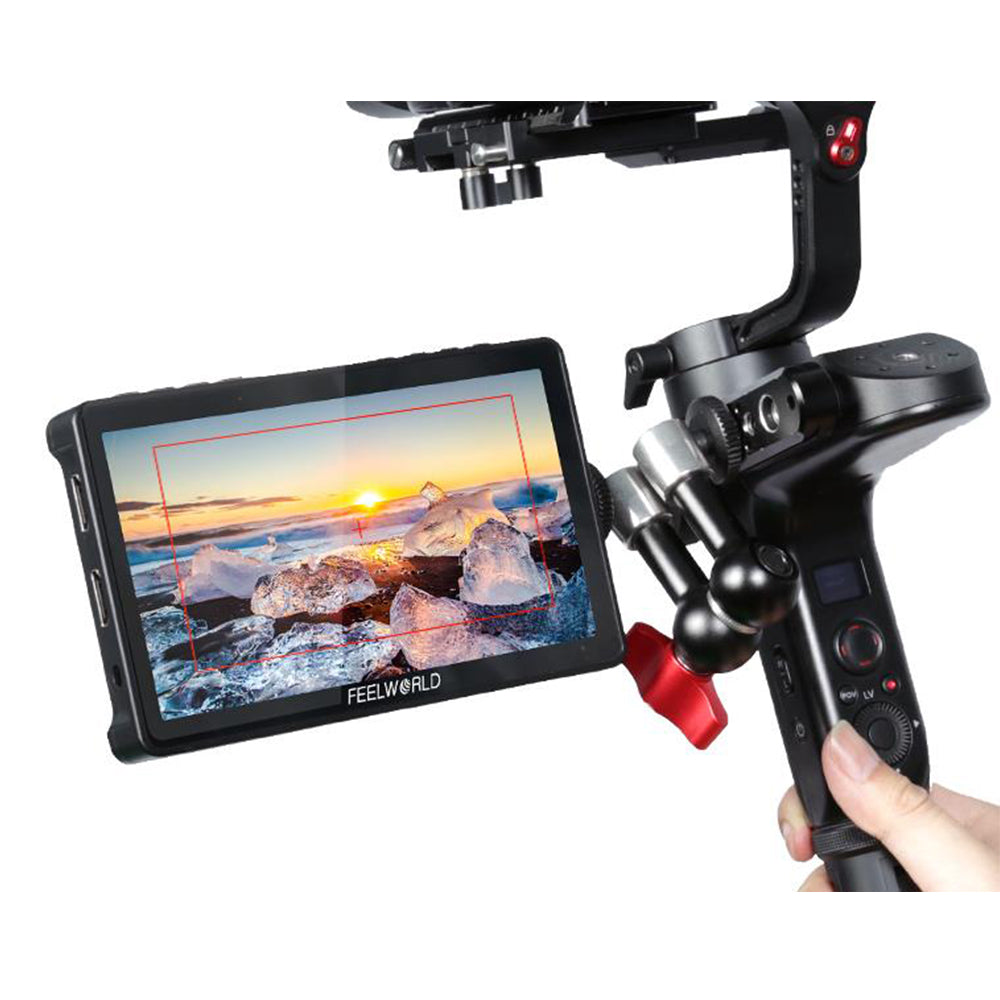

Flexible Install Both on Camera and Gimbal
To convenient the various angles monitoring
F5 Pro V4 features standard 1/4" mount points (top, bottom, right, middle back) for attaching it to cameras and rigs. Not only you can install it on a monitor through tilt arm, but also you can mount it on a handheld stabilizer or securely attach it to the top of your camera as the ultimate HD viewfinder! If you install it on the bottom of the device, you can also combine the image flip function to maintain the correct orientation of the screen!
Portable Sunshade, Easy Install
The F5 Pro V4 monitor is equipped with a sunshade, which allows the photographer to focus more on the video and avoid the interference of strong light, providing a better visual experience. The installation process is simple and fast, which is very suitable for outdoor shooting.
Features:
• High Resolution: Full HD 1920x1080,High Contrast: 1000:1, High Brightness: 500cd/m², 160° wide viewing angles IPS Panel
• This innovative external power supply design reduces the need for photographers to connect to external wireless transmission, LED light and other equipment
• Provides auxiliary power out; allowing shooters to power their cameras
• Histogram
• Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)
• False Colors
• Zebra Exposure
• Nine Grid
• Scan Mode (Under Scan, Over Scan)
• Zoom (4x,9x,16x)
• Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
• Pixel to Pixel
• Center Marker
• Safe Area (80%,85%,90%,93%,96%,2.35:1)
• Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
• Marker Color (Red,Green,Blue,White,Black）
• Check Field (Red/Green/Blue/Mono)
• Image Flip (H, V, H/V)
• Image Freeze
• Zoom All (0~100 adjustable)
• U/D & L/R Zoom (0~100 adjustable)
• Color Temperature Adjustment
Specifications:
Display Spec
| Model | F5 Pro |
| Screen Size | 5.5" IPS Touch Screen |
| Resolution | 1920x1080 pixels |
| Pixel Pitch | 0.0639 (H) x 0.0213 (W) mm |
| Aspect Ratio | 16:9 |
| Brightness | 500cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Input
| 1 X HDMI | HDMI |
| 1 X Type-C | 5V Type-C |
Output
| 1 X HDMI | HDMI |
| 1 X DC Output | DC Output |
Audio
| Audio | Stereo Headphone |
HDMI Input/ Output Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
|
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
|
General
| Input Voltage | DC7～24V |
| Power Consumption | ≤9W |
| Power Connector | DC |
| Working Temperature | -20°C~50°C |
| Storage Temperature | -30°C~60°C |
| Install Way | ¼-20 thread points |

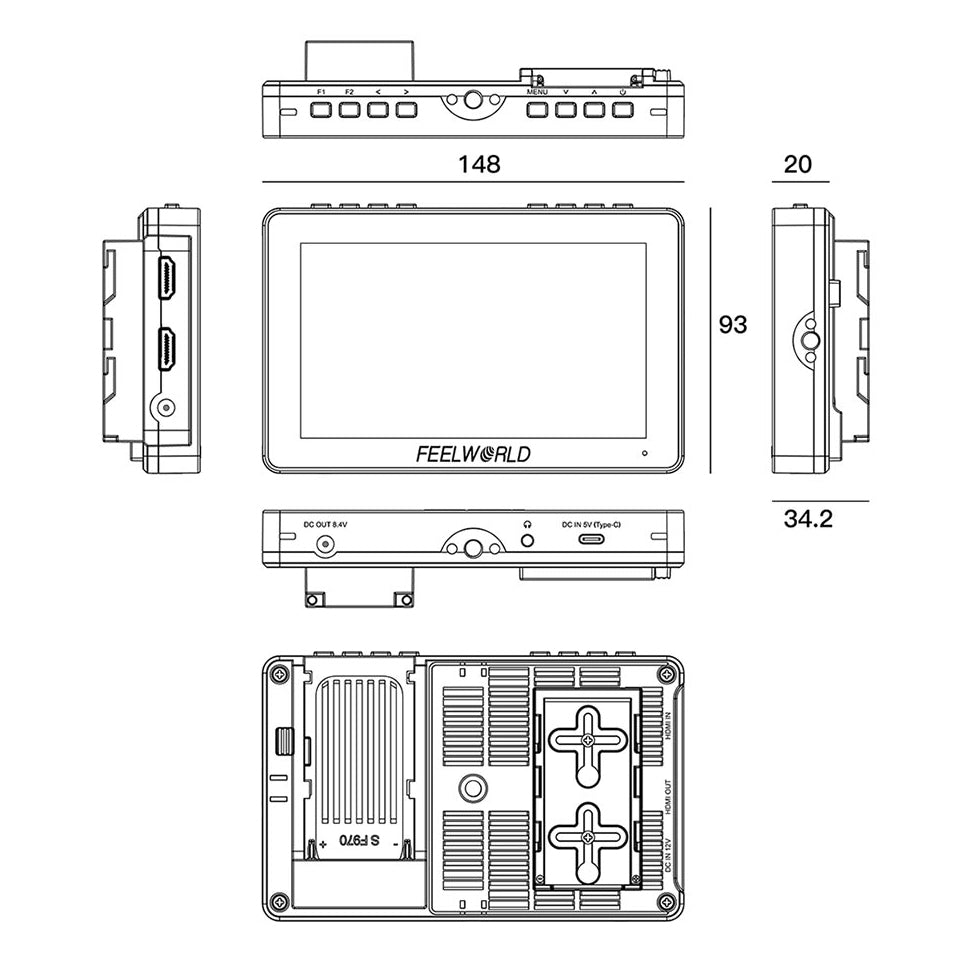

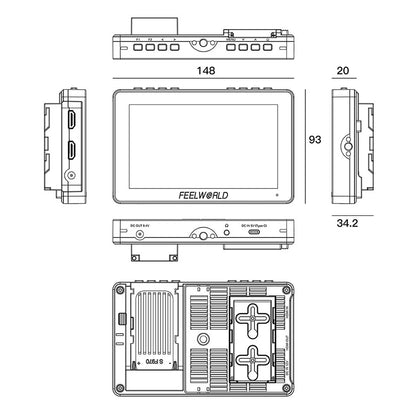

| Unit Size | 148Lx93Hx20D (mm) |
| Unit Weight | 245g |
Advanced Features
| • Brightness Histogram |
| • Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus) |
| • False Colors |
| • Zebra Exposure (1-100IRE adjustable) |
| • Check Field (Red, Green, Blue, Mono) |
| • Scan Mode (Under Scan, Over Scan) |
| • Anamorphic Mode (1.3x, 2.0x, 2.0x mag) |
| • Image Flip (H, V, H/V) |
| • Image Freeze |
| • Center Marker |
| • Screen Marker (80%,85%,90%,93%,96%, 2.35:1) |
| • Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1) |
| • Color Temperature Adjustment |
| • Nine Grid (Zoom one of the images to realize the full screen) |
| • Zoom (4X, 9X, 16X) |
| • Aspect Ratio |
| • Pixel to Pixel |
| • Zoom All |
| • U/D Zoom |
| • L/R Zoom |

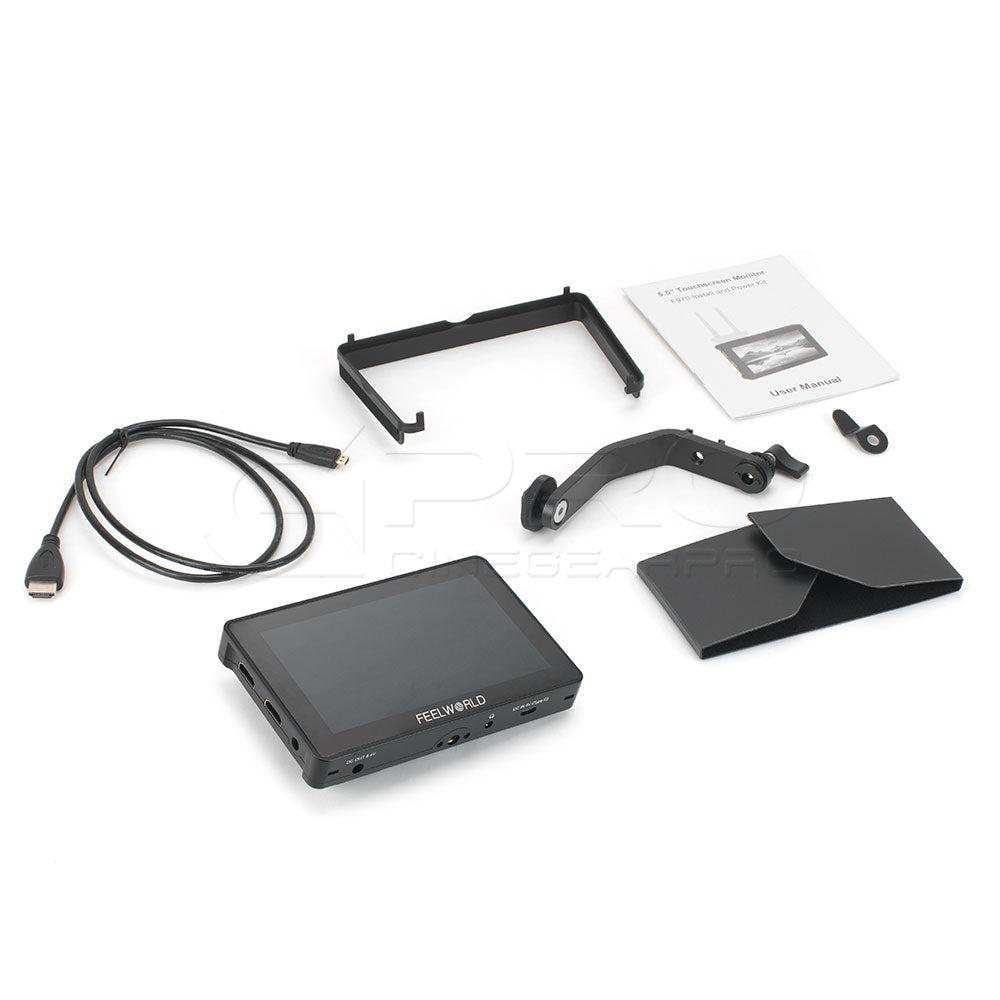

Package Contents:
1× Micro HDMI Cable
1× Sunshade
1× Tilt Arm
1× Disassemble Wrench
1× Manual
