TOP ACCESSORY MOUNTING
For mounting accessories such as an articulating arm, monitor bracket, etc.
-
ADJUSTABLE DESIGN
Add or remove counterweights to achieve the perfect balance while filming.
-
BALANCED AND MODULAR SETUPS
Located on the top of the helmet are 5 flexible installations for various accessories.
-
SIDE ACCESSORY MOUNTING
3 1/4”-20 screw holes with locating points for mounting attachments such as a rosette adapter, etc..
-
LIGHTWEIGHT DESIGN
The helmet shell is made out of carbon fiber materials, making it Lightweight, portable and scratch resistant.
-
FRONTAL BASIC SETUP
Designed for Quick release mounting. Supports upside-down & back-facing installations as well as adjustable shooting views. Simple and effective.
-
FRONTAL ADVANCED SETUP
The quick release mount supports distance and angle adjustments both vertically and horizontally. Supports front-facing & upside-down installations.
-
SIDE SETUP
The side quick release mount supports front and back facing installations as well as adjustable shooting views. More flexibility equals more creativity.
-
TOP BASIC SETUP
Install the rosette mounting arms to the side accessory mounts. Install the quick release plate to the rosette mounting arms for mounting the camera. Keep the lens’ view parallel to the operator’s view.
-
TOP ADVANCED SETUP
Install the rosette mounting arms to the side accessory mounts. Install the 15mm rod adapter via the rosette mounting plate. Install the camera onto the quick release plate onto the mounting plate via the rods. Keep the lens’ view parallel to the operator’s view.
-
MORE ACCESSORIES ON THE WAY
More accessories with 1/4”-20 and 3/8”-16 screw holes will be release soon to effectively help with the helmet’s weight distribution and to also support productive operation.
Top
Built-in 1/4″-20 and 3/8″-16 screw holes for mounting accessories on top.
Side Bottom
Built-in 1/4″-20 and 3/8″-16 screw holes for mounting shoulder support accessories.
Features:
The Hermit POV Support System is the all in one solution for achieving professional first person point of view footage. The core of the system is a lightweight, scratch resistant, carbon fibre helmet.
The helmet supports various options for rigging cameras, external power, and other accessories such as wireless video transmitters. The Hermit utilizes two articulating rosette based mounting arms which can support compact cameras both in front of and in back of the helmet.
Two different mounting plates and secondary rosette extender arms allow for additional points of articulation if needed to achieve more complicated camera positioning or better balancing of less common setups.
The adjustable battery plate in the back of the helmet allows you to power your camera and accessories via Gold Mount or V-Mount batteries.
The battery plate connects to a Balance Module which can be adjusted further or closer to the helmet to perfectly counter the weight of the camera when mounted in the front.
Additional counter weights are included to ensure perfect balance and comfortable operation.
Multiple Cold Shoe, 1/4 “-20 and 3/8”-16 mounting points are located on the front, top and side of the Hermit which accommodates most accessories while offering increased flexibility for weight distribution.
The included 15mm Rod Adapters and multiple length 15mm rods can be used to mount cameras to the system via rods which allows for faster transitioning for rod based camera builds.
Featuring five different mounting options for the front, back and side of the helmet, the Hermit POV Support System is one of the most advanced first person point of view shooting solutions currently available.

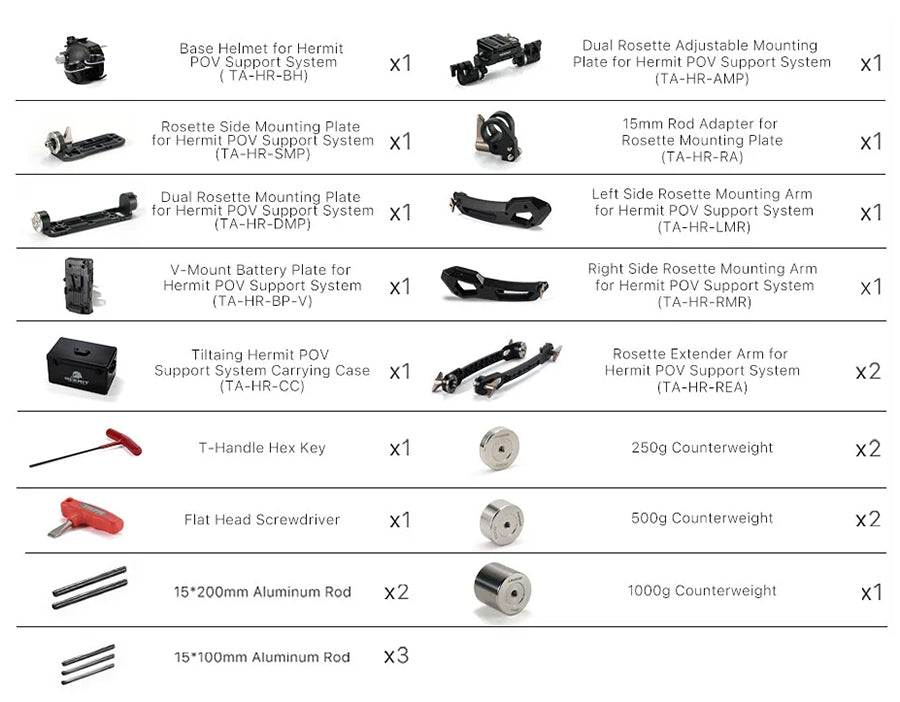

Package Contents:
Basic Kit:
1x Rosette Side Mounting Plate for Hermit POV Support System(TA-HR-SMP)
1x Dual Rosette Mounting Plate for Hermit POV Support System(TA-HR-DMP)
1x Dual Rosette Adjustable Mounting Plate for Hermit POV Support System(TA-HR-AMP)
1x Quick Release Plate Receiver for Adjustable Mounting Plate(TA-HR-QRPR)
1x Quick Release Plate for Adjustable Mounting Plate(TA-HR-QRP)
2x Silicone Protection Pad(5.01.RHR-T01-006.00)
1x 15mm Rod Adapter for Rosette Mounting Plate(with 15*100 mm Aluminum rod) (TA-HR-RA)
2x 250G Counterweight(TA-HR-CW-250)
2x 500G Counterweight(TA-HR-CW-500)
1x 1000G Counterweight(TA-HR-CW-1000)
1x Left Side Rosette Mounting Arm for Hermit POV Support System(TA-HR-LMR)
1x Right Side Rosette Mounting Arm for Hermit POV Support System(TA-HR-RMR)
2x Rosette Extender Arm for Hermit POV Support System（TA-HR-REA）
1x Screw Kit for Hermit POV Support System（TA-HR-SK）
1x Multi-head Screwdriver-Red(4.04.199-000000-068.00)
1x Aluminum Plate Label for Multi-head Screwdriver (4.01.199-000000-069.00)
1x Allen Key(4.04.199-000000-159.00)
1x Hermit POV Support System Carrying Case(TA-HR-CC)
1x Foam Padding for Hermit POV Support System – M (TA-HR-HFP-M)
1x V Mount or Gold Mount Battery Plate for Hermit POV Support System
Basic Kit + 260Wh Battery:
1x Hermit POV Support System Basic Kit
1x CGPro 260WH V-Mount Battery (Weight:1353g)
