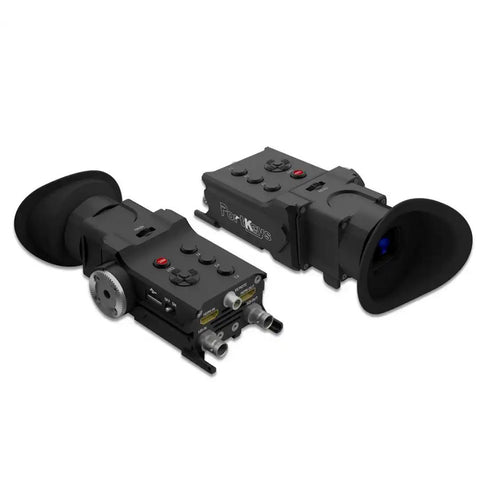

PORTKEYS OEYE-3G Electronic Viewfinder 3G-SDI 4K HDMI Support (B-Stock)
- Brand: PortKeys
- Product code:
If you're in need of a display that can help simplify your RED camera rig, add a high-resolution OLED EVF with RED camera menu control with this OEYE 4K 3G-SDI/HDMI EVF from PORTKEYS. The OEYE electronic viewfinder offers a bright, sharp OLED micro-display with a comfortable eyepiece to view your camera video, and it also allows you to view and control the menu navigation and overlays on your RED DSMC2 camera right from the EVF.
Video connectors include HDMI input and loop output that support resolutions up to DCI 4K24, and 3G-SDI input and loop output that support resolutions up to 1080p60, so you can preview your cinema video in high-resolution as well as send it to external displays. The OEYE connects to the camera control port using one of the included LEMO-type control cables, and it uses RCP (REDLINK Command Protocol) for communication.
The durable aluminum chassis is lightweight at only 14 oz, and it features mounting threads on the bottom and an ARRI-style rosette on the side that offer multiple mounting options and 360° rotation. The unit also features cooling fans that synchronize with the RED camera fan mute feature when silence is required on set.
Features：
- 0.71″, 1920 x 1080 micro-OLED EVF display with comfortable eyecup
- 200 cd/m² brightness, 100,000:1 contrast ratio, 8-bit color
- HDMI input and output support resolutions up to DCI 4K24
- 3G-SDI input and output support resolutions up to 1080p60
- 5-pin LEMO-type remote control output port
- Built-in adjustable +8 to -3 diopter
- Fan Synchronization Mute in Rec mode when work with RED camera
- Rosette mount on the side
- Durable aluminum construction
| BARCODE | 2101124 |
| CONDITION |
Excellent - items that have had light usage and show minor wear and tear. In some cases, they may have one or two noticeable marks or scratches, but they are still in overall excellent condition. 90% Learn More
|
|
PACKAGING
|
/
|
|
Product Name
|
PORTKEYS OEYE-3G Electronic Viewfinder 3G-SDI 4K HDMI Support
|
|
|
/ |
|
PACKAGE CONTENTS
|
1 x Power Cable (4-pin Aviation Connector – D-TAP)
1 x Camera Connection Cable (5-pin Aviation Connector – 5-pin Aviation Connector) 1 x Control Cable(4-pin LEMO – 3-pin Aviation Connector) 1 x OLED-RED Hub 1 x L-type Inner Allen Key Diameter 4.7mm 1 x 7-inch Safety Plastic Box 1 x SDI Cable 1 x Pipe Clamp 1 x Warm Prompt 1 x U Disk(Manual, 3D LUTs, Firmware Inside) |
| NOTES | Great Condition. No oringinal packaging. Light Signs Of Use. |
